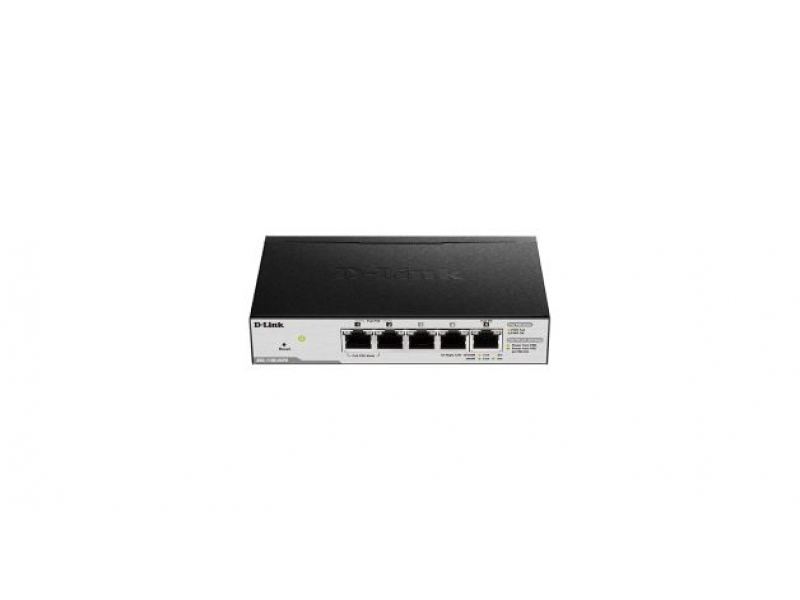

D-Link DGS-1100-05PD

DGS-1100-05PD Datasheet (eng)

Available to quote:

 DGS-1100-05PD

Request a Quote
SPECIFICATIONS
Interfaces
DGS-1100-05PD: 5-Port 10/100/1000MbE (RJ45) (2-Port PoE)
Performance
Switching Bandwidth

10 Gbit/s
Forwarding Rate

7.44 Mp/s
Layer 2 Features
MAC Address Table

2,000 entries
VLAN

IEEE 802.1Q: 32
Layer 2 Reliability

Not supported
Multicast
IGMP snooping: v1/v2
IGMP groups: 32
Multicast VLAN (MVR): Not supported
Multicast Routing: Not supported
Layer 3 features
IP Routing

Not supported
MPLS / VPN

Not supported
Security
Local AAA: Supported
RADIUS, TACACS+: Not supported
DHCP Server Not supported
DHCP Relay option82: Not supported
DHCP Snooping: Not supported
Loop detection: Supported
IP Source Guard: Not supported
Bandwidth Limit: Supported
Broadcast, multicast, unknown unicast suppression: Not supported
Management

Web-management
Environmental Conditions
Relative Humidity

0 to 90% (noncondensing)
Operating Temperature

0 to 40°C (32 to 104°F)
Power Supply
Power Supply Unit (PSU)
AC PSU:
Not supported
DC PSU:
Type: PoE (802.3at)
PoE (Power over Ethernet)
PoE (802.3af) (15 W per port): 2 (Ports 1 to 2)
PoE+ (802.3аt) (30 W per port): Not supported
Maximum power consumption

23.92 W
Acoustic noise

 0 dBA
Dimensions (HxWxD)

28 x 150 x 97 mm

(1.10 x 5.90 x 3.81 in)
Maximum Weight

0.38 kg (0.83 Ib)
Compatible expansion cards

Not supported
