| Interfaces | |
|

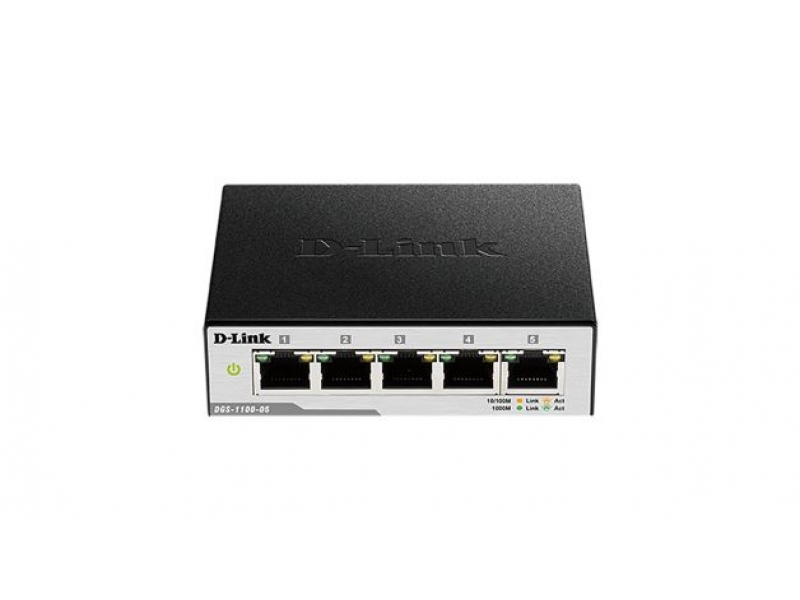

| DGS-1100-05: |
- 5-Port 10/100/1000MbE (RJ45)
|

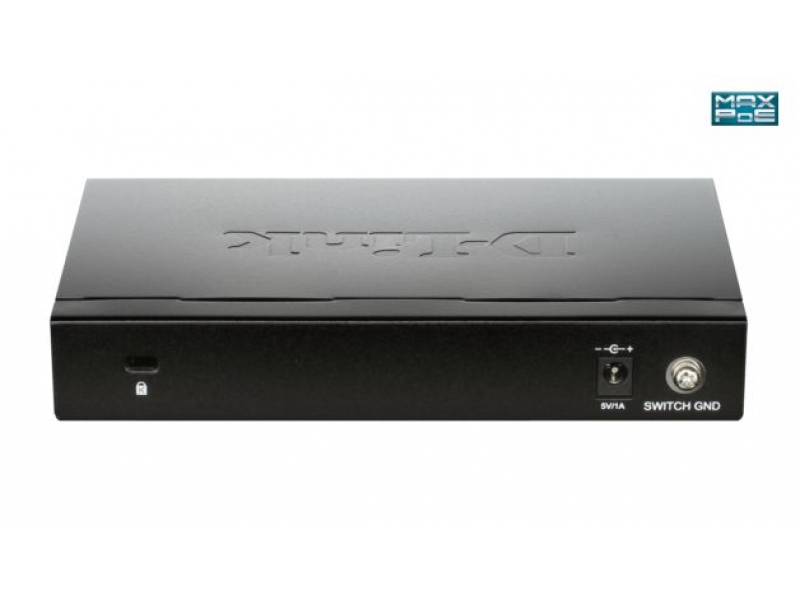

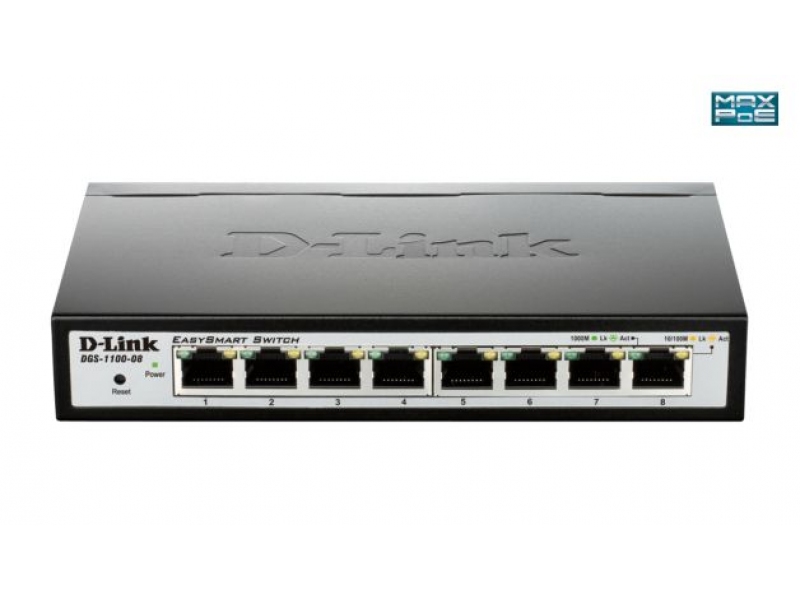

| DGS-1100-08: |
- 8-Port 10/100/1000MbE (RJ45)
|

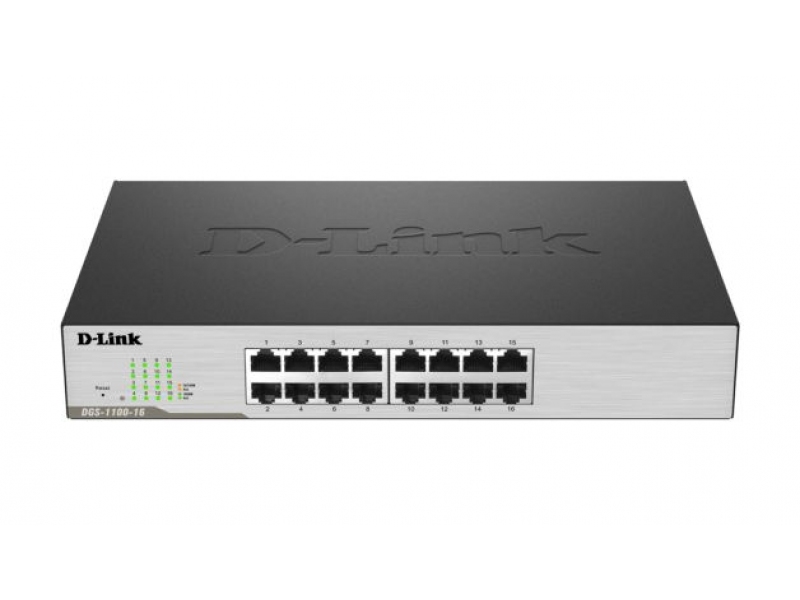

| DGS-1100-16: |
- 16-Port 10/100/1000MbE (RJ45)
|

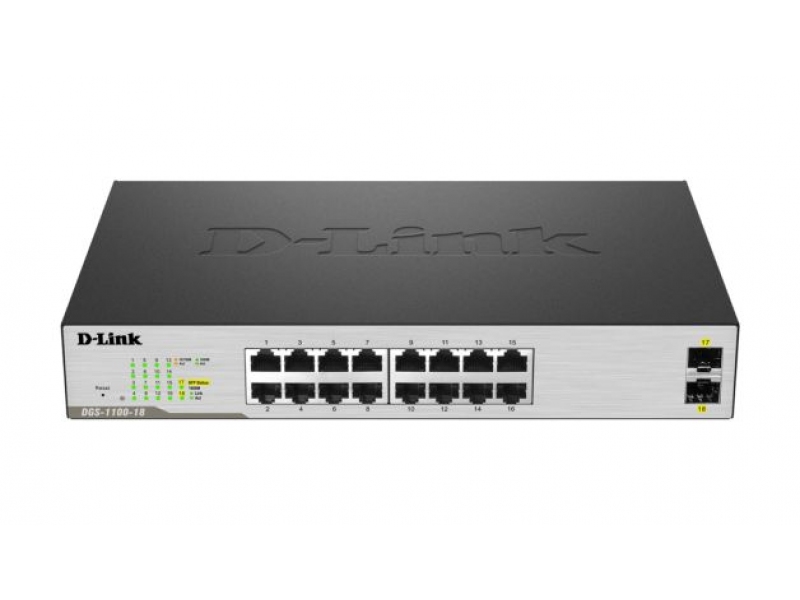

| DGS-1100-18: |
- 16-Port 10/100/1000MbE (RJ45);
- 2-Port 1GbE (SFP)
|

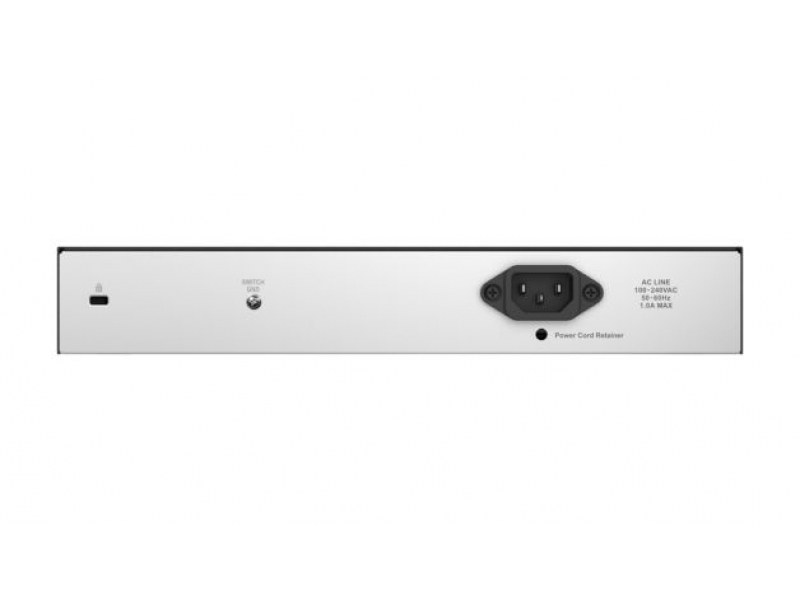

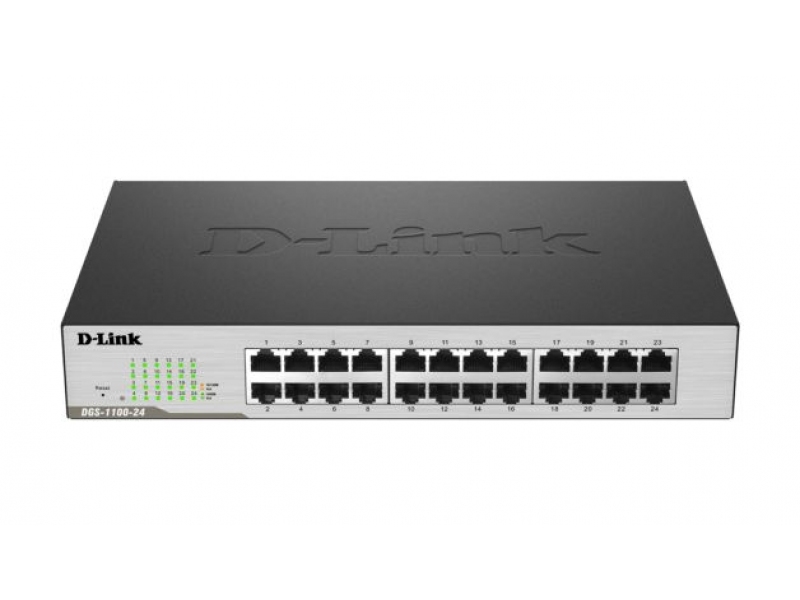

| DGS-1100-24: |
- 24-Port 10/100/1000MbE (RJ45)
|

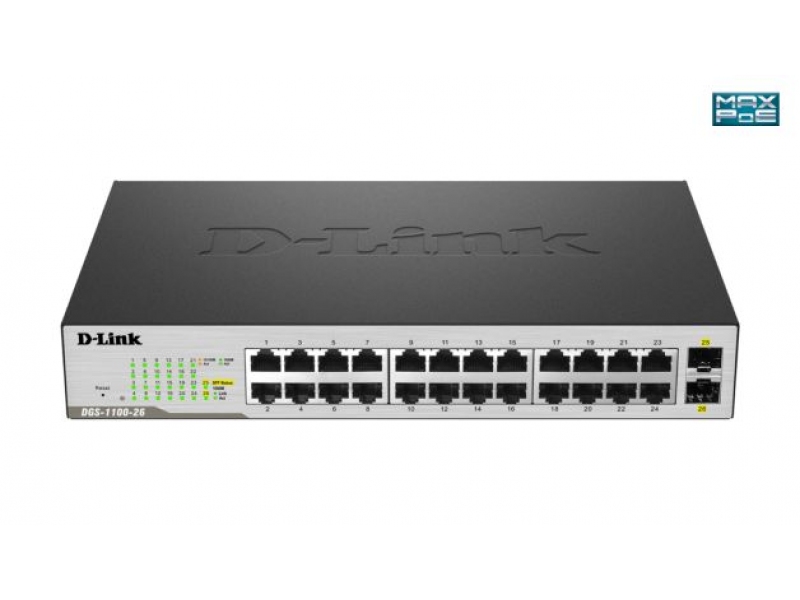

| DGS-1100-26: |
- 24-Port 10/100/1000MbE (RJ45);
- 2-Port 1GbE (SFP)
|

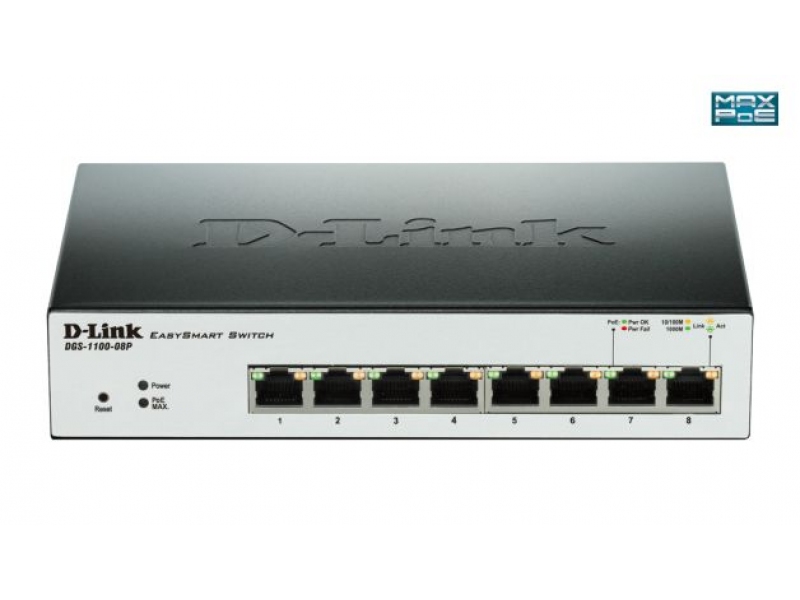

| DGS-1100-08P: |
- 8-Port 10/100/1000MbE (RJ45) PoE
|

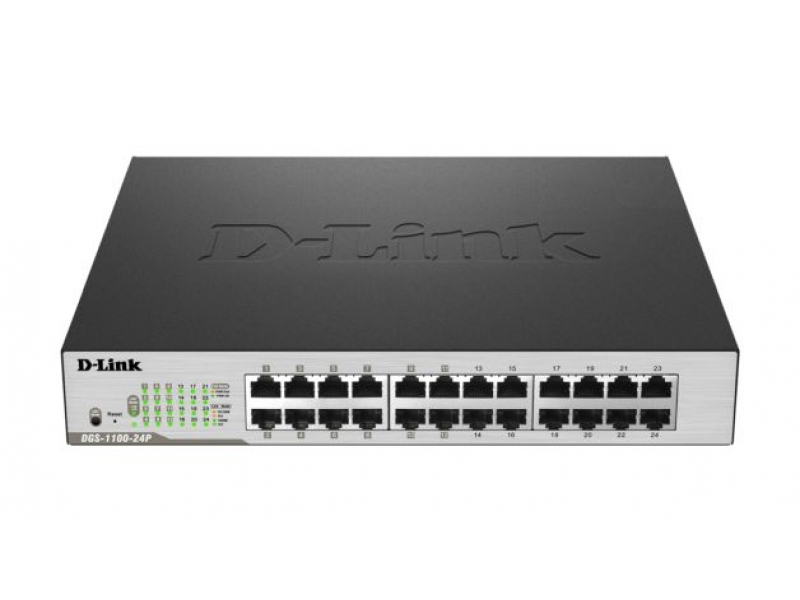

| DGS-1100-24P: |
- 24-Port 10/100/1000MbE (RJ45)
|
|
| Performance | |
| Switching Bandwidth |
| DGS-1100-05: |
10 Gbit/s |
| DGS-1100-08: |
16 Gbit/s |
| DGS-1100-16: |
32 Gbit/s |
| DGS-1100-18: |
36 Gbit/s |
| DGS-1100-24: |
48 Gbit/s |
| DGS-1100-26: |
52 Gbit/s |
| DGS-1100-08P: |
16 Gbit/s |
| DGS-1100-24P: |
48 Gbit/s |
|
| Forwarding Rate |
| DGS-1100-05: |
7.44 Mp/s |
| DGS-1100-08: |
11.9 Mp/s |
| DGS-1100-16: |
23.81 Mp/s |
| DGS-1100-18: |
26.79 Mp/s |
| DGS-1100-24: |
35.71 Mp/s |
| DGS-1100-26: |
38.69 Mp/s |
| DGS-1100-08P: |
11.9 Mp/s |
| DGS-1100-24P: |
35.71 Mp/s |
|
| Layer 2 Features | |
| MAC Address Table |
| DGS-1100-05: |
2,000 entries |
|
DGS-1100-08:
DGS-1100-08P:
|
4,000 entries |
|
DGS-1100-16:
DGS-1100-24:
DGS-1100-24P:
|
8,000 entries |
|
DGS-1100-18:
DGS-1100-26:
|
16,000 entries |
|
| VLAN |
| IEEE 802.1Q: |
|
DGS-1100-05:
DGS-1100-08:
DGS-1100-08P:
|
32 |
|
DGS-1100-16:
DGS-1100-18:
DGS-1100-24:
DGS-1100-26:
DGS-1100-24P:
|
128 |
|
| Layer 2 Reliability | STP/RSTP |
| Multicast | |
|
| IGMP snooping: |
v1/v2/v3 |
| IGMP groups: |
|
|
DGS-1100-05:
DGS-1100-08:
DGS-1100-08P:
|
128 |
|
DGS-1100-16:
DGS-1100-18:
DGS-1100-24:
DGS-1100-24P:
|
64 |
| Multicast VLAN: |
Not supported |
| Multicast Routing: |
Not supported |
|
| Layer 3 features | |
| IP Routing | Not supported |
| MPLS / VPN | |
| Not supported |
| Security | |
|
| Local AAA: |
Supported |
| RADIUS, TACACS+: |
Not supported |
| DHCP Server |
Not supported |
| DHCP Relay option82: |
Not supported |
| DHCP Snooping: |
Not supported |
| Loop detection: |
Not supported |
| IP Source Guard: |
Not supported |
| Bandwidth Limit: |
Supported |
| Broadcast, multicast, unknown unicast suppression: |
Supported |
|
| Management | |
| Web-management; LLDP; SNMP v2 |
| Environmental Conditions | |
| Relative Humidity | 0 to 95% (noncondensing) |
| Operating Temperature |
|
DGS-1100-05:
DGS-1100-08:
DGS-1100-08P:
|
0 to 40 °C (32 to 104 °F) |
|
DGS-1100-16:
DGS-1100-18:
DGS-1100-24:
DGS-1100-24P:
|
-5 to +50 °C (23 to 122 °F) |
|
| Power Supply | |
| Power Supply Unit (PSU) |
| AC PSU: |
| Type: |
|
DGS-1100-05:
DGS-1100-08:
DGS-1100-08P:
|
External |
|
DGS-1100-16:
DGS-1100-18:
DGS-1100-24:
DGS-1100-24P:
|
Built-in |
| Quantity: |
1 |
| Rated voltage range: |
100 to 240 VAC, 50-60 Hz. |
| DC PSU: |
|
| Not supported |
|
|
| PoE (Power over Ethernet) |
| Supported by: |
DGS-1100-08P
DGS-1100-24P
|
| PoE (802.3af) (15W per port): |
| DGS-1100-08P: |
4 ports |
| DGS-1100-24P: |
6 ports |
|
| PoE+ (802.3аt) (30 W per port): |
| DGS-1100-08P: |
2 ports |
| DGS-1100-24P: |
3 ports |
|
| Maximum power consumption | |
|
| DGS-1100-05: |
3.42 W |
| DGS-1100-08: |
4.94 W |
| DGS-1100-16: |
9.31 W |
| DGS-1100-18: |
14.88 W |
| DGS-1100-24: |
13.94 W |
| DGS-1100-26: |
19.04 W |
| DGS-1100-08P: |
77.9 W |
| DGS-1100-24P: |
128.3 W |
|
| Acoustic noise | |
|
|
DGS-1100-05:
DGS-1100-08:
DGS-1100-16:
DGS-1100-18:
DGS-1100-24:
DGS-1100-26:
DGS-1100-08P:
|
0 dB |
| DGS-1100-24P: |
44.5 dB |
|
| Dimensions (HxWxD) | |
|
| DGS-1100-05: |
28 x 100.5 x 82
(1.10 x 3.95 x 3.22 in)
|
| DGS-1100-08: |
28 x 145 x 82 mm
(1.10 x 5.70 x 3.22 in)
|
|
DGS-1100-16:
DGS-1100-18:
DGS-1100-26:
DGS-1100-08P:
DGS-1100-24P:
|
44 (1U) x 280 x 180 mm
(1.73 (1U) x 11.02 x 7.08 in)
|
|
| Maximum Weight | |
|
| DGS-1100-05: |
0.23 kg (0.50 lb) |
| DGS-1100-08: |
0.34 kg (0.74 lb) |
| DGS-1100-16: |
1.53 kg (3.37 lb) |
| DGS-1100-18: |
1.56 kg (3.43 Ib) |
| DGS-1100-24: |
1.63 kg (3.59 Ib) |
| DGS-1100-26: |
1.66 kg (3.65 Ib) |
| DGS-1100-08P: |
0.43 kg (0.74 lb) |
| DGS-1100-24P: |
2.15 kg (3.59 Ib) |
|
| Compatible expansion cards | |
| Not supported |
