| Interfaces | |
|

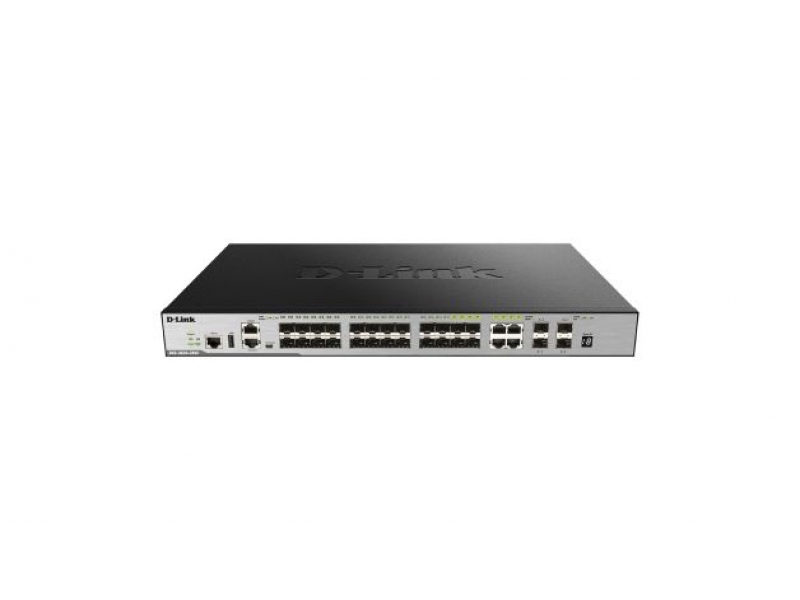

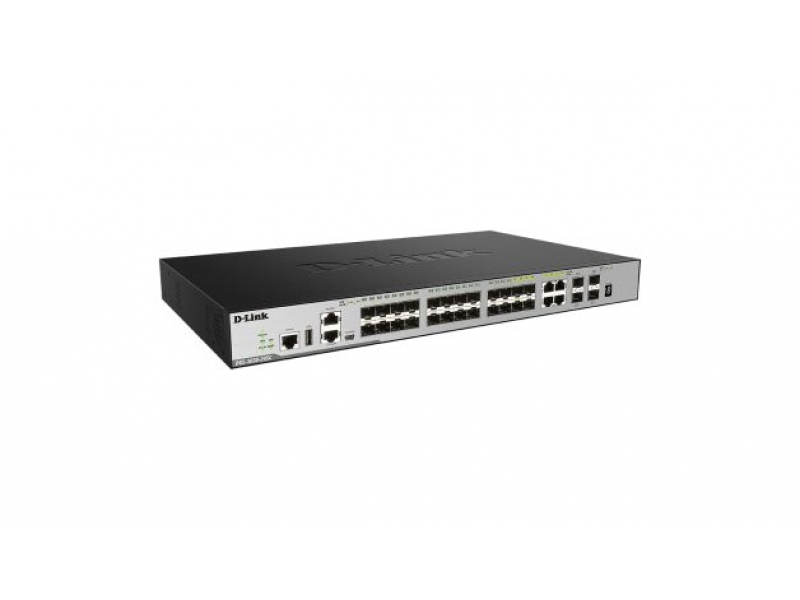

| DGS-3630-28SC: |
- 20-Port 1GbE (SFP);
- 4-Port combo 1GbE (RJ45/SFP);
- 4-Port 10GbE (SFP+);
- 1-Port console (RJ45/miniUSB);
- 1-Port out-of-band management 10/100/1000MbE (RJ45);
- 1-Port alarm for external sensors (RJ45);
- 1-Port USB
|

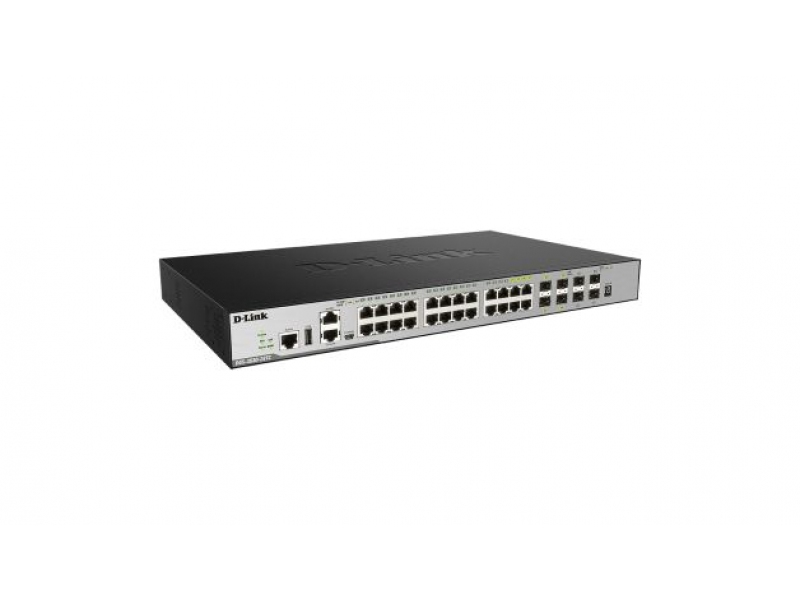

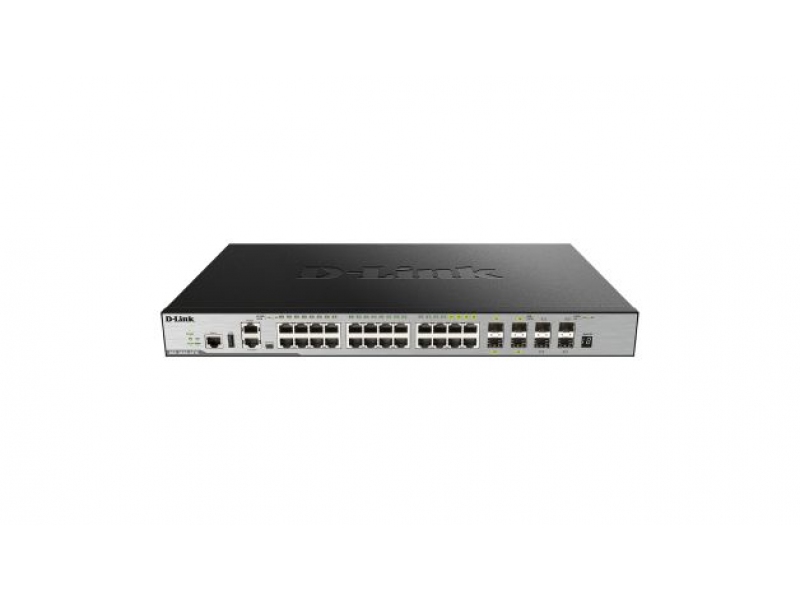

| DGS-3630-28TC: |
- 20-Port 10/100/1000MbE (RJ45);
- 4-Port combo 1GbE (RJ45/SFP);
- 4-Port 10GbE (SFP+);
- 1-Port console (RJ45/miniUSB);
- 1-Port out-of-band management 10/100/1000MbE (RJ45);
- 1-Port alarm for external sensors (RJ45);
- 1-Port USB
|

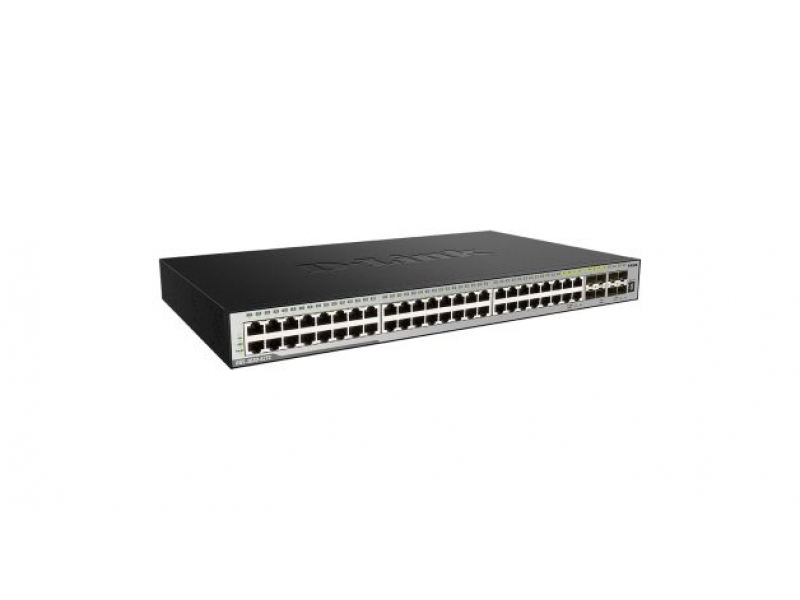

| DGS-3630-52TC: |
- 44-Port 10/100/1000MbE (RJ45);
- 4-Port combo 1GbE (RJ45/SFP);
- 4-Port 10GbE (SFP+);
- 1-Port console (RJ45/miniUSB);
- 1-Port out-of-band management 10/100/1000MbE (RJ45);
- 1-Port alarm for external sensors (RJ45);
- 1-Port USB
|
|
| Performance | |
| Switching Bandwidth |
|
DGS-3630-28SC:
DGS-3630-28TC:
|
128 Gbit/s |
| DGS-3630-52TC: |
176 Gbit/s |
|
| Forwarding Rate |
|
DGS-3630-28SC:
DGS-3630-28TC:
|
95.24 Mp/s |
| DGS-3630-52TC: |
130.95 Mp/s |
|
| Layer 2 Features | |
| MAC Address Table | 68,000 entries |
| VLAN | IEEE 802.1Q: 4094; GVRP; QinQ; VLAN Translation |
| Layer 2 Reliability | STP/RSTP/MSTP; ERPS (G.8032) |
| Multicast | |
|
| IGMP snooping: |
v1/v2/v3 |
| IGMP groups: |
4,096 |
| Multicast VLAN (MVR): |
Supported |
| Multicast Routing: |
PIM-Snooping; PIM-DM (EI-Image); PIM-SM (EI-Image); PIM-SSM (EI-Image); PIM-SDM (EI-Image); MSDP (EI-Image) |
|
| Layer 3 features | |
| ARP Table | 32,000 entries |
| Routing Table |
| IPv4: |
32,000 routes |
| IPv6: |
32,000 routes |
|
| IP Routing | Static Routes; RIPv1/2; OSPFv2 (EI-Image); VRRP; BGP (EI-Image); IS-IS (MI-Image) |
| MPLS / VPN | |
| Supported (MI-Image). MPLS LDP; L2VPN; L3VPN; VPLS |
| Security | |
|
| Local AAA: |
Supported |
| RADIUS, TACACS+: |
Supported |
| DHCP Server |
Supported |
| DHCP Relay option82: |
Supported |
| DHCP Snooping: |
Supported |
| Loop detection: |
Supported |
| IP Source Guard: |
Supported |
| Bandwidth Limit: |
Supported |
| Broadcast, multicast, unknown unicast suppression: |
Supported |
|
| Management | |
| Telnet; SSH; Web-management; LLDP; DULD; sFlow; IEEE 1588 (PTP); SNMP v1/v2/v3; Syslog; SNTP |
| Environmental Conditions | |
| Relative Humidity | 10 to 95% (noncondensing) |
| Operating Temperature | -5 to +50 °C (23 to 122°F)
|
| Power Supply | |
| Power Supply Unit (PSU) |
| AC PSU: |
| Type: |
Built-in |
| Quantity: |
1 |
| Rated voltage range: |
100 to 240 VAC, 50-60Hz |
| DC PSU: |
|
| Not supported |
|
|
| PoE (Power over Ethernet) | Not supported |
| Maximum power consumption | |
|
| DGS-3630-28SC: |
63.58 W |
| DGS-3630-28TC: |
28.1 W |
| DGS-3630-52TC: |
36.0 W |
|
| Acoustic noise | |
|
| DGS-3630-28SC: |
56 dBA |
| DGS-3630-28TC: |
52.7 dBA |
| DGS-3630-52TC: |
53.9 dBA |
|
| Dimensions (HxWxD) | |
| 44 (1U) x 259.8 x 441 mm
(1.73 (1U) x 10.22 x 17.36 in)
|
| Maximum Weight | |
|
| DGS-3630-28SC: |
3.79 kg (8.35 Ib) |
| DGS-3630-28TC: |
3.74 kg (8.24 Ib) |
| DGS-3630-52TC: |
4.04 kg (8.90 Ib) |
|
| Compatible expansion cards | |
| Not supported |
