| Interfaces | |
|

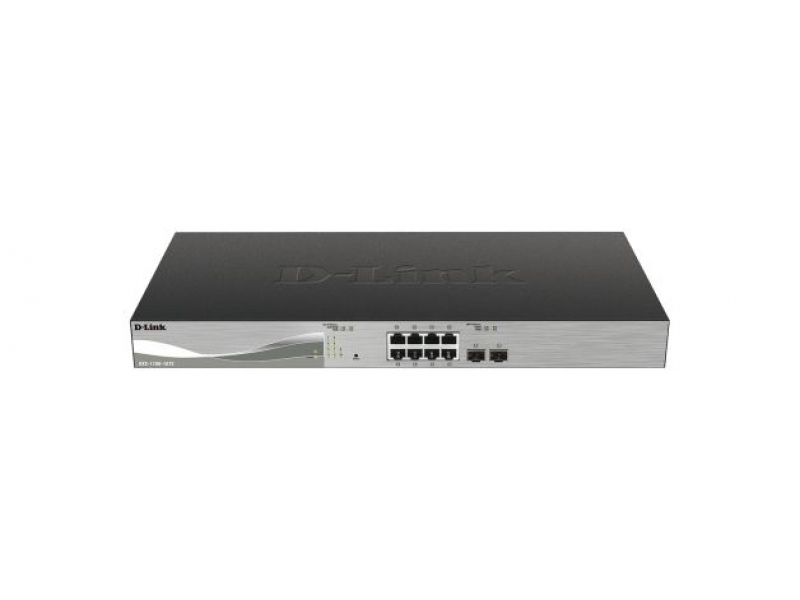

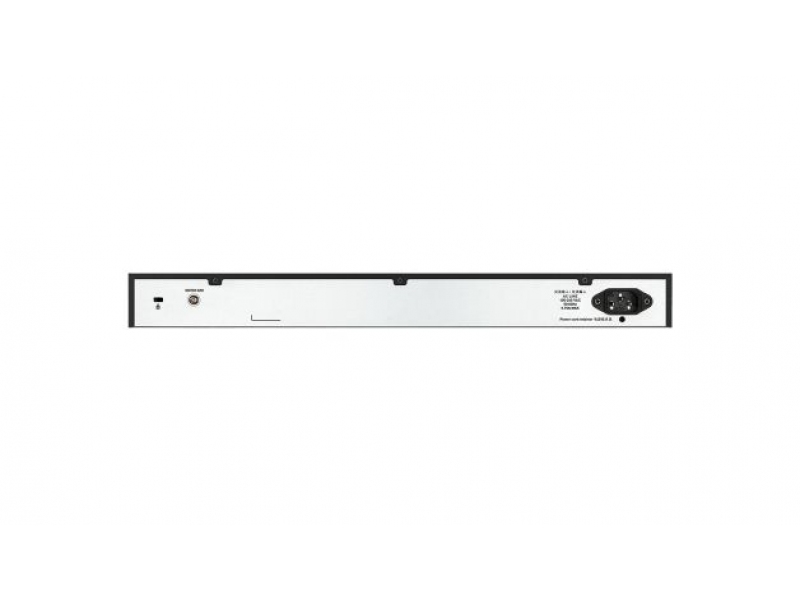

| DXS-1100-10TS: |
- 8-Port 10GBASE-T (RJ45);
- 2-Port 10GbE (SFP+)
|

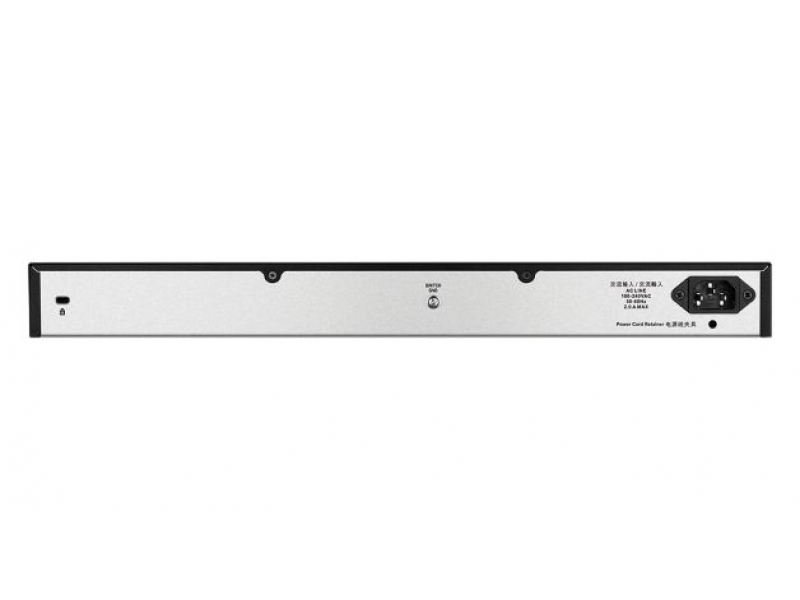

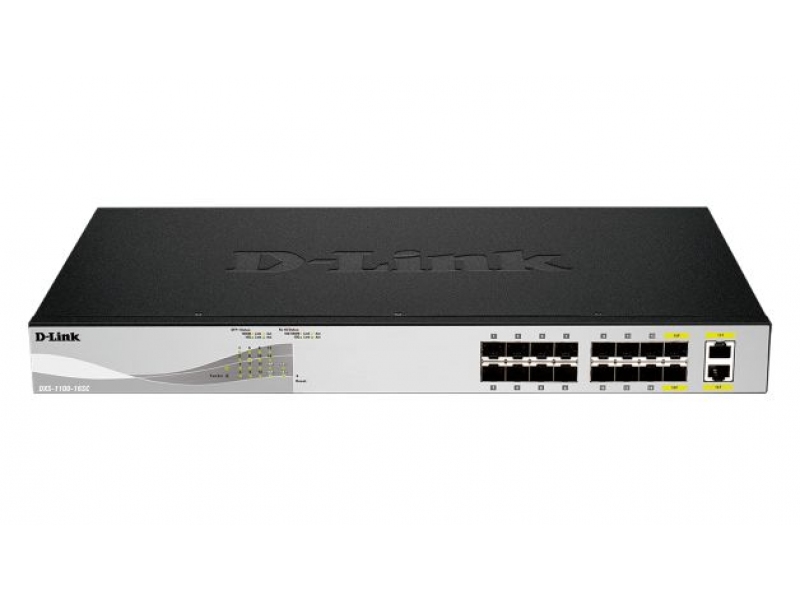

| DXS-1100-16SC: |
- 14-Port 10GbE (SFP+);
- 2-Port combo (10GBASE-T (RJ45) / 10GbE (SFP+))
|
|
| Performance | |
| Switching Bandwidth |
| DXS-1100-10TS: |
200 Gbit/s |
| DXS-1100-16SC: |
320 Gbit/s |
|
| Forwarding Rate |
| DXS-1100-10TS: |
148.801 Mp/s |
| DXS-1100-16SC: |
238.096 Mp/s |
|
| Layer 2 Features | |
| MAC Address Table | 16,000 entries |
| VLAN | IEEE 802.1Q: 128
|
| Layer 2 Reliability | STP/RSTP |
| Multicast | |
|
| IGMP snooping: |
v1/v2 |
| IGMP groups: |
512 |
| Multicast VLAN (MVR): |
Not supported |
| Multicast Routing: |
Not supported |
|
| Layer 3 features | |
| ARP Table | 128 entries |
| IP Routing | Not supported |
| MPLS / VPN | |
| Not supported |
| Security | |
|
| Local AAA: |
Supported |
| RADIUS, TACACS+: |
Not supported |
| DHCP Server |
Not supported |
| DHCP Relay option82: |
Not supported |
| DHCP Snooping: |
Not supported |
| Loop detection: |
Supported |
| IP Source Guard: |
Supported |
| Bandwidth Limit: |
Supported |
| Broadcast, multicast, unknown unicast suppression: |
Supported |
|
| Management | |
| Web-management; LLDP; SNMP v/1v2/v3 |
| OAM | |
| Not supported |
| Environmental Conditions | |
| Relative Humidity | 0 to 95% (noncondensing) |
| Operating Temperature | -5 to +50°C (23 to 122°F)
|
| Power Supply | |
| Power Supply Unit (PSU) |
| AC PSU: |
| Type: |
Built-in |
| Quantity: |
1 |
| Rated voltage range: |
100 to 240 VAC, 50-60 Hz. |
| DC PSU: |
Not supported |
|
| PoE (Power over Ethernet) | Not supported
|
| Maximum power consumption | |
|
| DXS-1100-10TS: |
50.9 W |
| DXS-1100-16SC: |
60.0 W |
|
| Acoustic noise | |
|
| DXS-1100-10TS: |
46.4 dBA |
| DXS-1100-16SC: |
48.0 dBA |
|
| Dimensions (HxWxD) | |
|
| DXS-1100-10TS: |
44 (1U) x 440 x 210 mm
(1.73 (1U) x 17.32 x 8.27 in)
|
| DXS-1100-16SC: |
44 (1U) x 440 x 250 mm
(1.73 (1U) x 17.32 x 9.84 in)
|
|
| Maximum Weight | |
|
| DXS-1100-10TS: |
2.68 kg (5.93 lb) |
| DXS-1100-16SC: |
2.91 kg (6.42 lb) |
|
| Compatible expansion cards | |
| Not supported |
