| Interfaces | |
|

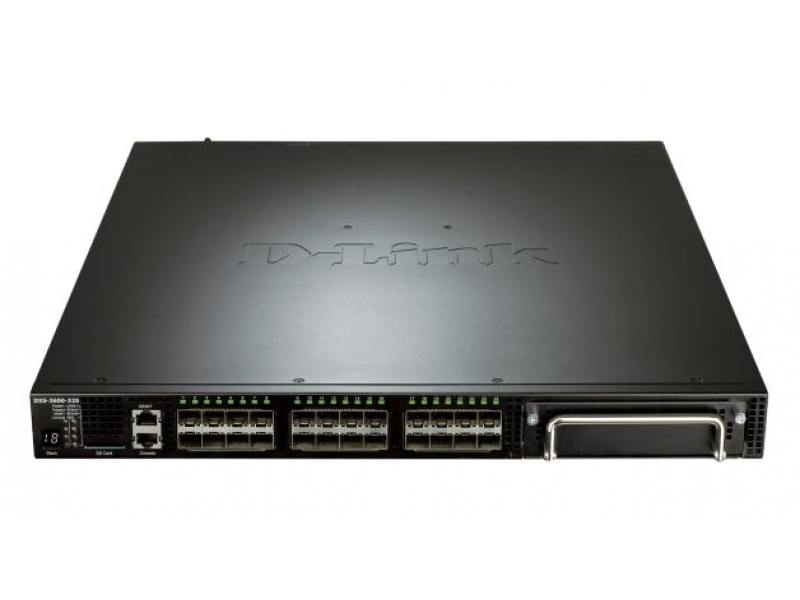

| DXS-3600-32S: |
- 24-Port 10GbE (SFP+);
- 1 Expansion slot;
- 1-Port console (RJ45);
- 1-Port out-of-band management 10/100MbE (RJ45);
- 1-Slot for SD card;
|
| DXS-3600-16S: |
- 8-Port 10GbE (SFP+);
- 1 Expansion slot;
- 1-Port console (RJ45);
- 1-Port out-of-band management 10/100MbE (RJ45);
- 1-Slot for SD card;
|
|
| Performance | |
| Switching Bandwidth |
| DXS-3600-32S: |
960 Gbit/s |
| DXS-3600-16S: |
480 Gbit/s |
|
| Forwarding Rate |
| DXS-3600-32S: |
714.28 Mp/s |
| DXS-3600-16S: |
357.14 Mp/s |
|
| Layer 2 Features | |
| MAC Address Table | 128,000 entries |
| VLAN | IEEE 802.1Q: 4094; GVRP; QinQ; VLAN Translation |
| Layer 2 Reliability | STP/RSTP/MSTP; ERPS (G.8032) |
| Multicast | |
|
| IGMP snooping: |
v1/v2/v3 |
| IGMP groups: |
4,096 |
| Multicast VLAN (MVR): |
Supported |
| Multicast Routing: |
PIM-Snooping; PIM-SM (EI-Image); PIM-DM (EI-Image); PIM-SSM (EI-Image); PIM-Sparse-Dense Mode (EI-Image); MSDP (EI-Image); DVMRP (EI-Image) |
|
| Layer 3 features | |
| ARP Table | 512 entries |
| Routing Table |
| Pv4: |
16,000 routes (EI-Image) |
| IPv6: |
16,000 routes (EI-Image) |
|
| IP Routing | Static Routes; RIPv1/2 (EI-Image); OSPFv2 (EI-Image); IS-IS (EI-Image); VRRP (EI-Image); BGP (EI-Image) |
| MPLS / VPN | |
| Supported (EI-Image). MPLS LDP; L2VPN; L3VPN; VPLS |
| Security | |
|
| Local AAA: |
Supported |
| RADIUS, TACACS+: |
Supported |
| DHCP Server |
Supported |
| DHCP Relay option82: |
Supported |
| DHCP Snooping: |
Supported |
| Loop detection: |
Supported |
| IP Source Guard: |
Supported |
| Bandwidth Limit: |
Supported |
| Broadcast, multicast, unknown unicast suppression: |
Supported |
|
| Management | |
| Telnet; SSH; Web-management; LLDP; SNMP v1/v2/v3; Syslog; SNTP |
| Environmental Conditions | |
| Relative Humidity | 0 to 95% (noncondensing) |
| Operating Temperature | 0 to 45 °C (32 to 113°F) |

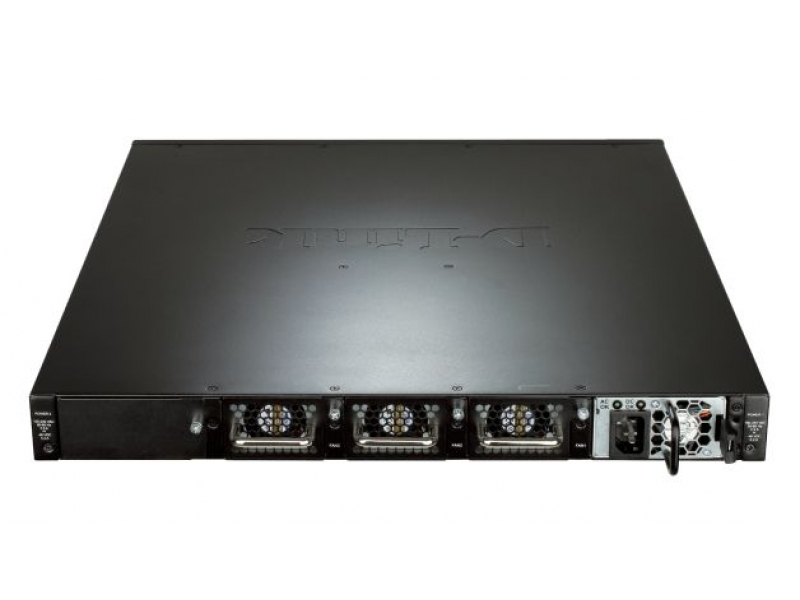

| Power Supply | |
| Power Supply Unit (PSU) |
| AC PSU: |
| Type: |
Removable |
| Quantity: |
2 |
| Rated voltage range: |
100 to 240 VAC, 50-60Hz |
| DC PSU: |
| Not supported |
|
|
| PoE (Power over Ethernet) | Not supported |
| Maximum power consumption | |
|
| DXS-3600-32S: |
116.8 W |
| DXS-3600-16S: |
74.3 W |
|
| Dimensions (HxWxD) | |
|
|
DXS-3600-32S:
DXS-3600-16S:
|
44 (1U) x 506 x 440 mm
(1.73 (1U) x 19.92 x 17.32 in)
|
|
| Maximum Weight | |
|
| DXS-3600-32S: |
10.71 kg (23.61 Ib) |
| DXS-3600-16S: |
9.89 kg (21.80 Ib) |
|
| Compatible expansion cards | |
|
| Model Number |
Description |

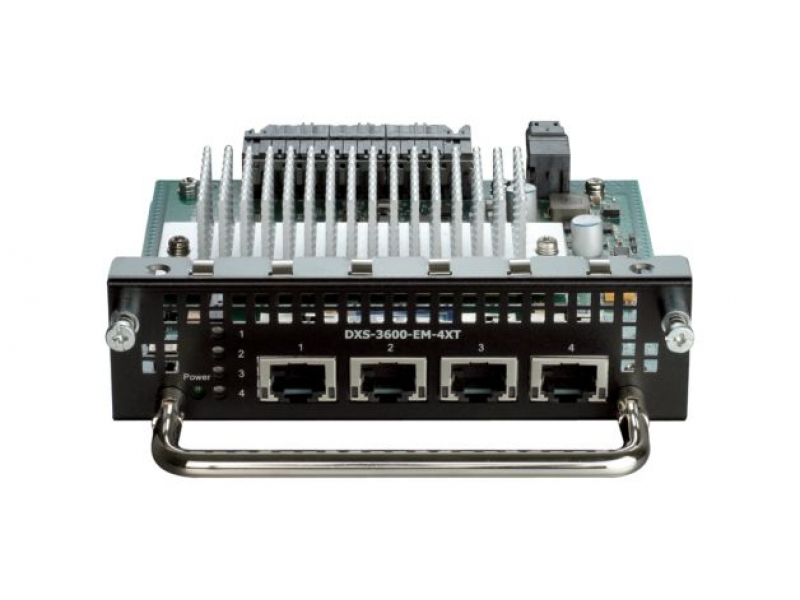

| DXS-3600-EM-4XT: |
4-Port 10GbE (RJ45) |

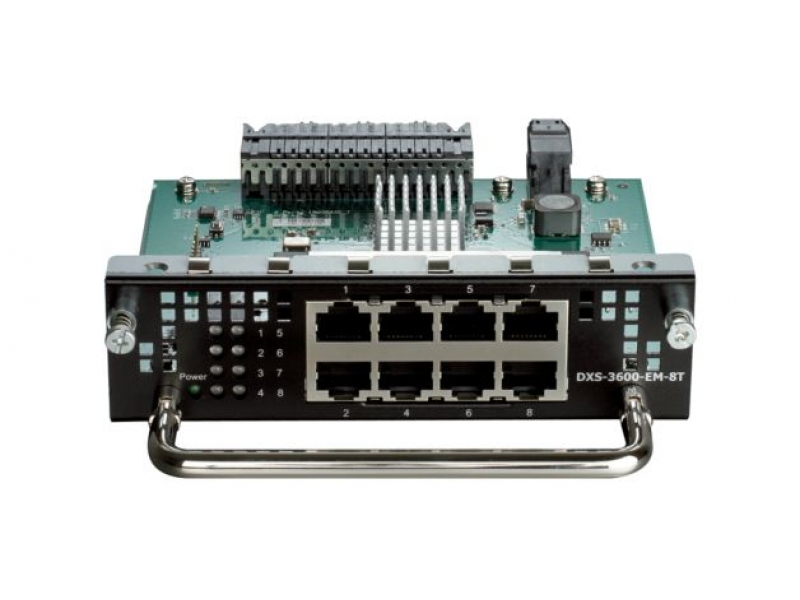

| DXS-3600-EM-8T: |
8-Port 10/100/1000MbE (RJ45) |

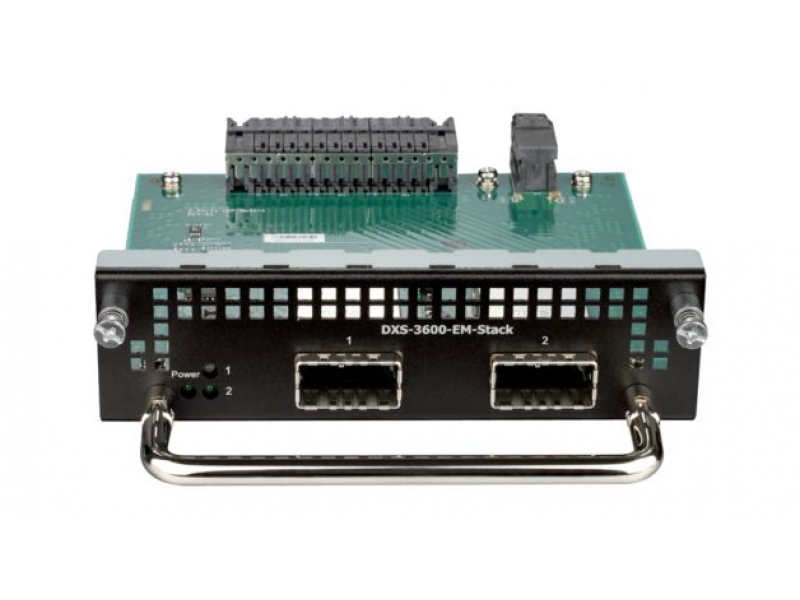

| DXS-3600-EM-Stack: |
Stacking card. 2-Port 120G (CXP)
|
|
