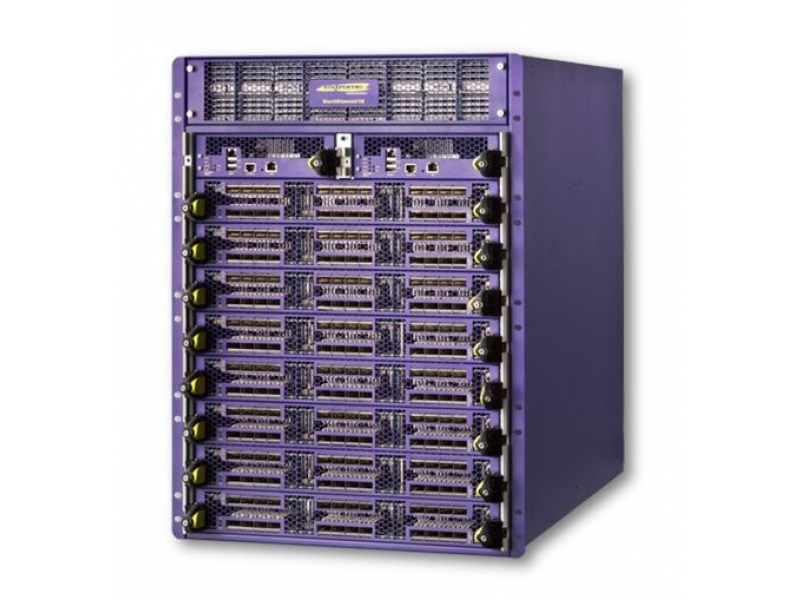

| Interfaces | |
|

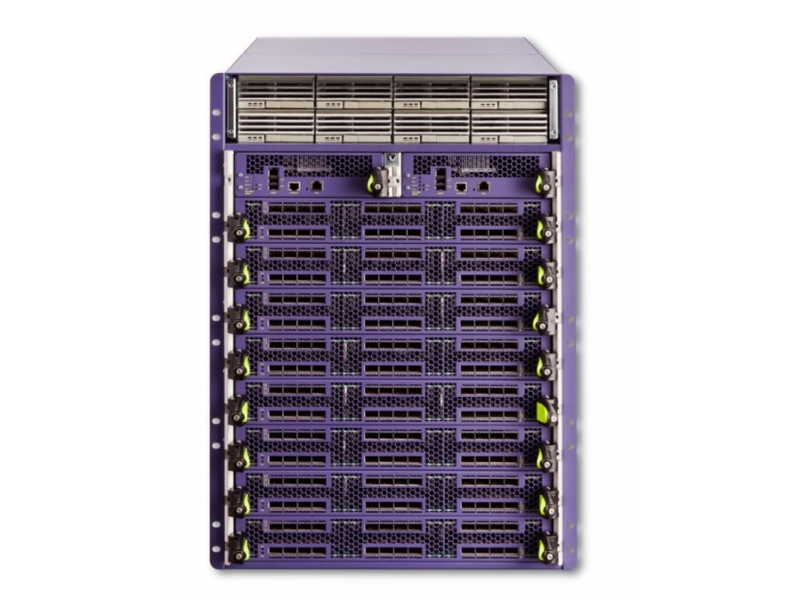

| BDX8: |
- 8 service modules slots;

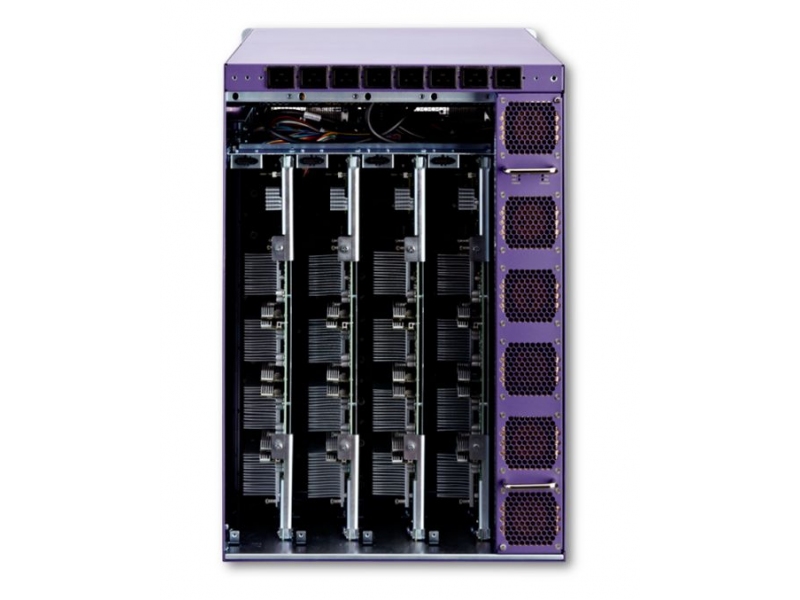

- 4 fabric modules slots;
- 2 management modules slots
|
|
| Performance | |
| Switching Bandwidth |
| BDX8: |
Up to 20.48 Tbit/s (with BDXA-FM20T Fabric Module) |
|
| Forwarding Rate | |
| Layer 2 Features | |
| MAC Address Table |
| Maximum Capacity: |
| 10/40GbE series modules: |
128,000 entries |
| 100GbE series modules (NON-XL): |
384,000 entries |
| 100GbE series modules (XL): |
1,032,000 entries |
|
| VLAN | IEEE 802.1Q: 4094. GVRP; QinQ; VLAN Translation |
| Layer 2 Reliability | STP/RSTP/MSTP; EAPS |
| Multicast | |
|
| IGMP snooping: |
v1/v2/v3 |
| IGMP groups |
4,096 |
| Multicast VLAN (MVR): |
Supported |
| Multicast Routing: |
PIM-DM; PIM-SM; PIM-SSM; MSDP |
|
| Layer 3 features | |
| ARP Table |
| Maximum Capacity: |
| 10/40GbE Series Modules: |
16,000 entries |
| 100GbE Series Modules (NON-XL): |
130,000 entries |
| 100GbE Series Module (XL): |
268,000 entries |
|
| Routing Table |
| FIB IPv4: |
| 10/40GbE Series Modules: |
16,000 routes |
| 100GbE Series Modules (NON-XL): |
16,000 routes |
| 100GbE Series Modules (XL): |
1,024,000 routes |
|
|
| FIB IPv6: |
| 10/40GbE Series Modules: |
8,000 routes |
| 100GbE Series Modules (NON-XL): |
8,000 routes |
| 100GbE Series Modules (XL): |
512,000 routes |
|
| IP Routing | Static Routes, RIPv1/2, OSPFv2, IS-IS, BGP, MBGP; VRRP |
| MPLS / VPN | |
| Supported
|
| Security | |
|
| IPv4 ACL: |
|
| 10/40GbE Series Modules (NON-XL): |
2,048 Ingress + 1,024 Egress |
| BDXB-40G12X-XL Module: |
8,192 Ingress + 1,024 Egress |
| 100GbE Series Modules (NON-XL): |
8,192 Ingress + 1,024 Egress |
| 100GbE Series Modules (XL): |
136,000 Ingress + Egress |
|
|
| Local AAA: |
Supported |
| RADIUS, TACACS+: |
Supported |
| DHCP Server |
Not supported |
| DHCP Relay option82: |
Supported |
| DHCP Snooping: |
Supported |
| Loop detection: |
Supported |
| IP Source Guard: |
Supported |
| Broadcast, multicast, unknown unicast suppression: |
Supported |
|
| Quality of Service | |
|
| QoS queues: |
8 |
| Traffic Limit: |
Supported |
| Traffic Mark: |
by 802.1p, DSCP |
|

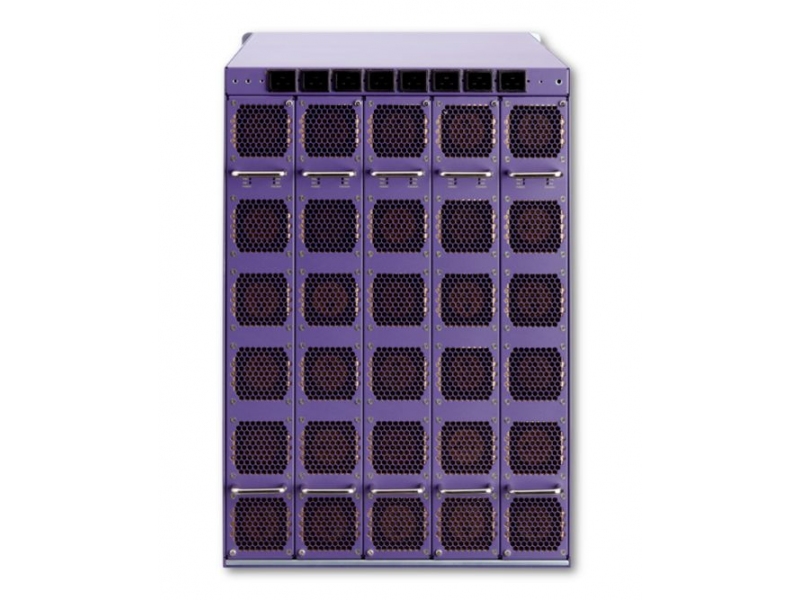

| IPv6 | |
| Static Routes; OSPFv3; VRRPv6; DHCPv6; IS-ISv6; PIM-DMv6; PIM-SMv6; IPv6 ACL; Multicast Listener Discovery snooping (MLDv1/v2) |
| Management | |
| Telnet; SSH; XML; LLDP; SNMP v1/v2/v3; Syslog; NTP |
| OAM | |
| 802.3ah (EFM); 802.1ag (CFM) |
| Environmental Conditions | |
| Relative Humidity | 10 to 95% (noncondensing) |
| Operating Temperature | 0 to 40°C (32 to 104°F) |
| Power Supply | |
| Power Supply Unit (PSU) |
| AC PSU: |
|
| Type: |
Removable |
| Quantity: |
|
| BDX8 |
8 |
| Rated voltage range: |
|
| 2500 W AC PSU |
200 to 240 VAC / 100 to 120 VAC; 50-60 Hz
|
|
|
| DC PSU: |
|
| Not supported |
|
| Maximum power consumption | |
| up to 8,460 W (with BDXA-FM20T Fabric Module) |
| Acoustic noise | |
| up to 78.0 dB(A) (Medium Speed) |
| Dimensions (HxWxD) | |
| 635 (14.3U) x 457 х 762 mm
(25 (14.3U) x 18 x 30 in) |
| Maximum Weight | |
|
| Empty chassis |
85 kg (187.4 lb) |
| Fully loaded chassis |
190 kg (420.6 lb) |
|
| Compatible Management Modules | |
|
| Model Number |
Description |
| BDX-MM1 |
Management Module 1 for BDX8. |
|
| Compatible Expansion modules | |
|
| Model Number |
Description |
| Fabric Modules |
| BDXA-FM10T |
2.56 Tbit/s Fabric Module for BD X8 |
| BDXA-FM20T |
5.12 Tbit/s Fabric Module for BD X8
|
|
|
| Service Modules |
| BDXA-G48T |
48-Port 10/100/1000MbE (RJ45) |
| BDXA-G48X |
48-Port 1GbE (SFP) |
| BDXA-10G48T |
48-Port 10GBASE-T (RJ45) |
| BDXA-10G48X |
48-Port 10GbE (SFP+) |
| BDXA-40G12X |
12-Port 40GbE (QSFP+) |
| BDXB-40G12X-XL |
12-Port 40GbE (QSFP+) (or used as 48 x 10GbE (SFP+)) “XL” module. Up to 1M TCAM entries |
| BDXA-40G24X |
24-Port 40GbE (QSFP+) |
| BDXB-100G4X |
4 -Port 100GbE (CFP2) |
| BDXB-100G4X-XL |
4-Port 100GbE (CFP2) (or used as 40-Port 10GbE SFP+) “XL” module. Up to 1M TCAM entries |
|
