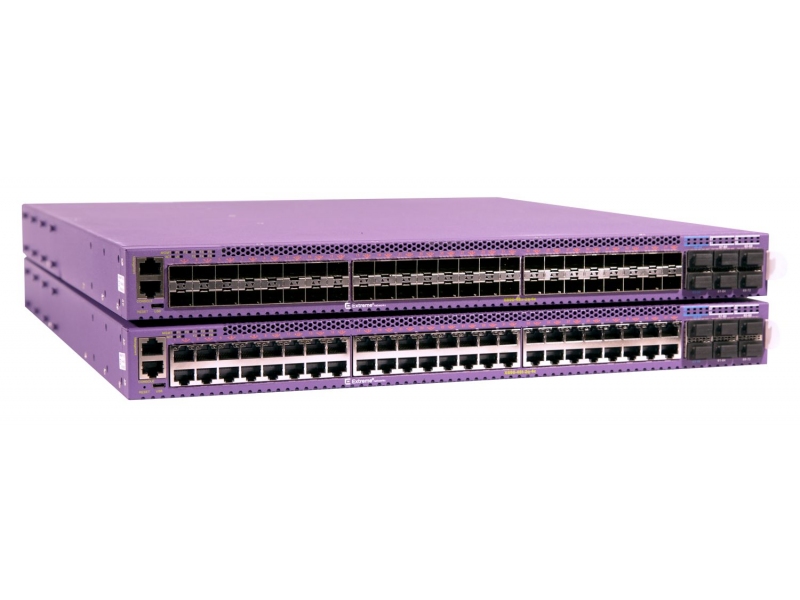

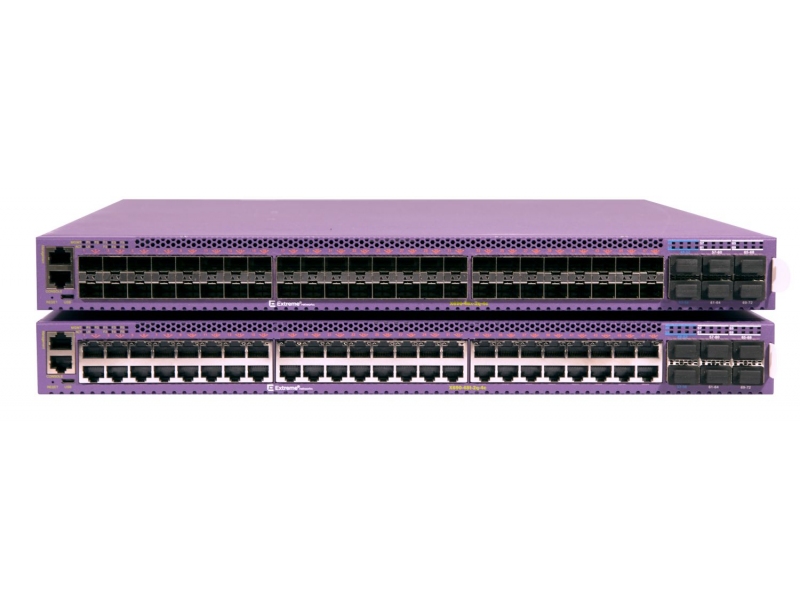

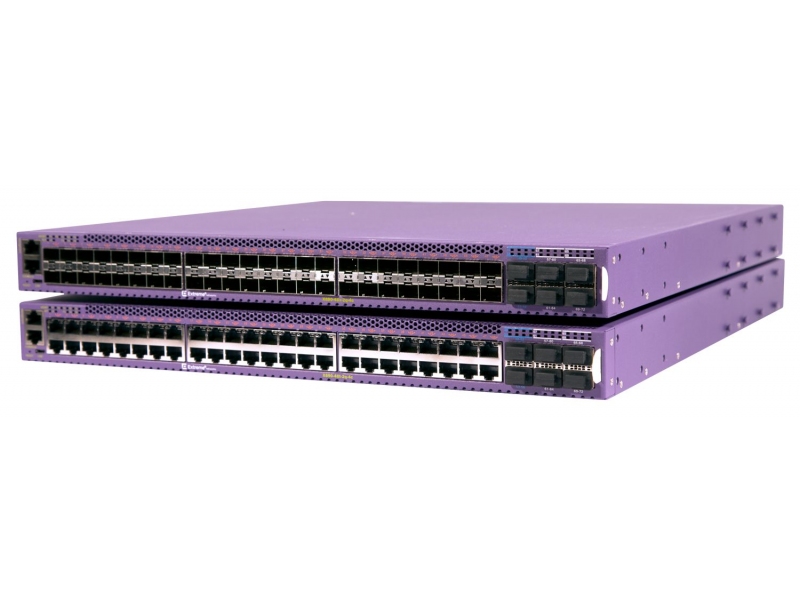

Extreme Networks ExtremeSwitching X690 series

X690 series Datasheet (eng)

Available to quote:

X690-48x-2q-4c; X690-48t-2q-4c



Request a Quote
SPECIFICATIONS
Interfaces
X690-48x-2q-4c:
  • 48-Port 1/10GbE (SFP+);
  • 2-Port 10/40GbE (QSFP+);
  • 4-Port 10/25/40/50/100GbE (QSFP28);
  • 1-Port console (RJ45);
  • 1-Port out-of-band management 10/100/1000MbE (RJ45);
  • 1-Port USB (microUSB)
X690-48t-2q-4c:
  • 48-Port 1/10GbE (RJ45);
  • 2-Port 10/40GbE (QSFP+);
  • 4-Port 10/25/40/50/100GbE (QSFP28);
  • 1-Port console (RJ45);
  • 1-Port out-of-band management 10/100/1000MbE (RJ45);
  • 1-Port USB (microUSB)
Performance
Switching Bandwidth

1.76 Tbit/s
Layer 2 Features
MAC Address Table

272,000 entries
VLAN

IEEE 802.1Q: 4092. QinQ; VLAN Translation
Layer 2 Reliability

STP/RSTP/MSTP
Multicast
IGMP snooping: v1/v2/v3
IGMP groups: 4,096
Multicast VLAN (MVR): Supported
Multicast Routing: Not supported
Layer 3 features
ARP Table (англ. ARP Table)

146,000 entries
Routing Table
IPv4: 256,000 routes
IPv6: 128,000 routes
IP Routing

Static Routes; RIPv1/2; OSPFv2 (with Core license); IS-IS (with Core license); BGP (with Core license); MBGP (with Core license)
MPLS / VPN

Supported (with MPLS license).
Security
Local AAA: Supported
RADIUS, TACACS+: Supported
DHCP Server Supported
DHCP Relay option82: Supported
DHCP Snooping: Supported
Loop detection: Supported
IP Source Guard: Supported
Bandwidth Limit: Supported
Broadcast, multicast, unknown unicast suppression: Supported
Management

Telnet; SSH; LLDP; sFlow; IPFIX; OpenFlow (with Open Flow license); SNMP v1/v2/v3; Syslog; NTP
Environmental Conditions
Relative Humidity

10 to 95% (noncondensing)
Operating Temperature

0 to 45°C (32 to 113°F)
Power Supply
Power Supply Unit (PSU)
AC PSU:
Type: Removable
Quantity: 2
Rated voltage range: 110 to 240 VAC, 50-60 Hz
DC PSU:
Type: Removable
Quantity: 2
Rated voltage range: -48 to -60 VDC
Power over Ethernet

Not supported
Maximum power consumption
X690-48x-2q-4c-AC: 329 W
X690-48x-2q-4c-DC: 345 W
X690-48t-2q-4c-AC: 373 W
X690-48t-2q-4c DC: 385 W
Acoustic noise

77.5 dBA
Dimensions (HxWxD)
43 (1U) x 441 x 488 mm
(1.7 (1U) x 17.4 x 19.2 in)
Maximum Weight

8.6 kg (18.9 lb)
Compatible expansion cards

Not supported
