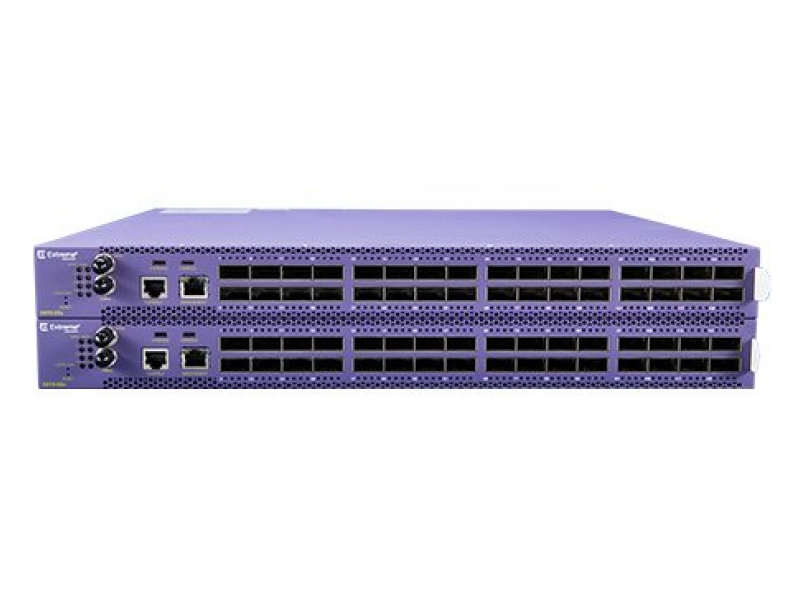

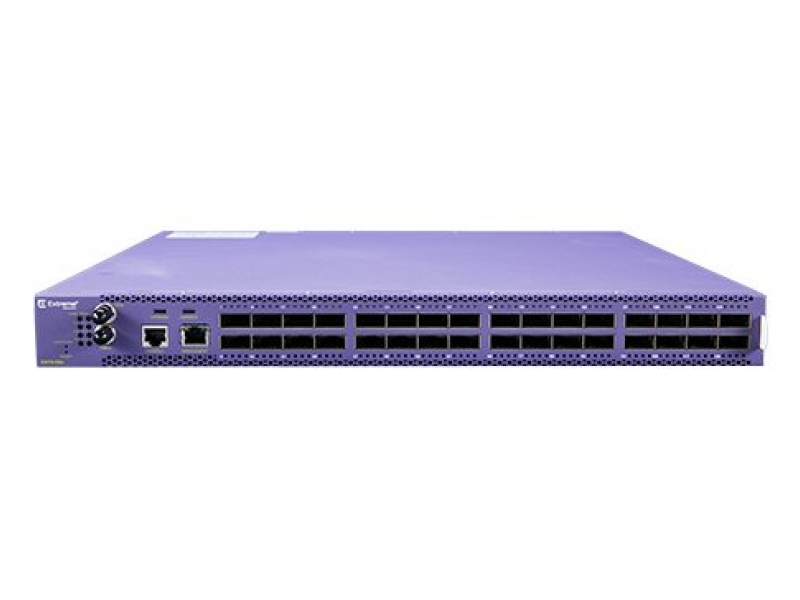

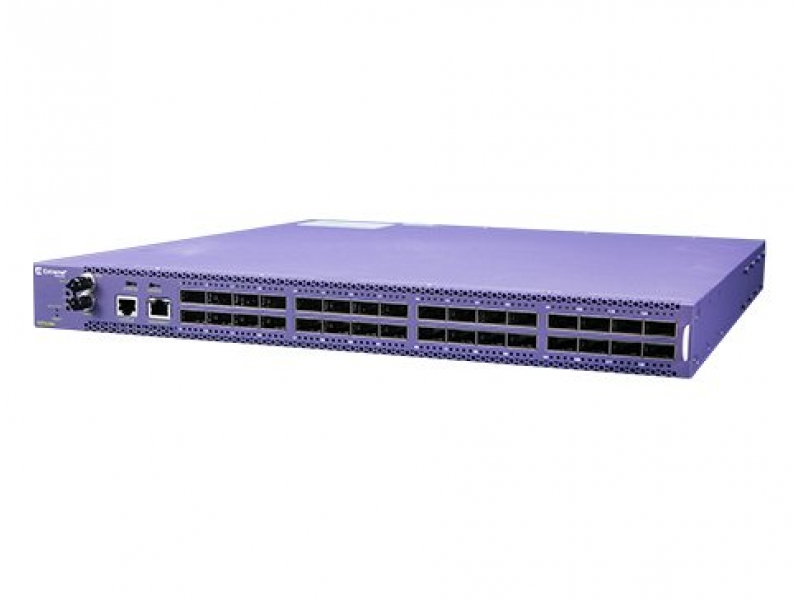

Extreme Networks ExtremeSwitching X870 series

X870 Series Datasheet (eng)

Available to quote:

X870-32c; X870-96x-8c



Request a Quote
SPECIFICATIONS
Interfaces
X870-32c:
  • 32-Port 100GbE (QSFP28);
  • 1-Port console (RJ45);
  • 1-Port console (microUSB);
  • 1-Port out-of-band management 10/100/1000MbE (RJ45);
  • 1-Port USB (microUSB)
X870-96x-8c:
  • 24-Port 40GbE (QSFP+) + 8-Port 10/25/40/50/100GbE (QSFP28) or 96-Port 10GbE (SFP+) + 8-Port 10/25/40/50/100GbE (QSFP28);
  • 1-Port console (RJ45);
  • 1-Port console (microUSB);
  • 1-Port out-of-band management 10/100/1000MbE (RJ45);
  • 1-Port USB (microUSB)

Performance
Switching Bandwidth

6.4 Tbit/s
Layer 2 Features
MAC Address Table

136,000 entries
VLAN

IEEE 802.1Q: 4092. QinQ; VLAN Translation
Layer 2 Reliability

STP/RSTP/MSTP
Multicast
IGMP snooping: v1/v2/v3
IGMP groups: 4,096
Multicast VLAN (MVR): Supported
Multicast Routing: Not supported
Layer 3 features
ARP Table

6,000 entries
Routing Table
IPv4: 192,000 routes
IPv6: 64,000 routes
IP Routing

Static Routes; RIPv1/2; OSPFv2 (Core license is required); IS-IS (Core license is required); BGP (Core license is required); MBGP (Core license is required)
MPLS / VPN

Supported (MPLS license is required).
Security
Local AAA: Supported
RADIUS, TACACS+: Supported
DHCP Server Not supported
DHCP Relay option82: Not supported
DHCP Snooping: Not supported
Loop detection: Supported
IP Source Guard: Supported
Bandwidth Limit: Supported
Broadcast, multicast, unknown unicast suppression: Supported
Management

Telnet; SSH; LLDP; sFlow; IPFIX; OpenFlow (Open Flow license is required); SNMP v1/v2/v3; Syslog; NTP
Environmental Conditions
Relative Humidity

10 to 95% (noncondensing)
Operating Temperature

0 to 45°C (32 to 113°F)
Power Supply
Power Supply Unit (PSU)
AC PSU:
Type: Removable
Quantity: 2
Rated voltage range: 110 to 240 VAC, 50-60 Hz
DC PSU:
Type: Removable
Quantity: 2
Rated voltage range: -48 to -60 VDC
PoE (Power over Ethernet)

Not supported
Maximum power consumption

473 W
Acoustic noise

76.5 dBA
Dimensions (HxWxD)
43 (1U) x 440 x 520 mm
(1.7 (1U) x 17.3 x 20.5 in)
Maximum Weight

8.6 kg (18.9 lb)
Compatible expansion cards

Not supported
