| Interfaces | |
|

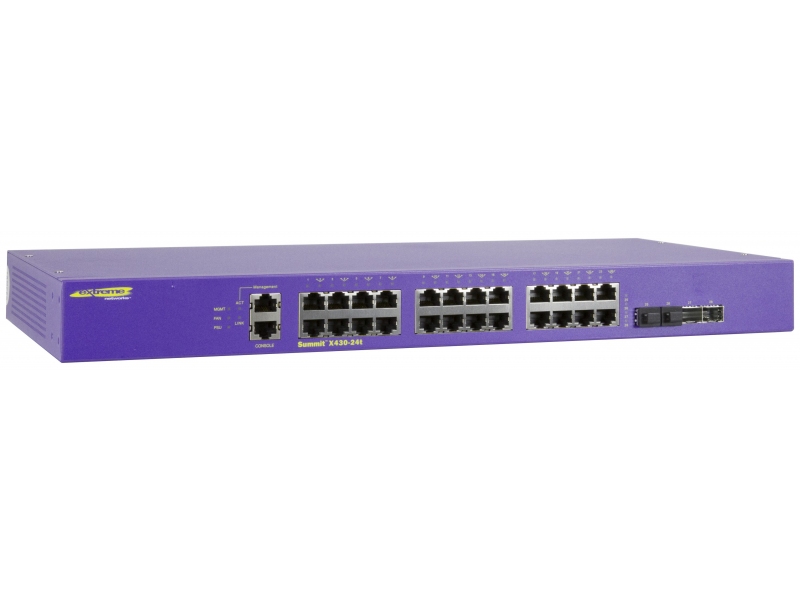

| Summit X430-24t: |
- 24-Port 10/100/1000MbE (RJ45);
- 4-Port 100/1000MbE (SFP);
- 1-Port console (RJ45);
- 1-Port out-of-band management 10/100MbE (RJ45)
|
| Summit X430-48t: |
- 48-Port 10/100/1000MbE (RJ45);
- 4-Port 100/1000MbE (SFP);
- 1-Port console (RJ45);
- 1-Port out-of-band management 10/100MbE (RJ45)
|
| Summit X430-8p: |
- 8-Port 10/100/1000MbE (RJ45) PoE;
- 2-Port 100/1000MbE (SFP);
- 1-Port console (RJ45);
- 1-Port out-of-band management 10/100MbE (RJ45)
|
| Summit X430-24p: |
- 24-Port 10/100/1000MbE (RJ45) PoE;
- 4-Port 100/1000MbE (SFP);
- 1-Port console (RJ45);
- 1-Port out-of-band management 10/100MbE (RJ45)
|
|
| Performance | |
| Switching Bandwidth |
| Summit X430-24t: |
56 Gb/s |
| Summit X430-48t: |
104 Gb/s |
| Summit X430-8p: |
20 Gb/s |
| Summit X430-24p: |
56 Gb/s |
|
| Forwarding Rate |
| Summit X430-24t: |
41.6 Mp/s |
| Summit X430-48t: |
77.4 Mp/s |
| Summit X430-8p: |
14.8 Mp/s |
| Summit X430-24p: |
41.6 Mp/s |
|
| Layer 2 Features | |
| MAC Address Table |
| Maximum Capacity: |
16,000 entries |
|
| VLAN | IEEE 802.1Q: Summit X430-24t: 3996, Summit X430-48t: 3932. QinQ; VLAN Translation |
| Layer 2 Reliability | STP/RSTP/MST; PVST+ |
| Multicast | |
|
| IGMP snooping: |
v1/v2/v3 |
| IGMP groups: |
1,024 |
| Multicast VLAN (MVR): |
Supported |
| Multicast Routing: |
Not supported |
|
| Layer 3 features | |
| ARP Table | 256 entries |
| Routing Table |
| IPv4: |
32 routes |
| IPv6: |
16 routes |
|
| IP Routing | Static Routes |
| MPLS / VPN | |
| Not supported |
| Security | |
|
| IPv4 ACL: |
400 Ingress + Egress |
| IPv6 ACL: |
400 Ingress + Egress |
|
|
| Local AAA: |
Supported |
| RADIUS, TACACS+: |
Supported |
| DHCP Server |
Not supported |
| DHCP Relay option82: |
Supported |
| DHCP Snooping: |
Supported |
| Loop detection: |
Supported |
| IP Source Guard: |
Supported |
| Broadcast, multicast, unknown unicast suppression: |
Supported |
|
| Quality of Service | |
|
| QoS queues: |
8 |
| Traffic Limit: |
Supported |
| Traffic Mark: |
by 802.1p, DSCP |
|
| IPv6 | |
| Static Routes; IPv6 ACL; DHCPv6 |
| Management | |
| Telnet; SSH; LLDP; SNMP v1/v2/v3; RMON; Syslog; NTP |
| OAM | |
| 802.1ag (CFM) |
| Environmental Conditions | |
| Relative Humidity | 10 to 95% (noncondensing) |
| Operating Temperature | 0 to 50°C (32 to 122°F) |
| Power Supply | |
| Power Supply Unit (PSU) |
| AC PSU: |
| Type: |
Built-in |
| Quantity: |
1 |
| Rated voltage range: |
100 to 240 VAC, 50-60 Hz |
|
|
| DC PSU: |
| Not supported |
|
|
| PoE (Power over Ethernet) |
| Supported by: |
X430-8p, X430-24p |
|
|
| PoE (802.3аf) (15 W per port): |
|
| Summit X430-8p: |
8 ports |
| Summit X430-24p: |
24 ports |
|
|
| PoE+ (802.3аt) (30 W per port): |
|
| Summit X430-8p: |
2 ports |
| Summit X430-24p: |
12 ports |
|
| Maximum power consumption | |
|
| Summit X430-24t: |
up to 28.7 W |
| Summit X430-48t: |
up to 55.9 W |
| Summit X430-8p: |
up to 84.2 W |
| Summit X430-24p: |
up to 425 W |
|
| Acoustic noise | |
|
| Summit X430-24t: |
up to 41 dB |
| Summit X430-48t: |
up to 38 dB |
| Summit X430-8p: |
0 dB |
| Summit X430-24p: |
up to 41 dB |
|
| Dimensions (HxWxD) | |
|
| Summit X430-24t: |
44 (1U) x 441 х 254 mm
(1.73 (1U) x 17.36 x 10 in)
|
| Summit X430-48t: |
44 (1U) x 441 х 254 mm
(1.73 (1U) x 17.36 x 10 in)
|
| Summit X430-8p: |
44 mm (1U) x 221 mm х 254 mm
(1.73 in (1U) x 8.7 in x 10 in)
|
| Summit X430-24p: |
44 (1U) x 441 х 254 mm
(1.73 (1U) x 17.36 x 10 in)
|
|
| Maximum Weight | |
|
| Summit X430-24t: |
3.83 kg (8.44 lb) |
| Summit X430-48t: |
4.125 kg (9.09 lb) |
| Summit X430-8p: |
2.27 kg (5.0 lb) |
| Summit X430-24p: |
4.54 kg (10.0 lb) |
|
| Compatible expansion cards | |
| Not supported |
