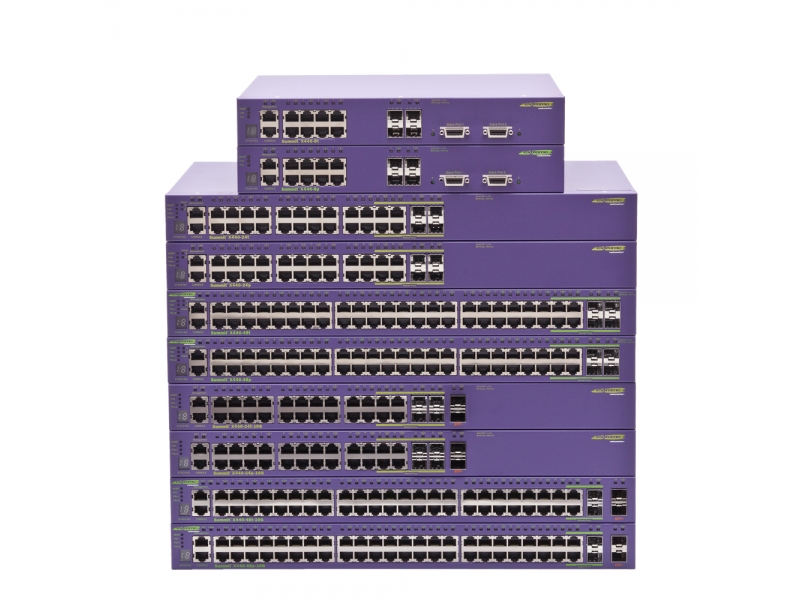

Extreme Networks Summit X440 series

Download Summit X440 series Datasheet (eng)

Available to quote:

Summit X440-8t; Summit X440-24tDC;

Summit X440-24x; Summit X440-24t-10G;

Summit X440-24x-10G; Summit X440-48tDC;

Summit X440-48t-10G; Summit X440-8p;

Summit X440-24p; Summit X440-24p-10G;

Summit X440-48p; Summit X440-48p-10G

EOS for Summit X440-24t; Summit X440-48t:

https://esupport.extremenetworks.com/eservice_enu/docs/summit_x440_l2_endofsale_0713.pdf

Request a Quote
SPECIFICATIONS
Interfaces

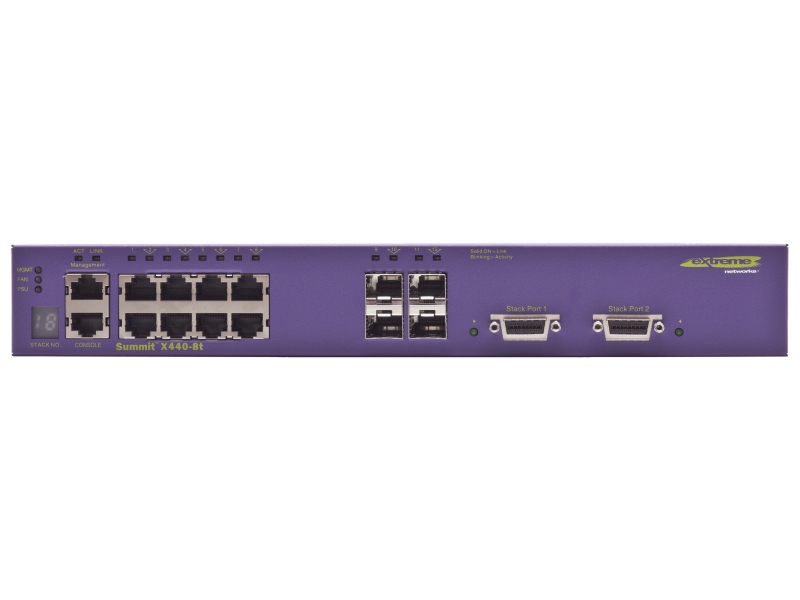

Summit X440-8t:
  • 8-Port 10/100/1000MbE (RJ45);
  • 4-Port 100/1000MbE (SFP);
  • 2-Port SummitStack;
  • 1-Port console (RJ45);
  • 1-Port out-of-band management 10/100MbE (RJ45)

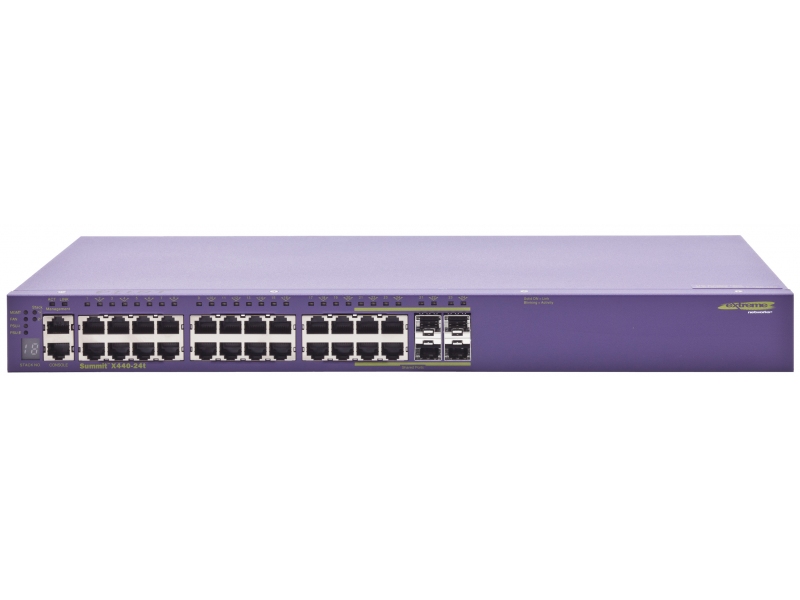

Summit X440-24t:
  • 24-Port 10/100/1000MbE (RJ45);
  • 4-Port combo (10/100/1000MbE (RJ45) /  100/1000MbE (SFP));
  • 2-Port SummitStack;
  • 1-Port console (RJ45);
  • 1-Port out-of-band management 10/100MbE (RJ45),
  • 1-Port RPS.
Summit X440-24tDC:
  • 24-Port 10/100/1000MbE (RJ45);
  • 4-Port combo (10/100/1000MbE (RJ45) /  100/1000MbE (SFP));
  • 2-Port SummitStack;
  • 1-Port console (RJ45);
  • 1-Port out-of-band management 10/100MbE (RJ45),
  • 1-Port RPS
Summit X440-24x:
  • 24-Port 100/1000MbE (SFP);
  • 4-Port combo (10/100/1000MbE (RJ45)  /  100/1000MbE (SFP));
  • 2-Port SummitStack;
  • 1-Port console (RJ45);
  • 1-Port out-of-band management 10/100MbE (RJ45);
  • 1-Port RPS

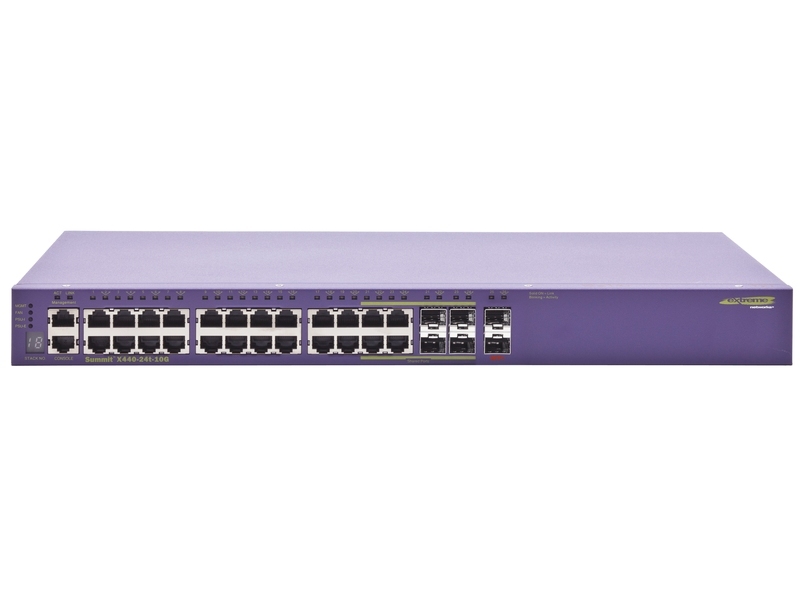

Summit X440-24t-10G:
  • 24-Port 10/100/1000MbE (RJ45);
  • 4-Port combo (10/100/1000MbE (RJ45) /  100/1000MbE (SFP));
  • 2-Port 10GbE (SFP+);
  • 2-Port SummitStack;
  • 1-Port console (RJ45);
  • 1-Port out-of-band management 10/100MbE (RJ45),
  • 1-Port RPS
Summit X440-24t-10G:
  • 24-Port 100/1000MbE (SFP);
  • 4-Port combo 1GbE (RJ45/SFP);
  • 2-Port 10GbE (SFP+);
  • 2-Port SummitStack;
  • 1-Port console (RJ45);
  • 1-Port out-of-band management 10/100MbE (RJ45);
  • 1-port RPS

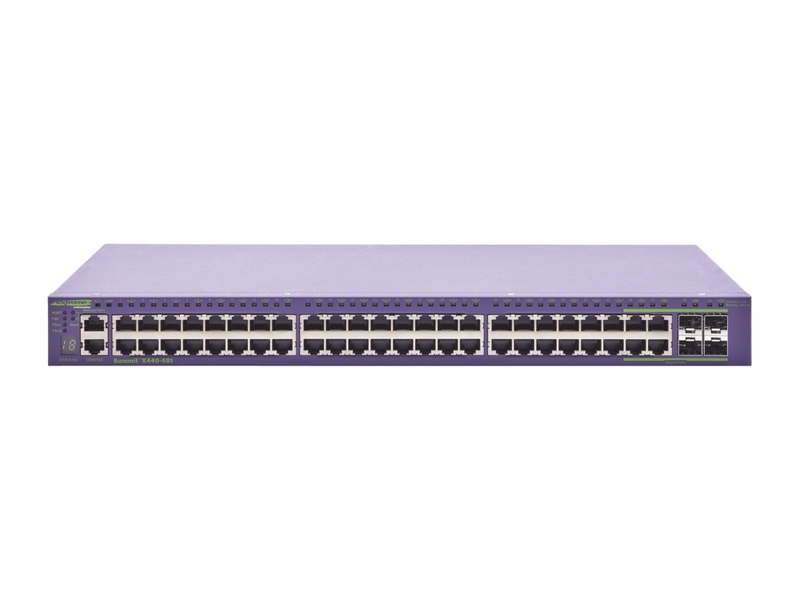

Summit X440-48t:
  • 48-Port 10/100/1000MbE (RJ45);
  • 4-Port combo 1GbE (RJ45/SFP);
  • 2-Port SummitStack;
  • 1-Port console (RJ45);
  • 1-Port out-of-band management 10/100MbE (RJ45);
  • 1-Port RPS.
Summit X440-48tDC:
  • 48-Port 10/100/1000MbE (RJ45);
  • 4-Port combo 1GbE (RJ45/SFP);
  • 2-Port SummitStack;
  • 1-Port console (RJ45);
  • 1-Port out-of-band management 10/100MbE (RJ45);
  • 1-Port RPS.

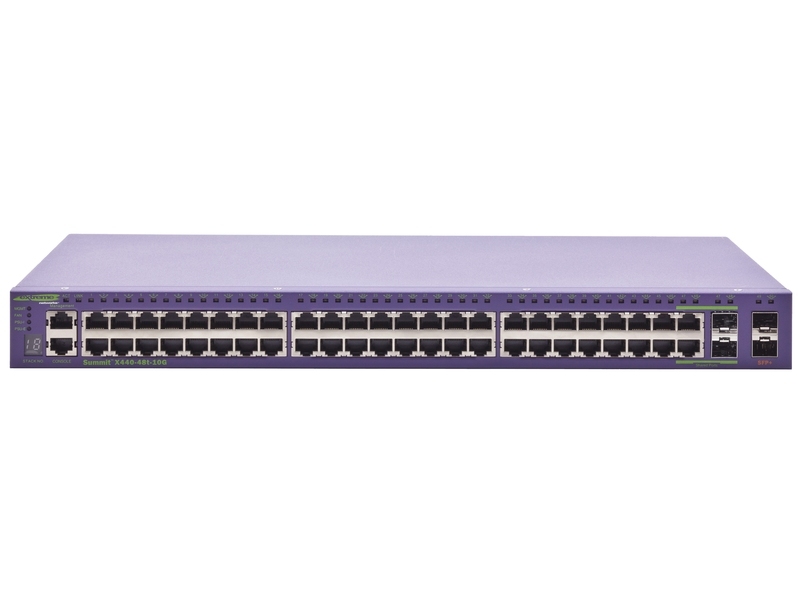

Summit X440-48t-10G:
  • 48-Port 10/100/1000MbE (RJ45);
  • 4-Port combo 1GbE (RJ45/SFP);
  • 2-Port 10GbE (SFP+);
  • 2-Port SummitStack;
  • 1-Port console (RJ45);
  • 1-Port out-of-band management 10/100MbE (RJ45);
  • 1-Port RPS

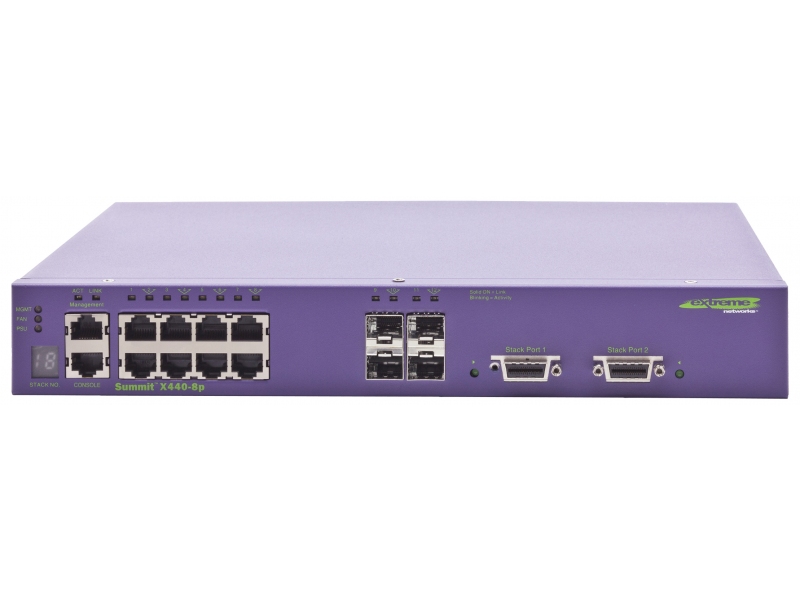

Summit X440-8p:
  • 8-Port 10/100/1000MbE (RJ45) PoE;
  • 4-Ports 100/1000MbE (SFP);
  • 2-Port SummitStack;
  • 1-Port console (RJ45);
  • 1-Port out-of-band management 10/100MbE (RJ45).
Summit X440-24p:
  • 24-Port 10/100/1000MbE (RJ45) PoE;
  • 4-Port combo 1GbE (RJ45/SFP);
  • 2-Port SummitStack;
  • 1-Port console (RJ45);
  • 1-Port out-of-band management 10/100MbE (RJ45);
  • 1-Port RPS

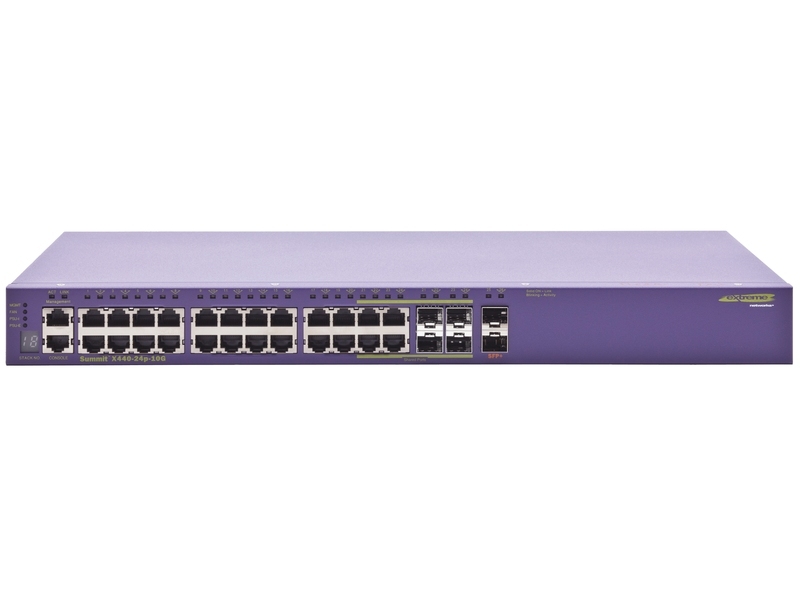

Summit X440-24p-10G:
  • 24-Port 10/100/1000MbE (RJ45) PoE;
  • 4-Port combo 1GbE (RJ45/SFP);
  • 2-Port 10GbE (SFP+);
  • 2-Port SummitStack;
  • 1-Port console (RJ45);
  • 1-Port out-of-band management 10/100MbE (RJ45);
  • 1-Port RPS
Summit X440-48p:
  • 48-Port 10/100/1000MbE (RJ45) PoE;
  • 4-Port combo 1GbE (RJ45/SFP);
  • 2-Port SummitStack;
  • 1-Port console (RJ45);
  • 1-Port out-of-band management 10/100MbE (RJ45);
  • 1-Port RPS

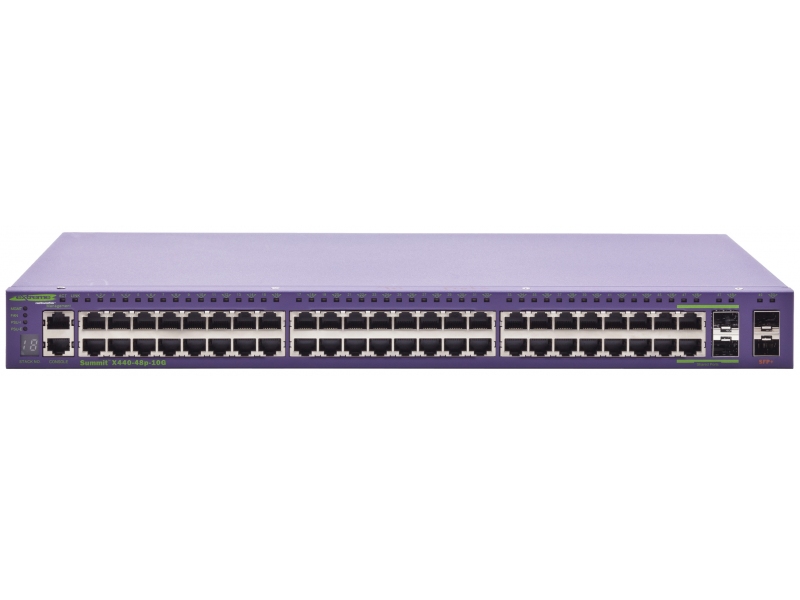

Summit X440-48p-10G:
  • 48-Port 10/100/1000MbE (RJ45) PoE;
  • 4-Port combo 1GbE (RJ45/SFP);
  • 2-Port 10GbE (SFP+);
  • 2-Port SummitStack;
  • 1-Port console (RJ45);
  • 1-Port out-of-band management 10/100MbE (RJ45);
  • 1-Port RPS.
Performance
Switching Bandwidth
Summit X440-8t: 64 Gb/s
Summit X440-24t: 88 Gb/s
Summit X440-24tDC: 88 Gb/s
Summit X440-24x: 88 Gb/s
Summit X440-24t-10G: 88 Gb/s
Summit X440-24x-10G: 88 Gb/s
Summit X440-48t: 136 Gb/s
Summit X440-48tDC: 136 Gb/s
Summit X440-48t-10G: 136 Gb/s
Summit X440-8p: 64 Gb/s
Summit X440-24p: 88 Gb/s
Summit X440-24p-10G: 88 Gb/s
Summit X440-48p: 136 Gb/s
Summit X440-48p-10G: 88 Gb/s
Forwarding Rate
Summit X440-8t: 48 Mp/s
Summit X440-24t: 65 Mp/s
Summit X440-24tDC: 65 Mp/s
Summit X440-24x: 65 Mp/s
Summit X440-24t-10G: 65 Mp/s
Summit X440-24x-10G: 65 Mp/s
Summit X440-48t: 101 Mp/s
Summit X440-48tDC: 101 Mp/s
Summit X440-48t-10G: 101 Mp/s
Summit X440-8p: 48 Mp/s
Summit X440-24p: 65 Mp/s
Summit X440-24p-10G: 65 Mp/s
Summit X440-48p: 101 Mp/s
Summit X440-48p-10G: 101 Mp/s
Layer 2 Features
MAC Address Table
Maximum Capacity: 16,000 entries
VLAN

IEEE 802.1Q: 4094; QinQ, VLAN Translation
Layer 2 Reliability

STP/RSTP/MST; PVST+; EAPS
Multicast
IGMP snooping: v1/v2/v3
IGMP groups: 1,024
Multicast VLAN (MVR): Supported
Multicast Routing: PIM-SM (Advanced Edge license is required)
Layer 3 features
ARP Table

509 entries
Routing Table
IPv4: 32 routes
IPv6: 16 routes
IP Routing

Static Routes; RIP v1/v2; OSPFv2 (Advanced Edge license is required); VRRP (Advanced Edge license is required); ESRP (Advanced Edge license is required)
MPLS / VPN

Not supported
Security
IPv4 ACL: 1,024 Ingress + Egress
IPv6 ACL: 1,024 Ingress + Egress
Local AAA: Supported
RADIUS, TACACS+: Supported
DHCP Server Not supported
DHCP Relay option82: Supported
DHCP Snooping: Supported
Loop detection: Supported
IP Source Guard: Supported
Broadcast, multicast, unknown unicast suppression: Supported
Quality of Service
QoS queues: 8
Traffic Limit: Supported
Traffic Mark: by 802.1p, DSCP
IPv6

Static Routes; IPv6 ACL; DHCPv6
Management

Telnet; SSH; LLDP, sFlow; SNMP v1/v2/v3; RMON; Syslog; NTP.
OAM

802.1ag (CFM)
Environmental Conditions
Relative Humidity

10 to 90% (noncondensing)
Operating Temperature

0 to 50°C (32 to 122°F)
Power Supply
Power Supply Unit (PSU)
AC PSU:
Type: Built-in
Quantity: 1
Rated voltage range: 100 to 240 VAC, 50-60 Hz.
DC PSU:
Type: Built-in
Quantity: 1
Rated voltage range: -48 to -60 VDC
PoE (Power over Ethernet)
Supported by: Summit X440-8p, Summit X440-24p, Summit X440-24p-10G, Summit X440-48p,  Summit X440-48p-10G:
PoE (802.3аf) (15 W per port):
Summit X440-8p: 8 ports
Summit X440-24p 24 ports
Summit X440-24p-10G: 24 ports
Summit X440-48p: 48 ports (using EPS-C2 with 2 x 750 W PSU)
Summit X440-48p-10G: 48 ports (using EPS-C2 with 2 x 750 W PSU)
PoE+ (802.3аt) (30 W per port):
Summit X440-8p: 5 ports
Summit X440-24p: 24 ports (using EPS-C2 with 2 x 750 W PSU)
Summit X440-24p-10G: 24 ports (using EPS-C2 with 2 x 750 W PSU)
Summit X440-48p: 38 ports (using EPS-C2 with 3 x 750 W PSU)
Summit X440-48p-10G: 38 ports (using EPS-C2 with 3 x 750 W PSU)
Maximum power consumption
Summit X440-8t: up to 39 W
Summit X440-24t: up to 44 W
Summit X440-24tDC: up to 38 W
Summit X440-24x: up to 46 W
Summit X440-24t-10G: up to 44 W
Summit X440-24x-10G: up to 65 W
Summit X440-48t: up to 60 W
Summit X440-48tDC: up to 57 W
Summit X440-48t-10G: up to 95 W
Summit X440-8p: up to 240 W
Summit X440-24p: up to 585 W
Summit X440-24p-10G: up to 600 W
Summit X440-48p: up to 600 W
Summit X440-48p-10G: up to 600 W
Acoustic noise
Summit X440-8t: 0 dB
Summit X440-24t: 55 dB
Summit X440-24tDC: up to 51 dB
Summit X440-24x: up to 52 dB
Summit X440-24t-10G: 55 dB
Summit X440-24x-10G: up to 53 dB
Summit X440-48t: 55 dB
Summit X440-48tDC: up to 52 dB
Summit X440-48t-10G: 55 dB
Summit X440-8p: 55 dB
Summit X440-24p: up to 57 dB
Summit X440-24p-10G: up to 57 dB
Summit X440-48p: up to 57 dB
Summit X440-48p-10G: up to 57 dB
Dimensions (HxWxD)
Summit X440-8t:

44 (1U) x 305 х 261 mm

(1.73 (1U) x 12.0 x 10.28 in)
Summit X440-24t:

44 (1U) x 441 х 254 mm

(1.73 (1U) x 17.36 x 10.0 in)
Summit X440-24tDC:

44 (1U) x 441 х 254 mm

(1.73 (1U) x 17.36 x 10.0 in)
Summit X440-24x:

44 (1U) x 441 х 254 mm

(1.73 (1U) x 17.36 x 10.0 in)
Summit X440-24t-10G:

44 (1U) x 441 х 254 mm

(1.73 (1U) x 17.36 x 10.0 in)
Summit X440-24x-10G:

44 (1U) x 441 х 254 mm

(1.73 (1U) x 17.36 x 10.0 in)
Summit X440-48t:

44 (1U) x 441 х 254 mm

(1.73 (1U) x 17.36 x 10.0 in)
Summit X440-48tDC:

44 (1U) x 441 х 254 mm

(1.73 (1U) x 17.36 x 10.0 in)
Summit X440-48t-10G:

44 (1U) x 441 х 254 mm

(1.73 (1U) x 17.36 x 10.0 in)
Summit X440-8p:

44 (1U) x 305 х 261 mm

(1.73 (1U) x 12.0 x 10.28 in)
Summit X440-24p:

44 (1U) x 441 х 254 mm

(1.73 (1U) x 17.36 x 10.0 in)
Summit X440-24p-10G:

44 (1U) x 441 х 254 mm

(1.73 (1U) x 17.36 x 10.0 in)
Summit X440-48p:

44 (1U) x 441 х 254 mm

(1.73 (1U) x 17.36 x 10.0 in)
Summit X440-48p-10G:

44 (1U) x 441 х 254 mm

(1.73 (1U) x 17.36 x 10.0 in)
Maximum Weight
Summit X440-8t: 2.64 kg (5.82 lb)
Summit X440-24t: 3.825 kg (8.43 lb)
Summit X440-24tDC: 3.869 kg (8.53 lb)
Summit X440-24x: 3.825 kg (8.43 lb)
Summit X440-24t-10G: 3.865 kg (8.52 lb)
Summit X440-24x-10G: 3.865 kg (8.52 lb)
Summit X440-48t: 4.125 kg (9.09 lb)
Summit X440-48tDC: 3.869 kg (8.53 lb)
Summit X440-48t-10G: 4.855 kg (10.7 lb)
Summit X440-8p: 3.035 kg (6.69 lb)
Summit X440-24p: 4.465 kg (9.84 lb)
Summit X440-24p-10G: 4.475 kg (9.87 lb)
Summit X440-48p: 4.845 kg (10.68 lb)
Summit X440-48p-10G: 4.855 kg (10.7 lb)
Compatible expansion cards

Not supported
