| Interfaces | |
|
| Summit X460-G2-24t-10GE4: |
- 24-Port 10/100/1000MbE (RJ45);
- 8-Port 100/1000MbE (SFP);
- 4-Port combo 1GbE (RJ45/SFP);
- 4-Port 10GbE (SFP+);
- 1 expansion slot;
- 1-Port console (RJ45);
- 1-Port out-of-band management 10/100MbE (RJ45),
- 1-Port USB.
|
| Summit X460-G2-48t-10GE4: |
- 48-Port 10/100/1000MbE (RJ45);
- 4-Port 10GbE (SFP+);
- 1 expansion slot;
- 1-Port console (RJ45);
- 1-Port out-of-band management 10/100MbE (RJ45);
- 1-Port USB
|
| Summit X460-G2-24x-10GE4: |
- 24-Port 100/1000MbE (SFP);
- 8-Port 100/1GbEX (RJ45);
- 4-Port combo 1GbE (RJ45/SFP);
- 4-Port 10GbE (SFP+);
- 1 expansion slot;
- 1-Port console (RJ45);
- 1-Port out-of-band management 10/100MbE (RJ45);
- 1-Port USB;
|
| Summit X460-G2-48x-10GE4: |
- 48-Port 100/1000MbE (SFP);
- 4-Port 10GbE (SFP+);
- 1 expansion slot;
- 1-Port console (RJ45);
- 1-Port out-of-band management 10/100MbE (RJ45),
- 1-Port USB
|
| Summit X460-G2-24t-GE4: |
- 24-Port 10/100/1000MbE (RJ45);
- 12-Port 100/1000MbE (SFP);
- 4-Port combo 1GbE (RJ45/SFP);
- 1 expansion slot;
- 1-Port console (RJ45);
- 1-Port out-of-band management 10/100MbE (RJ45);
- 1-Port USB.
|
| Summit X460-G2-48t-GE4: |
- 48-Port 10/100/1000MbE (RJ45);
- 4-Port 1GbE (SFP);
- 1 expansion slot;
- 1-Port console (RJ45);
- 1-Port out-of-band management 10/100MbE (RJ45);
- 1-Port USB.
|
| Summit X460-G2-24p-10GE4: |
- 24-Port 10/100/1000MbE (RJ45) PoE;
- 8-Port 100/1000MbE (SFP);
- 4-Port combo 1GbE (RJ45/SFP);
- 4-Port 10GbE (SFP+);
- 1 expansion slot;
- 1-Port console (RJ45);
- 1-Port out-of-band management 10/100MbE (RJ45);
- 1-Port USB.
|

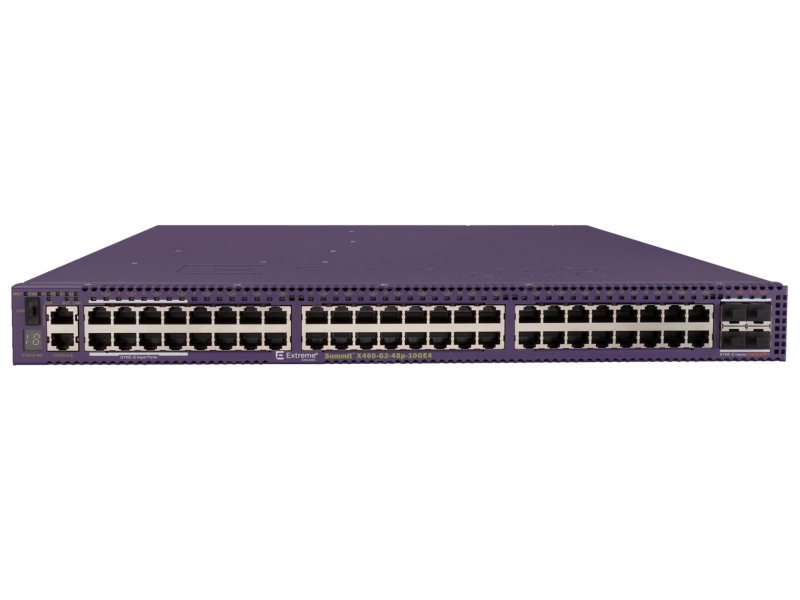

| Summit X460-G2-48p-10GE4: |
- 48-Port 10/100/1000MbE (RJ45) PoE;
- 4-Port 10GbE (SFP+);
- 1 expansion slot;
- 1-Port console (RJ45);
- 1-Port out-of-band management 10/100MbE (RJ45);
- 1-Port USB;
|
| Summit X460-G2-24p-GE4: |
- 24-Port 10/100/1000MbE (RJ45) PoE;
- 12-Port 100/1000MbE (SFP);
- 4-Port combo 1GbE (RJ45/SFP);
- 1 expansion slot;
- 1-Port console (RJ45);
- 1-Port out-of-band management 10/100MbE (RJ45);
- 1-Port USB.
|
| Summit X460-G2-48p-GE4: |
- 48-Port 10/100/1000MbE (RJ45);
- 4-Port 1GbE (SFP);
- 1 expansion slot;
- 1-Port console (RJ45);
- 1-Port out-of-band management 10/100MbE (RJ45);
- 1-Port USB.
|
|
| Performance | |
| Switching Bandwidth |
| Summit X460-G2-24t-10GE4: |
296 Gb/s |
| Summit X460-G2-48t-10GE4: |
336 Gb/s |
| Summit X460-G2-24x-10GE4: |
296 Gb/s |
| Summit X460-G2-48x-10GE4: |
336 Gb/s |
| Summit X460-G2-24t-GE4: |
220 Gb/s |
| Summit X460-G2-48t-GE4: |
260 Gb/s |
| Summit X460-G2-24p-10GE4: |
296 Gb/s |
| Summit X460-G2-48p-10GE4: |
336 Gb/s |
| Summit X460-G2-24p-GE4: |
220 Gb/s |
| Summit X460-G2-48p-GE4: |
260 Gb/s |
|
| Forwarding Rate |
| Summit X460-G2-24t-10GE4: |
220.2 Mp/s |
| Summit X460-G2-48t-10GE4: |
250.0 Mp/s |
| Summit X460-G2-24x-10GE4: |
220.2 Mp/s |
| Summit X460-G2-48x-10GE4: |
250.0 Mp/s |
| Summit X460-G2-24t-GE4: |
163.7 Mp/s |
| Summit X460-G2-48t-GE4: |
193.4 Mp/s |
| Summit X460-G2-24p-10GE4 |
220.2 Mp/s |
| Summit X460-G2-48p-10GE4: |
250.0 Mp/s |
| Summit X460-G2-24p-GE4: |
163.7 Mp/s |
| Summit X460-G2-48p-GE4: |
193.4 Mp/s |
|
| Layer 2 Features | |
| MAC Address Table |
| Maximum Capacity: |
176,000 entries |
|
| VLAN | IEEE 802.1Q: 4094; GVRP; MVRP; QinQ; VLAN Translation |
| Layer 2 Reliability | STP/RSTP/MSTP/PVST+; EAPS; ERPS (G.8032) |
| Multicast | |
|
| IGMP snooping: |
v1/v2/v3 |
| IGMP groups: |
1,024 |
| Multicast VLAN (MVR): |
Supported |
| Multicast Routing: |
PIM-SM (Core license is required); PIM-DM (Core license is required); PIM-SSM (Core license is required); MSDP (Core license is required); Anycast RP (Core license is required) |
|
| Layer 3 features | |
| ARP Table | 176,000 entries |
| Routing Table |
| IPv4: |
12,000 routes |
| IPv6: |
6,000 routes |
|
| IP Routing | Static Routes; RIPv1/2; OSPFv2 (Core license is required); IS-IS (Core license is required); BGP (Core license is required); MBGP (Core license is required); VRRP (Advanced Edge license is required) |
| MPLS / VPN | |
| Supported (MPLS license is required). MPLS, LDP, GRE |
| Security | |
|
| IPv4 ACL: |
4,096 Ingress + 1,024 Egress |
| IPv6 ACL: |
4,096 Ingress + 1,024 Egress |
|
|
| Local AAA: |
Supported |
| RADIUS, TACACS+: |
Supported |
| DHCP Server |
Supported |
| DHCP Relay option82: |
Supported |
| DHCP Snooping: |
Supported |
| Loop detection: |
Supported |
| IP Source Guard: |
Supported |
| Broadcast, multicast, unknown unicast suppression: |
Supported |
|
| Quality of Service | |
|
| QoS queues: |
8 |
| Traffic Limit: |
Supported |
| Traffic Mark: |
by 802.1p, DSCP |
|
| IPv6 | |
| Static Routes; RIPng; OSPFv3 (Core license is required); BGPv6 (Core license is required); VRRPv6; PIMv6 (Core license is required); IPv6 ACL; Multicast Listener Discovery snooping (MLDv1/v2) |
| Management | |
| Telnet; SSH; LLDP; sFlow; IPFIX; OpenFlow (Open Flow license is required); SNMP v1/v2/v3; Syslog; NTP |
| OAM | |
| 802.1ag (CFM); Y.1731 |
| Environmental Conditions | |
| Relative Humidity | 10 to 93% (noncondensing) |
| Operating Temperature | 0 to 45°C (32 to 113°F) |
| Power Supply | |
| Power Supply Unit (PSU) |
| AC PSU: |
|
| Type: |
Removable |
| Quantity: |
2 |
| Rated voltage range: |
110 to 240 VAC, 50-60 Hz. |
|
|
| DC PSU: |
|
| Type: |
Removable |
| Quantity: |
2 |
| Rated voltage range: |
-48 to -60 VDC |
|
| PoE (Power over Ethernet) |
| PoE (802.3af) (15 W per port): |
|
| Summit X460-G2-24p-10GE4: |
24 ports |
| Summit X460-G2-48p-10GЕ4: |
48 ports |
| Summit X460-G2-24p-GE4: |
24 ports |
| Summit X460-G2-48p-GE4: |
48 ports |
|
|
| PoE+ (802.3аt) (30 W per port): |
|
| Summit X460-G2-24p-10GE4: |
24 ports |
| Summit X460-G2-48p-10GЕ4: |
48 ports (with 2 x 1100 WPSU) |
| Summit X460-G2-24p-GE4: |
24 ports |
| Summit X460-G2-48p-GE4: |
48 ports (with 2 x 1100 W PSU) |
|
| Maximum power consumption | |
|
| Summit X460-G2-24t-10GE4: |
up to 125 W |
| Summit X460-G2-48t-10GЕ4: |
up to 125 W |
| Summit X460-G2-24x-10GE4: |
up to 125 W |
| Summit X460-G2-48x-10GE4: |
up to 125 W |
| Summit X460-G2-24t-GE4: |
up to 125 W |
| Summit X460-G2-48t-GE4: |
up to 127 W |
| Summit X460-G2-24p-10GE4: |
up to 204 W |
| Summit X460-G2-48p-10GE4: |
up to 334 W |
| Summit X460-G2-24p-GE4: |
up to 204 W |
| Summit X460-G2-48p-GE4: |
up to 334 W |
|
| Acoustic noise | |
| 50 to 70 dB |
| Dimensions (HxWxD) | |
|
| Summit X460-G2-24t-10GE4: |
44 (1U) х 441 х 430.3 mm
(1.73 (1U) x 17.36 x 16.94 in)
|
| Summit X460-G2-48t-10GЕ4: |
44 (1U) х 441 х 430.3 mm
(1.73 (1U) x 17.36 x 16.94 in)
|
| Summit X460-G2-24x-10GE4: |
44 (1U) х 441 х 430.3 mm
(1.73 (1U) x 17.36 x 16.94 in)
|
| Summit X460-G2-48x-10GE4: |
44 (1U) х 441 х 430.3 mm
(1.73 (1U) x 17.36 x 16.94 in)
|
| Summit X460-G2-24t-GE4: |
44 (1U) х 441 х 430.3 mm
(1.73 (1U) x 17.36 x 16.94 in)
|
| Summit X460-G2-48t-GE4: |
44 (1U) х 441 х 430.3 mm
(1.73 (1U) x 17.36 x 16.94 in)
|
| Summit X460-G2-24p-10GE4: |
44 (1U) х 441 х 488 mm
(1.73 (1U) x 17.36 x 19.21 in)
|
| Summit X460-G2-48p-10GE4: |
44 (1U) х 441 х 488 mm
(1.73 (1U) x 17.36 x 19.21 in)
|
| Summit X460-G2-24p-GE4: |
44 (1U) х 441 х 488 mm
(1.73 (1U) x 17.36 x 19.21 in)
|
| Summit X460-G2-48p-GE4: |
44 (1U) х 441 х 488 mm
(1.73 (1U) x 17.36 x 19.21 in)
|
|
| Maximum Weight | |
|
| Summit X460-G2-24t-10GЕ4: |
5.85 kg (12.9 lb) |
| Summit X460-G2-48t-10GЕ4: |
6.03 kg (13.29 lb) |
| Summit X460-G2-24x-10GЕ4: |
5.94 kg (13.09 lb) |
| Summit X460-G2-48x-10GE4 |
6.4 kg (13.32 lb) |
| Summit X460-G2-24t-GE4: |
5.85 kg (12.9 lb) |
| Summit X460-G2-48t-GE4: |
6.03 kg (13.29 lb) |
| Summit X460-G2-24p-10GE4: |
6.62 kg (14.59 lb) |
| Summit X460-G2-48p-10GЕ4: |
6.9 kg (15.21 lb) |
| Summit X460-G2-24p-GE4: |
6.62 kg (14.59 lb) |
| Summit X460-G2-48p-GE4: |
6.9 kg (15.21 lb) |
|

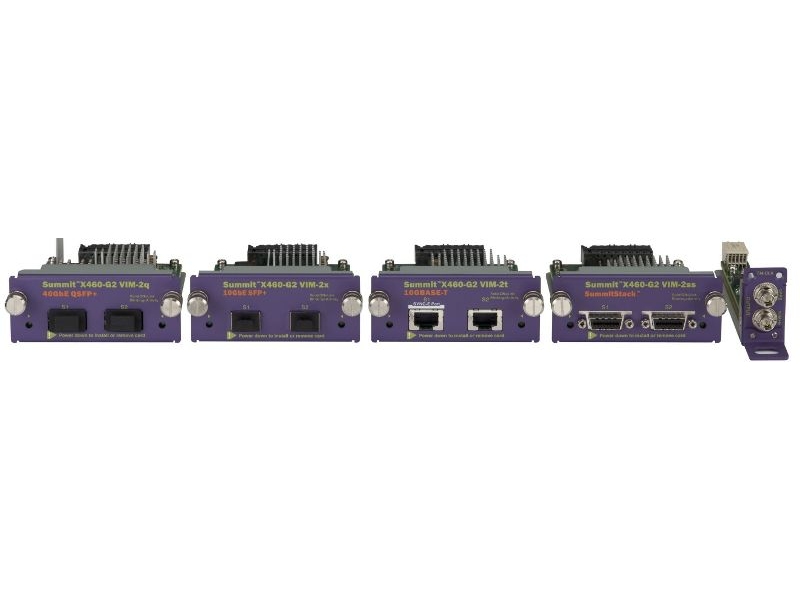

| Compatible expansion cards | |
|
| Model Number |
Description |
| Summit X460-G2 VIM-2x |
2-Port 10GbE (SFP+) |
| Summit X460-G2 VIM-2t |
2-Port 10GBASE-T (RJ45) |
| Summit X460-G2 VIM-2ss |
Stack Card. 2-Port Summit Stack (CX4) |
| Summit X460-G2 VIM-2q |
2-Port 40GbE (QSFP+) |
| Summit X460-G2 TM-CLK |
SyncE and ITU IEEE 1588 (PTP) supported. 2-Port mini-BNC connectors for 10 MHz and 1PPS |
|
