| Interfaces | |
|

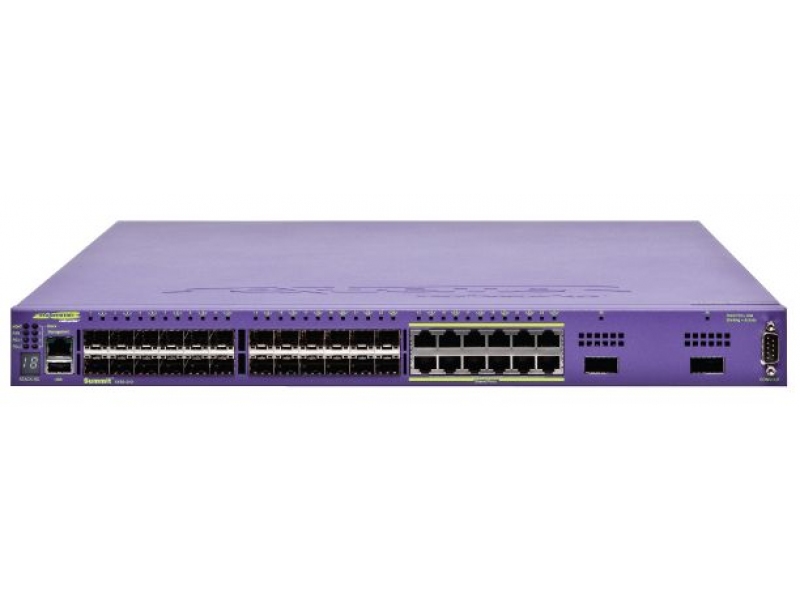

| Summit X480-24x: |
- 12-Port 100/1000MbE (SFP);
- 12-Port combo 1GbE (RJ45/SFP);
- 2-Port 10GbE (XFP);
- 1 expansion slot;
- 1-Port console (DB-9);
- 1-Port out-of-band management 10/100MbE (RJ45);
- 1-Port USB.
|

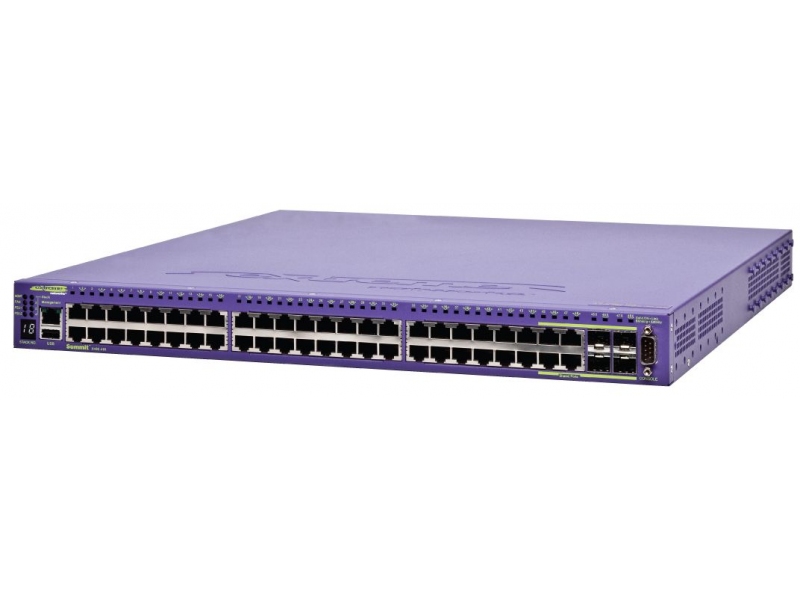

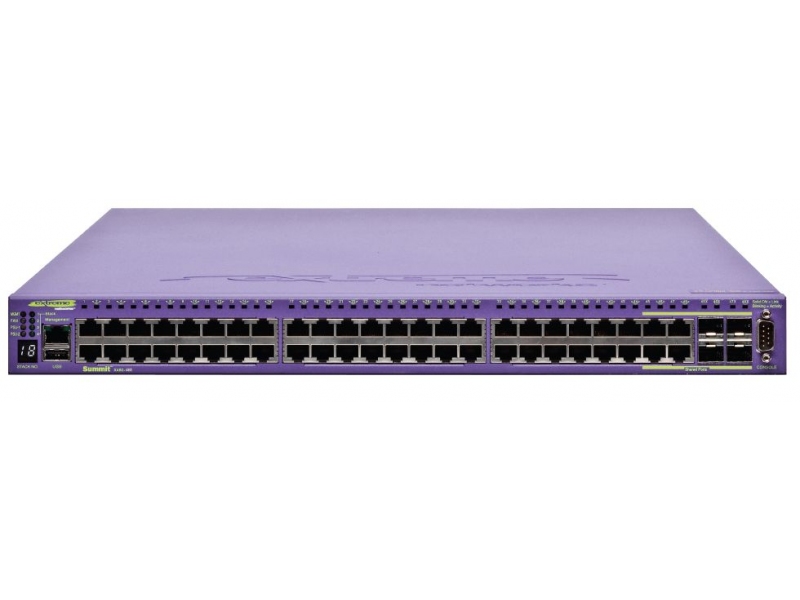

| Summit X480-48t: |
- 44-Port 100/1GbE (RJ45);
- 4-Port combo 1GbE (RJ45/SFP);
- 1 expansion slot;
- 1-Port console (DB-9);
- 1-Port out-of-band management 10/100MbE (RJ45);
- 1-Port USB.
|

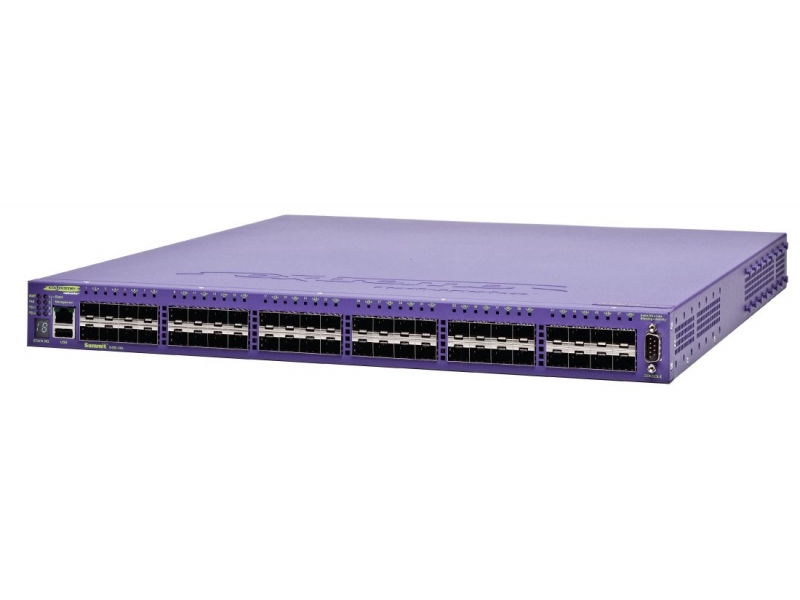

| Summit X480-48x: |
- 48-Port 100/1000MbE (SFP);
- 1 expansion slot;
- 1-Port console (DB-9);
- 1-Port out-of-band management 10/100MbE (RJ45);
- 1-Port USB.
|
|
| Performance | |
| Switching Bandwidth | 448 Gb/s |
| Forwarding Rate | 130.9 Mp/s |
| Layer 2 Features | |
| MAC Address Table |
| Maximum Capacity: |
256,000 entries |
|
| VLAN | IEEE 802.1Q: 4094. GVRP; MVRP; QinQ; VLAN Translation |
| Layer 2 Reliability | STP/RSTP/MSTP/PVST+; EAPS; ERPS (G.8032) |
| Multicast | |
|
| IGMP snooping: |
v1/v2/v3 |
| IGMP groups: |
1,024 |
| Multicast VLAN (MVR): |
Supported |
| Multicast Routing: |
PIM-SM (Core license is required); PIM-DM (Core license is required); PIM-SSM (Core license is required); MSDP (Core license is required); Anycast RP (Core license is required) |
|
| Layer 3 features | |
| ARP Table | 16,000 entries |
| Routing Table |
| IPv4: |
256,000 routes |
| IPv6: |
8,000 routes |
|
| IP Routing | Static Routes; RIPv1/2; OSPFv2 (Core license is required); IS-IS (Core license is required); BGP (Core license is required); MBGP (Core license is required); VRRP |
| MPLS / VPN | |
| Supported (MPLS license is required). MPLS LDP; GRE |
| Security | |
|
| IPv4 ACL: |
8,000 Ingress + Egress |
| IPv6 ACL: |
8,000 Ingress + Egress |
|
|
| Local AAA: |
Supported |
| RADIUS, TACACS+: |
Supported |
| DHCP Server |
Supported |
| DHCP Relay option82: |
Supported |
| DHCP Snooping: |
Supported |
| Loop detection: |
Supported |
| IP Source Guard: |
Supported |
| Broadcast, multicast, unknown unicast suppression: |
Supported |
|
| Quality of Service | |
|
| QoS queues: |
8 |
| Traffic Limit: |
Supported |
| Traffic Mark: |
by 802.1p, DSCP |
|
| IPv6 | |
| Static Routes; RIPng; OPSFv3 (Core license is required); BGPv6 (Core license is required); VRRPv6; PIMv6 (Core license is required); IPv6 ACL; Multicast Listener Discovery snooping (MLDv1/v2) |
| Management | |
| Telnet; SSH; LLDP; sFlow; IPFIX; OpenFlow (Open Flow license is required); SNMP v1/v2/v3; Syslog; NTP |
| OAM | |
| 802.1ag (CFM); Y.1731 |
| Environmental Conditions | |
| Relative Humidity | 10 to 93% (noncondensing) |
| Operating Temperature | 0 to 45°C (32 to 113°F) |
| Power Supply | |
| Power Supply Unit (PSU) |
| AC PSU: |
|
| Type: |
Removable |
| Quantity: |
2 |
| Rated voltage range: |
110 to 240 VAC, 50-60 Hz. |
|
|
| DC PSU: |
|
| Type: |
Removable |
| Quantity: |
2 |
| Rated voltage range: |
-48 to -60 VDC |
|
| PoE (Power over Ethernet) | Not supported |
| Maximum power consumption | |
|
| X480-24x: |
up to 238 W |
| X480-48t: |
up to 240 W |
| X480-48x: |
up to 255 W |
|
| Acoustic noise | |
| 60 to 70 dB |
| Dimensions (HxWxD) | |
| 44 (1U) х 441 х 483 mm
(1.73 (1U) x 17.4 x 19.0 in)
|
| Maximum Weight | |
|
| X480-24x: |
9.5 kg (20.9 lb) |
| X480-48t: |
10.3 kg (22.7 lb) |
| X480-48x: |
9.6 kg (21.2 lb) |
|
| Compatible expansion cards | |
|
| Model Number |
Description |
| VIM2-SummitStack |
Stack Card. 2-Port SummitStack |
| VIM2-10G4X |
4-Port 10GbE (XFP)
|
| VIM2-SummitStack128 |
Stack Card. 2-Port 64G |
| VIM2-SummitStack-V80 |
Stack Card. 2-Port 40G |
| VIM3-40G4X |
4-Port 40GbE (QSFP+) |
|
