| Interfaces | |
|

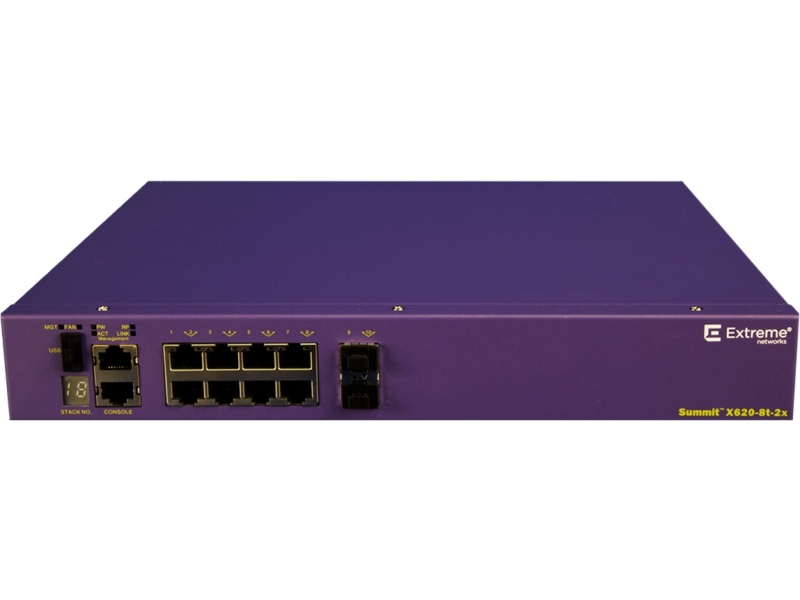

| Summit X620-8t-2x: |
- 8-Port 100M/1G/10GBASE-T (RJ45) with EEE;
- 2-Port 100M/1/10GbE (SFP/SFP+);
- 1-Port console (RJ45);
- 1-Port out-of-band management 10/100MbE (RJ45);
- 1-Port USB.
|
| Summit X620-10x: |
- 10-Port 100M/1/10GbE (SFP/SFP+);
- 1-Port console (RJ45);
- 1-Port out-of-band management 10/100MbE (RJ45);
- 1-Port USB.
|
| Summit X620-16t: |
- 12-Port 100M/1G/10GBASE-T (RJ45) with EEE;
- 4-Port combo (100M/1G/10GBASE-T (RJ45) / 1/10GbE (SFP/SFP+));
- 1-Port console (RJ45);
- 1-Port out-of-band management 10/100MbE (RJ45);
- 1-Port USB.
|
| Summit X620-16x: |
- 16-Port 100M/1/10GbE (SFP/SFP+);
- 1-Port console (RJ45);
- 1-Port out-of-band management 10/100MbE (RJ45);
- 1-Port USB.
|
|
| Performance | |
| Switching Bandwidth |
| Summit X620-8t-2x: |
200 Gb/s |
| Summit X620-10x: |
200 Gb/s |
| Summit X620-16t: |
320 Gb/s |
| Summit X620-16x: |
320 Gb/s |
|
| Forwarding rate |
| Summit X620-8t-2x: |
148.8 Mp/s |
| Summit X620-10x: |
148.8 Mp/s |
| Summit X620-16t: |
238.08 Mp/s |
| Summit X620-16x: |
238.08 Mp/s |
|
| Layer 2 Features | |
| MAC Address Table |
| Maximum Capacity: |
16,000 entries |
|
| VLAN | IEEE 802.1Q: 4094; GVRP; MVRP; QinQ; VLAN Translation |
| Layer 2 Reliability | STP/RSTP/MSTP/PVST+; EAPS; ERPS (G.8032) |
| Multicast | |
|
| IGMP snooping: |
v1/v2/v3 |
| IGMP groups: |
1,024 |
| Multicast VLAN (MVR): |
Supported |
| Multicast Routing: |
PIM-SM (Advanced Edge license is required) |
|
| Layer 3 features | |
| ARP Table (англ. ARP Table) | 1,500 entries |
| Routing Table |
| IPv4: |
480 routes |
| IPv6: |
240 routes |
|
| IP Routing | Static Routes; RIPv1/2; OSPFv2 (Advanced Edge license is required); VRRP (Advanced Edge license is required) |
| MPLS / VPN | |
| Not supported |
| Security | |
|
| IPv4 ACL: |
1,024 Ingress + 256 Egress |
| IPv6 ACL: |
1,024 Ingress + 256 Egress |
|
|
| Local AAA: |
Supported |
| RADIUS и TACACS+: |
Supported |
| DHCP Server |
Supported |
| DHCP Relay option82: |
Supported |
| DHCP Snooping: |
Supported |
| Loop detection: |
Supported |
| IP Source Guard: |
Supported |
| Broadcast, multicast, unknown unicast suppression: |
Supported |
|
| Quality of Service | |
|
| QoS queues: |
8 |
| Traffic Limit: |
Supported |
| Traffic Mark: |
by 802.1p and DSCP |
|
| IPv6 | |
| Static Routes; RIPng; OSPFv3 (Advanced Edge license is required); IPv6 ACL; Multicast Listener Discovery snooping (MLDv1/v2) |
| Management | |
| Telnet; SSH; LLDP; sFlow; Open Flow (Open Flow license is required); SNMP v1/v2/v3; Syslog; NTP |
| OAM | |
| 802.1ag (CFM); Y.1731 |
| Environmental Conditions | |
| Relative Humidity | 10 to 95% (noncondensing) |
| Operating Temperature | 0 to 50°C (32 to 122°F) |
| Power Supply | |
| Power Supply Unit (PSU) |
| AC PSU: |
| Type: |
|
|
Summit X620-8t-2x, Summit X620-10x
|
Built-in |
| Summit X620-16t, Summit X620-16x |
Removable |
| Quantity: |
|
| Summit X620-8t-2x, Summit X620-10x |
1 |
| Summit X620-16t, Summit X620-16x |
2 |
| Rated voltage range: |
110 to 240 VAC, 50-60 Hz. |
|
|
| DC PSU: |
| Type |
|
| Summit X620-16t, Summit X620-16x |
Removable |
| Quantity: |
|
| Summit X620-16t, Summit X620-16x |
2 |
| Rated voltage range: |
-48 to -60 VDC |
|
| Power over Ethernet | Not supported |
| Maximum power consumption | |
|
| Summit X620-8t-2x: |
up to 52 W |
| Summit X620-10x: |
up to 36 W |
| Summit X620-16t: |
up to 102 W |
| Summit X620-16x: |
up to 63 W |
|
| Acoustic noise | |
| up to 65 dBA |
| Dimensions (HxWxD) | |
|
| Summit X620-8t-2x |
43 (1U) х 304.8 х 262 mm
(1.69 (1U) x 12 x 10.3 in)
|
| Summit X620-10x |
43 (1U) х 304.8 х 262 mm
(1.69 (1U) x 12 x 10.3 in)
|
| Summit X620-16t |
43 (1U) х 432 х 442 mm
(1.69 (1U) x 17 x 17.4 in)
|
| Summit X620-16x |
43 (1U) х 432 х 442 mm
(1.69 (1U) x 17 x 17.4 in)
|
|
| Maximum Weight | |
|
| Summit X620-8t-2x: |
2.89 kg (6.37 lb) |
| Summit X620-10x: |
2.74 kg (6.04 lb) |
| Summit X620-16t: |
5.46 kg (12.04 lb) |
| Summit X620-16x: |
5.04 kg (11.11 lb) |
|
| Compatible expansion cards | |
| Not supported |
