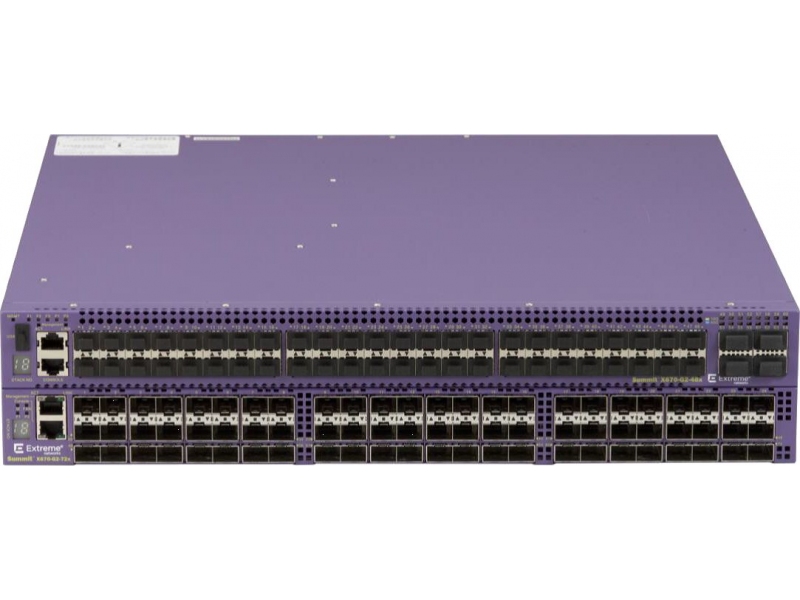

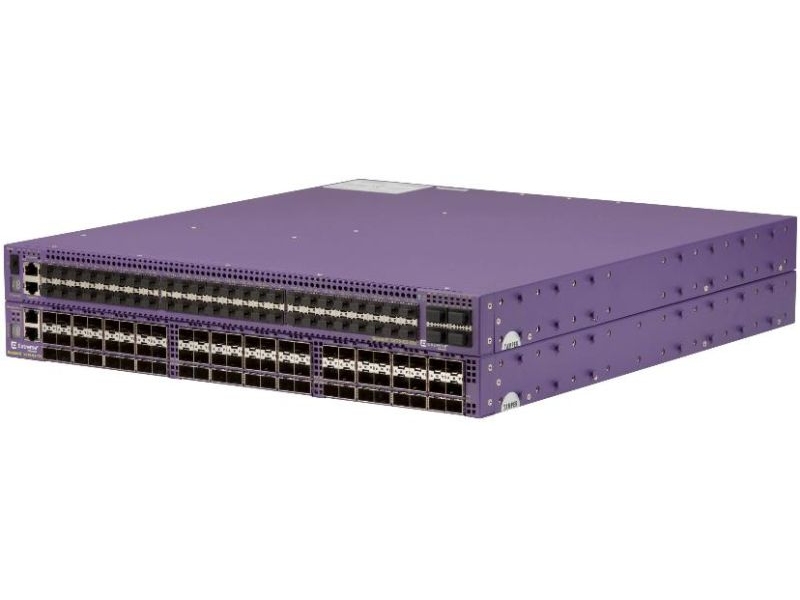

Extreme Networks Summit X670-G2 series

Download Summit X670-G2 series Datasheet (eng)

Available to quote:

Summit X670-G2-48x-4q

Summit X670-G2-72x





Request a Quote
SPECIFICATIONS
Interfaces
Summit X670-G2-48x-4q:
  • 48-Port 1/10GbE (SFP/SFP+);
  • 4-Port 10/40GbE (QSFP+);
  • 1-Port console (RJ45);
  • 1-Port out-of-band management 10/100MbE (RJ45);
  • 1-Port USB;
  • 2-Port Sync (BNC).

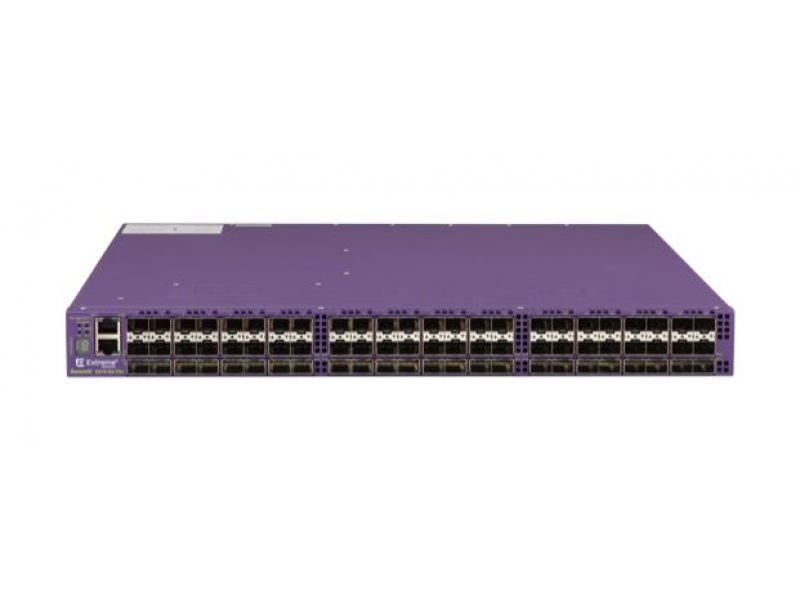

Summit X670-G2-72x:
  • 72-Port 1/10GbE (SFP/SFP+);
  • 1-Port console (RJ45);
  • 1-Port out-of-band management 10/100MbE (RJ45),
  • 1-Port USB;
  • 2-Port Sync (BNC).
Performance
Switching Bandwidth
Summit X670-G2-48x-4q: 1,28 Tb/s
Summit X670-G2-72x: 1,44 Tb/s
Forwarding Rate
Summit X670-G2-48x-4q: 952 Mp/s
Summit X670-G2-72x: 1,071 Mp/s
Layer 2 Features
MAC Address Table
Maximum Capacity: 249,000 entries
VLAN

IEEE 802.1Q: 4094. GVRP; MVRP; QinQ; VLAN Translation
Layer 2 Reliability

STP/RSTP/MSTP/PVST+; EAPS; ERPS (G.8032)
Multicast
IGMP snooping: v1/v2/v3
IGMP groups: 4,096
Multicast VLAN (MVR): Supported
Multicast Routing: PIM-SM (Core license is required); PIM-DM (Core license is required); PIM-SSM (Core license is required); MSDP (Core license is required); Anycast RP (Core license is required)
Layer 3 features
ARP Table

108,000 entries
Routing Table
IPv4: 16,000 routes
IPv6: 8,000 routes
IP Routing

Static Routes; RIPv1/2; OSPFv2 (Core license is required); IS-IS (Core license is required); BGP (Core license is required); MBGP (Core license is required); VRRP
MPLS / VPN

Supported (MPLS license is required). MPLS LDP; GRE
Security
IPv4 ACL: 4,096 Ingress + 1,024 Egress
IPv4 ACL: 4,096 Ingress + 1,024 Egress
Local AAA: Supported
RADIUS, TACACS+: Supported
DHCP Server Supported
DHCP Relay option82: Supported
DHCP Snooping: Supported
Loop detection: Supported
IP Source Guard: Supported
Broadcast, multicast, unknown unicast suppression: Supported
Quality of Service
QoS queues: 8
Traffic Limit: Supported
Traffic Mark: by 802.1p, DSCP
IPv6

Static Routes; RIPng; OPSFv3 (Core license is required); BGPv6 (Core license is required); VRRPv6;  PIMv6 (Core license is required); IPv6 ACL; Multicast Listener Discovery snooping (MLDv1/v2)
Management

Telnet; SSH; LLDP; sFlow; IPFIX; OpenFlow (Open Flow license is required); SNMP v1/v2/v3; Syslog; NTP
OAM

802.1ag (CFM);  Y.1731
Environmental Conditions
Relative Humidity

10 to 93% (noncondensing)
Operating Temperature

0 to 45°C (32 to 113°F)
Power Supply
Power Supply Unit (PSU)
AC PSU:
Type: Removable
Number of PSU: 2
Rated voltage range: 110 to 240 VAC, 50-60 Hz
DC PSU:
Type: Removable
Number of PSU: 2
Rated voltage range: -48 to -60 VDC.
PoE (Power over Ethernet)

Not supported
Maximum power consumption
X670-G2-48x-4q:  up to  225 W
X670-G2-72x: up to 275 W
Acoustic noise

up to 70 dB
Dimensions (HxWxD)

44 (1U) х 441 х 487 mm

(1.73 (1U) x 17.4 x 19.2 in)
Maximum Weight
X670-G2-48x-4q: 5.83 kg (12.8 lb)
X670-G2-72x: 7.0 kg (15.4 lb)
Compatible expansion cards

Not supported
