| Interfaces | |
|

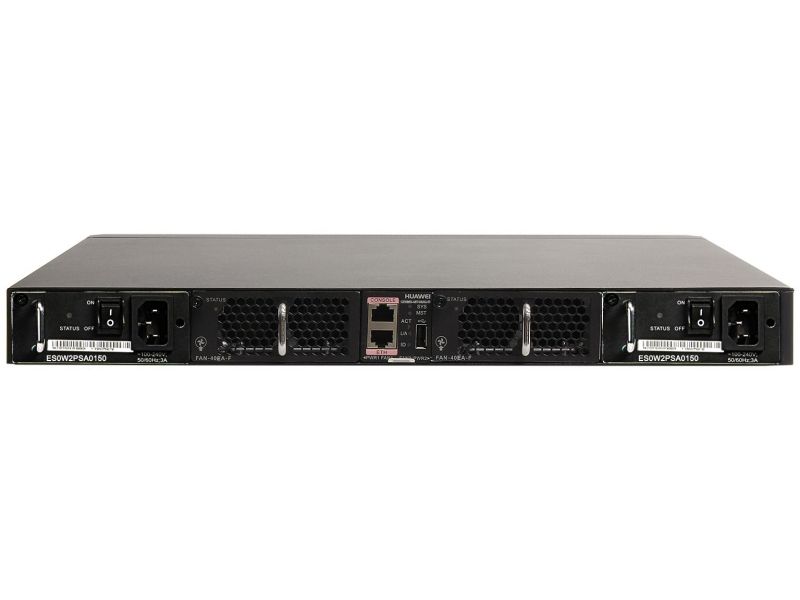

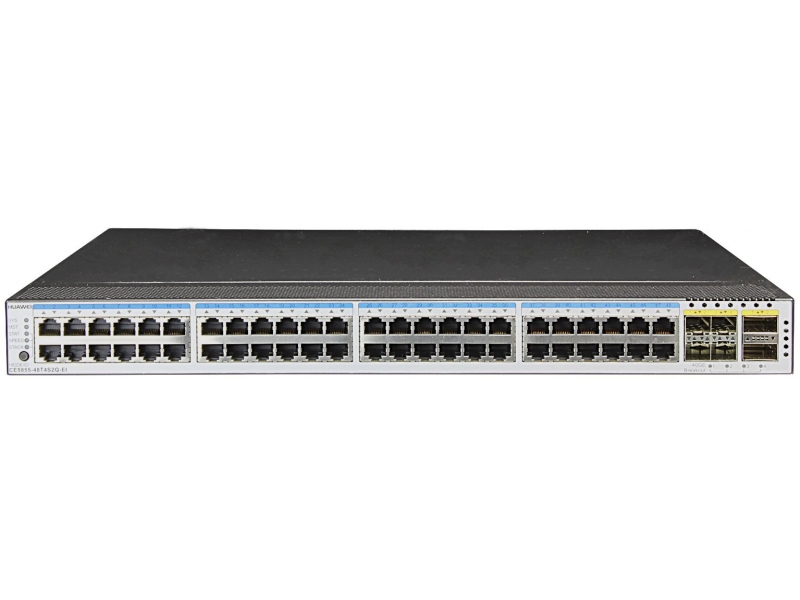

| CE5855-48T4S2Q-EI: |
- 48-Port 10/100/1000MbE (RJ45);
- 4-Port 10GbE (SFP+);
- 2-Port 40GbE (QSFP);
- 1-Port console (RJ45);
- 1-Port out-of-band management 10/100MbE (RJ45);
- 1-Port USB.
|

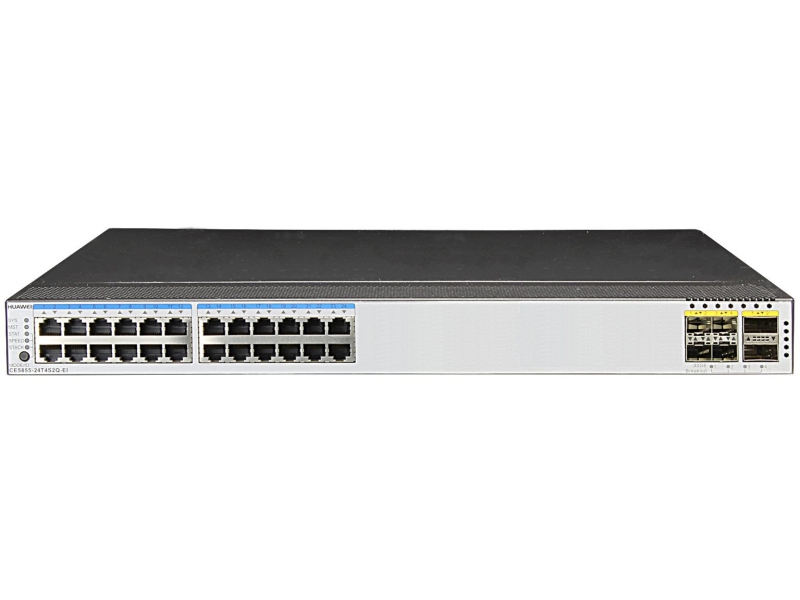

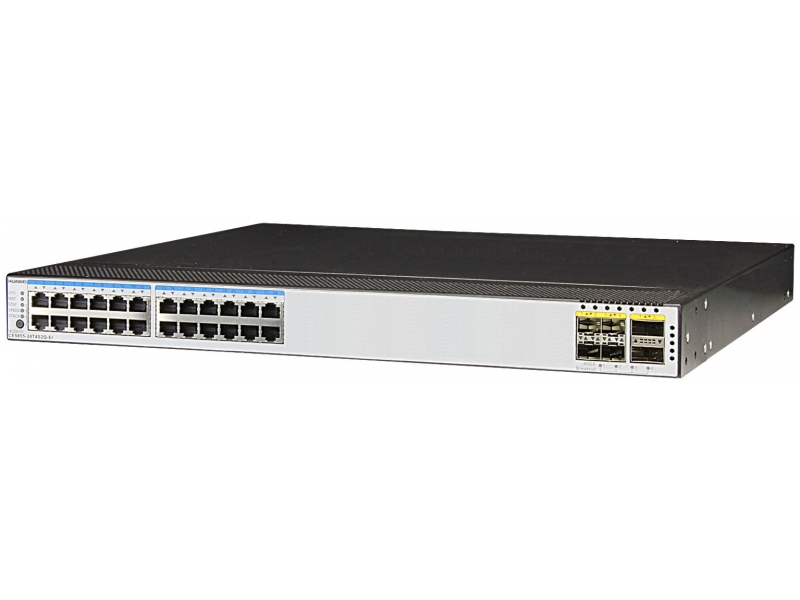

| CE5855-24T4S2Q-EI: |
- 24-Port 10/100/1000MbE (RJ45);
- 4-Port 10GbE (SFP+);
- 2-Port 40GbE (QSFP);
- 1-Port console (RJ45);
- 1-Port out-of-band management 10/100MbE (RJ45);
- 1-Port USB.
|

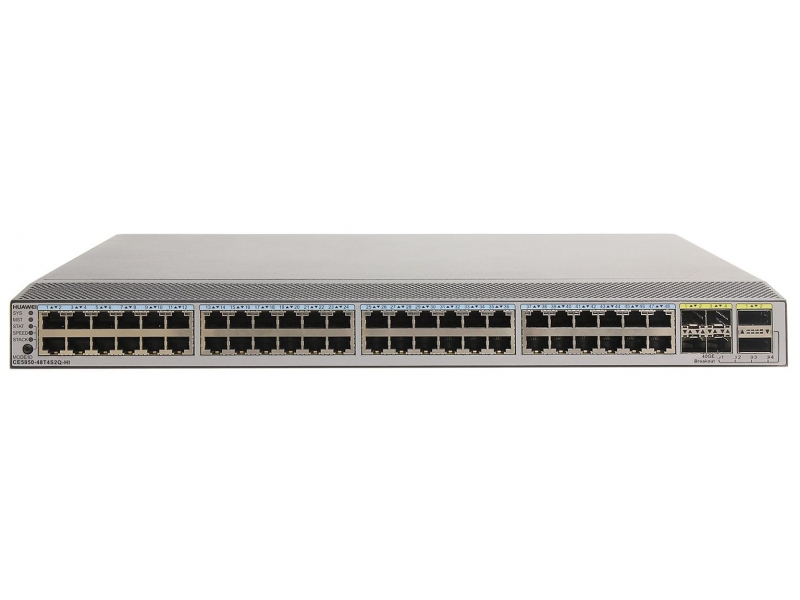

| CE5850-48T4S2Q-HI: |
- 48-Port 10/100/1000MbE (RJ45);
- 4-Port 10GbE (SFP+);
- 2-Port 40GbE (QSFP);
- 1-Port console (RJ45);
- 1-Port out-of-band management 10/100MbE (RJ45);
- 1-Port USB.
|

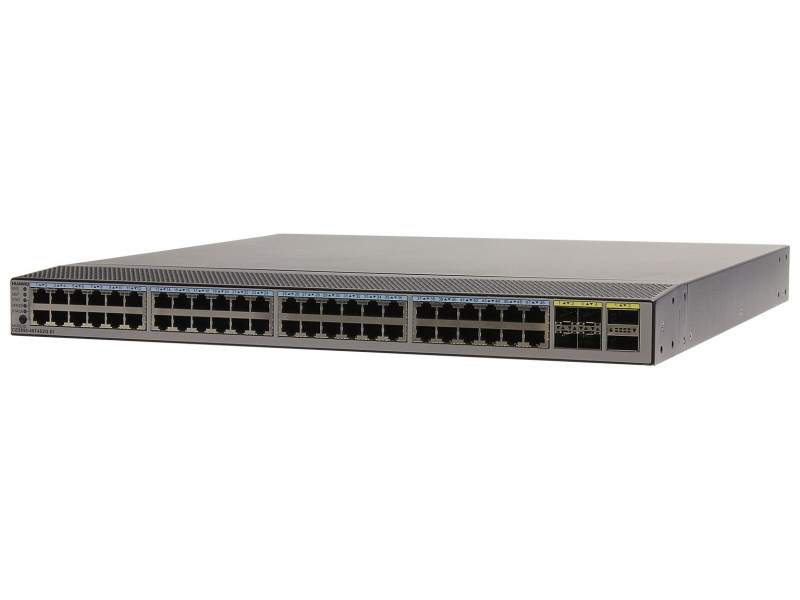

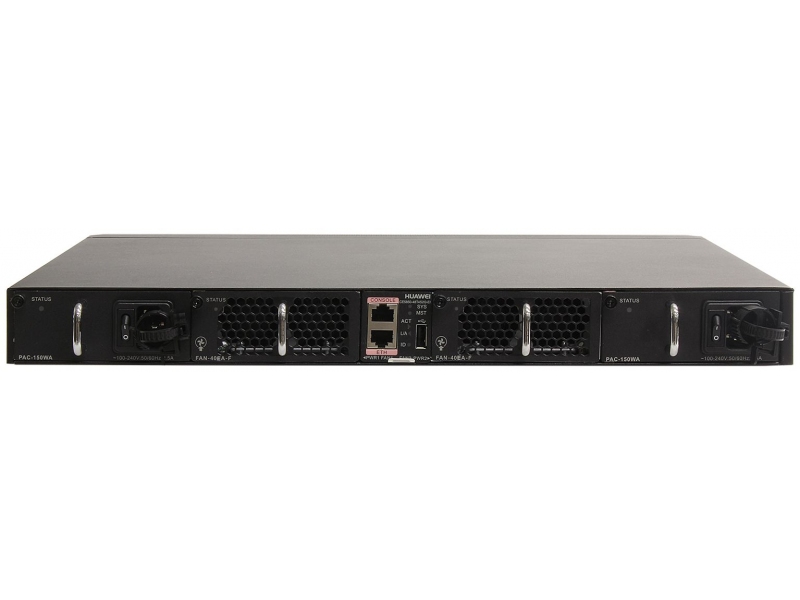

| CE5850-48T4S2Q-EI: |
- 48-Port 10/100/1000MbE (RJ45);
- 4-Port 10GbE (SFP+);
- 2-Port 40GbE (QSFP);
- 1-Port console (RJ45);
- 1-Port out-of-band management 10/100MbE (RJ45);
- 1-Port USB.
|

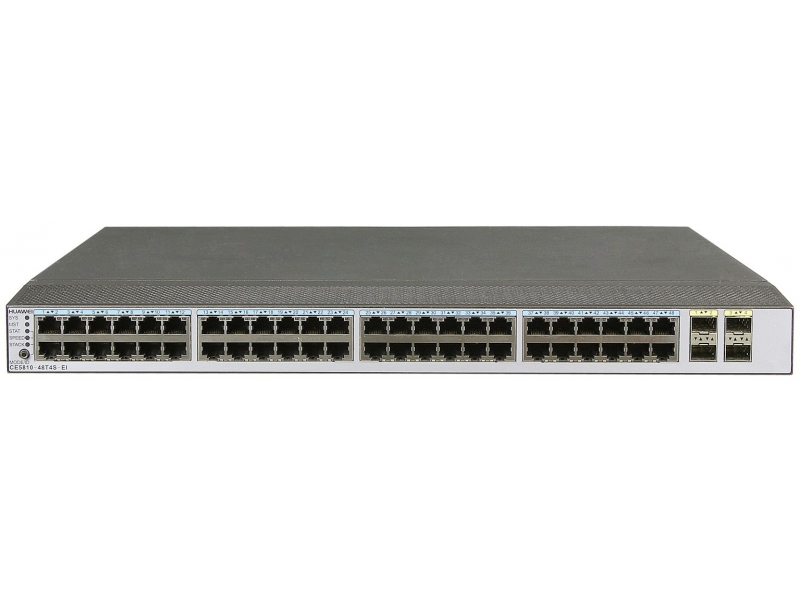

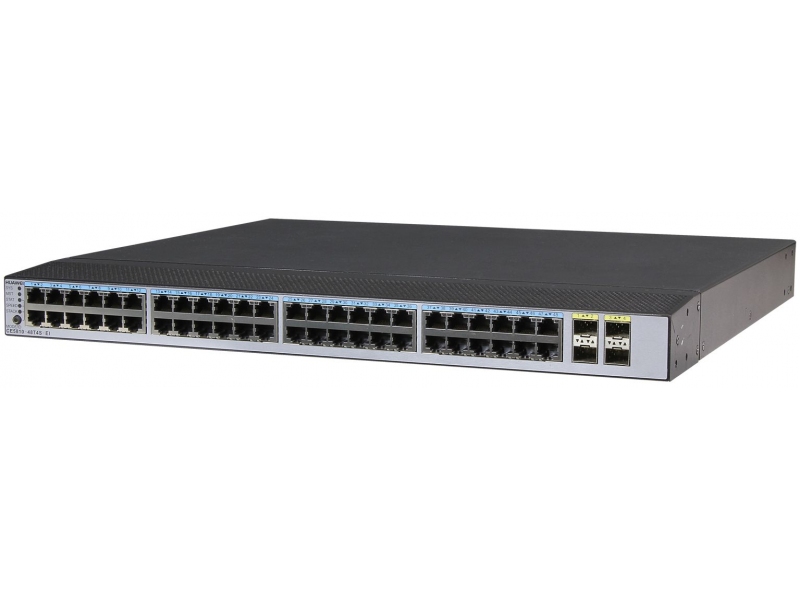

| CE5810-48T4S-EI: |
- 48-Port 10/100/1000MbE (RJ45);
- 4-Port 10GbE (SFP+);
- 1-Port console (RJ45);
- 1-Port out-of-band management 10/100MbE (RJ45);
- 1-Port USB.
|

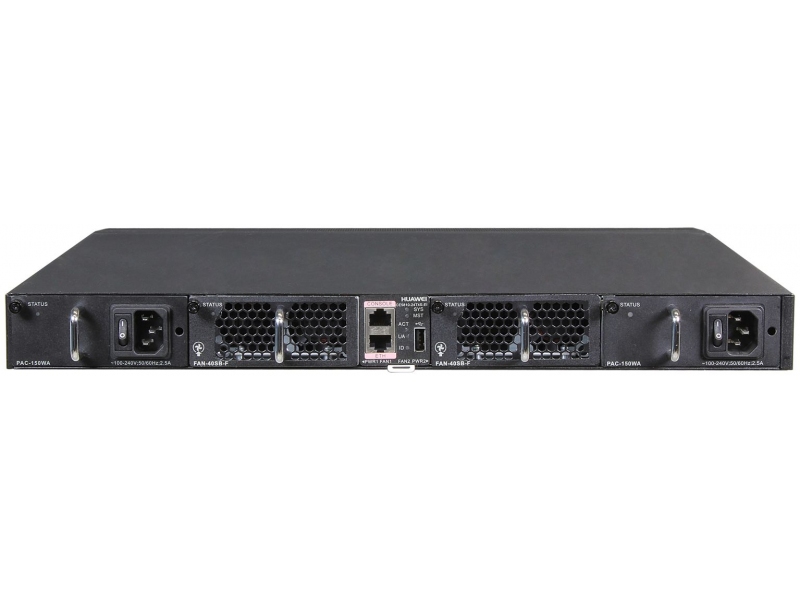

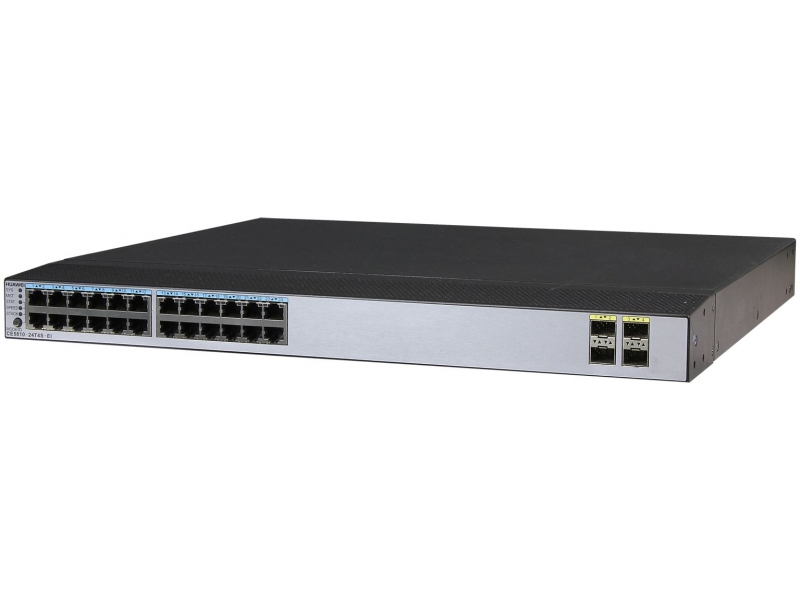

| CE5810-24T4S-EI: |
- 24-Port 10/100/1000MbE (RJ45);
- 4-Port 10GbE (SFP+);
- 1-Port console (RJ45);
- 1-Port out-of-band management 10/100MbE (RJ45);
- 1-Port USB.
|
|
| Performance | |
| Switching Bandwidth |
| CE5855-48T4S2Q-ЕI: |
336 Gb/s |
| CE5855-24T4S2Q-ЕI: |
288 Gb/s |
| CE5850-48T4S2Q-HI: |
336 Gb/s |
| CE5850-48T4S2Q-EI: |
336 Gb/s |
| CE5810-48T4S-EI: |
176 Gb/s |
| CE5810-24T4S-EI: |
128 Gb/s |
|
| Forwarding Rate |
| CE5855-48T4S2Q-ЕI: |
252 Mp/s |
| CE5855-24T4S2Q-ЕI: |
216 Mp/s |
| CE5850-48T4S2Q-HI: |
252 Mp/s |
| CE5850-48T4S2Q-EI: |
252 Mp/s |
| CE5810-48T4S-EI: |
132 Mp/s |
| CE5810-24T4S-EI: |
96 Mp/s |
|
| Layer 2 Features | |
| MAC Address Table |
| Maximum Capacity: |
128,000 entries |
|
| VLAN | IEEE 802.1Q: 4094. QinQ; VLAN Translation |
| Layer 2 Reliability |
| CE5855-48T4S2Q-ЕI, CE5855-24T4S2Q-ЕI: |
STP/RSTP/MSTP; ERPS (G.8032) |
| CE5850-48T4S2Q-HI, CE5850-48T4S2Q-EI, CE5810-48T4S-EI, CE5810-24T4S-EI: |
STP/RSTP/MSTP; ERPS (G.8032); TRILL |
|
| Multicast | |
|
| IGMP snooping: |
v1/v2/v3 |
| IGMP groups: |
2,048 |
| Multicast VLAN (MVR): |
Supported |
| Multicast Routing: |
PIM-SM; PIM-SSM; MBGP |
|
| Layer 3 features | |
| ARP Table | 128,000 entries |
| Routing Table |
| IPv4: |
16,000 routes |
| IPv6: |
16,000 routes |
|
| IP Routing | Static Routes, RIPv1/2, OSPFv2, IS-IS, BGP, VRRP |
| MPLS / VPN | |
| Not supported
|
| Security | |
|
| Local AAA: |
Supported |
| RADIUS, TACACS+: |
Supported |
| DHCP Server |
Supported |
| DHCP Relay option82: |
Supported |
| DHCP Snooping: |
Supported |
| Loop detection: |
Supported |
| IP Source Guard: |
Supported |
| Broadcast, multicast, unknown unicast suppression: |
Supported |
|
| Quality of Service | |
|
| QoS queues: |
8 |
| Traffic Limit: |
Supported |
| Traffic Mark: |
by 802.1p, DSCP |
|
| IPv6 | |
| Static Routes; RIPng; OSPFv3; IS-ISv6; BGP4+; IPv6 ACL; IPv6 ND |
| Management | |
| Telnet; SSH; NETCONF; LLDP, SNMP v1/v2/v3; RMON; Syslog; NTP |
| OAM | |
| 802.3ah (EFM); NQA |
| Environmental Conditions | |
| Relative Humidity | 5 to 95% (noncondensing) |
| Operating Temperature | 0 to 40°C (32 to 104°F) |
| Power Supply | |
| Power Supply Unit (PSU) |
| AC PSU: |
|
| Type: |
Removable |
| Quantity: |
2 |
| Rated voltage range: |
100 to 240 VAC, 50-60 Hz |
|
|
| DC PSU: |
|
| Type: |
Removable |
| Quantity: |
2 |
| Rated voltage range: |
-48 to -60 VDC |
|
| PoE (Power over Ethernet) | Not supported |
| Maximum power consumption | |
|
| CE5855-48T4S2Q-ЕI: |
up to 130 W |
| CE5855-24T4S2Q-ЕI: |
up to 90 W |
| CE5850-48T4S2Q-HI: |
up to 131 W |
| CE5850-48T4S2Q-EI: |
up to 133 W |
| CE5810-48T4S-EI: |
up to 92 W |
| CE5810-24T4S-EI: |
up to 68 W |
|
| Acoustic noise | |
|
| CE5855-48T4S2Q-ЕI: |
|
| Back-to-front airflow: |
up to 48 dB |
| Front-to-back airflow: |
55 dB |
| CE5855-24T4S2Q-ЕI: |
|
| Back-to-front airflow: |
up to 48 dB |
| Front-to-back airflow: |
up to 51 dB |
| CE5850-48T4S2Q-HI: |
|
| Back-to-front airflow: |
up to 45 dB |
| Front-to-back airflow: |
up to 51 dB |
| CE5850-48T4S2Q-EI: |
|
| Back-to-front airflow: |
up to 45 dB |
| Front-to-back airflow: |
up to 45 dB |
| CE5810-48T4S-EI: |
|
| Back-to-front airflow: |
up to 43 dB |
| Front-to-back airflow: |
up to 47 dB |
| CE5810-24T4S-EI: |
|
| Back-to-front airflow: |
up to 43 dB |
| Front-to-back airflow: |
up to 47 dB |
|
| Dimensions (HxWxD) | |
| 43.6 (1U) х 442 х 420 mm
(1.72 (1U) x 17.4 x 16.54 in) |
| Maximum Weight | |
|
| CE5855-48T4S2Q-ЕI: |
8 kg (17.64 lb) |
| CE5855-24T4S2Q-ЕI: |
7.5 kg (16.53 lb) |
| CE5850-48T4S2Q-HI: |
8.8 kg (19.4 lb) |
| CE5850-48T4S2Q-EI: |
8.8 kg (19.4 lb) |
| CE5810-48T4S-EI: |
8.2 kg (18.08 lb) |
| CE5810-24T4S-EI: |
8 kg (17.64 lb) |
|
| Compatible expansion cards | |
| Not supported |
