| Interfaces | |
|

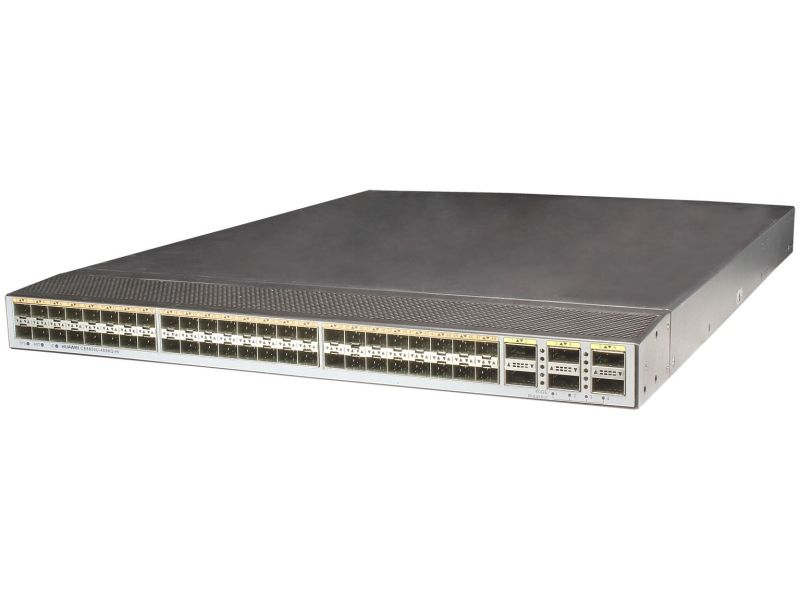

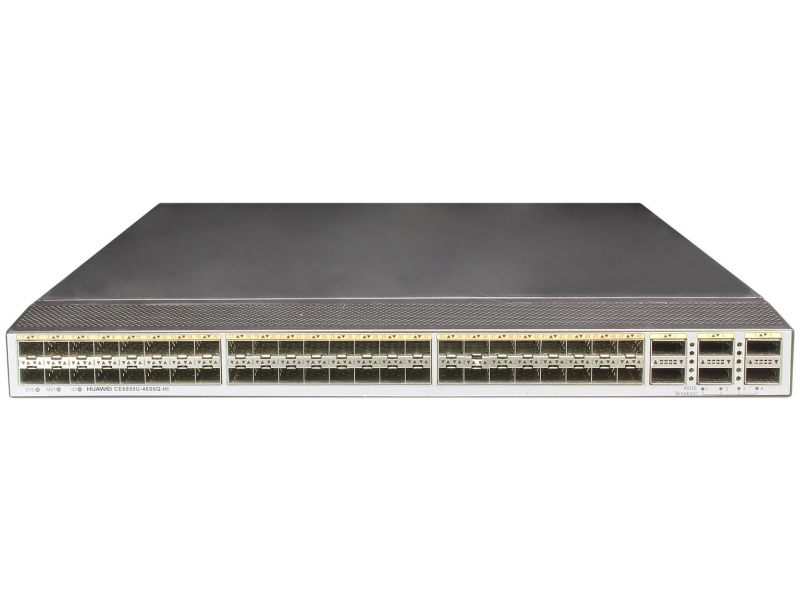

| CE6850U-48S6Q-HI: |
- 48-Port 10GbE (SFP+) or 2/4/8-Port FC;
- 6-Port 40GbE (QSFP);
- 1-Port console (RJ45/miniUSB);
- 1-Port out-of-band management 10/100MbE (RJ45);
- 1-Port USB
|

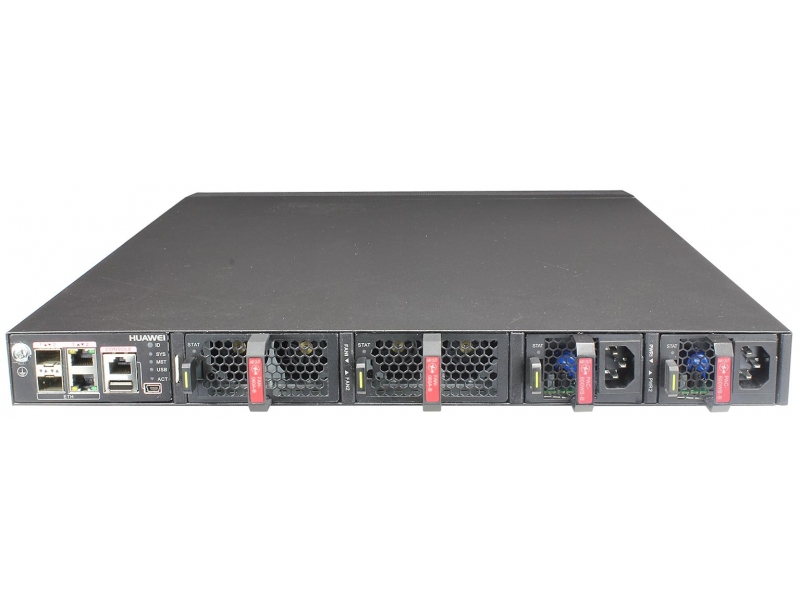

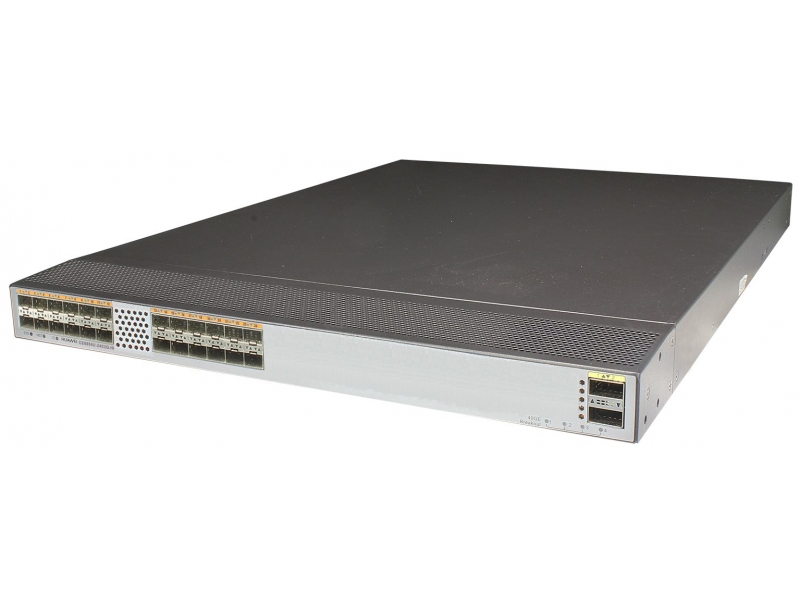

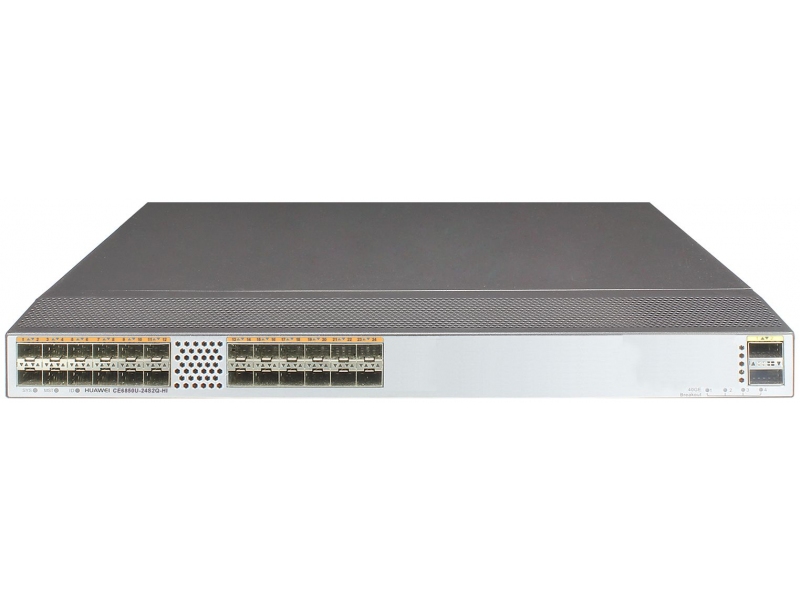

| CE6850U-24S2Q-HI: |
- 24-Port 10GbE (SFP+) or 2/4/8-Port FC;
- 2-Port 40GbE (QSFP);
- 1-Port console (RJ45/miniUSB);
- 1-Port out-of-band management 10/100MbE (RJ45);
- 1-Port USB
|

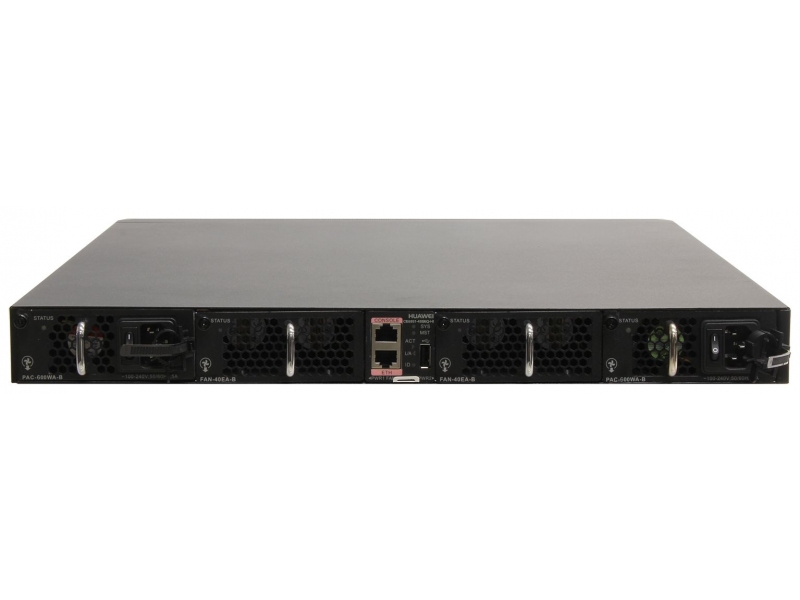

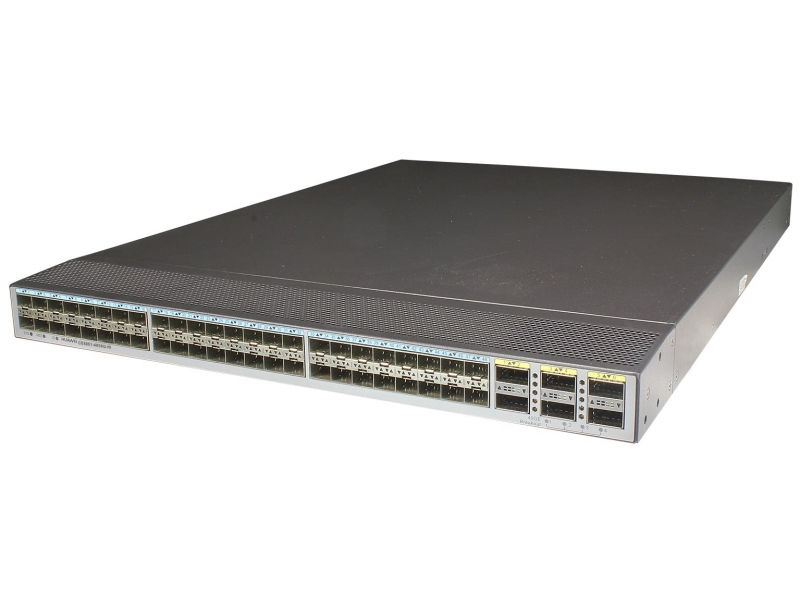

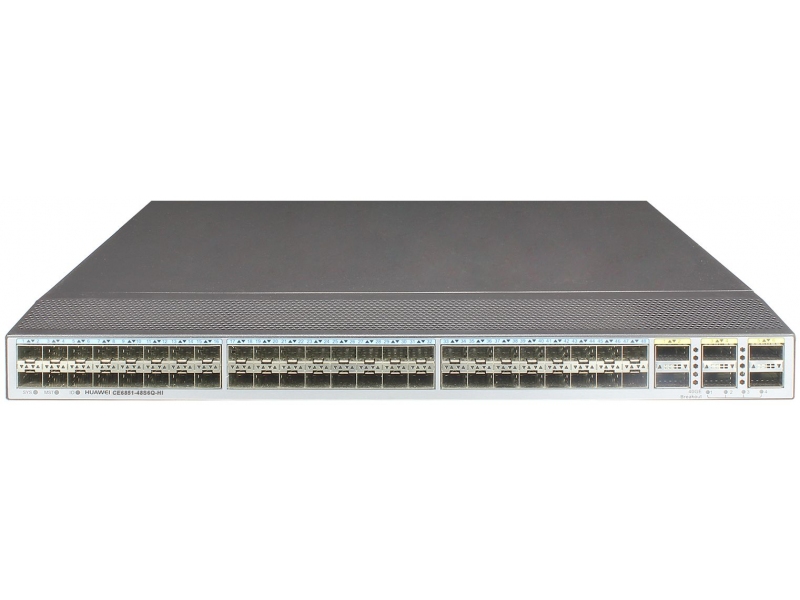

| CE6851-48S6Q-HI: |
- 48-Port 10GbE (SFP+);
- 6-Port 40GbE (QSFP);
- 1-Port console port (RJ45);
- 1-Port out-of-band management 10/100MbE (RJ45);
- 1-Port USB
|

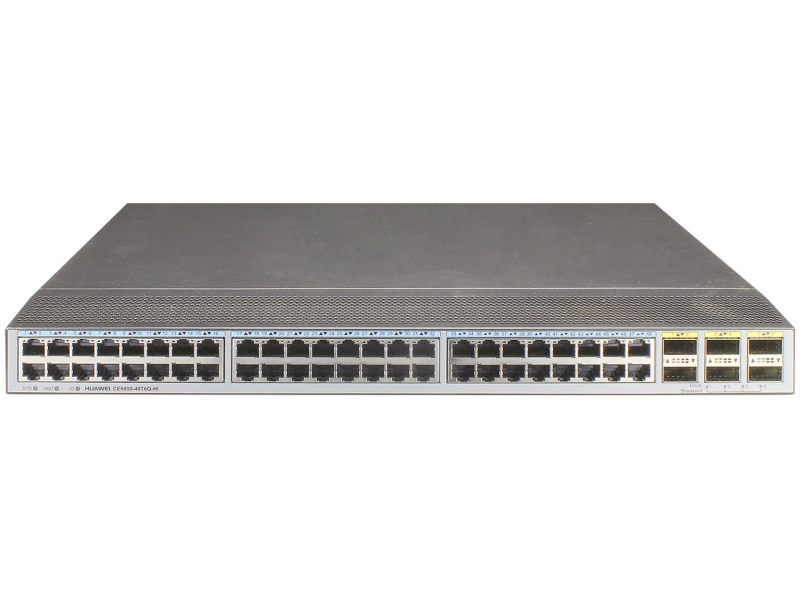

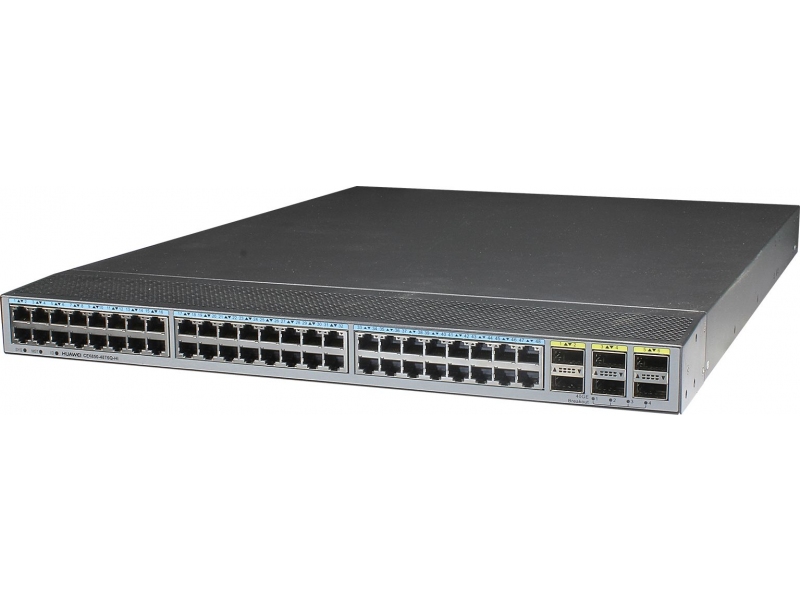

| CE6850-48Т6Q-HI: |
- 48-Port 10GBASE-Т (RJ45);
- 6-Port 40GbE (QSFP);
- 1-Port console (RJ45/miniUSB);
- 1-Port out-of-band management 10/100MbE (RJ45);
- 1-Port USB
|

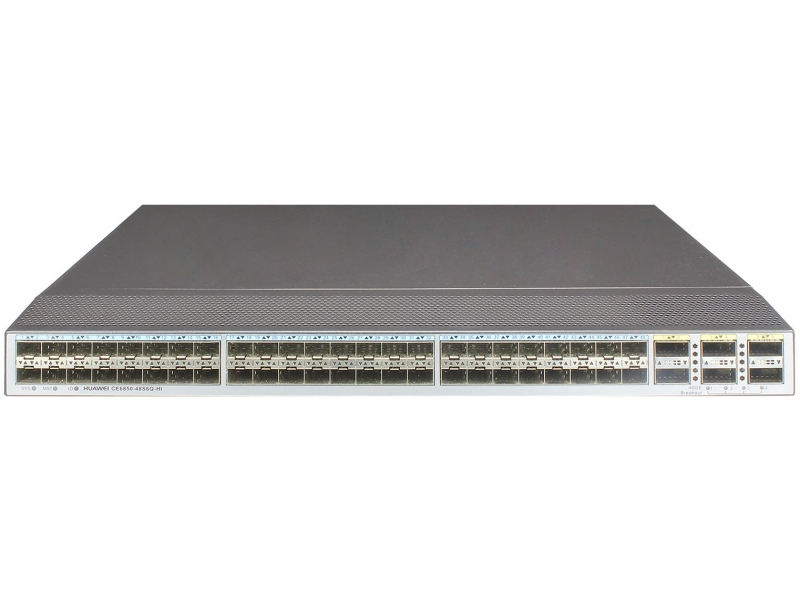

| CE6850-48S6Q-HI: |
- 48-Port 10GbE (SFP+);
- 6-Port 40GbE (QSFP);
- 1-Port console (RJ45/miniUSB);
- 1-Port out-of-band management 10/100MbE (RJ45);
- 1-Port USB
|

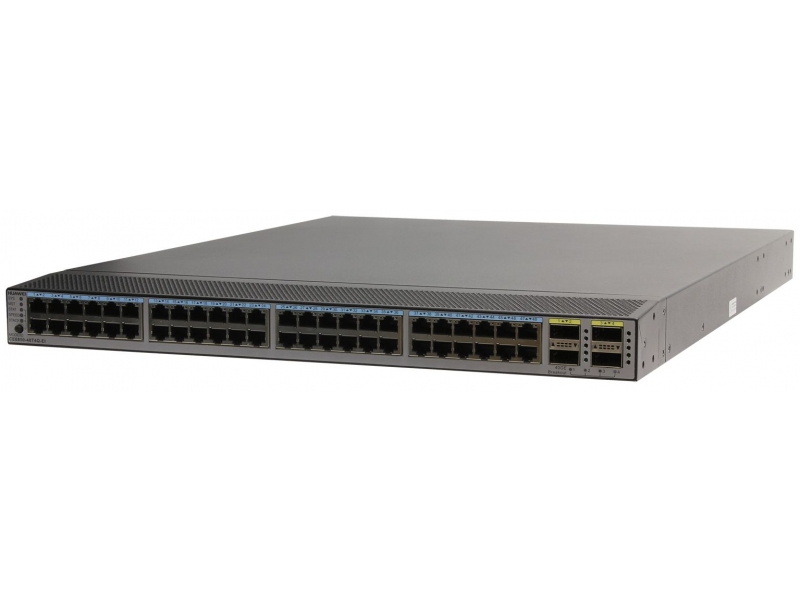

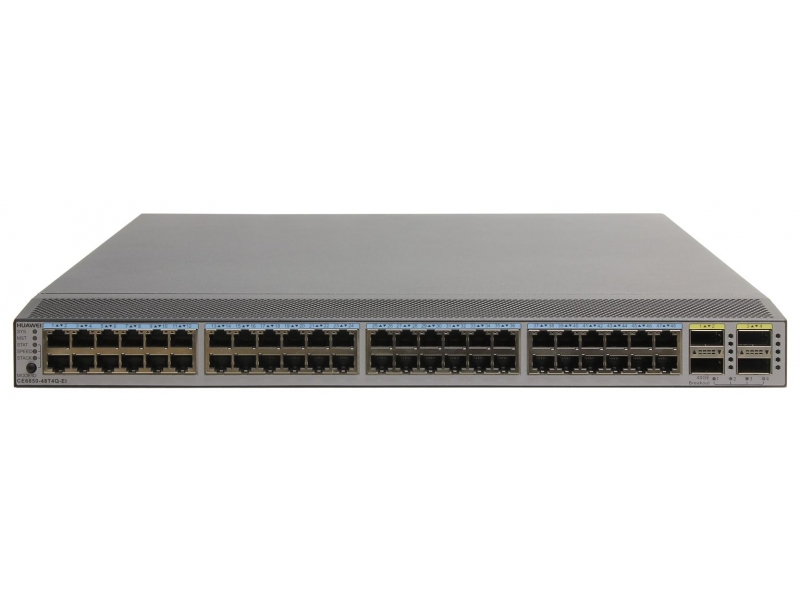

| CE6850-48T4Q-EI: |
- 48-Port 10GBASE-T (RJ45);
- 4-Port 40GbE (QSFP);
- 1-Port console (RJ45);
- 1-Port out-of-band management 10/100MbE (RJ45);
- 1-Port USB
|

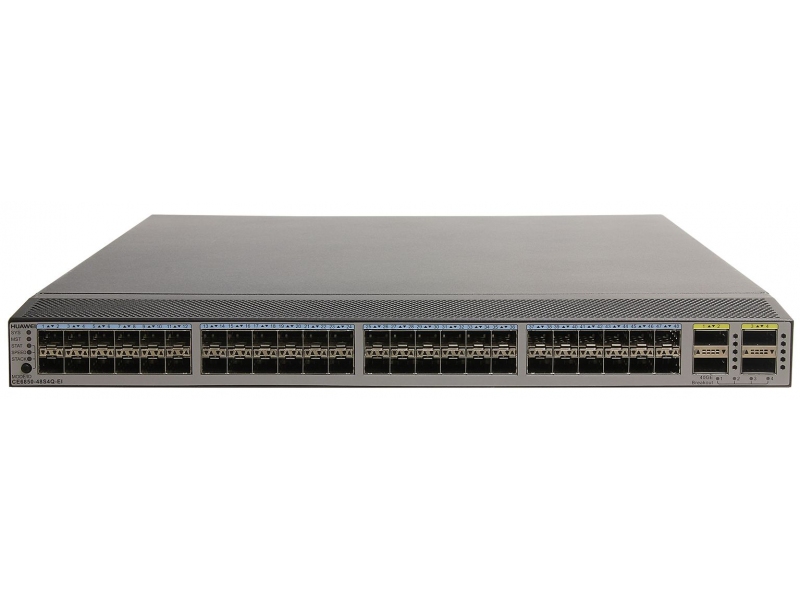

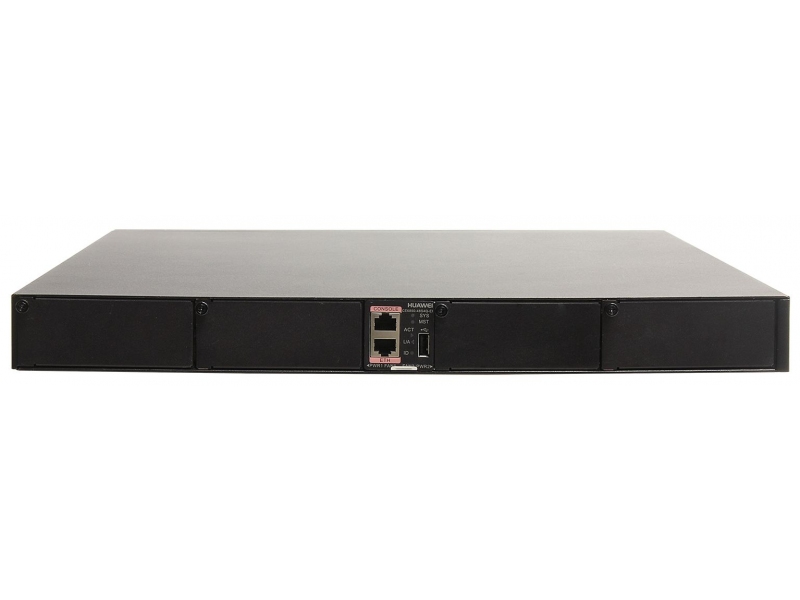

| CE6850-48S4Q-EI: |
- 48-Port 10GbE (SFP+);
- 4-Port 40GbE (QSFP);
- 1-Port console (RJ45);
- 1-Port out-of-band management 10/100MbE (RJ45);
- 1-Port USB
|

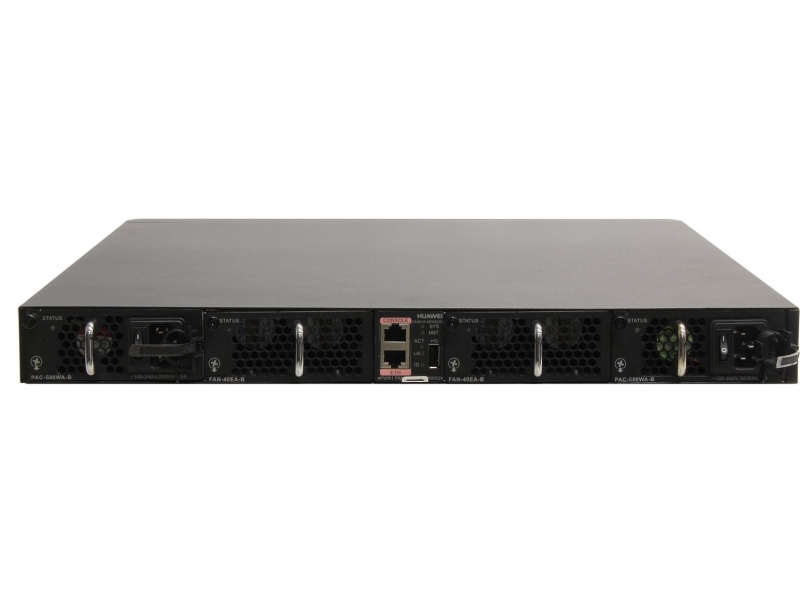

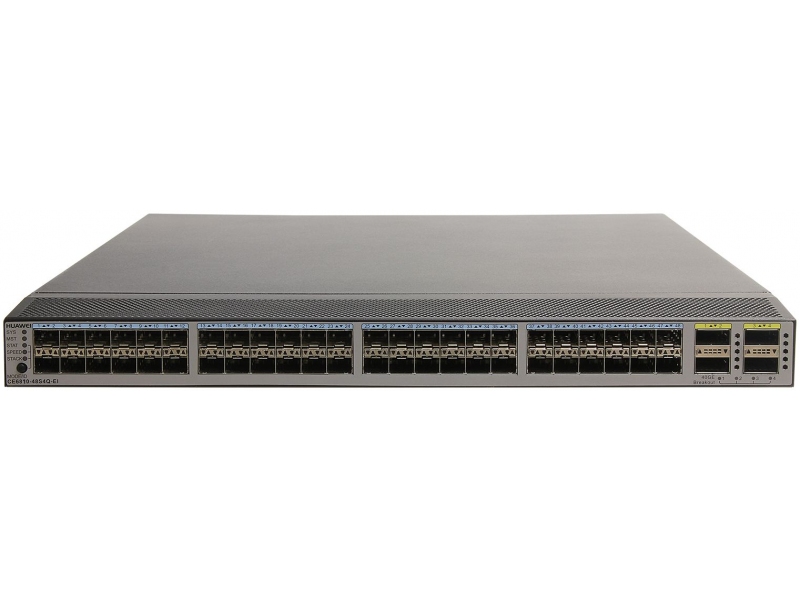

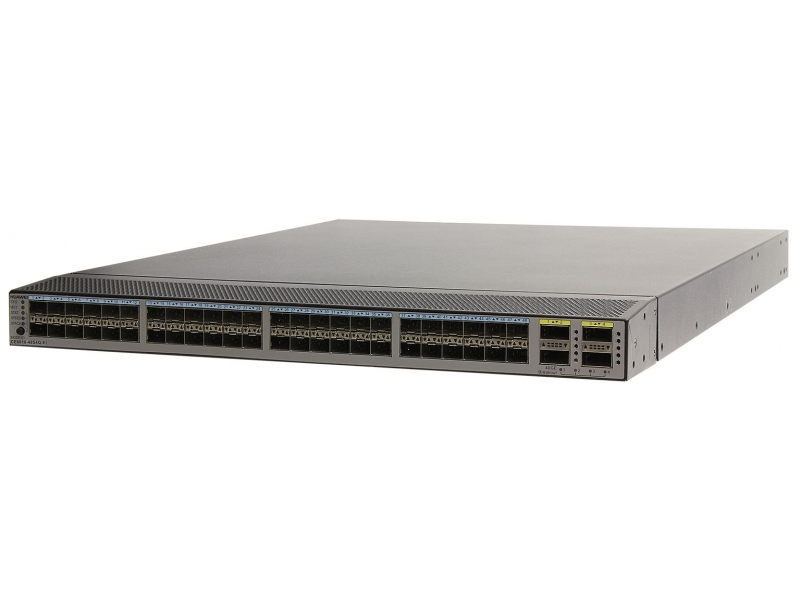

| CE6810-48S4Q-EI: |
- 48-Port 10GbE (SFP+);
- 4-Port 40GbE (QSFP);
- 1-Port console (RJ45);
- 1-Port out-of-band management 10/100MbE (RJ45);
- 1-Port USB
|

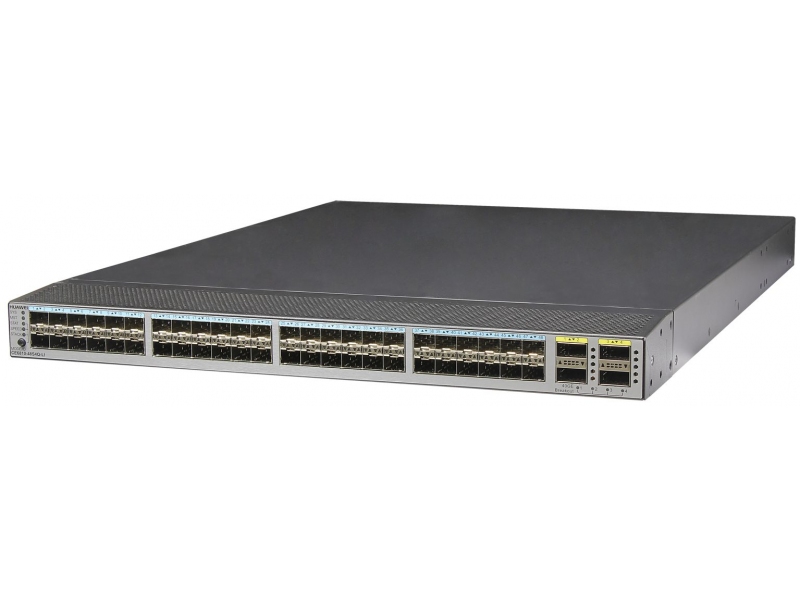

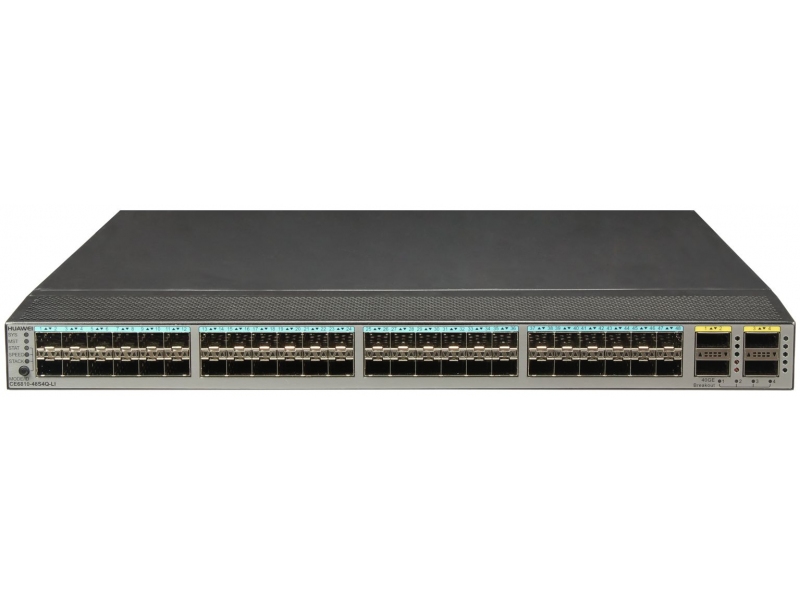

| CE6810-48S4Q-LI: |
- 48-Port 10GbE (SFP+);
- 4-Port 40GbE (QSFP);
- 1-Port console(RJ45);
- 1-Port out-of-band management 10/100MbE (RJ45);
- 1-Port USB
|

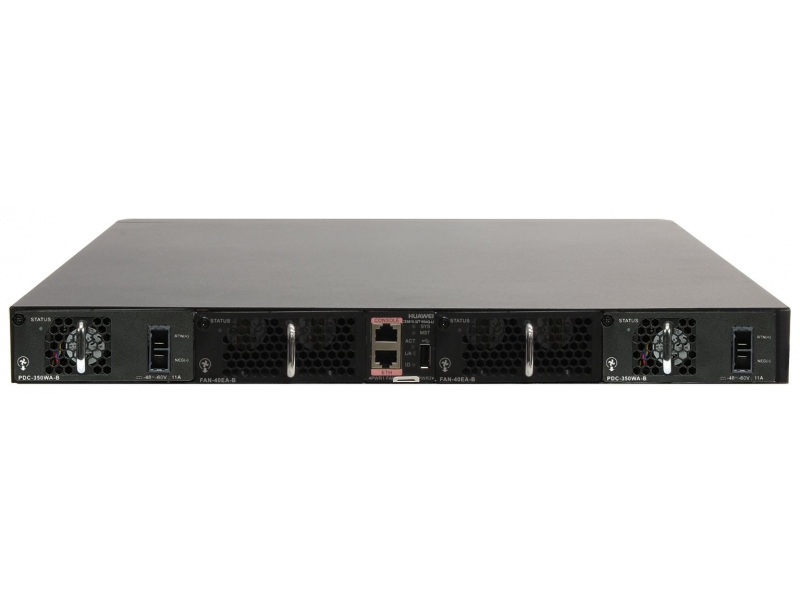

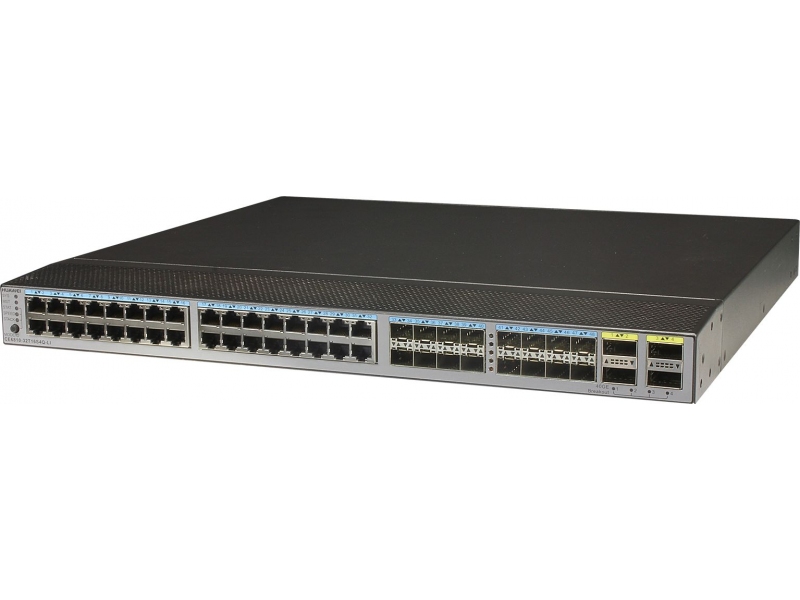

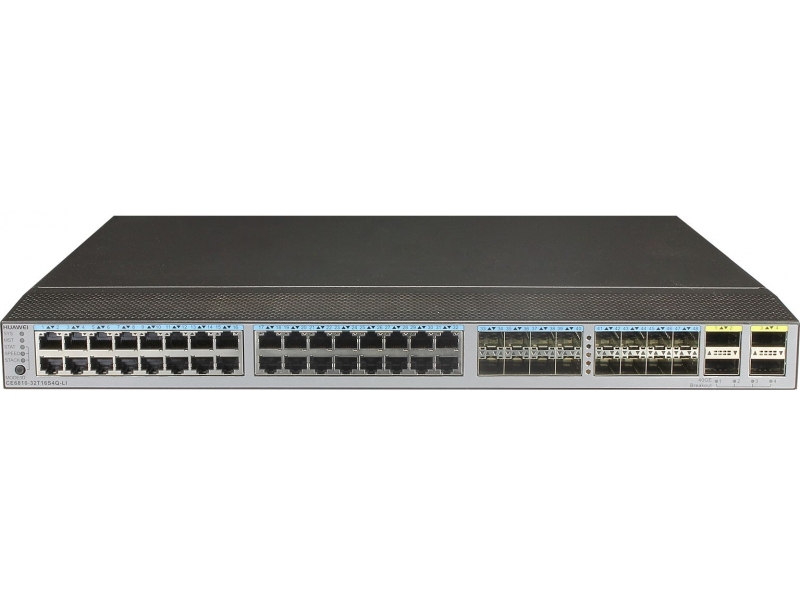

| CE6810-32T16S4Q-LI: |
- 32-Port 10GBASE-T (RJ45);
- 16-Port 10GbE (SFP+);
- 4-Port 40GbE (QSFP);
- 1-Port console (RJ45);
- 1-Port out-of-band management 10/100MbE (RJ45);
- 1-Port USB
|

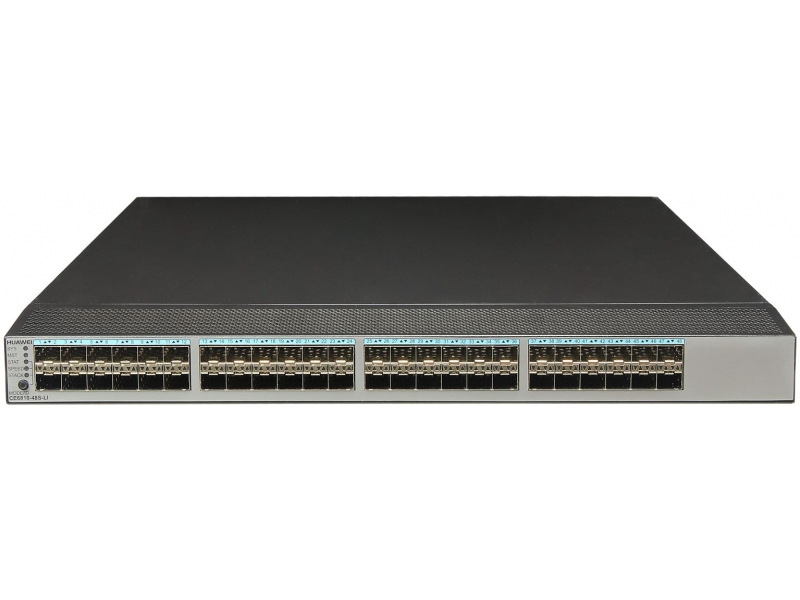

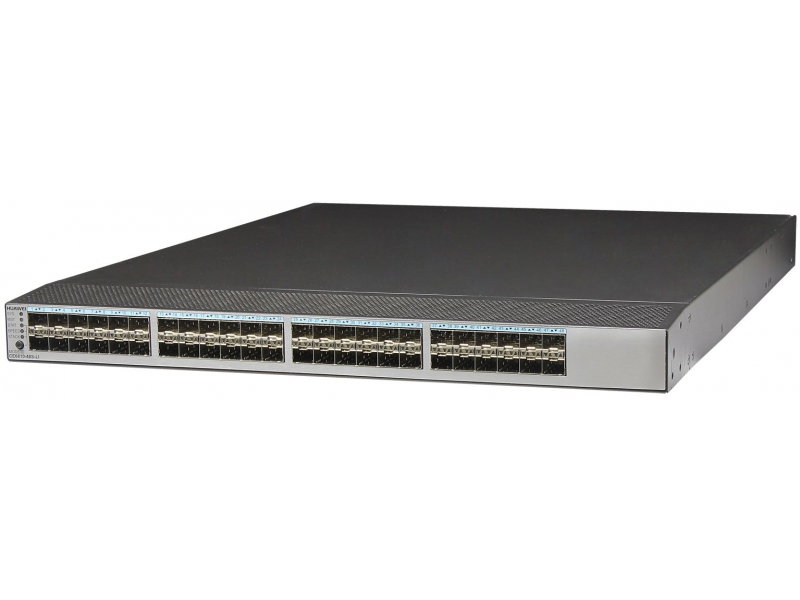

| CE6810-48S-LI: |
- 48-Port 10GbE (SFP+);
- 1-Port console (RJ45);
- 1-Port out-of-band management 10/100MbE (RJ45);
- 1-Port USB
|

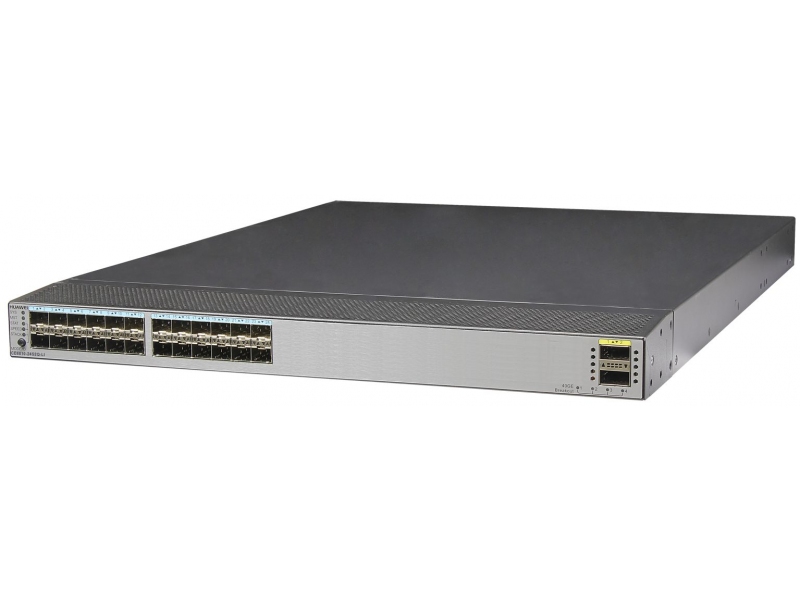

| CE6810-24S2Q-LI: |
- 24-Port 10GbE (SFP+);
- 2-Port 40GbE (QSFP);
- 1-Port console (RJ45);
- 1-Port out-of-band management 10/100MbE (RJ45);
- 1-Port USB
|
|
| Performance | |
| Switching Bandwidth |
| CE6850U-48S6Q-HI: |
1,440 Gb/s |
| CE6850U-24S2Q-HI: |
640 Gb/s |
| CE6851-48S6Q-HI: |
1,044 Gb/s |
| CE6850-48T6Q-HI: |
1,044 Gb/s |
| CE6850-48S6Q-HI: |
1,440 Gb/s |
| CE6850-48T4Q-EI: |
1,280 Gb/s |
| CE6850-48S4Q-EI: |
1,280 Gb/s |
| CE6810-48S4Q-EI: |
1,280 Gb/s |
| CE6810-48S4Q-LI: |
1,280 Gb/s |
| CE6810-32T16S4Q-LI: |
1,280 Gb/s |
| CE6810-48S-LI: |
960 Gb/s |
| CE6810-24S2Q-LI: |
640 Gb/s |
|
| Forwarding Rate |
| CE6850U-48S6Q-HI: |
1,080 Mpps
|
| CE6850U-24S2Q-HI: |
480 Mp/s |
| CE6851-48S6Q-HI: |
1,080 Mpps
|
| CE6850-48T6Q-HI: |
1,080 Mpps
|
| CE6850-48S6Q-HI: |
1,080 Mp/s |
| CE6850-48T4Q-EI: |
960 Mp/s |
| CE6850-48S4Q-EI: |
960 Mp/s |
| CE6810-48S4Q-EI: |
960 Mp/s |
| CE6810-48S4Q-LI: |
960 Mp/s |
| CE6810-32T16S4Q-LI: |
960 Mp/s |
| CE6810-48S-LI: |
720 Mp/s |
| CE6810-24S2Q-LI: |
480 Mp/s |
|
| Layer 2 Features | |
| MAC Address Table |
| Maximum Capacity: |
128,000 entries |
|
| VLAN | IEEE 802.1Q: 4094. QinQ; VLAN Translation |
| Layer 2 Reliability |
| CE6810-48S4Q-LI, CE6810-32T16S4Q-LI, CE6810-48S-LI, CE6810-24S2Q-LI: |
STP/RSTP/MSTP; ERPS (G.8032) |
| CE6850U-48S6Q-HI, CE6850U-24S2Q-HI, CE6851-48S6Q-HI, CE6850-48T6Q-HI, CE6850-48S6Q-HI, CE6850-48T4Q-EI, CE6850-48S4Q-EI, CE6810-48S4Q-EI: |
STP/RSTP/MSTP; ERPS (G.8032); TRILL; VXLAN |
|
| Multicast | |
|
| IGMP snooping: |
v1/v2/v3 |
| IGMP groups: |
2,048 |
| Multicast VLAN (MVR): |
|
| CE6810-48S4Q-LI, CE6810-32T16S4Q-LI, CE6810-48S-LI, CE6810-24S2Q-LI: |
Not supported |
| CE6850U-48S6Q-HI, CE6850U-24S2Q-HI, CE6851-48S6Q-HI, CE6850-48T6Q-HI, CE6850-48S6Q-HI, CE6850-48T4Q-EI, CE6850-48S4Q-EI, CE6810-48S4Q-EI: |
Supported |
| Multicast Routing: |
|
| CE6810-48S4Q-LI, CE6810-32T16S4Q-LI, CE6810-48S-LI, CE6810-24S2Q-LI: |
Not supported |
| CE6850U-48S6Q-HI, CE6850U-24S2Q-HI, CE6851-48S6Q-HI, CE6850-48T6Q-HI, CE6850-48S6Q-HI, CE6850-48T4Q-EI, CE6850-48S4Q-EI, CE6810-48S4Q-EI: |
PIM-SM, MBGP, MSDP |
|
| Layer 3 features | |
| ARP Table | 128,000 entries |
| Routing Table |
| IPv4: |
16,000 routes |
| IPv6: |
16,000 routes |
|
| IP Routing | Static Routes, RIPv1/2, OSPFv2, IS-IS, BGP, VRRP |
| MPLS / VPN | |
| Supported by CE6850U, CE6851HI, CE6850HI |
| Security | |
|
| Local AAA: |
Supported |
| RADIUS, TACACS+: |
Supported |
| DHCP Server |
Supported |
| DHCP Relay option82: |
Supported |
| DHCP Snooping: |
Supported |
| Loop detection: |
Supported |
| IP Source Guard: |
Supported |
| Broadcast, multicast, unknown unicast suppression: |
Supported |
|
| Quality of Service | |
|
| QoS queues: |
8 |
| Traffic Limit: |
Supported |
| Traffic Mark: |
by 802.1p, DSCP |
|
| IPv6 | |
| Static Routes; RIPng; OSPFv3; IS-ISv6; BGP4+; IPv6 ACL; IPv6 ND |
| Management | |
| Telnet; SSH; NETCONF; Netstream; sFlow; SNMP v1/v2/v3; RMON; Syslog; NTP |
| OAM | |
| 802.3ah (EFM); NQA |
| Environmental Conditions | |
| Relative Humidity | 5 to 95% (noncondensing) |
| Operating Temperature | 0 to 40°C (32 to 104°F) |
| Power Supply | |
| Power Supply Unit (PSU) |
| AC PSU: |
|
| Type: |
Removable |
| Quantity: |
2 |
| Rated voltage range: |
100 to 240 VAC, 50-60 Hz. |
|
|
| DC PSU: |
|
| Type: |
Removable |
| Quantity: |
2 |
| Rated voltage range: |
-48 to -60 VDC, |
|
| PoE (Power over Ethernet) | Not supported |
| Maximum power consumption | |
|
| CE6850U-48S6Q-HI: |
up to 307 W |
| CE6850U-24S2Q-HI: |
up to 260 W |
| CE6851-48S6Q-HI: |
up to 260 W |
| CE6850-48T6Q-HI: |
up to 345 W |
| CE6850-48S6Q-HI: |
up to 272 W |
| CE6850-48T4Q-EI: |
up to 380 W |
| CE6850-48S4Q-EI: |
up to 272 W |
| CE6810-48S4Q-EI: |
up to 238 W |
| CE6810-48S4Q-LI: |
up to 238 W |
| CE6810-32T16S4Q-LI: |
up to 270 W |
| CE6810-48S-LI: |
up to 178 W |
| CE6810-24S2Q-LI: |
up to 210 W |
|
| Acoustic noise | |
|
| CE6850U-48S6Q-HI: |
|
| Back-to-front airflow: |
up to 52 dB |
| Front-to-back airflow: |
up to 52 dB |
| CE6850U-24S2Q-HI: |
|
| Back-to-front airflow: |
up to 52 dB |
| Front-to-back airflow: |
up to 52 dB |
| CE6851-48S6Q-HI: |
|
| Back-to-front airflow |
up to 56 dB |
| Front-to-back airflow: |
up to 58 dB |
| CE6850-48T6Q-HI: |
|
| Back-to-front airflow: |
up to 53 dB |
| Front-to-back airflow: |
up to 53 dB |
| CE6850-48S6Q-HI: |
|
| Back-to-front airflow: |
up to 52 dB |
| Front-to-back airflow: |
up to 52 dB |
| CE6850-48T4Q-EI: |
|
| Back-to-front airflow: |
up to 56 dB |
| Front-to-back airflow: |
up to 56 dB |
| CE6850-48S4Q-EI: |
|
| Back-to-front airflow: |
up to 45 dB |
| Front-to-back airflow: |
up to 56 dB |
| CE6810-48S4Q-EI: |
|
| Back-to-front airflow: |
up to 51 dB |
| Front-to-back airflow: |
up to 48 dB |
| CE6810-48S4Q-LI: |
|
| Back-to-front airflow: |
up to 51 dB |
| Front-to-back airflow: |
up to 48 dB |
| CE6810-32T16S4Q-LI: |
|
| Back-to-front airflow: |
up to 51 dB |
| Front-to-back airflow: |
up to 51 dB |
| CE6810-48S-LI: |
|
| Back-to-front airflow: |
up to 51 dB |
| Front-to-back airflow: |
up to 48 dB |
| CE6810-24S2Q-LI: |
|
| Back-to-front airflow: |
up to 51 dB |
| Front-to-back airflow: |
up to 48 dB |
|
| Dimensions (HxWxD) | |
|
| CE6850U-48S6Q-HI: |
43.6 (1U) x 442 х 600 mm
(1.72 (1U) x 17.4 x 23.62 in)
|
| CE6850U-24S2Q-HI: |
43.6 (1U) x 442 х 600 mm
(1.72 (1U) x 17.4 x 23.62 in)
|
| CE6851-48S6Q-HI: |
43.6 (1U) x 442 х 420 mm
(1.72 (1U) x 17.4 x 16.54 in)
|
| CE6850-48T6Q-HI: |
43.6 (1U) x 442 х 600 mm
(1.72 (1U) x 17.4 x 23.62 in)
|
| CE6850-48S6Q-HI: |
43.6 (1U) x 442 х 600 mm
(1.72 (1U) x 17.4 x 23.62 in)
|
| CE6850-48T4Q-EI: |
43.6 (1U) x 442 х 600 mm
(1.72 (1U) x 17.4 x 23.62 in)
|
| CE6850-48S4Q-EI: |
43.6 (1U) x 442 х 600 mm
(1.72 (1U) x 17.4 x 23.62 in)
|
| CE6810-48S4Q-EI: |
43.6 (1U) x 442 х 600 mm
(1.72 (1U) x 17.4 x 23.62 in)
|
| CE6810-48S4Q-LI: |
43.6 (1U) x 442 х 600 mm
(1.72 (1U) x 17.4 x 23.62 in)
|
| CE6810-32T16S4Q-LI: |
43.6 (1U) x 442 х 420 mm
(1.72 (1U) x 17.4 x 16.54 in)
|
| CE6810-48S-LI: |
43.6 (1U) x 442 х 600 mm
(1.72 (1U) x 17.4 x 23.62 in)
|
| CE6810-24S2Q-LI: |
43.6 (1U) x 442 х 600 mm
(1.72 (1U) x 17.4 x 23.62 in)
|
|
| Maximum Weight | |
|
| CE6850U-48S6Q-HI: |
12.6 kg (27.78 lb) |
| CE6850U-24S2Q-HI: |
12 kg (26.46 lb) |
| CE6851-48S6Q-HI: |
12 kg (26.46 lb) |
| CE6850-48T6Q-HI: |
12.6 kg (27.78 lb) |
| CE6850-48S6Q-HI: |
11.6 kg (25.57 lb) |
| CE6850-48T4Q-EI: |
11 kg (24.25 lb) |
| CE6850-48S4Q-EI: |
11 kg (24.25 lb) |
| CE6810-48S4Q-EI: |
10 kg (22.05 lb) |
| CE6810-48S4Q-LI: |
10.4 kg (22.93 lb) |
| CE6810-32T16S4Q-LI: |
8.5 kg (18.74 lb) |
| CE6810-48S-LI: |
10.2 kg (22.49 lb) |
| CE6810-24S2Q-LI: |
10 kg (22.49 lb) |
|
| Compatible expansion cards | |
| Not supported |
