Huawei CE7800

Download CE7800 Datasheet (eng)Download Cloud Engine series Datasheet (eng)

Available to quote:

CE7850-32Q-EI

Request a Quote

SPECIFICATIONS

Interfaces

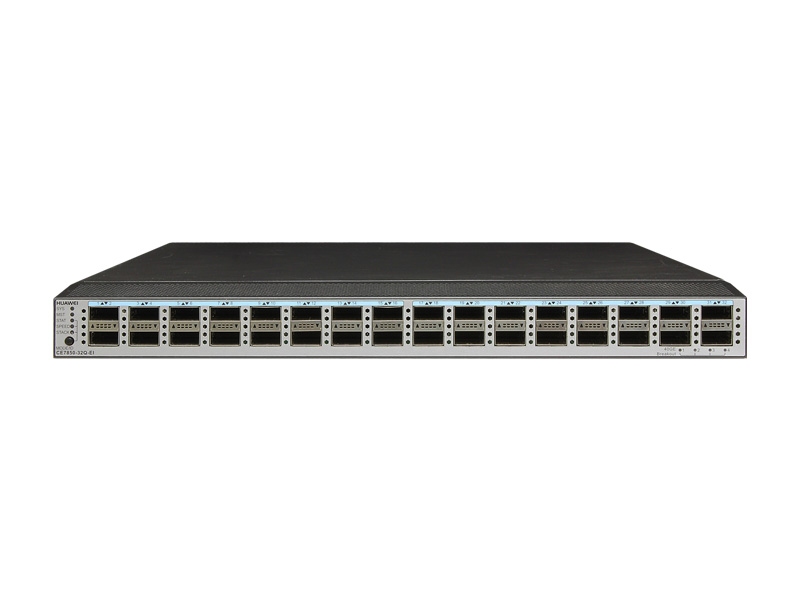

CE7850-32Q-EI:

32-Port 40GbE (QSFP);
1-Port console (RJ45/miniUSB);
1-Port out-of-band management 10/100MbE (RJ45);
1-Port USB.

Performance

Switching Bandwidth

2.56 Tbit/s

Forwarding Rate

1,440 Mpps

Layer 2 Features

MAC Address Table

Maximum Capacity:

128,000 entries

VLAN

IEEE 802.1Q: 4094. QinQ; VLAN Translation

Layer 2 Reliability

STP/RSTP/MSTP; ERPS (G.8032); TRILL; VXLAN

Multicast

IGMP snooping:	v1/v2/v3
IGMP groups:	2,048
Multicast VLAN (MVR):	Supported
Multicast Routing:	PIM-SM; MBGP; MSDP

Layer 3 features

ARP Table

128,000 entries

Routing Table

IPv4:	16,000 routes
IPv6:	16,000 routes

IP Routing

Static Routes, RIPv1/2, OSPFv2, IS-IS, BGP, VRRP

MPLS / VPN

Supported

Security

Local AAA:	Supported
RADIUS, TACACS+:	Supported
DHCP Server	Supported
DHCP Relay option82:	Supported
DHCP Snooping:	Supported
Loop detection:	Supported
IP Source Guard:	Supported
Broadcast, multicast, unknown unicast suppression:	Supported

Quality of Service

QoS queues:	8
Traffic Limit:	Supported
Traffic Mark:	by 802.1p, DSCP

IPv6

Static Routes. RIPng; OSPFv3; IS-ISv6; BGP4+; IPv6 ACL; IPv6 ND

Management

Telnet; SSH; NETCONF; Netstream; sFlow; SNMP v1/v2/v3; RMON; Syslog; NTP

OAM

802.3ah (EFM); NQA

Environmental Conditions

Relative Humidity

5 to 95% (noncondensing)

Operating Temperature

0 to 40°C (32 to 104°F)

Power Supply

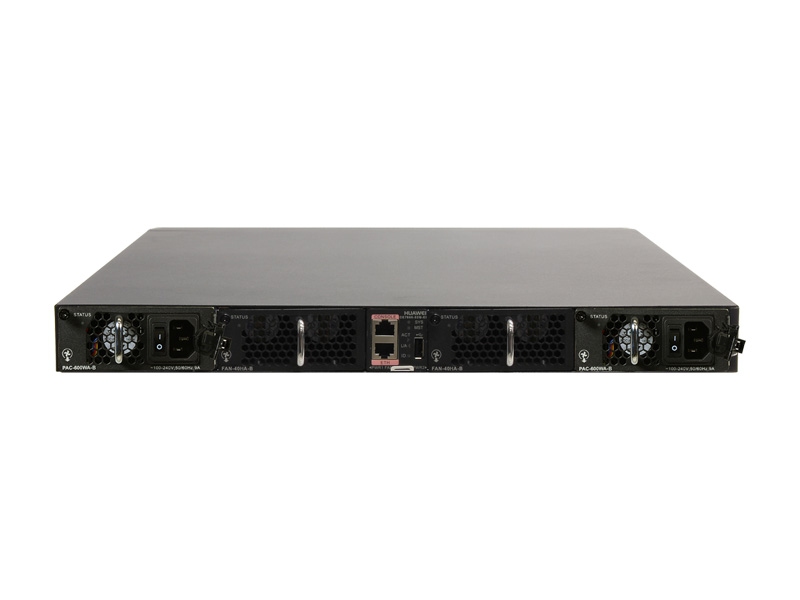

Power Supply Unit (PSU)

AC PSU:
Type:	Removable
Quantity:	2
Rated voltage range:	100 to 240 VAC, 50-60 Hz.

DC PSU:
Not supported

PoE (Power over Ethernet)

Not supported

Maximum power consumption

up to 431 W

Acoustic noise

up to 54 dB

Dimensions (HxWxD)

43.6 (1U) x 442 х 607 mm

(1.72 (1U) x 17.4 x 23.9 in)

Maximum Weight

11 kg (24.3 lb)

Compatible expansion cards

Not supported
