Huawei S1700 series

Download S1700 series Datasheet (eng)

Available to quote:

S1700-28FR-2T2P-AC; S1700-52FR-2T2P-AC

S1728-GWR-4P; S1720-20GFR-4TP

S1720-28GFR-4TP; S1700-28GFR-4P-AC

S1700-52GFR-4P-AC

Request a Quote
SPECIFICATIONS
Interfaces

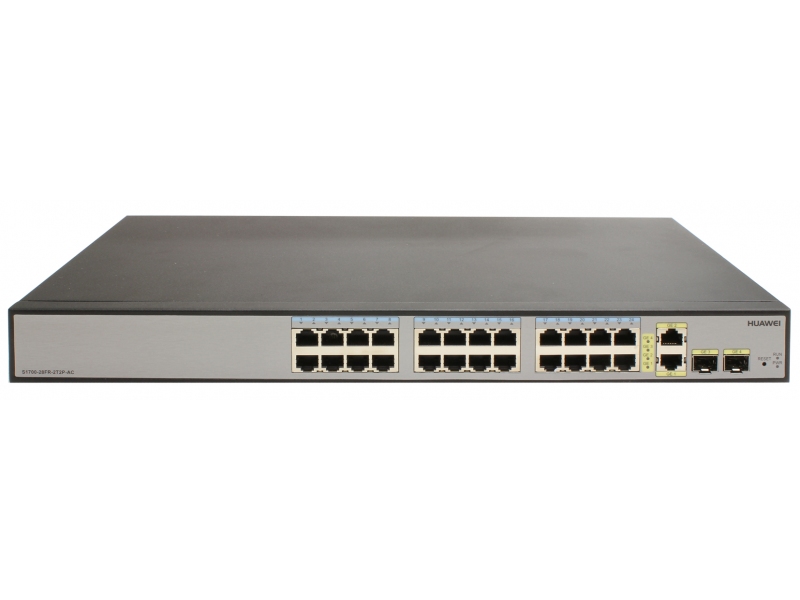

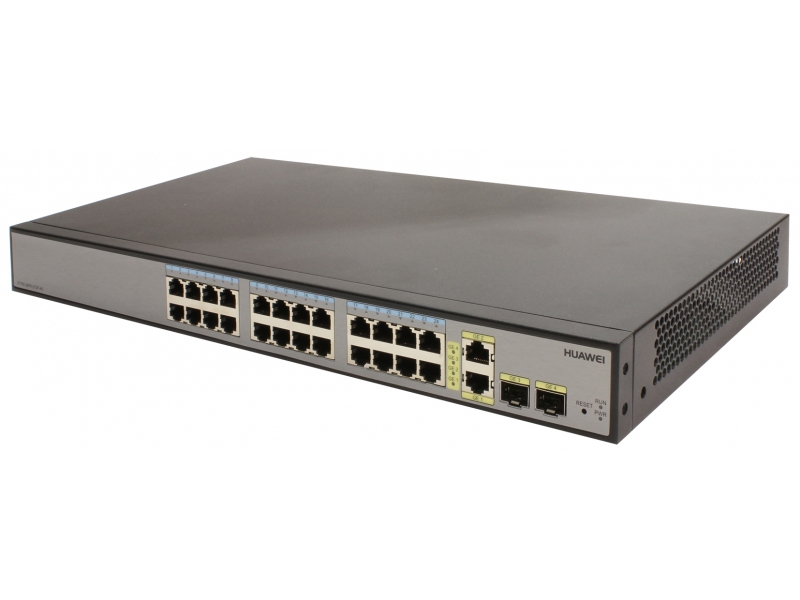

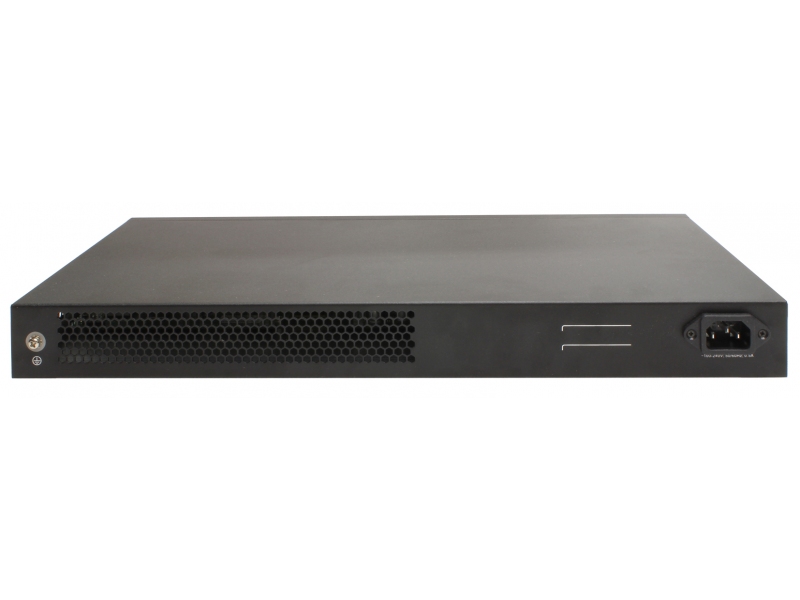

S1700-28FR-2T2P-AC:
  • 24-Port 10/100MbE (RJ45);
  • 2-Port combo 1GbE (RJ45/SFP).

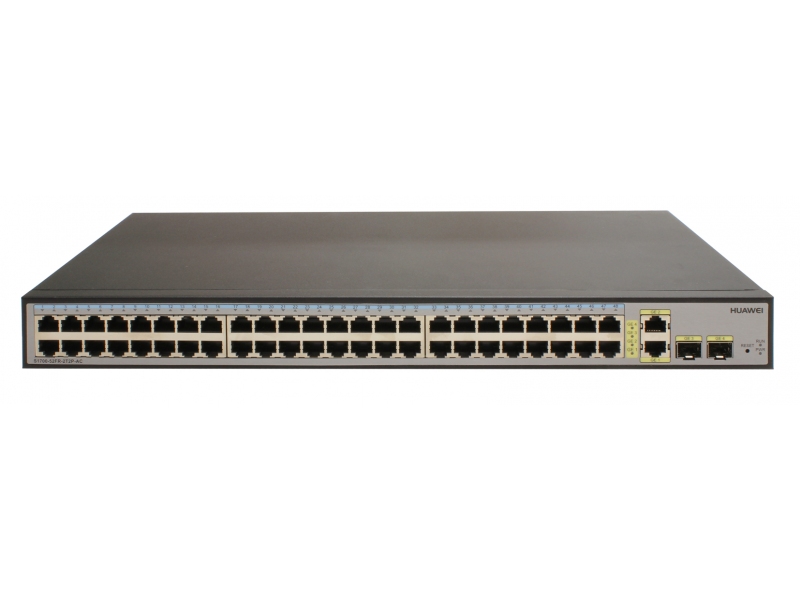

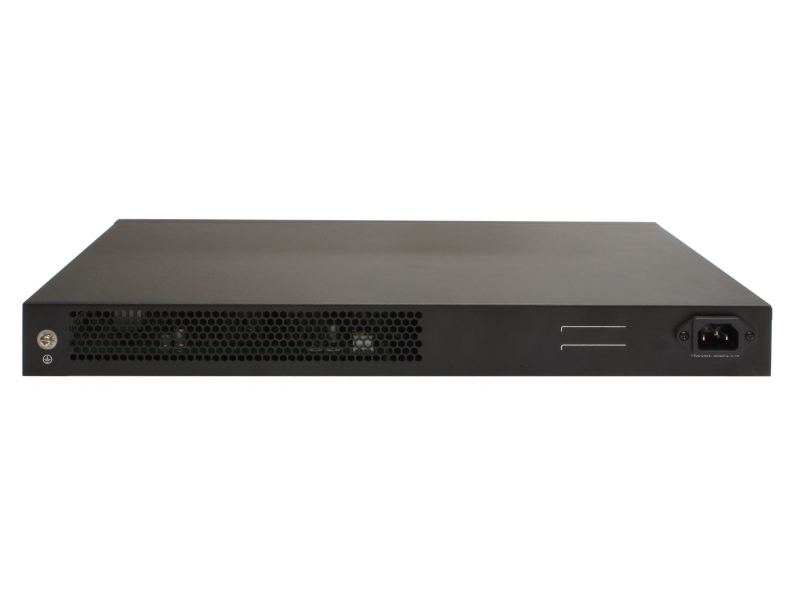

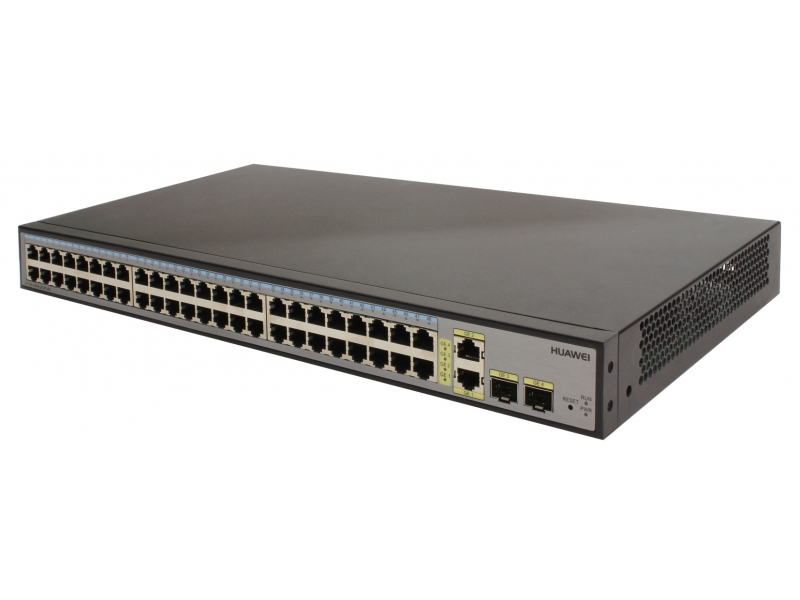

S1700-52FR-2T2P-AC:
  • 48-Port 10/100MbE (RJ45);
  • 2-Port combo 1GbE (RJ45/SFP).

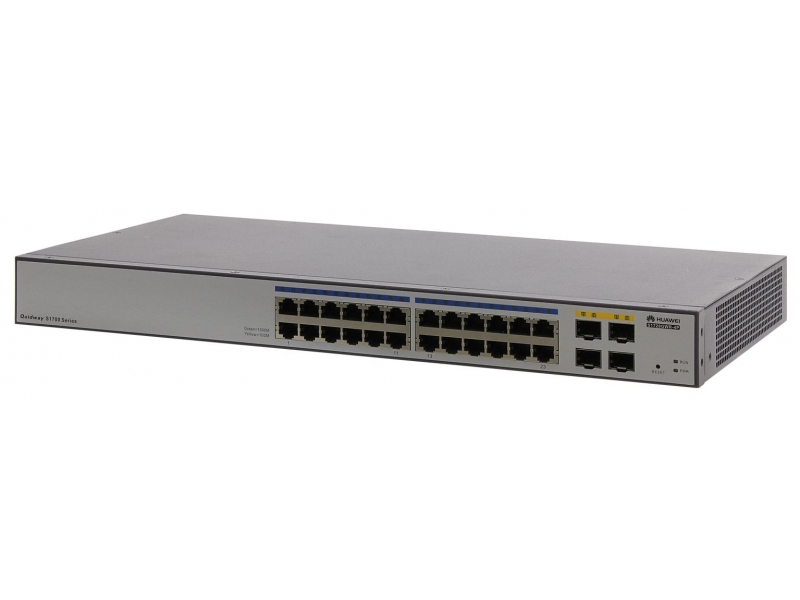

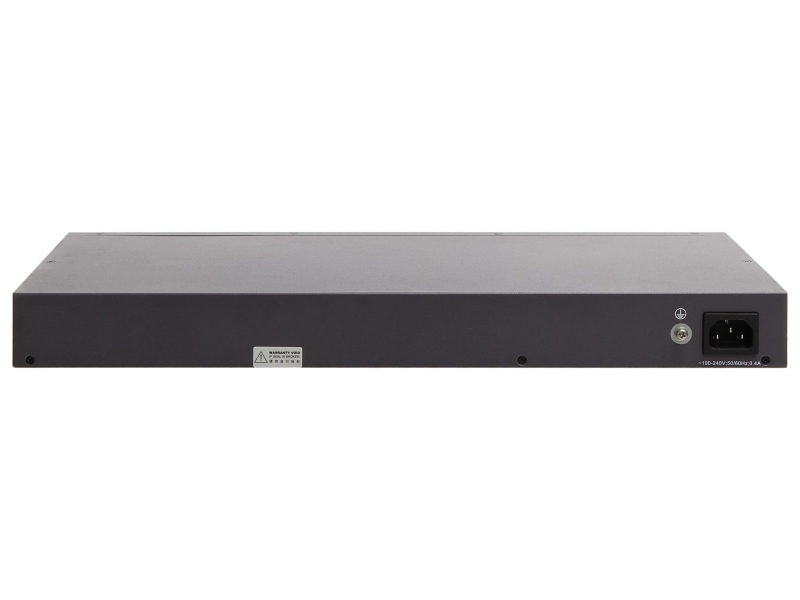

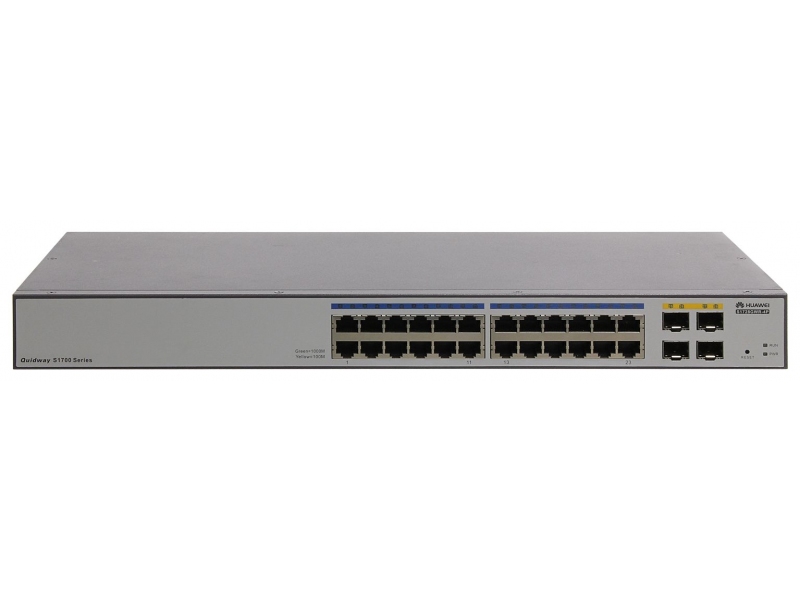

S1728GWR-4P:
  • 24-Port 10/100/1000MbE (RJ45);
  • 4-Port 100/1000MbE (SFP).

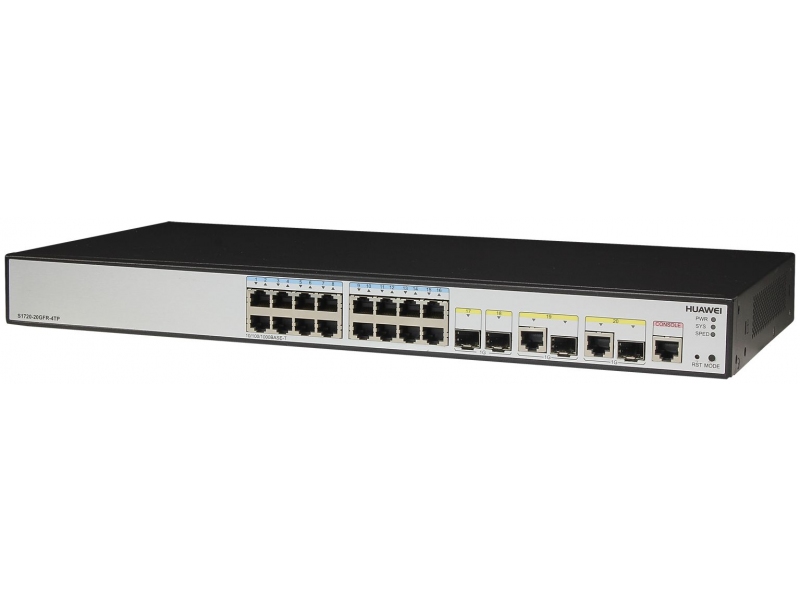

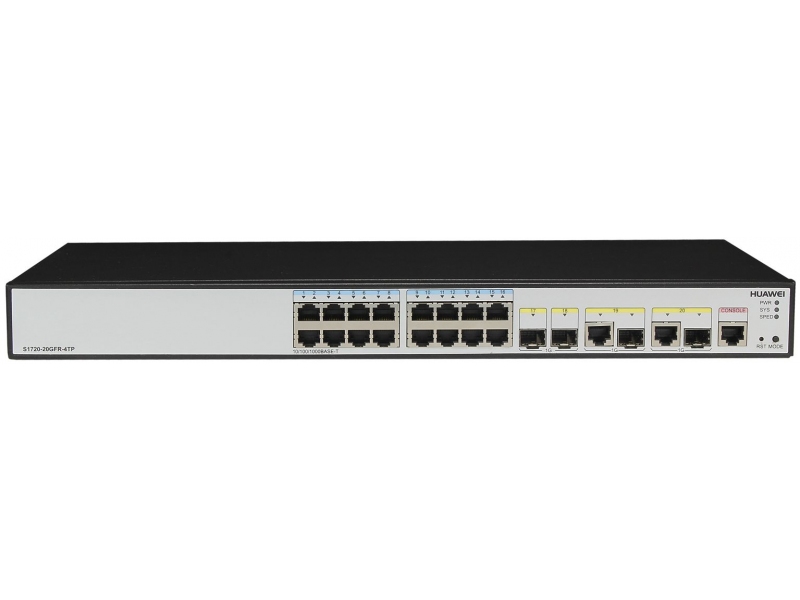

S1720-20GFR-4TP:
  • 16-Port 10/100/1000MbE (RJ45);
  •  2-Port 1GbE (SFP);
  •  2-Port combo 1GbE (RJ45/SFP).
  • 1-Port console (RJ45)

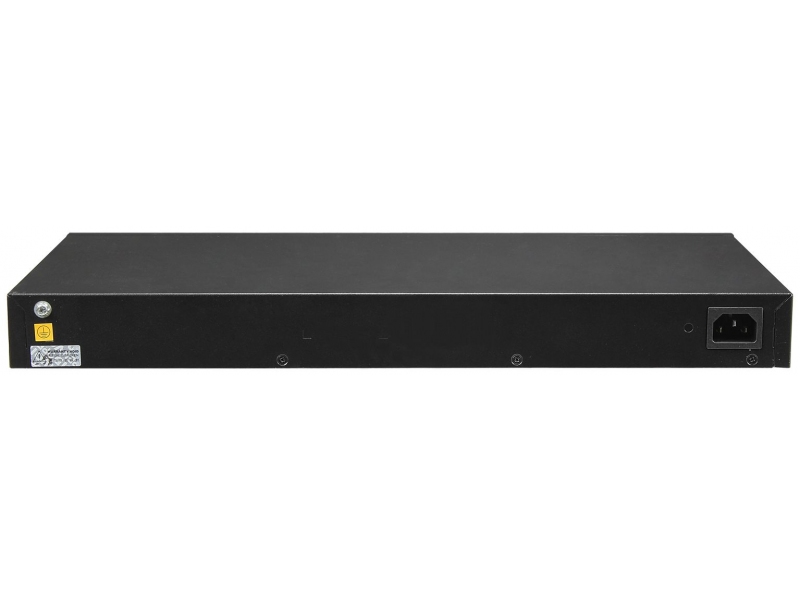

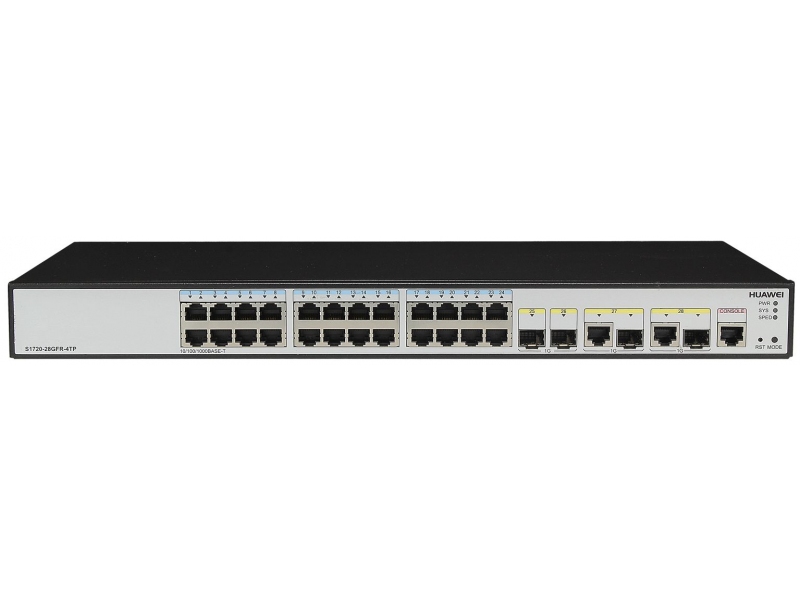

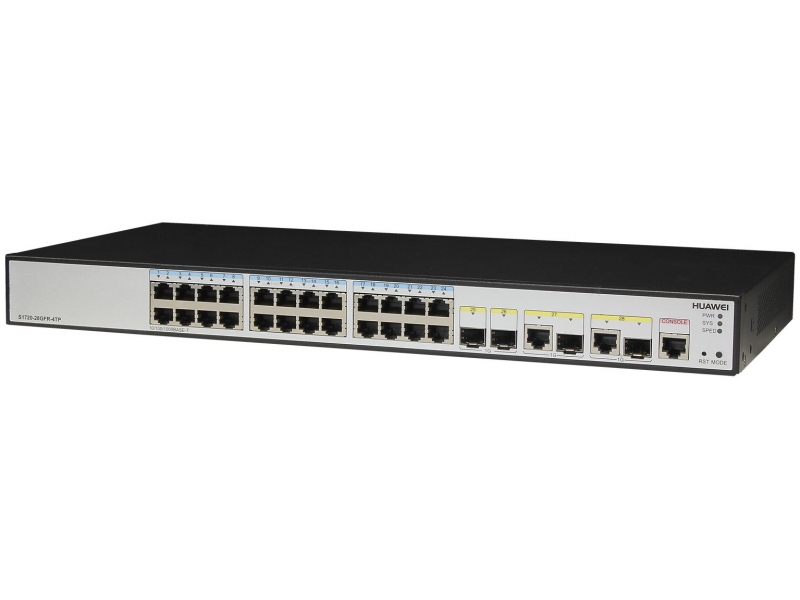

S1720-28GFR-4TP:
  • 24-Port 10/100/1000MbE (RJ45);
  • 2-Port 1GbE (SFP);
  • 2-Port combo 1GbE (RJ45/SFP).
  • 1-Port console (RJ45)

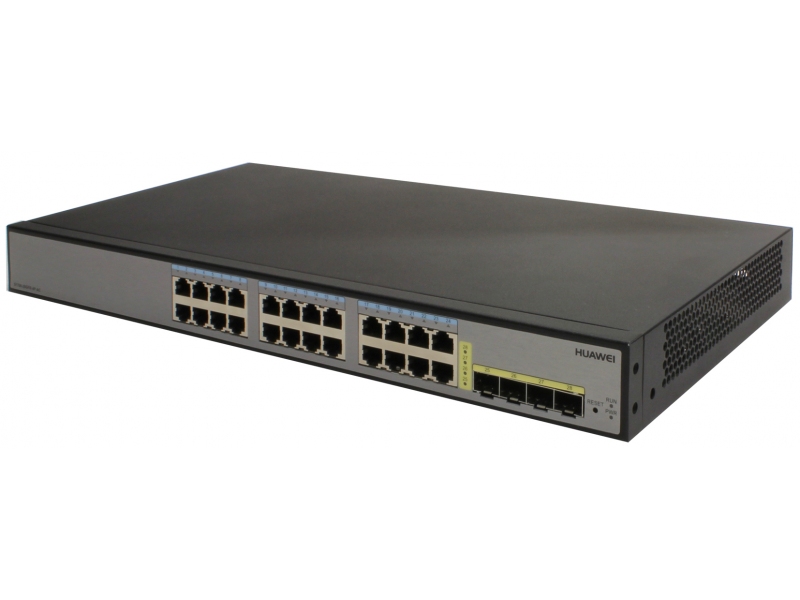

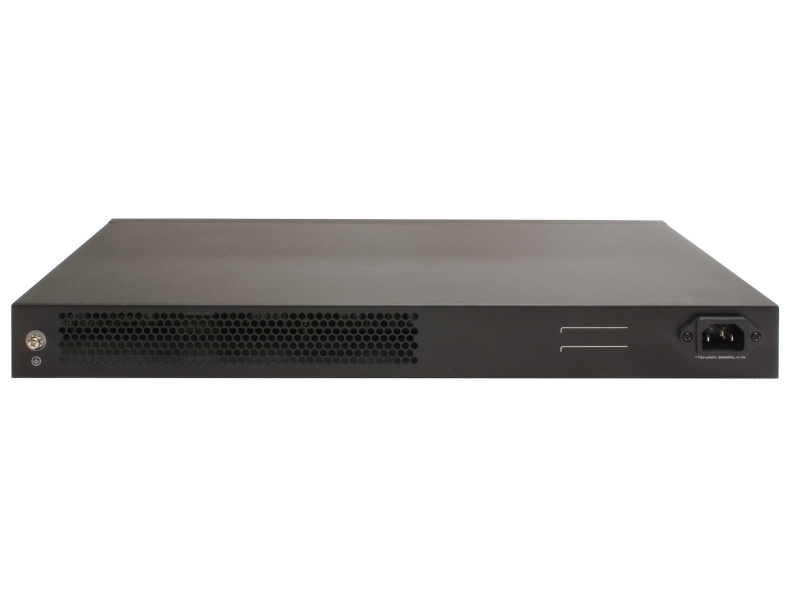

S1700-28GFR-4P-AC:
  • 24-Port 10/100/1000MbE (RJ45);
  • 4-Port 1GbE (SFP).

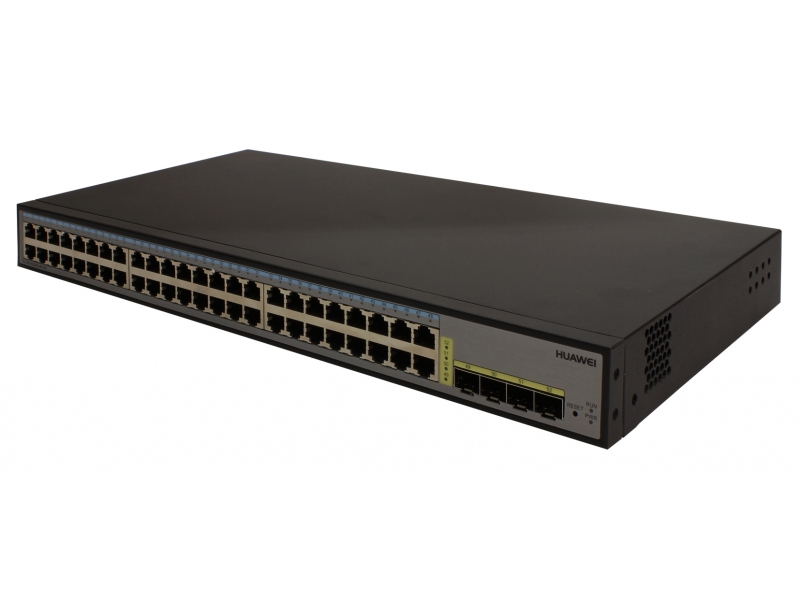

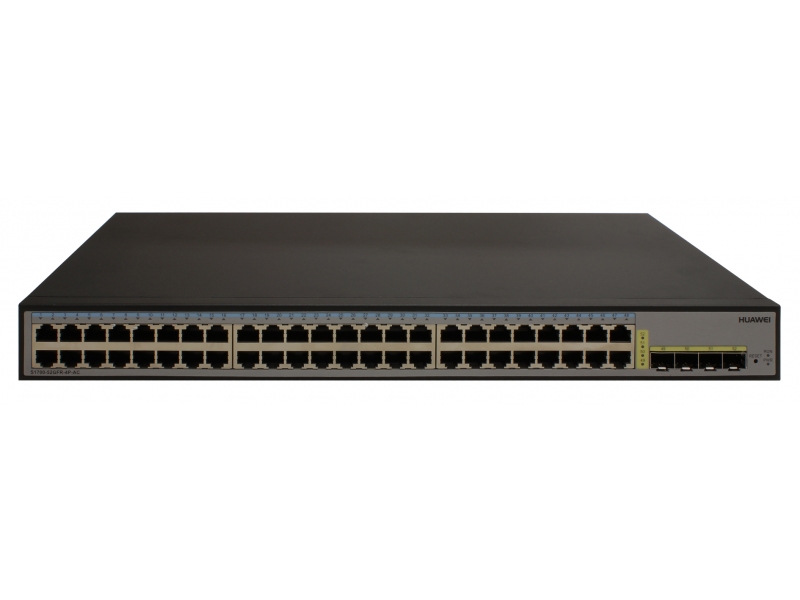

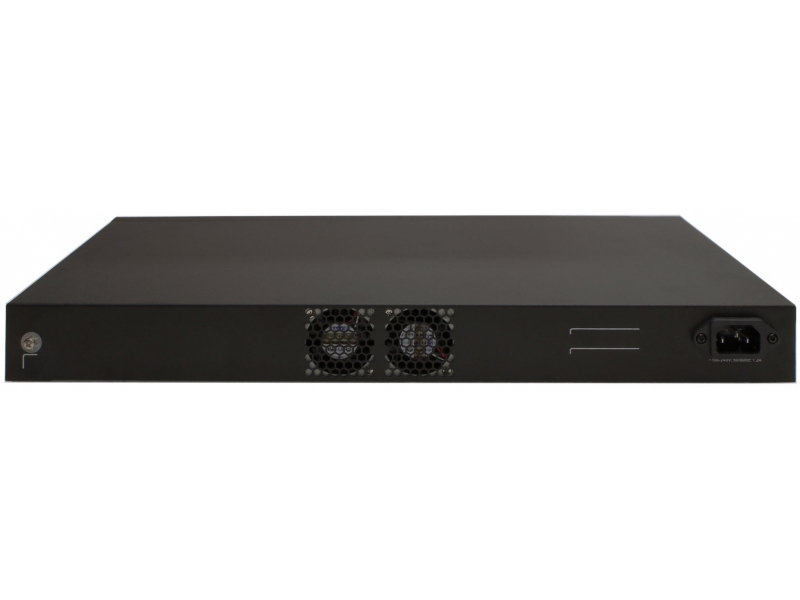

S1700-52GFR-4P-AC:
  • 48-Port 10/100/1000MbE (RJ45);
  • 4-Port 1GbE (SFP).
Performance
Switching Bandwidth
S1700-28FR-2T2P-AC: 12.8 Gb/s
S1700-52FR-2T2P-AC: 17.6 Gb/s
S1728GWR-4P: 56 Gb/s
S1720-20GFR-4TP:    128 Gb/s
S1720-28GFR-4TP: 128 Gb/s
S1700-28GFR-4P-AC: 56 Gb/s
S1700-52GFR-4P-AC: 104 Gb/s

Forwarding Rate
S1700-28FR-2T2P-AC: 9.6 Mp/s
S1700-52FR-2T2P-AC: 13.2 Mp/s
S1728GWR-4P: 42 Mp/s
S1720-20GFR-4TP:  30 Mp/s
S1720-28GFR-4TP: 42 Mp/s
S1700-28GFR-4P-AC: 42 Mp/s
S1700-52GFR-4P-AC: 78 Mp/s

Layer 2 Features
MAC Address Table
Maximum Capacity:

S1700-28FR-2T2P-AC,

S1700-52FR-2T2P-AC,

S1728GWR-4P,

S1700-28GFR-4P-AC,

S1700-52GFR-4P-AC

 8,000 entries

S1720-20GFR-4TP,

S1720-28GFR-4TP

 16,000 entries
VLAN
IEEE 802.1Q:

S1700-28FR-2T2P-AC,

S1700-52FR-2T2P-AC,

S1720-20GFR-4TP,

S1720-28GFR-4TP,

S1700-28GFR-4P-AC,

S1700-52GFR-4P-AC

 4,094
S1728GWR-4P: 256
GVRP Supported
QinQ Supported
VLAN Translation Supported
Layer 2 Reliability

S1700-28FR-2T2P-AC,

S1700-52FR-2T2P-AC,

S1720-20GFR-4TP,

S1720-28GFR-4TP,

S1700-28GFR-4P-AC,

S1700-52GFR-4P-AC

 STP/RSTP/MSTP
S1728GWR-4P: STP/RSTP
Multicast
IGMP snooping: v1/v2/v3
IGMP groups:

S1700-28FR-2T2P-AC,

S1700-52FR-2T2P-AC,

S1700-28GFR-4P-AC,

S1700-52GFR-4P-AC,

S1728GWR-4P

 256

S1720-20GFR-4TP,

S1720-28GFR-4TP,

 1,024
Multicast VLAN (MVR): Supported
Multicast Routing: Not supported
Layer 3 features
ARP Table256 entries
Routing Table
IPv4: 32 routes
IPv6: 16 routes
IP Routing

S1700-28FR-2T2P-AC,

S1700-52FR-2T2P-AC,

S1700-28GFR-4P-AC,

S1700-52GFR-4P-AC,

S1728GWR-4P

 Not supported

S1720-20GFR-4TP,

S1720-28GFR-4TP,

 Static Routes
MPLS / VPN

Not supported
Security
IPv4 ACL: 900 Ingress + Egress
IPv6 ACL: 900 Ingress + Egress
Local AAA: Supported
RADIUS, TACACS+: Supported
DHCP Server Not supported
DHCP Relay option82:

S1700-28FR-2T2P-AC,

S1700-52FR-2T2P-AC,

S1700-28GFR-4P-AC,

S1700-52GFR-4P-AC,

S1720-20GFR-4TP,

S1720-28GFR-4TP

 Supported
S1728GWR-4P Not supported
DHCP Snooping:

S1700-28FR-2T2P-AC,

S1700-52FR-2T2P-AC,

S1700-28GFR-4P-AC,

S1700-52GFR-4P-AC,

S1720-20GFR-4TP,

S1720-28GFR-4TP

 Supported
S1728GWR-4P Not supported
Loop Detection: Supported
IP Source Guard:

S1700-28FR-2T2P-AC,

S1700-52FR-2T2P-AC,

S1700-28GFR-4P-AC,

S1700-52GFR-4P-AC,

S1720-20GFR-4TP,

S1720-28GFR-4TP

 Supported
S1728GWR-4P Not supported
Broadcast, multicast, unknown unicast suppression:

S1700-28FR-2T2P-AC,

S1700-52FR-2T2P-AC,

S1700-28GFR-4P-AC,

S1700-52GFR-4P-AC,

S1720-20GFR-4TP,

S1720-28GFR-4TP

 Supported
S1728GWR-4P Not supported
Quality of Service
QoS queues: 8
Traffic Limit: Supported
Traffic Mark: by 802.1p, DSCP
IPv6

Static routes; IPv6 ACL; DHCPv6; Multicast Listener Discovery snooping (MLDv1/v2)
Management
S1700-28FR-2T2P-AC: Web-management; SNMP; RMON; Syslog; NTP
S1700-52FR-2T2P-AC: Web-management; SNMP; RMON; Syslog; NTP
S1728GWR-4P: Web-management; Syslog; NTP
S1720-20GFR-4TP:                     Web-management; SNMP; Telnet, SSH; RMON; Syslog; NTP
S1720-28GFR-4TP: Web-management; SNMP; Telnet, SSH; Syslog; NTP
S1700-28GFR-4P-AC: Web-management; SNMP; RMON; Syslog; NTP
S1700-52GFR-4P-AC: Web-management; SNMP; RMON; Syslog; NTP


OAM

 802.3ah (EFM); 802.1ag (CFM)
Environmental Conditions
Relative Humidity

10 to 90% (noncondensing)
Operating Temperature

0 to 45°C (32 to 113°F)
Power Supply
Power Supply Unit (PSU)
AC PSU:
Type: Built-in
Quantity: 1
Rated voltage range:                        100 to 240 VAC, 50-60 Hz
DC PSU:
Not supported
PoE (Power over Ethernet)

Not supported
Maximum power consumption
S1700-28FR-2T2P-AC: up to 25 W
S1700-52FR-2T2P-AC: up to 35 W
S1728GWR-4P: up to 15 W
S1720-20GFR-4TP:                     up to 20.7 W
S1720-28GFR-4TP: up to 24.3 W
S1700-28GFR-4P-AC: up to 30 W
S1700-52GFR-4P-AC: up to 55 W
Acoustic noise
S1700-28FR-2T2P-AC: 0 dB
S1700-52FR-2T2P-AC: 0 dB
S1728GWR-4P: 0 dB
S1720-20GFR-4TP:                     0 dB
S1720-28GFR-4TP: 0 dB
S1700-28GFR-4P-AC: 0 dB
S1700-52GFR-4P-AC: up to 63 dBA
Dimensions (HxWxD)

43.6 (1U) х 442 х 220 mm

(1.72 (1U) x 17.4 x 8.66 in)
Maximum Weight
S1700-28FR-2T2P-AC: 3 kg (6.6 lb)
S1700-52FR-2T2P-AC: 3 kg (6.6 lb)
S1728GWR-4P: 3 kg (6.6 lb)
S1720-20GFR-4TP:                     5 kg (11.02 lb)
S1720-28GFR-4TP: 5 kg (11.02 lb)
S1700-28GFR-4P-AC: 3 kg (6.6 lb)
S1700-52GFR-4P-AC: 3 kg (6.6 lb)
Compatible expansion cards

Not supported
