Huawei S2300TP-EI series

S2300-EI series Datasheet (eng)

End-of-Sale

EOLA:

http://support.huawei.com/enterprise/en/bulletins-product/NEWS1000001601

Request a Quote
SPECIFICATIONS
Interfaces

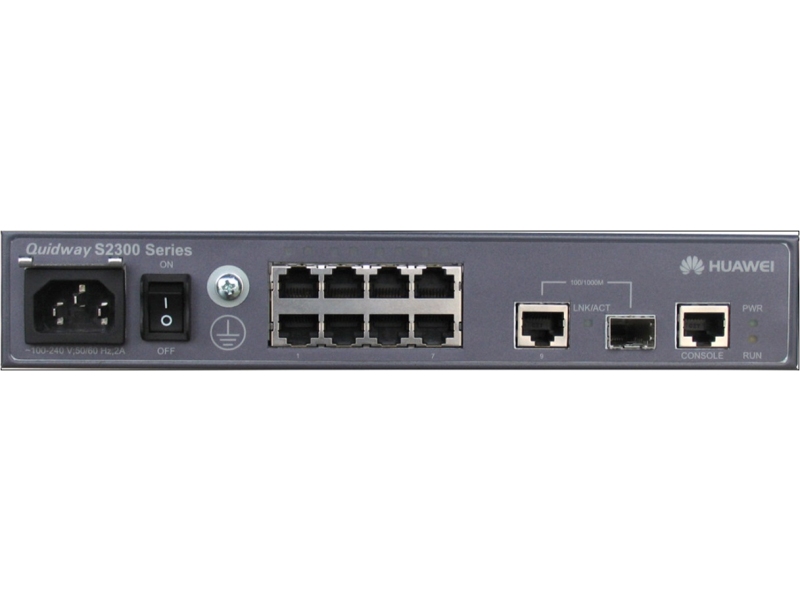

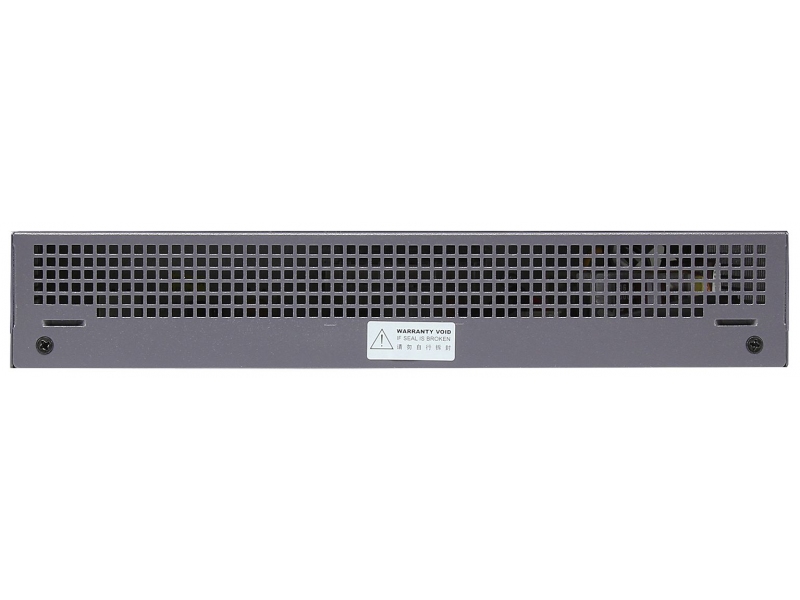

S2309TP-EI-AC/DC:
  • 8-Port 10/100MbE(RJ45);
  • 1-Port combo 1GbE (RJ45/SFP);
  • 1-Port console (RJ45)
S2318TP-EI-AC/DC:
  • 16-Port 10/100MbE(RJ45);
  • 2-Port combo 1GbE (RJ45/SFP);
  • 1-Port console (RJ45)

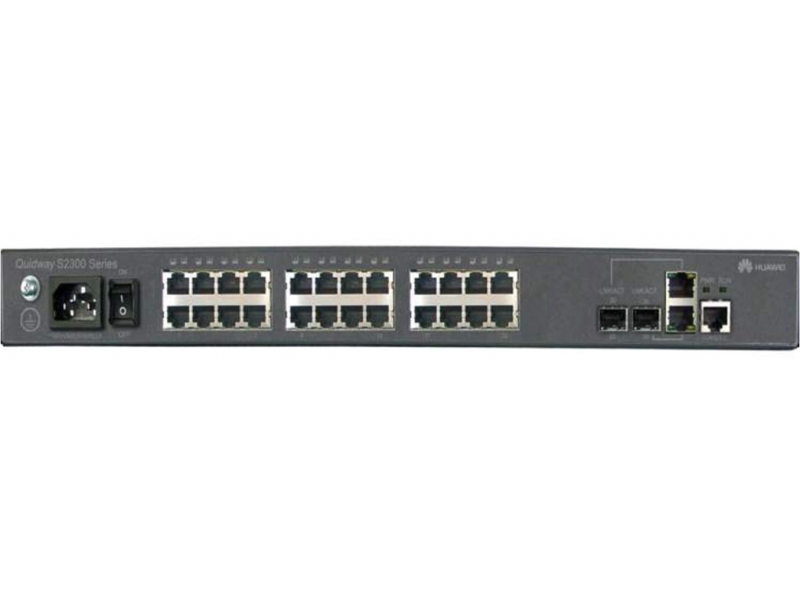

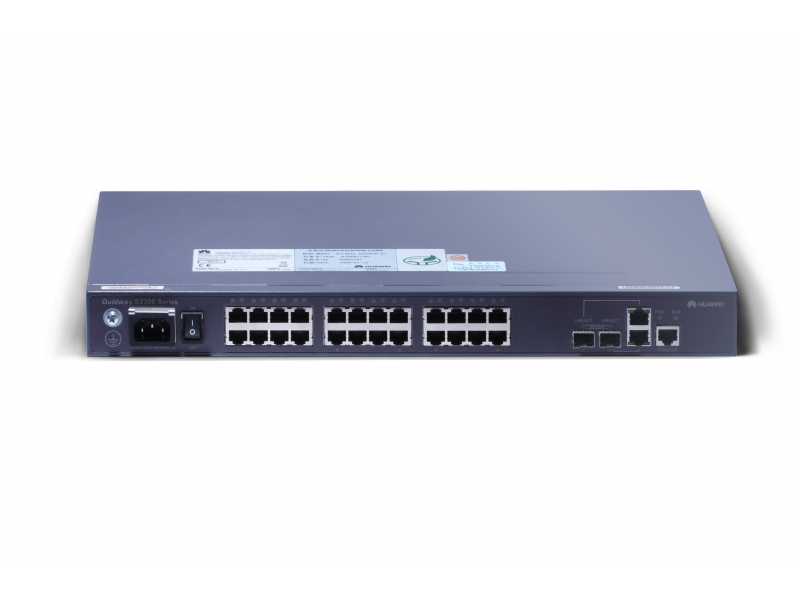

S2326TP-EI-AC/DC:
  • 24-Port 10/100MbE (RJ45);
  • 2-Port combo 1GbE (RJ45/SFP);
  • 1-Port console (RJ45)
S2328P-EI-AC:
  • 24-Port 10/100MbE (RJ45);
  • 4-Port 100/1000MbE (SFP);
  • 1-Port console (RJ45)
S2352P-EI:
  • 48-Port 10/100MbE (RJ45);
  • 2-Port 100/1000MbE (SFP);
  • 2-Port 1GbE (SFP);
  • 1-Port console (RJ45)
S2309TP-PWR-EI:
  • 8-Port 10/100MbE (RJ45) PoE;
  • 1-Port combo 1GbE (RJ45/SFP);
  • 1-Port console (RJ45)

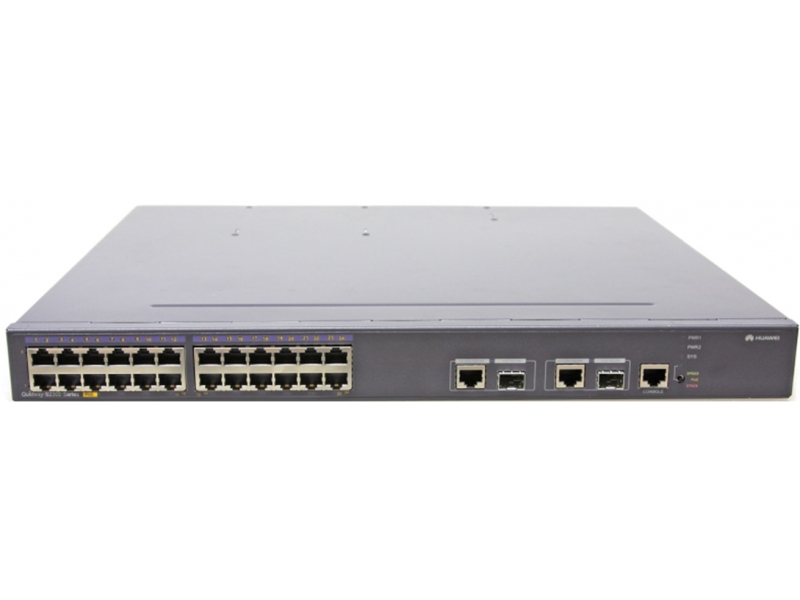

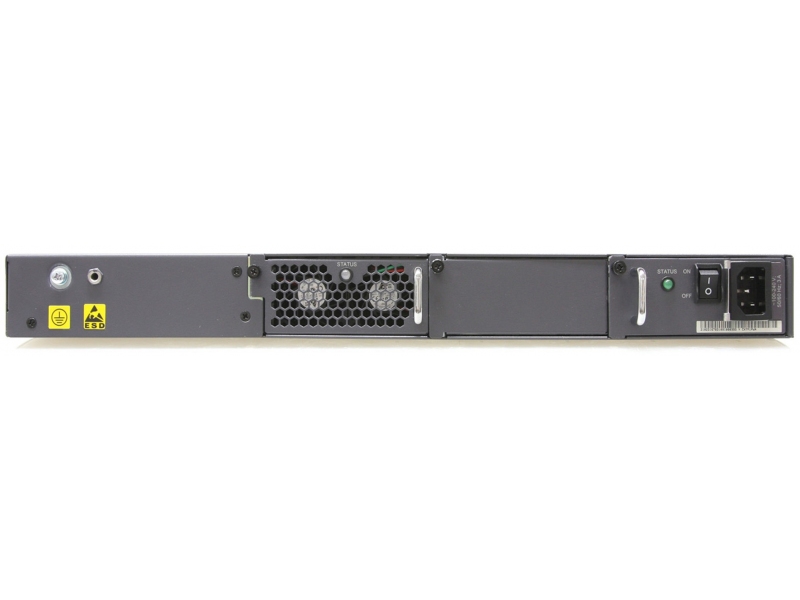

S2326TP-PWR-EI:
  • 24-Port 10/100MbE (RJ45) PoE;
  • 2-Port combo 1GbE (RJ45/SFP);
  • 1-Port console (RJ45)
Performance
Switching Bandwidth
S2309TP-EI-AC/DC:
S2309TP-PWR-EI:		 3.6 Gbit/s
S2318TP-EI-AC/DC: 7.2 Gbit/s
S2326TP-EI-AC/DC:
S2326TP-PWR-EI:		 8.8 Gbit/s
S2328P-EI-AC: 12.8 Gbit/s
S2352P-EI: 17.6 Gbit/s
Forwarding Rate
S2309TP-EI-AC/DC:
S2309TP-PWR-EI:		 2.7 Mp/s
S2318TP-EI-AC/DC: 5.4 Mp/s
S2326TP-EI-AC/DC:
S2326TP-PWR-EI:		 6.6 Mp/s
S2328P-EI-AC: 9.6 Mp/s
S2352P-EI: 13.2 Mp/s
Layer 2 Features
MAC Address Table

8,000 entries
VLAN

IEEE 802.1Q: 4094; GVRP; QinQ; VLAN Translation
Layer 2 Reliability

STP/RSTP/MSTP; RRPP
Multicast
IGMP snooping: v1/v2/v3
IGMP groups: 512
Multicast VLAN (MVR): Supported
Multicast Routing: Not supported
Layer 3 features
ARP Table256 entries
Routing Table
IPv4: 16 routes
IPv6: 16 routes
IP RoutingStatic Routes
MPLS / VPN

Not supported
Security
Local AAA: Supported
RADIUS, TACACS+: Supported
DHCP Server Not supported
DHCP Relay option82: Supported
DHCP Snooping: Supported
Loop Detection: Supported
IP Source Guard: Supported
Bandwidth Limit: Supported
Broadcast, multicast, unknown unicast suppression: Supported
Management

Telnet; SSH; Web-management; LLDP; SNMP v1/v2/v3; RMON; Syslog; NTP
OAM

802.3ah (EFM); 802.1ag (CFM)
Environmental Conditions
Relative Humidity

10 to 90% (noncondensing)
Operating Temperature

-5 to +50°C (23 to 122°F)
Power Supply
Power Supply Unit (PSU)
AC PSU:
Type:
S2309TP-EI-AC:
S2318TP-EI-AC:
S2326TP-EI-AC:
S2328P-EI-AC:
S2352P-EI:		 Built-in
S2326TP-PWR-EI: Removable
Quantity:
S2309TP-EI-AC:
S2318TP-EI-AC:
S2326TP-EI-AC:
S2328P-EI-AC:
S2352P-EI:		 1
S2326TP-PWR-EI: 2
Rated voltage range: 100 to 240 VAC, 50-60 Hz
DC PSU:
S2309TP-EI-DC:
S2318TP-EI-DC:
S2326TP-EI-DC:
Type: Built-in
Quantity: 1
Rated voltage range: -48 to -60 VDC
PoE (Power over Ethernet)
Supported by: S2309TP-PWR-EI, S2326TP-PWR-EI
PoE (802.3af) (15 W per port):
S2309TP-PWR-EI 8 ports
S2326TP-PWR-EI: 8 ports (with 250 W PSU)
S2326TP-PWR-EI: 24 ports (with 500 W PSU)
PoE+ (802.3аt) (30 W per port):
S2309TP-PWR-EI 4 ports
S2326TP-PWR-EI: 4 ports (with 250 W PSU)
S2326TP-PWR-EI: 12 ports (with 500 W PSU)
S2326TP-PWR-EI: 24 ports (with 2 x 500 W PSU)
PoE++ (802.3bt) (60 W per port): Not supported
PoE++ (802.3bt) (90 W per port): Not supported
Maximum power consumption
S2309TP-EI-AC/DC: 12.8 W
S2318TP-EI-AC/DC: 14.5 W
S2326TP-EI-AC/DC: 15.5 W
S2328P-EI-AC: 10.47 W
S2352P-EI: 38 W
S2309TP-PWR-EI: 154 W
S2326TP-PWR-EI: 808 W
Acoustic noise
S2309TP-EI-AC/DC:
S2318TP-EI-AC/DC:
S2326TP-EI-AC/DC:
S2328P-EI-AC:
S2309TP-PWR-EI:		 0 dB
S2352P-EI: 52 dB
S2326TP-PWR-EI: 62.5 dB
Dimensions (HxWxD)
S2309TP-EI-AC/DC:

43.6 (1U) х 250 х 180 mm

(1.72 (1U) x 9.84 x 7.09 in)
S2318TP-EI-AC/DC:
S2326TP-EI-AC/DC:
S2328P-EI-AC:
S2352P-EI:
S2309TP-PWR-EI:

43.6 (1U) х 442 х 220 mm

(1.72 (1U) x 17.4 x 8.66 in)
S2326TP-PWR-EI:

43.6 (1U) х 442 х 420 mm

(1.72 (1U) x 17.4 x 16.54 in)
Maximum Weight
S2309TP-EI-AC/DC: 1.4 kg (3.09 lb)
S2318TP-EI-AC/DC: 2.4 kg (5.3 lb)
S2326TP-EI-AC/DC: 2.4 kg (5.3 lb)
S2328P-EI-AC: 2 kg (4.4 lb)
S2352P-EI: 3 kg (6.61 lb)
S2309TP-PWR-EI: 2.5 kg (5.51 lb)
S2326TP-PWR-EI: 5 kg (11.02 lb)
Compatible expansion cards

Not supported
