| Interfaces | |
|

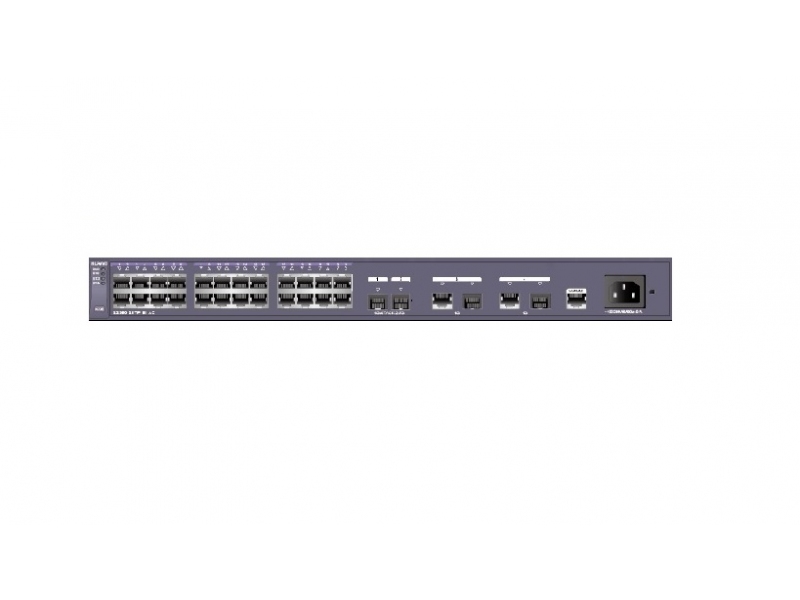

| S2350-28TP-EI-AC/DC: |
- 24-Port 10/100MbE (RJ45);
- 2-Port 1GbE (SFP);
- 2-Port combo 1GbE (RJ45/SFP);
- 1-Port console (RJ45).
|

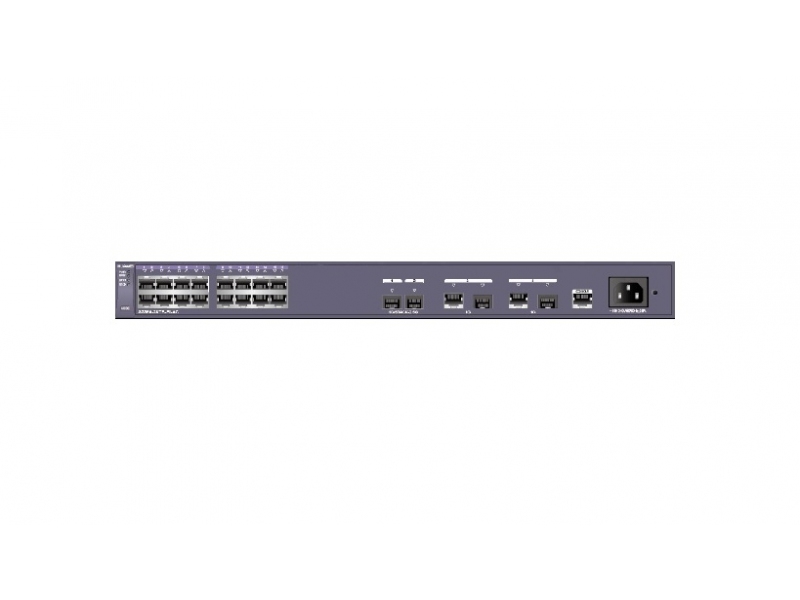

| S2350-20TP-PWR-EI: |
- 16-Port 10/100MbE (RJ45) PoE;
- 2-Port 1GbE (SFP);
- 2-Port combo 1GbE (RJ45/SFP);
- 1-Port console (RJ45).
|
| S2350-28TP-PWR-EI: |
- 24-Port 10/100MbE (RJ45) PoE;
- 2-Port 1GbE (SFP);
- 2-Port combo 1GbE (RJ45/SFP);
- 1-Port console (RJ45)
|
|
| Performance | |
| Switching Bandwidth |
| S2350-28TP-EI-AC/DC: |
12.8 Gb/s |
| S2350-20TP-PWR-EI: |
11.2 Gb/s |
| S2350-28TP-PWR-EI: |
12.8 Gb/s |
|
| Forwarding Rate |
| S2350-28TP-EI-AC/DC: |
9.52 Mp/s |
| S2350-20TP-PWR-EI: |
8.33 Mp/s |
| S2350-28TP-PWR-EI: |
9.52 Mp/s |
|
| Layer 2 Features | |
| MAC Address Table |
| Maximum Capacity: |
16,000 entries |
|
| VLAN | IEEE 802.1Q: 4094; GVRP; QinQ; VLAN Translation |
| Layer 2 Reliability | STP/RSTP/MSTP; RRPP; SEP; ERPS (G.8032) |
| Multicast | |
|
| IGMP snooping: |
v1/v2/v3 |
| IGMP groups: |
1,024 |
| Multicast VLAN (MVR): |
Supported |
| Multicast Routing: |
Not supported |
|
| Layer 3 features | |
| ARP Table | 256 entries |
| Routing Table |
| IPv4: |
16 routes |
| IPv6: |
16 routes |
|
| IP Routing | Static Routes |
| MPLS / VPN | |
| Not supported |
| Security | |
|
| IPv4 ACL: |
500 Ingress + Egress |
| IPv6 ACL: |
500 Ingress + Egress |
|
|
| Local AAA: |
Supported |
| RADIUS, TACACS+: |
Supported |
| DHCP Server |
Not supported |
| DHCP Relay option82: |
Supported |
| DHCP Snooping: |
Supported |
| Loop detection: |
Supported |
| IP Source Guard: |
Supported |
| Broadcast, multicast, unknown unicast suppression: |
Supported |
|
| Quality of Service | |
|
| QoS queues: |
8 |
| Traffic Limit: |
Supported |
| Traffic Mark: |
by 802.1p, DSCP |
|
| IPv6 | |
| Static routes; IPv6 ACL; DHCPv6; Multicast Listener Discovery snooping (MLDv1/v2) |
| Management | |
| Telnet; SSH; Web-management; LLDP; sFlow; SNMP v1/v2/v3; RMON; Syslog; NTP |
| Operations And Maintenance | |
| 802.3ah (EFM); 802.1ag (CFM) |
| Environmental Conditions | |
| Relative Humidity | 10 to 90% (noncondensing) |
| Operating Temperature | -5 to +50°C (23 to 122°F) |
| Power Supply | |
| Power Supply Unit (PSU) |
| AC PSU: |
| Type: |
Built-in |
| Quantity: |
1 |
| Rated voltage range: |
100 to 240 VAC, 50-60 Hz |
|
|
| DC PSU: |
| Type: |
Built-in |
| Quantity: |
1 |
| Rated voltage range: |
-48 to -60 VDC |
|
| PoE (Power over Ethernet) |
| Supported by: |
S2350-20TP-PWR-EI, S2350-28TP-PWR-EI |
| PoE (802.3af) (15W per port): |
|
| S2350-20TP-PWR-EI: |
16 ports |
| S2350-28TP-PWR-EI: |
24 ports |
|
|
| PoE+ (802.3аt) (30 W per port): |
|
| S2350-20TP-PWR-EI: |
16 ports |
| S2350-28TP-PWR-EI: |
24 ports |
|
| Maximum power consumption | |
|
| S2350-28TP-EI-AC/DC: |
up to 15.7 W |
| S2350-20TP-PWR-EI: |
up to 435 W |
| S2350-28TP-PWR-EI: |
up to 445 W |
|
| Acoustic noise | |
|
| S2350-28TP-EI-AC/DC: |
0 dB |
| S2350-20TP-PWR-EI: |
up to 52 dB |
| S2350-28TP-PWR-EI: |
up to 52 dB |
|
| Dimensions (HxWxD) | |
|
| S2350-28TP-EI-AC/DC: |
43.6 (1U) х 442 х 220 mm
(1.72 (1U) x 17.4 x 8.66 in)
|
| S2350-20TP-PWR-EI: |
43.6 (1U) х 442 х 310 mm
(1.72 (1U) x 17.4 x 12.2 in)
|
| S2350-28TP-PWR-EI: |
43.6 (1U) х 442 х 310 mm
(1.72 (1U) x 17.4 x 12.2 in)
|
|
| Maximum Weight | |
|
| S2350-28TP-EI-AC/DC: |
3 kg (6.61 lb) |
| S2350-20TP-PWR-EI: |
5 kg (11.02 lb) |
| S2350-28TP-PWR-EI: |
5 kg (11.02 lb) |
|
| Compatible expansion cards | |
| Not supported |
