Huawei S2700-EI Series

S2700-EI series Datasheet (eng)

Available to quote:

S2700-9TP-EI-AC; S2700-9TP-EI-DC;

S2700-9TP-PWR-EI; S2700-18TP-EI-AC;

S2700-26TP-EI-AC; S2700-26TP-EI-DC;

S2700-26TP-PWR-EI;

S2700-52P-EI-AC; S2700-52P-PWR-EI;

S2750-28TP-EI-AC; S2720-28TP-EI-AC;

S2750-20TP-PWR-EI-AC; S2750-28TP-PWR-EI-AC;

S2751-28TP-PWR-EI-AC

Request a Quote
SPECIFICATIONS
Interfaces

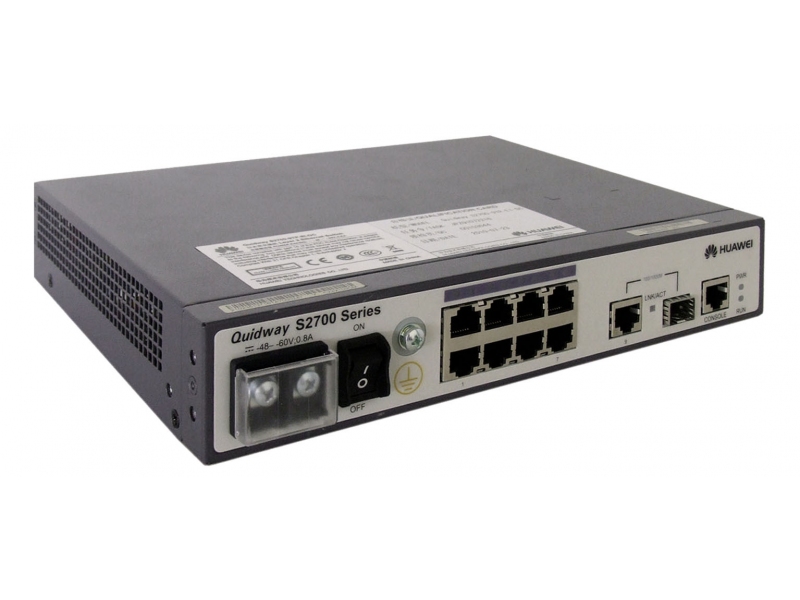

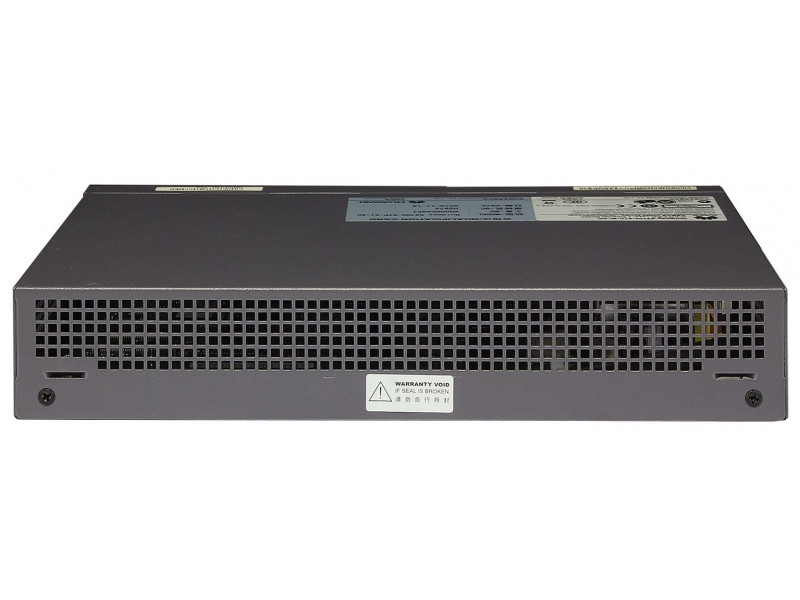

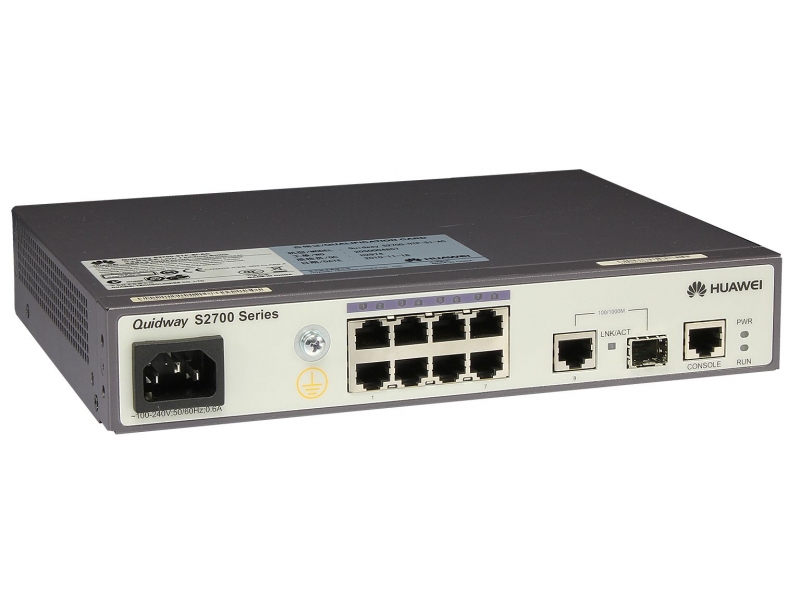

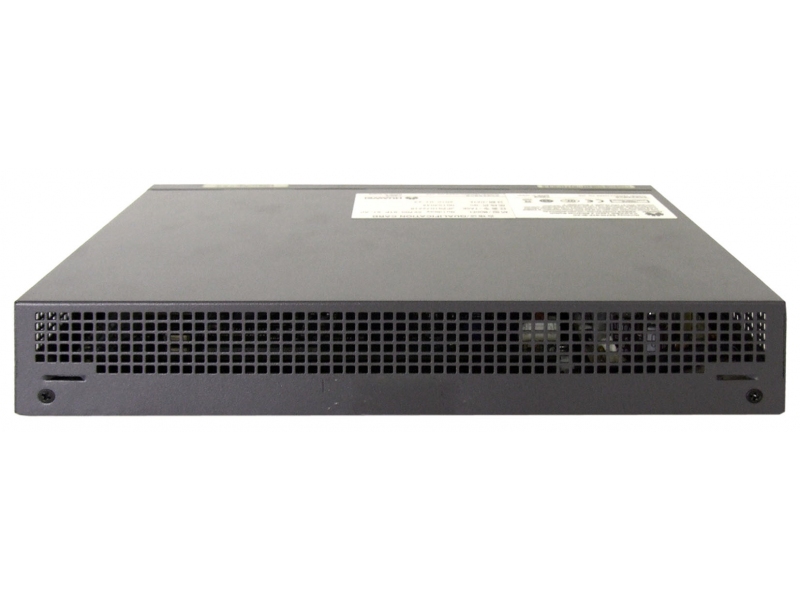

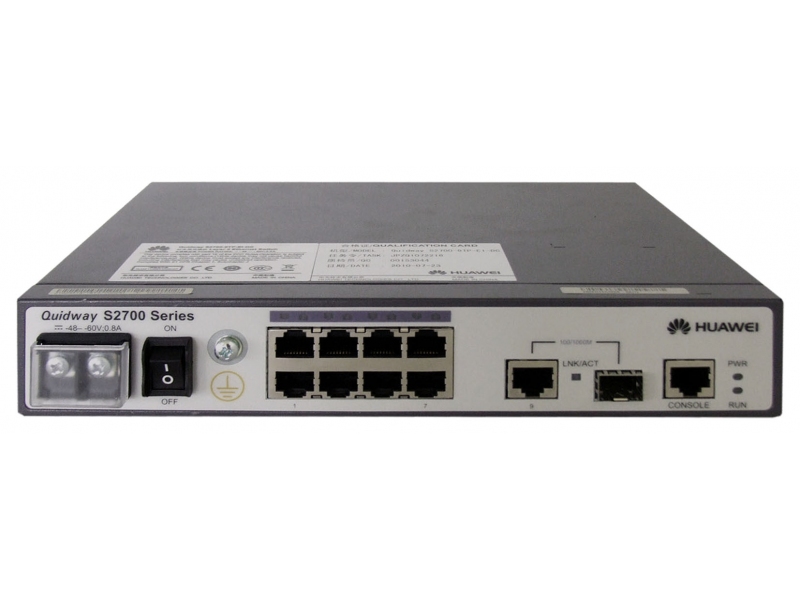

S2700-9TP-EI-AC/DC:
  • 8-Port 10/100MbE(RJ45);
  • 1-Port combo 1GbE (RJ45/SFP);
  • 1-Port console (RJ45)

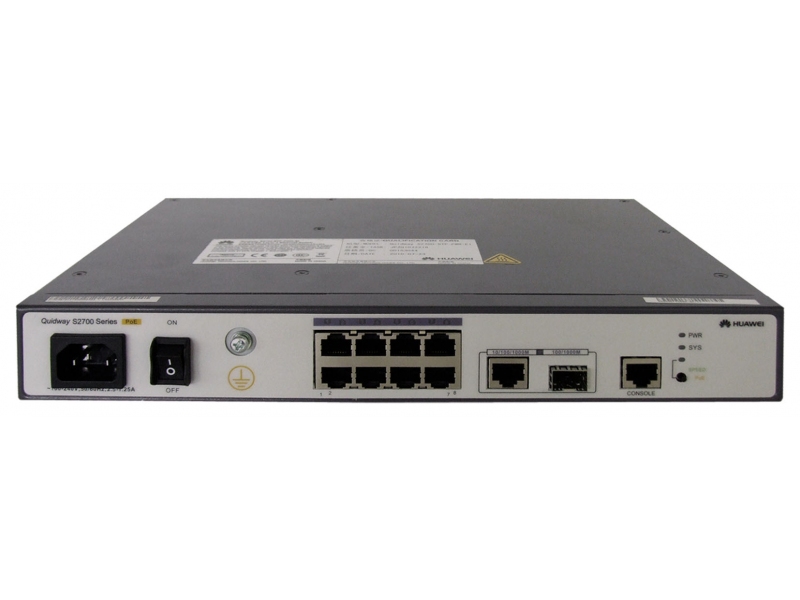

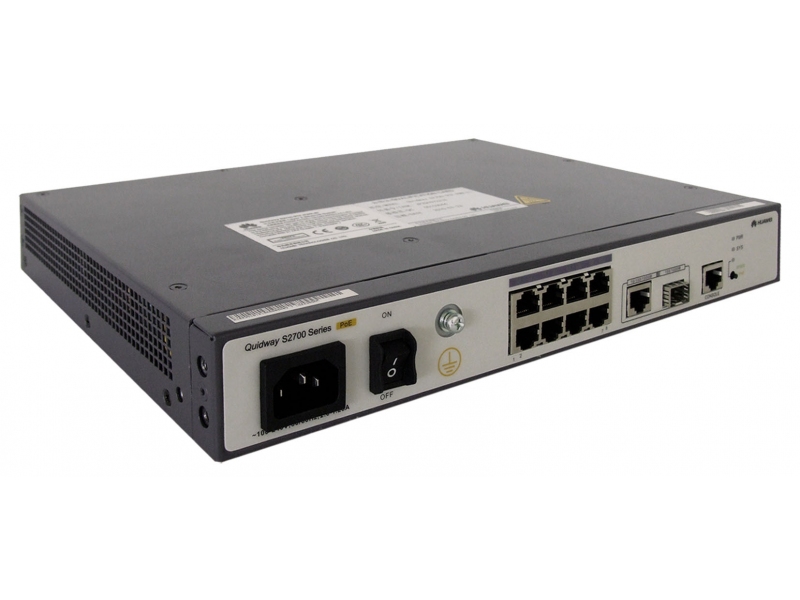

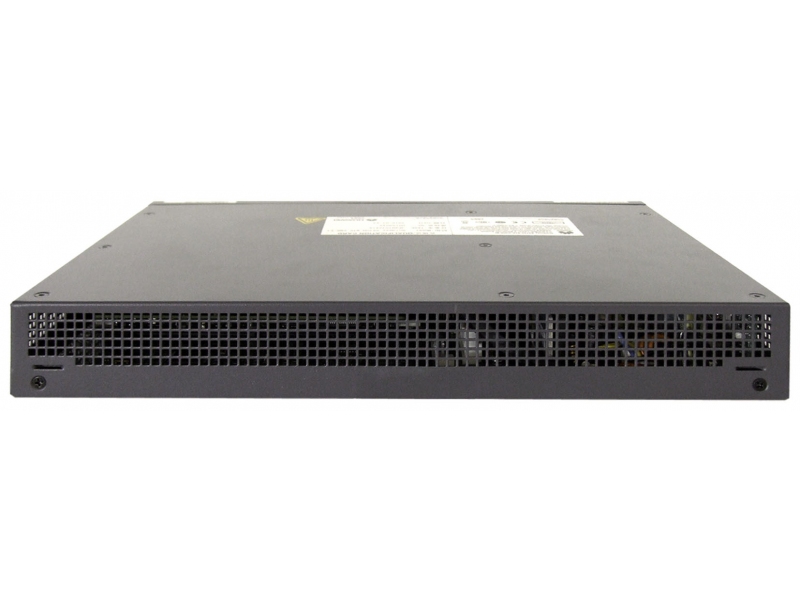

S2700-9TP-PWR-EI:
  • 8-Port 10/100MbE (RJ45) PoE;
  • 1-Port combo 1GbE (RJ45/SFP);
  • 1-Port console (RJ45)

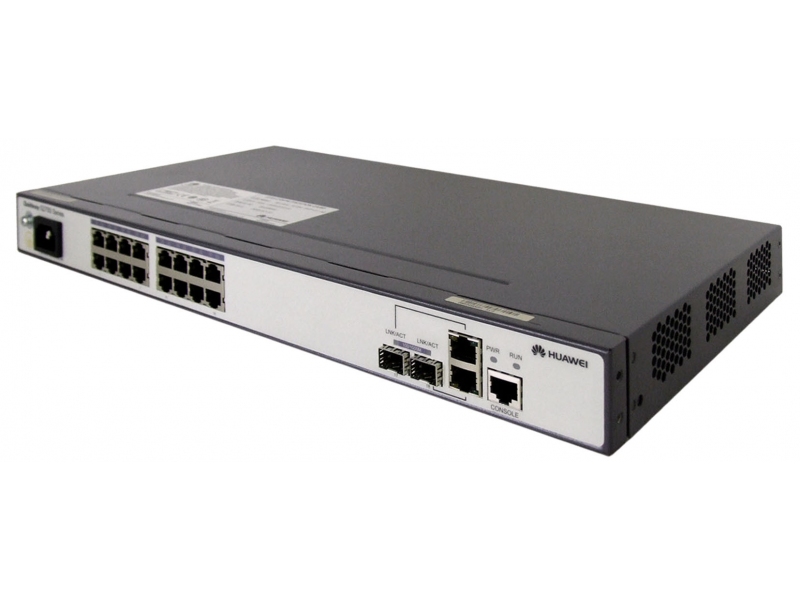

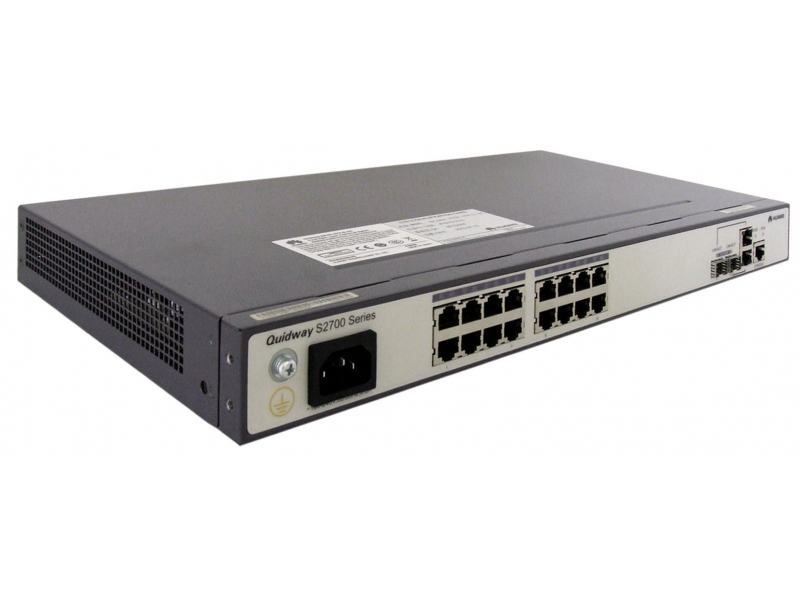

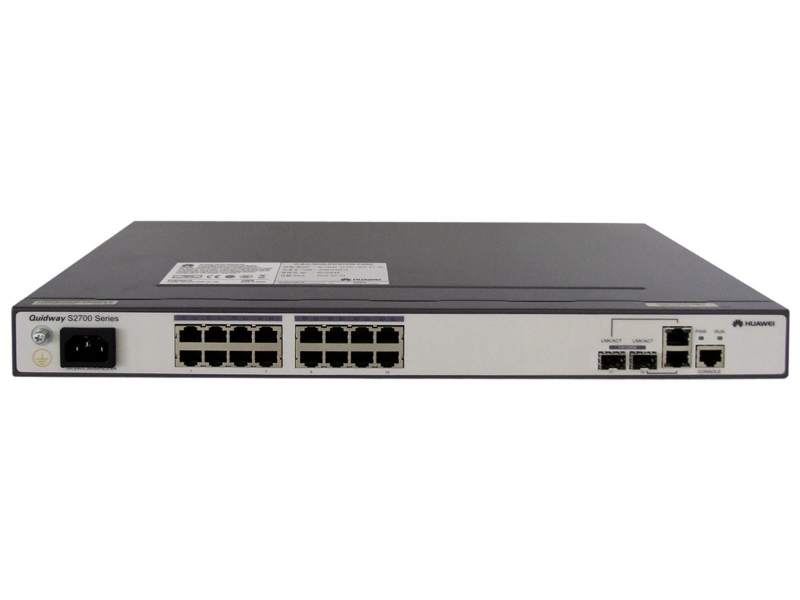

S2700-18TP-EI-AC:
  • 16-Port 10/100MbE(RJ45);
  • 2-Port combo 1GbE (RJ45/SFP);
  • 1-Port console (RJ45)

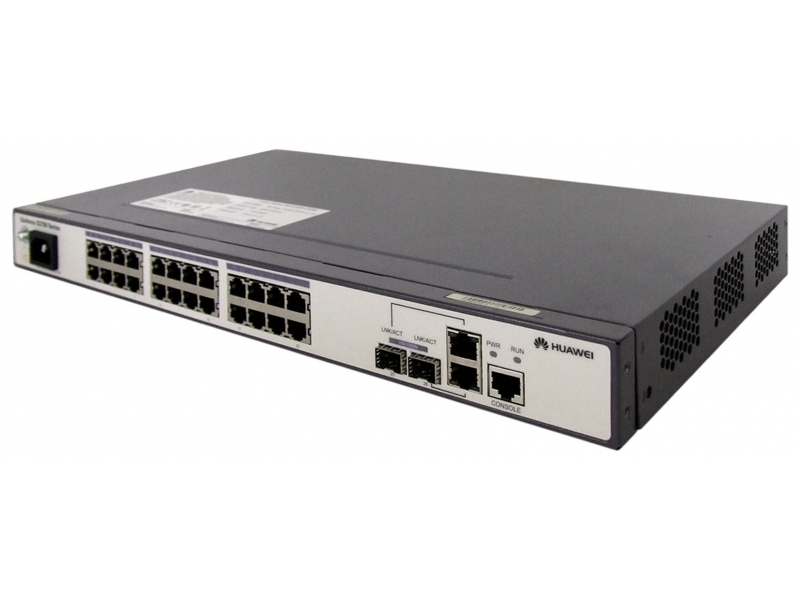

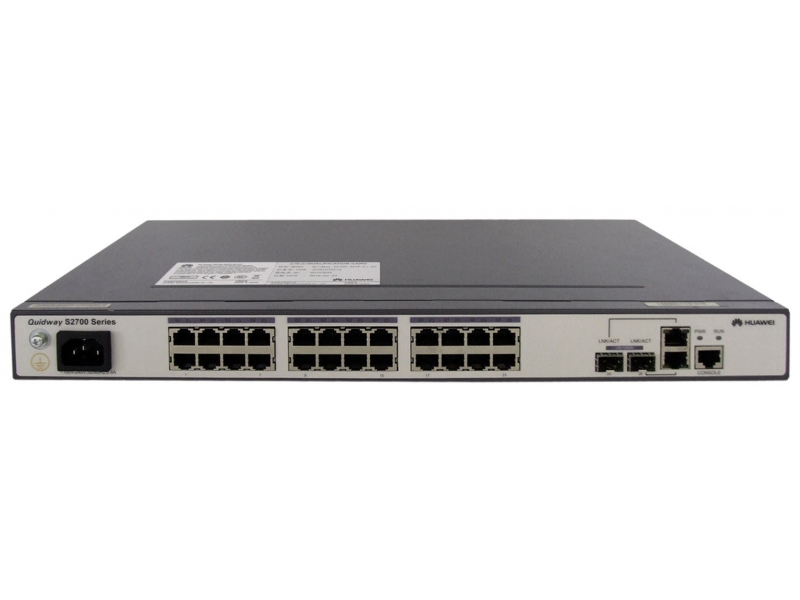

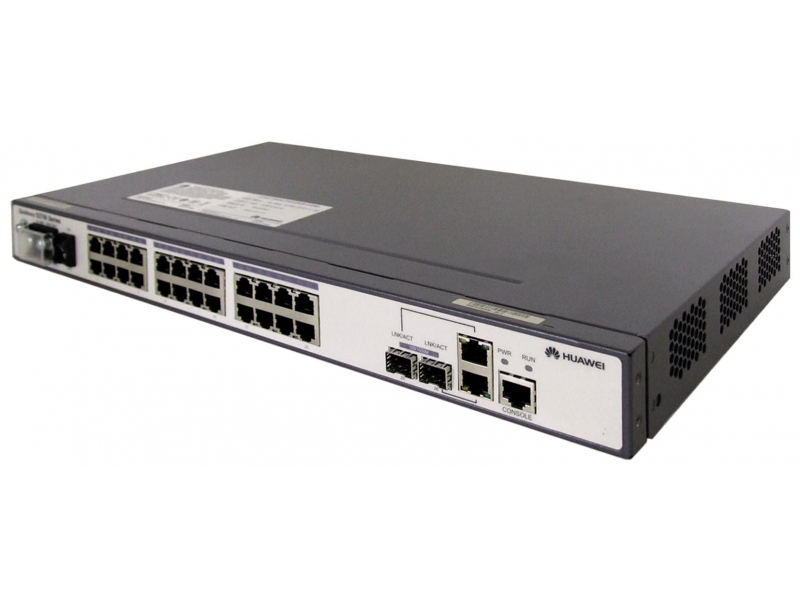

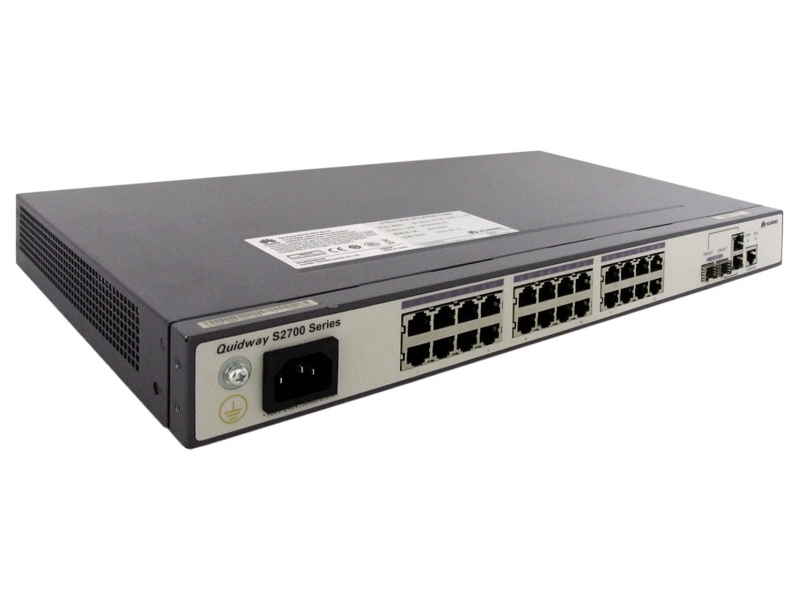

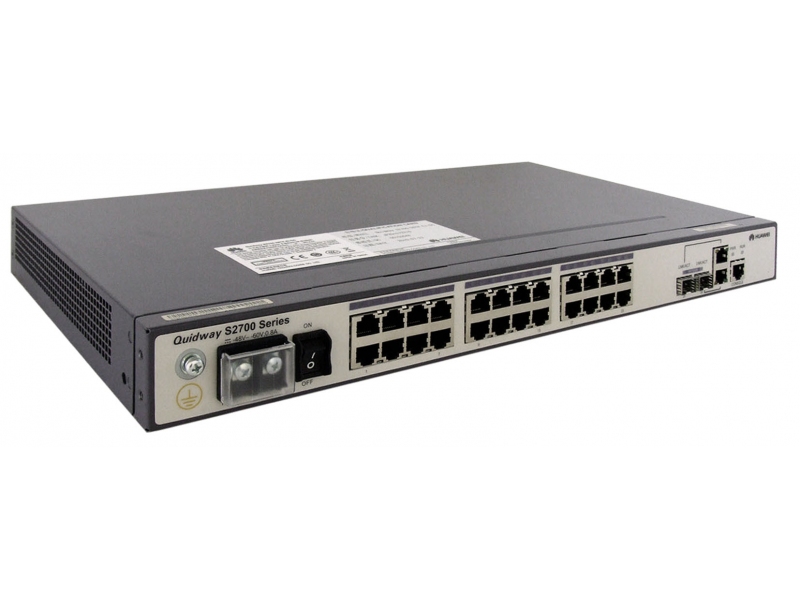

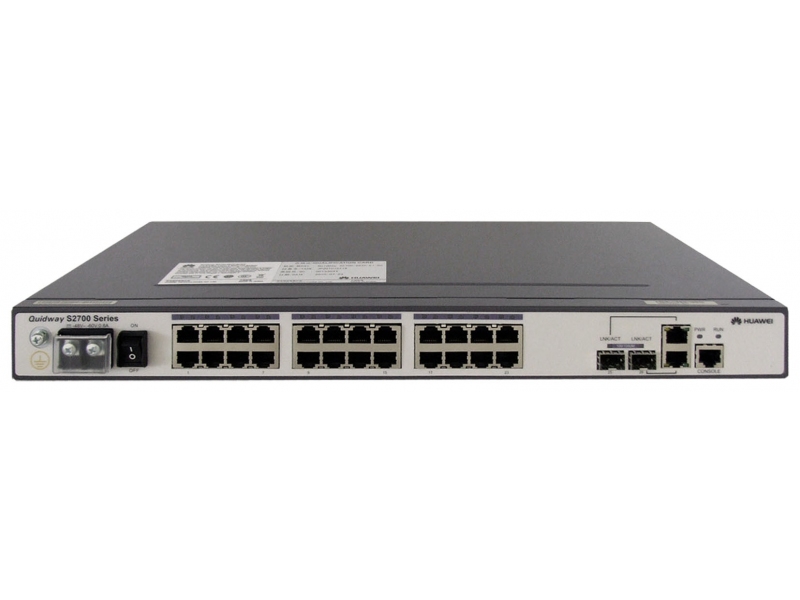

S2700-26TP-EI-AC/DC:
  • 24-Port 10/100MbE (RJ45);
  • 2-Port combo 1GbE (RJ45/SFP);
  • 1-Port console (RJ45)

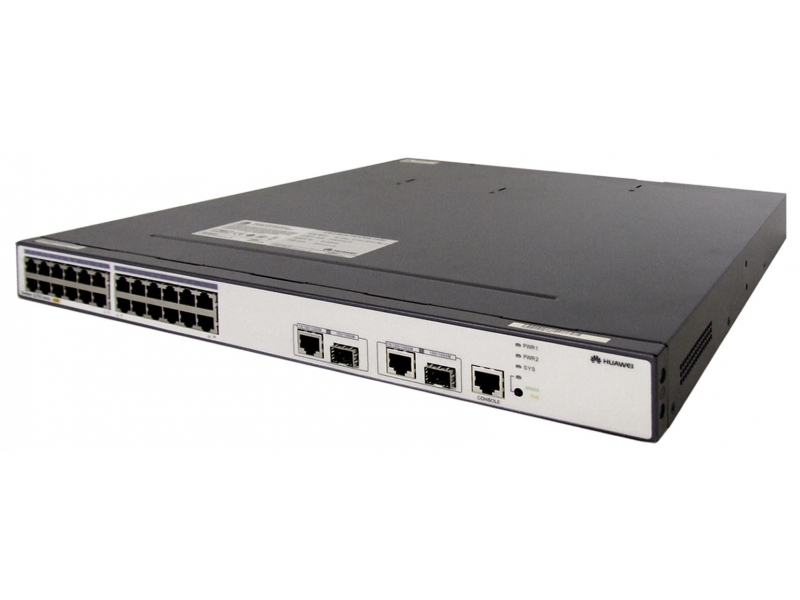

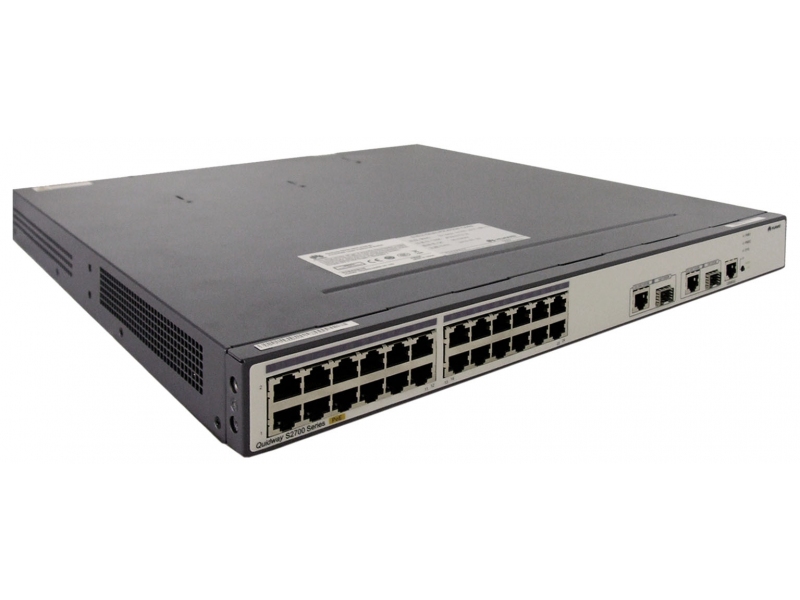

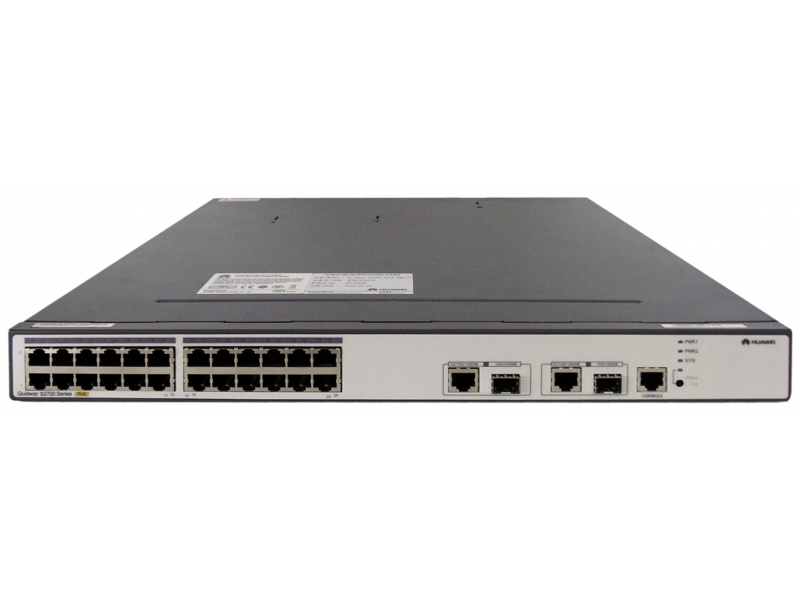

S2700-26TP-PWR-EI:
  • 24-Port 10/100MbE (RJ45) PoE;
  • 2-Port combo 1GbE (RJ45/SFP);
  • 1-Port console (RJ45)

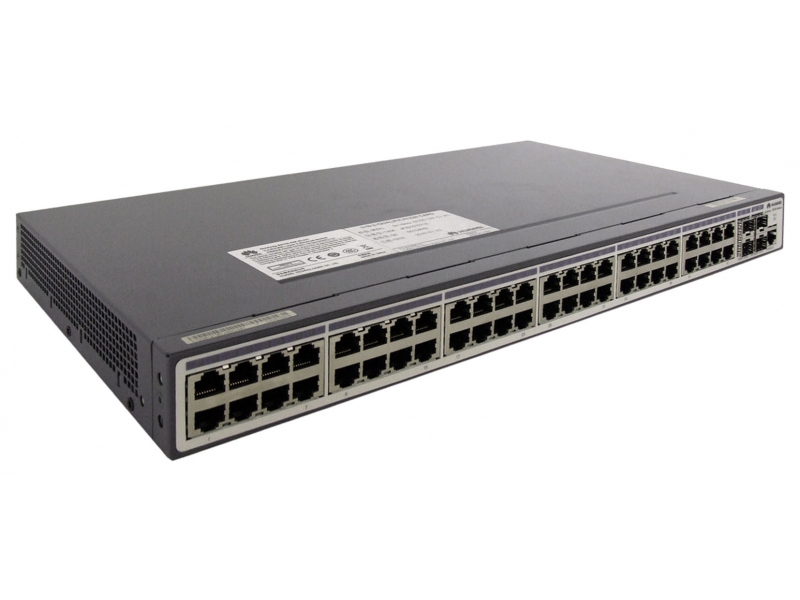

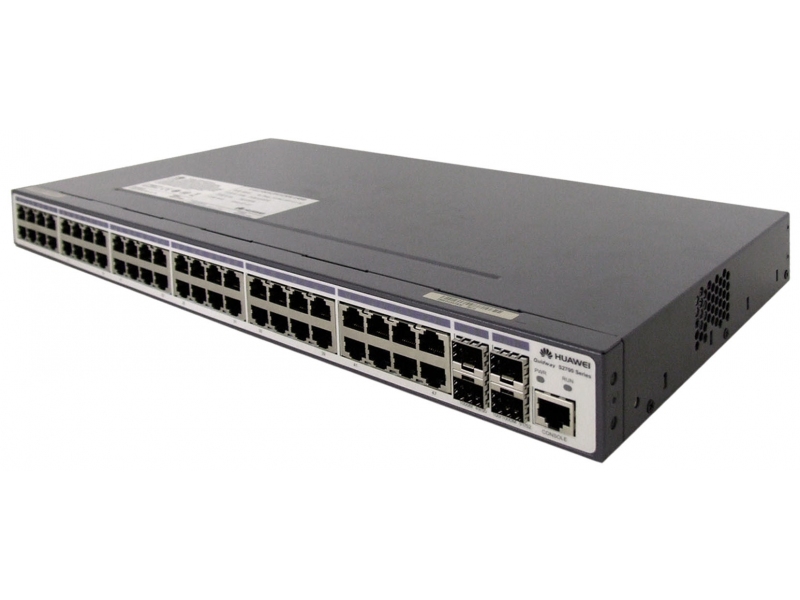

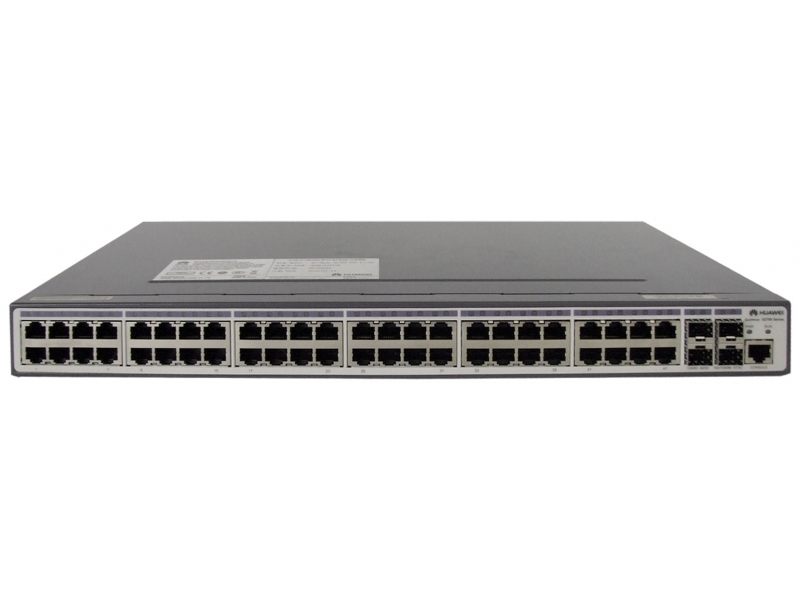

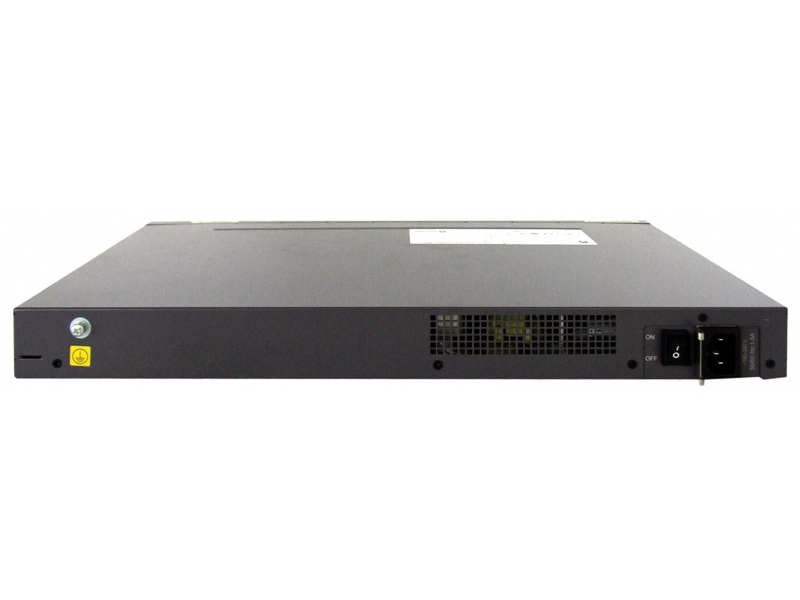

S2700-52P-EI-AC:
  • 48-Port 10/100MbE (RJ45);
  • 4-Port 1GbE (SFP);
  • 1-Port console (RJ45)

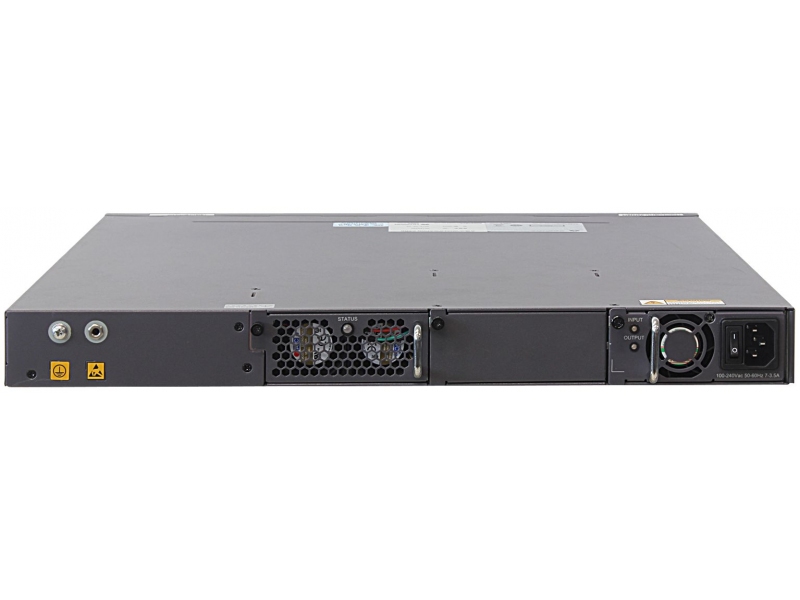

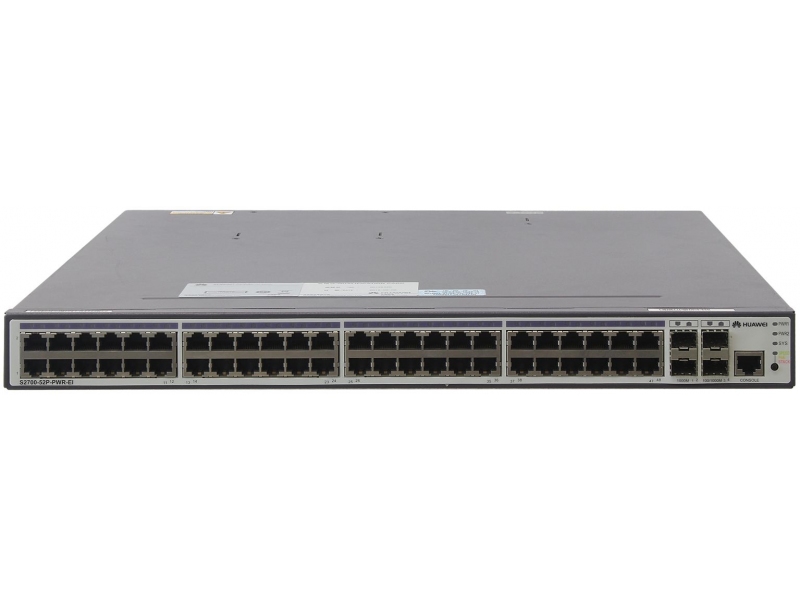

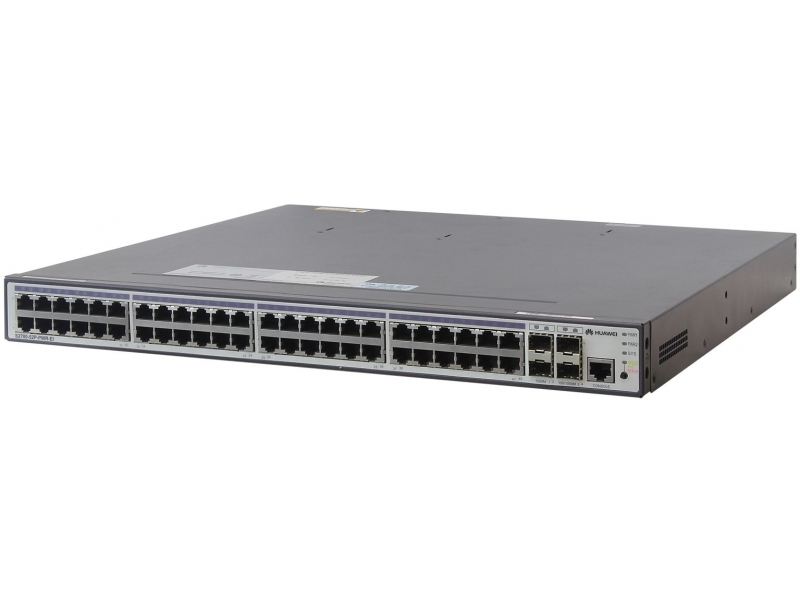

S2700-52P-PWR-EI:
  • 48-Port 10/100MbE (RJ45) PoE;
  • 4-Port 1GbE (SFP);
  • 1-Port console (RJ45)
S2750-28TP-EI-AC:
  • 24-Port 10/100MbE(RJ45);
  • 2-Port 1GbE (SFP);
  • 2-Port combo 1GbE (RJ45/SFP);
  • 1-Port console (RJ45)

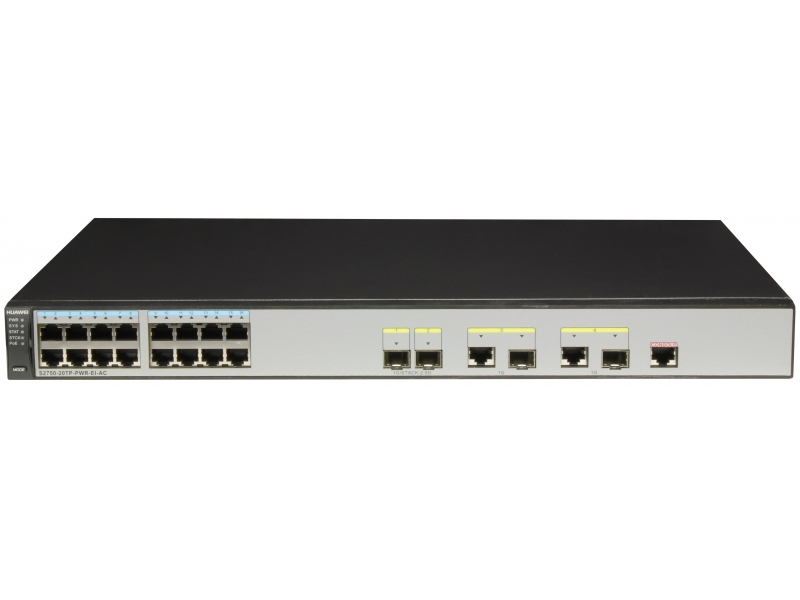

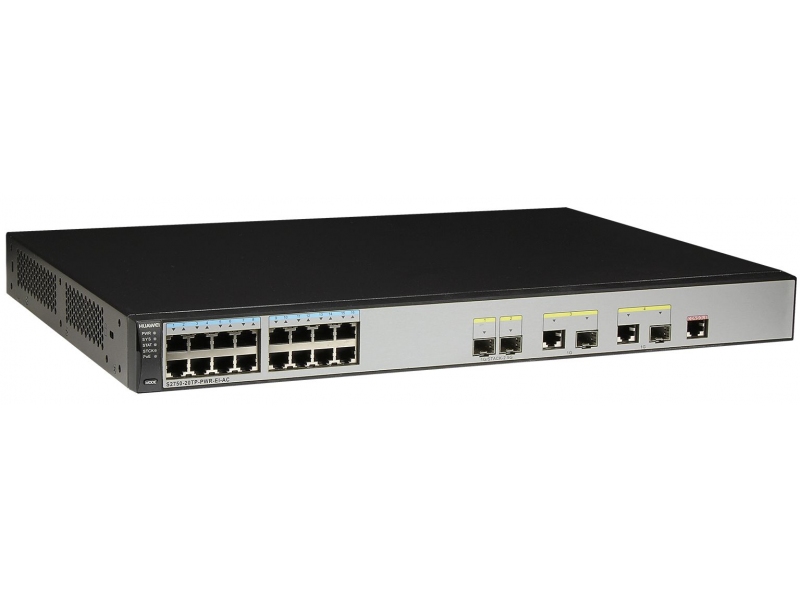

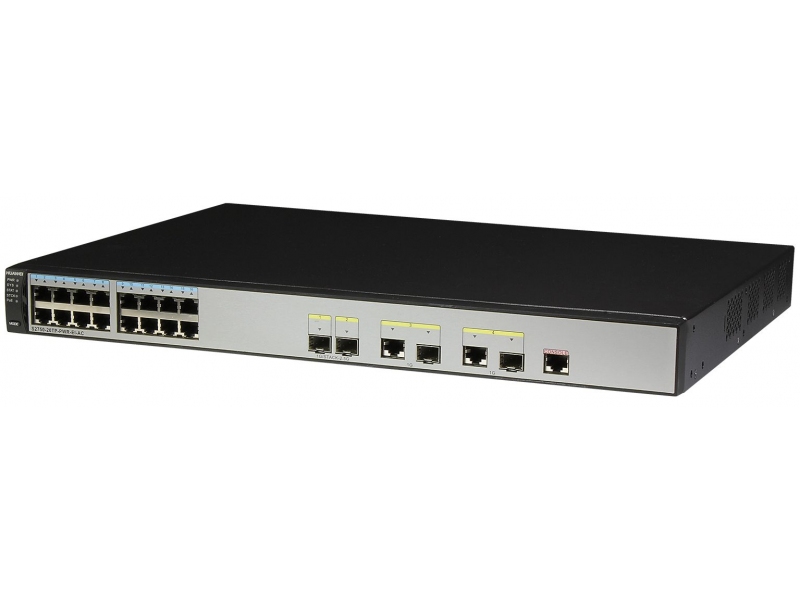

S2750-20TP-PWR-EI-AC:
  • 16-Port 10/100MbE(RJ45) PoE;
  • 2-Port 1GbE (SFP);
  • 2-Port combo 1GbE (RJ45/SFP);
  • 1-Port console (RJ45)

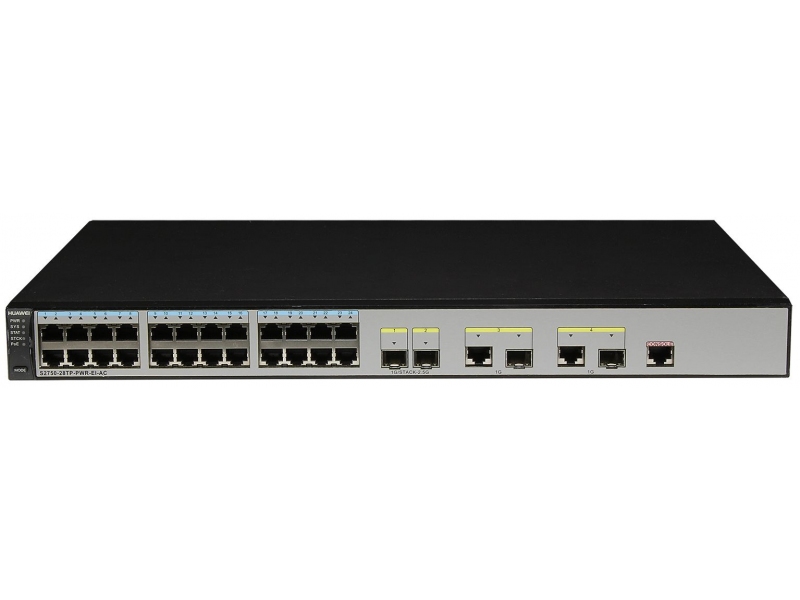

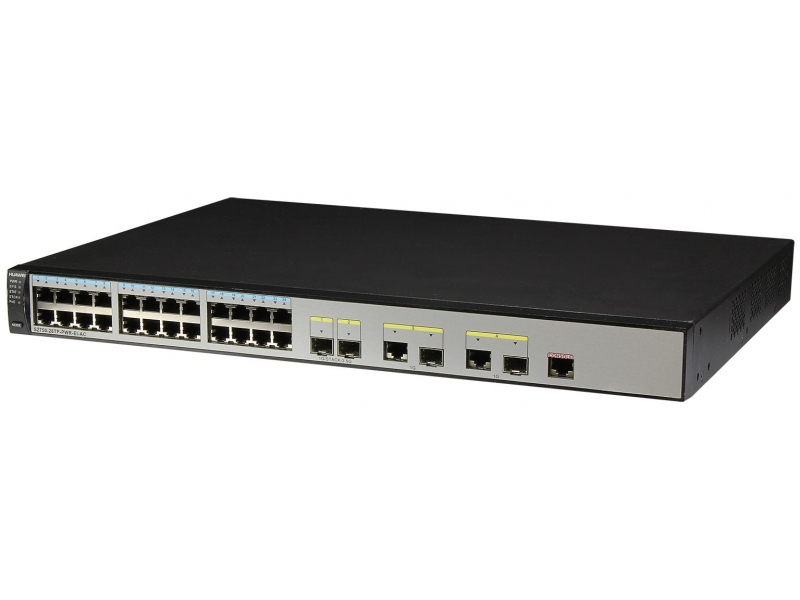

S2750-28TP-PWR-EI-AC:
  • 24-Port 10/100MbE (RJ45) PoE;
  • 2-Port 1GbE (SFP);
  • 2-Port combo 1GbE (RJ45/SFP);
  • 1-Port console (RJ45)

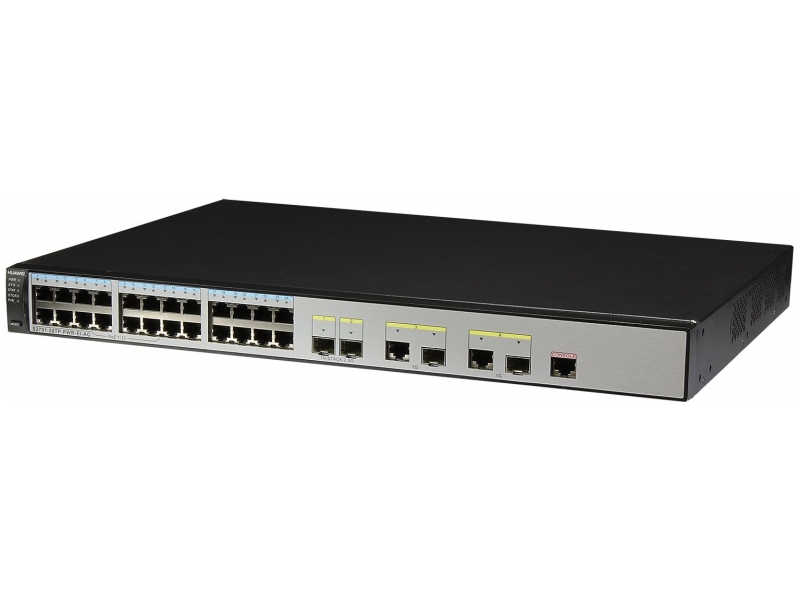

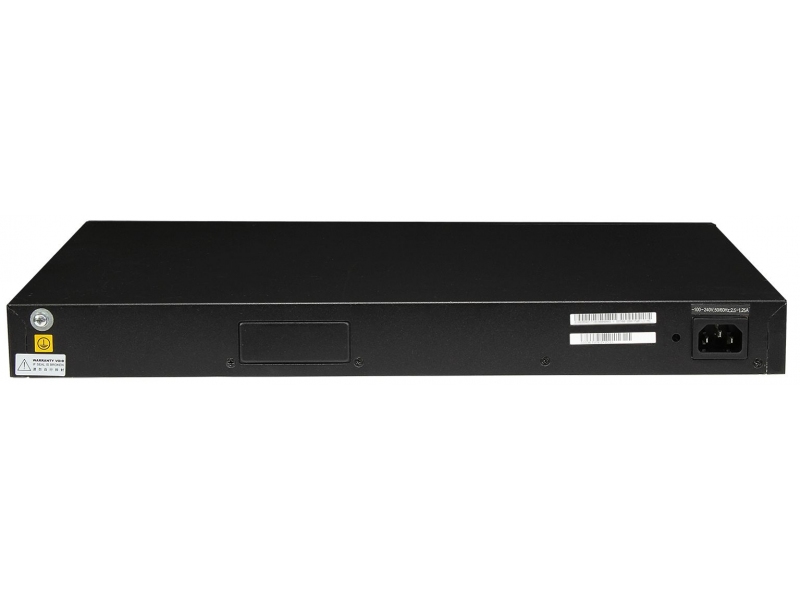

S2751-28TP-PWR-EI-AC:
  • 24-Port 10/100MbE (RJ45) PoE;
  • 2-Port 1GbE (SFP);
  • 2-Port combo 1GbE (RJ45/SFP);
  • 1-Port console (RJ45)

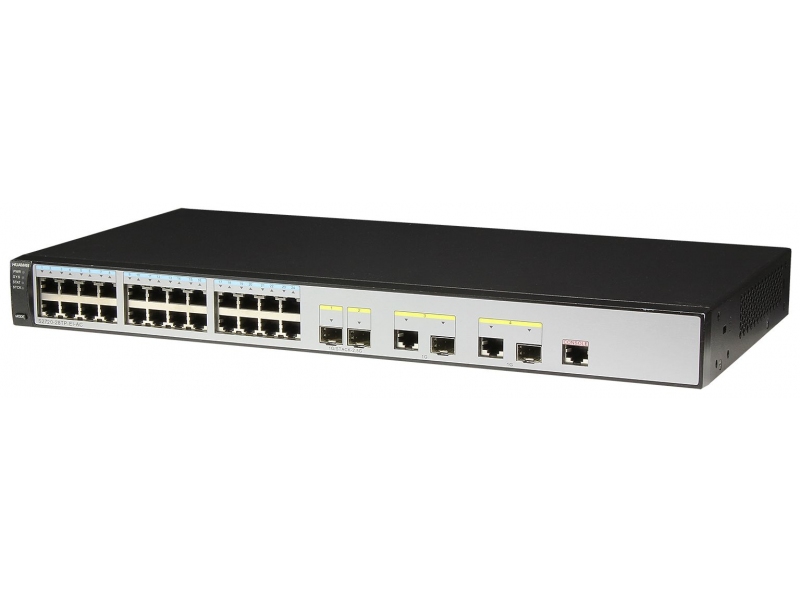

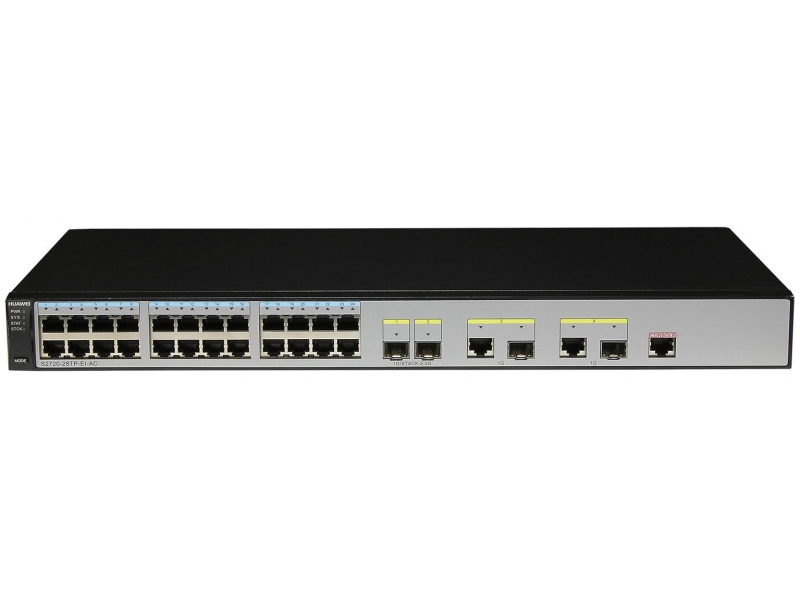

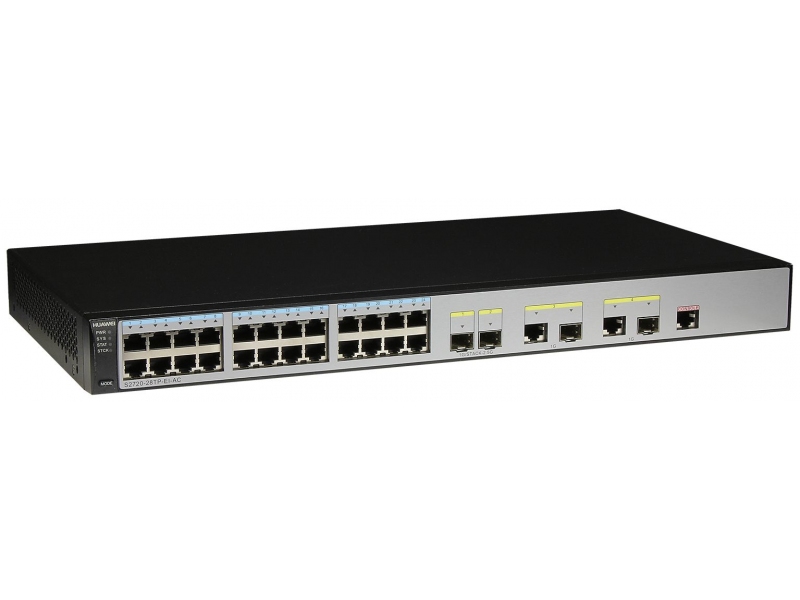

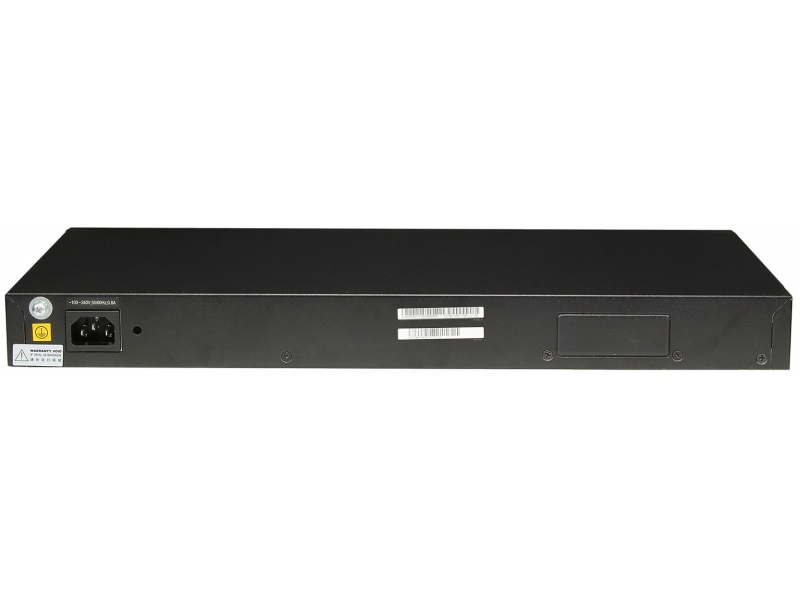

S2720-28TP-EI-AC:
  • 24-Port 10/100MbE (RJ45);
  • 2-Port 1GbE (SFP);
  • 2-Port combo 1GbE (RJ45/SFP);
  • 1-Port console (RJ45)
Performance
Switching Bandwidth
S2700-9TP-EI-AC/DC:
S2700-9TP-PWR-EI:
S2700-18TP-EI-AC:
S2700-26TP-EI-AC/DC:
S2700-26TP-PWR-EI:
S2700-52P-EI-AC:
S2700-52P-PWR-EI:
 32 Gbit/s
S2750-20TP-PWR-EI-AC:
S2750-28TP-EI-AC:
S2750-28TP-PWR-EI-AC:
S2751-28TP-PWR-EI-AC:
 64 Gbit/s
S2720-28TP-EI-AC: 12.8 Gbit/s
Forwarding Rate
S2700-9TP-EI-AC/DC:
S2700-9TP-PWR-EI:
 2.7 Mp/s
S2700-18TP-EI-AC: 5.4 Mp/s
S2700-26TP-EI-AC/DC:
S2700-26TP-PWR-EI:
 6.6 Mp/s
S2700-52P-EI-AC:
S2700-52P-PWR-EI:
 13.2 Mp/s
S2750-20TP-PWR-EI-AC: 8.4 Mp/s
S2750-28TP-EI-AC:
S2750-28TP-PWR-EI-AC:
S2751-28TP-PWR-EI-AC:
S2720-28TP-EI-AC:
 9.6 Mp/s
Layer 2 Features
MAC Address Table
S2700-9TP-EI-AC:
S2700-9TP-EI-DC:
S2700-9TP-PWR-EI:
S2700-18TP-EI-AC:
S2700-26TP-EI-AC:
S2700-26TP-EI-DC:
S2700-26TP-PWR-EI:
S2700-52P-EI-AC:
S2700-52P-PWR-EI:
 8,000 entries
S2750-28TP-EI-AC:
S2720-28TP-EI-AC:
S2750-20TP-PWR-EI-AC:
S2750-28TP-PWR-EI-AC:
S2751-28TP-PWR-EI-AC:
 16,000 entries
VLAN

IEEE 802.1Q: 4094; GVRP; QinQ; VLAN Translation
Layer 2 Reliability
S2700-9TP-EI-AC:
S2700-9TP-EI-DC:
S2700-9TP-PWR-EI:
S2700-18TP-EI-AC:
S2700-26TP-EI-AC:
S2700-26TP-EI-DC:
S2700-26TP-PWR-EI:
S2700-52P-EI-AC:
S2700-52P-PWR-EI:
 STP/RSTP/MSTP; RRPP
S2750-28TP-EI-AC:
S2720-28TP-EI-AC:
S2750-20TP-PWR-EI-AC:
S2750-28TP-PWR-EI-AC:
S2751-28TP-PWR-EI-AC:
 STP/RSTP/MSTP; RRPP; ERPS (G.8032)
Multicast
IGMP snooping: v1/v2/v3
IGMP groups: 512
Multicast VLAN (MVR): Supported
Multicast Routing: Not supported
Layer 3 features
ARP Table256 entries
Routing Table
IPv4: 16 routes
IPv6: 16 routes
IP RoutingStatic Routes
MPLS / VPN

Not supported
Security
Local AAA: Supported
RADIUS, TACACS+: Supported
DHCP Server Not supported
DHCP Relay option82: Supported
DHCP Snooping: Supported
Loop Detection: Supported
IP Source Guard: Supported
Bandwidth Limit: Supported
Broadcast, multicast, unknown unicast suppression: Supported
Management

Telnet; SSH; Web-management; LLDP; SNMP v1/v2/v3; RMON; Syslog; NTP
Environmental Conditions
Relative Humidity

10 to 90% (noncondensing)
Operating Temperature

-5 to +50°C (23 to 122°F)
Power Supply
Power Supply Unit (PSU)
AC PSU:
Type:
S2700-9TP-EI-AC:
S2700-9TP-PWR-EI:
S2700-18TP-EI-AC:
S2700-26TP-EI-AC:
S2700-52P-EI-AC:
S2750-20TP-PWR-EI-AC:
S2750-28TP-EI-AC:
S2750-28TP-PWR-EI-AC:
S2751-28TP-PWR-EI-AC:
S2720-28TP-EI-AC:
 Built-in
S2700-26TP-PWR-EI:
S2700-52P-PWR-EI:
 Removable
Quantity:
S2700-9TP-EI-AC:
S2700-9TP-PWR-EI:
S2700-18TP-EI-AC:
S2700-26TP-EI-AC:
S2700-52P-EI-AC:
S2750-20TP-PWR-EI-AC:
S2750-28TP-EI-AC:
S2750-28TP-PWR-EI-AC:
S2751-28TP-PWR-EI-AC:
S2720-28TP-EI-AC:
 1
S2700-26TP-PWR-EI:
S2700-52P-PWR-EI:
 2
Rated voltage range:                        100 to 240 VAC, 50-60 Hz
DC PSU:
Type:
S2700-9TP-EI-DC:
S2700-26TP-EI-DC:
 Built-in
Quantity: 1

Rated voltage range:

 -48 to -60 VDC
PoE (Power over Ethernet)
Supported by:
S2700-9TP-PWR-EI
S2700-26TP-PWR-EI
S2700-52P-PWR-EI
S2750-20TP-PWR-EI-AC
S2750-28TP-PWR-EI-AC
S2751-28TP-PWR-EI-AC
PoE (802.3af) (15 W per port):
S2700-9TP-PWR-EI: 8 ports
S2700-26TP-PWR-EI: 24 ports (with 500 W PSU)
S2700-52P-PWR-EI: 48 ports (with 2 x 500 W PSU)
S2750-20TP-PWR-EI-AC: 16 ports
S2750-28TP-PWR-EI-AC: 24 ports
S2751-28TP-PWR-EI-AC: 8 ports
PoE+ (802.3аt) (30 W per port):
S2700-9TP-PWR-EI: 4 ports
S2700-26TP-PWR-EI: 24 ports (with 2 x 500 W PSU)
S2700-52P-PWR-EI: 24 ports (with 2 x 500 W PSU)
S2750-20TP-PWR-EI-AC: 12 ports
S2750-28TP-PWR-EI-AC: 12 ports
S2751-28TP-PWR-EI-AC: 4 ports
Maximum power consumption
S2700-9TP-EI-AC/DC: 12.8 W
S2700-9TP-PWR-EI: 154 W
S2700-18TP-EI-AC: 14.5 W
S2700-26TP-EI-AC/DC: 15.5 W
S2700-26TP-PWR-EI:  808 W
S2700-52P-PWR-EI: 880 W
S2700-52P-EI-AC: 38 W
S2750-20TP-PWR-EI-AC: 435 W
S2750-28TP-EI-AC: 15.7 W
S2750-28TP-PWR-EI-AC: 445 W
S2751-28TP-PWR-EI-AC: 147 W
S2720-28TP-EI-AC: 15.7 W
Acoustic noise
S2700-9TP-EI-AC/DC:
S2700-9TP-PWR-EI:
S2700-18TP-EI-AC:
S2700-26TP-EI-AC/DC:
S2700-52P-EI-AC:
S2750-28TP-EI-AC:
S2751-28TP-PWR-EI-AC:
S2720-28TP-EI-AC:
 0 dB
S2700-26TP-PWR-EI:
S2700-52P-PWR-EI:
S2750-20TP-PWR-EI-AC:
S2750-28TP-PWR-EI-AC:
 52 dBA
Dimensions (HxWxD)
S2700-9TP-EI-AC/DC:

43.6 (1U) х 250 х 180 mm

(1.72 (1U) x 9.84 x 7.09 in)
S2700-9TP-PWR-EI:

43.6 (1U) х 320 х 220 mm

(1.72 (1U) x 12.59 x 8.66 in)
S2700-18TP-EI-AC:
S2700-26TP-EI-AC/DC:
S2750-28TP-EI-AC:
S2720-28TP-EI-AC:
S2700-52P-EI-AC:

43.6 (1U) х 442 x 220 mm

(1.72 (1U) x 17.4 x 8.66 in)
S2750-20TP-PWR-EI-AC:
S2750-28TP-PWR-EI-AC:
S2751-28TP-PWR-EI-AC:

43.6 (1U) х 442 х 310 mm

(1.72 (1U) x 17.4 x 12.20 in)
Maximum Weight
S2700-9TP-EI-AC/DC: 1.4 kg (3.09 lb)
S2700-9TP-PWR-EI: 2.5 kg (5.5 lb)
S2700-18TP-EI-AC:
S2700-26TP-EI-AC/DC:
 2.4 kg (5.3 lb)
S2700-26TP-PWR-EI:
S2700-52P-PWR-EI:
S2750-20TP-PWR-EI:
S2750-28TP-PWR-EI-AC:
S2751-28TP-PWR-EI-AC:

4.5 kg (9.92 lb)
S2700-52P-EI-AC:
S2720-28TP-EI-AC:
S2750-28TP-EI-AC:
 3.0 kg (6.61 lb)
Compatible expansion cards

Not supported
