| Interfaces | |
|

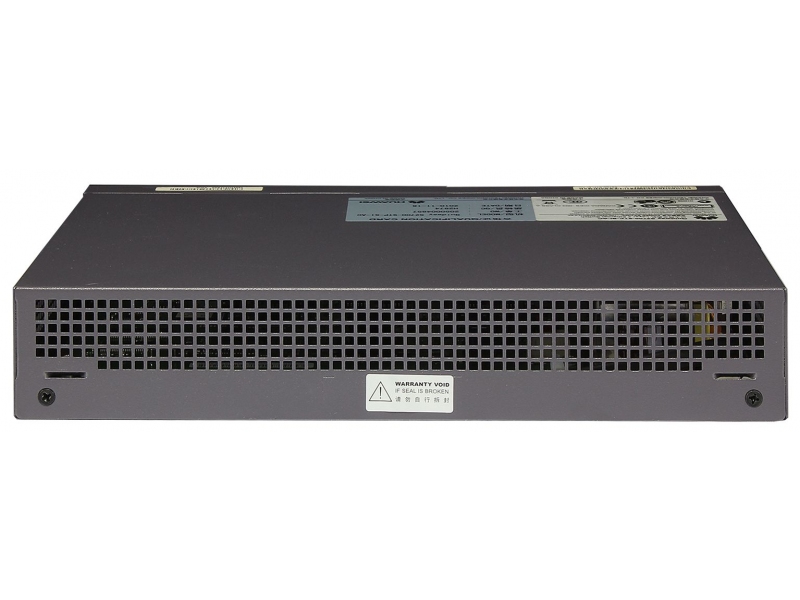

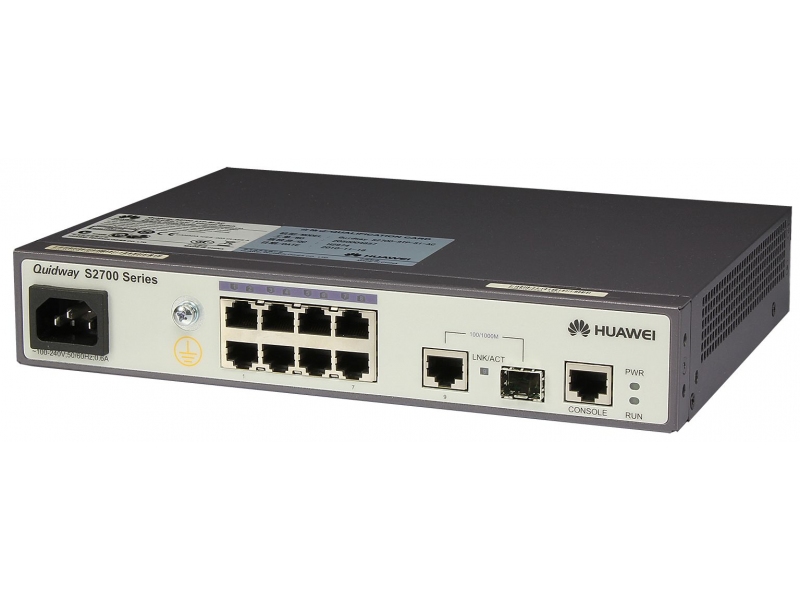

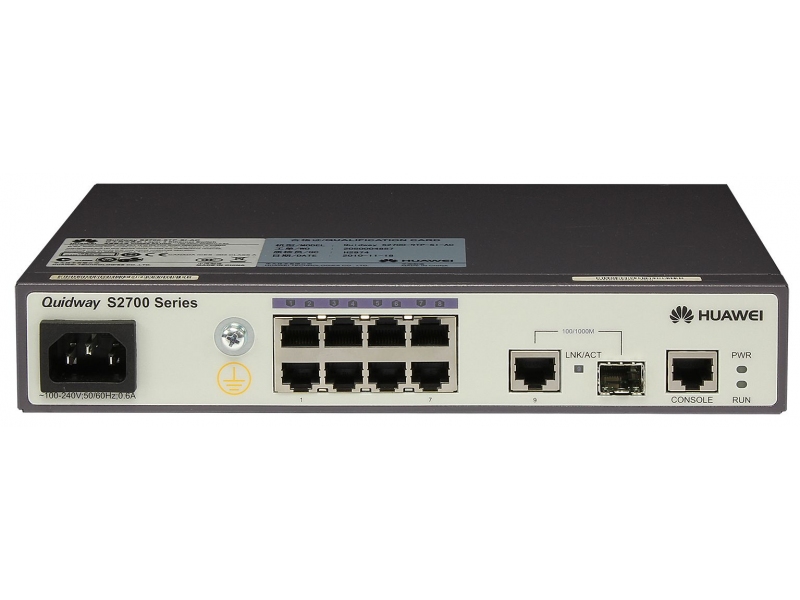

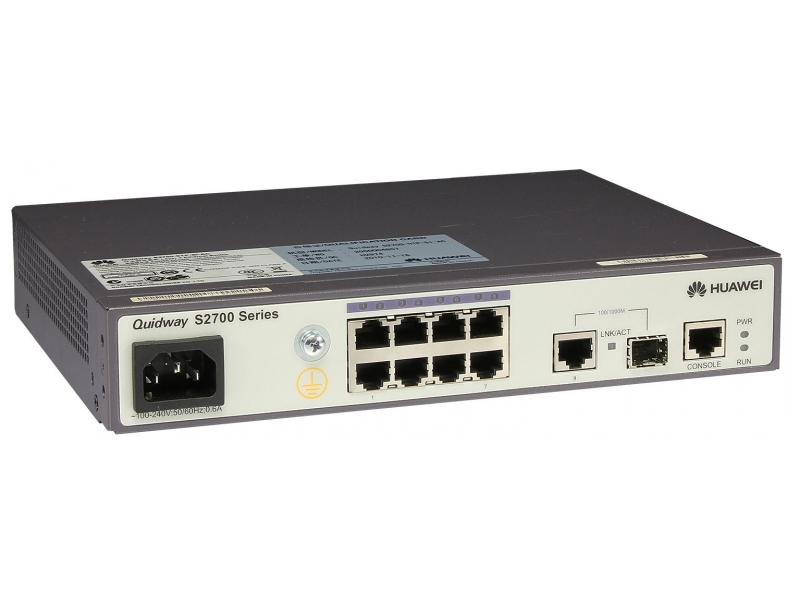

| S2700-9TP-SI-AC: |
- 8-Port 10/100MbE (RJ45);
- 1-Port combo 1GbE (RJ45/SFP);
- 1-Port console (RJ45)
|

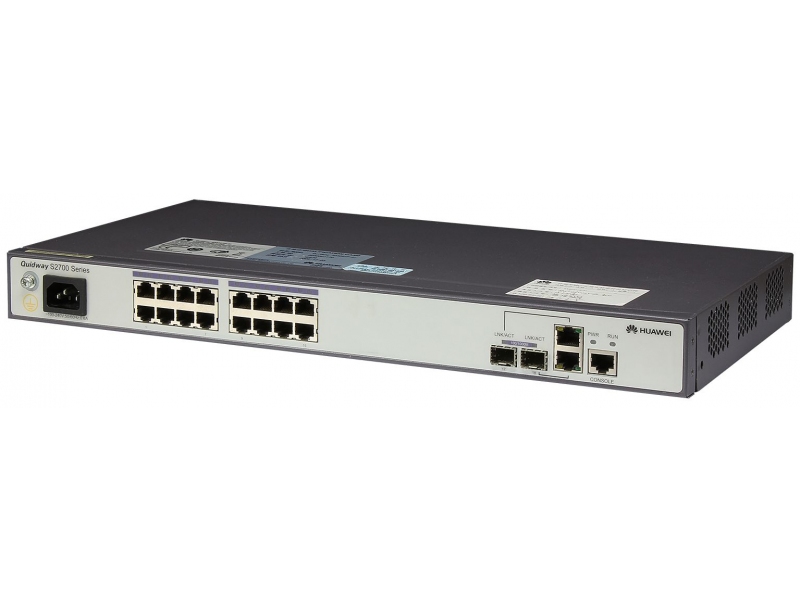

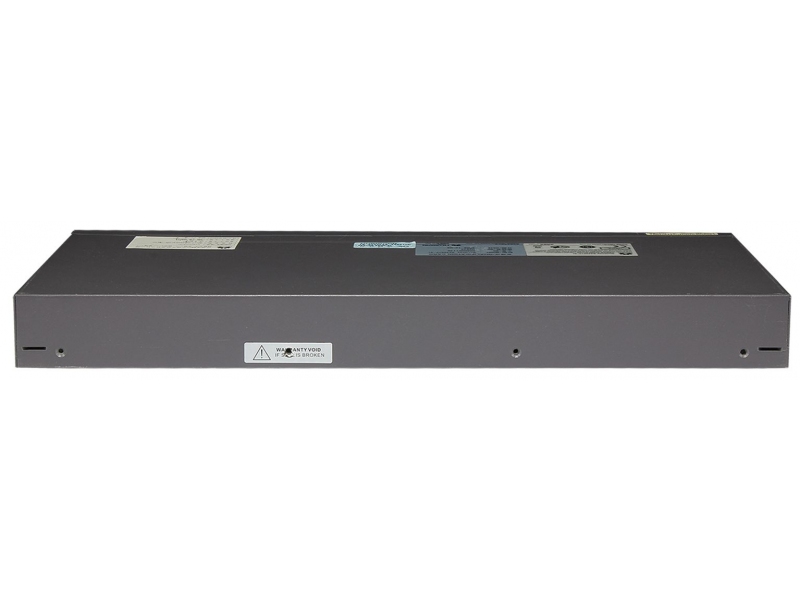

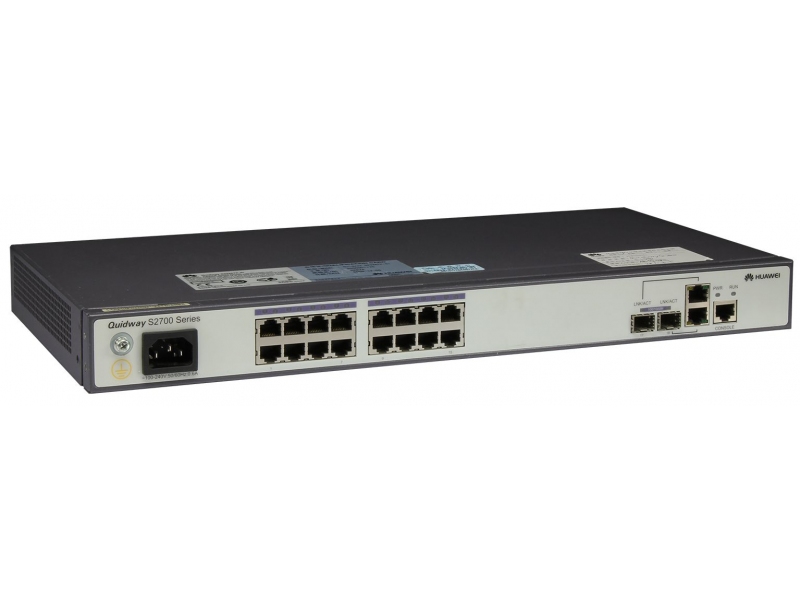

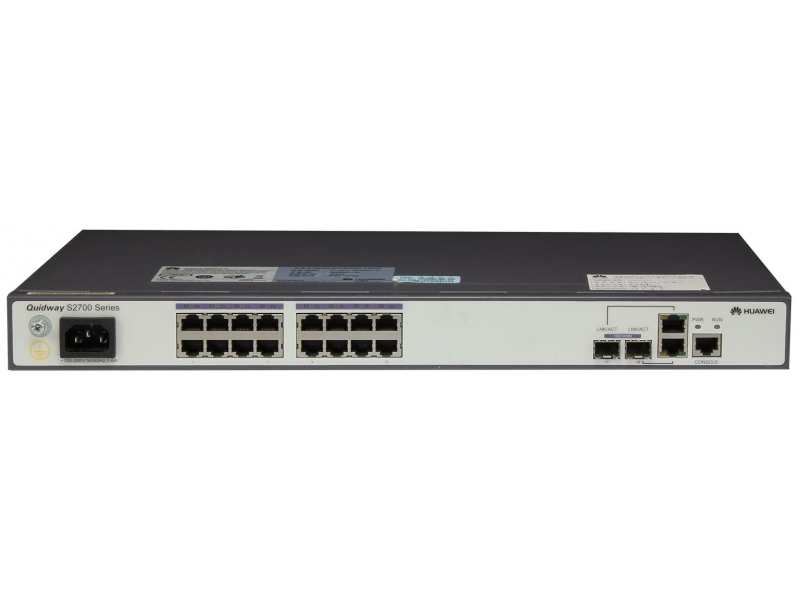

| S2700-18TP-SI-AC: |
- 16-Port 10/100MbE (RJ45);
- 2-Port combo 1GbE (RJ45/SFP);
- 1-Port console (RJ45)
|

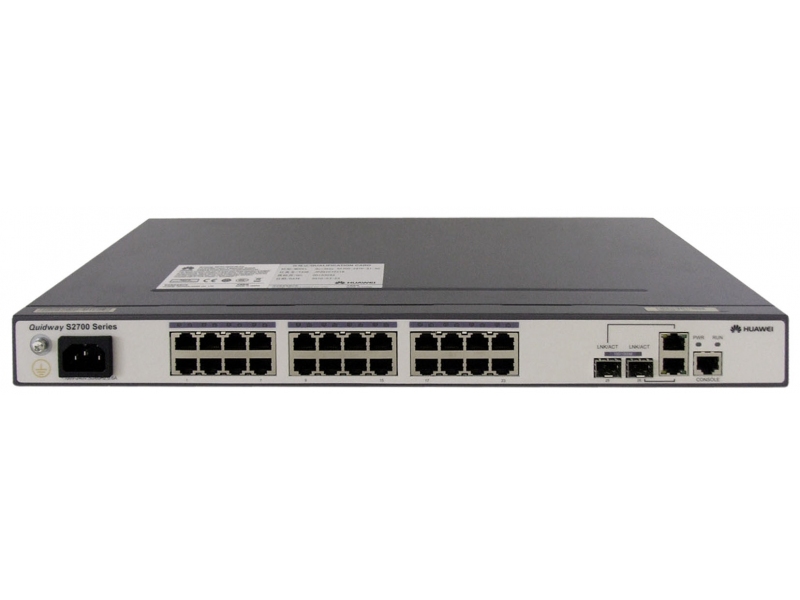

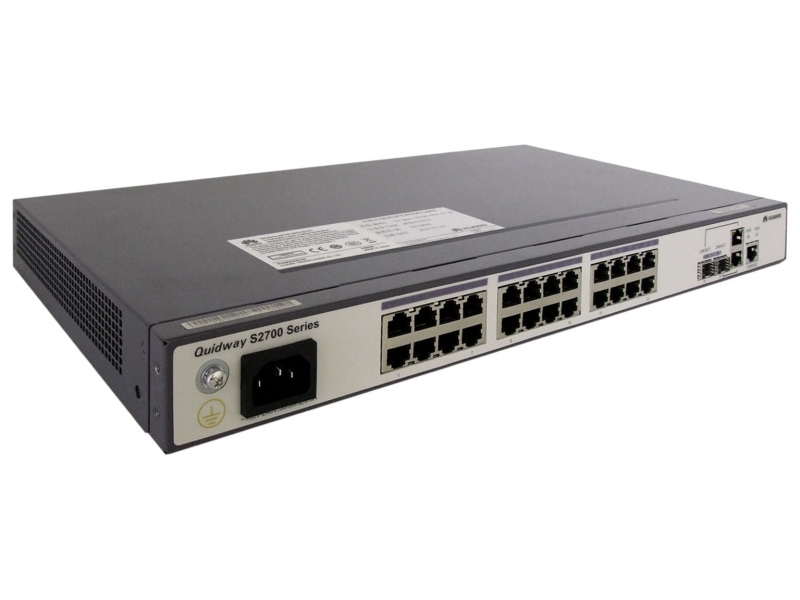

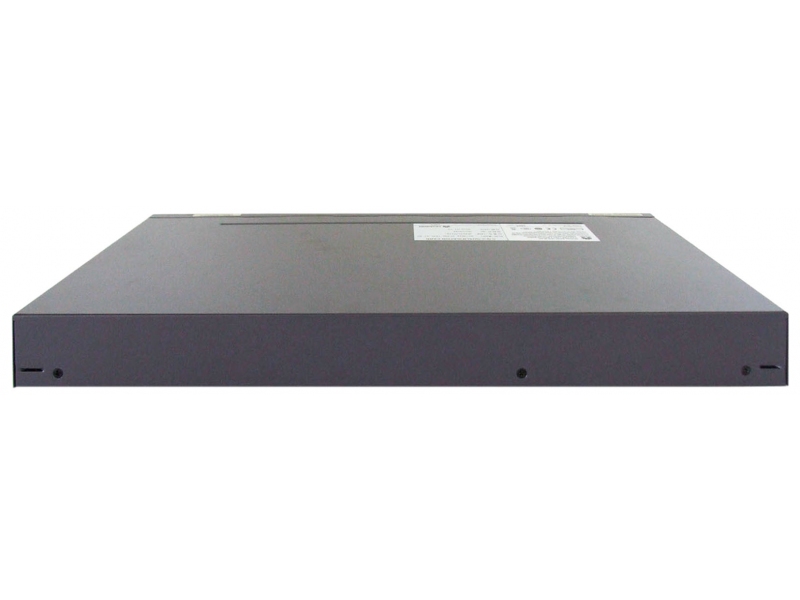

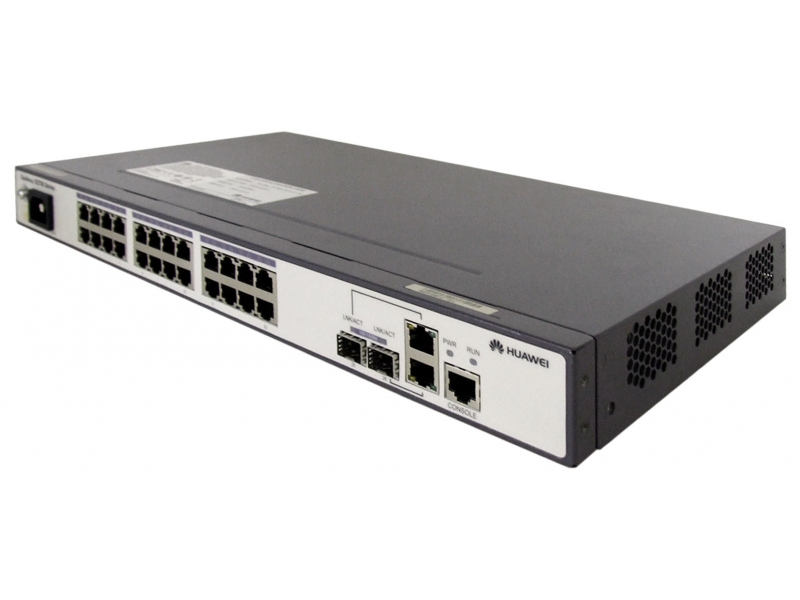

| S2700-26TP-SI-AC: |
- 24-Port 10/100MbE (RJ45);
- 2-Port combo 1GbE (RJ45/SFP);
- 1-Port console (RJ45)
|

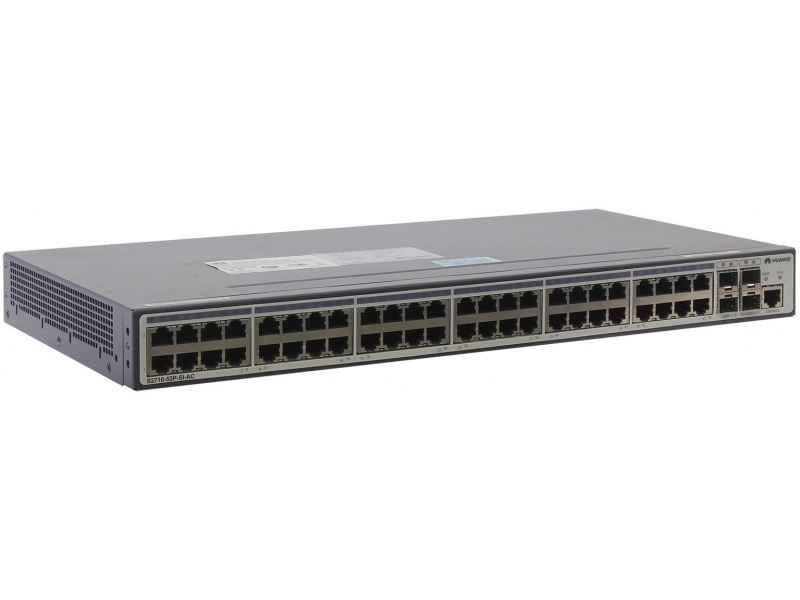

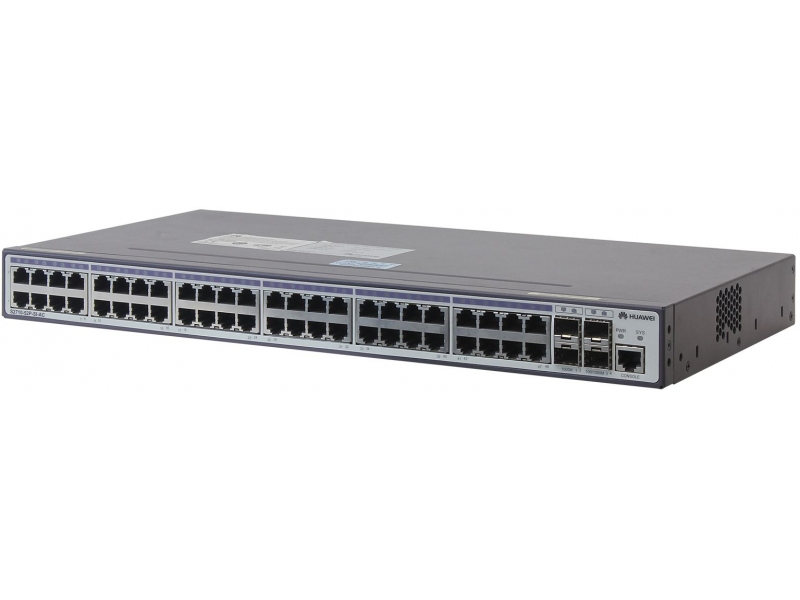

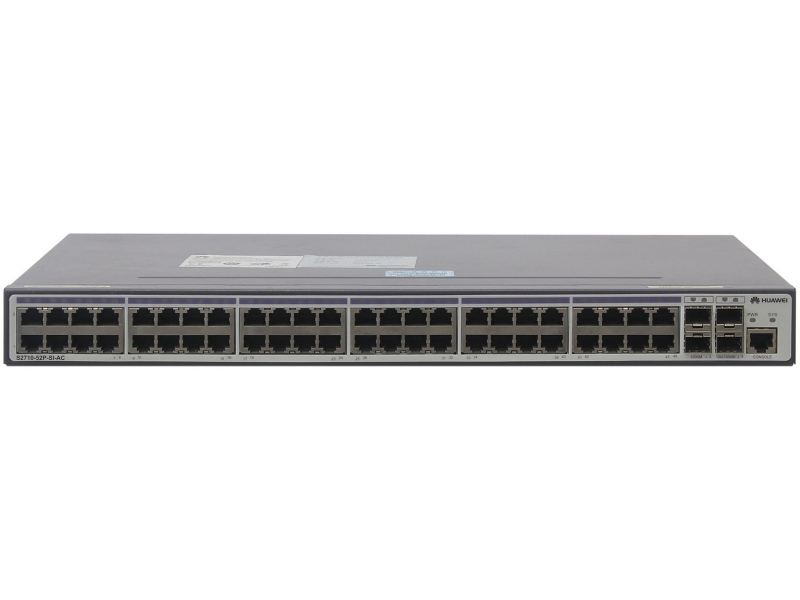

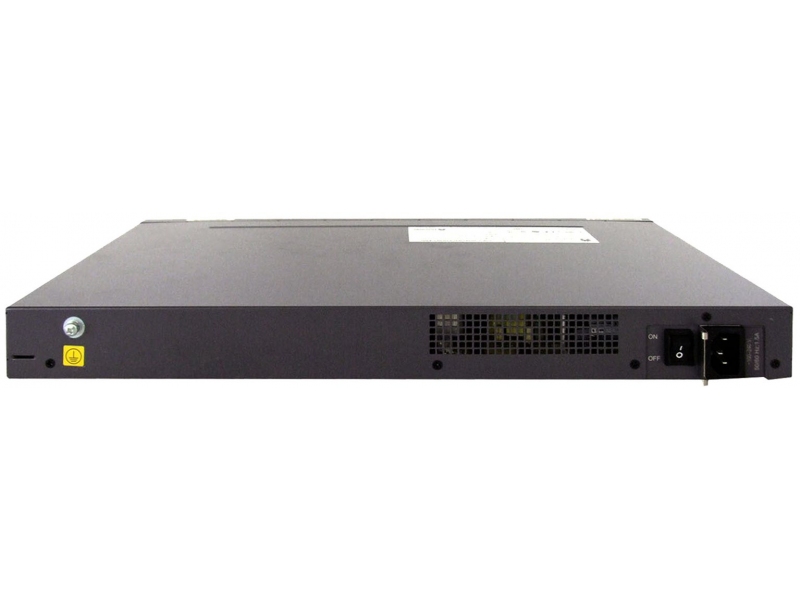

| S2710-52P-SI-AC: |
- 48-Port 10/100MbE (RJ45);
- 2-Port 1GbE (SFP);
- 1-Port console (RJ45)
|
|
| Performance | |
| Switching Bandwidth | 32 Gbit/s |
| Forwarding Rate |
| S2700-9TP-SI-AC: |
2.7 Mpps |
| S2700-18TP-SI-AC: |
5.4 Mpps |
| S2700-26TP-SI-AC: |
6.6 Mpps |
| S2710-52P-SI-AC: |
13.2 Mpps |
|
| Layer 2 Features | |
| MAC Address Table | 8,000 entries |
| VLAN | IEEE 802.1Q: 4094 |
| Layer 2 Reliability |
|
S2700-9TP-SI-AC:
S2700-18TP-SI-AC:
S2700-26TP-SI-AC:
|
STP/RSTP |
| S2710-52P-SI-AC: |
STP/RSTP/MSTP |
|
| Multicast | |
|
| IGMP snooping: |
v1/v2/v3 |
| IGMP groups: |
256 |
| Multicast VLAN (MVR): |
Not supported |
| Multicast Routing: |
Not supported |
|
| Layer 3 features | |
| ARP Table | 256 entries |
| Routing Table |
| IPv4: |
16 routes |
| IPv6: |
16 routes |
|
| IP Routing | Static Routes |
| MPLS / VPN | |
| Not supported |
| Security | |
|
| Local AAA: |
Supported |
| RADIUS, TACACS+: |
Supported |
| DHCP Server |
Not supported |
| DHCP Relay option82: |
Not supported |
| DHCP Snooping: |
Not supported |
| Loop detection: |
Not supported |
| IP Source Guard: |
Not supported |
| Bandwidth Limit: |
Not supported |
| Broadcast, multicast, unknown unicast suppression: |
Supported |
|
| Management | |
| Telnet; SSH; Web-management; SNMP v1/v2/v3; RMON; Syslog; NTP |
| Environmental Conditions | |
| Relative Humidity | 10 to 90% (noncondensing) |
| Operating Temperature | -5 to +50°C (23 to 122°F) |
| Power Supply | |
| Power Supply Unit (PSU) |
| AC PSU: |
|
| Type: |
Built-in |
| Quantity: |
1 |
| Rated voltage range: |
100 to 240 VAC, 50-60 Hz. |
|
|
| DC PSU: |
|
| Not supported |
|
|
| PoE (Power over Ethernet) | Not supported |
| Maximum power consumption | |
|
| S2700-9TP-SI-AC: |
12.8 W |
| S2700-18TP-SI-AC: |
14.5 W |
| S2700-26TP-SI-AC: |
15.5 W |
| S2710-52P-SI-AC: |
38 W |
|
| Acoustic noise | |
|
|
S2700-9TP-SI-AC:
S2700-18TP-SI-AC:
S2700-26TP-SI-AC:
|
0 dB |
| S2710-52P-SI-AC: |
52 dB |
|
| Dimensions (HxWxD) | |
|
| S2700-9TP-SI-AC: |
43.6 (1U) х 250 х 180 mm
(1.72 (1U) x 9.84 x 7.09 in)
|
|
S2700-18TP-SI-AC:
S2700-26TP-SI-AC:
S2710-52P-SI-AC:
|
43.6 (1U) х 442 х 220 mm
(1.72 (1U) x 17.4 x 8.66 in)
|
|
| Maximum Weight | |
|
| S2700-9TP-SI-AC: |
1.4 kg (3.09 lb) |
|
S2700-18TP-SI-AC:
S2700-26TP-SI-AC:
|
2.4 kg (5.29 lb) |
| S2710-52P-SI-AC: |
3,0 kg (6.61 Ib) |
|
| Compatible expansion cards | |
| Not supported |
