Huawei S3300TP-EI series

Download S3300-EI series Datasheet (eng)

End-of-Sale

EOLA:

http://support.huawei.com/enterprise/en/bulletins-product/NEWS1000001601

Request a Quote
SPECIFICATIONS
Interfaces
S3328TP-EI-AC/DC:
  • 24-Port 10/100MbE (RJ45);
  • 2-Port 1GbE (SFP);
  • 2-Port combo 1GbE (RJ45/SFP);
  • 1-Port console (RJ45)

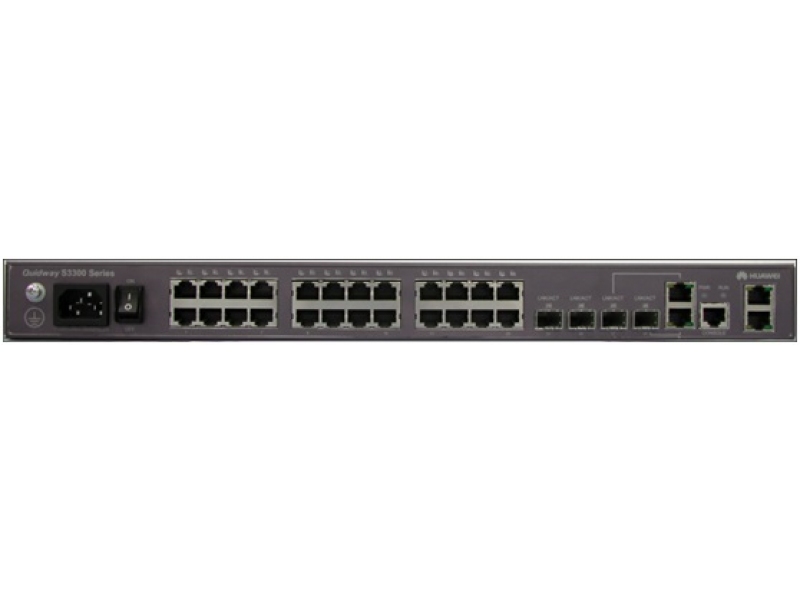

S3328TP-EI-MC-AC:
  • 24-Port 10/100MbE (RJ45);
  • 2-Port 1GbE (SFP);
  • 2-Port combo 1GbE (RJ45/SFP);
  • 2-Port monitoring (RJ45);
  • 1-Port console (RJ45)
S3328TP-EI-24S-AC/DC:
  • 24-Port 100MbE (SFP);
  • 2-Port 1GbE (SFP);
  • 2-Port combo 1GbE (RJ45/SFP);
  • 1-Port console (RJ45)
S3352P-EI-AC/DC:
  • 48-Port 10/100BASE-Т (RJ45);
  • 2-Port 100/1000MbE (SFP);
  • 2-Port 1GbE (SFP);
  • 1-Port console (RJ45)

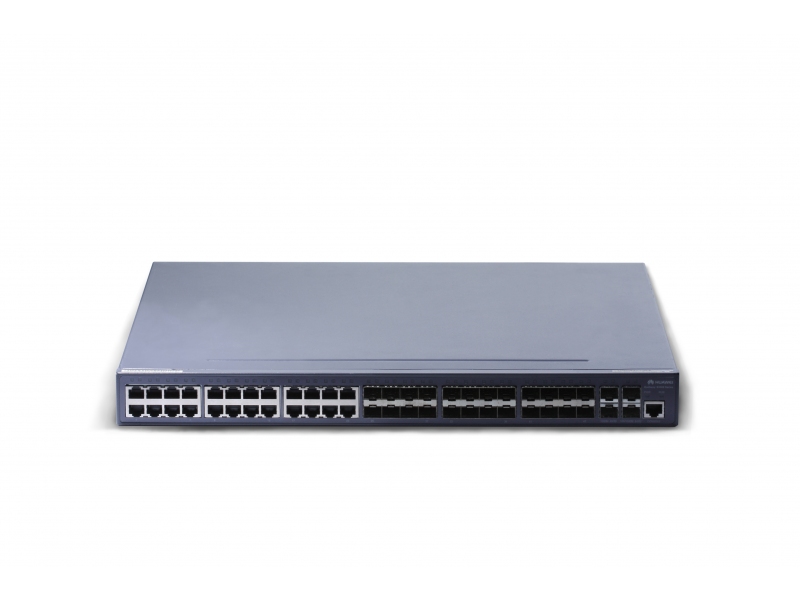

S3352P-EI-24S-AC/DC:
  • 24-Port 10/100BASE-Т (RJ45);
  • 24-Port 100MbE (SFP);
  • 2-Port 100/1000MbE (SFP);
  • 2-Port 1GbE (SFP);
  • 1-Port console (RJ45)

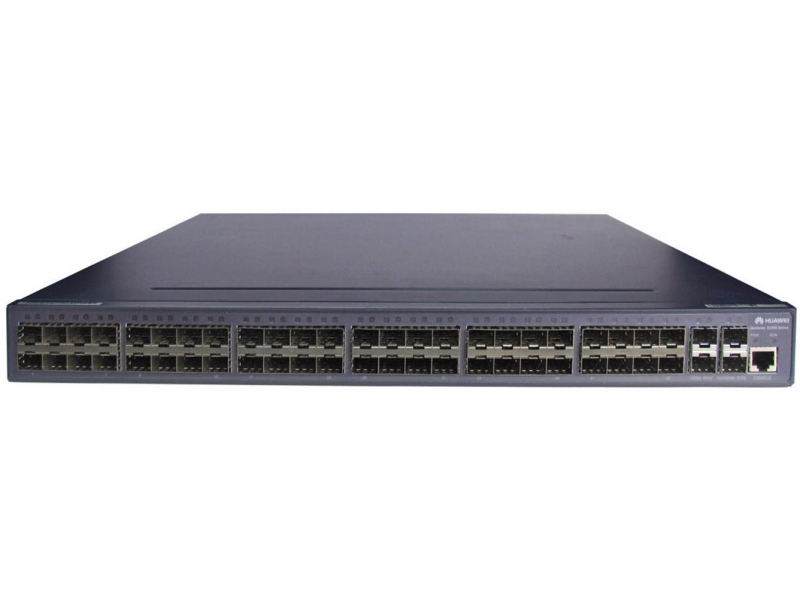

S3352P-EI-48S-AC/DC:
  • 48-Port 100MbE (SFP);
  • 2-Port 100/1000MbE (SFP);
  • 2-Port 1GbE (SFP);
  • 1-Port console (RJ45)
S3300-52P-EI-AC:
  • 48-Port 10/100BASE-Т (RJ45);
  • 2-Port 100/1000MbE (SFP);
  • 2-Port 1GbE (SFP);
  • 1-Port console (RJ45)

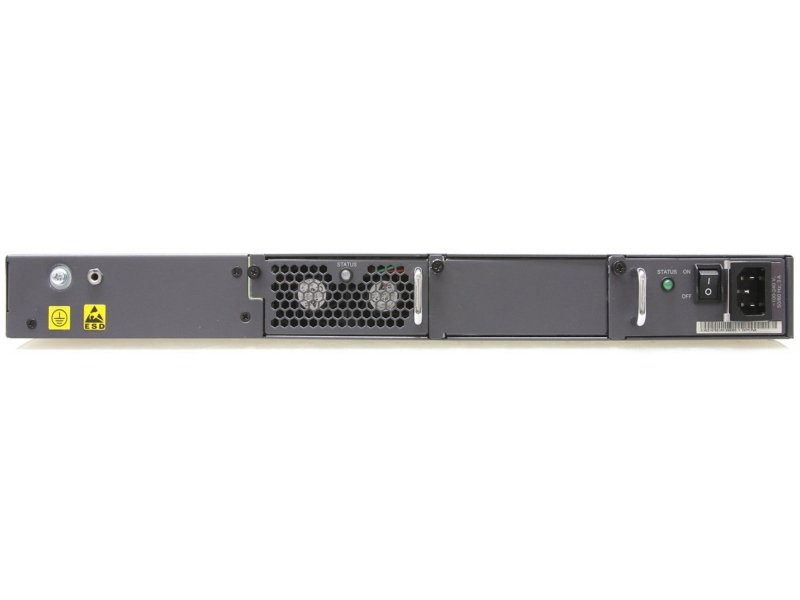

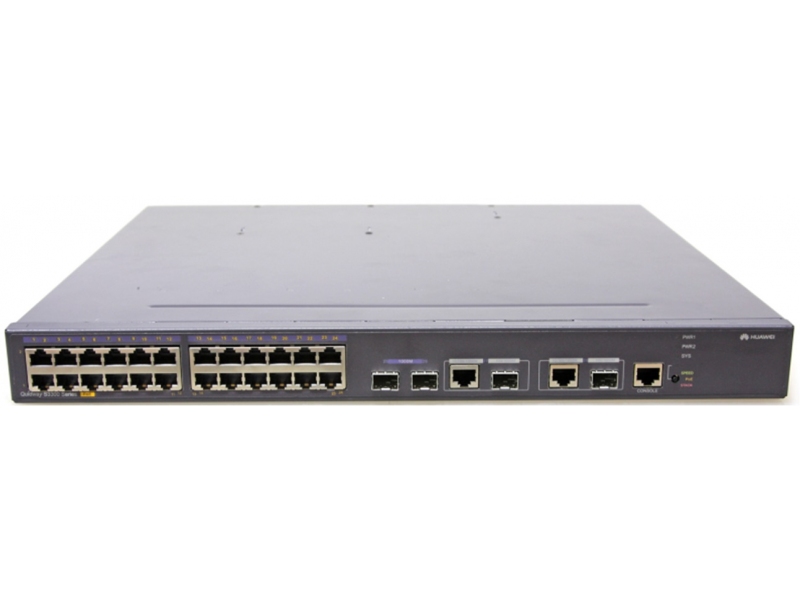

S3328TP-PWR-EI-AC:
  • 24-Port 10/100BASE-Т (RJ45) PoE;
  • 2-Port 1GbE (SFP);
  • 2-Port combo 1GbE (RJ45/SFP);
  • 1-Port console (RJ45)

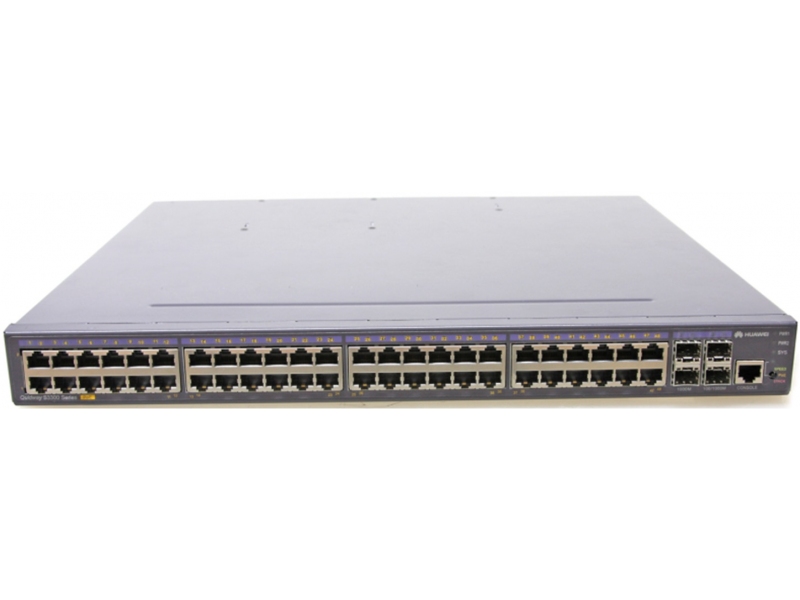

S3352P-PWR-EI-AC:
  • 48-Port 10/100BASE-Т (RJ45) PoE;
  • 2-Port 1GbE (SFP);
  • 2-Port combo 1GbE (RJ45/SFP);
  • 1-Port console (RJ45)
Performance
Switching Bandwidth
S3328TP-EI-AC/DC: 12.8 Gb/s
S3328TP-EI-MC-AC: 12.8 Gb/s
S3328TP-EI-24S-AC/DC: 12.8 Gb/s
S3352P-EI-AC/DC: 17.6 Gb/s
S3352P-EI-24S-AC/DC: 17.6 Gb/s
S3352P-EI-48S-AC/DC: 17.6 Gb/s
s3300-52P-EI-AC: 17.6 Gb/s
S3328TP-PWR-EI-АC: 12.8 Gb/s
S3352P-PWR-EI-АC: 17.6 Gb/s
Forwarding Rate
S3328TP-EI-AC/DC: 9.6 Mp/s
S3328TP-EI-MC-AC: 9.6 Mp/s
S3328TP-EI-24S-AC/DC: 9.6 Mp/s
S3352P-EI-AC/DC: 13.1 Mp/s
S3352P-EI-24S-AC/DC: 13.1 Mp/s
S3352P-EI-48S-AC/DC: 13.1 Mp/s
S3300-52P-EI-AC: 13.1 Mp/s
S3328TP-PWR-EI-АC: 9.6 Mp/s
S3352P-PWR-EI-АC: 13.1 Mp/s
Layer 2 Features
MAC Address Table
Maximum Capacity: 16,000 entries
VLAN

IEEE 802.1Q: 4,094; GVRP; QinQ; VLAN Translation
Layer 2 ReliabilitySTP/RSTP/MSTP, RRPP
Multicast
IGMP snooping: v1/v2/v3
IGMP groups: 1,024
Multicast VLAN (MVR): Supported
Multicast Routing: PIM-SM; PIM-SSM
Layer 3 features
ARP Table

2,048 entries
Routing Table
IPv4: 8,000 routes
IPv6: 4,000 routes
IP Routing

Static Routes, RIPv1/2, OPSF, IS-IS, BGP, VRRP
MPLS / VPN

Not supported
Security
IPv4 ACL: 1024 Ingress
IPv6 ACL: 256 Ingress
Local AAA: Supported
RADIUS, TACACS+: Supported
DHCP Server Supported
DHCP Relay option82: Supported
DHCP Snooping: Supported
Loop detection: Supported
IP Source Guard: Supported
Broadcast, multicast, unknown unicast suppression: Supported
Quality of Service
QoS queues: 8
Traffic Limit: Supported
Traffic Mark: by 802.1p, DSCP
IPv6

Static Routes; OSPFv3; VRRPv6; IPv6 ACL
Management

Telnet; SSH; Web-management; LLDP; SNMP v1/v2/v3; RMON; Syslog; NTP
OAM

802.3ah (EFM); 802.1ag (CFM)
Environmental Conditions
Relative Humidity

5 to 95% (noncondensing)
Operating Temperature

0 to 50°C (32 to 122°F)
Power Supply
Power Supply Unit (PSU)
AC PSU:
Type:

S3328TP-EI-AC, S3328TP-EI-MC-AC, S3328TP-EI-24S-AC,

S3352P-EI-AC, S3352P-EI-24S-AC, S3352P-EI-48S-AC:		 Built-in
S3328TP-PWR-EI-АC, S3352P-PWR-EI-АC, S3300-52P-EI: Removable
Quantity:

S3328TP-EI-AC, S3328TP-EI-MC-AC, S3328TP-EI-24S-AC,

S3352P-EI-AC, S3352P-EI-24S-AC, S3352P-EI-48S-AC:

 1
S3328TP-PWR-EI-АC, S3352P-PWR-EI-АC, S3300-52P-EI: 2
Rated voltage range: 100 to 240 VAC, 50-60 Hz
DC PSU:
Type: Built-in
Quantity: 1
Rated voltage range: -48 to -60 VDC
PoE (Power over Ethernet)
Supported by:  S3328TP-PWR-EI-АC, S3352P-PWR-EI-АC
PoE (802.3af) (15 W per port):
S3328TP-PWR-EI-АC: 24 ports (with 2 x 500 W PSU)
S3352P-PWR-EI-АC: 48 ports (with 2 x 500 W PSU)
PoE+ (802.3аt) (30 W per port):
S3328TP-PWR-EI-АC: 24 ports (with 2 x 500 W PSU)
S3352P-PWR-EI-АC: 24 ports (with 2 x 500 W PSU)
Maximum power consumption
S3328TP-EI-AC/DC: up to 20 W
S3328TP-EI-MC-AC: up to 20 W
S3328TP-EI-24S-AC/DC: up to 52 W
S3352P-EI-AC/DC: up to 38 W
S3352P-EI-24S-AC/DC: up to 65 W
S3352P-EI-48S-AC/DC: up to 90 W
S3300-52P-EI-AC: up to 36.47 W
S3328TP-PWR-EI-АC: up to 818 W
S3352P-PWR-EI-АC: up to 880 W
Acoustic noise
S3328TP-EI-AC/DC: 0 dB
S3328TP-EI-MC-AC: 0 dB
S3328TP-EI-24S-AC/DC: up to 44 dB
S3352P-EI-AC/DC: up to 52 dB
S3352P-EI-24S-AC/DC: up to 44 dB
S3352P-EI-48S-AC/DC: up to 44 dB
S3300-52P-EI-AC: up to 48.1 dB
S3328TP-PWR-EI-АC: up to 51 dB
S3352P-PWR-EI-АC: up to 51 dB
Dimensions (HxWxD)
S3328TP-EI-AC/DC:

43.6 (1U) х 442 х 220 mm

(1.72 (1U) x 17.4 x 8.66 in)
S3328TP-EI-MC-AC:

43.6 (1U) х 442 х 220 mm

(1.72 (1U) x 17.4 x 8.66 in)
S3328TP-EI-24S-AC/DC:

43.6 (1U) х 442 х 220 mm

(1.72 (1U) x 17.4 x 8.66 in)
S3352P-EI-AC/DC:

43.6 (1U) х 442 х 220 mm

(1.72 (1U) x 17.4 x 8.66 in)
S3352P-EI-24S-AC/DC:

43.6 (1U) х 442 х 420 mm

(1.72 (1U) x 17.4 x 16.54 in)
S3352P-EI-48S-AC/DC:

43.6 (1U) х 442 х 420 mm

(1.72 (1U) x 17.4 x 16.54 in)
S3300-52P-EI-AC:

43.6 (1U) х 442 х 420 mm

(1.72 (1U) x 17.4 x 16.54 in)
S3328TP-PWR-EI-АC:

43.6 (1U) х 442 х 420 mm

(1.72 (1U) x 17.4 x 16.54 in)
S3352P-PWR-EI-АC:

43.6 (1U) х 442 х 420 mm

(1.72 (1U) x 17.4 x 16.54 in)
Maximum Weight
S3328TP-EI-AC/DC: 2.5 kg (5.51 lb)
S3328TP-EI-MC-AC: 2.5 kg (5.51 lb)
S3328TP-EI-24S-AC/DC: 2.5 kg (5.51 lb)
S3352P-EI-AC/DC: 2.5 kg (5.51 lb)
S3352P-EI-24S-AC/DC: 2.5 kg (5.51 lb)
S3352P-EI-48S-AC/DC: 2.5 kg (5.51 lb)
S3300-52P-EI-AC: 4.8 kg (10.58 lb)
S3328TP-PWR-EI-АC: 6.5 kg (14.33 lb)
S3352P-PWR-EI-АC: 6.5 kg (14.33 lb)
Compatible expansion cards

Not supported
