| Interfaces | |
|

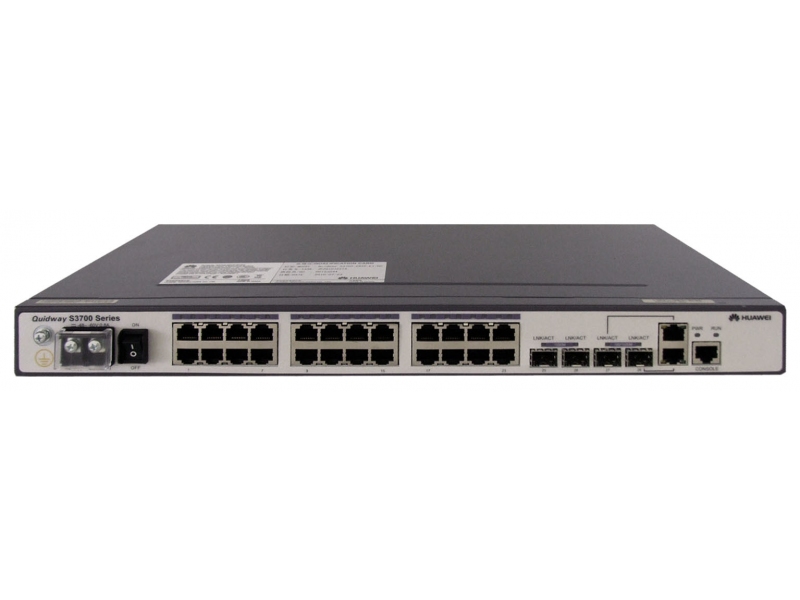

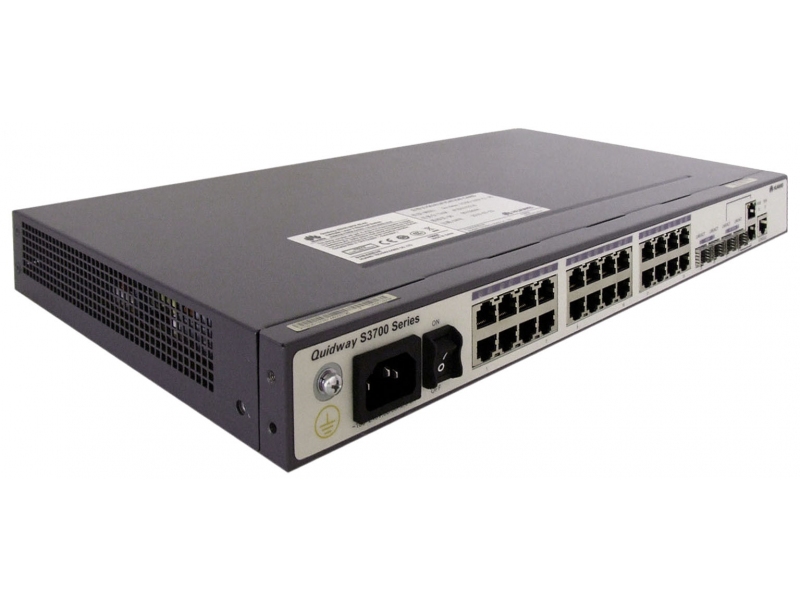

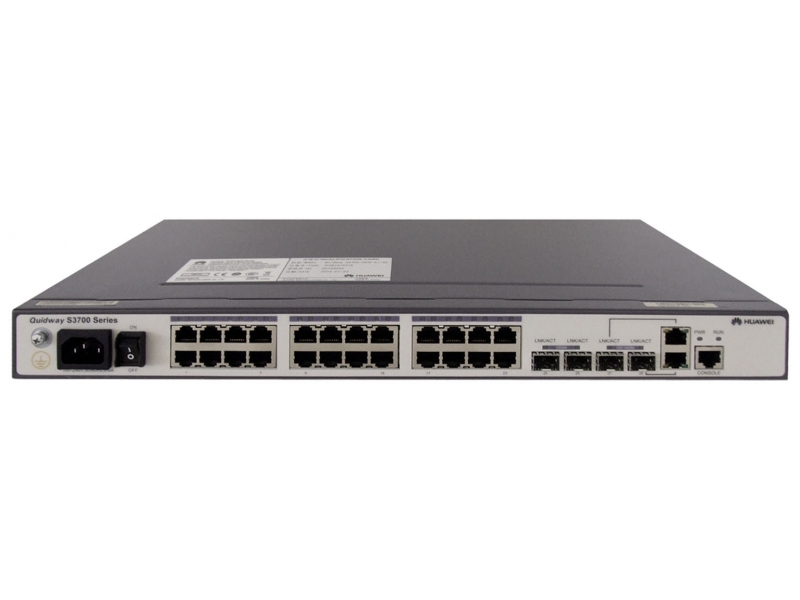

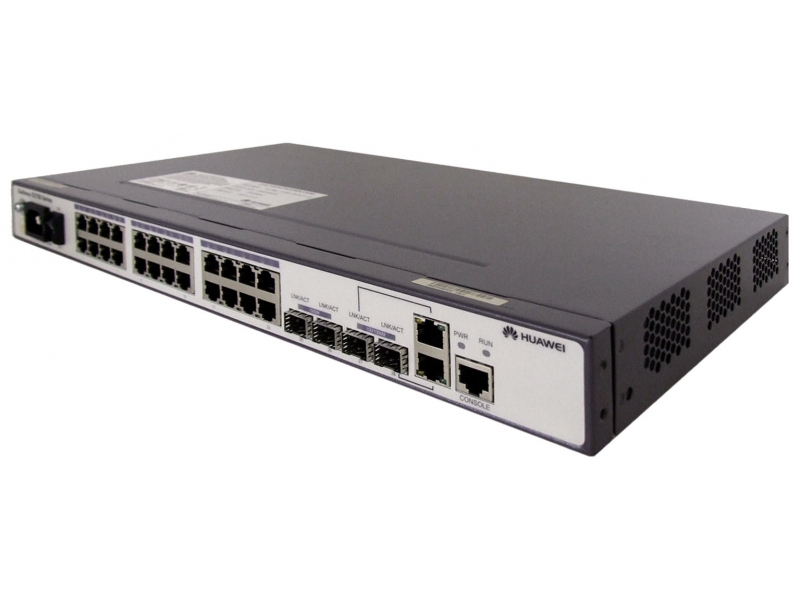

| S3700-28TP-EI-AC/DC: |
- 24-Port 10/100MbE (RJ45);
- 2-Port 1GbE (SFP);
- 2-Port combo 1GbE (RJ45/SFP);
- 1-Port console (RJ45)
|

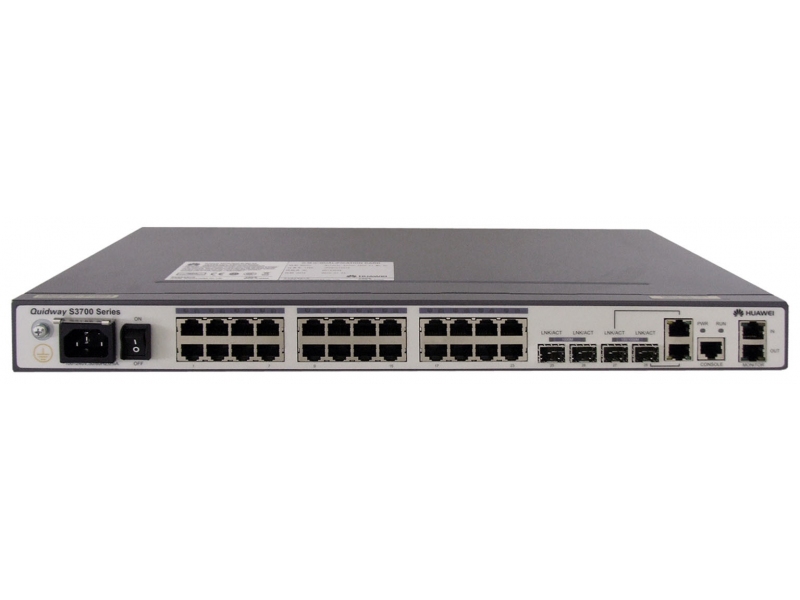

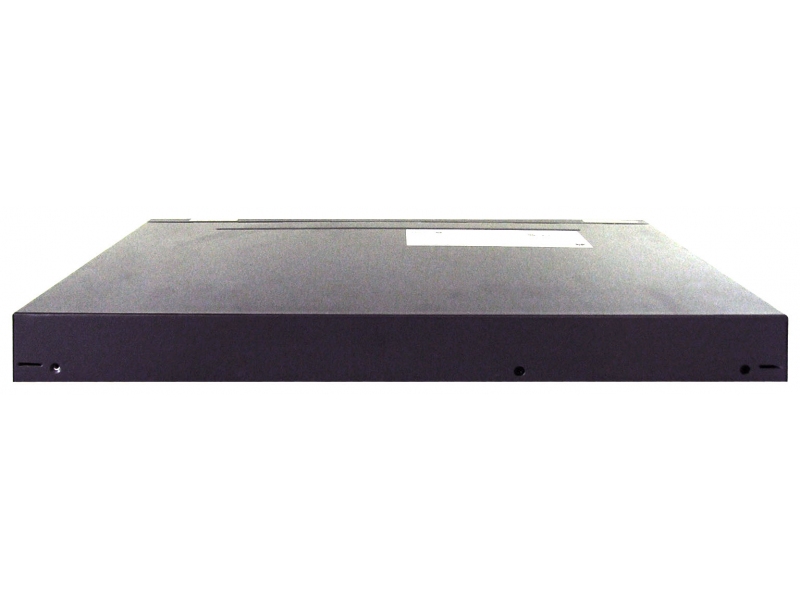

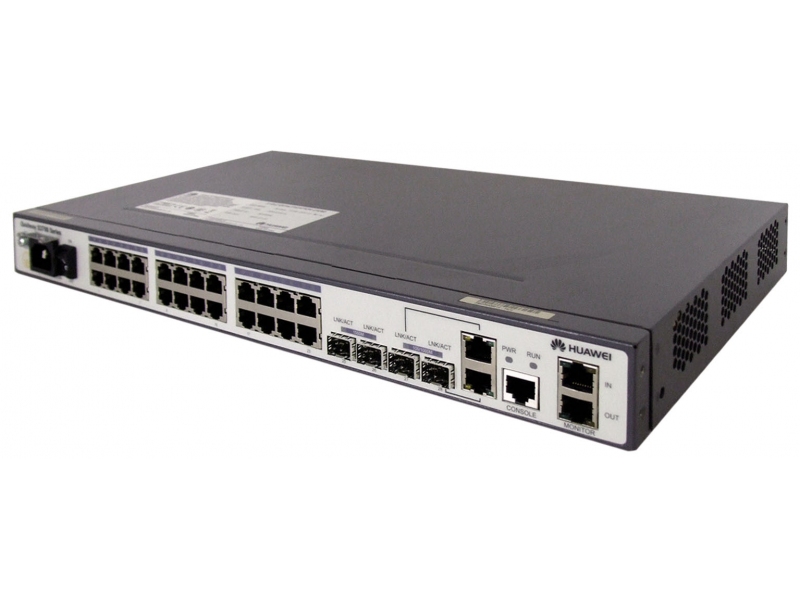

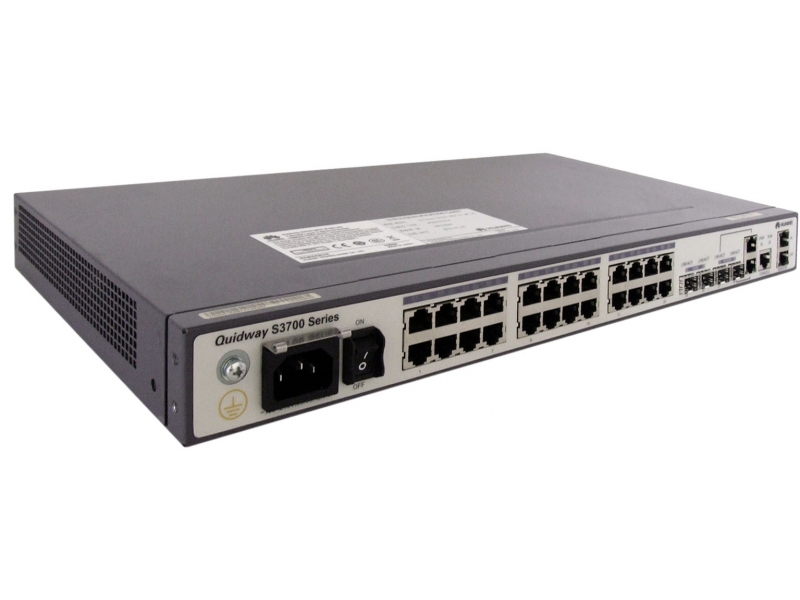

| S3700-28TP-EI-MC-AC: |
- 24-Port 10/100MbE (RJ45);
- 2-Port 1GbE (SFP);
- 2-Port combo 1GbE (RJ45/SFP);
- 2-Port monitoring (RJ45);
- 1-Port console (RJ45)
|

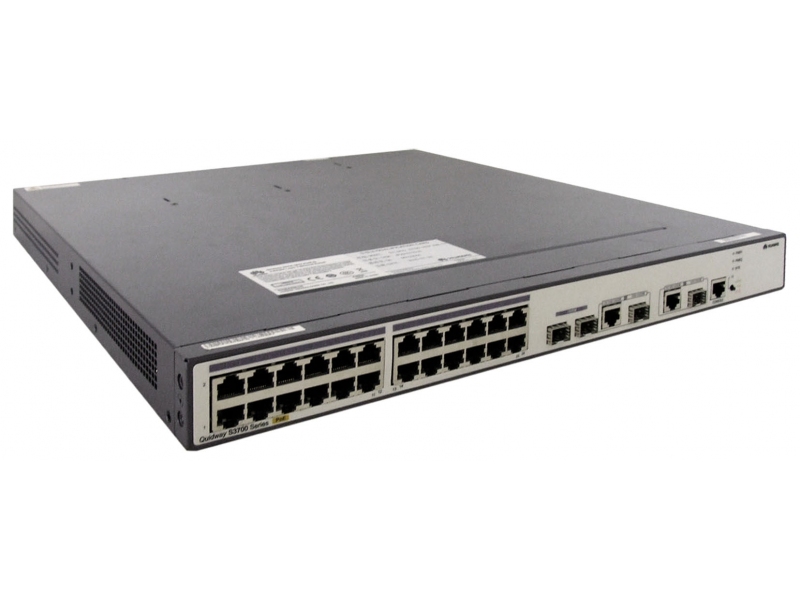

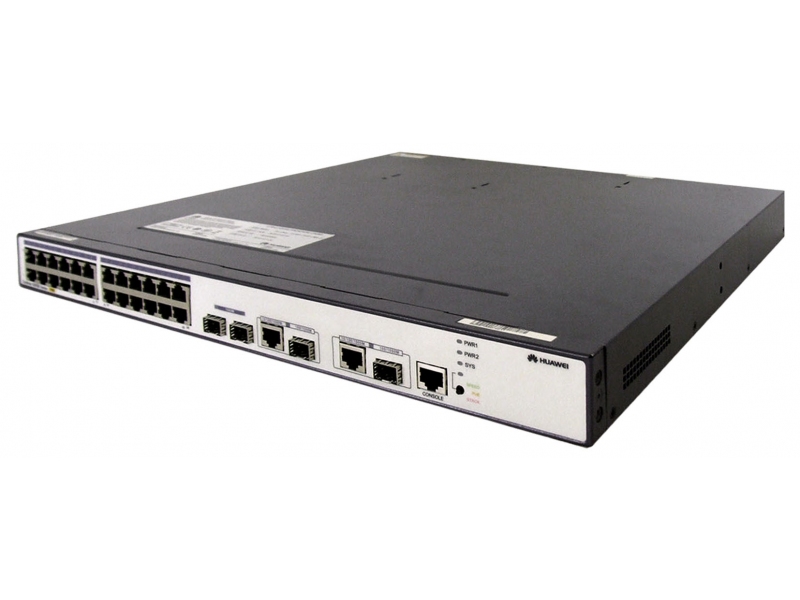

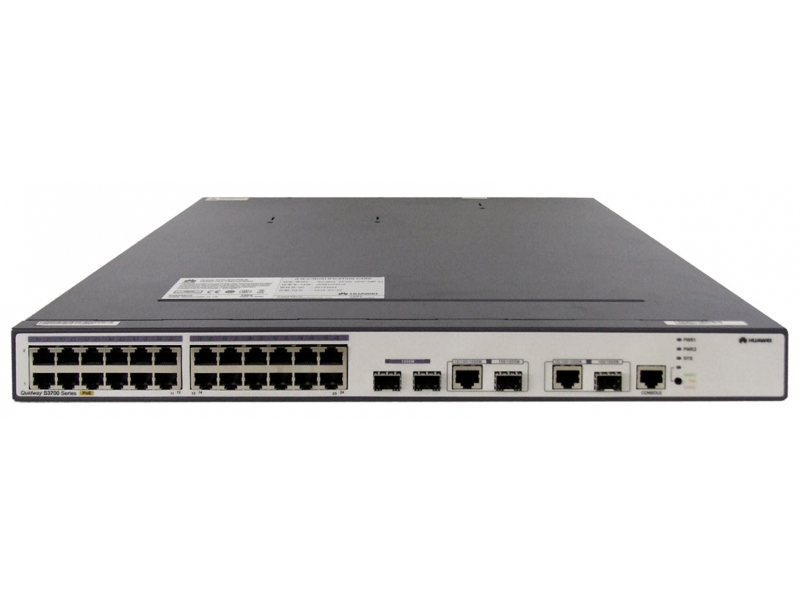

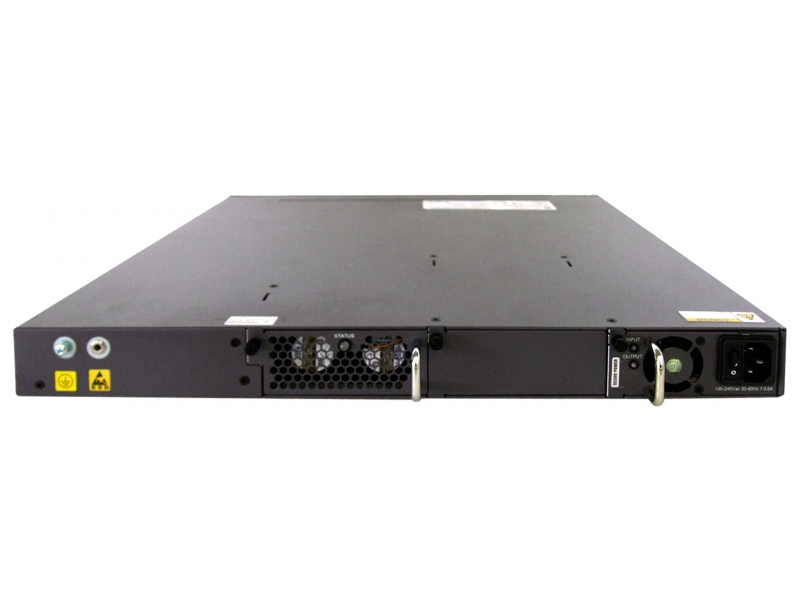

| S3700-28TP-PWR-EI: |
- 24-Port 100MbE (RJ45) PoE;
- 2-Port 1GbE (SFP);
- 2-Port combo 1GbE (RJ45/SFP);
- 1-Port console (RJ45)
|

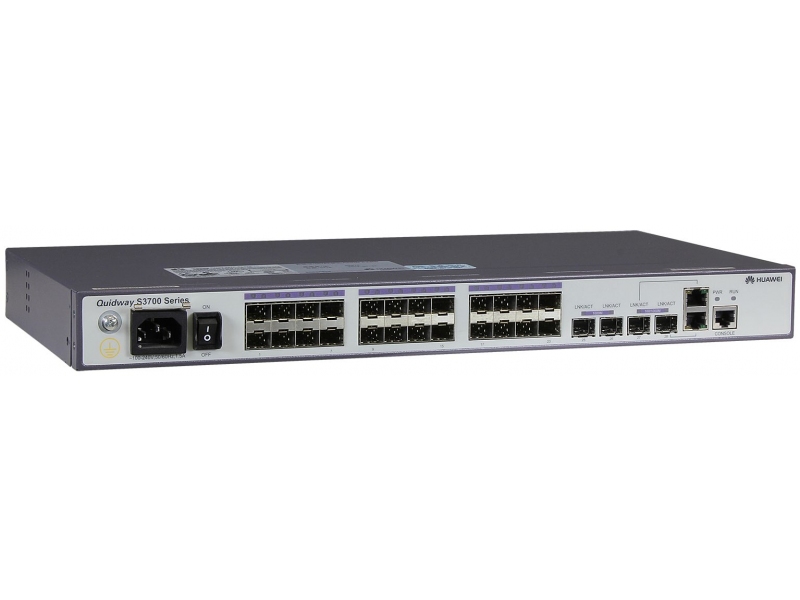

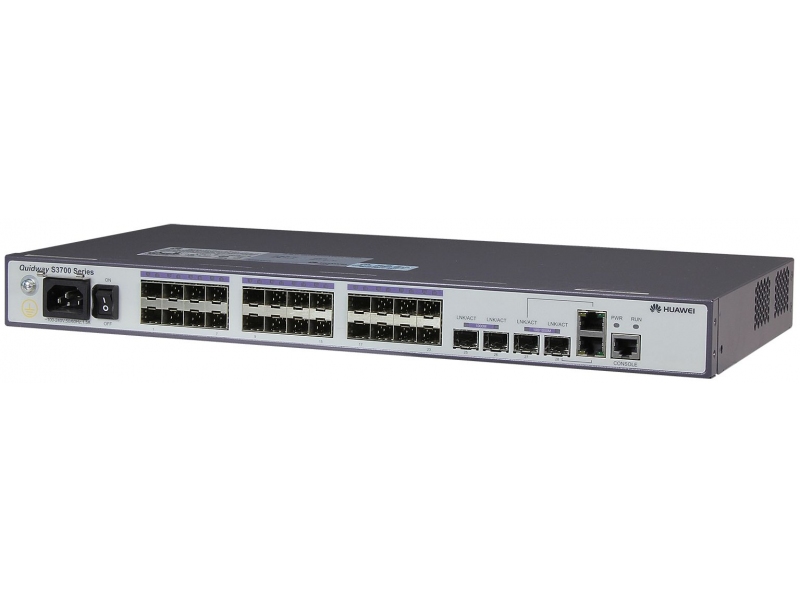

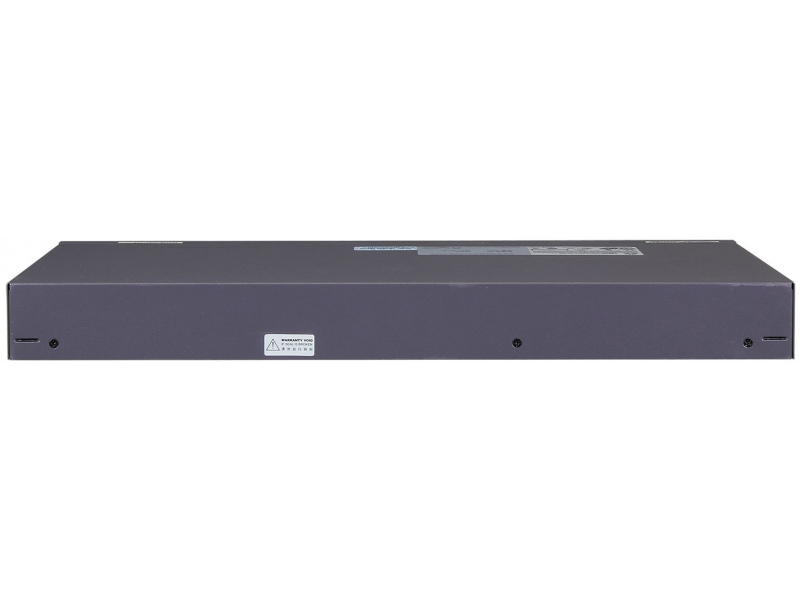

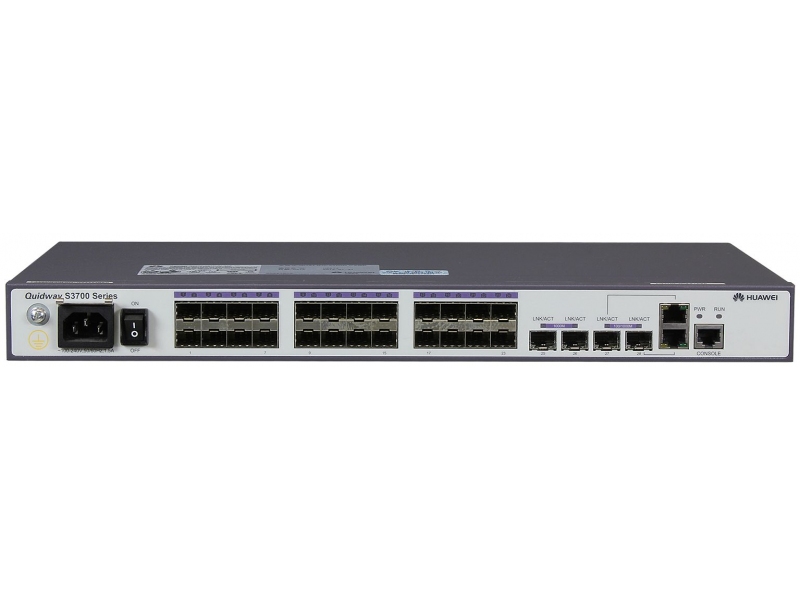

| S3700-28TP-EI-24S-AC: |
- 24-Port 100BASE-FX (SFP);
- 2-Port 1GbE (SFP);
- 2-Port combo 1GbE (RJ45/SFP);
- 1-Port console (RJ45)
|

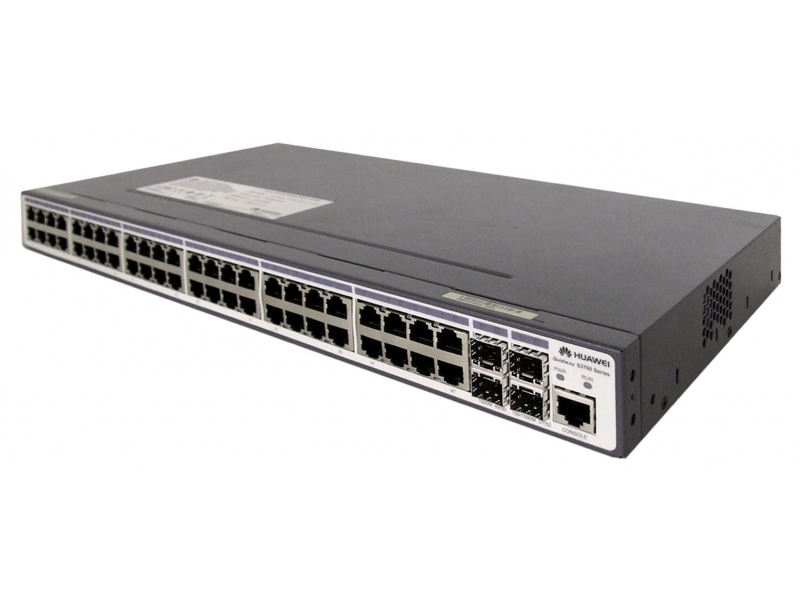

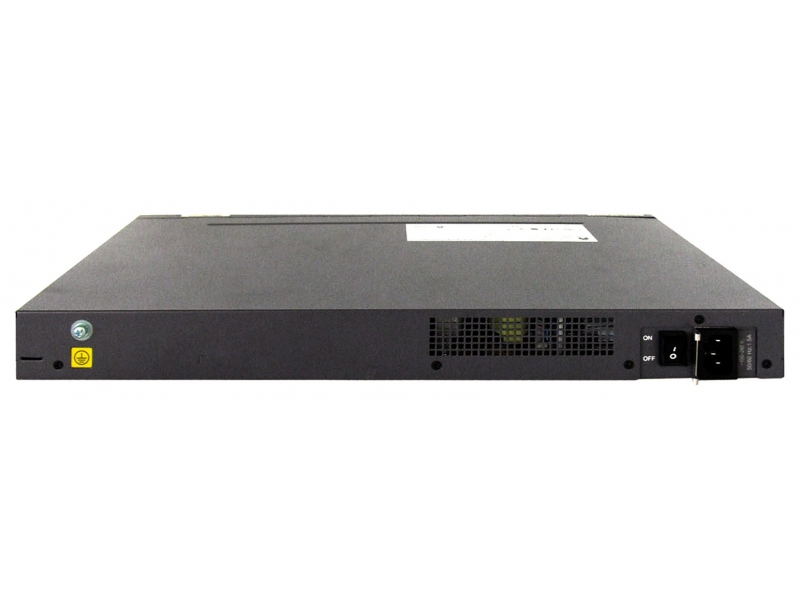

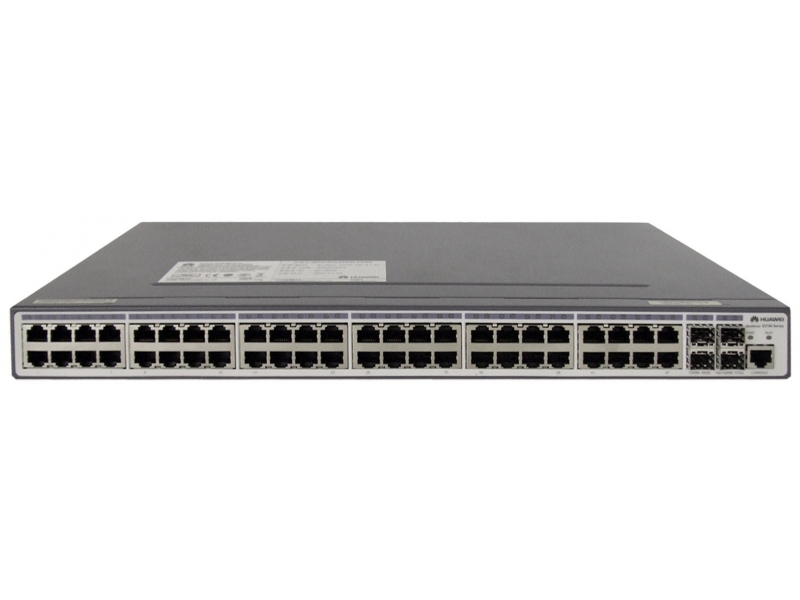

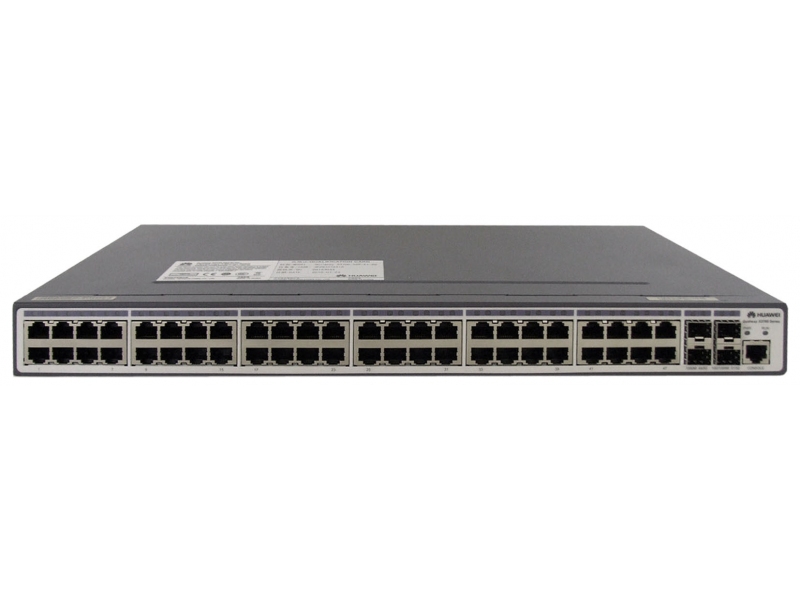

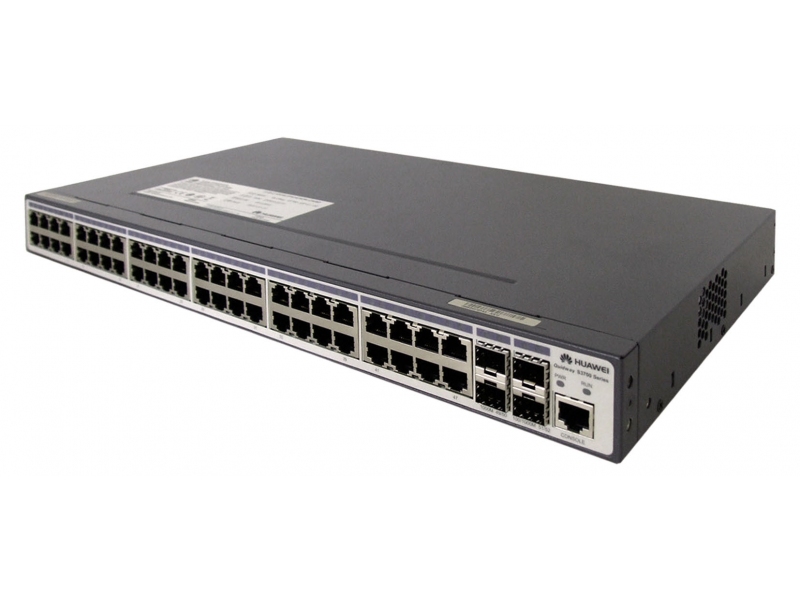

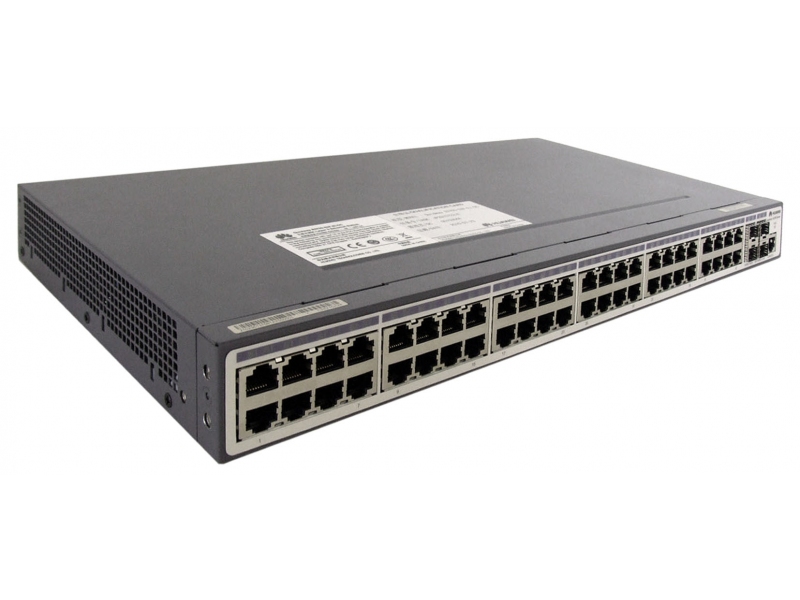

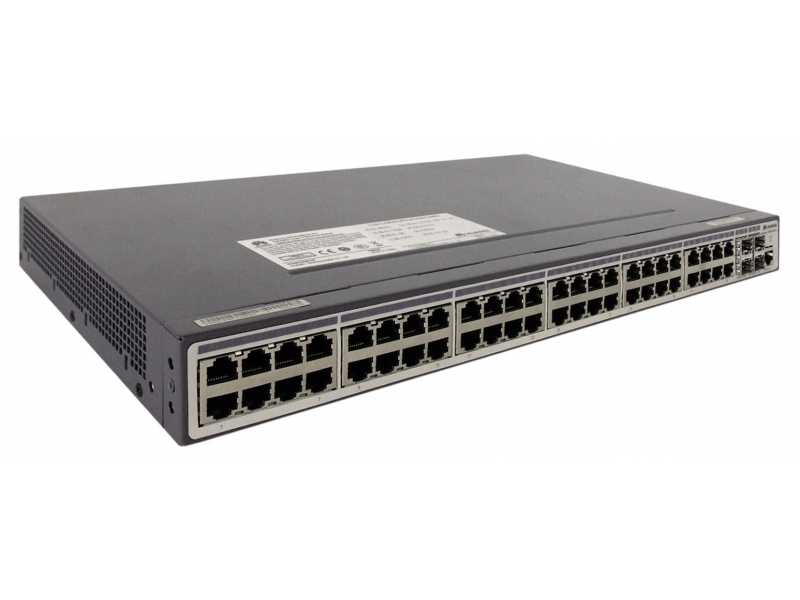

| S3700-52P-EI-AC: |
- 48-Port 100MbE (RJ45);
- 2-Port 100/1000MbE (SFP);
- 2-Port 1GbE (SFP);
- 1-Port console (RJ45)
|

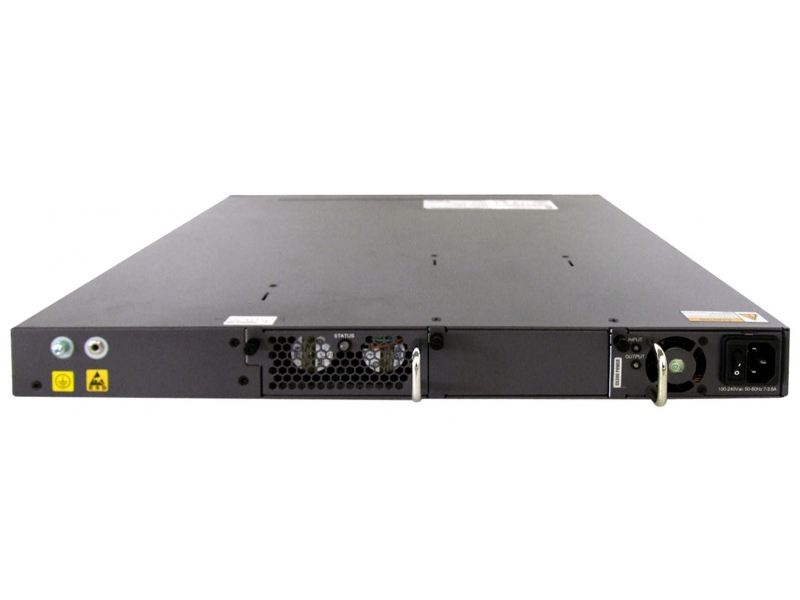

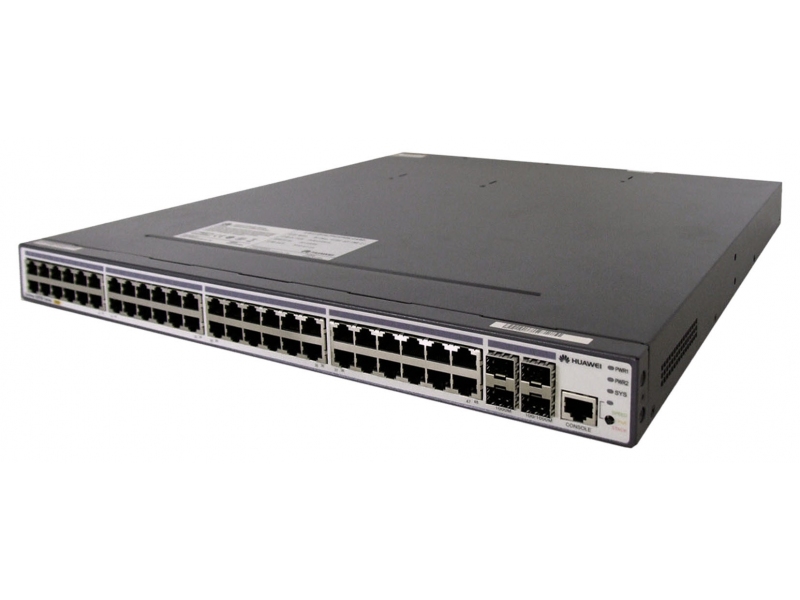

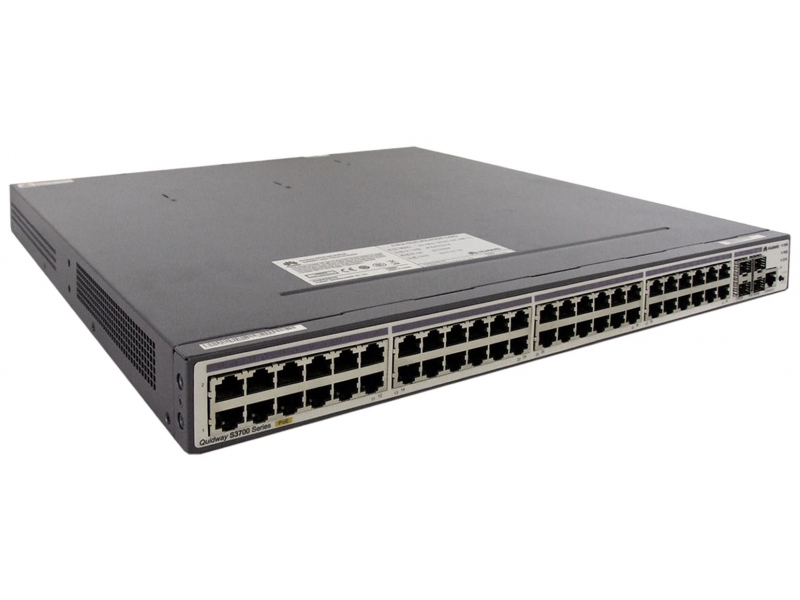

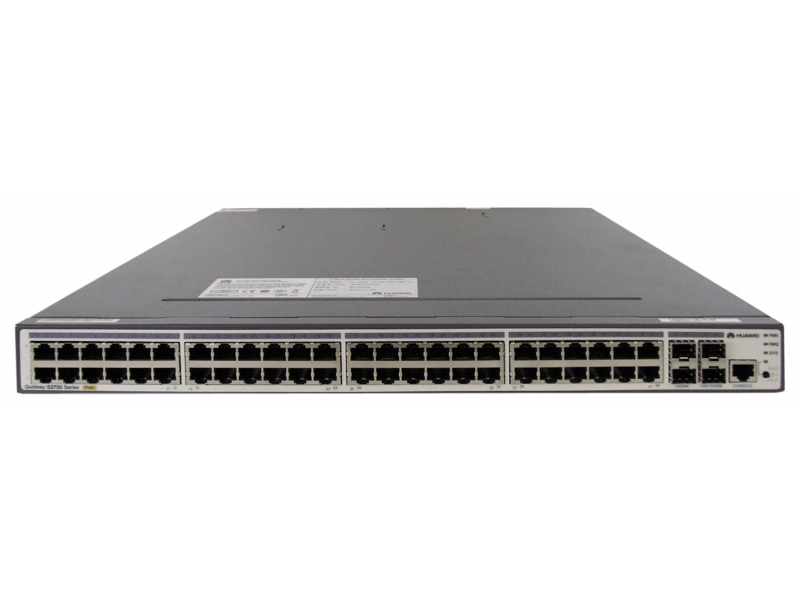

| S3700-52P-PWR-EI: |
- 48-Port 100MbE (RJ45) PoE;
- 2-Port 100/1000MbE (SFP);
- 2-Port 1GbE (SFP);
- 1-Port console (RJ45)
|

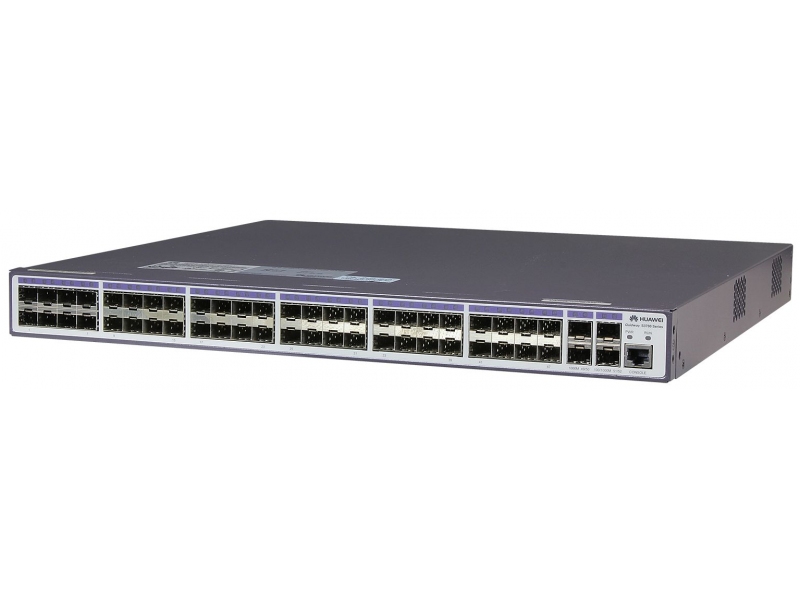

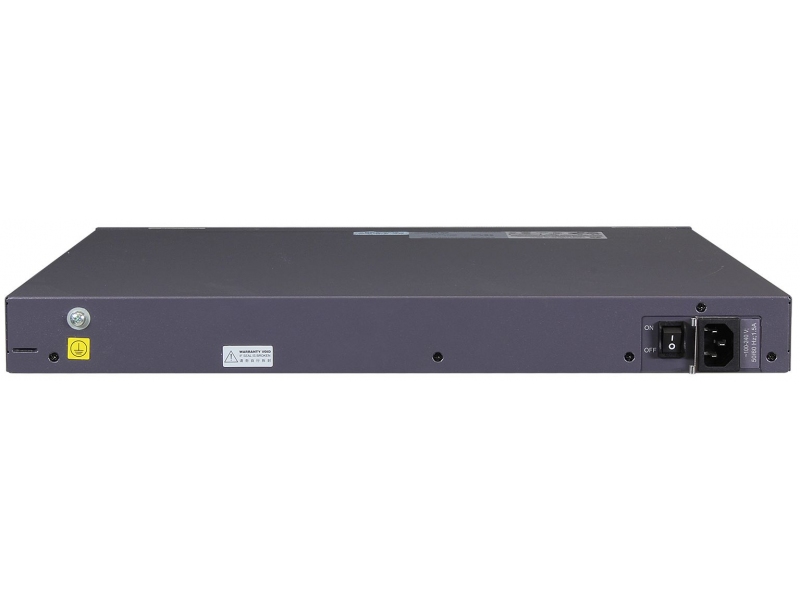

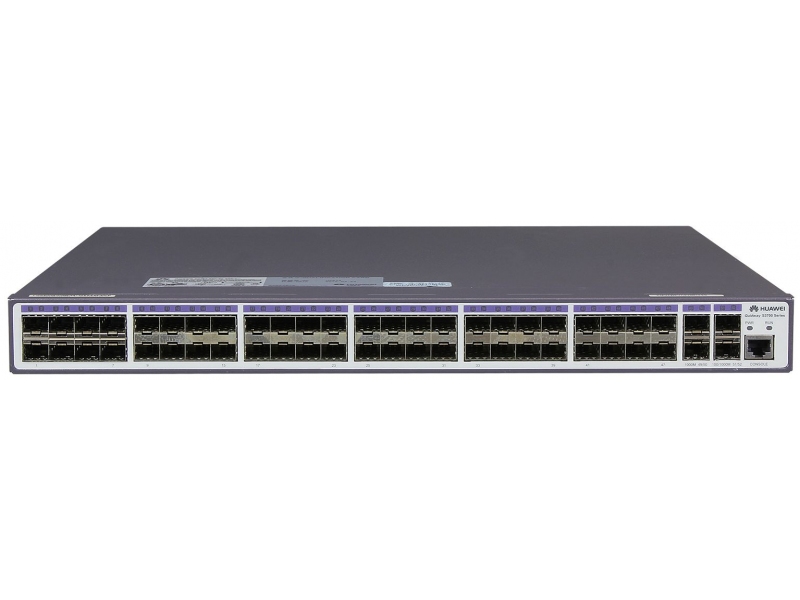

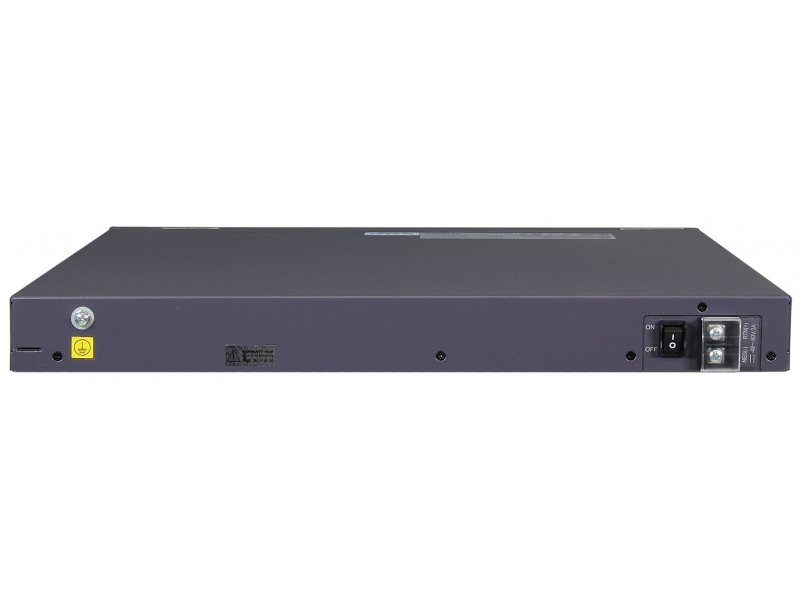

| S3700-52P-EI-48S-AC: |
- 48-Port 100BASE-FX (SFP);
- 2-Port 100/1000MbE (SFP);
- 2-Port 1GbE (SFP);
- 1-Port console (RJ45)
|

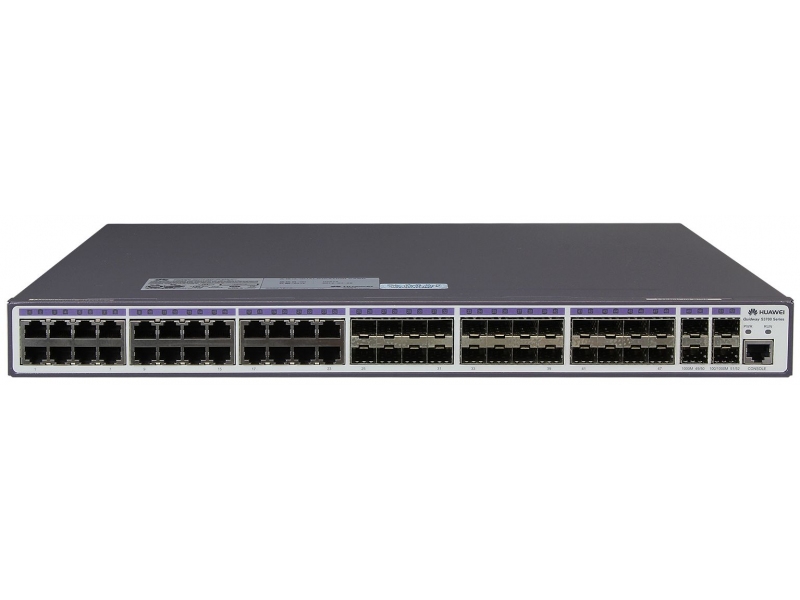

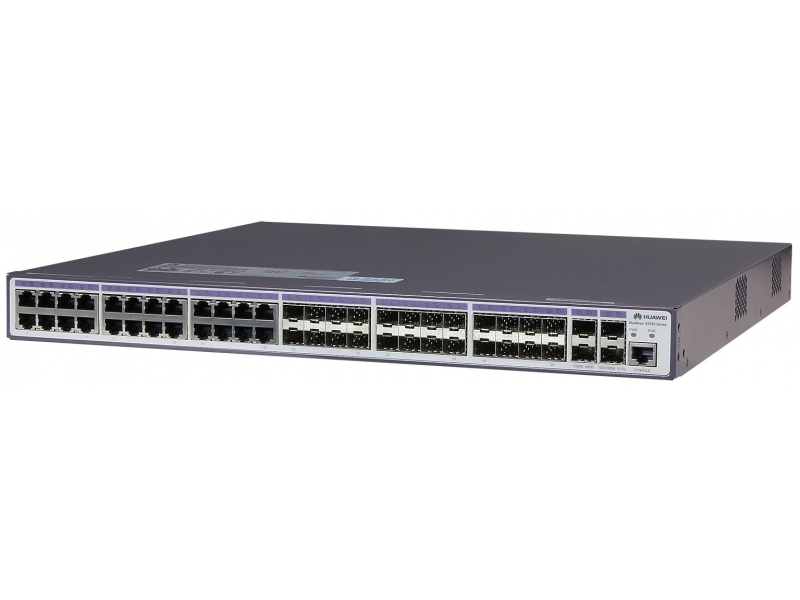

| S3700-52P-EI-24S-AC: |
- 24-Port 10/100BASE-Т (RJ45);
- 24-Port 1000BASE-FX (SFP);
- 2-Port 100/1000MbE (SFP);
- 2-Port 1GbE (SFP);
- 1-Port console (RJ45)
|
|
| Performance | |
| Switching Bandwidth | 64 Gbit/s |
| Forwarding Rate |
|
S3700-28TP-EI-AC/DC:
S3700-28TP-EI-MC-AC:
S3700-28TP-PWR-EI:
S3700-28TP-EI-24S-AC:
|
9.6 Mp/s |
|
S3700-52P-EI-AC:
S3700-52P-PWR-EI:
S3700-52P-EI-48S-AC:
S3700-52P-EI-24S-AC:
|
13.2 Mp/s |
|
| Layer 2 Features | |
| MAC Address Table | 16,000 entries |
| VLAN | IEEE 802.1Q: 4094; GVRP; QinQ; VLAN Translation |
| Layer 2 Reliability | STP/RSTP/MSTP |
| Multicast | |
|
| IGMP snooping: |
v1/v2/v3 |
| IGMP groups: |
1,024 |
| Multicast VLAN (MVR): |
Supported |
| Multicast Routing: |
PIM-SM; PIM-SSM |
|
| Layer 3 features | |
| ARP Table | 2,048 entries |
| Routing Table |
| IPv4: |
8,000 routes |
| IPv6: |
4,000 routes |
|
| IP Routing | Static Routes, RIPv1/2, OPSF, IS-IS, BGP, VRRP |
| MPLS / VPN | |
| Not supported |
| Security | |
|
| Local AAA: |
Supported |
| RADIUS, TACACS+: |
Supported |
| DHCP Server |
Supported |
| DHCP Relay option82: |
Supported |
| DHCP Snooping: |
Supported |
| Loop detection: |
Supported |
| IP Source Guard: |
Supported |
| Bandwidth Limit: |
Supported |
| Broadcast, multicast, unknown unicast suppression: |
Supported |
|
| Management | |
| Telnet; SSH; Web-management; LLDP; SNMP v1/v2/v3; RMON; Syslog; NTP |
| Environmental Conditions | |
| Relative Humidity | 10 to 90% (noncondensing) |
| Operating Temperature | 0 to 50°C (32 to 122°F) |
| Power Supply | |
| Power Supply Unit (PSU) |
| AC PSU: |
| Type: |
|
S3700-28TP-EI-AC:
S3700-28TP-EI-MC-AC:
S3700-28TP-EI-24S-AC:
S3700-52P-EI-48S-AC:
S3700-52P-EI-AC:
S3700-52P-EI-24S-AC:
|
Built-in |
|
S3700-28TP-PWR-EI:
S3700-52P-PWR-EI:
|
Removable |
| Quantity: |
|
S3700-28TP-EI-AC:
S3700-28TP-EI-MC-AC:
S3700-28TP-EI-24S-AC:
S3700-52P-EI-48S-AC:
S3700-52P-EI-24S-AC:
|
1 |
|
S3700-28TP-PWR-EI:
S3700-52P-EI-AC:
S3700-52P-PWR-EI:
|
2 |
| Rated voltage range: |
100 to 240 VAC, 50-60 Hz |
|
| DC PSU: |
| Type: |
|
| S3700-28TP-EI-DC: |
Built-in |
|
S3700-28TP-PWR-EI:
S3700-52P-PWR-EI:
|
Removable |
| Quantity: |
|
| S3700-28TP-EI-DC: |
1 |
|
S3700-28TP-PWR-EI:
S3700-52P-PWR-EI:
|
2 |
| Rated voltage range: |
-48 to -60 VDC |
|
| PoE (Power over Ethernet) |
| Supported by: |
S3700-28TP-PWR-EI
S3700-52P-PWR-EI
|
| PoE (802.3af) (15 W per port): |
| S3700-28TP-PWR-EI: |
24 ports (with 500 W PSU) |
| S3700-52P-PWR-EI: |
48 ports (with 2 x 500 W PSU) |
|
| PoE+ (802.3аt) (30 W per port): |
| S3700-28TP-PWR-EI: |
24 ports (with 2 x 500 W PSU) |
| S3700-52P-PWR-EI: |
24 ports (with 2 x 500 W PSU) |
|
| Maximum power consumption | |
|
|
S3700-28TP-EI-AC/DC:
S3700-28TP-EI-MC-AC:
|
20 W |
| S3700-28TP-PWR-EI: |
818 W |
| S3700-28TP-EI-24S-AC: |
52 W |
| S3700-52P-EI-AC: |
38 W |
| S3700-52P-PWR-EI: |
880 W |
| S3700-52P-EI-48S-AC: |
90 W |
| S3700-52P-EI-24S-AC: |
65 W |
|
| Acoustic noise | |
|
|
S3700-28TP-EI-AC/DC:
S3700-28TP-EI-MC-AC:
|
0 dB |
|
S3700-28TP-PWR-EI:
S3700-52P-PWR-EI:
S3700-52P-EI-AC:
S3700-52P-EI-48S-AC:
S3700-52P-EI-24S-AC:
S3700-28TP-EI-24S-AC:
|
52 dB |
|
| Dimensions (HxWxD) | |
|
|
S3700-28TP-EI-AC/DC:
S3700-28TP-EI-MC-AC:
S3700-28TP-EI-24S-AC:
S3700-52P-EI-AC:
|
43.6 (1U) х 442 х 220 mm
(1.72 (1U) x 17.4 x 8.66 in)
|
|
S3700-28TP-PWR-EI:
S3700-52P-EI-48S-AC:
S3700-52P-EI-24S-AC:
S3700-52P-PWR-EI:
|
43.6 (1U) х 442 х 420 mm
(1.72 (1U) x 17.4 x 16.53 in)
|
|
| Maximum Weight | |
|
|
S3700-28TP-EI-AC/DC:
S3700-28TP-EI-MC:
|
2.5 kg (5.51 lb) |
| S3700-28TP-PWR-EI: |
4.0 kg (8.81 lb) |
| S3700-28TP-EI-24S-AC: |
2.6 kg (5.73 Ib) |
| S3700-52P-EI-AC: |
3.0 kg (6.61 lb) |
| S3700-52P-PWR-EI: |
4.3 kg (9.47 lb) |
|
S3700-52P-EI-48S-AC:
S3700-52P-EI-24S-AC:
|
4.8 kg (10.58 lb) |
|
| Compatible expansion cards | |
| Not supported |
