| Interfaces | |
|

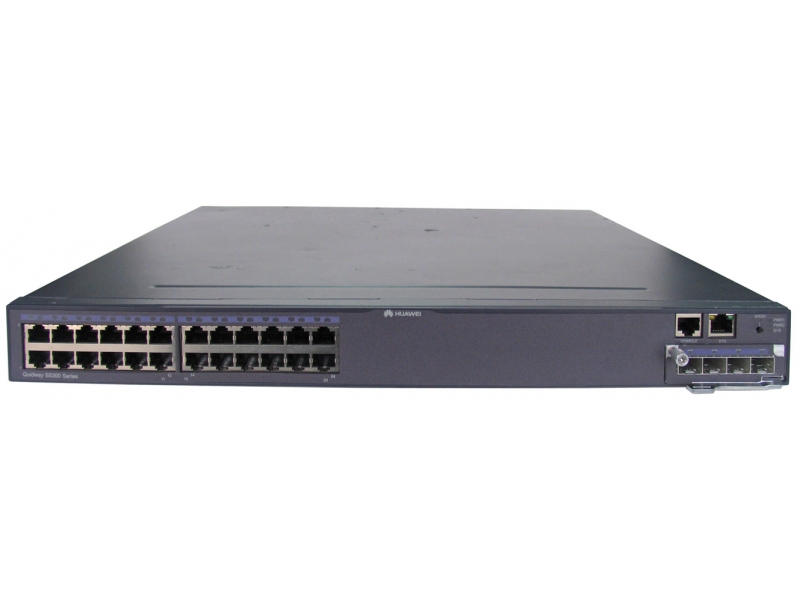

| S5328C-EI: |
- 24-Port 10/100/1000MbE (RJ45);
- 1 Expansion slot;
- 1-Port console (RJ45);
- 1-Port out-of-band management 10/100MbE (RJ45)
|

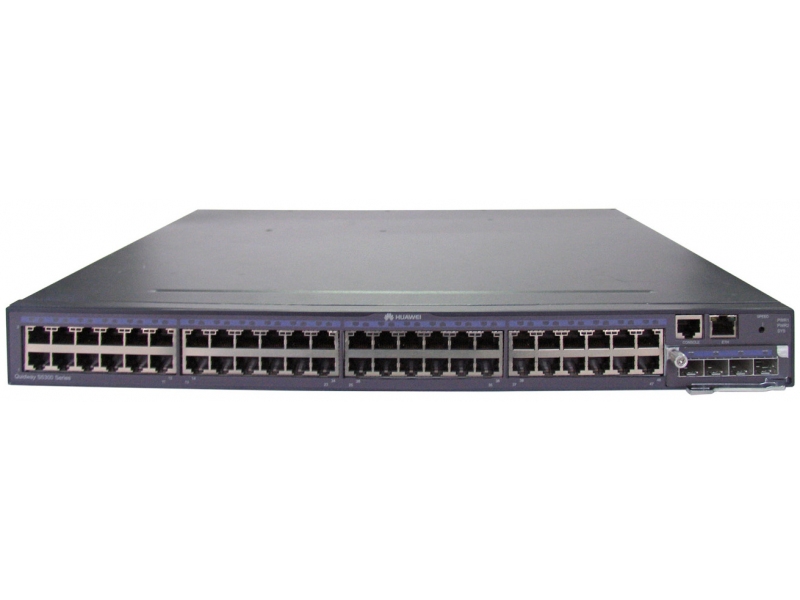

| S5352C-EI: |
- 48-Port 10/100/1000MbE (RJ45);
- 1 Expansion slot;
- 1-Port console (RJ45);
- 1-Port out-of-band management 10/100MbE (RJ45)
|

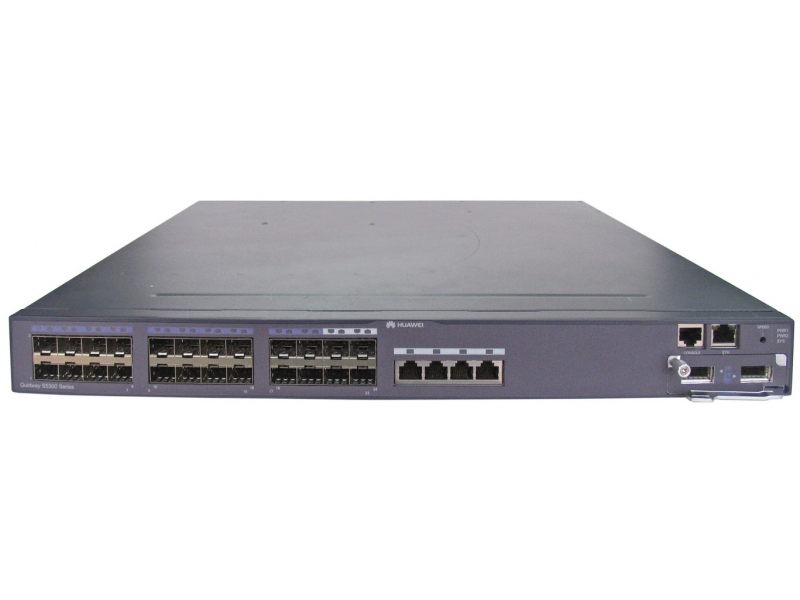

| S5328C-EI-24S: |
- 20-Port 100/100MbE (SFP);
- 4-Port combo 1GbE (RJ45/SFP);
- 1 Expansion slot;
- 1-Port console (RJ45);
- 1-Port out-of-band management 10/100MbE (RJ45)
|
| S5328C-PWR-EI: |
- 24-Port 10/100/1000MbE (RJ45) PoE;
- 1 Expansion slot;
- 1-Port console (RJ45);
- 1-Port out-of-band management 10/100MbE (RJ45)
|
| S5352C-PWR-EI: |
- 48-Port 10/100/1000MbE (RJ45) PoE;
- 1 Expansion slot;
- 1-Port console (RJ45);
- 1-Port out-of-band management 10/100MbE (RJ45)
|
|
| Performance | |
| Switching Bandwidth |
|
S5328C-EI:
S5328C-EI-24S:
S5328C-PWR-EI:
|
128 Gb/s |
|
S5352C-EI:
S5352C-PWR-EI:
|
176 Gb/s |
|
| Forwarding Rate |
|
S5328C-EI:
S5328C-EI-24S:
S5328C-PWR-EI:
|
95.23 Mp/s |
|
S5352C-EI:
S5352C-PWR-EI:
|
130.94 Mp/s |
|
| Layer 2 Features | |
| MAC Address Table | 32,000 entries |
| VLAN | IEEE 802.1Q: 4094. GVRP; QinQ; VLAN Translation |
| Layer 2 Reliability | STP/RSTP/MSTP; VBST; SEP; RRPP; ERPS (G.8032) |
| Multicast | |
|
| IGMP snooping: |
v1/v2/v3 |
| IGMP groups: |
2,048 |
| Multicast VLAN (MVR): |
Supported |
| Multicast Routing: |
PIM-DM; PIM-SM; PIM-SSM |
|
| Layer 3 features | |
| ARP Table | 8,000 entries |
| Routing Table |
| IPv4: |
12,000 routes |
| IPv6: |
6,000 routes |
|
| IP Routing | Static Routes; RIPv1/2; OSPFv2; IS-IS; BGP; VRRP |
| MPLS / VPN | |
| Not supported |
| Security | |
|
| Local AAA: |
Supported |
| RADIUS, TACACS+: |
Supported |
| DHCP Server |
Supported |
| DHCP Relay option82: |
Supported |
| DHCP Snooping: |
Supported |
| Loop detection: |
Supported |
| IP Source Guard: |
Supported |
| Bandwidth Limit: |
Supported |
| Broadcast, multicast, unknown unicast suppression: |
Supported |
|
| Management | |
| Telnet; SSH; Web-management; LLDP; SNMP v1/v2/v3; RMON; Syslog; NTP |
| Environmental Conditions | |
| Relative Humidity | 5 to 95% (noncondensing) |
| Operating Temperature | 0 to 50°C (32 to 122°F) |
| Power Supply | |

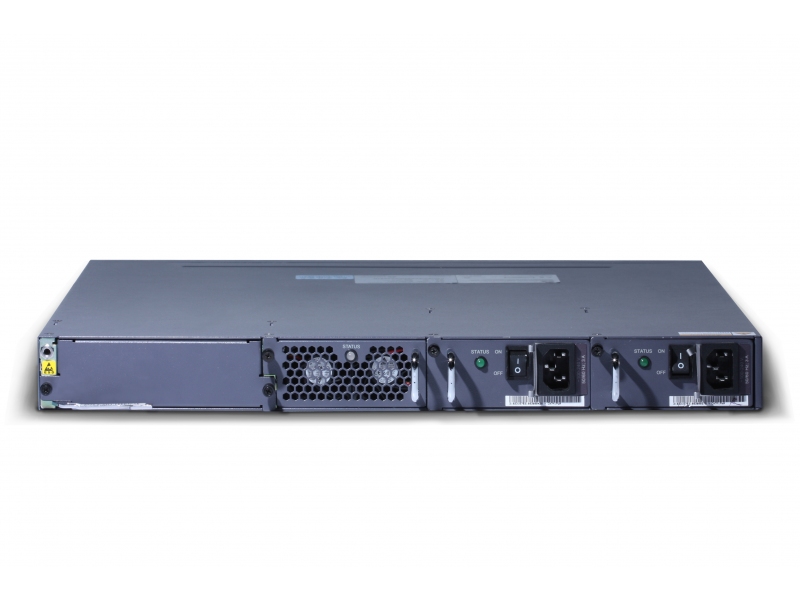

| Power Supply Unit (PSU) |
| AC PSU: |
| Type: |
Removable |
| Quantity: |
2 |
| Rated voltage range: |
100 to 240 VAC, 50-60 Hz |
|
|
| DC PSU: |
| Type: |
Removable |
| Quantity: |
2 |
| Rated voltage range: |
-48 to -60 VDC |
|
| PoE (Power over Ethernet) |
| Supported by: |
S5328C-PWR-EI
S5352C-PWR-EI
|
|
|
| PoE (802.3af) (15W per port): |
|
| S5328С-PWR-EI-АC: |
24 ports |
| S5352С-PWR-EI-АC: |
48 ports |
|
|
| PoE+ (802.3аt) (30 W per port): |
|
| S5328С-PWR-EI-АC: |
24 ports (with 2 x 500 W PSU) |
| S5352С-PWR-EI-АC: |
24 ports (with 2 x 500 W PSU) |
|
|
| PoE++ (802.3bt) (60 W per port): |
Not supported |
|
|
| PoE++ (802.3bt) (90 W per port): |
Not supported |
|
| Maximum power consumption | |
|
| S5328C-EI: |
60 W |
| S5352C-EI: |
88 W |
| S5328C-EI-24S: |
63 W |
|
S5328C-PWR-EI:
S5352C-PWR-EI:
|
740 W |
|
| Acoustic noise | |
|
|
S5328C-EI:
S5352C-EI:
S5328C-EI-24S:
|
41 dB |
|
S5328C-PWR-EI:
S5352C-PWR-EI:
|
45 dB |
|
| Dimensions (HxWxD) | |
| 43.6 (1U) х 442 х 420 mm
(1.72 (1U) x 17.4 x 16.54 in) |
| Maximum Weight | |
|
|
S5328C-EI:
S5352C-EI:
S5328C-EI-24S:
|
5.3 kg (11.68 lb) |
|
S5328C-PWR-EI:
S5352C-PWR-EI:
|
5.5 kg (11.68 lb) |
|
| Compatible expansion cards | |
|
| Model number |
Description |
| LS5D00E2XX00 |
2-Port 10GbE (XFP) |
| LS5D00E2XY00 |
2-Port 10GbE (SFP+) |
| LS5D00E4XY01 |
4-Port 10GbE (SFP+). Used together with an ES5D00ETPB00 rear card |
| LS5D00E4GF01 |
4-Port 1GbE (SFP). Used together with an ES5D00ETPB00 rear card |
| ES5D00ETPC00 |
Stacking card. 2-Port PCIe |
| ES5D00ETPB00 |
Bandwidth extension rear card |
|
