Huawei S5700-LI series

Download S5700-LI series Datasheet (eng)

Available to quote:

S5700-10P-LI-AC;  S5700-28P-LI-AC; S5700-28P-LI-DC;

S5700-28TP-LI-AC; S5700-52P-LI-AC;

S5700-52P-LI-DC; S5700-28P-LI-BAT;

S5700-28P-LI-24S-BAT; S5700-10P-PWR-LI-AC;

S5700-28P-PWR-LI-AC; S5700-28TP-PWR-LI-AC;

S5701-28TP-PWR-LI-AC; S5700-52P-PWR-LI-AC

Request a Quote
SPECIFICATIONS
Interfaces

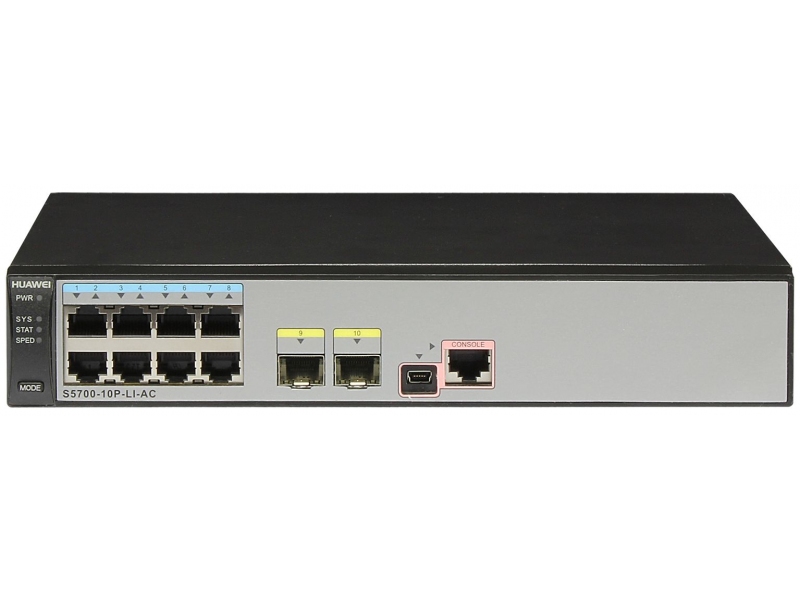

S5700-10P-LI-AC:
  • 8-Port 10/100/1000MbE (RJ45);
  • 2-Port 1GbE (SFP);
  • 1-Port console (RJ45/miniUSB)

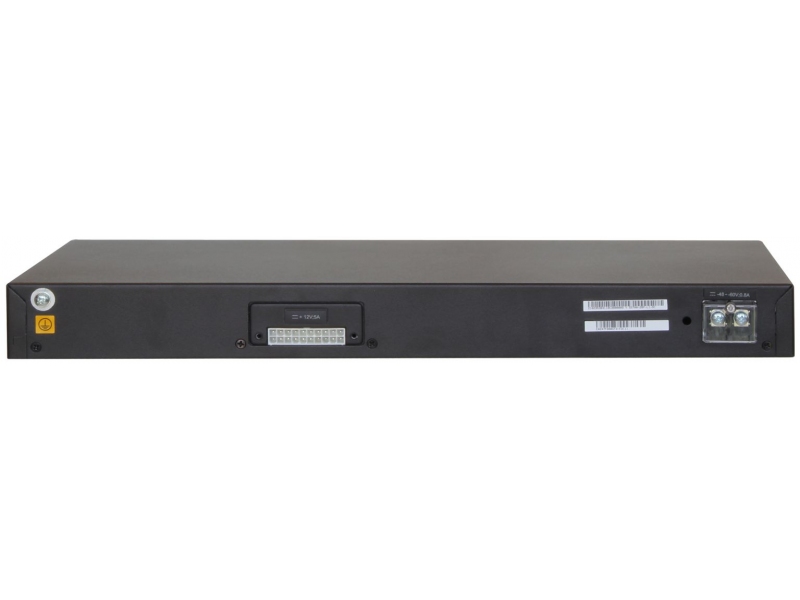

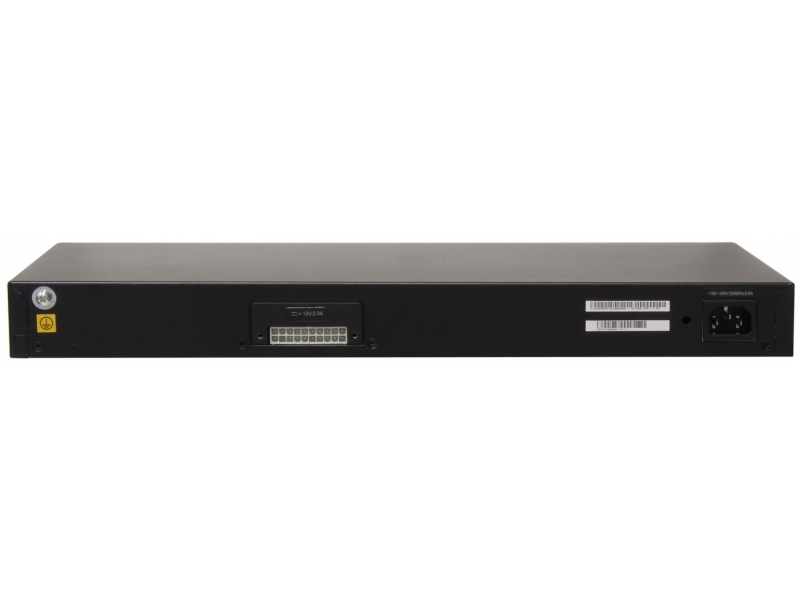

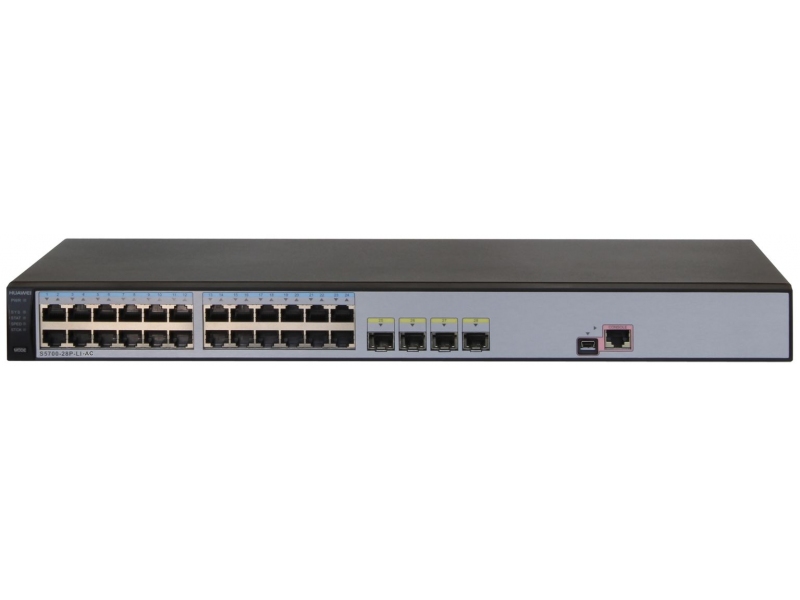

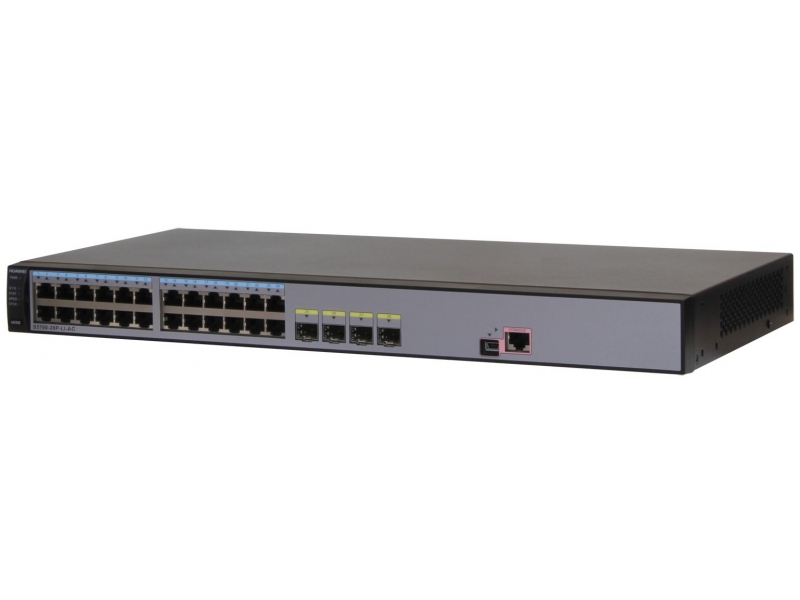

S5700-28P-LI-AC/DC:
  • 24-Port 10/100/1000MbE (RJ45);
  • 4-Port 1GbE (SFP);
  • 1-Port console (RJ45/miniUSB)
S5700-28TP-LI-AC:
  • 24-Port 10/100/1000MbE (RJ45);
  • 2-Port combo 1GbE (RJ45/SFP);
  • 2-Port 1GbE (SFP);
  • 1-Port console (RJ45/miniUSB)
S5700-28P-LI-BAT:
  • 24-Port 10/100/1000MbE (RJ45);
  • 4-Port 1GbE (SFP);
  • One battery slot for a lithium battery
  • 1-Port console (RJ45)
S5700-28P-LI-24S-BAT:
  • 24-Port 1GbE (SFP);
  • 4-Port combo 1GbE (RJ45/SFP);
  • One battery slot for a lithium battery
  • 1-Port console (RJ45)

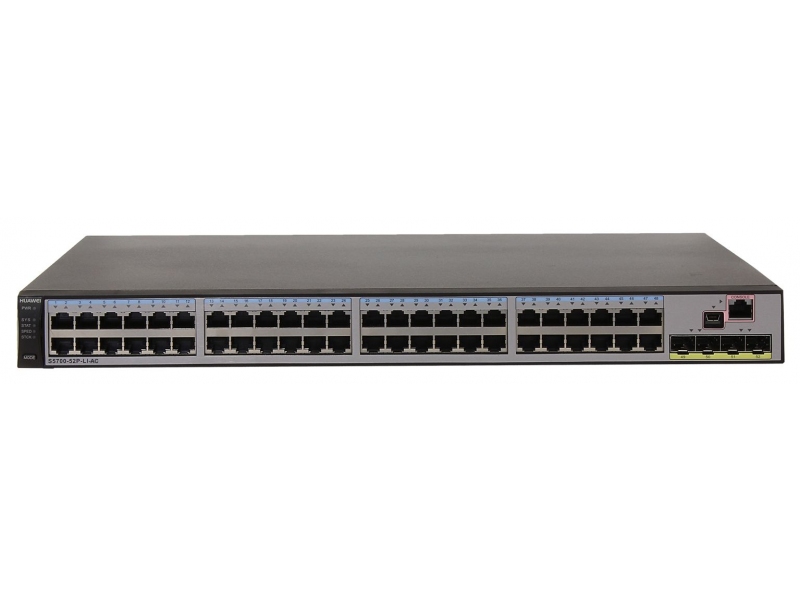

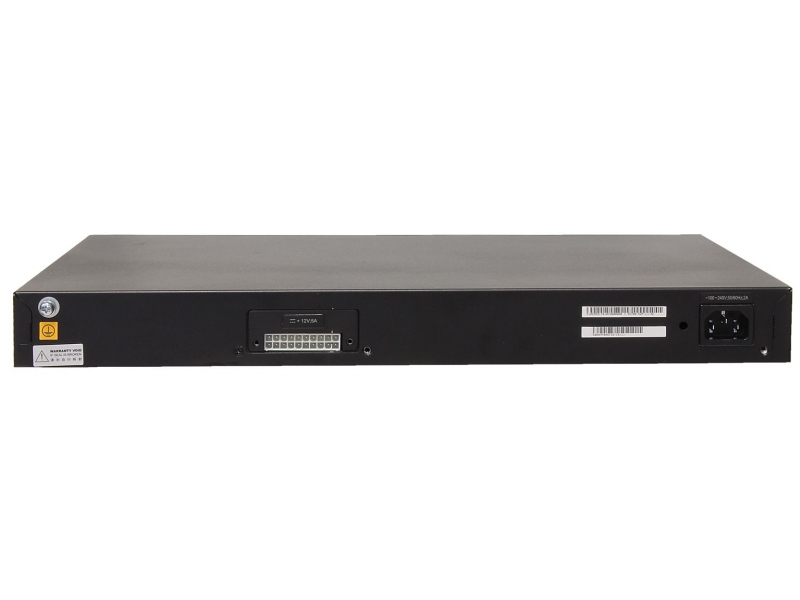

S5700-52P-LI-AC/DC:
  • 48-Port 10/100/1000MbE (RJ45);
  • 4-Port 1GbE (SFP);
  • 1-Port console (RJ45/miniUSB)
S5700-10P-PWR-LI-AC:
  • 8-Port 10/100/1000MbE (RJ45) PoE;
  • 2-Port 1GbE (SFP);
  • 1-Port console (RJ45/miniUSB)

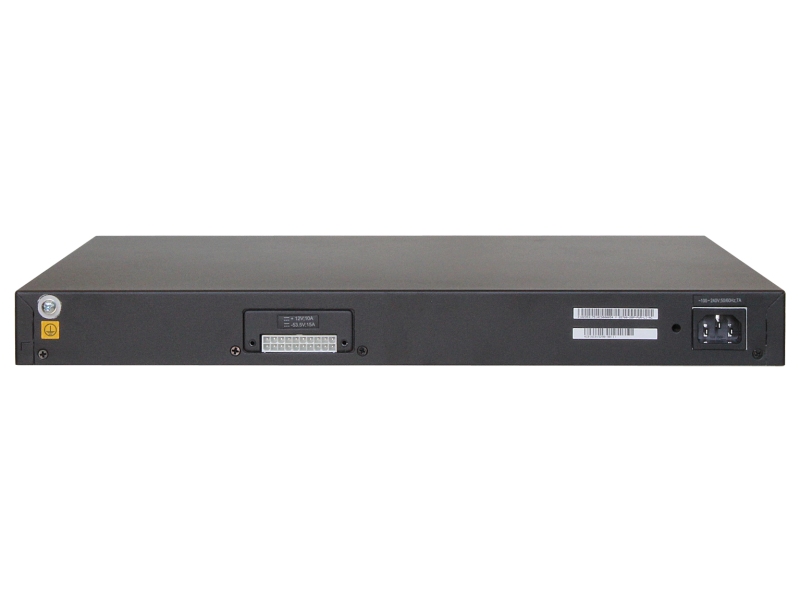

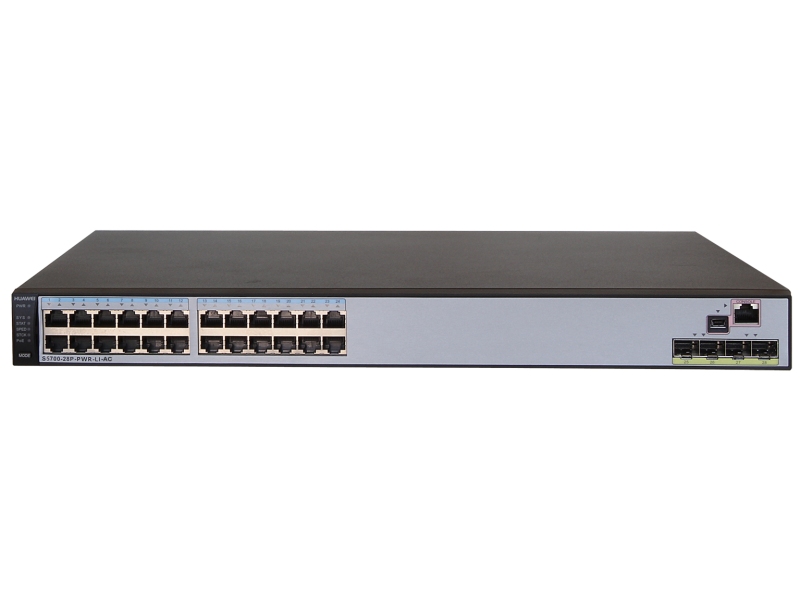

S5700-28P-PWR-LI-AC:
  • 24-Port 10/100/1000MbE (RJ45) PoE;
  • 4-Port 1GbE (SFP);
  • 1-Port console (RJ45/miniUSB)
S5700-28TP-PWR-LI-AC:
  • 24-Port 10/100/1000MbE (RJ45) PoE;
  • 2-Port combo 1GbE (RJ45/SFP);
  • 2-Port 1GbE (SFP);
  • 1-Port console (RJ45/miniUSB)
S5701-28TP-PWR-LI-AC:
  • 12-Port 10/100/1000MbE (RJ45) PoE;
  • 12-Port 10/100/1000MbE  (RJ45);
  • 2-Port combo 1GbE (RJ45/SFP);
  • 2-Port 1GbE (SFP);
  • 1-Port console (RJ45/miniUSB)

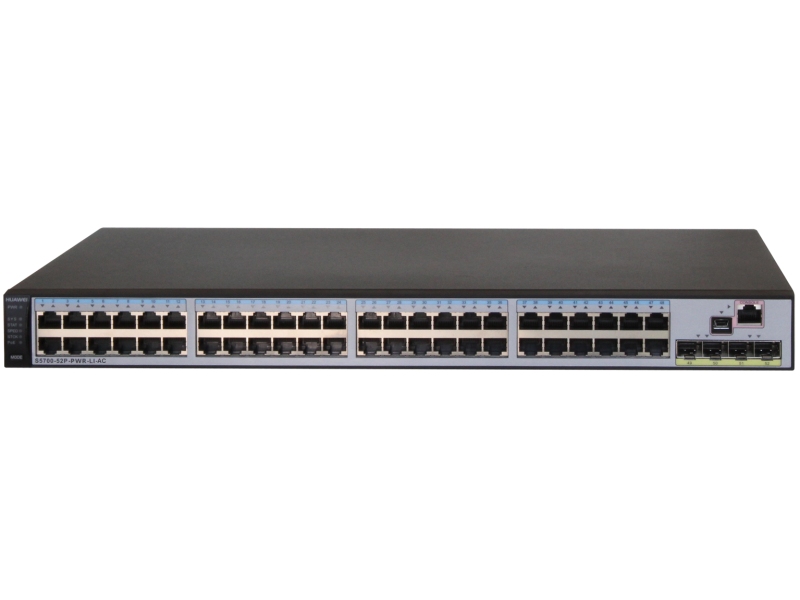

S5700-52P-PWR-LI-AC:
  • 48-Port 10/100/1000MbE (RJ45) PoE;
  • 4-Port 1GbE (SFP);
  • 1-Port console (RJ45/miniUSB)

Performance
Switching Bandwidth
S5700-10P-LI-AC: 256 Gb/s
S5700-28P-LI-AC/DC: 256 Gb/s
S5700-28TP-LI-AC/DC: 256 Gb/s
S5700-28P-LI-BAT: 256 Gb/s
S5700-28P-LI-24S-BAT: 256 Gb/s
S5700-52P-LI-AC/DC: 256 Gb/s
S5700-10P-PWR-LI-AC: 256 Gb/s
S5700-28P-PWR-LI-AC: 256 Gb/s
S5700-28TP-PWR-LI-AC: 256 Gb/s
S5701-28TP-PWR-LI-AC: 256 Gb/s
S5700-52P-PWR-LI-AC: 256 Gb/s
Forwarding Rate
S5700-10P-LI-AC: 15 Mp/s
S5700-28P-LI-AC/DC: 42 Mp/s
S5700-28TP-LI-AC/DC: 42 Mp/s
S5700-28P-LI-BAT: 42 Mp/s
S5700-28P-LI-24S-BAT: 42 Mp/s
S5700-52P-LI-AC/DC: 78 Mp/s
S5700-10P-PWR-LI-AC: 15 Mp/s
S5700-28P-PWR-LI-AC: 42 Mp/s
S5700-28TP-PWR-LI-AC: 42 Mp/s
S5701-28TP-PWR-LI-AC: 42 Mp/s
S5700-52P-PWR-LI-AC: 78 Mp/s
Layer 2 Features
MAC Address Table
Maximum Capacity: 16,000 entries
VLAN

IEEE 802.1Q: 4094; GVRP; QinQ; VLAN Translation
Layer 2 Reliability

STP/RSTP/MSTP; VBST (compatible with PVST+); SEP; RRPP; ERPS (G.8032)
Multicast
IGMP snooping: v1/v2/v3
IGMP groups: 1,024
Multicast VLAN (MVR): Supported
Multicast Routing: Not supported
Layer 3 features
ARP Table256 entries
Routing Table
IPv4: 32 routes
IPv6: 16 routes
IP RoutingStatic Routes
MPLS / VPN

Not supported
Security
IPv4 ACL:
S5700-10P-LI-AC, S5700-10P-PWR-LI-AC 400 Ingress+Egress
S5700-28P-LI-AC, S5700-28P-LI-DC, S5700-28TP-LI-AC, S5700-28P-LI-BAT, S5700-28P-LI-24S-BAT,   S5700-52P-LI-AC, S5700-28P-PWR-LI-AC, S5700-28TP-PWR-LI-AC, S5700-52P-PWR-LI-AC, S5701-28TP-PWR-LI-AC 900 Ingress+Egress
IPv6 ACL:
S5700-10P-LI-AC, S5700-10P-PWR-LI-AC 400 Ingress+Egress
S5700-28P-LI-AC, S5700-28P-LI-DC, S5700-28TP-LI-AC, S5700-28P-LI-BAT, S5700-28P-LI-24S-BAT,   S5700-52P-LI-AC, S5700-28P-PWR-LI-AC, S5700-28TP-PWR-LI-AC, S5700-52P-PWR-LI-AC, S5701-28TP-PWR-LI-AC 900 Ingress+Egress
Local AAA: Supported
RADIUS, TACACS+: Supported
DHCP Server Not supported
DHCP Relay option82: Supported
DHCP Snooping: Supported
Loop detection: Supported
IP Source Guard: Supported
Broadcast, multicast, unknown unicast suppression: Supported
Quality of Service
QoS queues: 8
Traffic Limit: Supported
Traffic Mark: by 802.1p, DSCP
IPv6

Static Routes; IPv6 ACL; DHCPv6; Multicast Listener Discovery snooping (MLDv1/v2)
Management

Telnet; SSH; Web-management; LLDP; SNMP v1/v2/v3; RMON; Syslog; NTP
OAM

802.3ah (EFM); 802.1ag (CFM)
Environmental Conditions
Relative Humidity

10 to 90% (noncondensing)
Operating Temperature

-5 to +50°C (23 to 122°F)
Power Supply
Power Supply Unit (PSU)
AC PSU:
Type: Built-in
Quantity: 1
Rated voltage range: 100 to 240 VAC, 50-60 Hz
DC PSU:
Type: Built-in
Quantity: 1
Rated voltage range: -48 to -60 VDC
PoE (Power over Ethernet)
Supported by: S5700-10P-PWR-LI-AC, S5700-28P-PWR-LI, S5700-28TP-PWR-LI, S5701-28TP-PWR-LI, S5700-52P-PWR-LI
PoE (802.3af) (15 W per port):
S5700-10P-PWR-LI-AC: 8 ports
S5700-28P-PWR-LI, S5700-28TP-PWR-LI, S5701-28TP-PWR-LI, S5700-52P-PWR-LI:
Without RPS
S5700-28P-PWR-LI: 24 ports
S5700-28TP-PWR-LI: 24 ports
S5701-28TP-PWR-LI: 12 ports
S5700-52P-PWR-LI: 24 ports
Using RPS
S5700-28P-PWR-LI 24 ports
S5700-28TP-PWR-LI: 24 ports
S5701-28TP-PWR-LI: 12 ports
S5700-52P-PWR-LI 48 ports
PoE+ (802.3аt) (30 W per port):
S5700-10P-PWR-LI-AC 4 ports
S5700-28P-PWR-LI, S5700-28TP-PWR-LI, S5701-28TP-PWR-LI, S5700-52P-PWR-LI:
Without RPS
S5700-28P-PWR-LI 12 ports
S5700-28TP-PWR-LI: 12 ports
S5701-28TP-PWR-LI: 6 ports
S5700-52P-PWR-LI 12 ports
Using RPS
S5700-28P-PWR-LI 24 ports
S5700-28TP-PWR-LI: 24 ports
S5701-28TP-PWR-LI: 6 ports
S5700-52P-PWR-LI 26 ports
Maximum power consumption
S5700-10P-LI-AC: up to 11.5 W
S5700-28P-LI-AC/DC: up to 24 W
S5700-28TP-LI-AC: up to 26.4 W
S5700-28P-LI-BAT: up to 23 W
S5700-28P-LI-24S-BAT: up to 34.1 W
S5700-52P-LI-AC/DC: up to 48.4 W
S5700-10P-PWR-LI-AC: up to 142.4 W
S5700-28P-PWR-LI-AC: up to 436.5 W
S5700-28TP-PWR-LI-AC: up to 469.7 W
S5701-28TP-PWR-LI-AC: up to 238.7 W
S5700-52P-PWR-LI-AC: up to 464.5 W
Acoustic noise
S5700-10P-LI-AC: 0 dB
S5700-28P-LI-AC/DC: 0 dB
S5700-28TP-LI-AC: up to 39.5 dBA
S5700-28P-LI-BAT: up to 43.2 dBA
S5700-28P-LI-24S-BAT: up to 46.1 dBA
S5700-52P-LI-AC/DC: up to 43.8 dB
S5700-10P-PWR-LI-AC: 0 dB
S5700-28P-PWR-LI-AC: up to 49.2 dB
S5700-28TP-PWR-LI-AC: up to 48 dB
S5701-28P-PWR-LI-AC: up to 45 dB
S5700-52P-PWR-LI-AC: up to 49.2 dB
Dimensions (HxWxD)
S5700-10P-LI-AC:

43.6 (1U) х 250 х 180 mm

(1.72 (1U) x 9.84 x 7.09 in)
S5700-28P-LI-AC/DC:

43.6 (1U) х 442 х 220 mm

(1.72 (1U) x 17.4 x 8.66 in)
S5700-28TP-LI-AC:

43.6 (1U) х 442 х 220 mm

(1.72 (1U) x 17.4 x 8.66 in)
S5700-28P-LI-BAT:

43.6 (1U) х 442 х 310 mm

(1.72 (1U) x 17.4 x 12.2 in)
S5700-28P-LI-24S-BAT:

43.6 (1U) х 442 х 310 mm

(1.72 (1U) x 17.4 x 12.2 in)
S5700-52P-LI-AC/DC:

43.6 (1U) х 442 х 310 mm

(1.72 (1U) x 17.4 x 12.2 in)
S5700-10P-PWR-LI-AC:

43.6 (1U) x 320 х 220 mm

(1.72 (1U) x 12.6 x 8.66 in)
S5700-28P-PWR-LI-AC:

43.6 (1U) х 442 х 310 mm

(1.72 (1U) x 17.4 x 12.2 in)
S5700-28TP-PWR-LI-AC:

43.6 (1U) х 442 х 310 mm

(1.72 (1U) x 17.4 x 12.2 in)
S5701-28TP-PWR-LI-AC:

43.6 (1U) х 442 х 310 mm

(1.72 (1U) x 17.4 x 12.2 in)
S5700-52P-PWR-LI-AC:

43.6 (1U) х 442 х 310 mm

(1.72 (1U) x 17.4 x 12.2 in)
Maximum Weight
S5700-10P-LI-AC: 1.3 kg (2.87 lb)
S5700-28P-LI-AC/DC: 2.8 kg (6.17 lb)
S5700-28TP-LI-AC: 2.8 kg (6.17 lb)
S5700-28P-LI-BAT: 2.8 kg (6.17 lb)
S5700-28P-LI-24S-BAT: 2.8 kg (6.17 lb)
S5700-52P-LI-AC/DC: 3.5 kg (7.72 lb)
S5700-10P-PWR-LI-AC: 2.3 kg (5.07 lb)
S5700-28P-PWR-LI-AC: 4.0 kg (8.9 lb)
S5700-28TP-PWR-LI-AC: 4.0 kg (8.9 lb)
S5701-28TP-PWR-LI-AC: 4.0 kg (8.9 lb)
S5700-52P-PWR-LI-AC: 4.2 kg (9.26 lb)
Compatible expansion cards

Not supported
