Huawei S5700-X-LI series

Download S5700-X-LI series Datasheet (eng)

Available to quote:

S5700-28X-LI-AC; S5700-28X-LI-DC;

S5700-52X-LI-AC; S5700-28X-LI-24S-AC;

S5700-28X-LI-24S-DC; S5700-52X-LI-48CS-AC

S5701-28X-LI-AC; S5701-28X-LI-24S-AC

S5700-28X-PWR-LI-AC; S5700-52X-PWR-LI-AC

EOLA:

S5700-52X-LI-DC

http://support.huawei.com/enterprise/NewsReadAction.action?newType=03&contentId=NEWS1000005321&idAbsPath=03_ROOT|03Second_0304|7919710|21782164|21782167

Request a Quote
SPECIFICATIONS
Interfaces

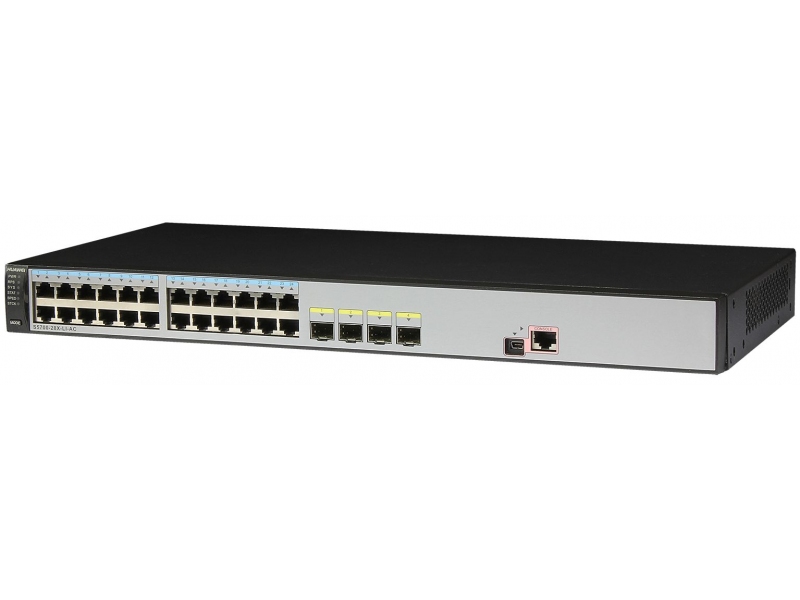

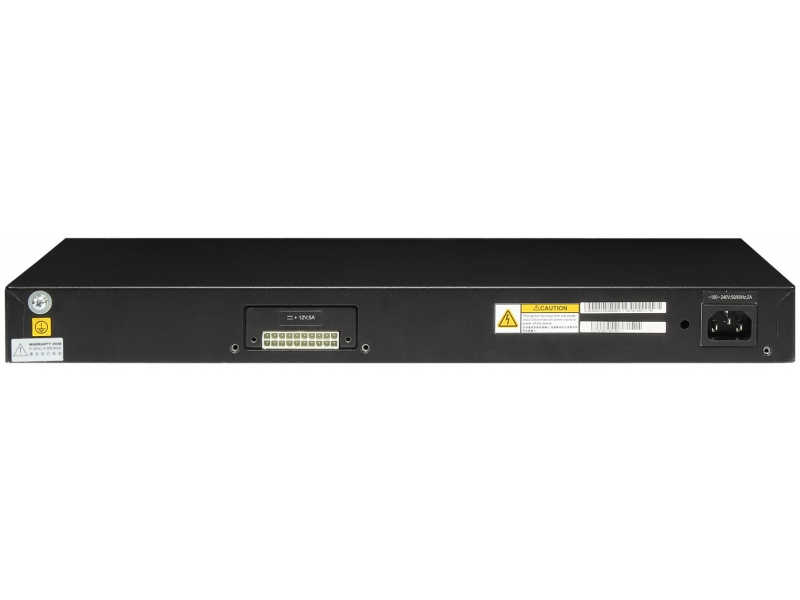

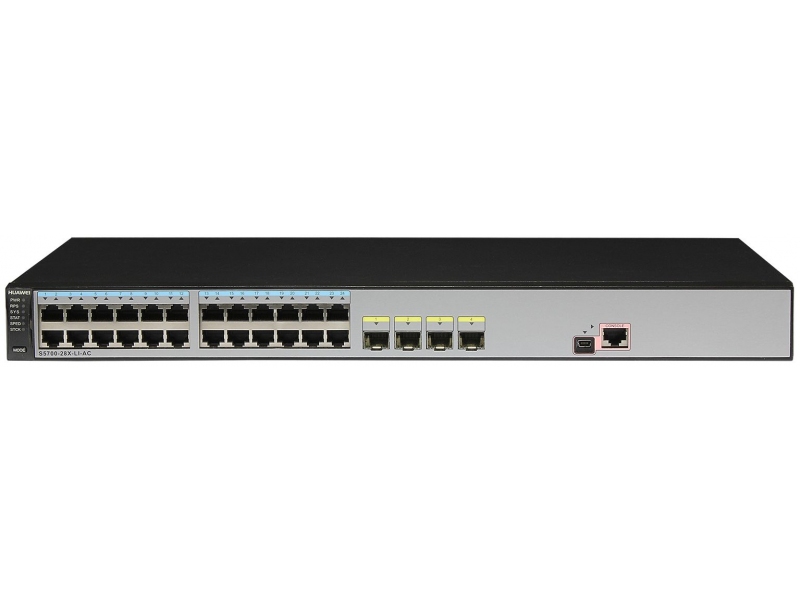

S5700-28X-LI-AC/DC:
  • 24-Port 10/100/1000MbE (RJ45);
  • 4-Port 10GbE (SFP+);
  • 1-Port console (RJ45/miniUSB);
  • 1-Port RPS

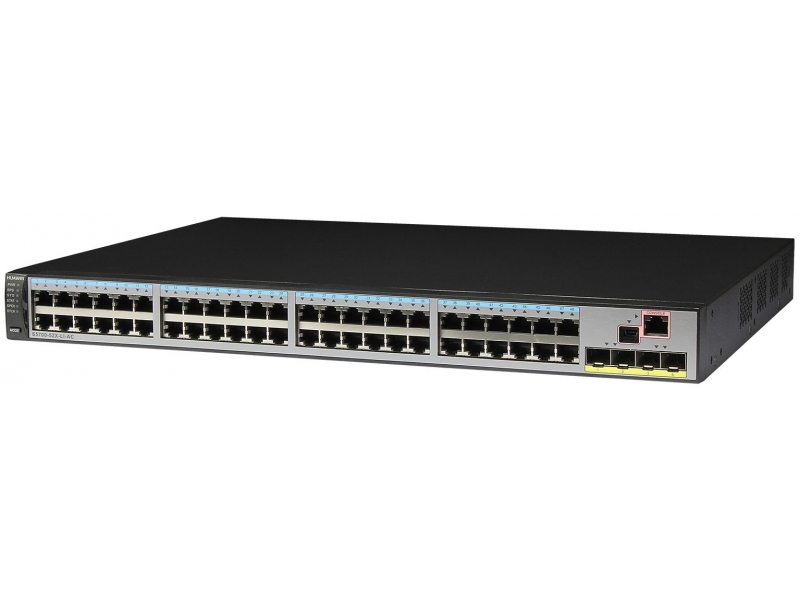

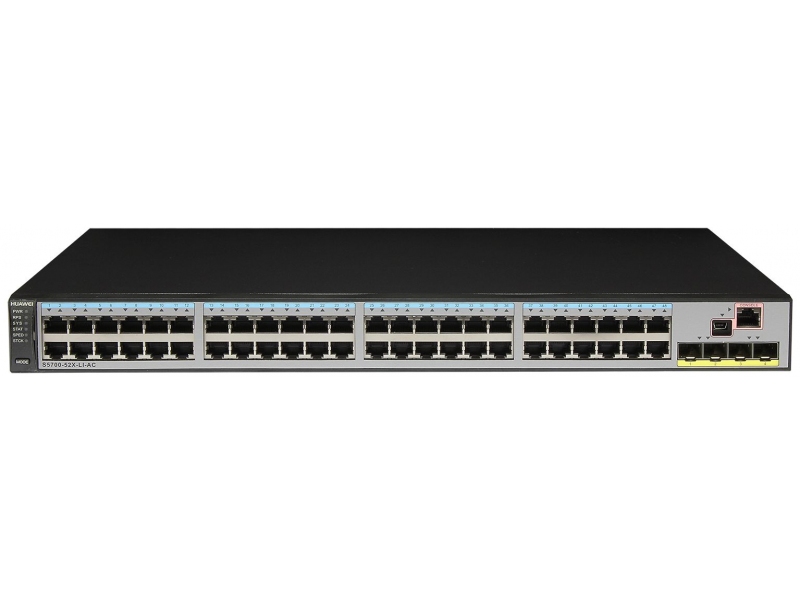

S5700-52X-LI-AC/DC:
  • 48-Port 10/100/1000MbE (RJ45);
  • 4-Port 10GbE (SFP+);
  • 1-Port console (RJ45/miniUSB);
  • 1-Port RPS

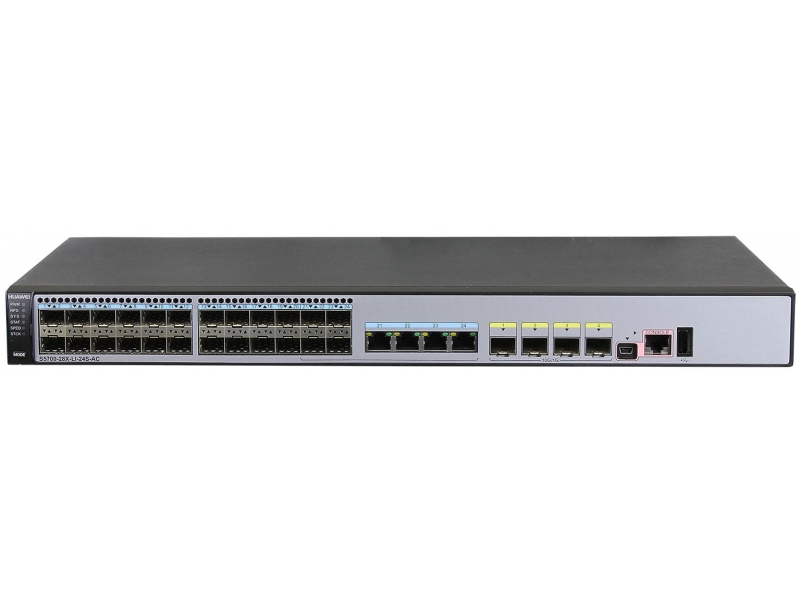

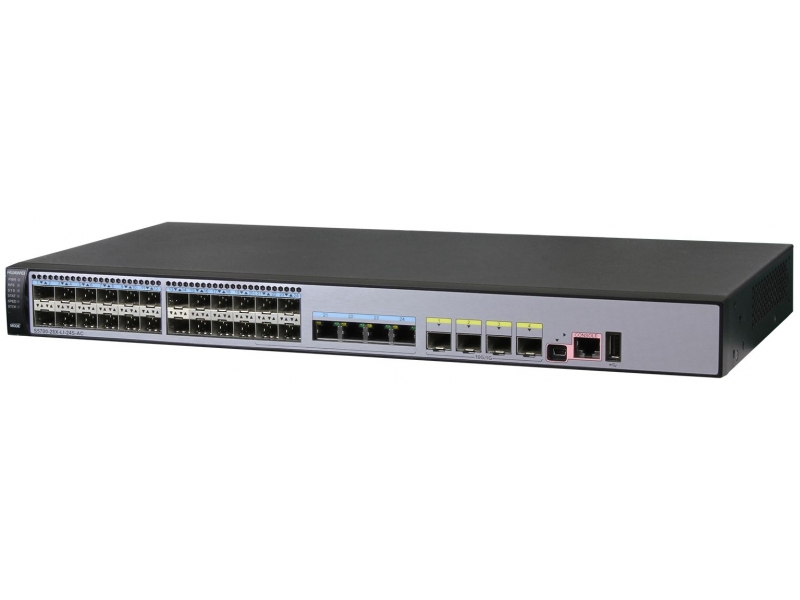

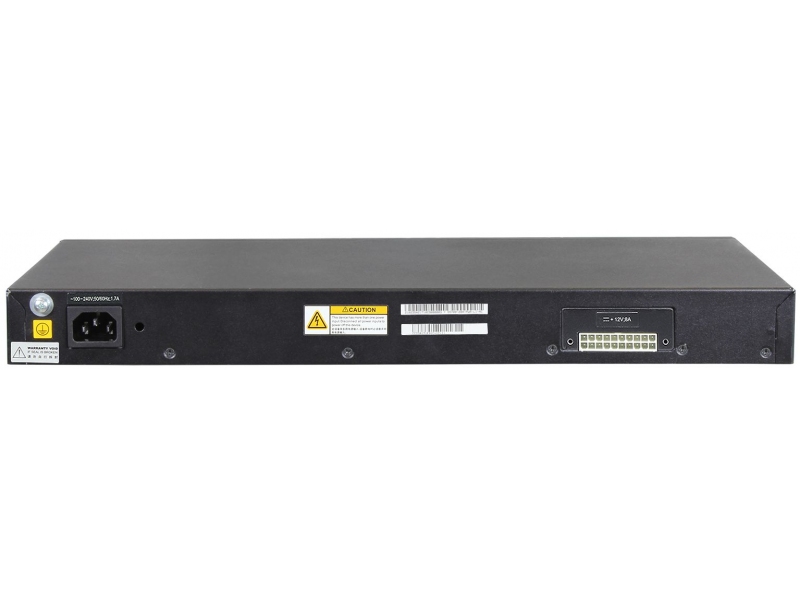

S5700-28X-LI-24S-AC/DC:
  • 20-Port 100/1000MbE (SFP);
  • 4-Port combo 1GbE (RJ45/SFP);
  • 4-Port 10GbE (SFP+);
  • 1-Port USB;
  • 1-Port console (RJ45/miniUSB);
  • 1-Port RPS

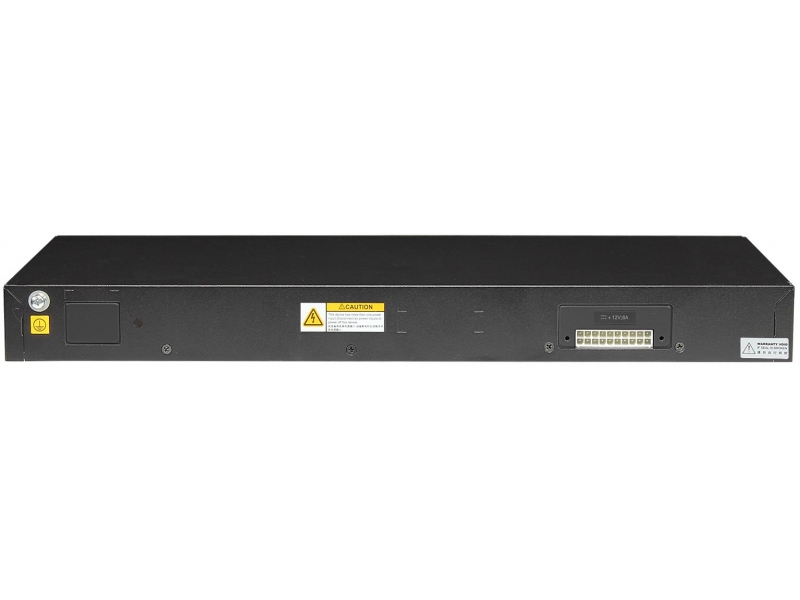

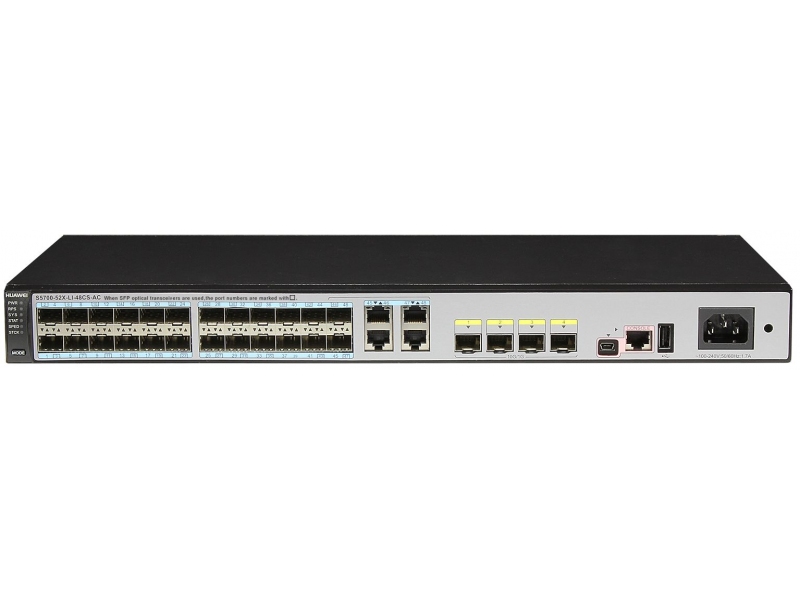

S5700-52X-LI-48CS-AC:
  • 22-Port 100/1000MbE (SFP)  or  44-Port 100/1000MbE (СSFP);
  • 4-Port combo 1GbE (RJ45/SFP);
  • 4-Port 10GbE (SFP+);
  • 1-Port USB;
  • 1-Port console (RJ45/miniUSB);
  • 1-Port RPS

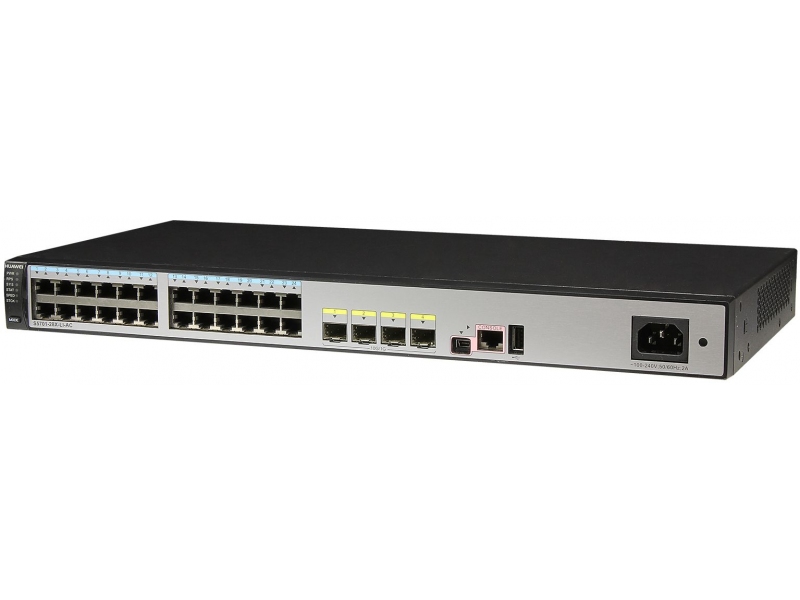

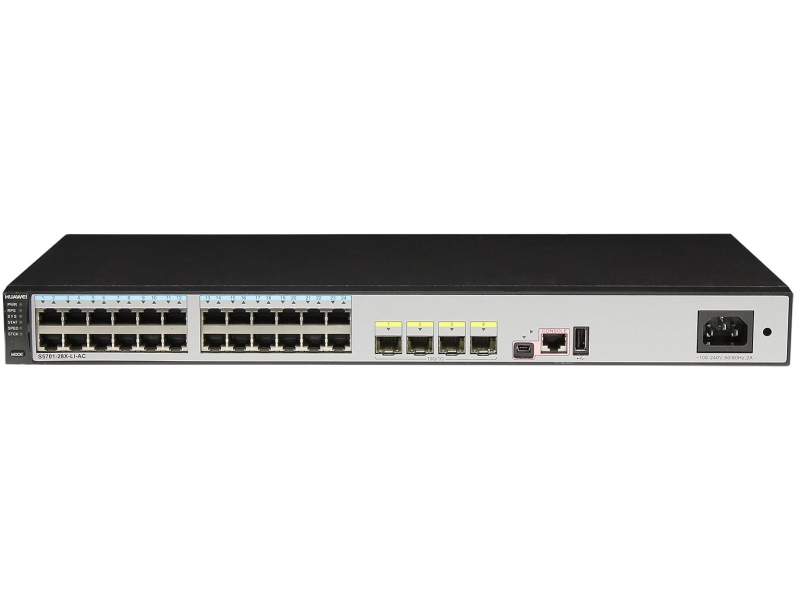

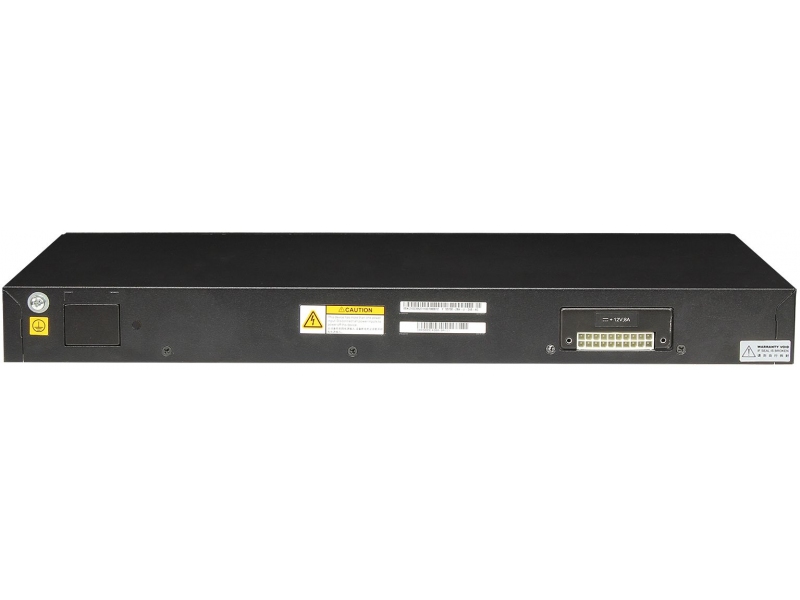

S5701-28X-LI-AC:
  • 24-Port 10/100/1000MbE (RJ45);
  • 4-Port 10GbE (SFP+);
  • 1-Port console (RJ45/miniUSB);
  • 1-Port USB;
  • 1-Port RPS

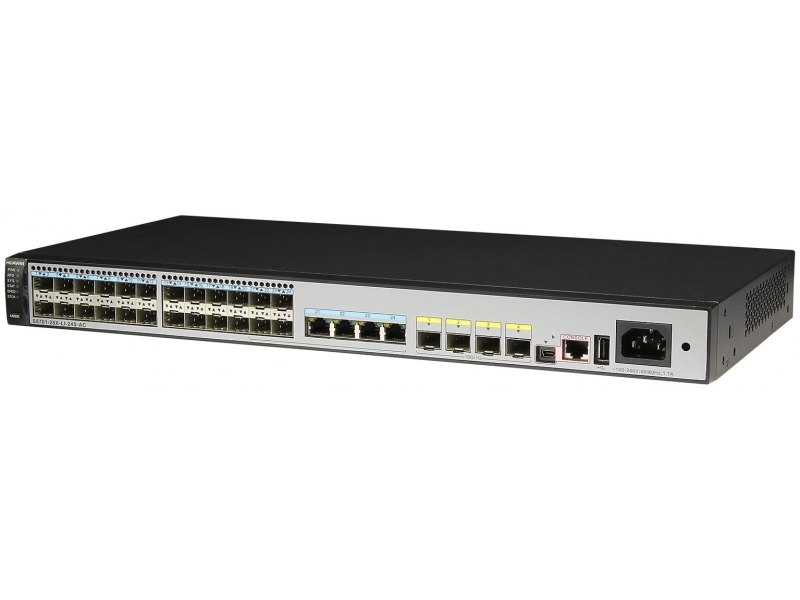

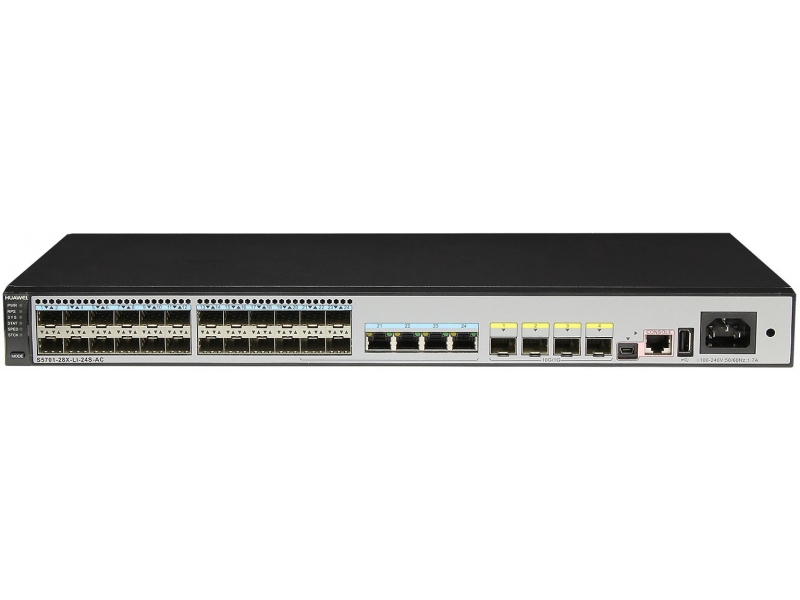

S5701-28X-LI-24S-AC:
  • 20-Port 100/1000MbE (SFP);
  • 4-Port combo 1GbE (RJ45/SFP);
  • 4-Port 10GbE (SFP+);
  • 1-Port USB;
  • 1-Port console (RJ45/miniUSB);
  • 1-Port RPS
S5700-28X-PWR-LI-AC:
  • 24-Port 10/100/1000MbE (RJ45) PoE;
  • 4-Port 10GbE (SFP+);
  • 1-Port console (RJ45/miniUSB);
  • 1-Port RPS
S5700-52X-PWR-LI-AC:
  • 48-Port 10/100/1000MbE (RJ45) PoE;
  • 4-Port 10GbE (SFP+);
  • 1-Port console (RJ45/miniUSB);
  • 1-Port RPS
Performance
Switching Bandwidth
S5700-28X-LI-AC/DC: 128 Gb/s
S5700-52X-LI-AC/DC: 256 Gb/s
S5700-28X-LI-24S-AC/DC: 128 Gb/s
S5700-52X-LI-48CS-AC: 256 Gb/s
S5701-28X-LI-AC: 128 Gb/s
S5701-28X-LI-24S-AC: 128 Gb/s
S5700-28X-PWR-LI-AC: 128 Gb/s
S5700-52X-PWR-LI-AC: 256 Gb/s

Forwarding Rate
S5700-28X-LI-AC/DC: 96 Mp/s
S5700-52X-LI-AC/DC: 132 Mp/s
S5700-28X-LI-24S-AC/DC: 96 Mp/s
S5700-52X-LI-48CS-AC: 132 Mp/s
S5701-28X-LI-AC: 96 Mp/s
S5701-28X-LI-24S-AC: 96 Mp/s
S5700-28X-PWR-LI-AC: 96 Mp/s
S5700-52X-PWR-LI-AC: 132 Mp/s

Layer 2 Features
MAC Address Table
Maximum Capacity: 16,000 entries
VLAN

IEEE 802.1Q: 4094; GVRP; QinQ; VLAN Translation
Layer 2 Reliability

STP/RSTP/MSTP; VBST (PVST+); SEP; RRPP; ERPS (G.8032)
Multicast
IGMP snooping: v1/v2/v3
IGMP groups: 1,024
Multicast VLAN (MVR): Supported
Multicast Routing: Not supported
Layer 3 features
ARP Table256 entries
Routing Table
IPv4: 32 routes
IPv6: 16 routes
IP RoutingStatic Routes
MPLS / VPN

Not supported
Security
IPv4 ACL: 900 Ingress + Egress
IPv6 ACL: 900 Ingress + Egress
Local AAA: Supported
RADIUS, TACACS+: Supported
DHCP Server Not supported
DHCP Relay option82: Supported
DHCP Snooping: Supported
Loop detection: Supported
IP Source Guard: Supported
Broadcast, multicast, unknown unicast suppression: Supported
Quality of Service
QoS queues: 8
Traffic Limit: Supported
Traffic Mark: by 802.1p, DSCP
IPv6

Static routes; IPv6 ACL; DHCPv6; Multicast Listener Discovery snooping (MLDv1/v2)
Management

Telnet; SSH; Web-management; LLDP; SNMP v1/v2/v3; RMON; Syslog; NTP
OAM

802.3ah (EFM); 802.1ag (CFM)
Environmental Conditions
Relative Humidity

10 to 90% (noncondensing)
Operating Temperature

-5 to +50°C (23 to 122°F)
Power Supply
Power Supply Unit (PSU)
AC PSU:
Type: Built-in
Quantity: 1
Rated voltage range: 100 to 240 VAC, 50-60 Hz
DC PSU:
Type: Built-in
Quantity: 1
Rated voltage range: -48 to -60 VDC
PoE (Power over Ethernet)
Supported by: S5700-28X-PWR-LI-AC, S5700-52X-PWR-LI-AC
PoE (802.3af) (15 W per port):
S5700-28X-PWR-LI-AC,  S5700-52X-PWR-LI-AC
Without RPS
S5700-28X-PWR-LI-AC 24 ports
S5700-52X-PWR-LI-AC 24 ports
Using RPS
S5700-28X-PWR-LI-AC 24 ports
S5700-52X-PWR-LI-AC 48 ports
PoE+ (802.3аt) (30 W per port):
S5700-28X-PWR-LI-AC, S5700-52X-PWR-LI-AC
Without RPS
S5700-28X-PWR-LI-AC 12 ports
S5700-52X-PWR-LI-AC 12 ports
Using RPS
S5700-28X-PWR-LI-AC 24 ports
S5700-52X-PWR-LI-AC 26 ports
Maximum power consumption
S5700-28X-LI-AC/DC: up to 42 W
S5700-52X-LI-AC/DC: up to 61 W
S5700-28X-LI-24S-AC/DC: up to 60 W
S5700-52X-LI-48CS-AC: up to 80 W
S5701-28X-LI-AC: up to 40 W
S5701-28X-LI-24S-AC: up to 60 W
S5700-28X-PWR-LI-AC: up to 448.8 W
S5700-52X-PWR-LI-AC: up to 479.3 W
Acoustic noise
S5700-28X-LI-AC/DC: up to 44.9 dB
S5700-52X-LI-AC/DC: up to 47.9 dB
S5700-28X-LI-24S-AC/DC: up to 49.6 dB
S5700-52X-LI-48CS-AC: up to 67.3 dB
S5701-28X-LI-AC: up to 45.8 dB
S5701-28X-LI-24S-AC: up to 49.6 dB
S5700-28X-PWR-LI-AC: up to 49.5 dB
S5700-52X-PWR-LI-AC: up to 50.2 dB
Dimensions (HxWxD)
S5700-28X-LI-AC/DC:

43.6 (1U) х 442 х 220 mm

(1.72 (1U) x 17.4 x 8.66 in)
S5700-52X-LI-AC/DC:

43.6 (1U) х 442 х 220 mm

(1.72 (1U) x 17.4 x 8.66 in)
S5700-28X-LI-24S-AC/DC:

43.6 (1U) х 442 х 220 mm

(1.72 (1U) x 17.4 x 8.66 in)
S5700-52X-LI-48CS-AC:

43.6 (1U) х 442 х 220 mm

(1.72 (1U) x 17.4 x 8.66 in)
S5701-28X-LI-AC:

43.6 (1U) х 442 х 220 mm

(1.72 (1U) x 17.4 x 8.66 in)
S5701-28X-LI-24S-AC:

43.6 (1U) х 442 х 220 mm

(1.72 (1U) x 17.4 x 8.66 in)
S5700-28X-PWR-LI-AC:

43.6 (1U) х 442 х 310 mm

(1.72 (1U) x 17.4 x 12.2 in)
S5700-52X-PWR-LI-AC:

43.6 (1U) х 442 х 310 mm

(1.72 (1U) x 17.4 x 12.2 in)

Maximum Weight
S5700-28X-LI-AC/DC: 3.36 kg (7.41 lb)
S5700-52X-LI-AC/DC: 4.42 kg (9.74 lb)
S5700-28X-LI-24S-AC/DC: 3.5 kg (7.72 lb)
S5700-52X-LI-48CS-AC: 3.5 kg (7.72 lb)
S5701-28X-LI-AC: 3.5 kg (7.72 lb)
S5701-28X-LI-24S-AC: 3.5 kg (7.72 lb)
S5700-28X-PWR-LI-AC: 4.66 kg (10.27 lb)
S5700-52X-PWR-LI-AC: 4.78 kg (10.54 lb)

Compatible expansion cards

Not supported
