| Interfaces | |
|

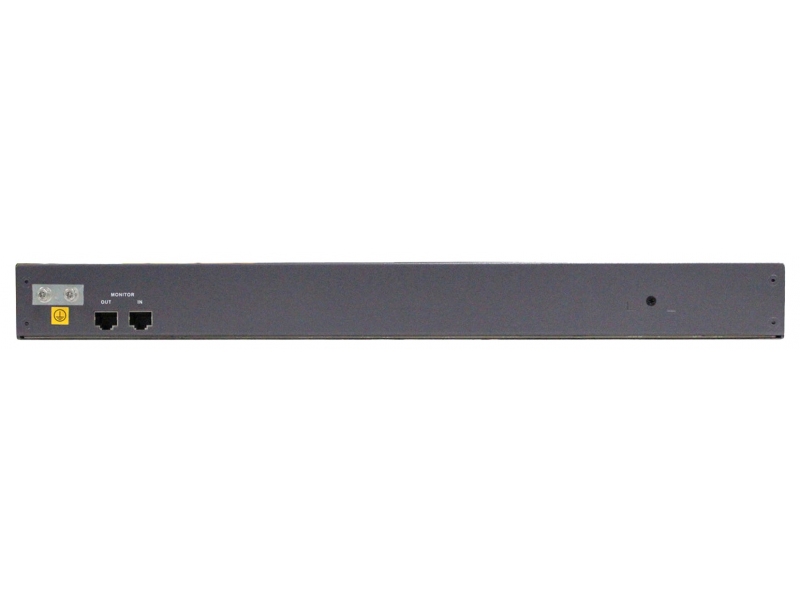

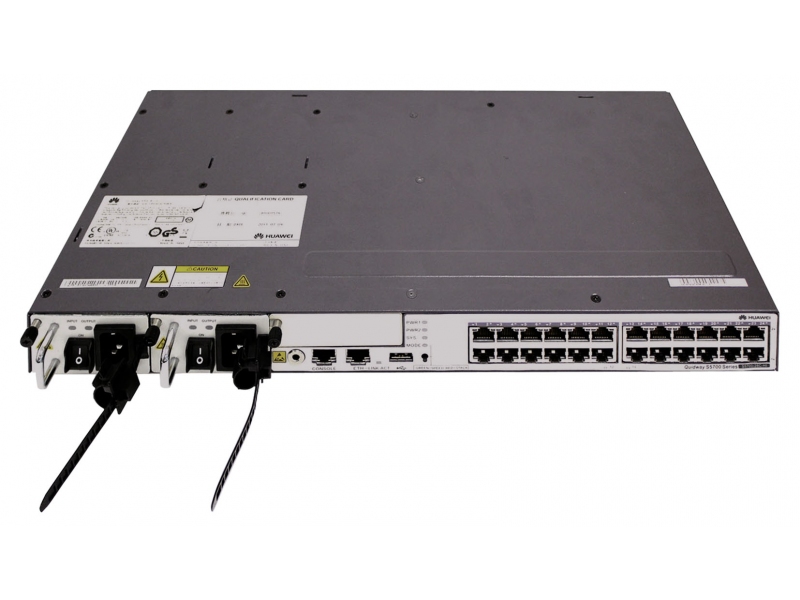

| S5700-28C-HI: |
- 24-Port 10/100/1000MbE (RJ45);
- 1 Expansion slot;
- 1-Port console (RJ45);
- 1-Port out-of-band management 10/100MbE (RJ45);
- 1-Port USB;
- 1-Port monitoring (RJ45)
|

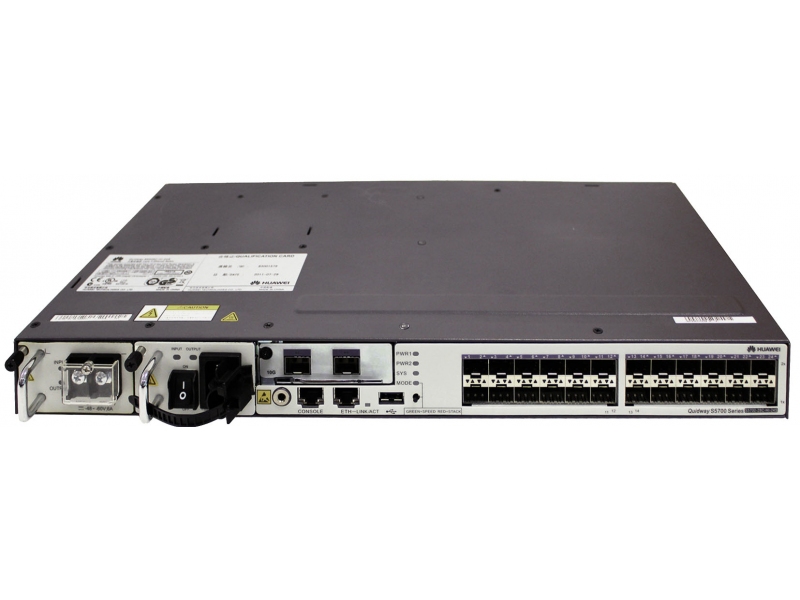

| S5700-28C-HI-24S: |
- 24-Port 100/1000MbE (SFP);
- 1 Expansion slot;
- 1-Port console (RJ45);
- 1-Port out-of-band management 10/100MbE (RJ45);
- 1-Port USB;
- 1-Port monitoring (RJ45)
|

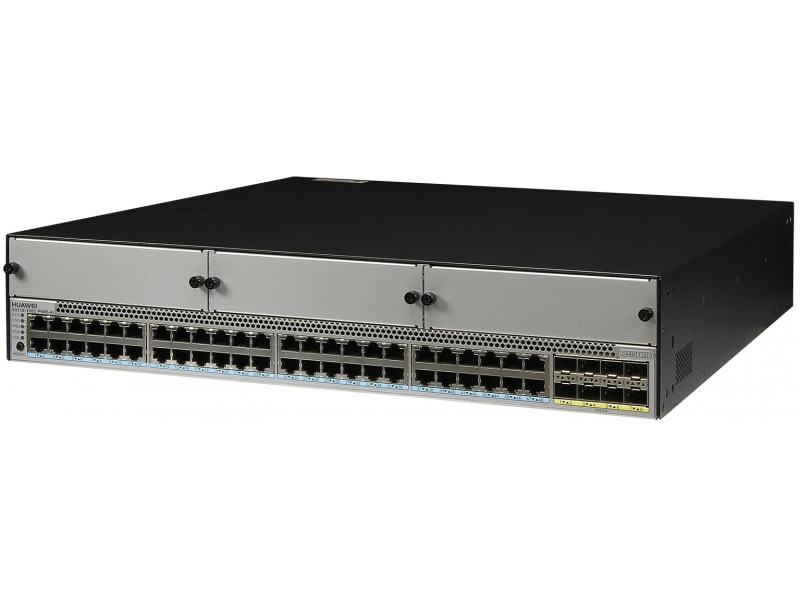

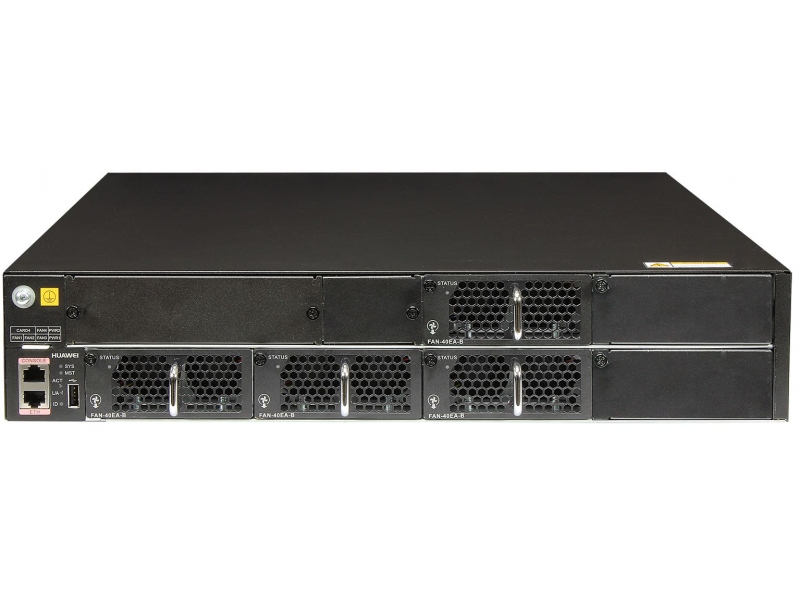

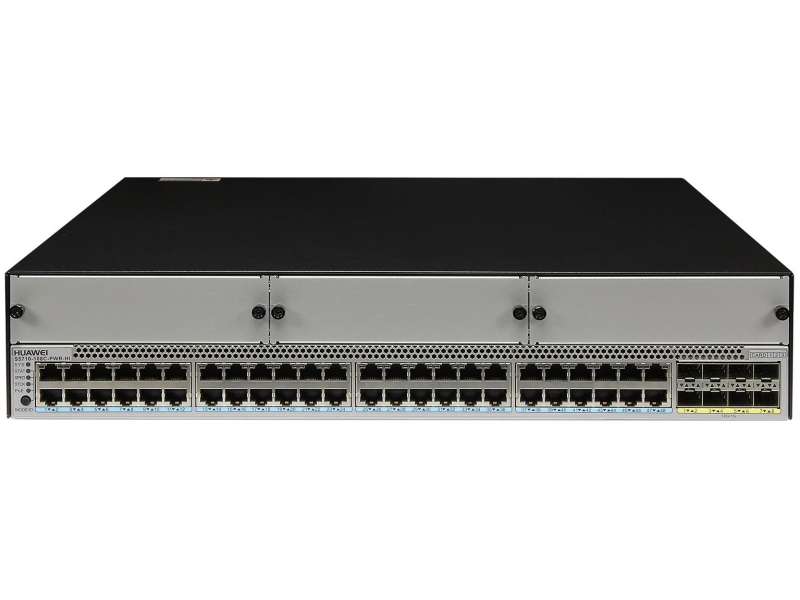

| S5710-108C-PWR-HI: |
- 48-Port 10/100/1000MbE (RJ45) PoE;
- 8-Port 10GbE (SFP+);
- 3 Front expansion slots;
- 1 Rear expansion slot
- 1-Port console (RJ45);
- 1-Port out-of-band management 10/100MbE (RJ45);
- 1-Port USB
|
|
| Performance | |
| Switching Bandwidth |
|
S5700-28C-HI:
S5700-28C-HI-24S:
|
256 Gbit/s |
| S5710-108C-PWR-HI: |
1024 Gbit/s |
|
| Forwarding Rate |
|
S5700-28C-HI:
S5700-28C-HI-24S:
|
96 Mp/s |
| S5710-108C-PWR-HI: |
504 Mp/s
|
|
| Layer 2 Features | |
| MAC Address Table |
|
S5700-28C-HI:
S5700-28C-HI-24S:
|
32,000 entries |
| S5710-108C-PWR-HI: |
456,000 entries |
|
| VLAN | IEEE 802.1Q: 4094. GVRP; QinQ; VLAN Translation |
| Layer 2 Reliability | STP/RSTP/MSTP; VBST; SEP; RRPP; ERPS (G.8032) |
| Multicast | |
|
| IGMP snooping: |
v1/v2/v3 |
| IGMP groups: |
2048 |
| Multicast VLAN (MVR): |
Supported |
| Multicast Routing: |
PIM-DM; PIM-SM; PIM-SSM |
|
| Layer 3 features | |
| ARP Table | 16,000 entries |
| Routing Table |
| IPv4: |
12,000 routes |
| IPv6 |
6,000 routes |
|
| IP Routing | Static Routes, RIPv1/2, OSPFv2, IS-IS, BGP, VRRP |
| MPLS / VPN | |
| Supported. MPLS LDP, L2VPN, VPLS |
| Security | |
|
| Local AAA: |
Supported |
| RADIUS, TACACS+: |
Supported |
| DHCP Server |
Supported |
| DHCP Relay option82: |
Supported |
| DHCP Snooping: |
Supported |
| Loop detection: |
Supported |
| IP Source Guard: |
Supported |
| Bandwidth Limit: |
Supported |
| Broadcast, multicast, unknown unicast suppression: |
Supported |
|
| Management | |
| Telnet; SSH; Web-management; LLDP; SNMP v1/v2/v3; RMON; Syslog; NTP |
| Environmental Conditions | |
| Relative Humidity | 10 to 90% (noncondensing) |
| Operating Temperature | -5 to +55°C (23 to 131°F) |
| Power Supply | |
| Power Supply Unit (PSU) |
| AC PSU: |
|
| Type: |
Removable |
| Quantity: |
2 |
| Rated voltage range: |
100 to 240 VAC, 50-60 Hz |
|
|
| DC PSU: |
|
| Type: |
Removable |
| Quantity: |
|
| S5700-28C-HI: |
2 |
| S5700-28C-HI-24S: |
2 |
| S5710-108C-PWR-HI: |
Not supported |
| Rated voltage range: |
-48 to -60 VDC |
|
| PoE (Power over Ethernet) |
| Supported by: |
S5710-108C-PWR-HI |
| PoE (802.3af) (15W per port): |
48 ports |
| PoE+ (802.3аt) (30 W per port): |
48 ports (using 2 x 1150 W PSU) |
|
| Maximum power consumption | |
|
| S5700-28C-HI: |
76 W |
| S5700-28C-HI-24S: |
80 W |
| S5710-108C-PWR-HI: |
2300 W |
|
| Acoustic noise | |
|
| S5700-28C-HI: |
40 dBA |
| S5700-28C-HI-24S: |
60 dBA |
| S5710-108C-PWR-HI: |
63.7 dBA
|
|
| Dimensions (HxWxD) | |
|
|
S5700-28C-HI:
S5700-28C-HI-24S:
|
43.6 (1U) х 442 х 220 mm
(1.72 (1U) x 17.4 x 8.66 in)
|
| S5710-108C-PWR-HI: |
87.2 (2U) x 442 x 470 mm
(3.43 (2U) x 17.4 x 18.50 in)
|
|
| Maximum Weight | |
|
|
S5700-28C-HI:
S5700-28C-HI-24S:
|
4.1 kg (9.0 lb) |
| S5710-108C-PWR-HI: |
10.8 kg (23.8 lb)
|
|
| Compatible expansion cards | |
|
| Model Number |
Description |
| Supported by: |
S5700-28C-HI
S5700-28C-HI-24S
|
| ES5D00X2SA00: |
2-Port 1/10GbE (SFP/SFP+) |
| ES5D00X4SA00: |
4-Port 1/10GbE (SFP/SFP+) |
| ES5D00G4SC00: |
4-Port 1GbE (SFP) |
| Supported by: |
S5710-108C-PWR-HI |
| ES5D21G16S00: |
16-Port 1GbE (SFP) (front card) |
| ES5D21G16T00: |
16-Port 1GbE (RJ45) (front card) |
| ES5D21X04S00: |
4-Port 10GbE (SFP+) (rear card) |
| ES5D21L04Q00: |
4-Port 40GbE (QSFP+) (rear card) |
|
