Huawei S5720-EI series

Download S5720-EI series Datasheet (eng)

Available to quote:

S5720-32P-EI-AC; S5720-52P-EI-AC

S5720-36C-EI-AC; S5720-56C-EI-AC

S5720-36C-EI-28S-AC; S5720-56C-EI-48S-AC

S5720-36C-PWR-EI-AC; S5720-56C-PWR-EI-AC

S5720-56C-PWR-EI-AC1; S5720-36РC-EI-AC

S5720-56РC-EI-AC

Request a Quote
SPECIFICATIONS
Interfaces

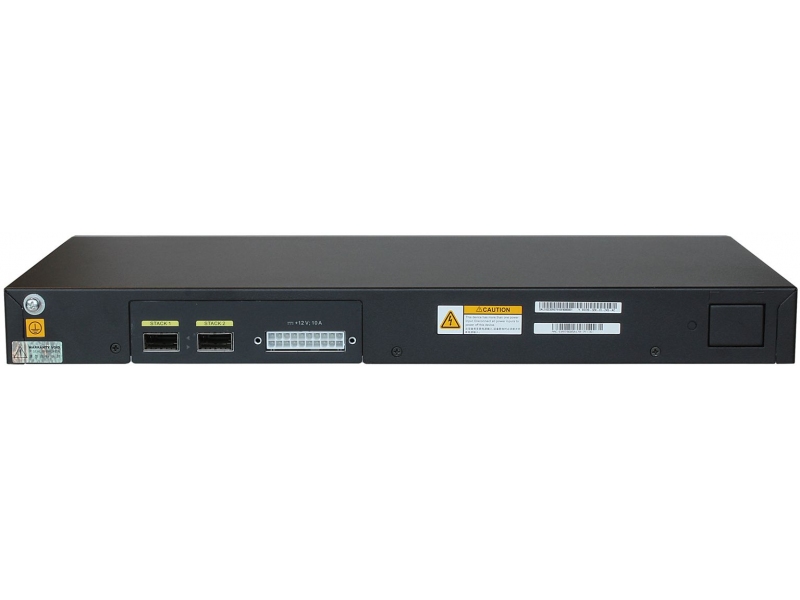

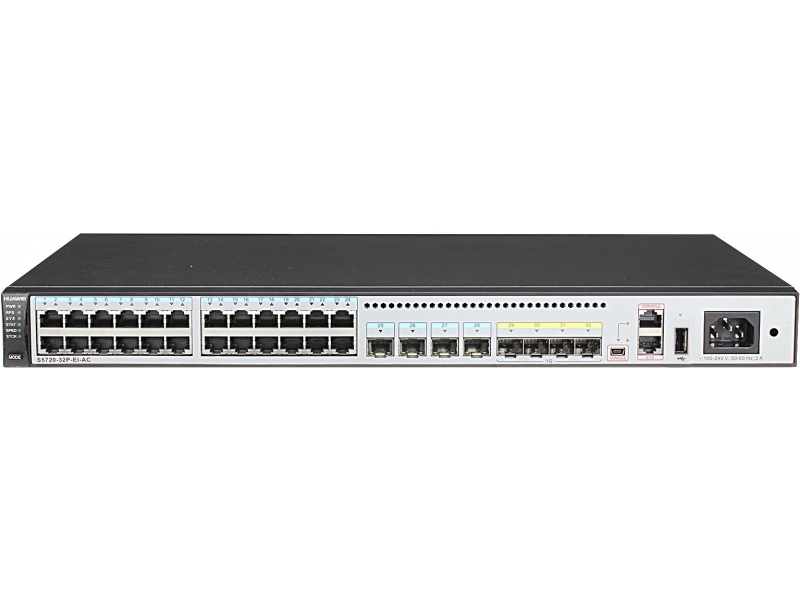

S5720-32P-EI-AC:
  • 24-Port 10/100/1000MbE (RJ45);
  • 4-Port 100/1000MbE (SFP);
  • 4-Port 10GbE (SFP+);
  • 2-Port Stack (QSFP+);
  • 1-Port console (RJ45/miniUSB);
  • 1-Port out-of-band management 10/100MbE (RJ45);
  • 1-Port USB;
  • 1-Port RPS

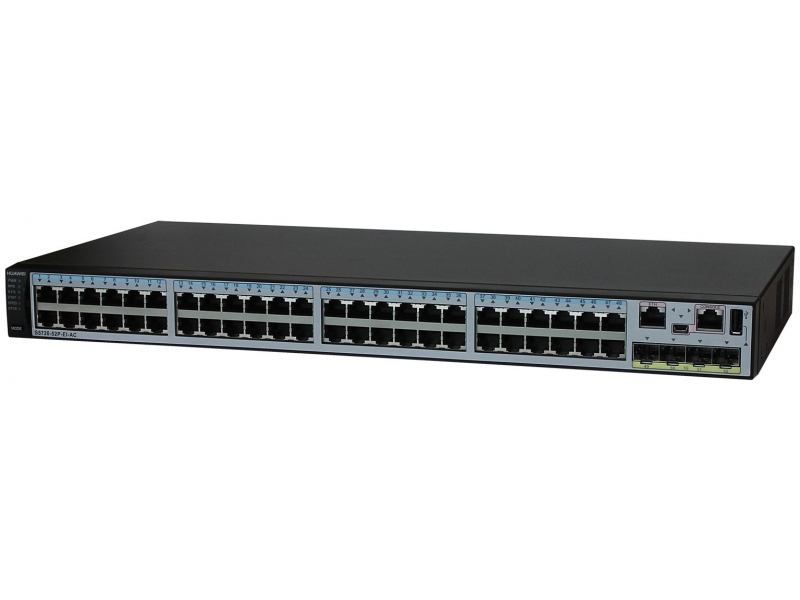

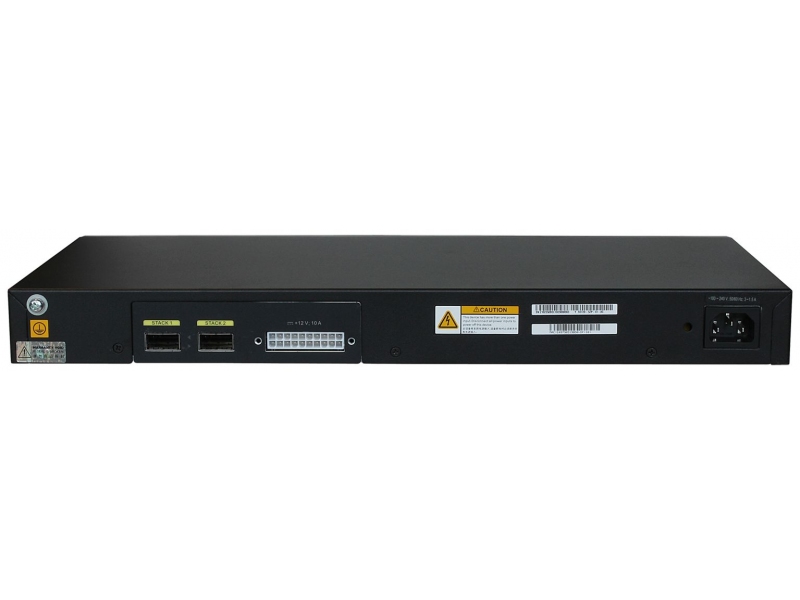

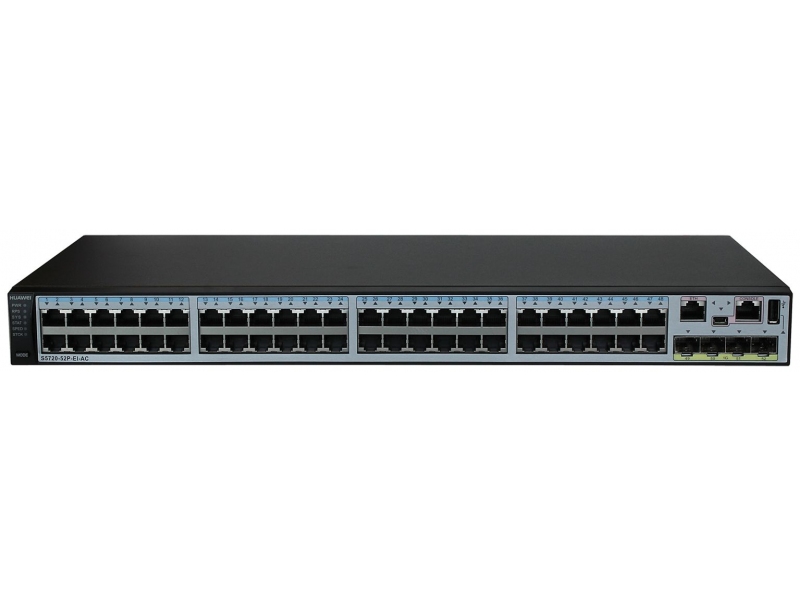

S5720-52P-EI-AC:
  • 48-Port 10/100/1000MbE (RJ45);
  • 4-Port 100/1000MbE (SFP);
  • 4-Port 10GbE (SFP+);
  • 2-Port Stack (QSFP+);
  • 1-Port console (RJ45/miniUSB);
  • 1-Port out-of-band management 10/100MbE (RJ45);
  • 1-Port USB;
  • 1-Port RPS

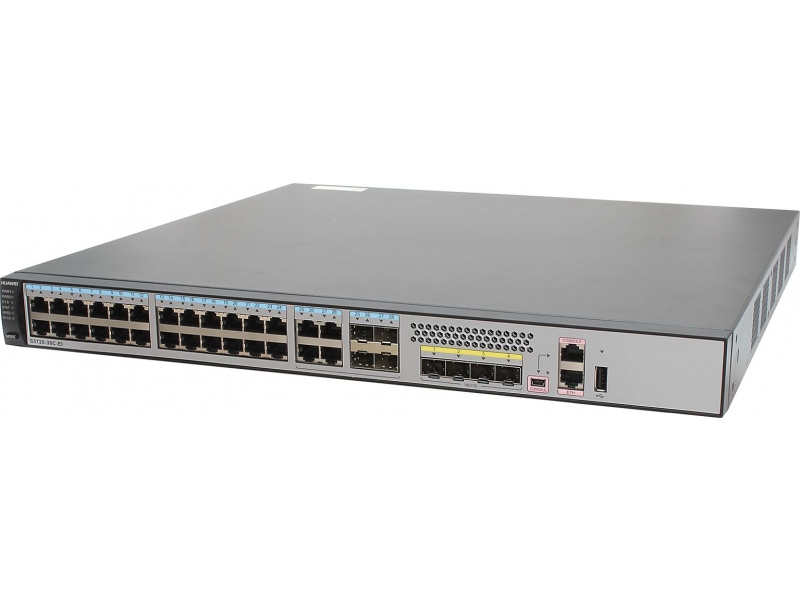

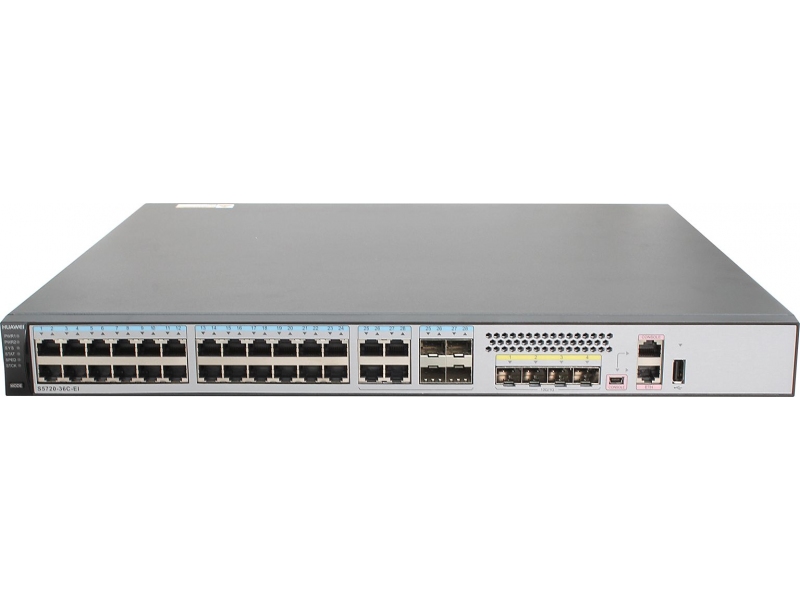

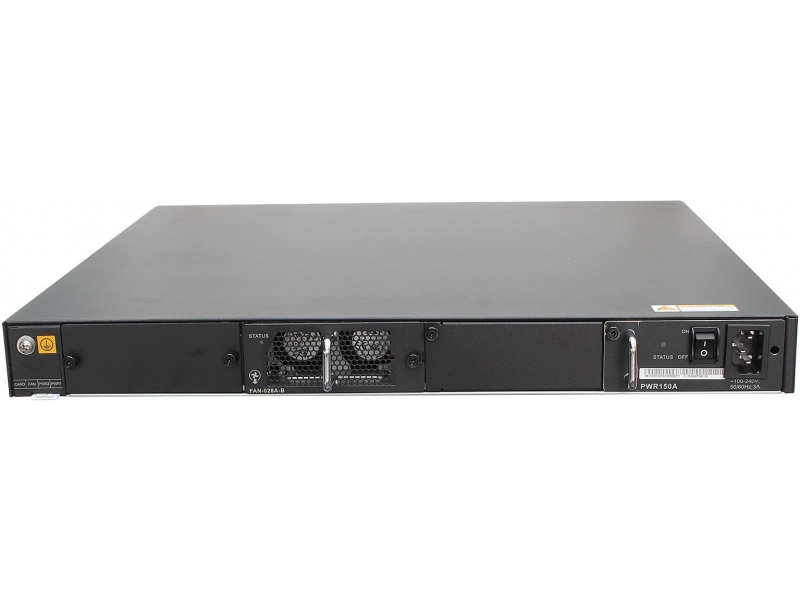

S5720-36С-EI-AC:
  • 28-Port 10/100/1000MbE (RJ45);
  • 4-Port combo (10/100/1000MbE (RJ45) / 100/1000MbE (SFP);
  • 4-Port 10GbE (SFP+);
  • 1 expansion slot;
  • 1-Port console (RJ45/miniUSB);
  • 1-Port out-of-band management 10/100MbE (RJ45);
  • 1-Port USB

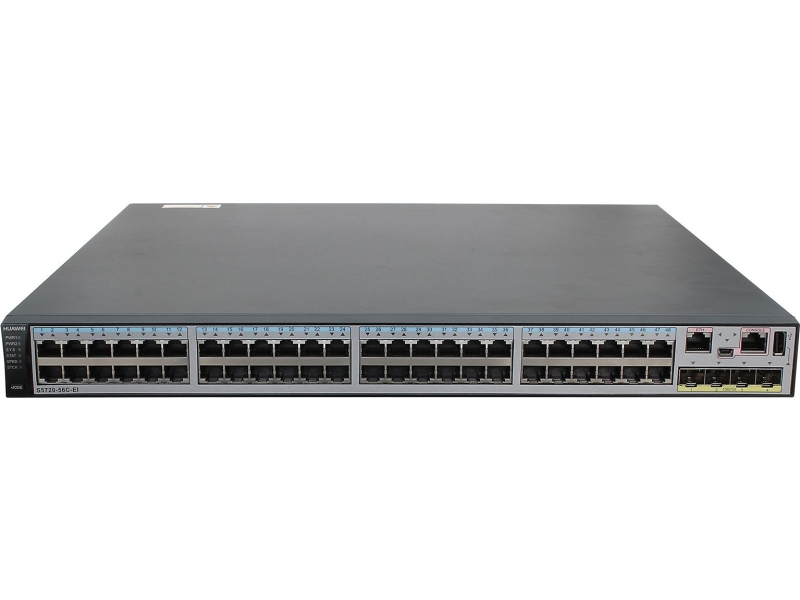

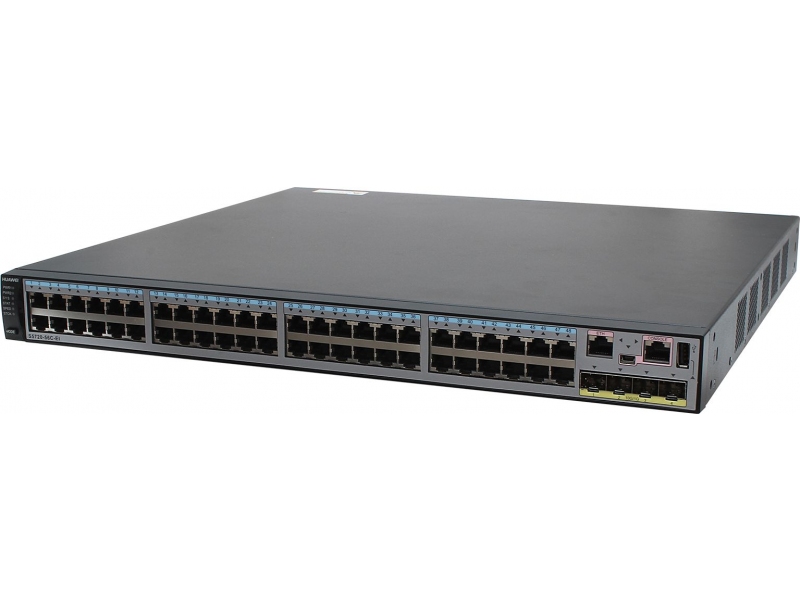

S5720-56С-EI-AC:
  • 48-Port 10/100/1000MbE (RJ45);
  • 4-Port 10GbE (SFP+);
  • 1 expansion slot;
  • 1-Port console (RJ45/miniUSB);
  • 1-Port out-of-band management 10/100MbE (RJ45);
  • 1-Port USB

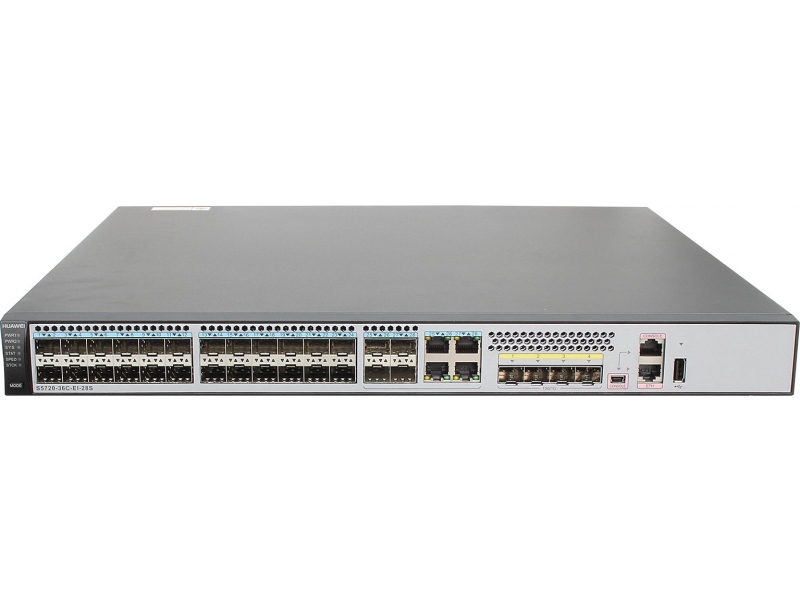

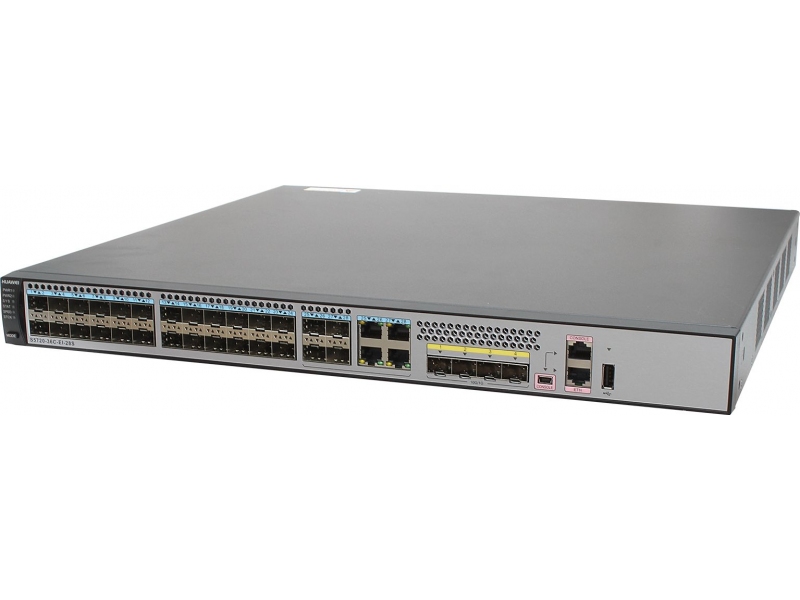

S5720-36С-EI-28S-AC:
  • 24-Port 100/1000MbE (SFP);
  • 4-Port combo (10/100/1000MbE (RJ45) / 100/1000MbE (SFP);
  • 4-Port 10GbE (SFP+);
  • 1 expansion slot;
  • 1-Port console (RJ45/miniUSB);
  • 1-Port out-of-band management 10/100MbE (RJ45);
  • 1-Port USB

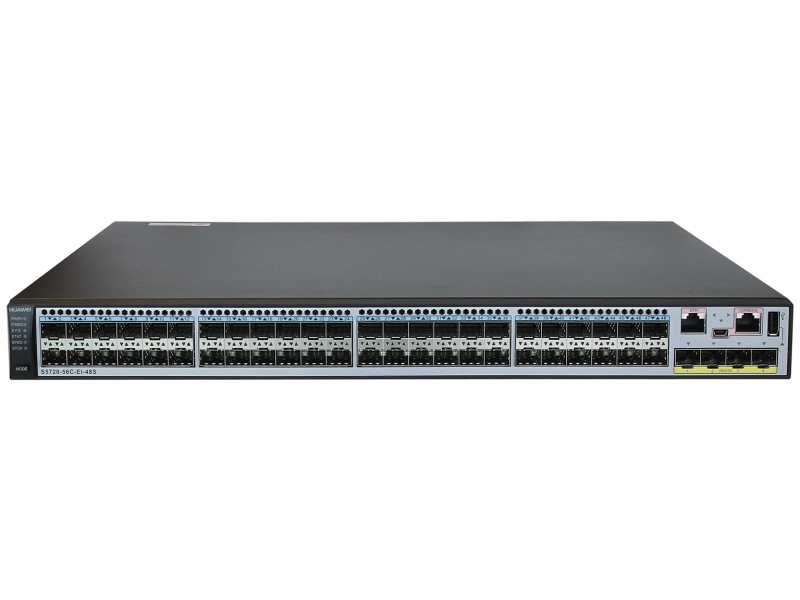

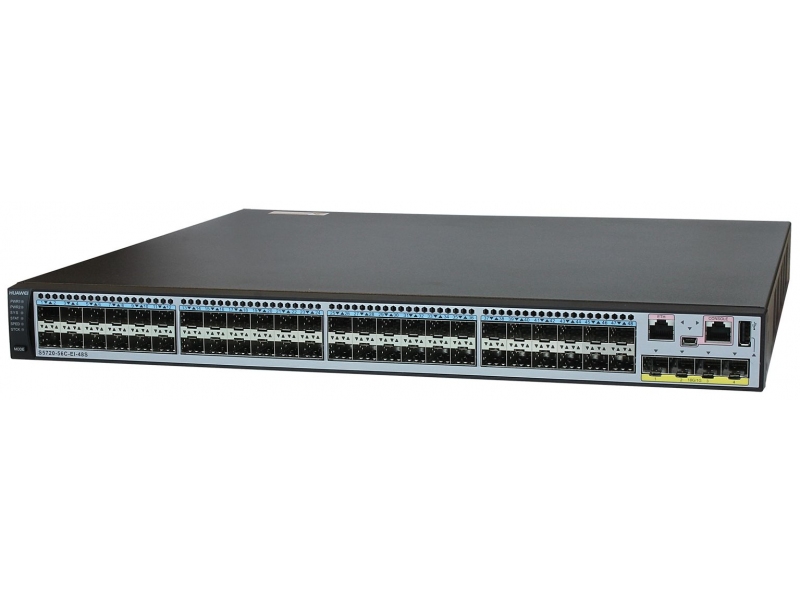

S5720-56С-EI-48S-AC:
  • 48-Port 100/1000MbE (SFP);
  • 4-Port 10GbE (SFP+);
  • 1 expansion slot;
  • 1-Port console (RJ45/miniUSB);
  • 1-Port out-of-band management 10/100MbE (RJ45);
  • 1-Port USB.

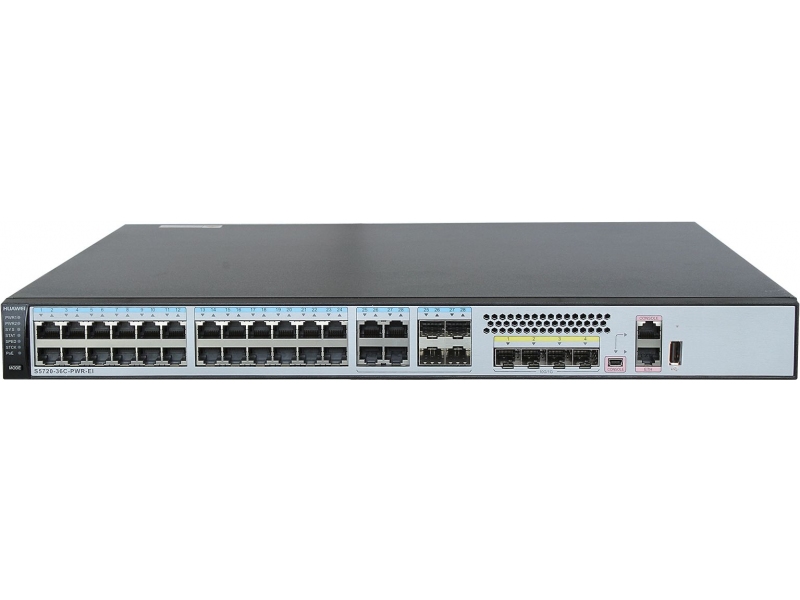

S5720-36С-PWR-EI-AC:
  • 28-port 10/100/1000MbE (RJ45) PoE;
  • 4-Port combo 1GbE (RJ45/SFP);
  • 4-Port 10GbE (SFP+);
  • 1 expansion slot;
  • 1-Port console (RJ45/miniUSB);
  • 1-Port out-of-band management 10/100MbE (RJ45);
  • 1-Port USB

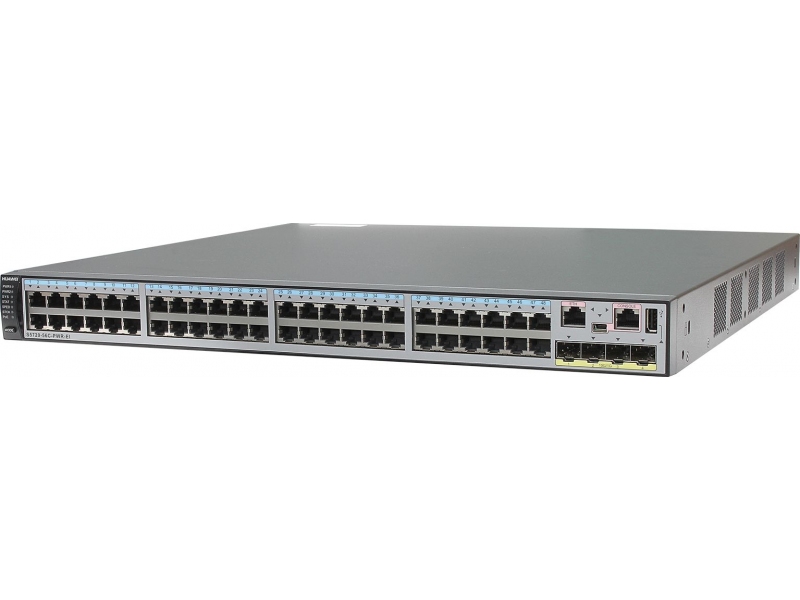

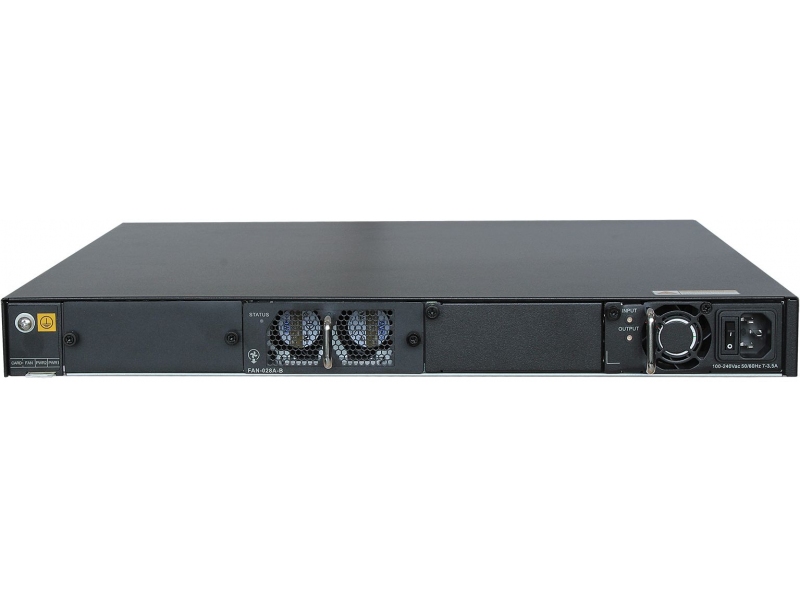

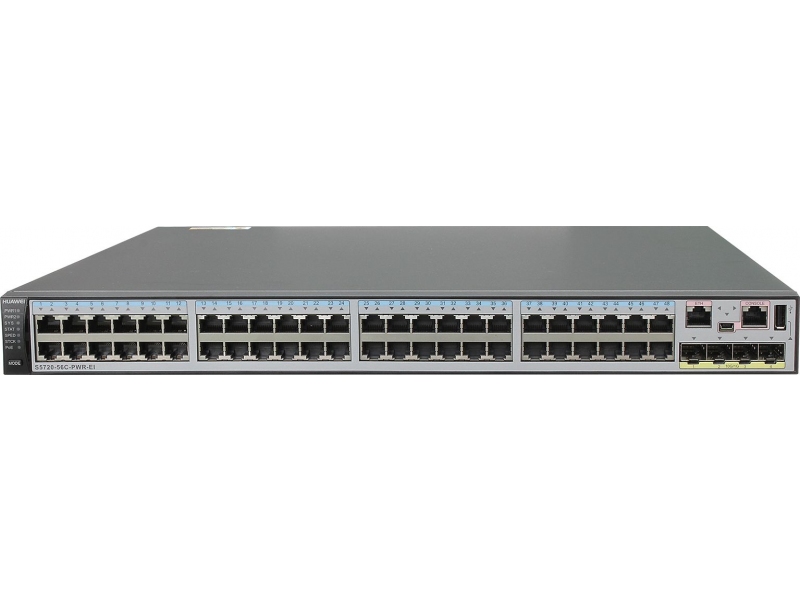

S5720-56С-PWR-EI-AC:
  • 48-Port 10/100/1000MbE (RJ45) PoE;
  • 4-Port 10GbE (SFP+);
  • 1 expansion slot;
  • 1-Port console (RJ45/miniUSB);
  • 1-Port out-of-band management 10/100MbE (RJ45);
  • 1-Port USB

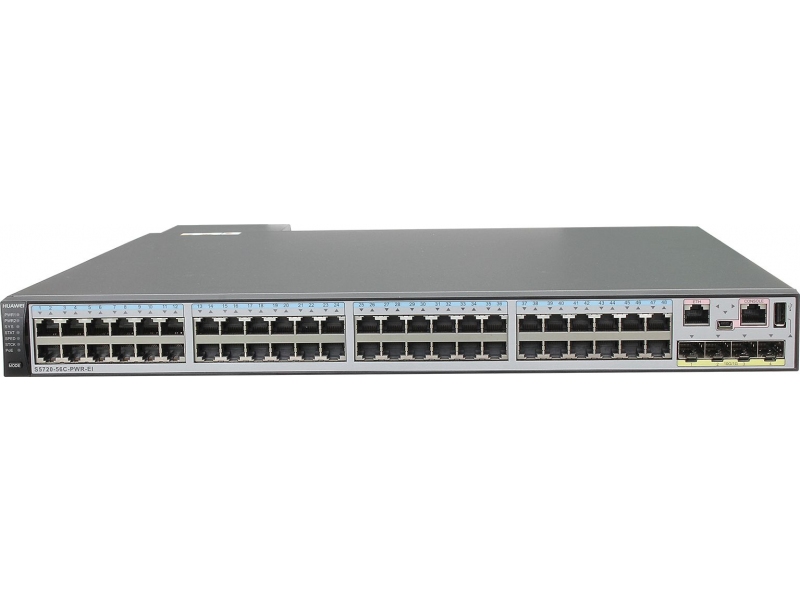

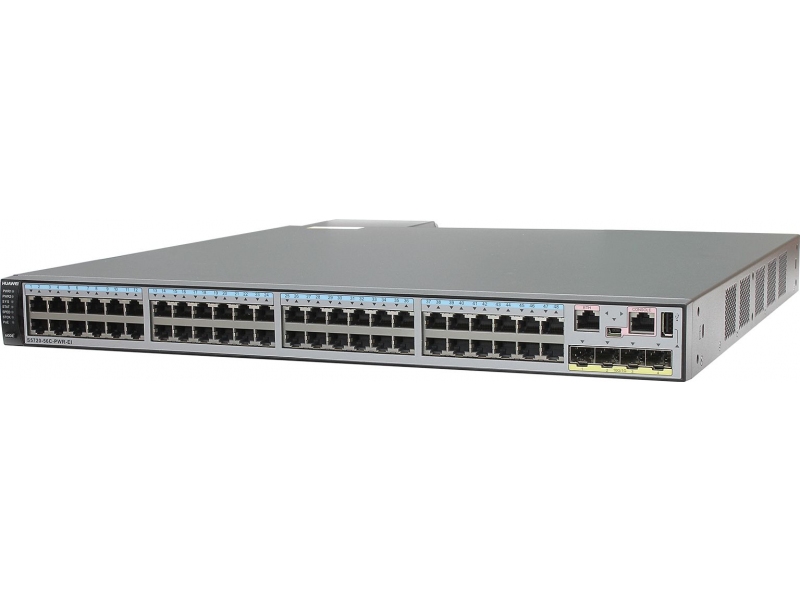

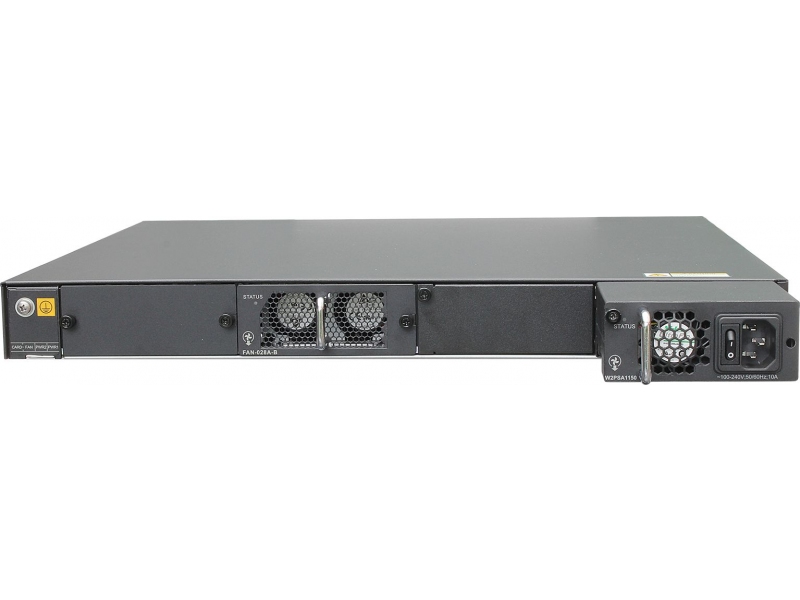

S5720-56С-PWR-EI-AC1:
  • 48-Port 10/100/1000MbE (RJ45) PoE;
  • 4-Port 10GbE (SFP+);
  • 1 expansion slot;
  • 1-Port console (RJ45/miniUSB);
  • 1-Port out-of-band management 10/100MbE (RJ45);
  • 1-Port USB

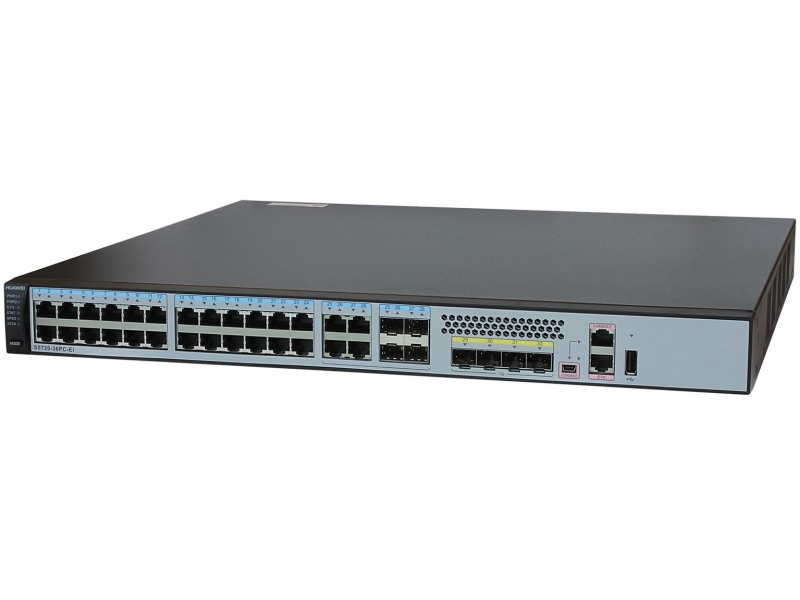

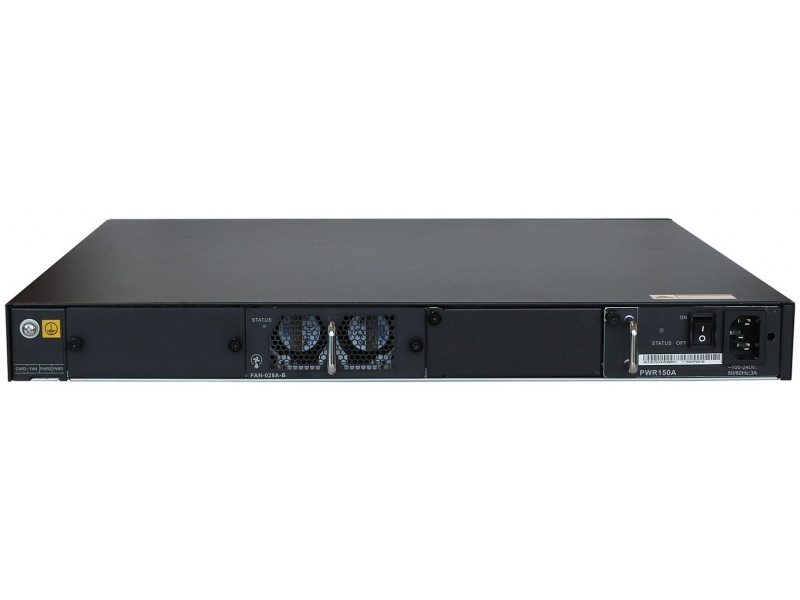

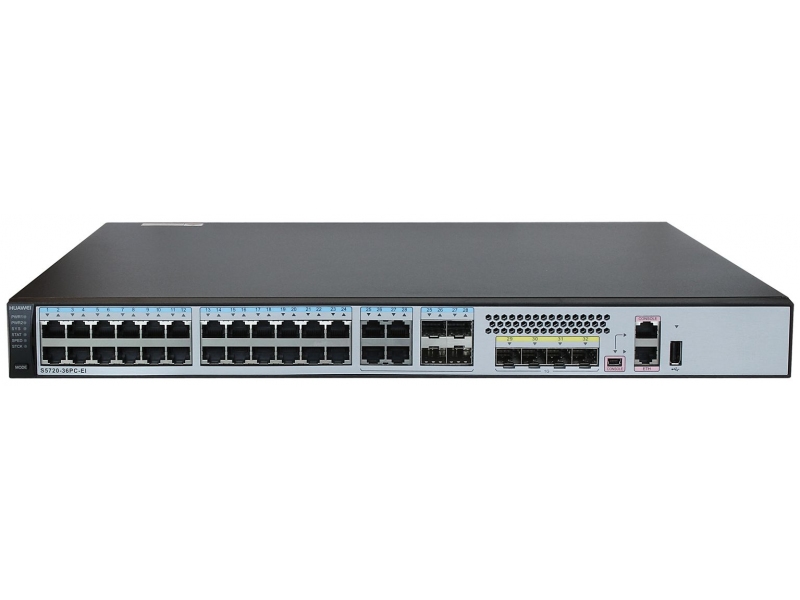

S5720-36PС-EI-AC:
  • 28-Port 10/100/1000MbE (RJ45);
  • 4-Port combo 1GbE (RJ45/SFP);
  • 4-Port 1GbE (SFP);
  • 1 expansion slot;
  • 1-Port console (RJ45/miniUSB);
  • 1-Port out-of-band management 10/100MbE (RJ45);
  • 1-Port USB.

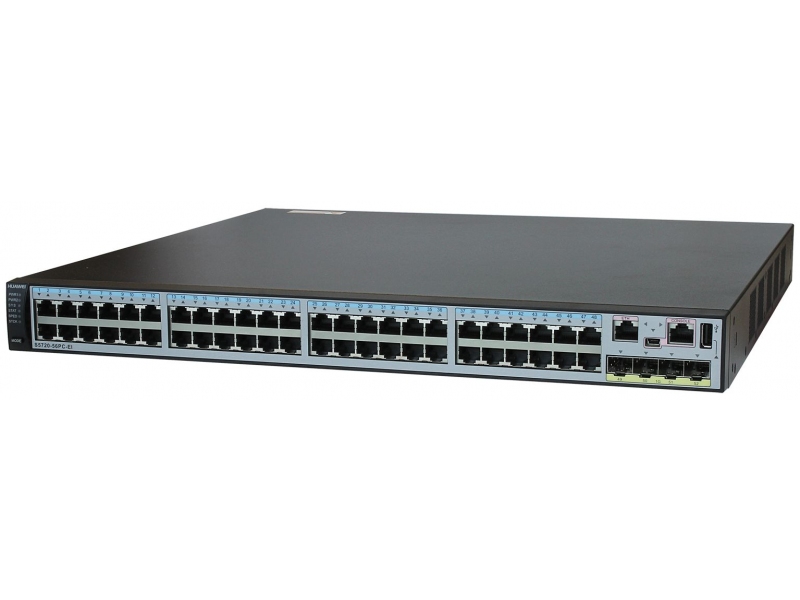

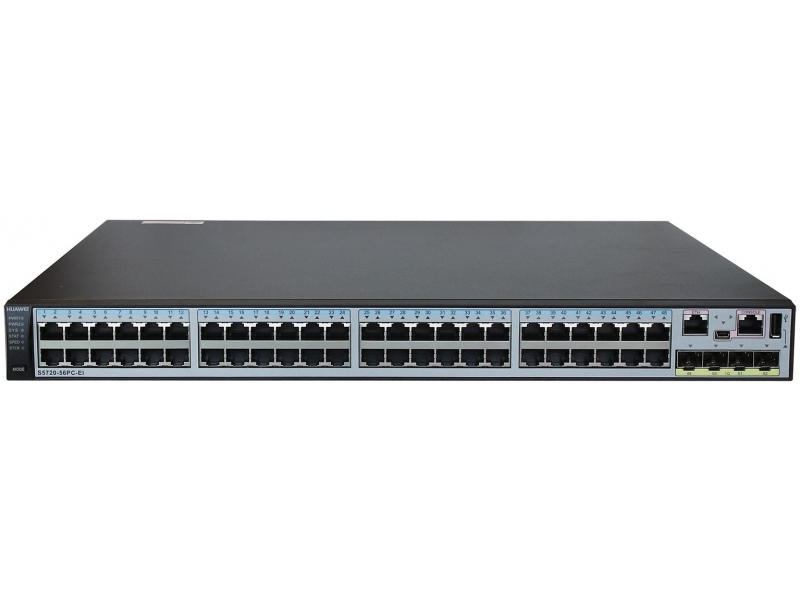

S5720-56PС-EI-AC:
  • 48-Port 10/100/1000MbE (RJ45);
  • 4-Port combo 1GbE (RJ45/SFP);
  • 4-Port 1GbE (SFP);
  • 1 expansion slot;
  • 1-Port console (RJ45/miniUSB);
  • 1-Port out-of-band management 10/100MbE (RJ45);
  • 1-Port USB.
Performance
Switching Bandwidth
S5720-32P-EI-AC: 64 Gb/s
S5720-52P-EI-AC: 104 Gb/s
S5720-36С-EI-AC: 136 Gb/s
S5720-56С-EI-AC: 176 Gb/s
S5720-36С-EI-28S-AC: 128 Gb/s
S5720-56С-EI-48S-AC: 176 Gb/s
S5720-36С-PWR-EI-AC: 136 Gb/s
S5720-56С-PWR-EI-AC: 176 Gb/s
S5720-56С-PWR-EI-AC1: 176 Gb/s
S5720-36PС-EI-AC: 64 Gb/s
S5720-56PС-EI-AC: 104 Gb/s

Forwarding Rate
S5720-32P-EI-AC: 48 Mp/s
S5720-52P-EI-AC: 78 Mp/s
S5720-36С-EI-AC: 132 Mp/s
S5720-56С-EI-AC: 162 Mp/s
S5720-36С-EI-28S-AC: 132 Mp/s
S5720-56С-EI-48S-AC: 162 Mp/s
S5720-36С-PWR-EI-AC: 132 Mp/s
S5720-56С-PWR-EI-AC: 162 Mp/s
S5720-56С-PWR-EI-AC1: 162 Mp/s
S5720-36PС-EI-AC: 78 Mp/s
S5720-56PС-EI-AC: 108 Mp/s

Layer 2 Features
MAC Address Table
Maximum Capacity: 64,000 entries
VLAN

IEEE 802.1Q: 4094.  GVRP; QinQ; VLAN Translation
Layer 2 Reliability

STP/RSTP/MSTP; VBST; SEP; RRPP; ERPS (G.8032)
Multicast
IGMP snooping: v1/v2/v3
IGMP groups: 2,048
Multicast VLAN (MVR): Supported
Multicast Routing: PIM-DM; PIM-SM; PIM-SSM; MSDP
Layer 3 features
ARP Table

12,000 entries
Routing Table
IPv4: 16,000 routes
IPv6: 8,000 routes
IP Routing

Static Routes, RIPv1/2, OSPFv2, IS-IS, BGP, VRRP
MPLS / VPN

Supported. MPLS, L2VPN, L3VPN, GRE
Security
IPv4 ACL: 3,072 Ingress + 512  Egress
IPv6 ACL: 3,072 Ingress + 256  Egress
Local AAA: Supported
RADIUS, TACACS+: Supported
DHCP Server Supported
DHCP Relay option82: Supported
DHCP Snooping: Supported
Loop detection: Supported
IP Source Guard: Supported
Broadcast, multicast, unknown unicast suppression: Supported
Quality of Service
QoS queues: 8
Traffic Limit: Supported
Traffic Mark: by 802.1p, DSCP
IPv6

Static Routes; OSPFv3; VRRPv6; DHCPv6; IS-ISv6; PIM-DMv6; РIM-SMv6; IPv6 ACL; Multicast Listener Discovery snooping (MLDv1/v2)
Management

Telnet; SSH; Web-management; LLDP; sFlow; SNMP v1/v2/v3; RMON; Syslog; NTP
OAM

802.3ah (EFM); 802.1ag (CFM); Y.1731
Environmental Conditions
Relative Humidity

5 to 95% (noncondensing)
Operating Temperature

0 to 45°C (32 to 113°F)
Power Supply
Power Supply Unit (PSU)
AC PSU:
Type: Removable
Quantity:
S5720-32P-EI-AC, S5720-52P-EI-AC: 1
S5720-36C-EI-AC, S5720-56C-EI-AC, S5720-36C-EI-28S-AC, S5720-36РC-EI-AC, S5720-56C-EI-48S-AC, S5720-56РC-EI-AC, S5720-36C-PWR-EI-AC, S5720-56C-PWR-EI-AC,  S5720-56C-PWR-EI-AC1: 2
Rated voltage range: 100 to 240 VAC, 50-60 Hz
DC PSU:
Type: Removable
Quantity: 2
Rated voltage range: -48 to -60 VDC
PoE (Power over Ethernet)
Supported by: S5720-36C-PWR-EI-AC, S5720-56C-PWR-EI-AC, S5720-56C-PWR-EI-AC1
PoE (802.3af) (15W per port):
S5720-36C-PWR-EI-AC: 28 ports
S5720-56C-PWR-EI-AC: 48 ports
S5720-56C-PWR-EI-AC1: 48 ports
PoE+ (802.3аt) (30 W per port):
S5720-36C-PWR-EI-AC: 24 ports ( with 2 x 500W PSU)
S5720-56C-PWR-EI-AC: 24 ports ( with 2 x 500W PSU)
S5720-56C-PWR-EI-AC1: 48 ports ( with 2 x 1150W PSU)
Maximum power consumption
S5720-32P-EI-AC: up to 50.7 W
S5720-52P-EI-AC: up to 60.3 W
S5720-36С-EI-AC: up to 75.8 W
S5720-56С-EI-AC: up to 86.9 W
S5720-36С-EI-28S-AC: up to 83.9 W
S5720-56С-EI-48S-AC: up to 104 W
S5720-36С-PWR-EI-AC: up to 864.3 W
S5720-56С-PWR-EI-AC: up to 889.4 W
S5720-56С-PWR-EI-AC1: up to 1,564.8 W
S5720-36PС-EI-AC: up to 74.6 W
S5720-56PС-EI-AC: up to 85.7 W

Acoustic noise
S5720-32P-EI-AC: up to 49.3 dB
S5720-52P-EI-AC: up to 49.3 dB
S5720-36С-EI-AC: up to 51.2 dB
S5720-56С-EI-AC: up to 51.2 dB
S5720-36С-EI-28S-AC: up to 51.2 dB
S5720-56С-EI-48S-AC: up to 51.2 dB
S5720-36С-PWR-EI-AC: up to 53.7 dB
S5720-56С-PWR-EI-AC: up to 53.7 dB
S5720-56С-PWR-EI-AC1: up to 61.7 dB
S5720-36PС-EI-AC: up to 51.2 dB
S5720-56PС-EI-AC: up to 51.2 dB

Dimensions (HxWxD)
S5720-32P-EI-AC:

43.6 (1U) х 442 х 220 mm

(1.72 (1U) x 17.4 x 8.67 in)
S5720-52P-EI-AC:

43.6 (1U) х 442 х 220 mm

(1.72 (1U) x 17.4 x 8.67 in)
S5720-36С-EI-AC:

43.6 (1U) х 442 х 220 mm

(1.72 (1U) x 17.4 x 8.67 in)
S5720-56С-EI-AC:

43.6 (1U) х 442 х 420 mm

(1.72 (1U) x 17.4 x 16.54 in)
S5720-36С-EI-28S-AC:

43.6 (1U) х 442 х 420 mm

(1.72 (1U) x 17.4 x 16.54 in)
S5720-56С-EI-48S-AC:

43.6 (1U) х 442 х 420 mm

(1.72 (1U) x 17.4 x 16.54 in)
S5720-36С-PWR-EI-AC:

43.6 (1U) х 442 х 420 mm

(1.72 (1U) x 17.4 x 16.54 in)
S5720-56С-PWR-EI-AC:

43.6 (1U) х 442 х 420 mm

(1.72 (1U) x 17.4 x 16.54 in)
S5720-56С-PWR-EI-AC1:

43.6 (1U) х 442 х 507.3 mm

(1.72 (1U) x 17.4 x 19.97 in)
S5720-36PС-EI-AC:

43.6 (1U) х 442 х 420 mm

(1.72 (1U) x 17.4 x 16.54 in)
S5720-56PС-EI-AC:

43.6 (1U) х 442 х 420 mm

(1.72 (1U) x 17.4 x 16.54 in)

Maximum Weight

12 kg (26.5 lb)
Compatible expansion cards

Model Number

 Description

Supported by:

S5720-36C-EI-AC, S5720-56C-EI-AC, S5720-36C-EI-28S-AC, S5720-36РC-EI-AC, S5720-56C-EI-48S-AC, S5720-56РC-EI-AC, S5720-36C-PWR-EI-AC, S5720-56C-PWR-EI-AC,  S5720-56C-PWR-EI-AC1:

ES5D21X02S01

 2-port 10GbE (SFP+)

ES5D21X02T01

 2-Port 10GbE (RJ45)

ES5D21VST000

 Stack Card. 2-Port QSFP+
