Huawei S5720-LI series

S5720-LI series Datasheet (eng)

Available to quote:

S5720-12TP-LI-AC; S5720-12TP-PWR-LI-AC;

S5720-28P-LI-AC; S5720-28P-PWR-LI-AC;

S5720-52P-LI-AC; S5720-52P-PWR-LI-AC;

S5720-28TP-LI-ACL; S5720-28TP-PWR-LI-AC;

S5720-28TP-PWR-LI-ACL

Request a Quote
SPECIFICATIONS
Interfaces

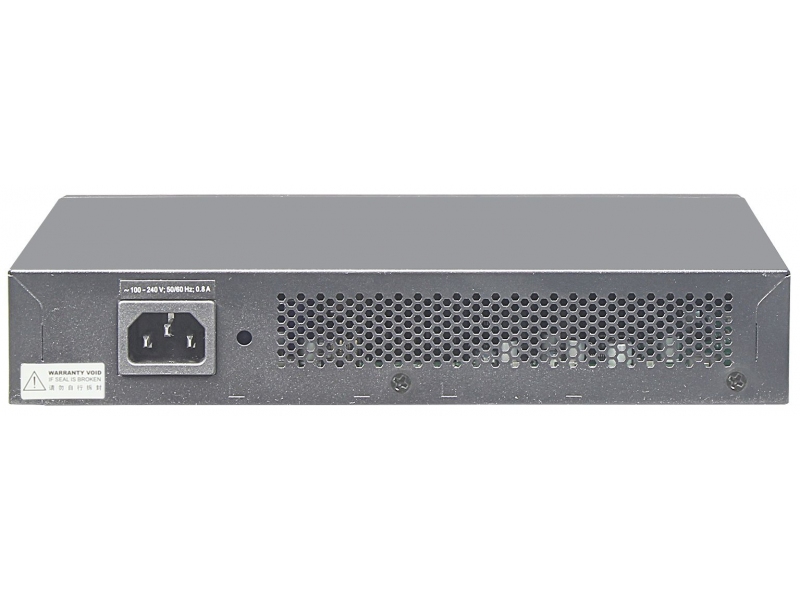

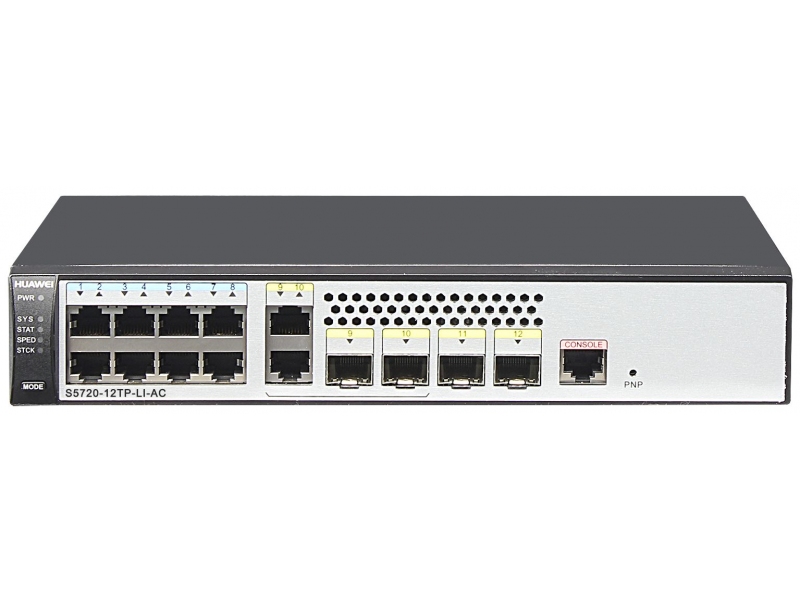

S5720-12TP-LI-AC:
  • 8-Port 10/100/1000MbE (RJ45);
  • 2-Port 1GbE (SFP);
  • 2-Port combo 1GbE (RJ45/SFP);
  • 1-Port console (RJ45)

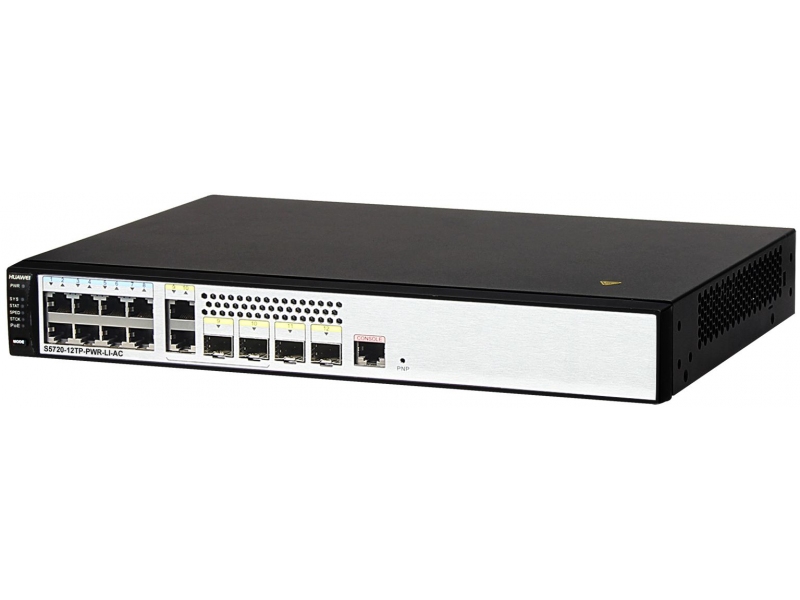

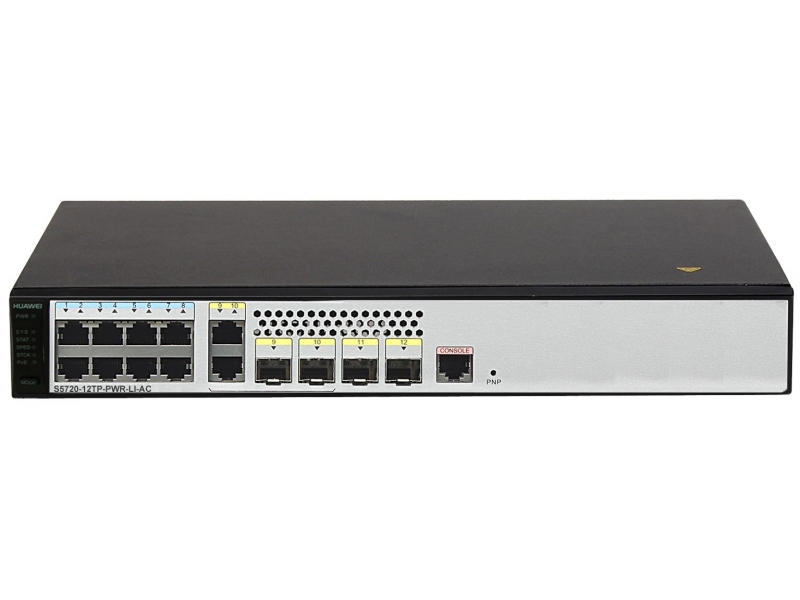

S5720-12TP-PWR-LI-AC:
  • 8-Port 10/100/1000MbE (RJ45) PoE;
  • 2-Port 1GbE (SFP);
  • 2-Port combo 1GbE (RJ45/SFP);
  • 1-Port console (RJ45)

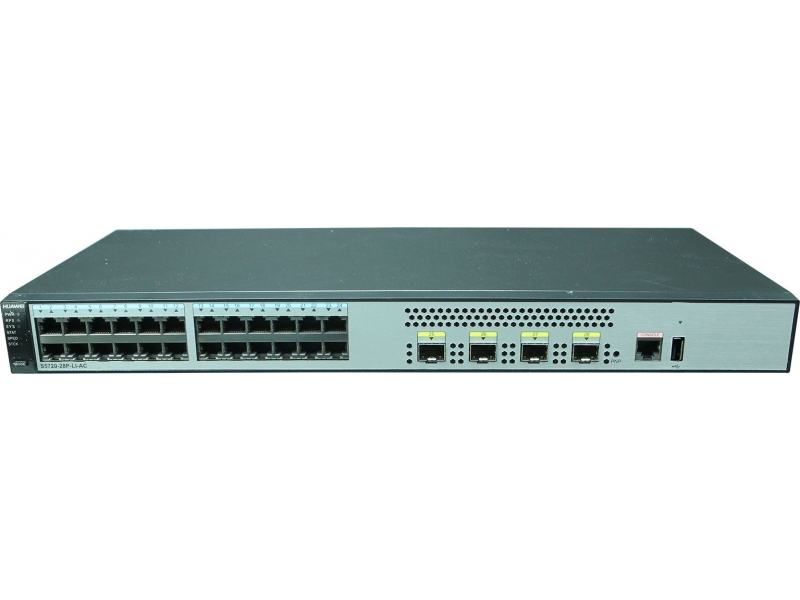

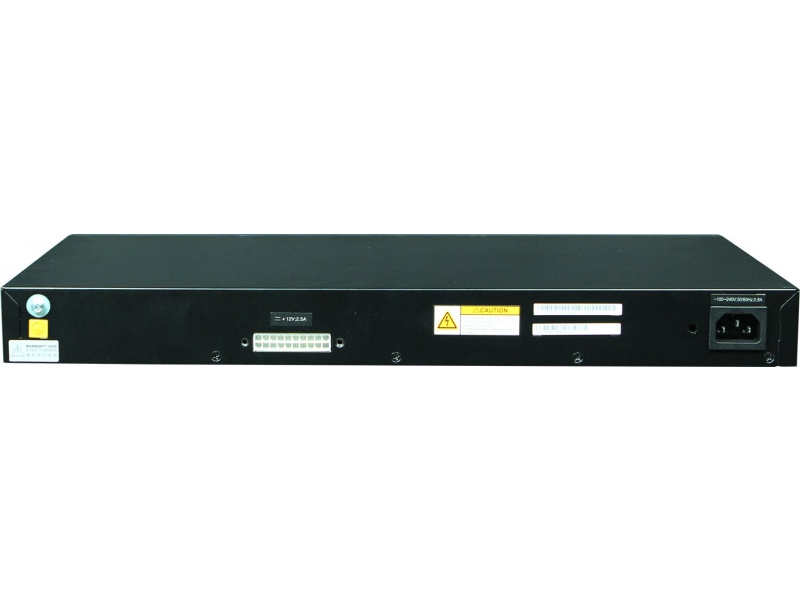

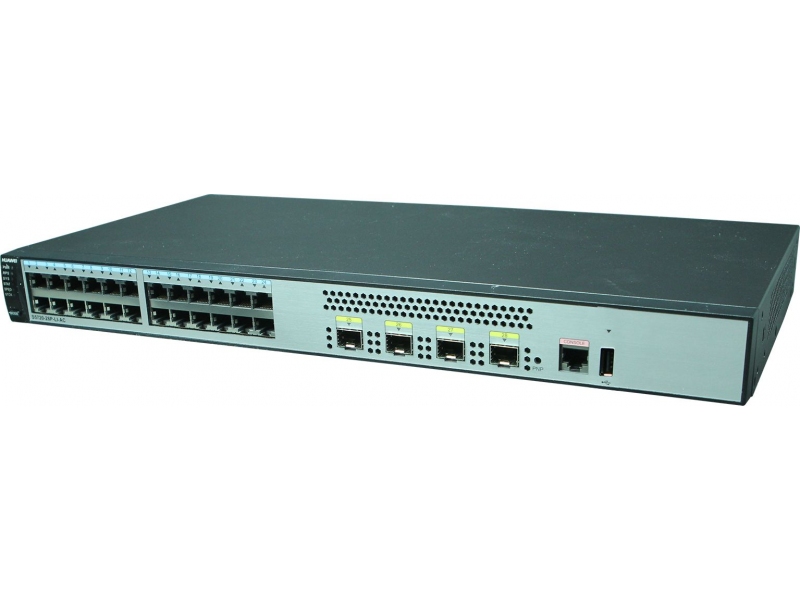

S5720-28P-LI-AC:
  • 24-Port 10/100/1000MbE (RJ45);
  • 4-Port 1/10GbE (SFP) (license is required to activate 10G capability);
  • 1-Port console (RJ45);
  • 1-Port RPS

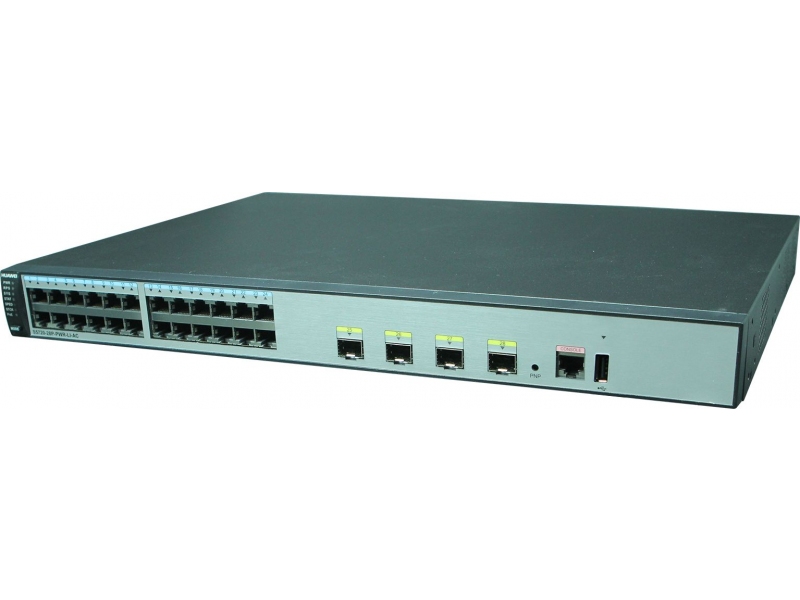

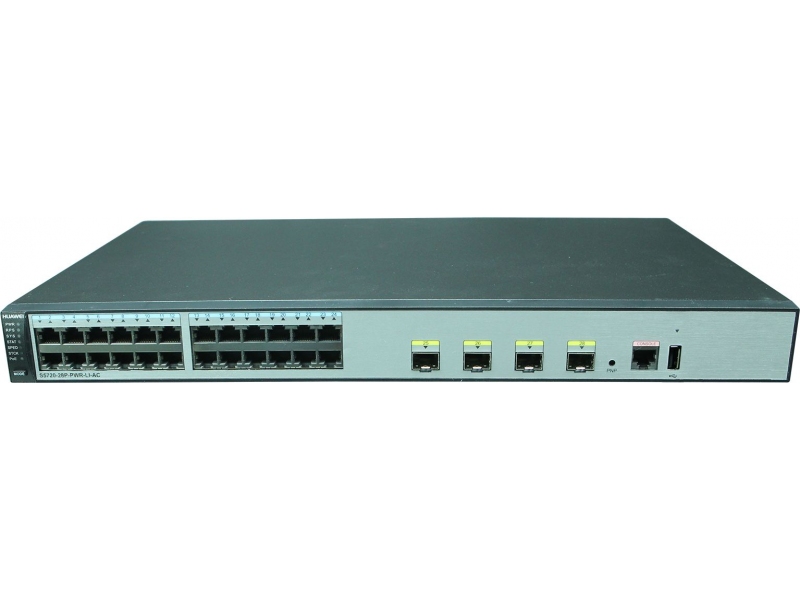

S5720-28P-PWR-LI-AC:
  • 24-Port 10/100/1000MbE (RJ45) PoE;
  • 4-Port 1/10GbE (SFP) (license is required to activate 10G capability);
  • 1-Port console (RJ45);
  • 1-Port RPS

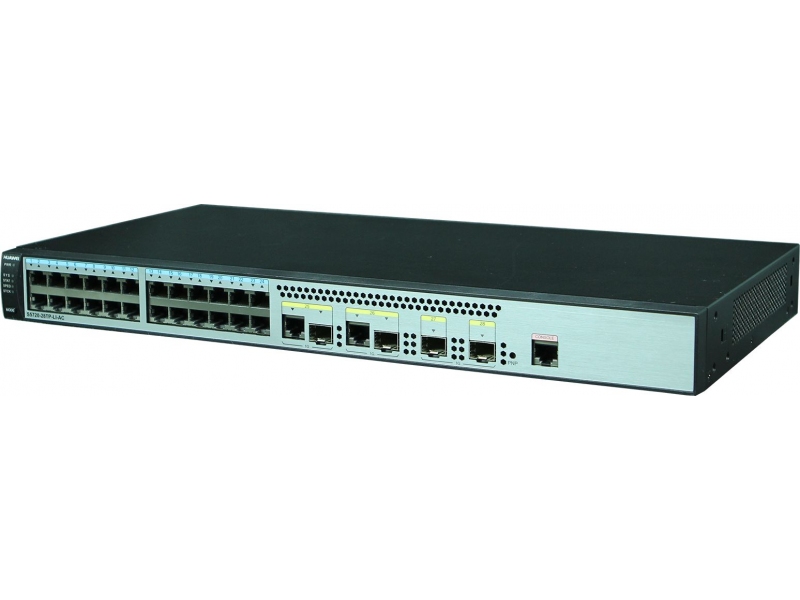

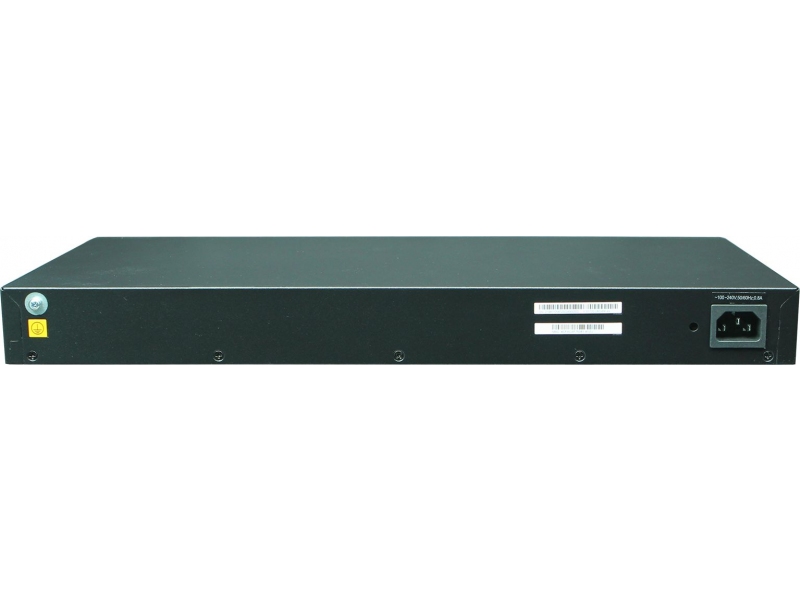

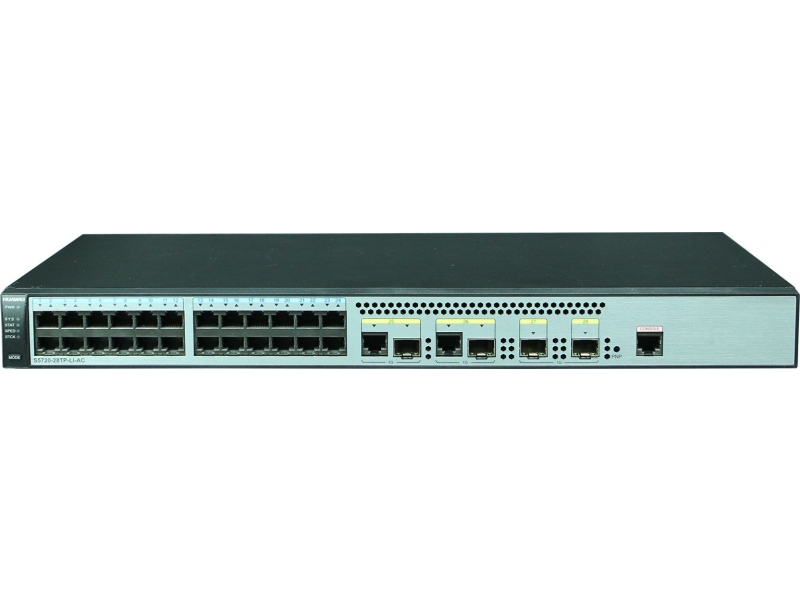

S5720-28TP-LI-AC:
  • 24-Port 10/100/1000MbE (RJ45);
  • 2-Port 1GbE (SFP);
  • 2-Port combo 1GbE (RJ45/SFP);
  • 1-Port USB;
  • 1-Port console (RJ45)

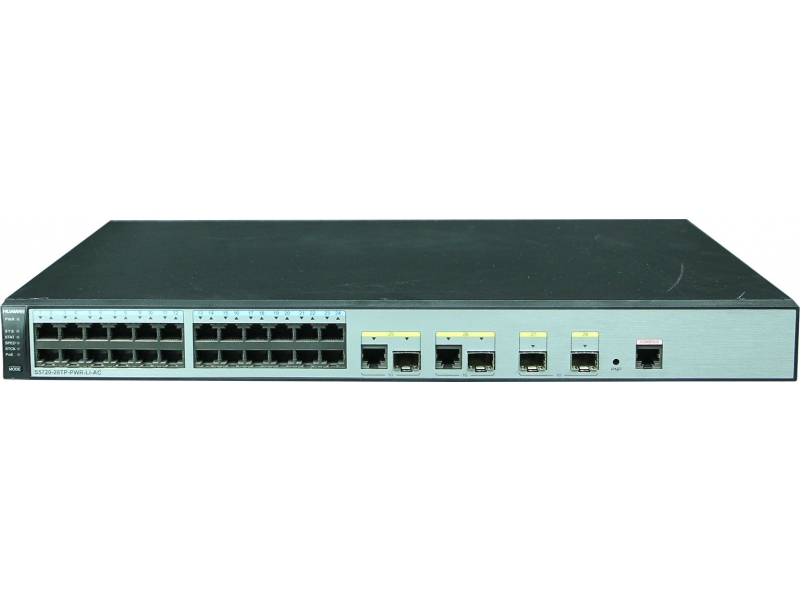

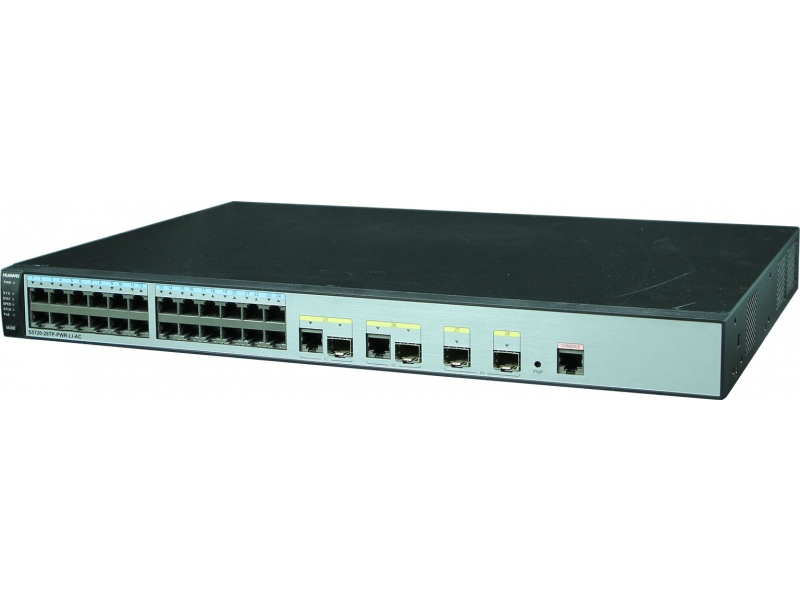

S5720-28TP-PWR-LI-AC:
  • 24-Port 10/100/1000MbE (RJ45) PoE;
  • 2-Port 1GbE (SFP);
  • 2-Port combo 1GbE (RJ45/SFP);
  • 1-Port console (RJ45)

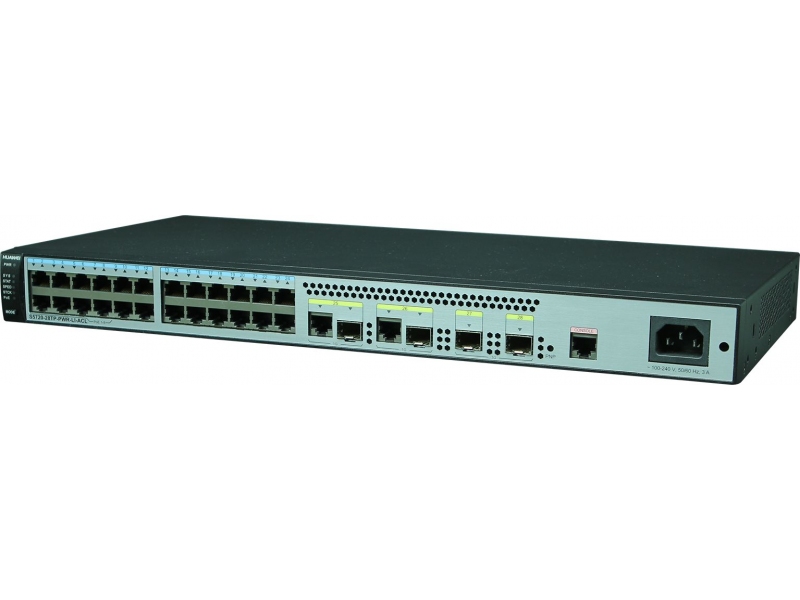

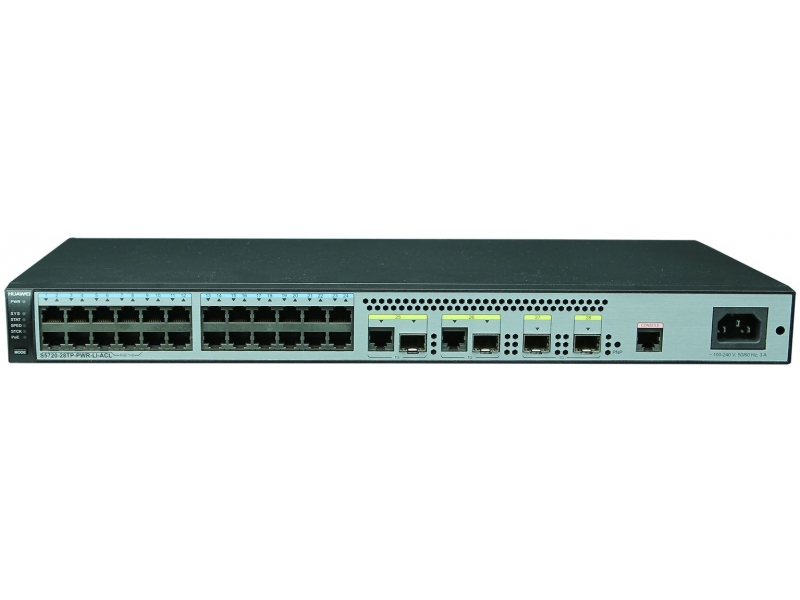

S5720-28TP-PWR-LI-ACL:
  • 8-Port 10/100/1000MbE (RJ45) PoE;
  • 16-Port 10/100/1000MbE (RJ45);
  • 2-Port 1GbE (SFP);
  • 2-Port combo 1GbE (RJ45/SFP);
  • 1-Port console (RJ45)

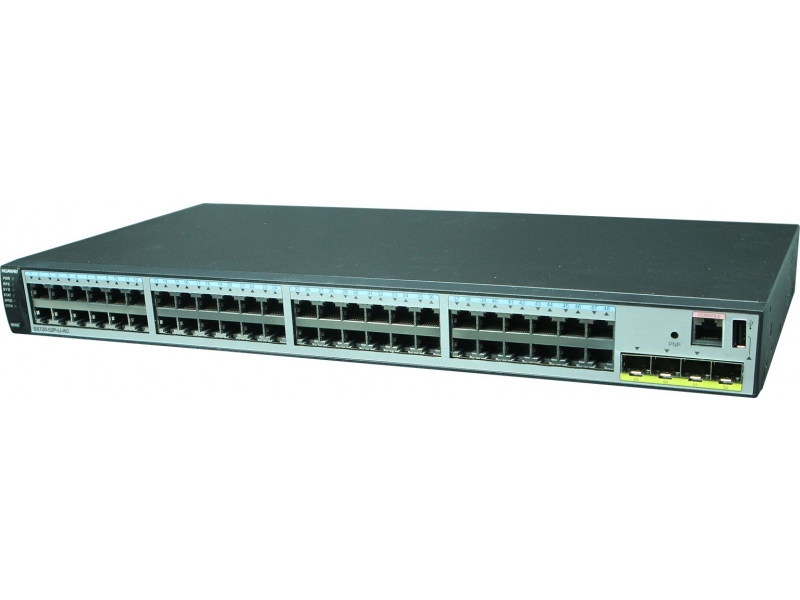

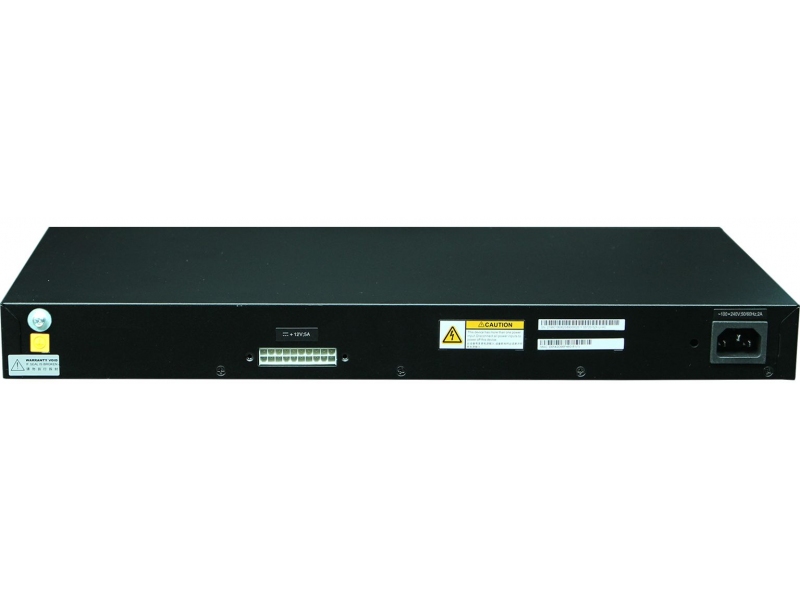

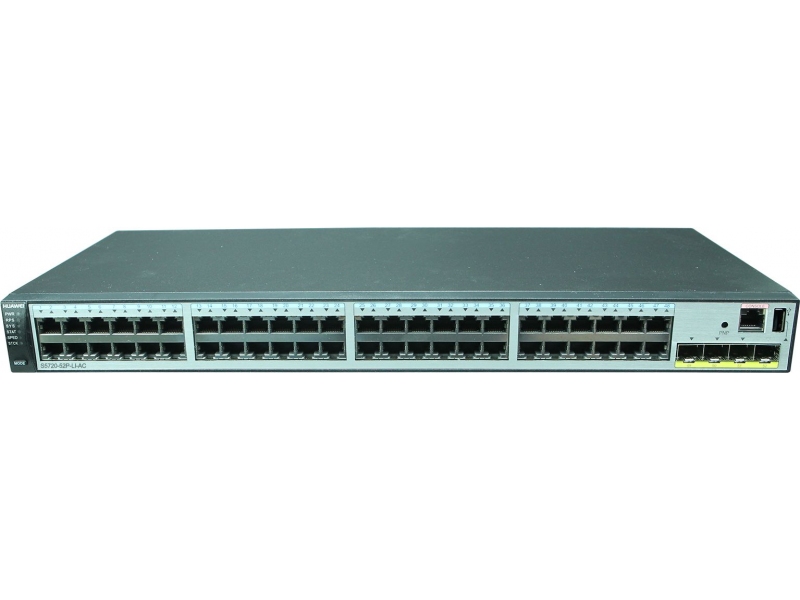

S5720-52P-LI-AC:
  • 48-Port 10/100/1000MbE (RJ45);
  • 4-Port 1/10GbE (SFP) (license is required to activate 10G capability);
  • 1-Port console (RJ45);
  • 1-Port RPS

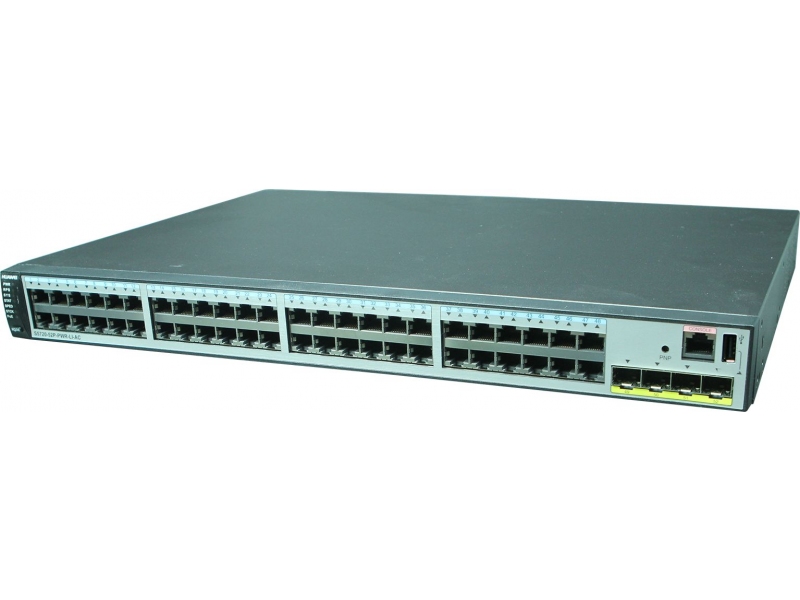

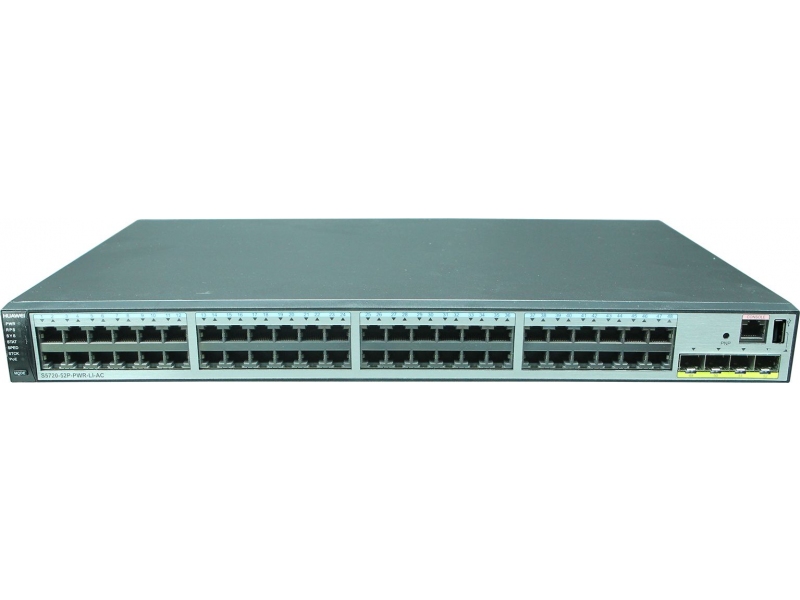

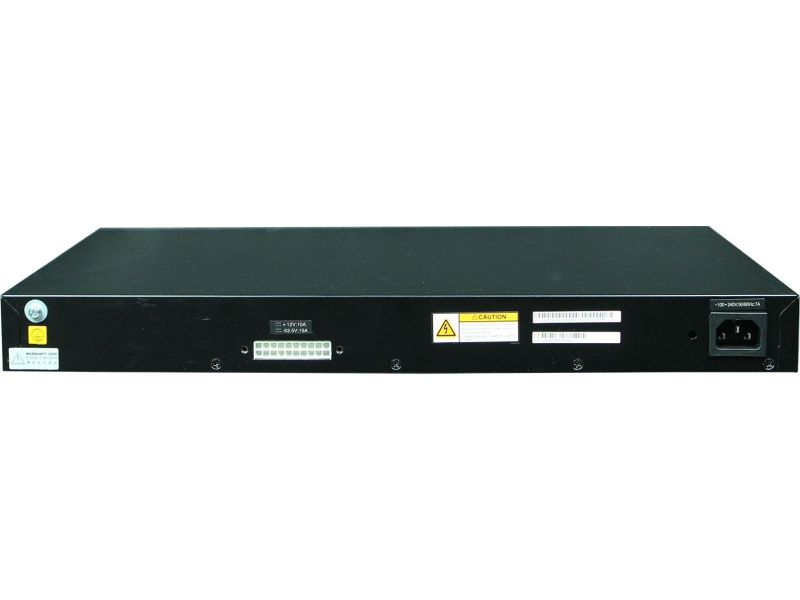

S5720-52P-PWR-LI-AC:
  • 48-Port 10/100/1000MbE (RJ45) PoE;
  • 4-Port 1/10GbE (SFP) (license is required to activate 10G capability);
  • 1-Port console (RJ45);
  • 1-Port RPS
Performance
Switching Bandwidth

336 Gbit/s
Forwarding Rate
S5720-12TP-LI-AC:
S5720-12TP-PWR-LI-AC:
 27 Mp/s
S5720-28P-LI-AC:
S5720-28P-PWR-LI-AC:
S5720-28TP-LI-AC:
S5720-28TP-PWR-LI-AC:
S5720-28TP-PWR-LI-ACL:
 51 Mp/s
S5720-52P-LI-AC:
S5720-52P-PWR-LI-AC:
 87 Mp/s
Layer 2 Features
MAC Address Table

16,000 entries
VLAN

IEEE 802.1Q: 4094; GVRP; QinQ; VLAN Translation
Layer 2 Reliability

STP/RSTP/MSTP; ERPS (G.8032); SEP
Multicast
IGMP snooping: v1/v2/v3
IGMP groups: 1,024
Multicast VLAN (MVR): Supported
Multicast Routing: Not supported
Layer 3 features
ARP Table

2,048 entries
Routing Table
IPv4: 4,000 routes
IPv6: 1,000 routes
IP Routing

Static Routes; RIP; OSPF
MPLS / VPN

Not supported
Security
Local AAA: Supported
RADIUS, TACACS+: Supported
DHCP Server Supported
DHCP Relay option82: Supported
DHCP Snooping: Supported
Loop detection: Supported
IP Source Guard: Supported
Bandwidth Limit: Supported
Broadcast, multicast, unknown unicast suppression: Supported
Management

Telnet; SSH; Web-management; LLDP; SNMP v1/v2/v3; RMON; Syslog; NTP
Environmental Conditions
Relative Humidity

5 to 95% (noncondensing)
Operating Temperature

0 to 45°C (32 to 113°F)
Power Supply
Power Supply Unit (PSU)
AC PSU:
Type: Built-in
Quantity: 1
Rated voltage range: 100 to 240 VAC, 50-60 Hz
DC PSU:
Not supported
PoE (Power over Ethernet)
Supported by:
S5720-12TP-PWR-LI-AC
S5720-28P-PWR-LI-AC
S5720-28TP-PWR-LI-AC
S5720-28TP-PWR-LI-ACL
S5720-52P-PWR-LI-AC
PoE (802.3af) (15 W per port):
S5720-12TP-PWR-LI-AC: 8 ports
S5720-28P-PWR-LI-AC: 24 ports
S5720-28TP-PWR-LI-AC: 24 ports
S5720-28TP-PWR-LI-ACL: 8 ports
S5720-52P-PWR-LI-AC: 24 ports
PoE+ (802.3аt) (30 W per port):
S5720-12TP-PWR-LI-AC: 4 ports
S5720-28P-PWR-LI-AC: 12 ports
S5720-28TP-PWR-LI-AC: 12 ports
S5720-28TP-PWR-LI-ACL: 12 ports
S5720-52P-PWR-LI-AC: 24 ports
PoE++ (802.3bt) (60 W per port): Not supported
PoE++ (802.3bt) (90 W per port): Not supported

Maximum power consumption
S5720-12TP-LI-ACI: 12.85 W
S5720-12TP-PWR-LI-AC: 160.5 W
S5720-28P-LI-AC: 27.9 W
S5720-28P-PWR-LI-AC: 448.5 W
S5720-28TP-LI-AC: 22.1 W
S5720-28TP-PWR-LI-AC: 444.8 W
S5720-28TP-PWR-LI-ACL: 165.6 W
S5720-52P-LI-AC: 50.3 W
S5720-52P-PWR-LI-AC: 464.3 W
Acoustic noise
S5720-12TP-LI-AC:
S5720-12TP-PWR-LI-AC:
S5720-28P-LI-AC:
S5720-28TP-LI-AC:
S5720-28TP-PWR-LI-ACL:
 0 dBA
S5720-28P-PWR-LI-AC: 49.1 dBA
S5720-28TP-PWR-LI-AC: 48.6 dBA
S5720-52P-LI-AC: 44.5 dBA
S5720-52P-PWR-LI-AC: 48.3 dBA
Dimensions (HxWxD)
S5720-12TP-LI-AC:
43.6 (1U) х 250 х 180 mm
(1.72 (1U) x 9.84 x 7.1 in)

S5720-12TP-PWR-LI-AC:
43.6 (1U) х 320 х 220 mm
(1.72 (1U) x 12.6 x 8.7 in)
S5720-28P-LI-AC:
S5720-28TP-LI-AC:
S5720-28TP-PWR-LI-ACL:
S5720-52P-LI-AC:
43.6 (1U) x 442 x 220 mm
(1.72 (1U) x 17.4 x 8.7 in)
S5720-28P-PWR-LI-AC:
S5720-28TP-PWR-LI-AC:
S5720-52P-PWR-LI-AC:
43.6 (1U) x 442 x 310 mm
(1.72 (1U) x 17.4 x 12.2 in)
Maximum Weight
S5720-12TP-LI-AC: 1.8 kg (3.97 lb)
S5720-12TP-PWR-LI-AC: 3.0 kg (6.62 lb)
S5720-28P-LI-AC: 3.9 kg (8.6 lb)
S5720-28P-PWR-LI-AC: 5.2 kg (11.45 lb)
S5720-28TP-LI-AC: 4.0 kg (8.82 lb)
S5720-28TP-PWR-LI-AC: 5.3 kg (11.69 lb)
S5720-28TP-PWR-LI-ACL: 4.5 kg (9.92 lb)
S5720-52P-LI-AC: 4.4 kg (9.7 lb)
S5720-52P-PWR-LI-AC: 5.6 kg (12.35 lb)
Compatible expansion cards

Not supported
