| Interfaces | |
|

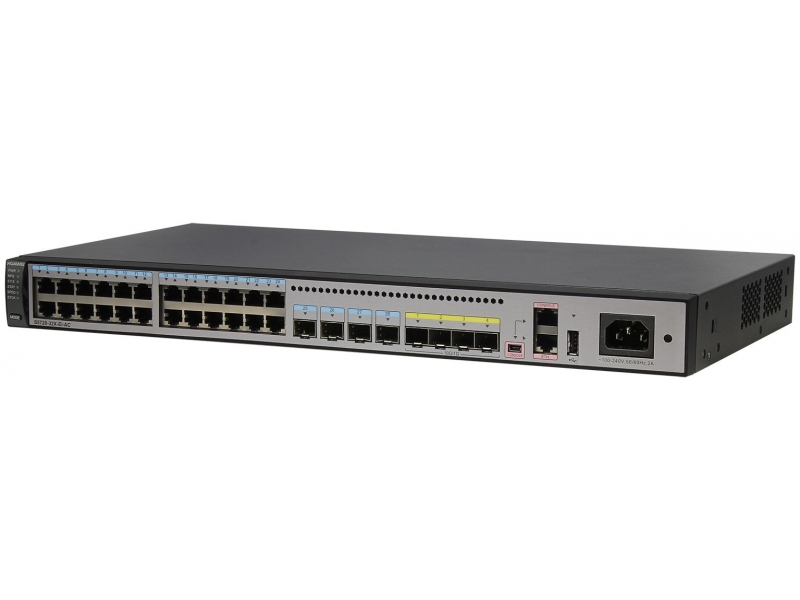

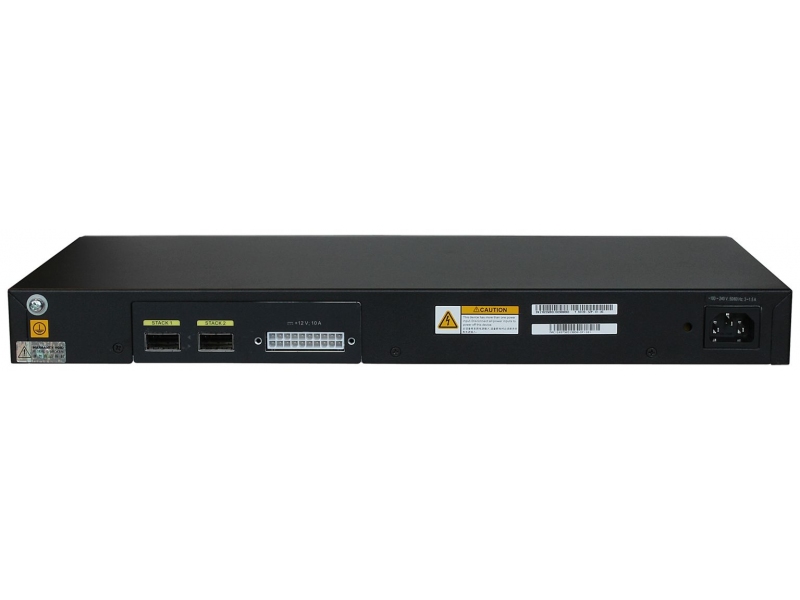

| S5720-32X-EI-AC: |
- 24-Port 10/100/1000MbE (RJ45);
- 4-Port 1GbE (SFP);
- 4-Port 10GbE (SFP+);
- 1-Port console (RJ45/miniUSB);
- 1-Port out-of-band management 10/100MbE (RJ45);
- 1-Port USB;
- 1-Port RPS
|

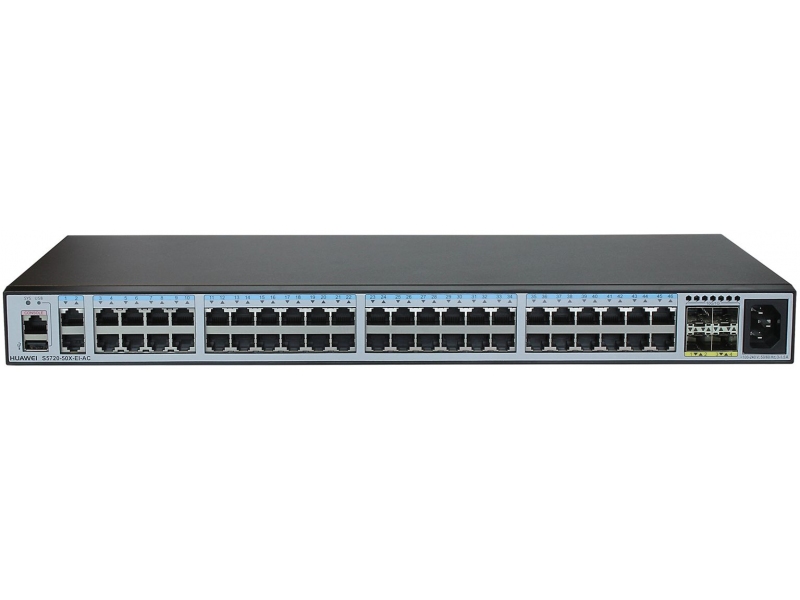

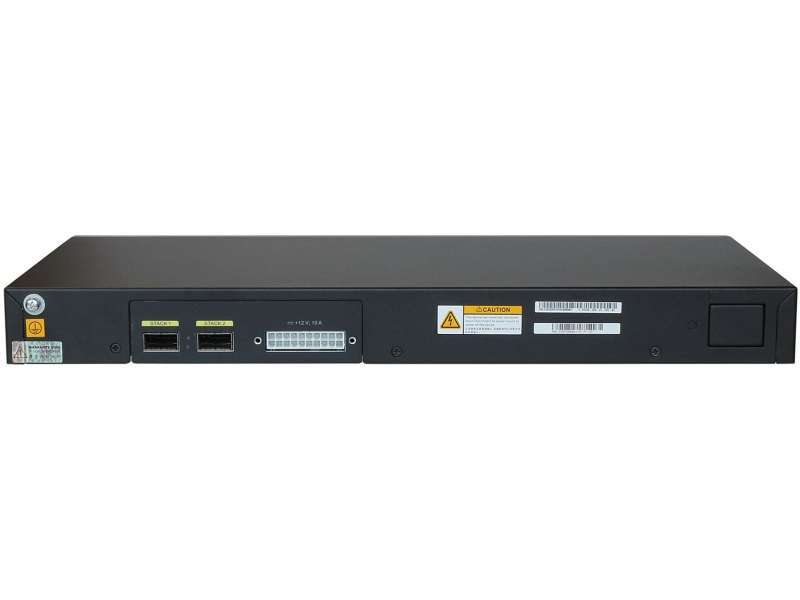

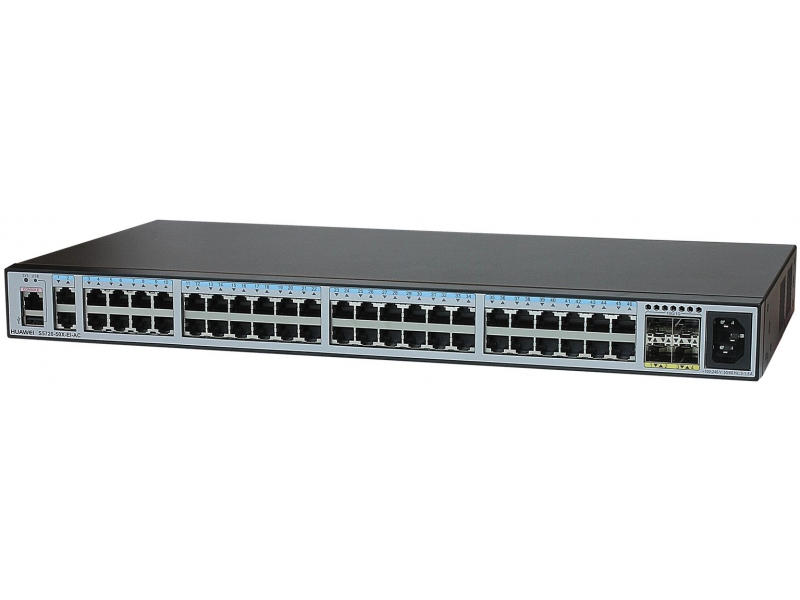

| S5720-50X-EI-AC: |
- 46-Port 10/100/1000MbE (RJ45);
- 4-Port 10GbE (SFP+);
- 1-Port console (RJ45/miniUSB);
- 1-Port out-of-band management 10/100MbE (RJ45);
- 1-Port USB;
- 1-Port RPS
|

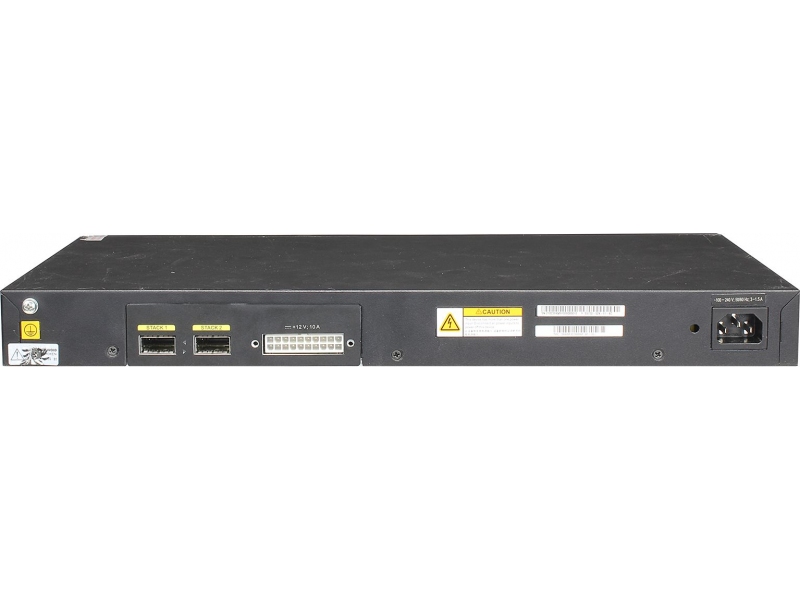

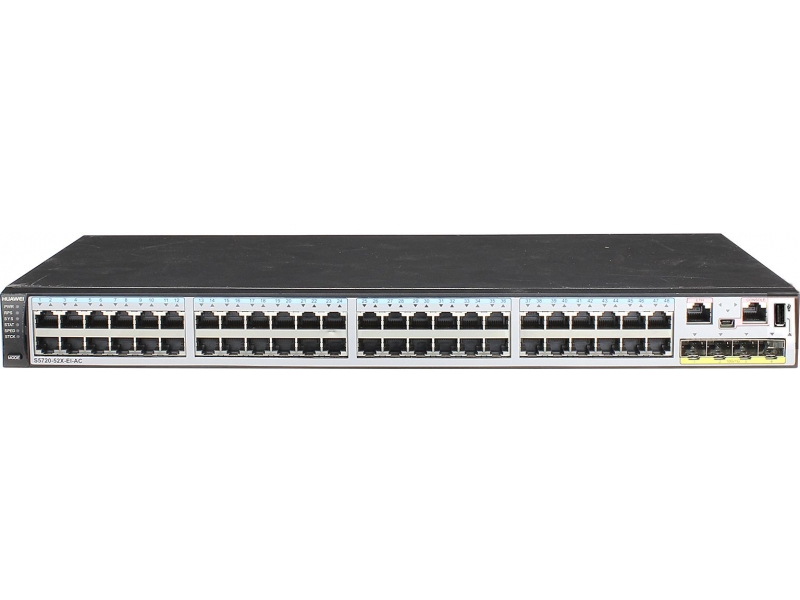

| S5720-52X-EI-AC: |
- 48-Port 10/100/1000MbE (RJ45);
- 4-Port 10GbE (SFP+);
- 1-Port console(RJ45/miniUSB);
- 1-Port out-of-band management 10/100MbE (RJ45);
- 1-Port USB;
- 1-Port RPS
|

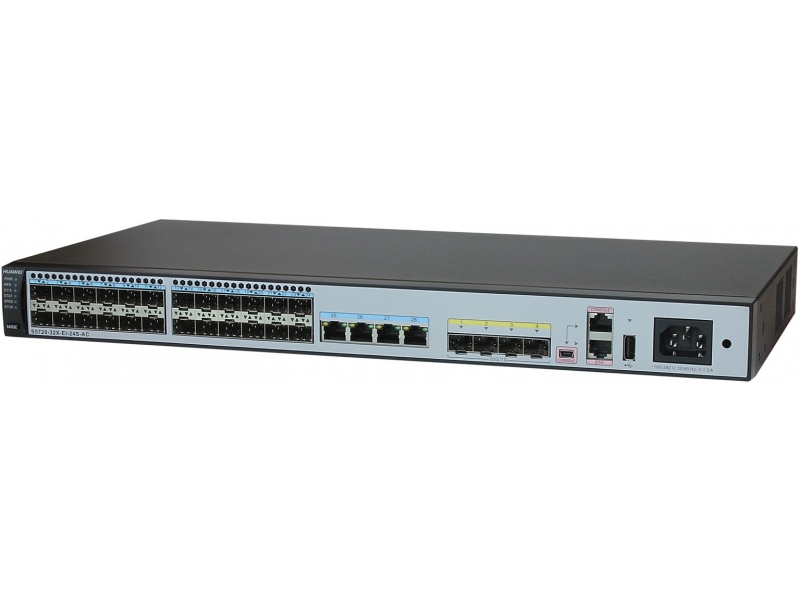

| S5720-32X-EI-24S-AC: |
- 24-Port 100/1000MbE (SFP);
- 4-Port 10/100/1000MbE (RJ45);
- 4-Port 10GbE (SFP+);
- 1-Port console (RJ45/miniUSB);
- 1-Port out-of-band management 10/100MbE (RJ45);
- 1-Port USB;
- 1-Port RPS
|

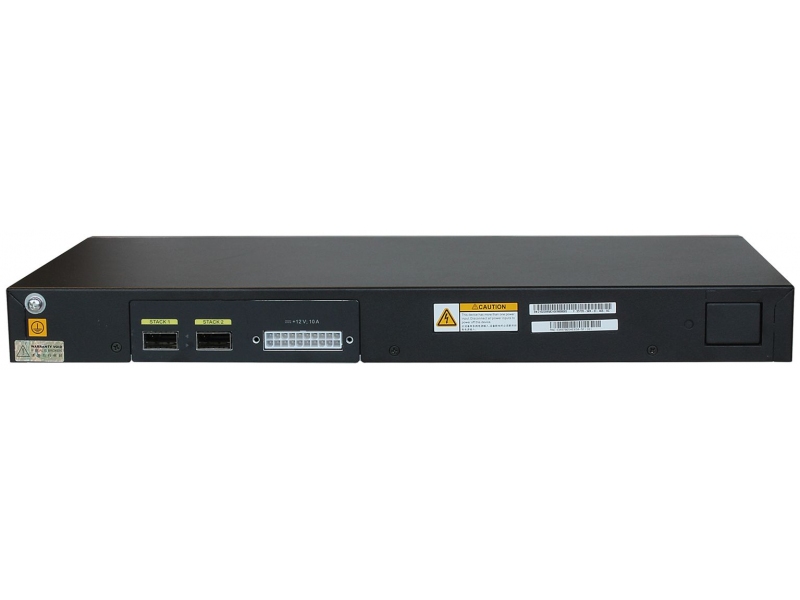

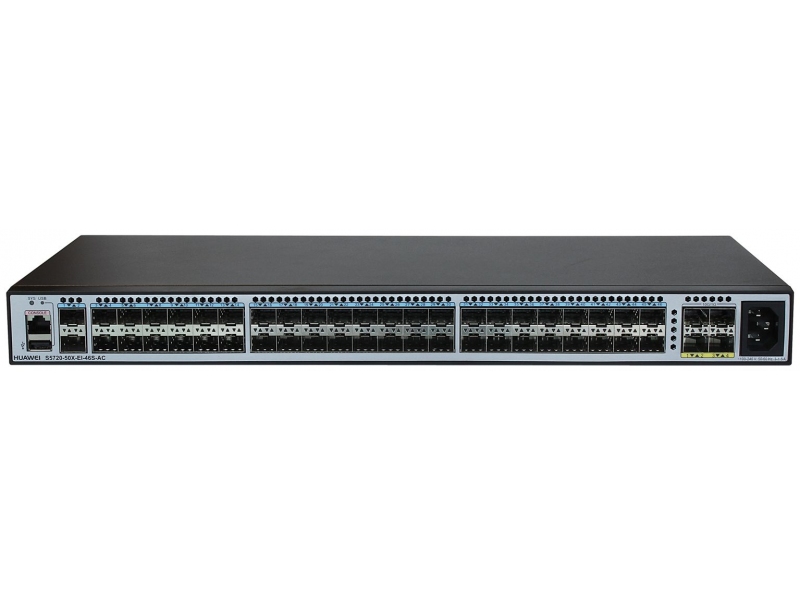

| S5720-50X-EI-46S-AC: |
- 46-Port 100/1000MbE (SFP);
- 4-Port 10GbE (SFP+);
- 1-Port console (RJ45/miniUSB);
- 1-Port out-of-band management 10/100MbE (RJ45);
- 1-Port USB;
- 1-Port RPS.
|
|
| Performance | |
| Switching Bandwidth |
| S5720-32X-EI-AC: |
136 Gb/s |
| S5720-50X-EI-AC: |
172 Gb/s |
| S5720-52X-EI-AC: |
176 Gb/s |
| S5720-32X-EI-24S-AC: |
112 Gb/s |
| S5720-50X-EI-46S-AC: |
172 Gb/s |
|
| Forwarding Rate |
| S5720-32X-EI-AC: |
102 Mp/s |
| S5720-50X-EI-AC: |
129 Mp/s |
| S5720-52X-EI-AC: |
132 Mp/s |
| S5720-32X-EI-24S-AC: |
102 Mp/s |
| S5720-50X-EI-46S-AC: |
129 Mp/s |
|
| Layer 2 Features | |
| MAC Address Table |
| Maximum Capacity: |
64,000 entries |
|
| VLAN | IEEE 802.1Q: 4094. GVRP; QinQ; VLAN Translation |
| Layer 2 Reliability | STP/RSTP/MSTP; VBST; SEP; RRPP; ERPS (G.8032) |
| Multicast | |
|
| IGMP snooping: |
v1/v2/v3 |
| IGMP groups: |
2,048 |
| Multicast VLAN (MVR): |
Supported |
| Multicast Routing: |
PIM-DM; PIM-SM; PIM-SSM; MSDP |
|
| Layer 3 features | |
| ARP Table | 12,000 entries |
| Routing Table |
| IPv4: |
16,000 routes |
| IPv6: |
8,000 routes |
|
| IP Routing | Static Routes, RIPv1/2, OSPFv2, IS-IS, BGP, VRRP |
| MPLS / VPN | |
| Supported. MPLS, L2VPN, L3VPN, GRE |
| Security | |
|
| IPv4 ACL: |
3,072 Ingress + 512 Egress |
| IPv6 ACL: |
3,072 Ingress + 256 Egress |
|
|
| Local AAA: |
Supported |
| RADIUS, TACACS+: |
Supported |
| DHCP Server |
Supported |
| DHCP Relay option82: |
Supported |
| DHCP Snooping: |
Supported |
| Loop detection: |
Supported |
| IP Source Guard: |
Supported |
| Broadcast, multicast, unknown unicast suppression: |
Supported |
|
| Quality of Service | |
|
| QoS queues: |
8 |
| Traffic Limit: |
Supported |
| Traffic Mark: |
by 802.1p, DSCP |
|
| IPv6 | |
| Static Routes; OSPFv3; VRRPv6; DHCPv6; IS-ISv6; PIM-DMv6; PIM-SMv6; IPv6 ACL; Multicast Listener Discovery snooping (MLDv1/v2) |
| Management | |
| Telnet; SSH; Web-management; LLDP; sFlow; SNMP v1/v2/v3; RMON; Syslog; NTP |
| OAM | |
| 802.3ah (EFM); 802.1ag (CFM); Y.1731 |
| Environmental Conditions | |
| Relative Humidity | 5 to 95% (noncondensing) |
| Operating Temperature | 0 to 45°C (32 to 113°F) |
| Power Supply | |
| Power Supply Unit (PSU) |
| AC PSU: |
|
| Type: |
Removable |
| Quantity: |
1 |
| Rated voltage range: |
100 to 240 VAC, 50-60 Hz |
|
|
| DC PSU: |
|
| Not supported |
|
|
| PoE (Power over Ethernet) | Not supported |
| Maximum power consumption | |
|
| S5720-32X-EI-AC: |
up to 51.9 W |
| S5720-50X-EI-AC: |
up to 55.3 W |
| S5720-52X-EI-AC: |
up to 61.5 W |
| S5720-32X-EI-24S-AC: |
up to 58.9 W |
| S5720-50X-EI-46S-AC: |
up to 81.5 W |
|
| Acoustic noise | |
|
| S5720-32X-EI-AC: |
up to 49.3 dB |
| S5720-50X-EI-AC: |
up to 49.3 dB |
| S5720-52X-EI-AC: |
up to 49.3 dB |
| S5720-32X-EI-24S-AC: |
up to 49.3 dB |
| S5720-50X-EI-46S-AC: |
up to 51.1 dB |
|
| Dimensions (HxWxD) | |
| 43.6 (1U) х 442 х 420 mm
(1.72 (1U) x 17.4 x 16.54 in) |
| Maximum Weight | |
| 12 kg (26.5 lb) |
| Compatible expansion cards | |
| Not supported |
