| Interfaces | |
|

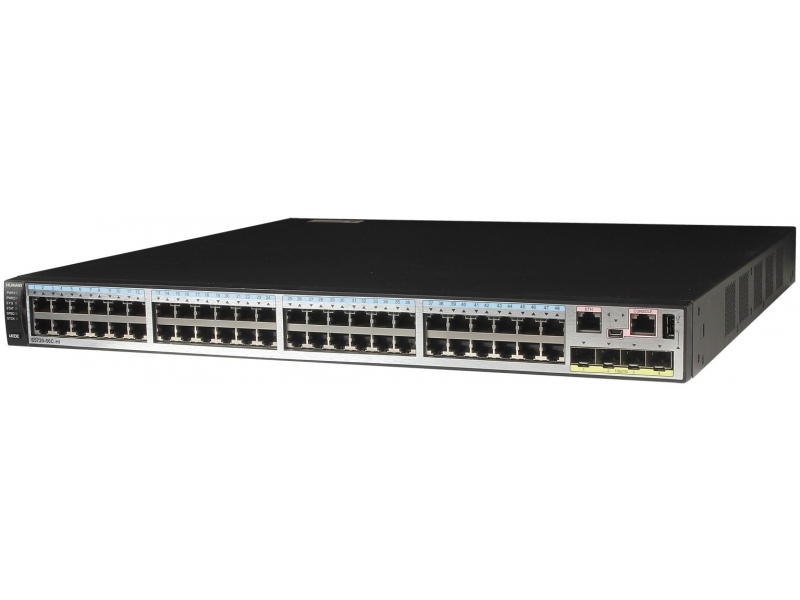

| S5720-56C-HI-AC: |
- 48-Port 10/100/1000MbE (RJ45);
- 4-Port 10GbE (SFP+);
- 2 expansion slots;
- 1-Port console (RJ45/miniUSB);
- 1-Port out-of-band management 10/100MbE (RJ45);
- 1-port USB
|

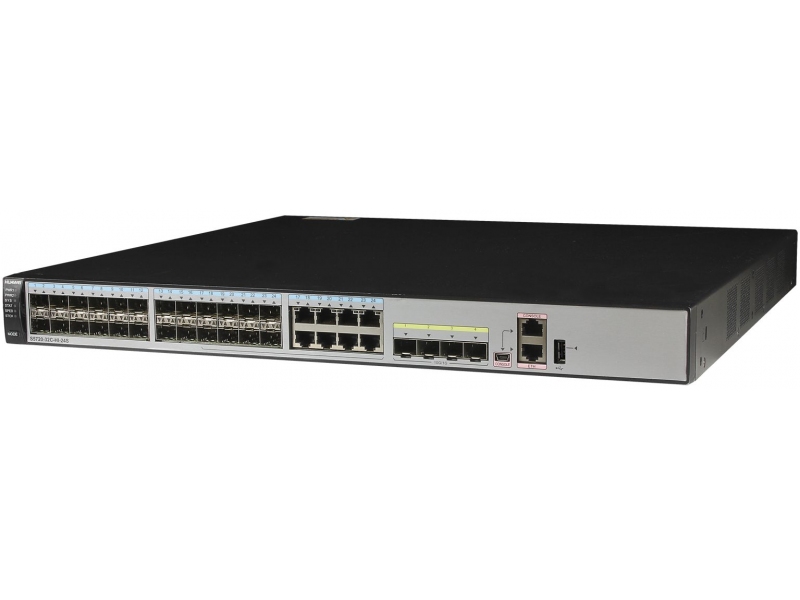

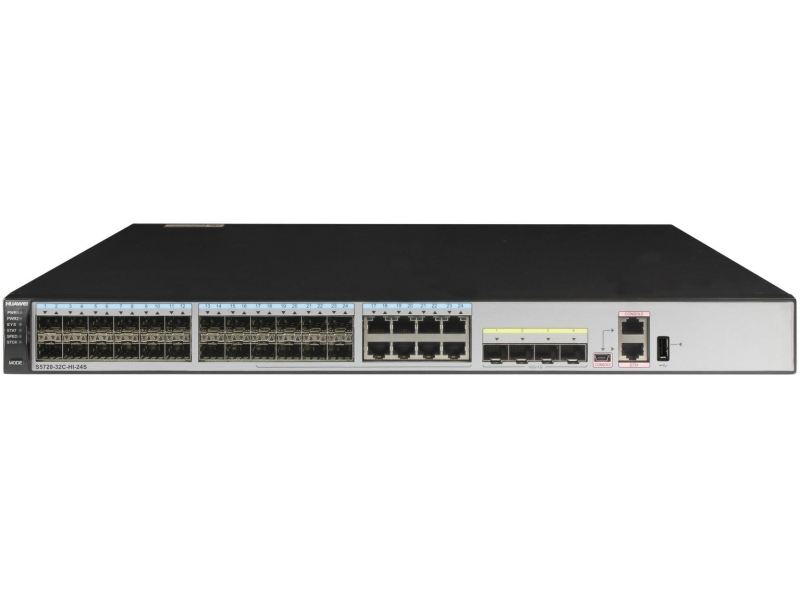

| S5720-32C-HI-24S-AC: |
- 24-Port 1GbE (SFP);
- 8-Port combo 1GbE (RJ45/SFP);
- 4-Port 10GbE (SFP+);
- 2 expansion slots;
- 1-Port console (RJ45/miniUSB);
- 1-Port out-of-band management 10/100MbE (RJ45);
- 1-Port USB
|

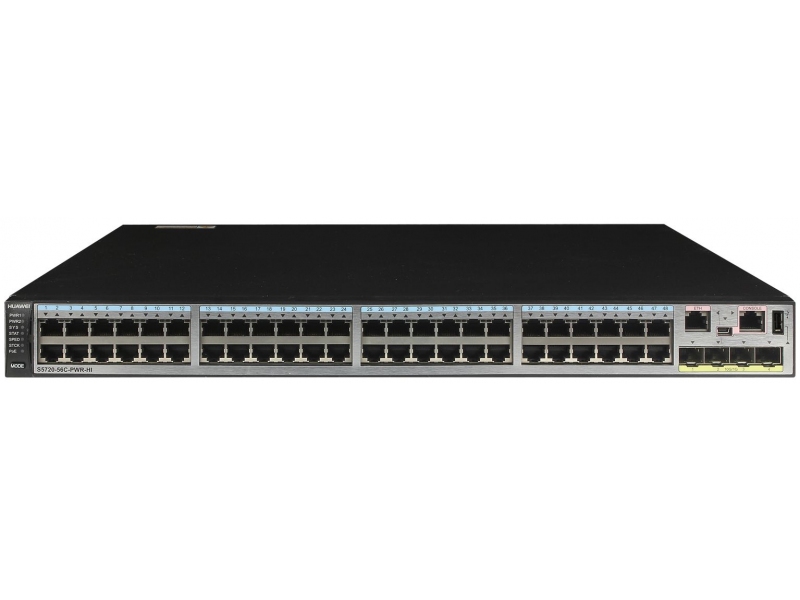

| S5720-56C-PWR-HI-AC: |
- 48-Port 10/100/1000MbE (RJ45);
- 4-Port 10GbE (SFP+);
- 2 expansion slots;
- 1-Port console (RJ45/miniUSB);
- 1-Port out-of-band management 10/100MbE port (RJ45);
- 1-Port USB
|
|
| Performance | |
| Switching Bandwidth |
| S5720-56C-HI-AC: |
176 Gb/s |
| S5720-32C-HI-24S-AC: |
144 Gb/s |
| S5720-56C-PWR-HI-AC: |
176 Gb/s |
|
| Forwarding Rate |
| S5720-56C-HI-AC: |
192 Mp/s |
| S5720-32C-HI-24S-AC: |
168 Mp/s |
| S5720-56C-PWR-HI-AC: |
192 Mp/s |
|
| Layer 2 Features | |
| MAC Address Table |
| Maximum Capacity: |
128,000 entries |
|
| VLAN | IEEE 802.1Q: 4094. GVRP; QinQ; VLAN Translation |
| Layer 2 Reliability | STP/RSTP/MSTP; VBST; SEP; RRPP; ERPS (G.8032) |
| Multicast | |
|
| IGMP snooping: |
v1/v2/v3 |
| IGMP groups: |
2,048 |
| Multicast VLAN (MVR): |
Supported |
| Multicast Routing: |
PIM-DM; PIM-SM; PIM-SSM; MSDP |
|
| Layer 3 features | |
| ARP Table | 128,000 entries |
| Routing Table |
| IPv4: |
1 M routes (license is required. By default 256,000 routes are supported) |
| IPv6: |
64,000 routes |
|
| IP Routing | Static Routes, RIPv1/2, OSPFv2, IS-IS, BGP, VRRP |
| MPLS / VPN | |
| Supported. MPLS, LDP, L2VPN, MPLS-TE, L3VPN, VPLS, GRE |
| Security | |
|
| IPv4 ACL: |
64,000 Ingress + Egress |
| IPv6 ACL: |
16,000 Ingress + Egress |
|
|
| Local AAA: |
Supported |
| RADIUS, TACACS+: |
Supported |
| DHCP Server |
Supported |
| DHCP Relay option82: |
Supported |
| DHCP Snooping: |
Supported |
| Loop detection: |
Supported |
| IP Source Guard: |
Supported |
| Broadcast, multicast, unknown unicast suppression: |
Supported |
|
| Quality of Service | |
|
| QoS queues: |
8 |
| Traffic Limit: |
Supported |
| Traffic Mark: |
by 802.1p, DSCP |
|
| IPv6 | |
| Static Routes; OSPFv3; VRRPv6; DHCPv6; IS-ISv6; PIM-DMv6; PIM-SMv6; IPv6 ACL; Multicast Listener Discovery snooping (MLDv1/v2) |
| Management | |
| Telnet; SSH; Web-management; LLDP; sFlow; SNMP v1/v2/v3; RMON; Syslog; NTP |
| OAM | |
| 802.3ah (EFM); 802.1ag (CFM); Y.1731; NQA |
| Environmental Conditions | |
| Relative Humidity | 5 to 95% (noncondensing) |
| Operating Temperature | 0 to 45°C (32 to 113°F) |

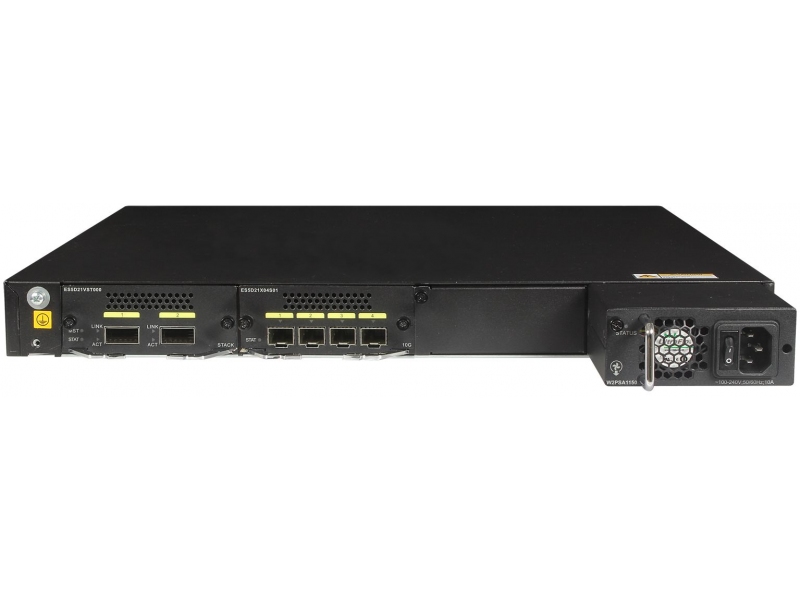

| Power Supply | |
| Power Supply Unit (PSU) |
| AC PSU: |
|
| Type: |
Removable |
| Quantity: |
2 |
| Rated voltage range: |
100 to 240 VAC, 50-60 Hz |
|
|
| DC PSU: |
|
| Type: |
Removable |
| Quantity: |
2 |
| Rated voltage range: |
-48 to -60 VDC |
|
| PoE (Power over Ethernet) |
| Supported by: |
S5720-56C-PWR-HI-AC |
| PoE (802.3af) (15 W per port): |
|
| S5720-56C-PWR-HI-AC |
48 ports (with 2 PSU) |
|
|
| PoE+ (802.3аt) (30 W per port): |
|
| S5720-56C-PWR-HI-AC |
48 ports (with 2 PSU) |
|
| Maximum power consumption | |
|
| S5720-56C-HI-AC: |
up to 183.3 W |
| S5720-32C-HI-24S-AC: |
up to 172.7 W |
| S5720-56C-PWR-HI-AC: |
up to 1,739 W |
|
| Acoustic noise | |
|
| S5720-56C-HI-AC: |
up to 60.1 dB |
| S5720-32C-HI-24S-AC: |
up to 60 dB |
| S5720-56C-PWR-HI-AC: |
up to 59.8 dB |
|
| Dimensions (HxWxD) | |
| 43.6 (1U) х 442 х 420 mm
(1.72 (1U) x 17.4 x 16.54 in) |
| Maximum Weight | |
| 10 kg (22.05 lb) |

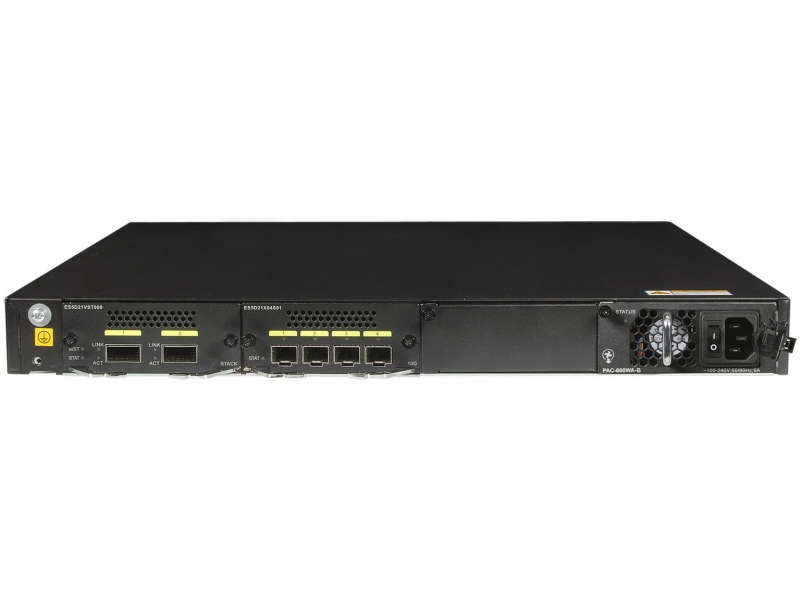

| Compatible expansion cards | |
|
| Model Number |
Description |
| ES5D21X04S01 |
4-Port10GbE (SFP+) |
|
