| Interfaces | |
|
|

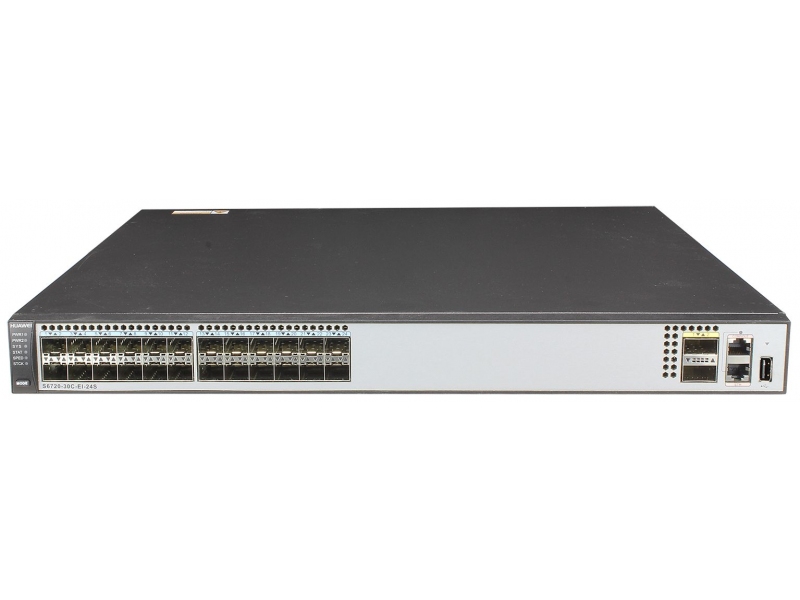

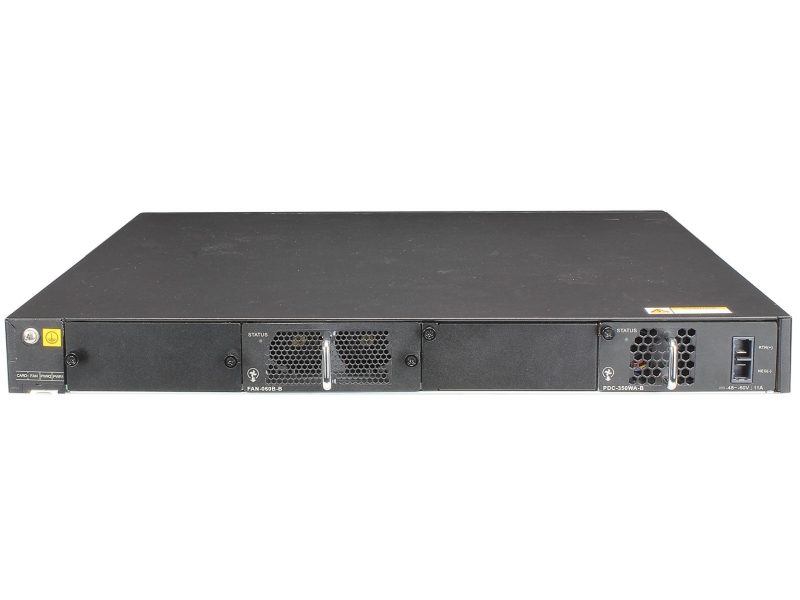

S6720-30C-EI-24S-AC/DC
|
- 24-Port 10GbE (SFP+);
- 2-Port 40GbE (QSFP+);
- 1 expansion slot;
- 1-Port console (RJ45);
- 1-Port out-of-band management 10/100MbE (RJ45);
- 1-Port USB
|
|

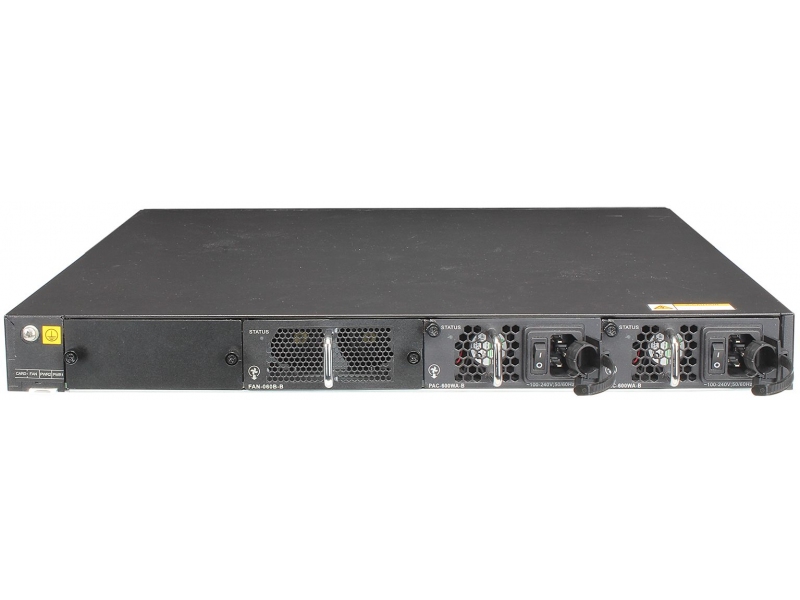

S6720-54C-EI-48S-AC/DC
|
- 48-Port 10GbE (SFP+);
- 2-Port 40GbE (QSFP+);
- 1 expansion slot;
- 1-Port console (RJ45);
- 1-Port out-of-band management 10/100MbE (RJ45);
- 1-Port USB
|
|

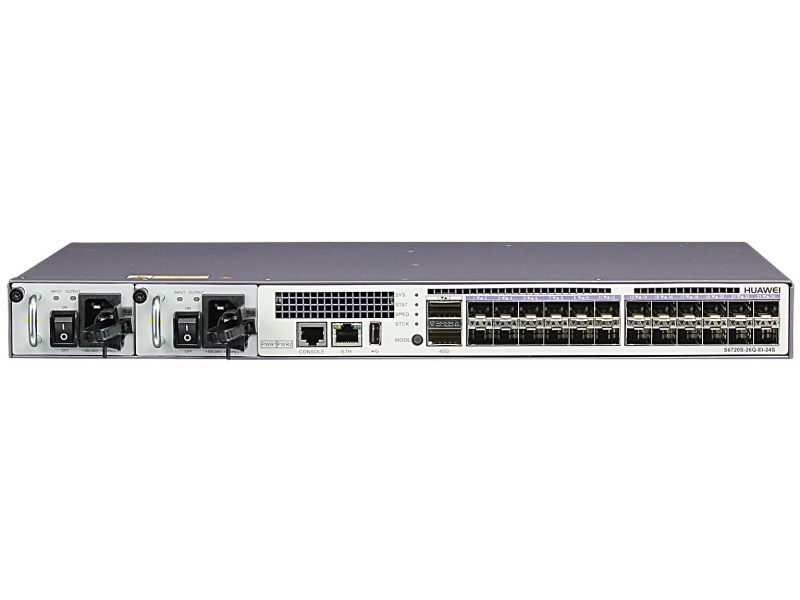

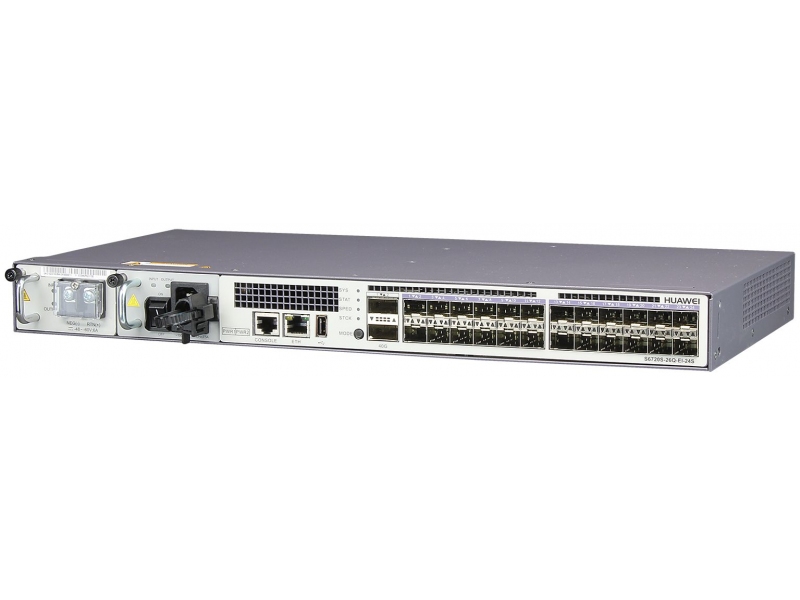

S6720S-26Q-EI-24S-AC/DC
|
- 24-Port 10GbE (SFP+);
- 2-Port 40GbE (QSFP+);
- 1-Port console (RJ45);
- 1-Port out-of-band management 10/100MbE (RJ45);
- 1-Port USB
|
|
| Performance | |
| Switching Bandwidth |
|
S6720-30C-EI-24S-AC/DC
|
2.56 Tb/s |
|
S6720-54C-EI-48S-AC/DC
|
2.56 Tb/s |
|
S6720S-26Q-EI-24S-AC/DC
|
2.56 Tb/s |
|
| Forwarding Rate |
|
S6720-30C-EI-24S-AC/DC
|
720 Mp/s |
|
S6720-54C-EI-48S-AC/DC
|
1,080 Mp/s |
|
S6720S-26Q-EI-24S-AC/DC
|
480 Mp/s |
|
| Layer 2 Features | |
| MAC Address Table |
| Maximum Capacity: |
288,000 entries (enhanced-mac mode) |
|
| VLAN | IEEE 802.1Q: 4094. GVRP; QinQ; VLAN Translation |
| Layer 2 Reliability | STP/RSTP/MSTP; VBST; SEP; RRPP; ERPS (G.8032) |
| Multicast | |
|
| IGMP snooping: |
v1/v2/v3 |
| IGMP groups: |
4,096 |
| Multicast VLAN (MVR): |
Supported |
| Multicast Routing: |
PIM-DM; PIM-SM; PIM-SSM |
|
| Layer 3 features | |
| ARP Table | 44,000 entries (enhanced-arp mode) |
| Routing Table |
| IPv4: |
128 000 routes (enhanced-ipv4 mode) |
| IPv6: |
80 000 routes (enhanced-ipv4 mode) |
|
| IP Routing | Static Routes; RIPv1/2; OSPFv2; IS-IS; BGP; VRRP |
| MPLS / VPN | |
| Supported. MPLS, LDP, L2VPN, MPLS-TE, L3VPN, VPLS, GRE |
| Security | |
|
| IPv4 ACL: |
4,096 Ingress + 1024 Egress |
| IPv6 ACL: |
2,048 Ingress + 512 Egress |
|
|
| Local AAA: |
Supported |
| RADIUS, TACACS+: |
Supported |
| DHCP Server |
Supported |
| DHCP Relay option82: |
Supported |
| DHCP Snooping: |
Supported |
| Loop detection: |
Supported |
| IP Source Guard: |
Supported |
| Broadcast, multicast, unknown unicast suppression: |
Supported |
|
| Quality of Service | |
|
| QoS queues: |
8 |
| Traffic Limit: |
Supported |
| Traffic Mark: |
by 802.1p, DSCP |
|
| IPv6 | |
| Static Routes; OSPFv3; VRRPv6; IPv6 ACL; Multicast Listener Discovery snooping (MLDv1/v2) |
| Management | |
| Telnet; SSH; Web-management; LLDP; SNMP v1/v2/v3; RMON; Syslog; NTP |
| OAM | |
| 802.3ah (EFM); 802.1ag (CFM); NQA; |
| Environmental Conditions | |
| Relative Humidity | 5 to 95% (noncondensing) |
| Operating Temperature | 0 to 45°C (32 to 113°F) |
| Power Supply | |
| Power Supply Unit (PSU) |
| AC PSU: |
|
| Type: |
Removable |
| Quantity: |
2 |
| Rated voltage range: |
100 to 240 VAC, 50-60 Hz |
|
|
| DC PSU: |
|
| Type: |
Removable |
| Quantity: |
2 |
| Rated voltage range: |
-48 to -60 VDC |
|
| PoE (Power over Ethernet) | Not supported |
| Maximum power consumption | |
|
| S6720-30C-EI-24S-AC: |
up to 233.7 W |
| S6720-30C-EI-24S-DC: |
up to 212.5 W |
| S6720-54C-EI-48S-AC: |
up to 296.1 W |
| S6720-54C-EI-48S-DC: |
up to 268.6 W |
| S6720S-26Q-EI-24S-AC: |
up to 143.4 W |
| S6720S-26Q-EI-24S-DC: |
up to 126.3 W |
|
| Acoustic noise | |
|
| S6720-30C-EI-24S-AC: |
up to 72.1 dBA |
| S6720-30C-EI-24S-DC: |
up to 72.1 dBA |
| S6720-54C-EI-48S-AC: |
up to 72.1 dBA |
| S6720-54C-EI-48S-DC: |
up to 72.1 dBA |
| S6720S-26Q-EI-24S-AC: |
up to 67.1 dBA |
| S6720S-26Q-EI-24S-DC: |
up to 67.1 dBA |
|
| Dimensions (HxWxD) | |
| 44.4 (1U) х 442 х 420 mm
(1.74 (1U) x 17.4 x 16.54 in) |
| Maximum Weight | |
|
| S6720-30C-EI-24S-AC: |
9.8 kg (21.6 lb) |
| S6720-30C-EI-24S-DC: |
9.8 kg (21.6 lb) |
| S6720-54C-EI-48S-AC: |
10.2 kg (22.49 lb) |
| S6720-54C-EI-48S-DC: |
10.2 kg (22.49 lb) |
| S6720S-26Q-EI-24S-AC: |
5.35 kg (11.79 lb) |
| S6720S-26Q-EI-24S-DC: |
5.15 kg (11.35 lb) |
|
| Compatible expansion cards | |
|
| Model Number |
Description |
| Supported by: |
S6720-30C-EI-24S-AC/DC, S6720-54C-EI-48S-AC/DC |
| ES5D21Q04Q01 |
4-Port 40GbE (QSFP+) |
|
