Huawei S6720-LI Series

S6720-LI series Datasheet (eng)

Available to quote:

S6720-16X-LI-16S-AC;

S6720-26Q-LI-24S-AC;

S6720-32X-LI-32S-AC

Request a Quote
SPECIFICATIONS
Interfaces

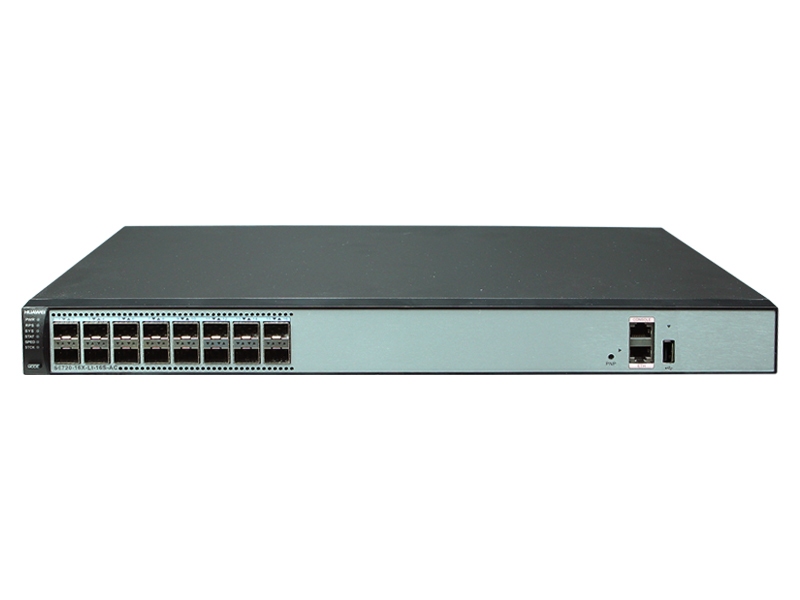

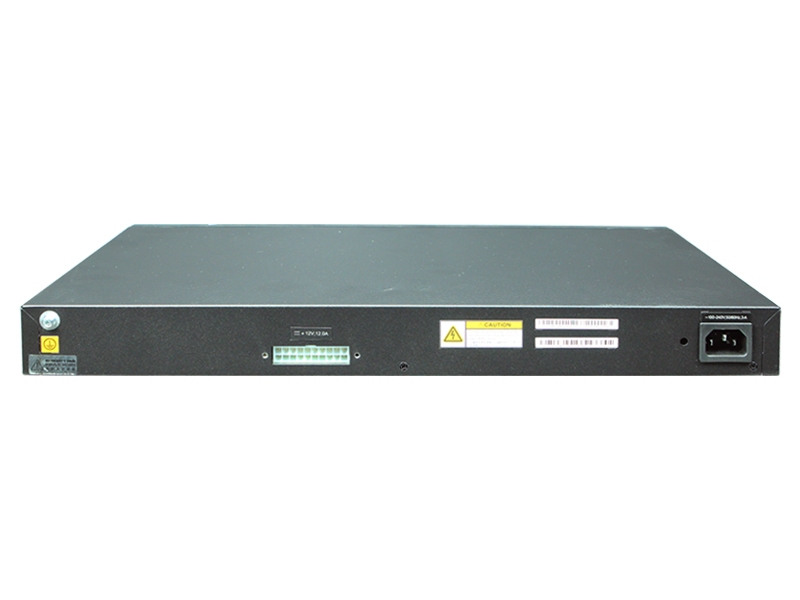

S6720S-16X-LI-16S-AC:
  • 16-Port 1/10GbE (SFP/SFP+);
  • 1-Port out-of-band management 10/100MbE (RJ45);
  • 1-Port console (RJ45);
  • 1-Port USB;
  • 1-Port RPS

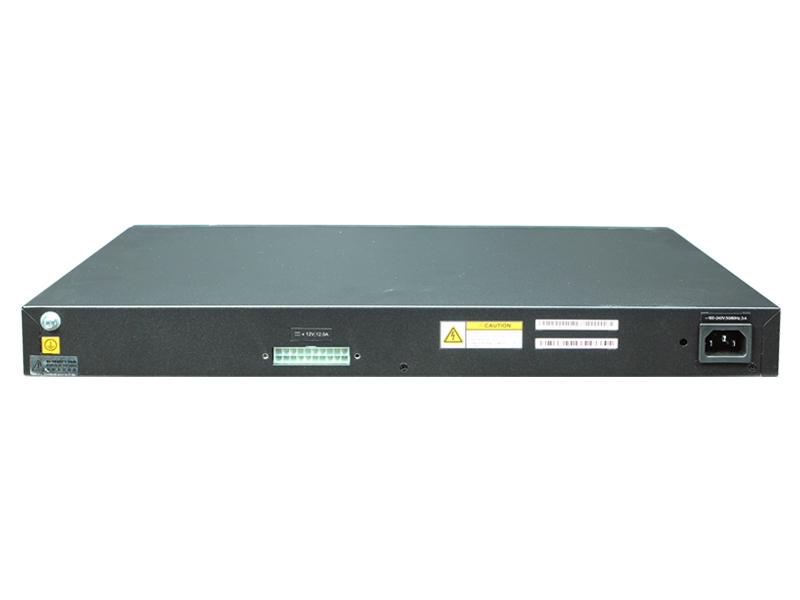

S6720S-32X-LI-32S-AC:
  • 32-Port 1/10GbE (SFP/SFP+);
  • 1-Port out-of-band management 10/100MbE (RJ45);
  • 1-Port console (RJ45);
  • 1-Port USB;
  • 1-Port RPS

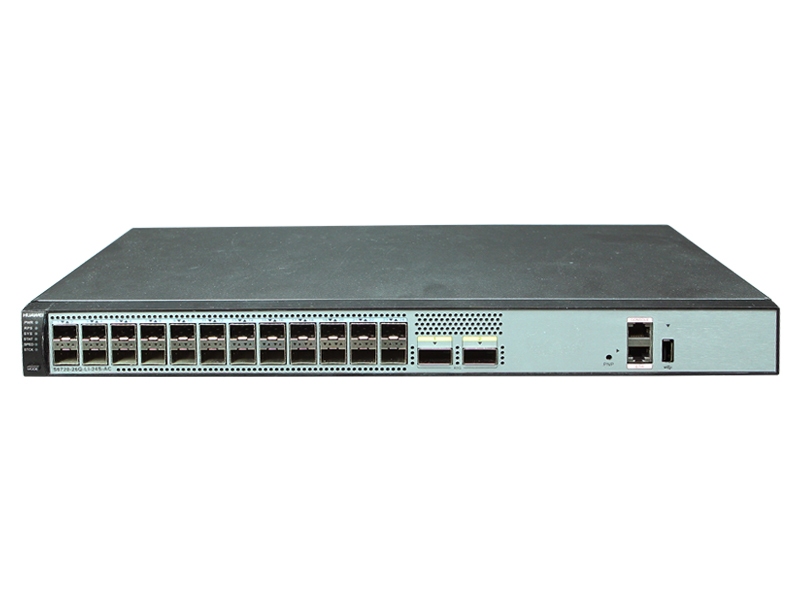

S6720S-26Q-LI-24S-AC:
  • 24-Port 1/10GbE (SFP/SFP+);
  • 2-Port 40GbE (QSFP+);
  • 1-Port out-of-band management 10/100MbE (RJ45);
  • 1-Port console (RJ45);
  • 1-Port USB;
  • 1-Port RPS
Performance
Switching Bandwidth

1.28Tb/s
Forwarding Rate

240 Mp/s
Layer 2 Features
MAC Address Table

32,000 entries
VLAN

IEEE 802.1Q: 4094; GVRP; QinQ; VLAN Translation
Layer 2 Reliability

STP/RSTP/MSTP; SEP; RRPP; ERPS (G.8032)
Multicast
IGMP snooping: v1/v2/v3
IGMP groups: 1,024
Multicast VLAN (MVR): Supported
Multicast Routing: Not supported
Layer 3 features
IP Routing

Static Routes; RIP; OSPF
MPLS / VPN

Not supported
Security
Local AAA: Supported
RADIUS, TACACS+: Supported
DHCP Server Supported
DHCP Relay option82: Supported
DHCP Snooping: Supported
Loop detection: Supported
IP Source Guard: Supported
Bandwidth Limit: Supported
Broadcast, multicast, unknown unicast suppression: Supported
Management

Telnet; SSH; Web-management; LLDP; SNMP v1/v2/v3; RMON; Syslog; NTP
Environmental Conditions
Relative Humidity

5 to 95% (noncondensing)
Operating Temperature

0 to 45°C (32 to 113°F)
Power Supply
Power Supply Unit (PSU)
AC PSU:
Type: Built-in
Quantity: 1
Rated voltage range: 100 to 240 VAC, 50-60 Hz
DC PSU: Not supported
PoE (Power over Ethernet)

Not supported
Maximum power consumption
S6720-16X-LI-16S-AC: 67.9 W
S6720-26Q-LI-24S-AC: 108.5 W
S6720-32X-LI-32S-AC: 100.2 W
Acoustic noise

46.5 dBA
Dimensions (HxWxD)
43.6 (1U) x 442 x 220 mm
(1.71 (1U) x 17.4 x 8.7 in)
Maximum Weight
S6720-16X-LI-16S-AC: 4.1 kg (9.04 lb)
S6720-26Q-LI-24S-AC: 4.3 kg (9.48 lb)
S6720-32X-LI-32S-AC: 4.2 kg (9.26 lb)
Compatible expansion cards

Not supported
