| Interfaces | |
|

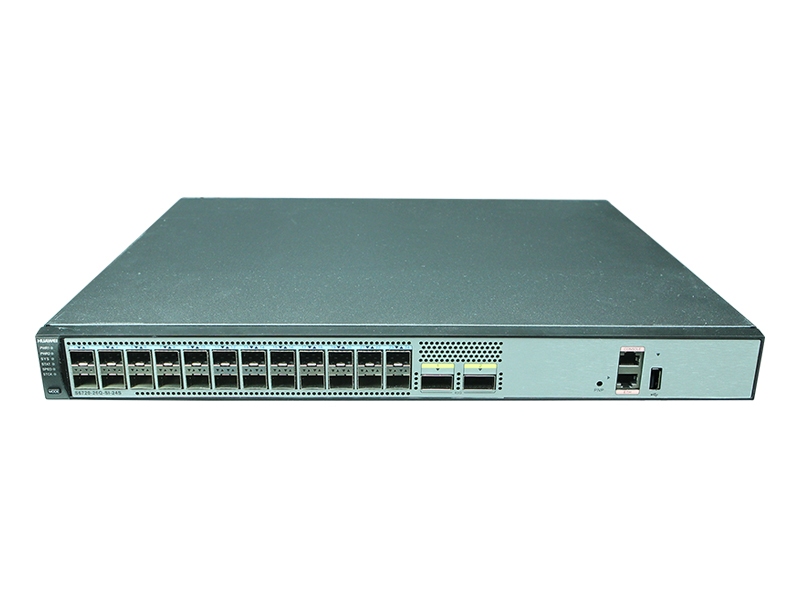

| S6720-26Q-SI-24S-AC: |
- 24-Port 1/10GbE (SFP/SFP+);
- 2-Port 40GbE (QSFP+);
- 1-Port out-of-band management 10/100MbE (RJ45);
- 1-Port console (RJ45);
- 1-Port USB
|
| S6720-32X-SI-32S-AC: |
- 32-Port 1/10GbE (SFP/SFP+);
- 1-Port out-of-band management 10/100MbE (RJ45);
- 1-Port console (RJ45);
- 1-Port USB
|

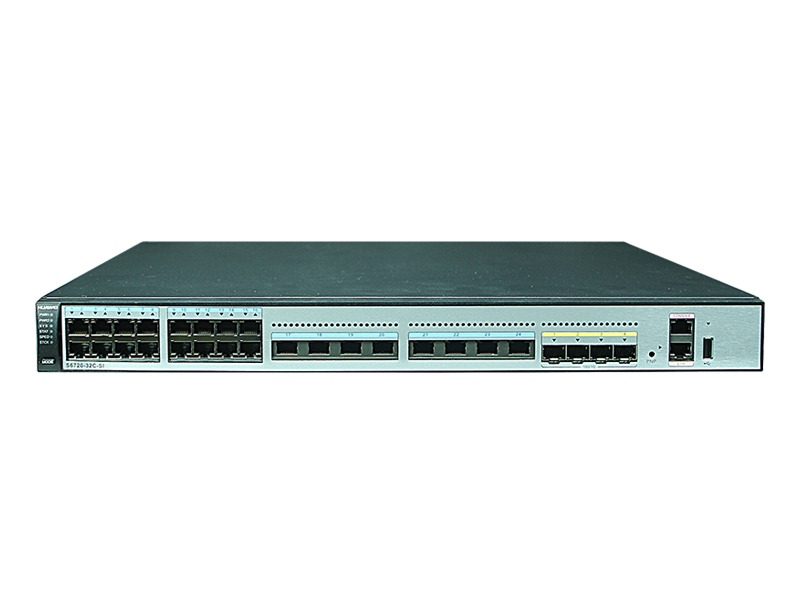

| S6720-32C-SI-AC/DC: |
- 24-Port 100M/1G/2.5G/10GbE (RJ45);
- 4-Port 1/10GbE (SFP/SFP+);
- 1-Port out-of-band management 10/100MbE (RJ45);
- 1-Port console (RJ45);;
- 1-Port USB;
- 1 Expansion slot
|
|
S6720-32C-PWH-SI-AC:
|
- 24-Port 100M/1G/2.5G/10GbE (RJ45) PoE;
- 4-Port 1/10GbE (SFP/SFP+);
- 1-Port out-of-band management 10/100MbE (RJ45);
- 1-Port console (RJ45);
- 1-Port USB;
- 1 Expansion slot
|
|
S6720-32C-PWH-SI:
|
- 24-Port 100M/1G/2.5G/10GbE (RJ45) PoE;
- 4-Port 1/10GbE (SFP/SFP+);
- 1-Port out-of-band management 10/100MbE (RJ45);
- 1-Port console (RJ45);
- 1-Port USB;
- 1 Expansion slot
|
|
| Performance | |
| Switching Bandwidth | 2.56 Tb/s
|
| Forwarding Rate | 240 Mp/s |
| Layer 2 Features | |
| MAC Address Table | 32,000 entries |
| VLAN | IEEE 802.1Q: 4094. GVRP; QinQ; VLAN Translation |
| Layer 2 Reliability | STP/RSTP/MSTP; SEP; RRPP; ERPS (G.8032) |
| Multicast | |
|
| IGMP snooping: |
v1/v2/v3 |
| IGMP groups: |
1,024 |
| Multicast VLAN (MVR): |
Supported |
| Multicast Routing: |
PIM-SM; PIM-DP; MSDP |
|
| Layer 3 features | |
| IP Routing | Static Routes; RIPv1/v2; OSPF, IS-IS; BGP |
| MPLS / VPN | |
| Not supported |
| Security | |
|
| Local AAA: |
Supported |
| RADIUS, TACACS+: |
Supported |
| DHCP Server |
Supported |
| DHCP Relay option82: |
Supported |
| DHCP Snooping: |
Supported |
| Loop detection: |
Supported |
| IP Source Guard: |
Supported |
| Bandwidth Limit: |
Supported |
| Broadcast, multicast, unknown unicast suppression: |
Supported |
|
| Management | |
| Telnet; SSH; Web-management; LLDP; SNMP v1/v2/v3; RMON; Syslog; NTP |
| Environmental Conditions | |
| Relative Humidity | 5 to 95% (noncondensing) |
| Operating Temperature | 0 to 45°C (32 to 113°F) |
| Power Supply | |
| Power Supply Unit (PSU) |
| AC PSU: |
|
| Type: |
Removable |
| Quantity: |
2 |
| Rated voltage range: |
100 to 240 VAC, 50-60 Hz |
| DC PSU: |
|
| Type: |
Removable |
| Quantity: |
2 |
| Rated voltage range: |
-36 to -72 VDC |
|
| PoE (Power over Ethernet) |
| Supported by: |
S6720-32C-PWH-SI-AC
S6720-32C-PWH-SI
|
|
| PoE (802.3af) (15W per port): |
|
| S6720-32C-PWH-SI-AC: |
24 ports |
| S6720-32C-PWH-SI: |
24 ports |
|
| PoE+ (802.3аt) (30W per port): |
|
| S6720-32C-PWH-SI-AC: |
24 ports (with 2 x 650 W PSU) |
| S6720-32C-PWH-SI: |
24 ports (with 2 x 650 W PSU) |
|
| PoE++ (802.3bt) (60W per port): |
|
| S6720-32C-PWH-SI-AC: |
12 ports (with 2 x 650 W PSU) |
| S6720-32C-PWH-SI: |
24 ports (with 2 x 1,150 W PSU) |
|
| PoE++ (802.3bt) (90W per port): |
Not supported |
|
| Maximum power consumption | |
|
|
S6720-26Q-SI-24S-AC:
|
97 W |
| S6720-32X-SI-32S-AC: |
104.6 W |
| S6720-32C-SI-AC/DC: |
117.62 W |
| S6720-32C-PWH-SI-AC: |
1017.2 W |
| S6720-32C-PWH-SI: |
1735 W |
|
| Acoustic noise | |
|
|
S6720-26Q-SI-24S-AC:
|
57 dBA |
| S6720-32X-SI-32S-AC: |
60.5 dBA |
| S6720-32C-SI-AC/DC: |
62.3 dBA |
|
S6720-32C-PWH-SI-AC:
|
62.3 dBA |
|
S6720-32C-PWH-SI:
|
62.3 dBA |
|
| Dimensions (HxWxD) | |
| 44.4 (1U) x 442 x 420 mm
(1.74 (1U) х 17.40 х 16.53 in) |
| Maximum Weight | |
|
|
S6720-26Q-SI-24S-AC:
S6720-32X-SI-32S-AC:
|
8.9 kg (19.62 lb) |
| S6720-32C-SI-AC/DC: |
8.7 kg (19.18 lb) |
|
S6720-32C-PWH-SI-AC:
|
9.1 kg (20.06 lb) |
|
S6720-32C-PWH-SI:
|
8.1 kg (17.86 lb) |
|
| Compatible expansion cards | |
|
| Model Number |
Description |
| Supported by: |
S6720-32C-SI-AC/DC
S6720-32C-PWH-SI-AC
S6720-32C-PWH-SI
|
| ES5D21Q02Q00: |
2-Port 40GbE (QSFP+) |
|
