Huawei S9700 series

Download S9700 series Datasheet (eng)

Available to quote:

S9703

S9706

S9712

Request a Quote
SPECIFICATIONS
Interfaces

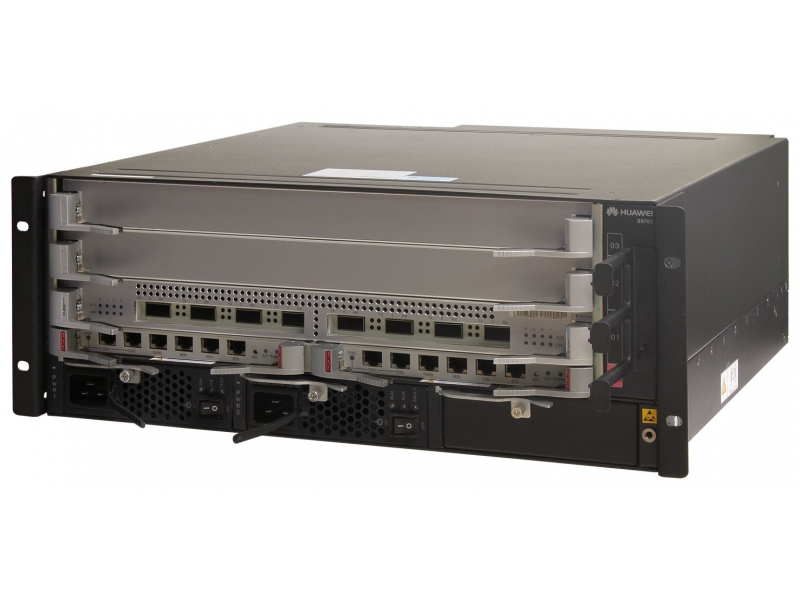

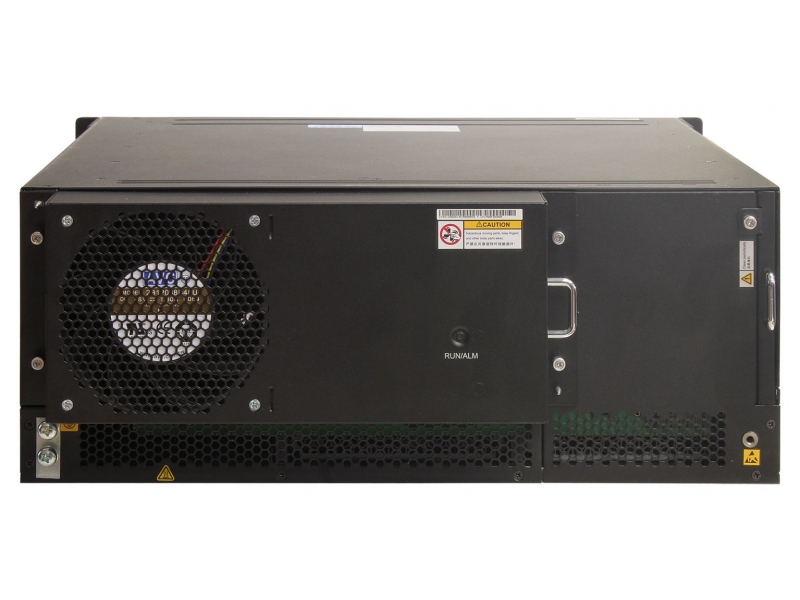

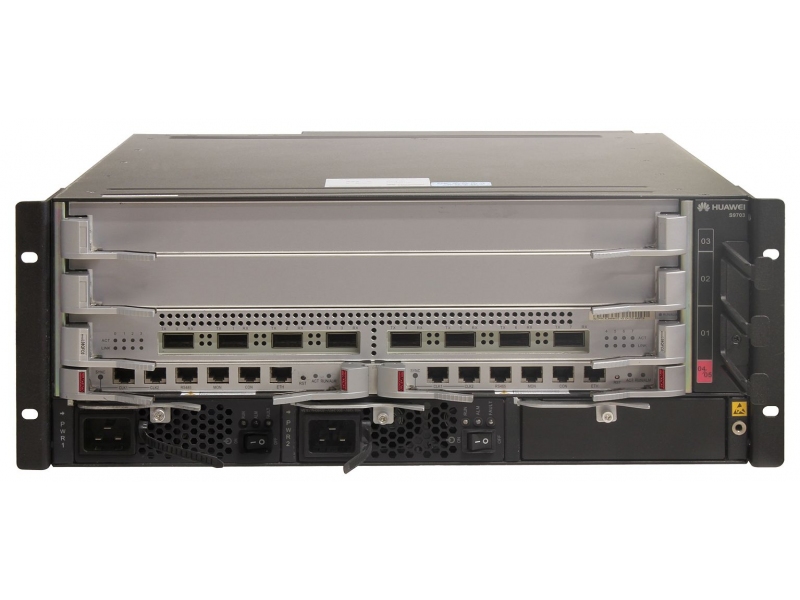

S9703:
  • 3 service card slots (LPU);
  • 2 control card slots (MPU)

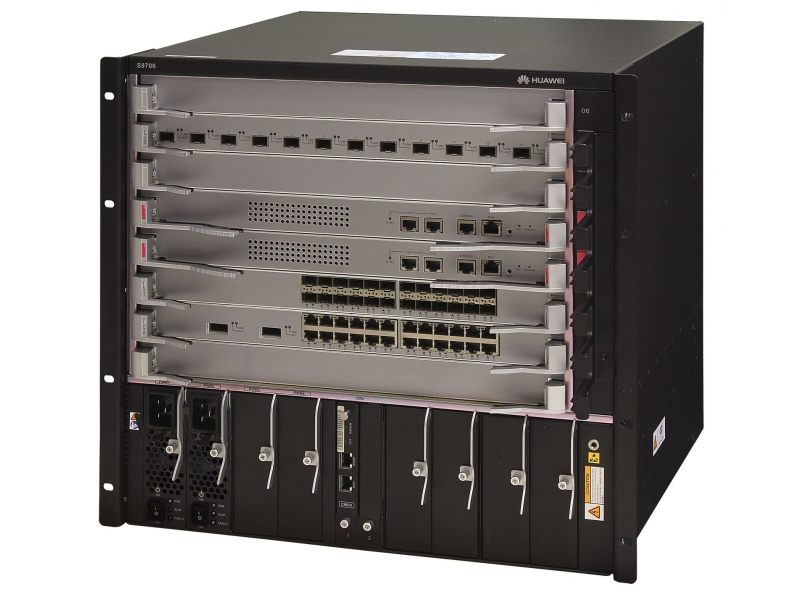

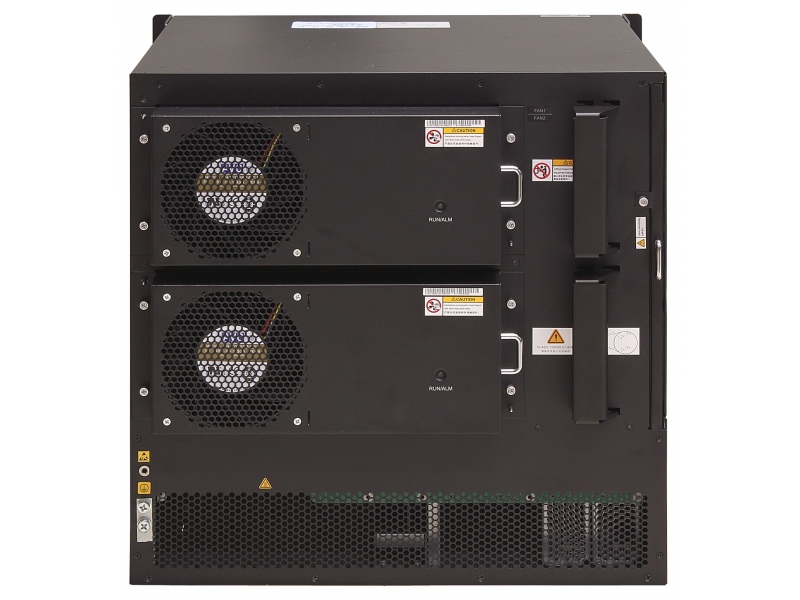

S9706:
  • 6 service card slots (LPU);
  • 2 control card slots (MPU)

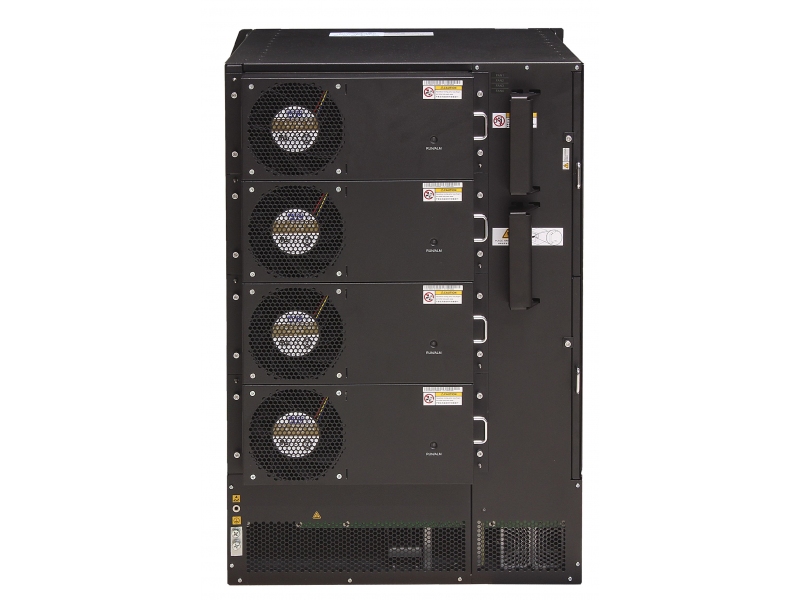

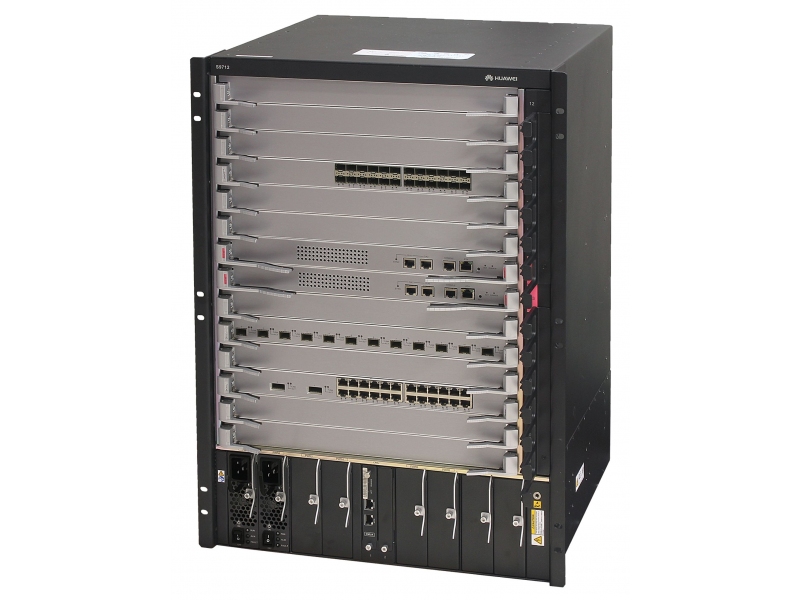

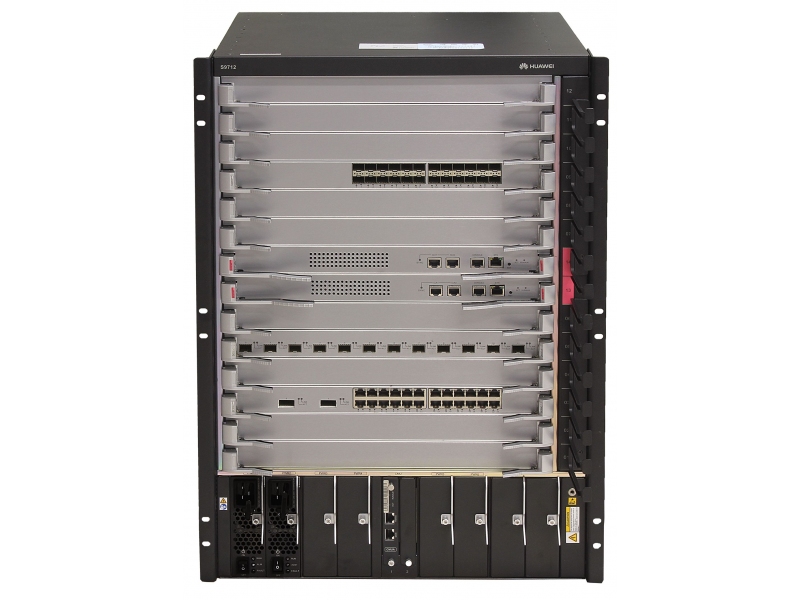

S9712:
  • 12 service card slots (LPU);
  • 2 control card slots (MPU)
Performance
Switching Bandwidth
S9703: 2.88 / 5.76 Tbit/s
S9706: 6.72 / 14.72 Tb/s
S9712: 8.64 / 18.56 Tb/s
Forwarding Rate
S9703: 2,160 Mp/s
S9706: 2,880 / 5,040 Mp/s
S9712: 3,840 / 6,480 Mp/s
Layer 2 Features
MAC Address Table
ED series cards: 512,000 entries
EC/BC/FC series cards: 128,000 entries
ET1D2X48SEC0 card: 288,000 entries
EA/SA/FA series cards: 32,000 entries
X1E series cards: 1M entries

VLAN / VPN

IEEE 802.1Q: 4094.  GVRP; QinQ; VLAN Translation
WLAN
Maximum access points (AP) supported by chassis:
S9703: 512
S9706 & S9712: 2,048
Maximum access points (AP) supported by X1E type card:
Without AP license activated 16
With AP license activated 1,024
Layer 2 Reliability

STP/RSTP/MSTP; VBST; RRPP; ERPS (G.8032); Switch Cluster System (CSS)

Multicast
IGMP snooping: v1/v2/v3
IGMP groups 4,096
Multicast VLAN (MVR): Supported
Multicast Routing: PIM-DM; PIM-SM; PIM-SSM; MSDP
Layer 3 features
ARP Table
EA/EC/BC/ED series cards: 16,376 entries
EH1D2X48SEC0 card: 44,000 entries
SA/FA/FC series cards: 8,184 entries
EH1D2L02QFC0 and EH1D2L08QFC0 cards: 16,376 entries
X1E card: 256,000 entries
Routing Table
RIB IPv4:
S9712: 1M routes
S9706: 1M routes
S9703: 150,000 routes
RIB IPv6:
S9712: 1M routes
S9706: 1M routes
S9703: 150,000 routes
FIB IPv4:
ED series cards: 512,000 routes
EC/BC series cards: 128,000  routes
EH1D2X48SEC0 card: 12,000 routes
EA series cards: 16,000 routes
SA/FA series cards: 12,000 routes
FC series cards: 16,000 routes
X1E series cards: 1M routes (S9712/S9706); 150,000 routes(S9703)
FIB IPv6:
ED series cards: 256,000 routes
EC/BC series cards: 64,000 routes
EH1D2X48SEC0 card: 80,000 routes
EA series cards: 8,000 routes
SA/FA series cards: 6,000 routes
FC series cards: 8,000 routes
X1E series cards: 512,000 routes (S9712/S9706); 150,000 routes(S9703)
IP Routing

Static Routes, RIPv1/2, OSPFv2, IS-IS, BGP, MBGP; VRRP
MPLS

Supported (with MPLS license). MPLS; LDP; L2VPN; MPLS-TE; L3VPN; VPLS; GRE

(The SA/X1E series cards do not support MPLS).
Security
Local AAA: Supported
RADIUS, TACACS+: Supported
PPPoE Server Supported (with X1E series card)
DHCP Server Supported
DHCP Relay option82: Supported
DHCP Snooping: Supported
Loop detection: Supported
IP Source Guard: Supported
Bandwidth Limit: Supported
Broadcast, multicast, unknown unicast suppression: Supported

Management

Telnet; SSH; Web-management; LLDP; sFlow; SNMP v1/v2/v3; RMON; Syslog; NTP
Environmental Conditions
Relative Humidity

5 to 95% (noncondensing)
Operating Temperature

0 to 45°C (32 to 113°F)
Power Supply
Power Supply Unit (PSU)
AC PSU:
Type: Removable
Quantity:
S9703 2
S9706 4
S9712 6
Rated voltage range:

800 W AC PSU; 2200 W AC PSU

200 to 240 VAC / 100 to 120 VAC; 47-63 Hz
DC PSU:
Type: Removable
Quantity:
S9703 2
S9706 4
S9712 6
Rated voltage range:
2200 W DC -48 to -60 VDC
Maximum power consumption
S9703 1,100 W
S9706  2,200 W
S9712 4,400 W
Acoustic noise

72 dB
Dimensions (HxWxD)
S9703:

175 (4U) x 442 х 489 mm

(6.89 (4U) x 17.4 x 19.25 in)
S9706:

441.7 (10U) x 442 х 489 mm

(17.36 (10U) x 17.4 x 19.25 in)
S9712:

663.95 (15U) x 442 х 489 mm

(26.14 (15U) x 17.4 x 19.25 in)
Maximum Weight
Empty chassis
S9703: 11 kg (24 lb)
S9706: 29 kg (63 lb)
S9712: 37 kg (81 lb)
Fully loaded chassis
S9703: 25 kg (55 lb)
S9706: 45 kg (99 lb)
S9712: 70 kg (154 lb)
Compatible control cards
Model Number Description
EH1D2SRUC000

Control Card SRUC for S9706 and S9712.

  • 1 Subcard slot for EH1D2VS08000 expansion card;
  • 2-Port BITS;
  • 1-Port USB;
  • 1-Port console (RJ45);
  • 1-Port out-of-band management 10/100MbE (RJ45)
EH1D2SRUDC00 / EH1D2SRUDC01

Control Card SRUD for S9706 and S9712.

  • 2-Port BITS;
  • 1-Port console (RJ45);
  • 1-Port out-of-band management 10/100MbE (RJ45)
EH1D2MCUAC00

Control Card MCUA for S9703

  • 2-Port BITS;
  • 1-Port console (RJ45);
  • 1-Port out-of-band management 10/100MbE (RJ45)
Subcards for the Control Cards
LE0D00CKMA00

Sync Card. Can be installed on a EH1D2SRUDC00 / EH1D2SRUDC01 or EH1D2MCUAC00 Control Cards.

Provides clock and time synchronization
EH1D2VS08000 8-Port 10G (SFP+) stack card for CSS function. Can be installed in EH1D2SRUC000 Control Card
Compatible expansion cards
Model Number Description
Value Added Services Cards
LE0D0VAMPA00

Value Added Services Card for S9703, S9706, S9712.

Provides VAS services such as load balancing, NAT, IPSec, NetStream
Open Service Platform Unit Cards
EH1D2PS00P00

Open Service Platform Unit for S9703, S9706, S9712.

ОS: VMware. Supports Intrusion Prevention System (IPS) software
Next-Generation Firewall (NGFW)
ET1D2FW00S00 Firewall, NAT, VPN. Card Performance: 10G
ET1D2FW00S01 Firewall, NAT, VPN. Card Performance: 20G
ET1D2FW00S02. Firewall, NAT, VPN. Card Performance: 40G
IPS (Intrusion Prevention System) system
ET1D2IPS0S00 IPS supported
Centralized Monitoring Unit (CMU) Cards
EH1D200CMU00 Centralized Monitoring Unit Card for S9706 and S9712. Manages system power modules and fan modules
Acces Points management Card
ACU2

Acces Points management Card for S9703, S9706. S9712.

128 AP control resource included
Service Cards
100MbE Service Cards
EH1D2F48TEA0

100MbE Service Card for S9703, S9706, S9712

  • 48-Port 10/100MbE (RJ45);
  • MAC Address table: 32,000;
  • ARP table: 16,376;
  • FIB: 16,000 (IPv4) / 8,000 (IPv6)
EH1D2F48TEC0

100MbE Service Card for S9703, S9706, S9712

  • 48-Port 10/100MbE (RJ45);
  • MAC Address table: 128,000;
  • ARP table: 16,376;
  • FIB: 128,000 (IPv4) / 64,000 (IPv6)
EH1D2F48TFA0

100MbE Service Card for S9703, S9706, S9712

  • 48-Port 10/100MbE (RJ45);
  • MAC Address table: 32,000;
  • ARP table: 8,184;
  • FIB: 12,000 (IPv4) / 6,000 (IPv6)

Supported only in V200R001C00, V200R002C00, and V200R003C00 versions
EH1D2F48SEA0

100MbE Service Card for S9703, S9706, S9712

  • 48-Port 100MbE (SFP);
  • MAC Address table: 32,000;
  • ARP table: 16,376;
  • FIB: 16,000 (IPv4) / 8,000 (IPv6)
EH1D2F48SEC0

100MbE Service Card for S9703, S9706, S9712

  • 48-Port 100MbE (SFP);
  • MAC Address table: 128,000;
  • ARP table: 16,376;
  • FIB: 128,000 (IPv4) / 64,000 (IPv6)
1GbE Service Cards
EH1D2G24SSA0

1GbE Service Card for S9703, S9706, S9712

  • 24-Port 100/1000MbE (SFP);
  • MAC Address table: 32,000;
  • ARP table: 8,184;
  • FIB: 12,000 (IPv4) / 6,000 (IPv6)

Supported only in V200R001C00, V200R002C00, and V200R003C00 versions
EH1D2G24SEC0

1GbE Service Card for S9703, S9706, S9712

  • 24-Port 100/1000MbE (SFP);
  • MAC Address table: 128,000;
  • ARP table: 16,376;
  • FIB: 128,000 (IPv4) / 64,000 (IPv6)
EH1D2G24SED0

1GbE Service Card for S9703, S9706, S9712

  • 24-Port 100/1000MbE (SFP);
  • MAC Address table: 512,000;
  • ARP table: 16,376;
  • FIB: 512,000 (IPv4) / 256,000 (IPv6)
EH1D2G24TFA0

1GbE Service Card for S9703, S9706, S9712

  • 24-Port 10/100/1000MbE (RJ45);
  • MAC Address table: 32,000;
  • ARP table: 8,184;
  • FIB: 12,000 (IPv4) / 8,000 (IPv6)
EH1D2G48SEA0

1GbE Service Card for S9703, S9706, S9712

  • 48-Port 100/1000MbE (SFP);
  • MAC Address table: 32,000;
  • ARP table: 16,376;
  • FIB: 16,000 (IPv4) / 8,000 (IPv6)
EH1D2G48SFA0

1GbE Service Card for S9703, S9706, S9712

  • 48-Port 100/1000MbE (SFP);
  • MAC Address table: 32,000;
  • ARP table: 8,184;
  • FIB: 12,000 (IPv4) / 6,000 (IPv6)
EH1D2G48SEC0

1GbE Service Card for S9703, S9706, S9712

  • 48-Port 100/1000MbE (SFP);
  • MAC Address table: 128,000;
  • ARP table: 16,376;
  • FIB: 128,000 (IPv4) / 64,000 (IPv6)
EH1D2G48SED0

1GbE Service Card for S9703, S9706, S9712

  • 48-Port 100/1000MbE (SFP);
  • MAC Address table: 512,000;
  • ARP table: 16,376;
  • FIB: 512,000 (IPv4) / 256,000 (IPv6)
EH1D2G48TEA0

1GbE Service Card for S9703, S9706, S9712

  • 48-Port 10/100/1000MbE (RJ45);
  • MAC Address table: 32,000;
  • ARP table: 16,376;
  • FIB: 16,000 (IPv4) / 8,000 (IPv6)
EH1D2G48TFA0

1GbE Service Card for S9703, S9706, S9712

  • 48-Port 10/100/1000MbE (RJ45);
  • MAC Address table: 32,000;
  • ARP table: 8,184;
  • FIB: 12,000 (IPv4) / 6,000 (IPv6)
EH1D2G48TEC0

1GbE Service Card for S9703, S9706, S9712

  • 48-Port 10/100/1000MbE (RJ45);
  • MAC Address table: 128,000;
  • ARP table: 16,376;
  • FIB: 128,000 (IPv4) / 64,000 (IPv6)
EH1D2G48TED0

1GbE Service Card for S9703, S9706, S9712

  • 48-Port 10/100/1000MbE (RJ45);
  • MAC Address table: 512,000;
  • ARP table: 16,376;
  • FIB: 512,000 (IPv4) / 256,000 (IPv6)
EH1D2G48TBC0

1GbE Service Card for S9703, S9706, S9712

  • 48-Port 10/100/1000MbE (RJ45);
  • MAC Address table: 128,000;
  • ARP table: 16,376;
  • FIB: 128,000 (IPv4) / 64,000 (IPv6)
EH1D2G48SBC0

1GbE Service Card for S9703, S9706, S9712

  • 48-Port 100/1000MbE (SFP);
  • MAC Address table: 128,000;
  • ARP table: 16,376;
  • FIB: 128,000 (IPv4) / 64,000 (IPv6)
EH1D2G48TX1E

1GbE Service Card for S9703, S9706, S9712

  • 48-Port 10/100/1000MbE (RJ45);
  • MAC Address table: 1M;
  • ARP table: 256,000;
  • FIB:
  • IPv4: S9706/S9712: 256,000 (without license activated) and 1M (with license activated); S9703: 150,000 (IPv4)
  • IPv6: S9706/S9712: 128,000 (without license activated) and 464,000 (with license activated); S9703: 150,000 (IPv6);
  • PPPoE users: 256 without license activated and 8,000 with license activated
  • AP: 16 without license activated and 1,024 with license activated
EH1D2G48SX1E

1GbE Service Card for S9703, S9706, S9712

  • 48-Port 100/1000BASE-Х (SFP);
  • MAC Address table: 1,000,000;
  • ARP table: 256,000;
  • FIB:
  • IPv4: S9706/S9712: 256,000 (without license activated) and 1M (with license activated); S9703: 150,000;
  • IPv6: S9706/S9712: 128,000 (without license activated) and 464,000 (with license activated); S9703: 150,000;
  • PPPoE users: 256 without license activated and 8,000 with license activated
  • AP: 16 without license activated and 1,024 with license activated
1GbE Combo Service Cards

EH1D2S24CSA0

1GbE Combo Service Card for S9703, S9706, S9712

  • 16-Port 100/1000BASE-Х (SFP) and 8-Port combo 10/100/1000MbE (RJ45) / 100/1000MbE (SFP);
  • MAC Address table: 32,000;
  • ARP table: 8,184;
  • FIB: 12,000 (IPv4) / 6,000 (IPv6)

Supported only in V200R001C00, V200R002C00, and V200R003C00 versions
EH1D2S24CEA0

1GbE Combo Service Card for S9703, S9706, S9712

  • 16-Port 100/1000BASE-Х (SFP) and 8-Port combo 10/100/1000MbE (RJ45) / 100/1000MbE (SFP);
  • MAC Address table: 32,000;
  • ARP table: 16,376;
  • FIB: 16,000 (IPv4) / 8,000 (IPv6)
EH1D2T36SEA0

1GbE Combo Service Card for S9703, S9706, S9712

  • 36-Port 10/100/1000MbE (RJ45) and 12-Port 100/1000MbE (SFP);
  • MAC Address table: 32,000;
  • ARP table: 16,376;
  • FIB: 16,000 (IPv4) / 8,000 (IPv6)
10GbE Service Cards
EH1D2X02XEA0

10GbE Service Card for S9703, S9706, S9712

  • 2-Port 10GbE (XFP);
  • MAC Address table: 32,000;
  • ARP table: 16,376;
  • FIB: 16,000 (IPv4) / 8,000 (IPv6);
  • ACL: 6,000 Ingress + 1,000 Egress (IPv4) / 3,000 Ingress + 256 Egress (IPv6)
EH1D2X02XEC0 / EH1D2X02XEC1

10GbE Service Card for S9703, S9706, S9712

  • 2-Port 10GbE (XFP);
  • MAC Address table: 128,000;
  • ARP table: 16,376;
  • FIB: 128,000 (IPv4) / 64,000 (IPv6)
EH1D2X04XEA0

10GbE Service Card for S9703, S9706, S9712

  • 4-Port 10GbE (XFP);
  • MAC Address table: 32,000;
  • ARP table: 16,376;
  • FIB: 16,000 (IPv4) / 8,000 (IPv6)
EH1D2X04XEC0 / EH1D2X04XEC1

10GbE Service Card for S9703, S9706, S9712

  • 4-Port 10GbE (XFP);
  • MAC Address table: 128,000;
  • ARP table: 16,376;
  • FIB: 128,000 (IPv4) / 64,000 (IPv6)
EH1D2X04XED0

10GbE Service Card for S9703, S9706, S9712

  • 4-Port 10GbE (XFP);
  • MAC Address table: 512,000;
  • ARP table: 16,376;
  • FIB: 512,000 (IPv4) / 256,000 (IPv6)
EH1D2X08SED4 / EH1D2X08SED5

10GbE Service Card for S9703, S9706, S9712

  • 8-Port 10GbE (SFP+);
  • MAC Address table: 512,000;
  • ARP table: 16,376;
  • FIB: 512,000 (IPv4) / 256,000 (IPv6)
EH1D2X12SSA0

10GbE Service Card for S9703, S9706, S9712

  • 12-Port 10GbE (SFP+);
  • MAC Address table: 32,000;
  • ARP table: 8,184;
  • FIB: 12,000 (IPv4) / 6,000 (IPv6)
EH1D2X16SFC0

10GbE Service Card for S9703, S9706, S9712

  • 16-Port 10GbE (SFP+);
  • MAC Address table: 128,000;
  • ARP table: 8,184;
  • FIB: 16,000 (IPv4) / 8,000 (IPv6)
EH1D2X40SFC0

10GbE Service Card for S9703, S9706, S9712

  • 40-Port 1/10GbE (SFP/SFP+);
  • MAC Address table: 128,000;
  • ARP table: 8,184;
  • FIB: 16,000 (IPv4) / 8,000 (IPv6)
EH1D2X48SEC0

10GbE Service Card for S9703, S9706, S9712

  • 48-Port 1/10GbE (SFP/SFP+);
  • MAC Address table: 256,000;
  • ARP table: 44,000;
  • FIB: 128,000 (IPv4) / 80,000 (IPv6)
10GbE Combo Service Cards
EH1D2S04SX1E

10GbE Combo Service Card for S9703, S9706, S9712

  • 4-Port 10GbE (SFP+), 16-Port 100/1000MbE (SFP), and 8-Port combo 1GbE (RJ45/SFP);
  • MAC Address table: 1,000,000;
  • ARP table: 256,000;
  • FIB:
  • IPv4: S9706/S9712: 256,000 (without license activated) and 1M (with license activated); S9703: 150,000;
  • IPv6: S9706/S9712: 128 000 (without license activated) and 464,000 (with license activated); S9703: 150,000;
  • PPPoE users: 256 without license activated and 8,000 with license activated
  • AP: 16 without license activated and 1,024 with license activated
EH1D2S08SX1E

10GbE Combo Service Card for S9703, S9706, S9712

  • 8-Port 10GbE (SFP+) and 8-Port combo 1GbE (RJ45/SFP);
  • MAC Address table: 1M;
  • ARP table: 256,000;
  • FIB:
  • IPv4: S9706/S9712: 256,000 (without license activated) and 1M (with license activated); S9703: 150,000;
  • IPv6: S9706/S9712: 128,000 (without license activated) and 464,000 (with license activated); S9703: 150,000;
  • PPPoE users: 256 without license activated and 8,000 with license activated
  • AP: 16 without license activated and 1,024 with license activated
EH1D2T24XEA0

10GbE Combo Service Card for S9703, S9706, S9712

  • 2-Port 10GbE (SFP+) and 24-Port 10/100/1000MbE (RJ45);
  • MAC Address table: 32,000;
  • ARP table: 16,376;
  • FIB: 16,000 (IPv4) / 8,000 (IPv6)
EH1D2S24XEA0

10GbE Combo Service Card for S9703, S9706, S9712

  • 24-Port 100/1000MbE (SFP) and 2-Port 10GbE (XFP);
  • MAC Address table: 32,000;
  • ARP table: 16,376;
  • FIB: 16,000 (IPv4) / 8,000 (IPv6)
EH1D2S24XEC0

10GbE Combo Service Card for S9703, S9706, S9712

  • 24-Port 100/1000MbE (SFP) and 2-Port 10GbE (XFP);
  • MAC Address table: 128,000;
  • ARP table: 16,376;
  • FIB: 128,000 (IPv4) / 64,000 (IPv6)
40GbE Service Cards
EH1D2L02QFC0

40GbE Service Card for S9703, S9706, S9712

  • 2-Port 40GbE (QSFP+);
  • MAC Address table: 128,000;
  • ARP table: 16,376;
  • FIB: 16,000 (IPv4) / 8,000 (IPv6)
EH1D2L08QFC0

40GbE Service Card for S9703, S9706, S9712

  • 8-Port 40GbE (QSFP+);
  • MAC Address table: 128,000;
  • ARP table: 16,376;
  • FIB: 16,000 (IPv4) / 8,000 (IPv6)
POS Service Cards
EH1D2WM00000

WAN interface cards for S9703, S9706, S9712.

  • Provides 10G line-speed forwarding and switching.
  • Provides 2 expansion slots

Supported only in V200R001C00, V200R002C00, and V200R003C00 versions
Subcards for POS Service Cards
P1UF

Subcard for EH1D2WM00000 service card.

  • 1-Port OC-48c/STM-16c POS-SFP
P4HF

Subcard for EH1D2WM00000 service card.

  • 4-Port OC-12c/STM-4c POS-SFP
P4CF

Subcard for EH1D2WM00000 service card.

  • 4-Port OC-3c/STM-1c POS-SFP
