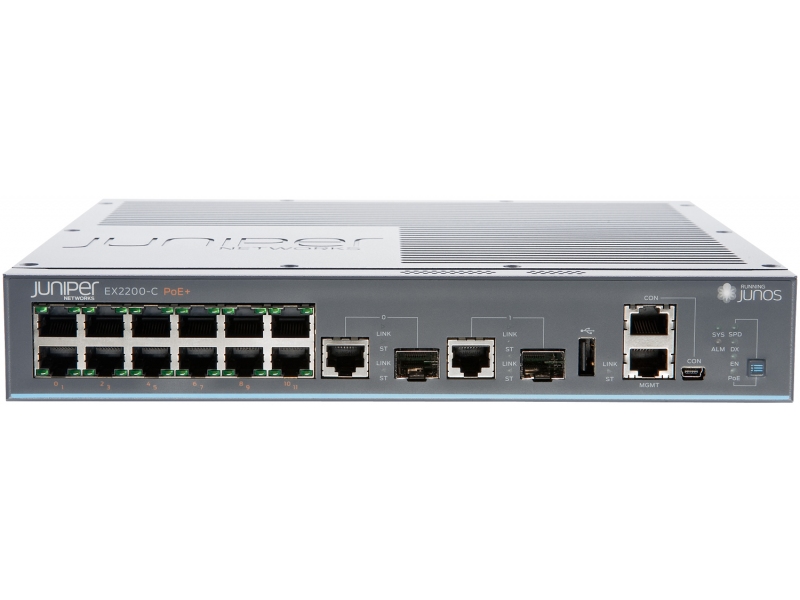

| Interfaces | |
|
|
EX2200-C-12T-2G:
|
- 12-Port 10/100/1000MbE (RJ45);
- 2-Port combo 1GbE (RJ45/SFP);
- 1-Port out-of-band management (1GbE (RJ45));
- 1-Port console (RJ45/miniUSB);
- 1-Port USB.
|
|
EX2200-C-12P-2G:
|
- 12-Port 10/100/1000MbE (RJ45) PoE;
- 2-Port combo 1GbE (RJ45/SFP);
- 1-Port out-of-band management (1GbE (RJ45));
- 1-Port console (RJ45/miniUSB);
- 1-Port USB.
|
|
| Performance | |
| Switching Capacity | 28 Gb/s |
| Forwarding Rate | 21 Mp/s |
| Layer 2 Features | |
| MAC Address Table |
| Maximum Capacity: |
16,000 entries |
|
| VLAN | IEEE 802.1Q: 1024; GVRP; QinQ (EX-EFL license is required); VLAN Translation |
| Layer 2 Reliability | STP/RSTP/MSTP; ERPS (G.8032) |
| Multicast | |
|
| IGMP snooping: |
v1/v2/v3 (EX-EFL license is required) |
| IGMP groups: |
1000 |
| Multicast VLAN (MVR): |
Supported (EX-EFL license is required) |
| Multicast Routing: |
PIM-DM; PIM-SM; PIM-SSM (EX-EFL license is required) |
|
| Layer 3 features | |
| ARP Table | 2,000 entries |
| Routing Table |
| IPv4: |
6,500 routes |
| IPv6: |
Not supported |
|
| IP Routing | Static Routes; RIPv1/2; OSPFv2 (EX-EFL license is required); BFD (EX-EFL license is required) |
| MPLS / VPN | |
| Not supported |
| Security | |
|
| IPv4 ACL: |
1,500 Ingress + Egress |
| IPv6 ACL: |
Not supported |
|
|
| Local AAA: |
Supported |
| RADIUS, TACACS+: |
Supported |
| DHCP Server |
Not supported |
| DHCP Relay option82: |
Supported |
| DHCP Snooping: |
Supported |
| Loop detection: |
Supported |
| IP Source Guard: |
Supported |
| Broadcast, multicast, unknown unicast suppression: |
Supported |
|
| Quality of Service | |
|
| QoS queues: |
8 |
| Traffic Limit: |
Supported |
| Traffic Mark: |
by 802.1p, DSCP |
|
| IPv6 | |
| IPv6 ND |
| Management | |
| Telnet; SSH; LLDP; sFlow; SNMP v1/v2/v3; Syslog; NTP; Junos XML |
| OAM | |
| 802.1ag (CFM) (EX-EFL license is required); 802.3ah (EFM) (EX-EFL license is required) |
| Environmental Conditions | |
| Relative Humidity | 10 to 85% (noncondensing) |
| Operating Temperature | 0 to 40°C
(32 to 104°F) |

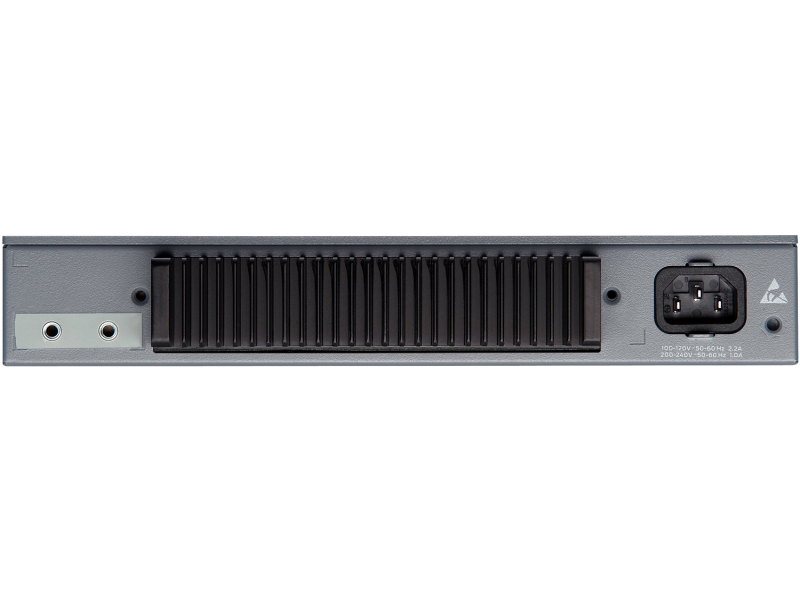

| Power Supply | |
| Power Supply Unit (PSU) |
| AC PSU: |
|
| Type: |
Built-in |
| Quantity: |
1 |
| Rated voltage range: |
110 VAC to 240 VAC, 50-60 Hz |
|
|
| DC PSU: |
|
| Not supported |
|
|
| PoE (Power over Ethernet) |
| Supported by: |
EX2200-C-12P-2G |
| PoE (802.3af) (15 W per port): |
12 ports |
|
|
| PoE+ (802.3аt) (30 W per port): |
3 ports |
|
| Maximum power consumption | |
|
|
EX2200-C-12T-2G:
|
up to 30 W |
|
EX2200-C-12P-2G:
|
up to 180 W |
|
| Acoustic noise | |
|
| EX2200-C-12T-2G: |
0 dB |
| EX2200-C-12P-2G: |
0 dB |
|
| Dimensions (HxWxD) | |
|
|
EX2200-C-12T-2G:
|
44 (1U) x 269 х 228 mm
(1.75 (1U) x 10.6 x 9 in)
|
|
EX2200-C-12P-2G:
|
44 (1U) x 269 х 228 mm
(1.75 (1U) x 10.6 x 9 in)
|
|
| Maximum Weight | |
|
| EX2200-C-12T-2G: |
2.09 kg (4.6 lb) |
| EX2200-C-12P-2G: |
2.9 kg (6.4 lb) |
|
| Compatible expansion cards | |
| Not supported
|
