| Interfaces | |
|
|

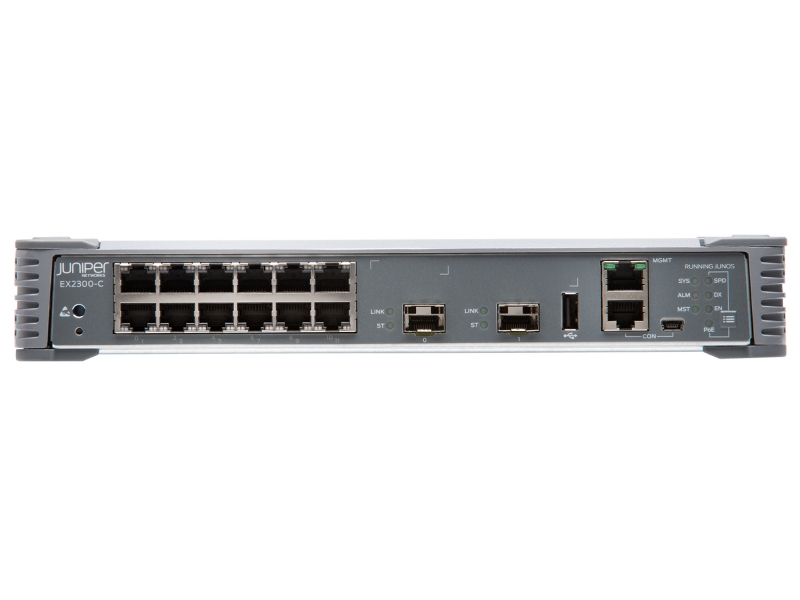

EX2300-C-12T:
|
- 12-Port 10/100/1000MbE (RJ45);
- 2-Port 1/10GbE (SFP/SFP+);
- 1-Port 10/100/1000MbE (RJ45) out-of-band management;
- 1-Port console (RJ45/miniUSB);
- 1-Port USB.
|
|

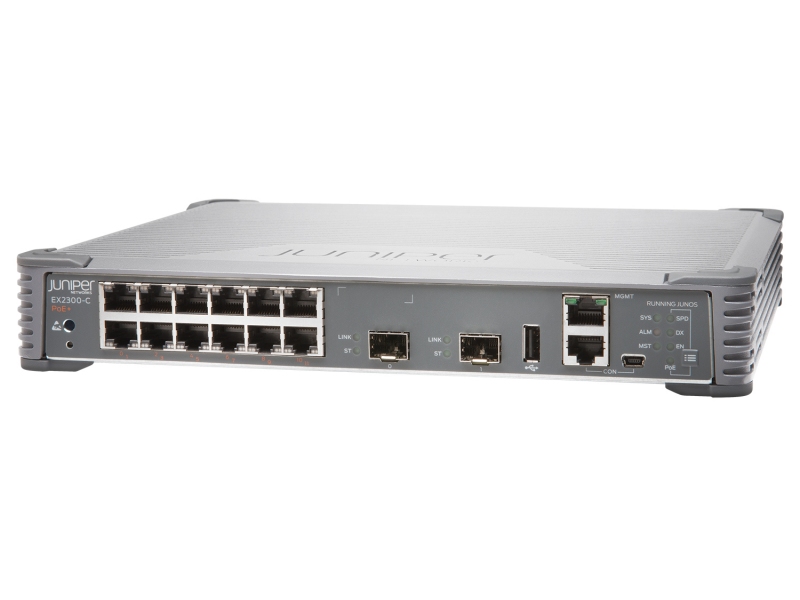

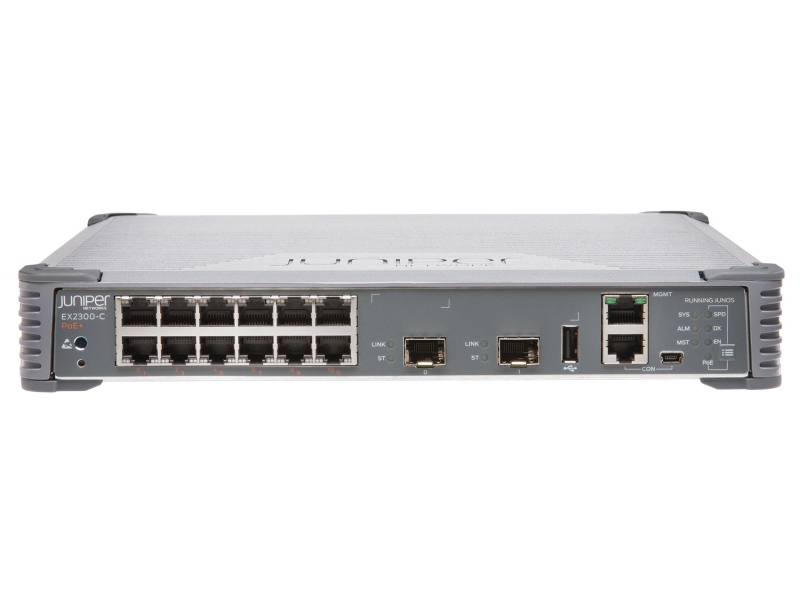

EX2300-C-12P:
|
- 12-Port 10/100/1000MbE (RJ45) PoE;
- 2-Port 1/10GbE (SFP/SFP+);
- 1-Port 10/100/1000MbE (RJ45) out-of-band management;
- 1-Port console (RJ45/miniUSB);
- 1-Port USB.
|
|
| Performance | |
| Switching Bandwidth | 64 Gb/s |
| Forwarding Rate | 47 Mp/s |
| Layer 2 Features | |
| MAC Address Table |
| Maximum Capacity: |
16,000 entries |
|
| VLAN | IEEE 802.1Q: 4093; GVRP; QinQ; VLAN Translation |
| Layer 2 Reliability | STP/RSTP/MSTP |
| Multicast | |
|
| IGMP snooping: |
v1/v2/v3 (EX-EFL license is required) |
| IGMP groups: |
2,048 |
| Multicast VLAN (MVR): |
Supported (EX-EFL license is required) |
| Multicast Routing: |
PIM-DM (EX-EFL license is required); PIM-SM (EX-EFL license is required); PIM-SSM (EX-EFL license is required) |
|
| Layer 3 features | |
| ARP Table | 1,500 entries |
| Routing Table |
| IPv4: |
512 routes |
| IPv6: |
512 routes |
|
| IP Routing | Static Routes; RIPv1/2; OSPFv2 (EX-EFL license is required); BFD (EX-EFL license is required) |
| MPLS / VPN | |
| Not supported |
| Security | |
|
| IPv4 ACL: |
2000 Ingress + Egress |
| IPv6 ACL: |
Not supported |
|
|
| Local AAA: |
Supported |
| RADIUS, TACACS+: |
Supported |
| DHCP Server |
Supported |
| DHCP Relay option82: |
Supported |
| DHCP Snooping: |
Supported |
| Loop detection: |
Supported |
| IP Source Guard: |
Supported |
| Broadcast, multicast, unknown unicast suppression: |
Supported |
|
| Quality of Service | |
|
| QoS queues: |
8 |
| Traffic Limit: |
Supported |
| Traffic Mark: |
by 802.1p, DSCP |
|
| IPv6 | |
| RIPng (EX-EFL license is required); OSPFv3 (EX-EFL license is required); VRRPv6 (EX-EFL license is required) |
| Management | |
| Telnet; SSH; LLDP; sFlow; SNMP v1/v2/v3; Syslog; NTP; Junos XML |
| OAM | |
| 802.1ag (CFM) (EX-EFL license is required); 802.3ah (EFM) (EX-EFL license is required) |
| Environmental Conditions | |
| Relative Humidity | 10 to 85% (noncondensing) |
| Operating Temperature | 0 to 40°C (32 to 104°F) |
| Power Supply | |
| Power Supply Unit (PSU) |
| AC PSU: |
|
| Type: |
Built-in |
| Quantity: |
1 |
| Rated voltage range: |
110 to 240 VAC, 50-60 Hz |
|
|
| DC PSU: |
|
| Not supported |
|
|
| PoE (Power over Ethernet) |
| Supported by: |
EX2300-C-12P |
| PoE (802.3af) (15 W per port): |
8 ports |
|
|
| PoE+ (802.3аt) (30 W per port): |
4 ports |
|
| Maximum power consumption | |
|
|
EX2300-C-12T:
|
up to 20 W |
|
EX2300-C-12P:
|
up to 148 W |
|
| Acoustic noise | |
| 0 dB |
| Dimensions (HxWxD) | |
|
|
EX2300-C-12T:
|
44 (1U) x 279 х 239 mm
(1.72 (1U) x 10.98 x 9.4 in)
|
|
EX2300-C-12P:
|
44 (1U) x 279 х 239 mm
(1.72 (1U) x 10.98 x 9.4 in)
|
|
| Maximum Weight | |
|
| EX2300-C-12T: |
2.48 kg (5.45 lb) |
| EX2300-C-12P: |
3.17 kg (6.99 lb) |
|
| Compatible expansion cards | |
| Not supported
|
