| Interfaces | |
|
|

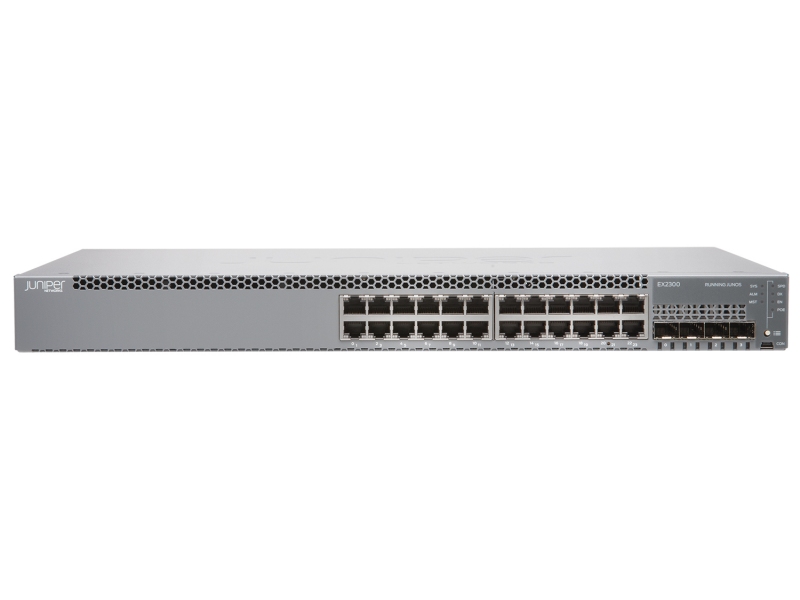

EX2300-24T:
|
- 24-Port 10/100/1000MbE (RJ45);
- 4-Port 1/10GbE (SFP/SFP+);
- 1-Port 1GbE (RJ45) out-of-band management;
- 1-Port console (RJ45);
- 1-Port USB.
|
|
EX2300-24T-DC:
|
- 24-Port 10/100/1000MbE (RJ45);
- 4-Port 1/10GbE (SFP/SFP+);
- 1-Port 1GbE (RJ45) out-of-band management;
- 1-Port console (RJ45);
- 1-Port USB.
|
|
EX2300-48T:
|
- 48-Port 10/100/1000MbE (RJ45);
- 4-Port 1/10GbE (SFP/SFP+);
- 1-Port 1GbE (RJ45) out-of-band management;
- 1-Port console (RJ45);
- 1-Port USB.
|

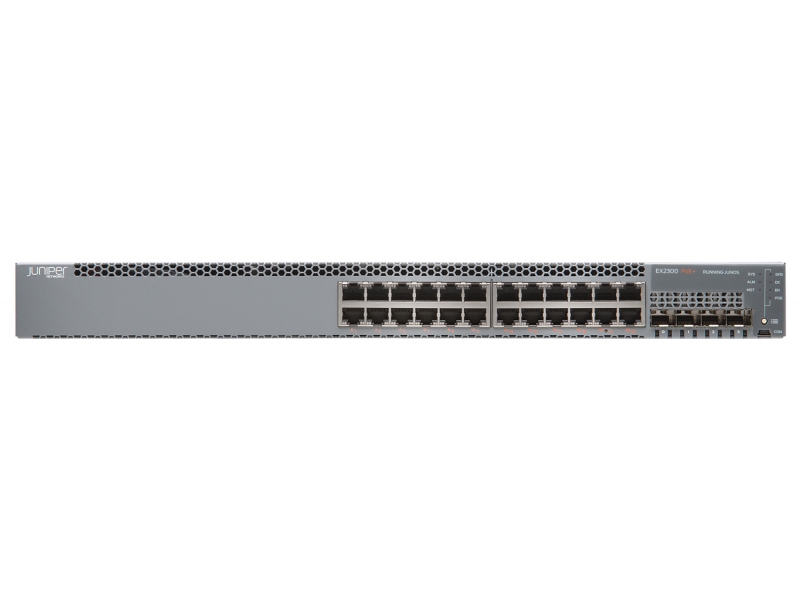

| EX2300-24P: |
- 24-Port 10/100/1000MbE (RJ45) PoE;
- 4-Port 1/10GbE (SFP/SFP+);
- 1-Port 1GbE (RJ45) out-of-band management;
- 1-Port console (RJ45);
- 1-Port USB.
|

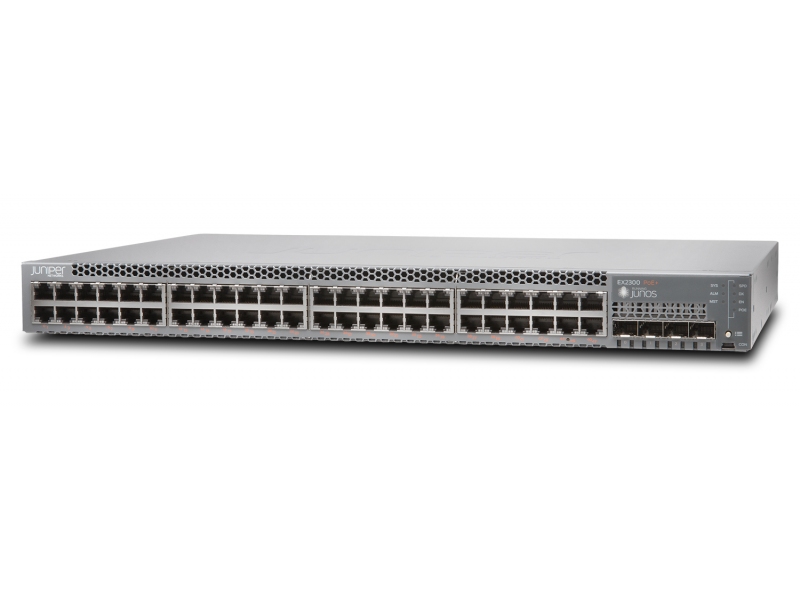

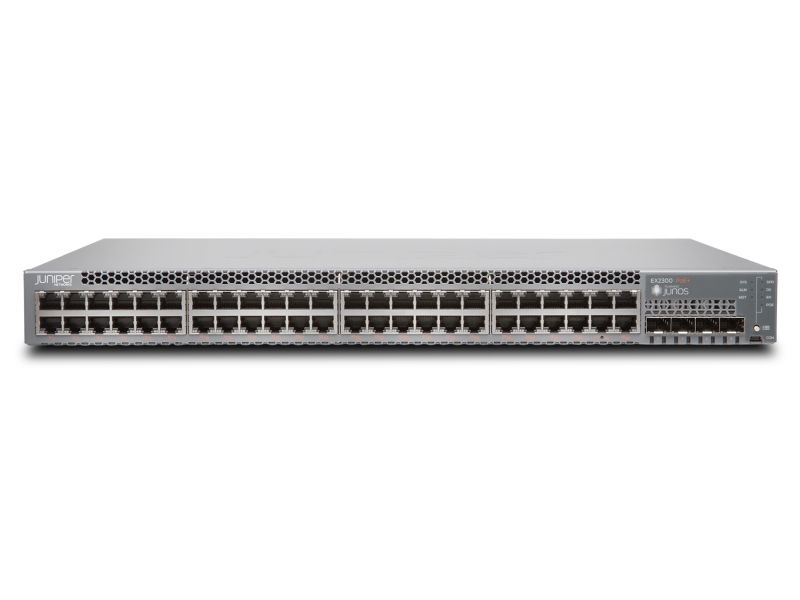

| EX2300-48P: |
- 48-Port 10/100/1000MbE (RJ45) PoE;
- 4-Port 1/10GbE (SFP/SFP+);
- 1-Port 1GbE (RJ45) out-of-band management;
- 1-Port console (RJ45);
- 1-Port USB.
|
|
| Performance | |
| Switching Bandwidth |
|
EX2300-24T:
|
128 Gb/s |
|
EX2300-24T-DC:
|
128 Gb/s |
|
EX2300-48T:
|
176 Gb/s |
| EX2300-24P: |
128 Gb/s |
| EX2300-48P: |
176 Gb/s |
|
| Forwarding Rate |
|
EX2300-24T:
|
95 Mpps |
|
EX2300-24T-DC:
|
95 Mp/s |
|
EX2300-48T:
|
130 Mp/s |
| EX2300-24P: |
95 Mp/s |
| EX2300-48P: |
130 Mp/s |
|
| Layer 2 Features | |
| MAC Address Table |
| Maximum Capacity: |
16,000 entries |
|
| VLAN | IEEE 802.1Q: 4093; GVRP; QinQ (EX-EFL license is required); VLAN Translation (EX-EFL license is required) |
| Layer 2 Reliability | STP/RSTP/MSTP |
| Multicast | |
|
| IGMP snooping: |
v1/v2/v3 (EX-EFL license is required) |
| IGMP groups: |
2,000 |
| Multicast VLAN (MVR): |
Supported (EX-EFL license is required) |
| Multicast Routing: |
PIM-DM (EX-EFL license is required); PIM-SM (EX-EFL license is required); PIM-SSM (EX-EFL license is required); MSDP (EX-EFL license is required) |
|
| Layer 3 features | |
| ARP Table | 1,500 entries |
| Routing Table |
| IPv4: |
1,500 routes |
| IPv6 |
512 routes |
|
| IP Routing | Static Routes; RIPv1/2 (EX-EFL license is required); OSPFv2 (EX-EFL license is required); VRRP(EX-EFL license is required) |
| MPLS / VPN | |
| Not supported
|
| Security | |
|
| IPv4 ACL: |
2000 Ingress + Egress |
| IPv6 ACL: |
2000 Ingress + Egress |
|
|
| Local AAA: |
Supported |
| RADIUS и TACACS+: |
Supported |
| DHCP Server |
Supported |
| DHCP Relay option82: |
Supported |
| DHCP Snooping: |
Supported |
| Loop detection: |
Supported |
| IP Source Guard: |
Supported |
| Broadcast, multicast, unknown unicast suppression: |
Supported |
|
| Quality of Service | |
|
| QoS queues: |
8 |
| Traffic Limit: |
Supported |
| Traffic Mark: |
by 802.1p, DSCP |
|
| IPv6 | |
| RIPng (EX-EFL license is required), OSPFv3 (EX-EFL license is required), VRRPv6 (EX-EFL license is required), MSDP (EX-EFL license is required) |
| Management | |
| Telnet; SSH; LLDP; sFlow; SNMP v1/v2/v3; RMON; Syslog; NTP |
| OAM | |
| 802.3ah (EFM) (EX-EFL license is required) |
| Environmental Conditions | |
| Relative Humidity | 10 to 85% (noncondensing) |
| Operating Temperature | 0 to 45°C (32 to 113°F) |
| Power Supply | |
| Power Supply Unit (PSU) |
| AC PSU: |
|
| Type: |
Built-in |
| Quantity: |
1 |
| Rated voltage range: |
100 to 240 VAC, 50-60 Hz. |
|
|

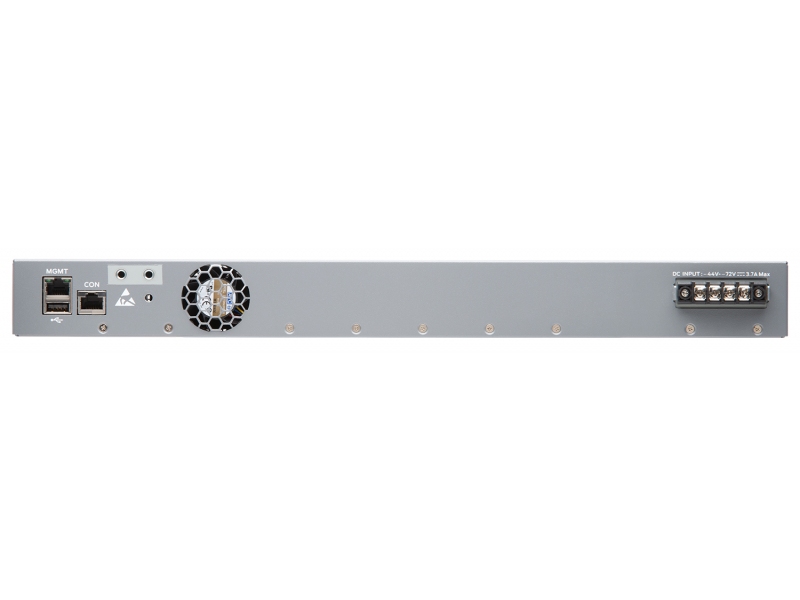

| DC PSU: |
|
| Type: |
Built-in |
| Quantity: |
1 |
| Rated voltage range: |
-48 to -60 VDC |
|
| PoE (Power over Ethernet) |
| Supported by: |
EX2300-24P, EX2300-48P |
| PoE (802.3af) (15 W per port): |
|
| EX2300-24P: |
24 ports |
| EX2300-48P: |
48 ports |
|
|
| PoE+ (802.3аt) (30 W per port): |
|
| EX2300-24P: |
15 ports |
| EX2300-48P: |
24 ports |
|
| Maximum power consumption | |
|
| EX2300-24T: |
up to 55 W |
| EX2300-24T-DC: |
up to 55 W |
| EX2300-48T: |
up to 70 W |
| EX2300-24P: |
up to 80 W |
| EX3300-48P: |
up to 100 W |
|
| Acoustic noise | |
|
| EX2300-24T: |
up to 34.2 dB |
| EX2300-24T-DC: |
up to 34.2 dB |
| EX2300-48T: |
up to 34.6 dB |
| EX2300-24P: |
up to 39.3 dB |
| EX3300-48P: |
up to 48.5 dB |
|
| Dimensions (HxWxD) | |
|
| EX2300-24T: |
44.5 (1U) x 446 х 259 mm
(1.75 (1U) x 17.5 x 10.2 in)
|
| EX2300-24T-DC: |
44.5 (1U) x 446 х 259 mm
(1.75 (1U) x 17.5 x 10.2 in)
|
| EX2300-48T: |
44.5 (1U) x 446 х 259 mm
(1.75 (1U) x 17.5 x 10.2 in)
|
| EX2300-24P: |
44.5 (1U) x 446 х 309.8 mm
(1.75 (1U) x 17.5 x 12.2 in)
|
| EX3300-48P: |
44.5 (1U) x 446 х 309.8 mm
(1.75 (1U) x 17.5 x 12.2 in)
|
|
| Maximum Weight | |
|
| EX3300-24T: |
3.29 kg (7.25 lb) |
| EX3300-24T-DC: |
3.29 kg (7.25 lb) |
| EX3300-48T: |
3.76 kg (8.29 lb) |
| EX3300-24P: |
4.49 kg (9.89 lb) |
| EX3300-48P: |
5.02 kg (11.07 lb) |
|
| Compatible expansion cards | |
| Not supported |
