Juniper EX3300 series

Download EX3300 series Datasheet (eng)

Available to quote:

EX3300-24T; EX3300-24T-DC

EX3300-48T; EX3300-48T-BF

EX3300-24P; EX3300-48P



Request a Quote
SPECIFICATIONS
Interfaces
EX3300-24T:
  • 24-Port 10/100/1000MbE (RJ45);
  • 4-Port 1/10GbE (SFP/SFP+);
  • 1-Port console (RJ45);
  • 1-Port out-of-band management 10/100MbE (RJ45);
  • 1-Port USB;
  • 1-Port RPS.
EX3300-24T-DC:
  • 24-Port 10/100/1000MbE (RJ45);
  • 4-Port 1/10GbE (SFP/SFP+);
  • 1-Port console (RJ45);
  • 1-Port out-of-band management 10/100MbE (RJ45);
  • 1-Port USB;
  • 1-Port RPS.
EX3300-48T:
  • 48-Port 10/100/1000MbE (RJ45);
  • 4-Port 1/10GbE (SFP/SFP+);
  • 1-Port console (RJ45);
  • 1-Port out-of-band management 10/100MbE (RJ45);
  • 1-Port USB;
  • 1-Port RPS.
EX3300-48T-BF:
  • 48-Port 10/100/1000MbE (RJ45);
  • 4-Port 1/10GbE (SFP/SFP+);
  • 1-Port console (RJ45);
  • 1-Port out-of-band management 10/100MbE (RJ45);
  • 1-Port USB;
  • 1-Port RPS.
EX3300-24P:
  • 24-Port 10/100/1000MbE (RJ45) PoE;
  • 4-Port 1/10GbE (SFP/SFP+);
  • 1-Port console (RJ45);
  • 1-Port out-of-band management 10/100MbE (RJ45);
  • 1-Port USB;
  • 1-Port RPS.

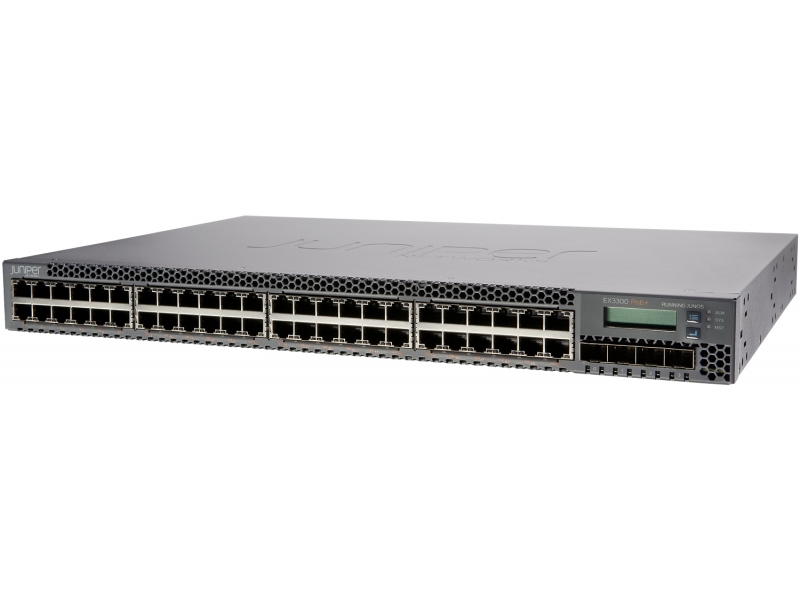

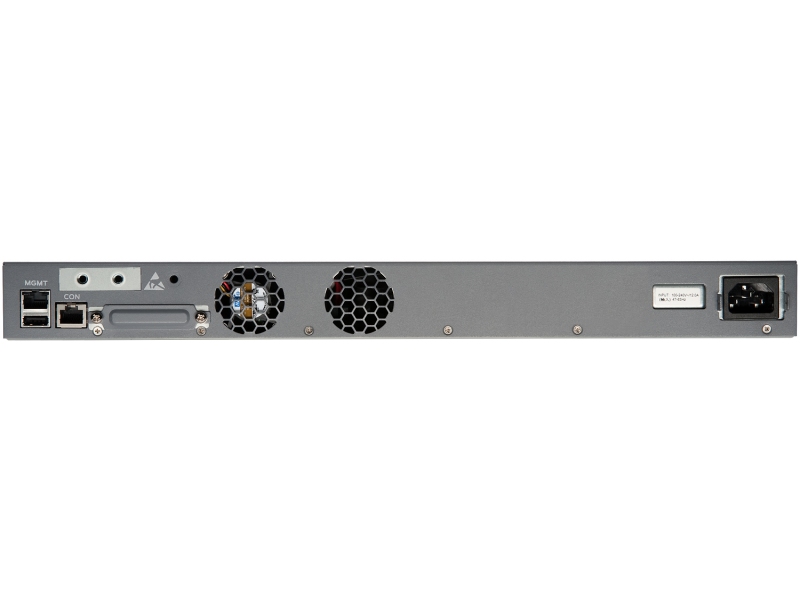

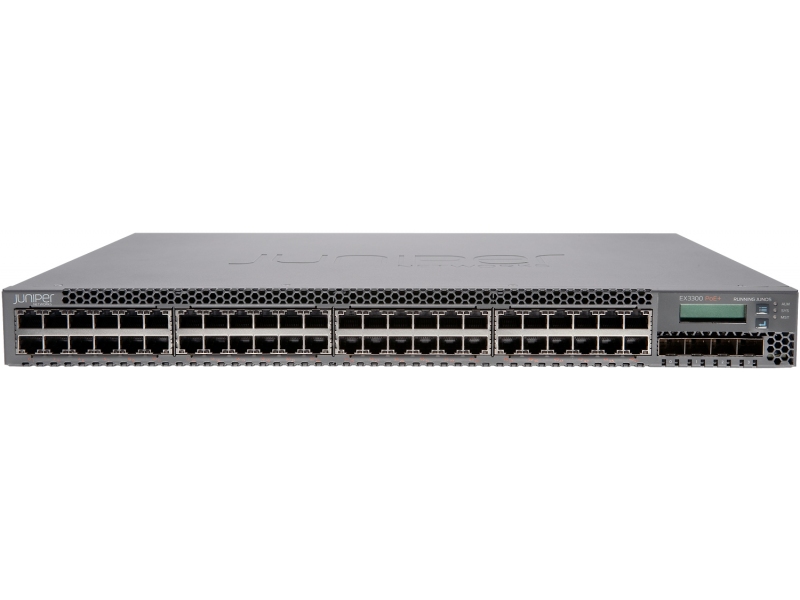

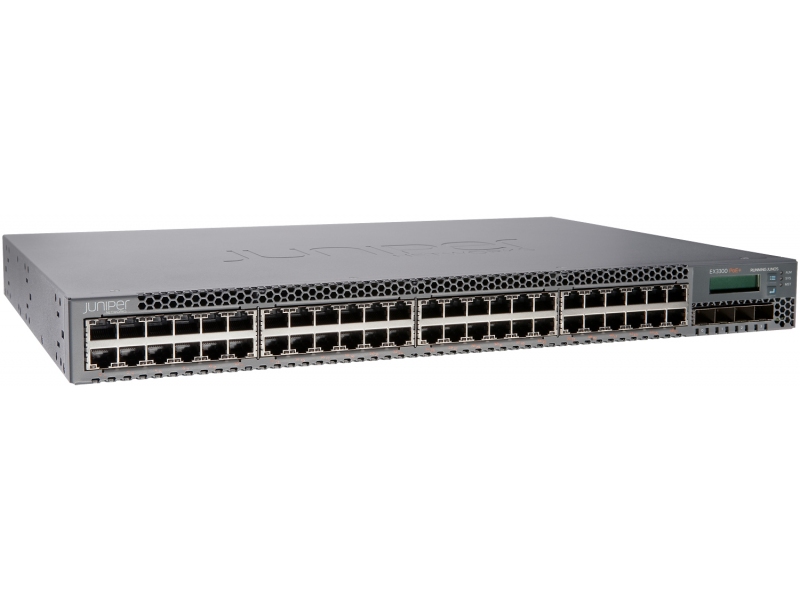

EX3300-48P:
  • 48-Port 10/100/1000MbE (RJ45) PoE;
  • 4-Port 1/10GbE (SFP/SFP+);
  • 1-Port console (RJ45);
  • 1-Port out-of-band management 10/100MbE (RJ45);
  • 1-Port USB;
  • 1-Port RPS.
Performance
Switching Bandwidth
EX3300-24T: 128 Gb/s
EX3300-24T-DC: 128 Gb/s
EX3300-48T: 176 Gb/s
EX3300-48T-BF: 176 Gb/s
EX3300-24P: 128 Gb/s
EX3300-48P: 176 Gb/s
Forwarding Rate
EX3300-24T: 95 Mp/s
EX3300-24T-DC: 95 Mp/s
EX3300-48T: 130 Mp/s
EX3300-48T-BF: 130 Mp/s
EX3300-24P: 95 Mp/s
EX3300-48P: 130 Mp/s
Layer 2 Features
MAC Address Table
Maximum Capacity: 16,000 entries
VLAN

IEEE 802.1Q: 4094; GVRP; QinQ (EX-EFL license is required); VLAN Translation (EX-EFL license is required)
Layer 2 Reliability

STP/RSTP/MSTP
Multicast
IGMP snooping: v1/v2/v3
IGMP groups: 3,000
Multicast VLAN (MVR): Supported (EX-EFL license is required)
Multicast Routing: PIM-DM (EX-EFL license is required); PIM-SM (EX-EFL license is required); PIM-SSM (EX-EFL license is required); MSDP (EX-EFL license is required)
Layer 3 features
ARP Table

4,000 entries
Routing Table
IPv4: 8,000 routes
IP Routing

Static Routes; RIPv1/2 (EX-EFL license is required); OSPFv2 (EX-EFL license is required); BGP (EX-AFL license is required); VRRP(EX-EFL license is required)
MPLS / VPN

Not supported
Security
IPv4 ACL: 1,500 Ingress + Egress
IPv6 ACL: 1,500 Ingress + Egress
Local AAA: Supported
RADIUS и TACACS+: Supported
DHCP Server Supported
DHCP Relay option82: Supported
DHCP Snooping: Supported
Loop detection: Supported
IP Source Guard: Supported
Broadcast, multicast, unknown unicast suppression: Supported
Quality of Service
QoS queues: 8
Traffic Limit: Supported
Traffic Mark: by 802.1p, DSCP
IPv6

Static Routes; RIPng; OSPFv3 (EX-EFL license is required); BGPv6 (EX-AFL license is required); VRRPv6 (EX-EFL license is required);  PIMv6 (EX-EFL license is required); IPv6 ACL; Multicast Listener Discovery snooping (MLDv1/v2)
Management

Telnet; SSH; LLDP; sFlow; SNMP v1/v2/v3; RMON; Syslog; NTP
OAM

802.1ag (CFM) (EX-EFL license is required); 802.3ah (EFM) (EX-EFL license is required)
Environmental Conditions
Relative Humidity

10 to 85% (noncondensing)
Operating Temperature

0 to 45°C (32 to 113°F)
Power Supply
Power Supply Unit (PSU)
AC PSU:
Type: Removable
Quantity: 1
Rated voltage range: 100 to 240 VAC, 50-60 Hz.
DC PSU:
Type: Removable
Quantity: 1
Rated voltage range: -48 to -60 VDC
PoE (Power over Ethernet)
Supported by: EX3300-24P, EX3300-48P
PoE (802.3af) (15 W per port):
EX3300-24P: 24 ports
EX3300-48P: 48 ports
PoE+ (802.3аt) (30 W per port):
EX3300-24P: 13 ports
EX3300-48P: 24 ports
Maximum power consumption
EX3300-24T: up to 51 W
EX3300-24T-DC: up to 49 W
EX3300-48T: up to 73 W
EX3300-48T-BF: up to 73 W
EX3300-24P: up to 65 W
EX3300-48P: up to 81 W
Acoustic noise
EX3300-24T: up to 45.2 dB
EX3300-24T-DC: up to 45.2 dB
EX3300-48T: up to 41.2 dB
EX3300-48T-BF: up to 41.2 dB
EX3300-24P: up to 45.4 dB
EX3300-48P: up to 42.8 dB
Dimensions (HxWxD)

44 (1U) x 437 х 310 mm

(1.73 (1U) x 17.2 x 12.2 in)
Maximum Weight
EX3300-24T: 4.6 kg (10.14 lb)
EX3300-24T-DC: 4.5 kg (9.9 lb)
EX3300-48T: 4.9 kg (10.8 lb)
EX3300-48T-BF: 4.9 kg (10.8 lb)
EX3300-24P: 5.3 kg (11.7 lb)
EX3300-48P: 5.8 kg (11.7 lb)
Compatible expansion cards

Not supported
