| Interfaces | |
|
| EX4300-24T: |
- 24-Port 10/100/1000MbE (RJ45);
- 4-Port 40GbE (QSFP+);
- 1 expansion slot;
- 1-Port console (RJ45);
- 1-Port out-of-band management 10/100MbE (RJ45);
- 1-Port USB.
|
| EX4300-48T-DC / -DC-AFI: |
- 48-Port 10/100/1000MbE (RJ45);
- 4-Port 40GbE (QSFP+);
- 1 expansion slot;
- 1-Port console (RJ45);
- 1-Port out-of-band management 10/100MbE (RJ45);
- 1-Port USB.
|
| EX4300-48T: |
- 48-Port 10/100/1000MbE (RJ45);
- 4-Port 40GbE (QSFP+);
- 1 expansion slot;
- 1-Port console (RJ45);
- 1-Port out-of-band management 10/100MbE (RJ45);
- 1-Port USB.
|
| EX4300-48T-AFI: |
- 48-Port 10/100/1000MbE (RJ45);
- 4-Port 40GbE (QSFP+);
- 1 expansion slot;
- 1-Port console (RJ45);
- 1-Port out-of-band management 10/100MbE (RJ45);
- 1-Port USB.
|
| EX4300-24P: |
- 24-Port 10/100/1000MbE (RJ45) PoE;
- 4-Port 40GbE (QSFP+);
- 1 expansion slot;
- 1-Port console (RJ45);
- 1-Port out-of-band management 10/100MbE (RJ45);
- 1-Port USB.
|

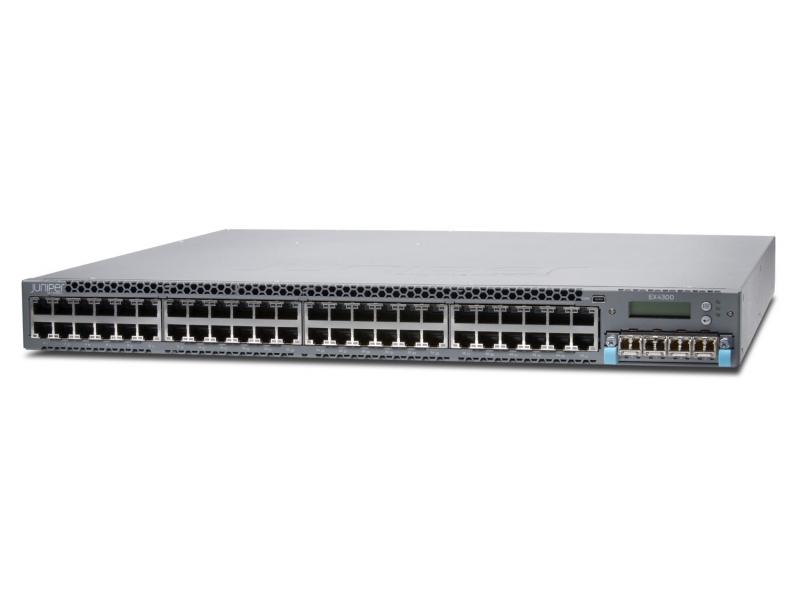

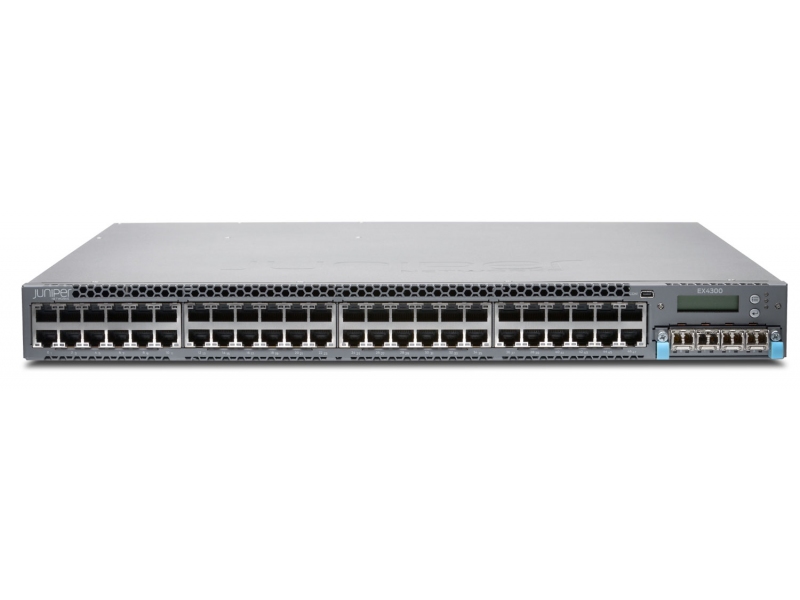

| EX4300-48P: |
- 48-Port 10/100/1000MbE (RJ45) PoE;
- 4-Port 40GbE (QSFP+);
- 1 expansion slot;
- 1-Port console (RJ45);
- 1-Port out-of-band management 10/100MbE (RJ45);
- 1-Port USB.
|
| EX4300-32F: |
- 32-Port 100/1000MbE (SFP);
- 4-Port 1/10GbE (SFP/SFP+);
- 2-Port 40GbE (QSFP+);
- 1 expansion slot;
- 1-Port console (RJ45);
- 1-Port out-of-band management 10/100MbE (RJ45);
- 1-Port USB.
|
| EX4300-32F-DC: |
- 32-Port 100/1000MbE (SFP);
- 4-Port 1/10GbE (SFP/SFP+);
- 2-Port 40GbE (QSFP+);
- 1 expansion slot;
- 1-Port console (RJ45);
- 1-Port out-of-band management 10/100MbE (RJ45);
- 1-Port USB.
|
|
| Performance | |
| Switching Bandwidth |
| EX4300-24T: |
448 Gb/s |
| EX4300-48T-DC / -DC-AFI: |
496 Gb/s |
| EX4300-48T: |
496 Gb/s |
| EX4300-48T-AFI: |
496 Gb/s |
| EX4300-24P: |
448 Gb/s |
| EX4300-48P: |
496 Gb/s |
| EX4300-32F: |
464 Gb/s |
| EX4300-32F-DC: |
464 Gb/s |
|
| Forwarding Rate |
| EX4300-24T: |
333 Mp/s |
| EX4300-48T-DC / -DC-AFI: |
369 Mp/s |
| EX4300-48T: |
369 Mp/s |
| EX4300-48T-AFI: |
369 Mp/s |
| EX4300-24P: |
333 Mp/s |
| EX4300-48P: |
369 Mp/s |
| EX4300-32F: |
345 Mp/s |
| EX4300-32F-DC: |
345 Mp/s |
|
| Layer 2 Features | |
| MAC Address Table |
| Maximum Capacity: |
64,000 entries |
|
| VLAN | IEEE 802.1Q: 4093; GVRP; QinQ; VLAN Translation |
| Layer 2 Reliability | STP/RSTP/MSTP; G.8032 (ERPS) |
| Multicast | |
|
| IGMP snooping: |
v1/v2/v3 |
| IGMP groups: |
3,000 |
| Multicast VLAN (MVR): |
Supported (EX-EFL license is required) |
| Multicast Routing: |
PIM-DM (EX-EFL license is required); PIM-SM (EX-EFL license is required); PIM-SSM (EX-EFL license is required); MSDP (EX-EFL license is required) |
|
| Layer 3 features | |
| ARP Table | 64,000 entries |
| Routing Table |
| IPv4: |
16,000 routes |
| IPv6 |
4,000 routes |
|
| IP Routing | Static Routes; RIPv1/2; OSPFv2 (EX-EFL license is required); BGP (EX-AFL license is required); VRRP(EX-EFL license is required); IS-IS (EX-AFL license is required) |
| MPLS / VPN | |
| VRF-Lite
|
| Security | |
|
| IPv4 ACL: |
7,000 Ingress + Egress |
| IPv6 ACL: |
7,000 Ingress + Egress |
|
|
| Local AAA: |
Supported |
| RADIUS, TACACS+: |
Supported |
| DHCP Server |
Supported |
| DHCP Relay option82: |
Supported |
| DHCP Snooping: |
Supported |
| Loop detection: |
Supported |
| IP Source Guard: |
Supported |
| Broadcast, multicast, unknown unicast suppression: |
Supported |
|
| Quality of Service | |
|
| QoS queues: |
8 |
| Traffic Limit: |
Supported |
| Traffic Mark: |
by 802.1p, DSCP |
|
| IPv6 | |
| Static Routes; RIPng; OSPFv3 (EX-EFL license is required); BGPv6 (EX-AFL license is required); VRRPv6 (EX-EFL license is required); PIMv6 (EX-EFL license is required); IPv6 ACL; Multicast Listener Discovery snooping (MLDv1/v2) |
| Management | |
| Telnet; SSH; LLDP; sFlow; SNMP v1/v2/v3; RMON; Syslog; NTP |
| OAM | |
| 802.1ag (CFM) (EX-EFL license is required); 802.3ah (EFM) |
| Environmental Conditions | |
| Relative Humidity | 10 to 85% (noncondensing) |
| Operating Temperature | 0 to 45°C (32 to 113°F) |
| Power Supply | |
| Power Supply Unit (PSU) |
| AC PSU: |
|
| Type: |
Removable |
| Quantity: |
2 |
| Rated voltage range: |
100 to 240 VAC, 50-60 Hz. |
|
|
| DC PSU: |
|
| Type: |
Removable |
| Quantity: |
2 |
| Rated voltage range: |
-48 to -60 VDC |
|
| PoE (Power over Ethernet) |
| Supported by: |
EX4300-24P, EX4300-48P |
| PoE (802.3af) (15 W per port): |
|
| EX4300-24P: |
24 ports |
| EX4300-48P: |
48 ports |
|
|
| PoE+ (802.3аt) (30 W per port): |
|
| EX4300-24P: |
18 ports |
| EX4300-48P: |
30 ports |
|
| Maximum power consumption | |
|
| EX4300-24T: |
up to 350 W |
| EX4300-48T-DC / -DC-AFI: |
up to 550 W |
| EX4300-48T: |
up to 350 W |
| EX4300-48T-AFI: |
up to 350 W |
| EX4300-24P: |
up to 715 W |
| EX4300-48P: |
up to 1100 W |
| EX4300-32F: |
up to 350 W |
| EX4300-32F-DC: |
up to 550 W |
|
| Acoustic noise | |
|
| EX4300-24T: |
up to 38.5 dB |
| EX4300-48T-DC / -DC-AFI: |
up to 39.7 dB |
| EX4300-48T: |
up to 37.8 dB |
| EX4300-48T-AFI: |
up to 38.9 dB |
| EX4300-24P: |
up to 39.7 dB |
| EX4300-48P: |
up to 51.0 dB |
| EX4300-32F: |
up to 39 dB |
| EX4300-32F-DC: |
up to 41.2 dB |
|
| Dimensions (HxWxD) | |
| 43.2 (1U) x 442.1 х 417.3 mm
(1.72 (1U) x 17.41 x 16.43 in)
|
| Maximum Weight | |
| 7.3 kg (16.1 lb) |
| Compatible expansion cards | |
|
| Model Number |
Description |
| Supported by: |
EX4300-24T, EX4300-48T, EX4300-48T-AFI, EX4300-48T-DC, EX4300-48T-DC-AFI, EX4300-24P, EX4300-48P
|
| EX-UM-4X4SFP: |
4-Port 1/10GbE (SFP/SFP+) |
| Supported by: |
EX4300-32F, EX4300-32F-DC |
| EX-UM-8X8SFP: |
8-Port 1/10GbE (SFP/SFP+) |
| EX-UM-2QSFP: |
2-Port 40GbE (QSFP+) |
|
