| Interfaces | |
|
|

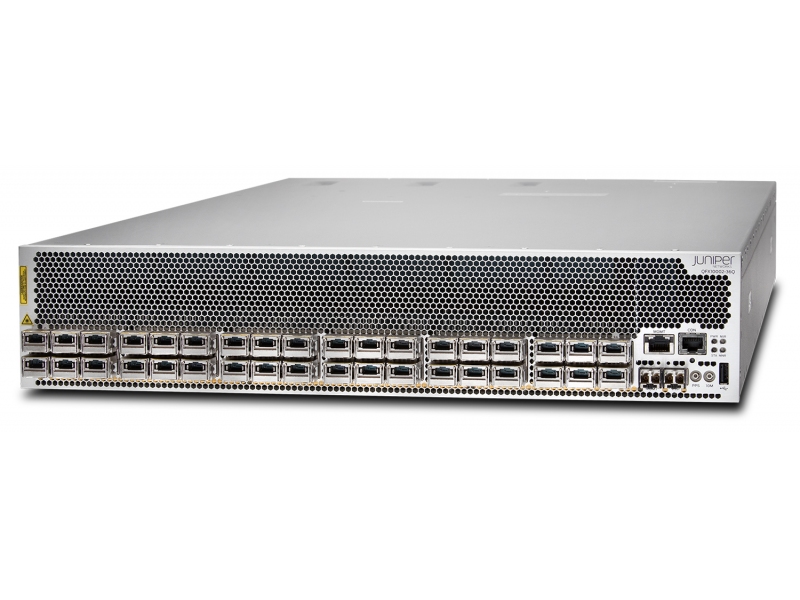

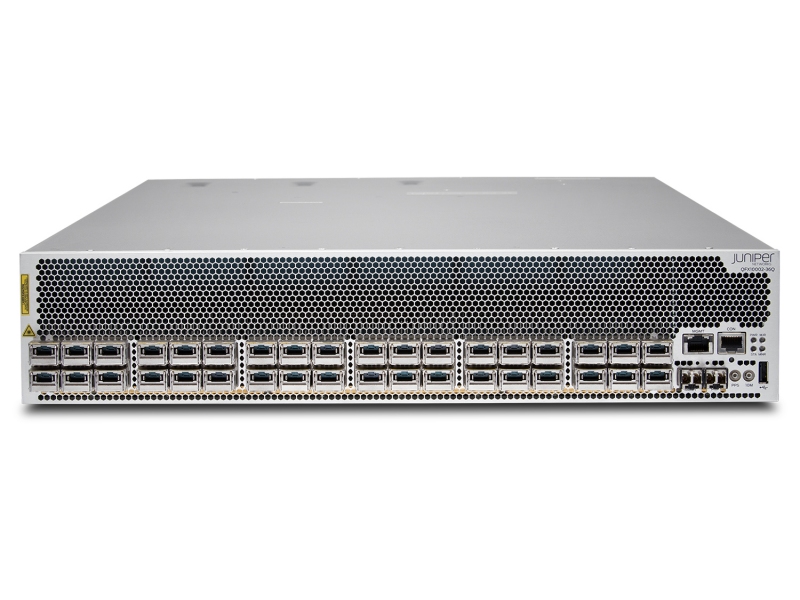

QFX10002-36Q:
QFX10002-36Q-DC:
|
- 36-Port 40GbE (QSFP+);
- 1-Port out-of-band management 1GbE (RJ45);
- 1-Port out-of-band management 1GbE (SFP);
- 1-Port PTP 1GbE (RJ45);
- 1-Port console (RJ45);
- 1-Port sync IN + OUT 10Hz PPS (SMB);
- 1-Port sync 10MHz (SMB);
- 1-Port USB
|
|

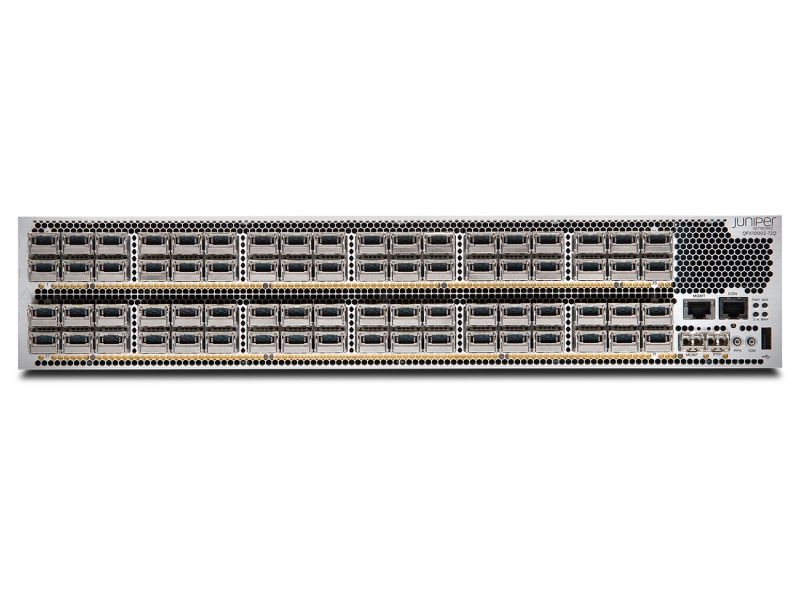

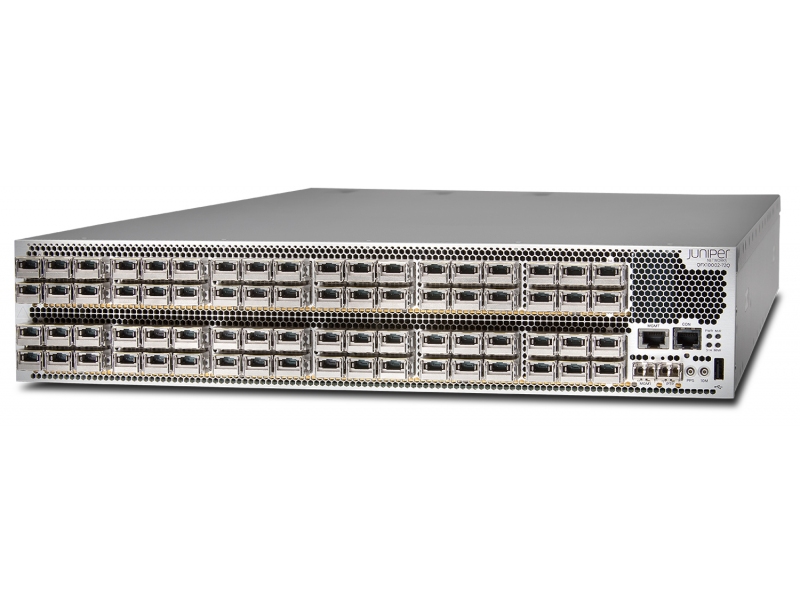

QFX10002-72Q:
QFX10002-72Q-DC:
|
- 72-Port 40GbE (QSFP+);
- 1-Port out-of-band management 1GbE (RJ45);
- 1-Port out-of-band management 1GbE (SFP);
- 1-Port PTP 1GbE (RJ45);
- 1-Port console (RJ45);
- 1-Port sync IN + OUT 10Hz PPS (SMB);
- 1-Port sync 10MHz (SMB);
- 1-Port USB
|
|
| Performance | |
| Switching Bandwidth |
|
QFX10002-36Q:
QFX10002-36Q-DC:
|
2.88 Tbit/s |
|
QFX10002-72Q:
QFX10002-72Q-DC:
|
5.76 Tbit/s |
|
| Forwarding Rate |
|
QFX10002-36Q:
QFX10002-36Q-DC:
|
1 Bp/s |
|
QFX10002-72Q:
QFX10002-72Q-DC:
|
2 Bp/s |
|
| Layer 2 Features | |
| MAC Address Table | 1M entries |
| VLAN | IEEE 802.1Q: 4093; GVRP; QinQ; VLAN Translation |
| Layer 2 Reliability | STP/RSTP/MSTP |
| Multicast | |
|
| IGMP snooping: |
v1/v2/v3 |
| IGMP groups |
4,091
|
| Multicast VLAN (MVR): |
Supported |
| Multicast Routing: |
PIM-SM; PIM-SSM; PIM-DM; MSDP |
|
| Layer 3 features | |
| ARP Table |
|
QFX10002-36Q:
QFX10002-36Q-DC:
|
192,000 entries |
|
QFX10002-72Q:
QFX10002-72Q-DC:
|
340,000 entries |
|
| Routing Table |
| IPv4 RIB: |
10M routes |
| IPv4 FIB: |
2M routes (1M FIB license is required. 256,000 routes are supported by default) |
|
|
| IPv6 RIB: |
4M routes
|
| IPv6 FIB |
2M routes (1M FIB license is required. 256,000 routes are supported by default)
|
|
| IP Routing | Static Routes, RIPv1/2, OSPFv2, IS-IS (Premium Feature license is required); BGP (Premium Feature license is required) VRRP |
| MPLS / VPN | |
| Supported (Advanced Feature license is required). MPLS LDP; L2VPN; L3VPN |
| Security | |
|
| Local AAA: |
Supported |
| RADIUS, TACACS+: |
Supported |
| DHCP Server |
Supported |
| DHCP Relay option82: |
Supported |
| DHCP Snooping: |
Supported |
| Loop detection: |
Supported |
| IP Source Guard: |
Supported |
| Bandwidth Limit: |
Supported |
| Broadcast, multicast, unknown unicast suppression: |
Supported |
|
| Management | |
| Telnet; SSH; LLDP; sFlow; SNMP v1/v2/v3; Syslog; NTP; Junos XML; Python |
| Environmental Conditions | |
| Relative Humidity | 5 to 90% (noncondensing) |
| Operating Temperature | 0 to 40°C (32 to 104°F) |
| Power Supply | |

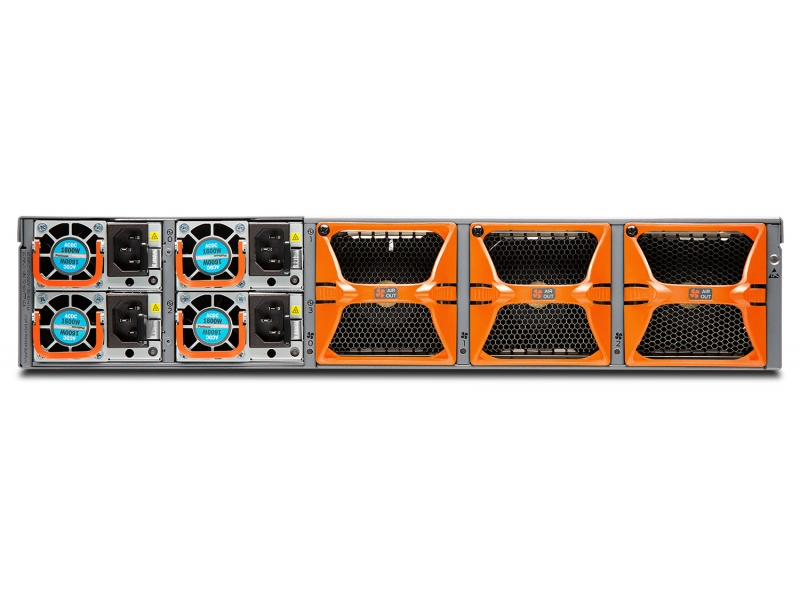

| Power Supply Unit (PSU) |
| AC PSU: |
|
| Supported by: |
QFX10002-36Q
QFX10002-72Q:
|
| Type: |
Removable |
| Quantity: |
|
| QFX10002-36Q |
2 |
| QFX10002-72Q: |
4 |
| Rated voltage range: |
100 to 240 VAC, 50-60 Hz
|
|
|
| DC PSU: |
|
| Supported by: |
QFX10002-36Q-DC
QFX10002-72Q-DC
|
| Type: |
Removable |
| Quantity: |
|
| QFX10002-36Q-DC: |
2 |
| QFX10002-72Q-DC: |
4 |
| Rated voltage range: |
-40 to -72 VDC |
|
| Maximum power consumption | |
|
|
QFX10002-36Q-DC:
QFX10002-36Q-DC:
|
800 W |
|
QFX10002-72Q:
|
1,425 W |
|
QFX10002-72Q-DC:
|
1,050 W |
|
| Acoustic noise | |
| 70 dB |
| Dimensions (HxWxD) | |
| 88 (2U) x 442 x 787 mm
(3.46 (2U) x 17.4 x 31 in)
|
| Maximum Weight | |
|
|
QFX10002-36Q:
QFX10002-36Q-DC:
|
23 kg (50 lb) |
|
QFX10002-72Q:
QFX10002-72Q-DC:
|
31 kg (68.6 lb) |
|
| Compatible expansion cards | Not supported
|
