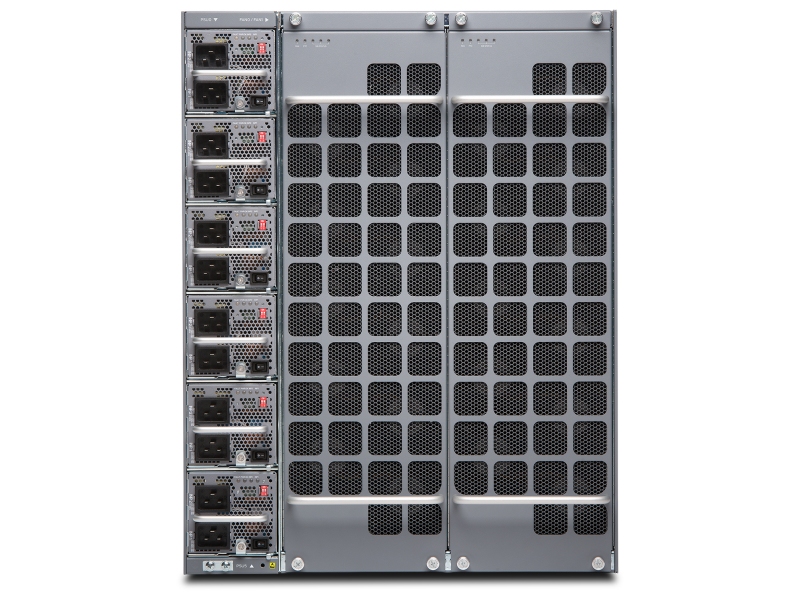

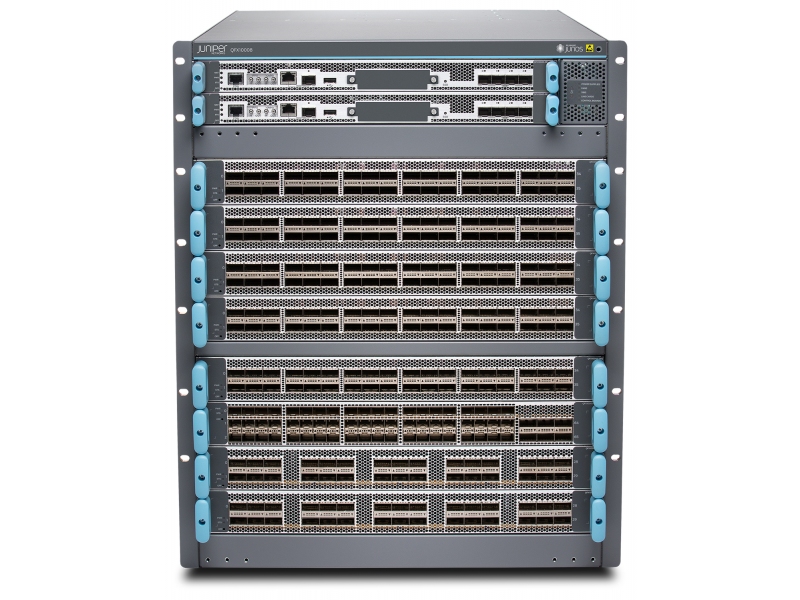

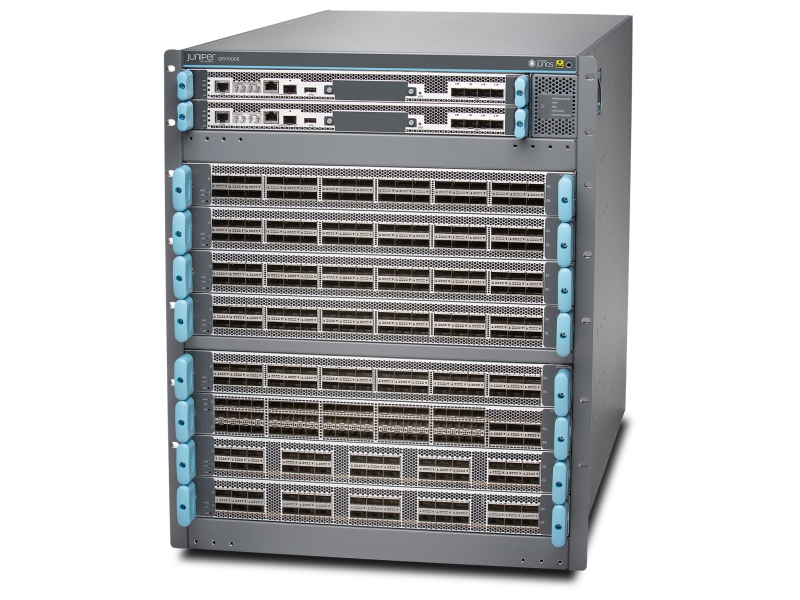

Juniper QFX10008

QFX10008 Datasheet (eng)

Available to quote:

QFX10008

Request a Quote

SPECIFICATIONS

Interfaces

QFX10008:

8 service card slots;
6 switch fabric card slots;
2 control card slots

Performance

Switching Bandwidth

48 Tb/s

Forwarding Rate

16 Bp/s

Layer 2 Features

MAC Address Table

1M entries

VLAN

IEEE 802.1Q: 4093; GVRP; QinQ; VLAN Translation

Layer 2 Reliability

STP/RSTP/MSTP

Multicast

IGMP snooping:	v1/v2/v3
IGMP groups	4,091
Multicast VLAN (MVR):	Supported
Multicast Routing:	PIM-SM; PIM-SSM; PIM-DM; MSDP

Layer 3 features

ARP Table

510,000 entries

Routing Table

IPv4 RIB:	10M routes
IPv4 FIB:	2M routes (with 1M FIB license. 256,000 routes are supported by default)

IPv6 RIB:	4M routes
IPv6 FIB	2M routes (with 1M FIB license. 256,000 routes are supported by default)

IP Routing

Static Routes, RIPv1/2, OSPFv2, IS-IS (Premium Feature license is required); BGP (Premium Feature license is required) VRRP

MPLS / VPN

Supported (Advanced Feature license is required). MPLS LDP; L2VPN; L3VPN

Security

Local AAA:	Supported
RADIUS, TACACS+:	Supported
DHCP Server	Supported
DHCP Relay option82:	Supported
DHCP Snooping:	Supported
Loop detection:	Supported
IP Source Guard:	Supported
Bandwidth Limit:	Supported
Broadcast, multicast, unknown unicast suppression:	Supported

Management

Telnet; SSH; LLDP; sFlow; SNMP v1/v2/v3; Syslog; NTP; Junos XML; Python

Environmental Conditions

Relative Humidity

5 to 90% (noncondensing)

Operating Temperature

0 to 40°C (32 to 104°F)

Power Supply

Power Supply Unit (PSU)

AC PSU:
Type:	Removable
Quantity:	6
Rated voltage range:	100 to 240 VAC, 50-60 Hz

DC PSU:
Type:	Removable
Quantity:	6
Rated voltage range:	-40 to -72 VDC

Maximum power consumption

12,000 W

Acoustic noise

70 dB

Dimensions (HxWxD)

573 (13U) x 442 x 813 mm

(22.55 (13U) x 17.4 x 32 in)

Maximum Weight

224 kg (493 lb)

Compatible Control Cards

Model Number	Description
QFX10000-RE:	Integrated Routing Engine. CPU: 4-core 2.5 GHz; Memory: 32 GB; SSD: 32 GB

Compatible Switch Fabric Cards

Model Number	Description
QFX10008-SF:	Switch Fabric card. 7.2 Tb/s throughput per slot

Compatible Service Cards

Model Number	Description
QFX10000-36Q:	36-Port 40GbE (QSFP+)
QFX10000-30C:	30-Port 100GbE (QSFP28)
QFX10000-60S-6Q:	60-Port 1/10GbE (SFP/SFP+) + 6-Port 40GbE (QSFP+)
