| Interfaces | |
|

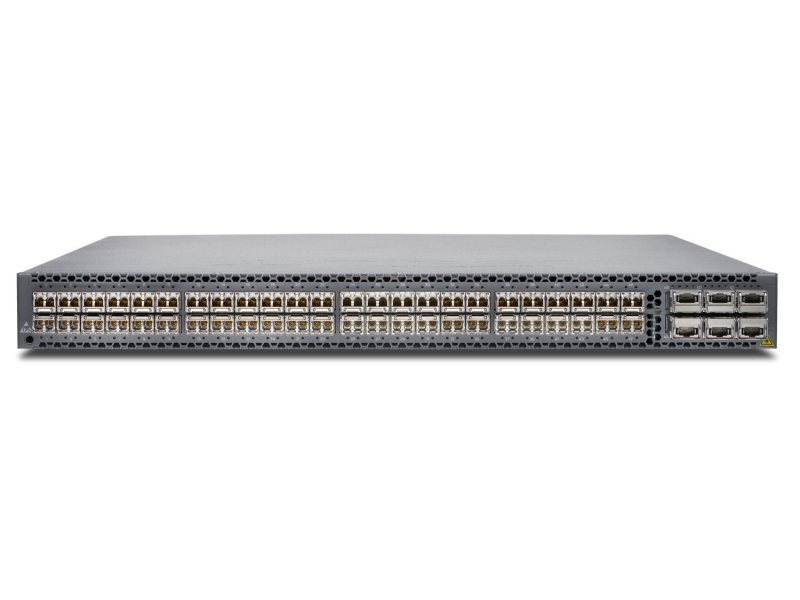

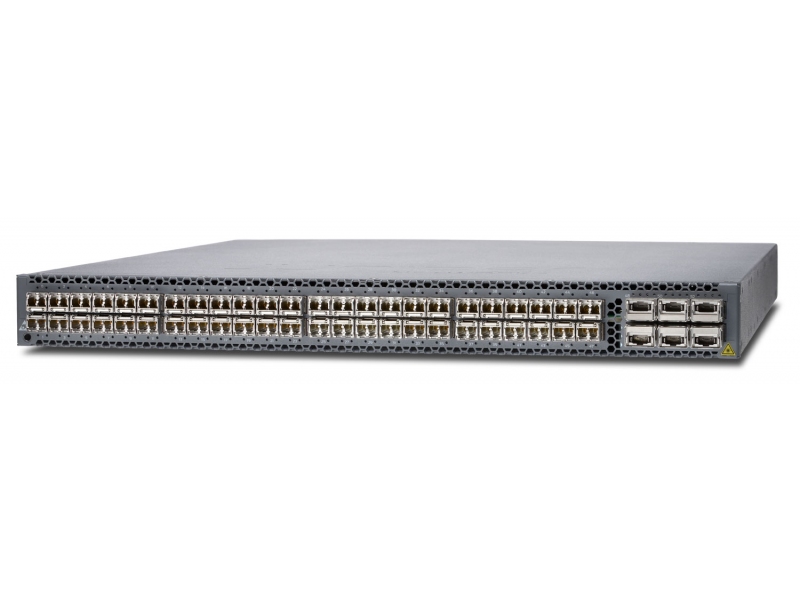

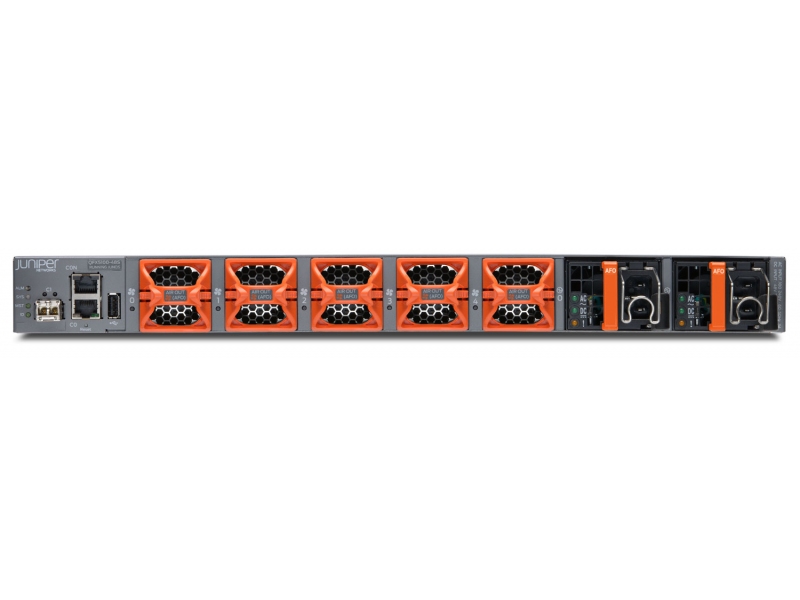

| QFX5100-48S-AFI/AFO: |
- 48-Port 1/10GbE (SFP/SFP+);
- 6-Port 40GbE (QSFP+);
- 2-Port 1GbE (RJ45) + 1GbE (SFP) out-of-band management;
- 1-Port console (RJ45);
- 1-Port USB.
|
| QFX5100-48S-DC-AFI/AFO: |
- 48-Port 1/10GbE (SFP/SFP+);
- 6-Port 40GbE (QSFP+);
- 2-Port 1GbE (RJ45) + 1GbE (SFP) out-of-band management;
- 1-Port console (RJ45);
- 1-Port USB.
|
| QFX5100-48S-3AFI/AFO: |
- 48-Port 1/10GbE (SFP/SFP+);
- 6-Port 40GbE (QSFP+);
- 3-Port 1GbE (RJ45) + 2 x 1GbE (SFP) out-of-band management;
- 1-Port console (RJ45);
- 1-Port USB
|
| QFX5100-48S-D-3AFI/AFO: |
- 48-Port 1/10GbE (SFP/SFP+);
- 6-Port 40GbE (QSFP+);
- 3-Port 1GbE (RJ45) + 2 x 1GbE (SFP) out-of-band management;
- 1-Port console (RJ45);
- 1-Port USB
|
| QFX5100-48T-AFI/AFO: |
- 48-Port 100M/1G/10GBASE-T (RJ45);
- 6-Port 40GbE (QSFP+);
- 2-Port 1GbE (RJ45) + 1GbE (SFP) out-of-band management;
- 1-Port console (RJ45);
- 1-Port USB.
|
| QFX5100-48T-DC-AFI/AFO: |
- 48-Port 100M/1G/10GBASE-T (RJ45);
- 6-Port 40GbE (QSFP+);
- 2-Port 1GbE (RJ45) + 1GbE (SFP) out-of-band management;
- 1-Port console (RJ45);
- 1-Port USB.
|

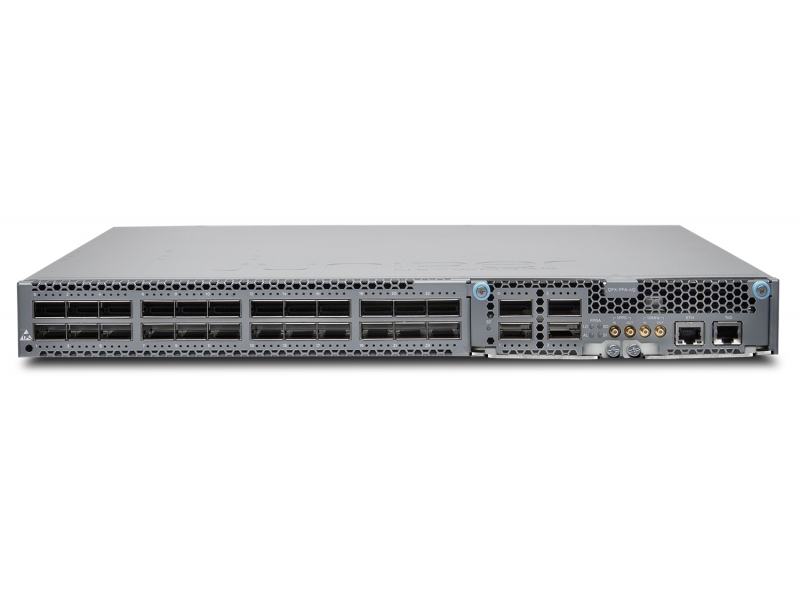

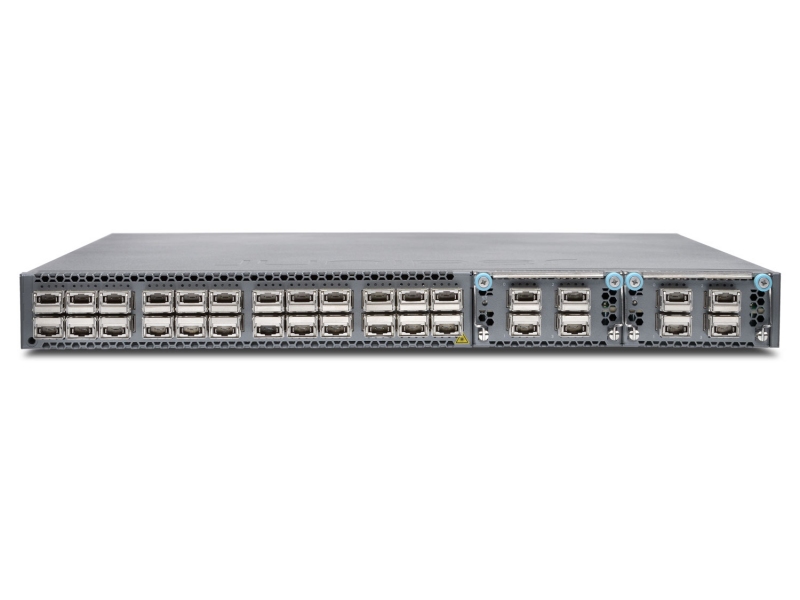

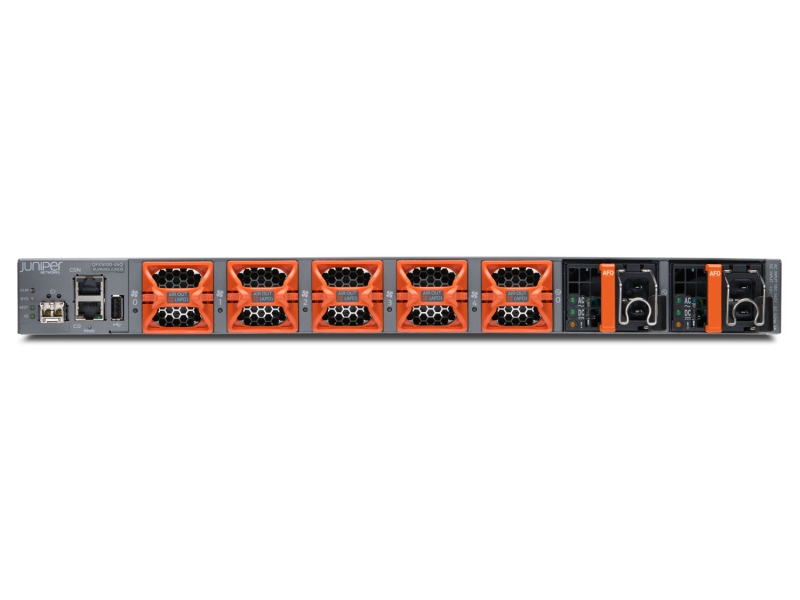

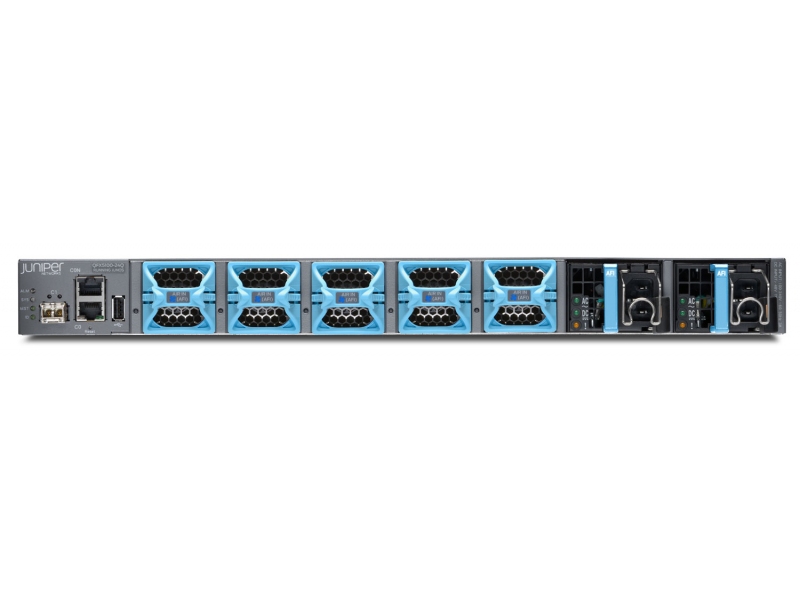

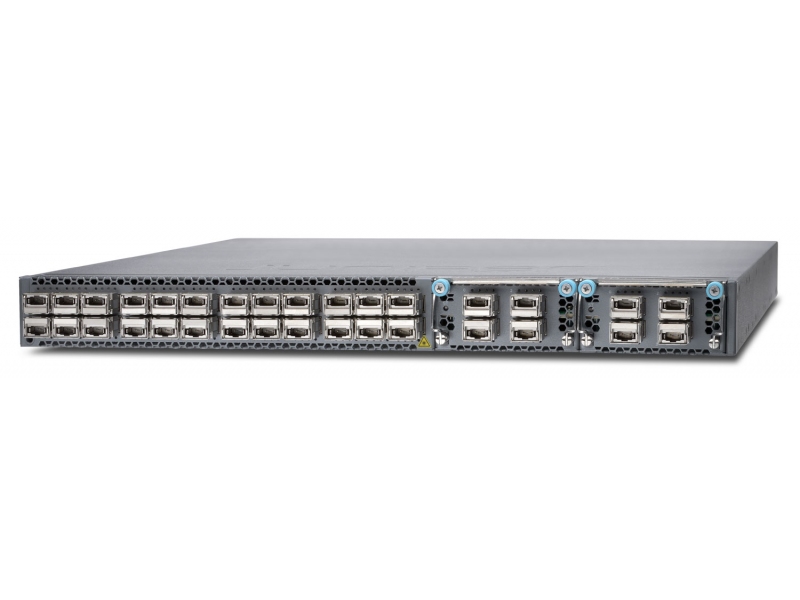

| QFX5100-24Q-AFI/AFO: |
- 24-Port 40GbE (QSFP+);
- 2-Port 1GbE (RJ45) + 1GbE (SFP) out-of-band management;
- 2 Expansion slots
- 1-Port console (RJ45);
- 1-Port USB.
|
| QFX5100-24Q-DC-AFI/AFO: |
- 24-Port 40GbE (QSFP+);
- 2-Port 1GbE (RJ45) + 1GbE (SFP) out-of-band management;
- 2 Expansion slots
- 1-Port console (RJ45);
- 1-Port USB.
|
| QFX5100-24Q-3AFI/AFO: |
- 24-Port 40GbE (QSFP+);
- 3-Port 1GbE (RJ45) + 2 x 1GbE (SFP) out-of-band management;
- 2 Expansion slots
- 1-Port console (RJ45);
- 1-Port USB.
|

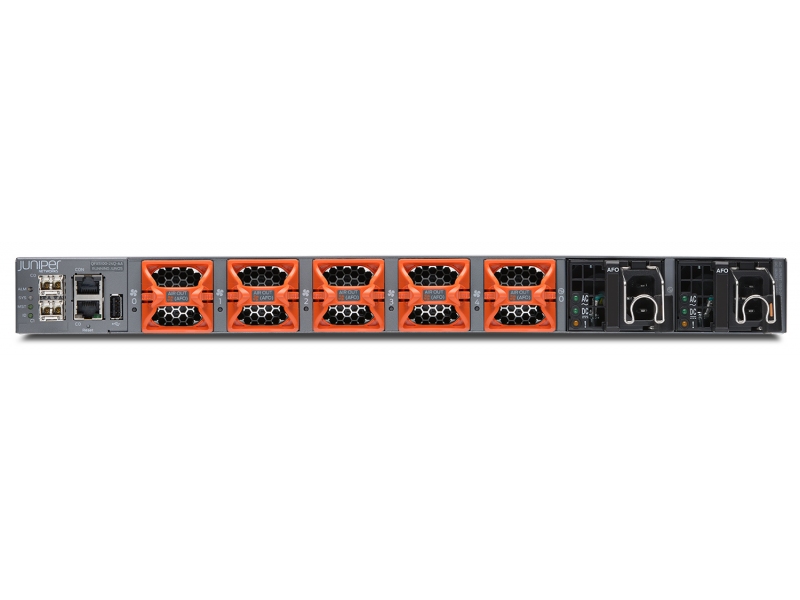

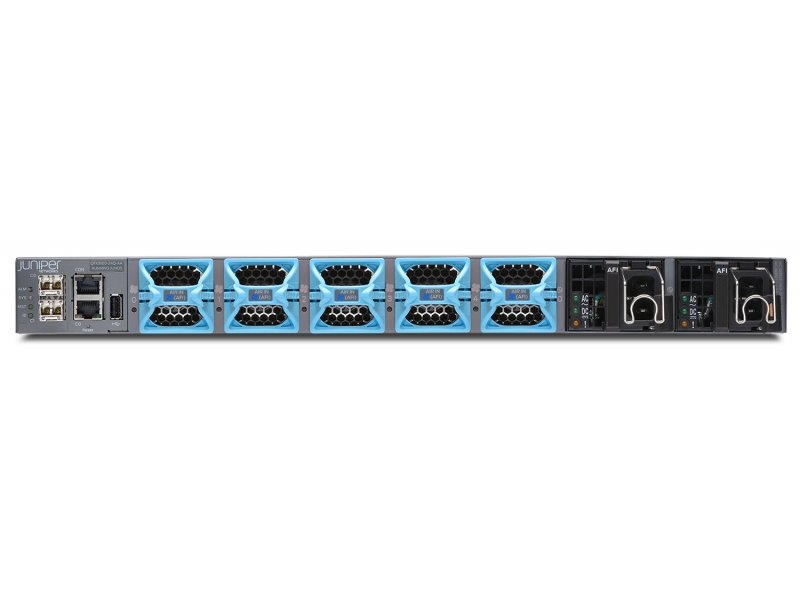

| QFX5100-24Q-AA-AFI/AFO: |
- 24-Port 40GbE (QSFP+);
- 2-Port 1GbE (RJ45) + 1GbE (SFP) out-of-band management;
- 1 Double-wide expansion slot
- 1-Port console (RJ45);
- 1-Port USB.
|
| QFX5100-24Q-D-3AFI/AFO: |
- 24-Port 40GbE (QSFP+);
- 3-Port 1GbE (RJ45) + 2 x 1GbE (SFP) out-of-band management;
- 2 Expansion slots
- 1-Port console (RJ45);
- 1-Port USB.
|
| QFX5100-96S-AFI/AFO: |
- 96-Port 1/10GbE (SFP/SFP+);
- 8-Port 40GbE (QSFP+);
- 3-Port 1GbE (RJ45) + 2 x 1GbE (SFP) out-of-band management;
- 1-Port console (RJ45);
- 1-Port USB
|
| QFX5100-96S-DC-AFI/AFO: |
- 96-Port 1/10GbE (SFP/SFP+);
- 8-Port 40GbE (QSFP+);
- 3-Port 1GbE (RJ45), 2 x 1GbE (SFP) out-of-band management;
- 1-Port console (RJ45);
- 1-Port USB
|
|
| Performance | |
| Switching Bandwidth |
| QFX5100-48S-AFI/AFO: |
1.44 Tb/s |
| QFX5100-48S-DC-AFI/AFO: |
1.44 Tb/s |
| QFX5100-48S-3AFI/AFO: |
1.44 Tb/s |
| QFX5100-48S-D-3AFI/AFO: |
1.44 Tb/s |
| QFX5100-48T-AFI/AFO: |
1.44 Tb/s |
| QFX5100-48T-DC-AFI/AFO: |
1.44 Tb/s |
| QFX5100-24Q-AFI/AFO: |
2.56 Tb/s |
| QFX5100-24Q-DC-AFI/AFO: |
2.56 Tb/s |
| QFX5100-24Q-3AFI/AFO: |
2.56 Tb/s |
| QFX5100-24Q-D-3AFI/AFO: |
2.56 Tb/s |
| QFX5100-24Q-AA-AFI/AFO: |
2.56 Tb/s |
| QFX5100-96S-AFI/AFO: |
2.56 Tb/s |
| QFX5100-96S-DC-AFI/AFO: |
2.56 Tb/s |
|
| Forwarding Rate |
| QFX5100-48S-AFI/AFO: |
1.08 Bpps |
| QFX5100-48S-DC-AFI/AFO: |
1.08 Bpps |
| QFX5100-48S-3AFI/AFO: |
1.08 Bpps |
| QFX5100-48S-D-3AFI/AFO: |
1.08 Bpps |
| QFX5100-48T-AFI/AFO: |
1.08 Bpps |
| QFX5100-48T-DC-AFI/AFO: |
1.08 Bpps |
| QFX5100-24Q-AFI/AFO: |
1.44 Bpps |
| QFX5100-24Q-DC-AFI/AFO: |
1.44 Bpps |
| QFX5100-24Q-3AFI/AFO: |
1.44 Bpps |
| QFX5100-24Q-D-3AFI/AFO: |
1.44 Bpps |
| QFX5100-24Q-AA-AFI/AFO: |
1.44 Bpps |
| QFX5100-96S-AFI/AFO: |
1.44 Bpps |
| QFX5100-96S-DC-AFI/AFO: |
1.44 Bpps |
|
| Layer 2 Features | |
| MAC Address Table |
| Maximum Capacity: |
288,000 entries (l2-heavy-one mode) |
|
| VLAN | IEEE 802.1Q: 4094; GVRP; QinQ; VLAN Translation |
| Layer 2 Reliability | STP/RSTP/MSTP/PVSTP; ERPS (G.8032) |
| Multicast | |
|
| IGMP snooping: |
v1/v2/v3 |
| IGMP groups: |
4,091 |
| Multicast VLAN (MVR): |
Supported |
| Multicast Routing: |
PIM-SM; MSDP |
|
| Layer 3 features | |
| ARP Table | 48,000 entries |
| Routing Table |
| IPv4: |
128,000 routes |
| IPv6: |
64,000 routes |
|
| IP Routing | Static Routes; RIPv1/2; OSPFv2; IS-IS (license is required); BGP (license is required); VRRP; BFD |
| MPLS / VPN | |
| Supported (license is required). MPLS LDP; L2VPN; MPLS-TE; L3VPN; VPLS; GRE |
| Security | |
|
| IPv4 ACL: |
1,500 Ingress + Egress |
| IPv6 ACL: |
1,500 Ingress + Egress |
|
|
| Local AAA: |
Supported |
| RADIUS, TACACS+: |
Supported |
| DHCP Server |
Supported |
| DHCP Relay option82: |
Supported |
| DHCP Snooping: |
Supported |
| Loop detection: |
Supported |
| IP Source Guard: |
Supported |
| Broadcast, multicast, unknown unicast suppression: |
Supported |
|
| Quality of Service | |
|
| QoS queues: |
8 |
| Traffic Limit: |
Supported |
| Traffic Mark: |
by 802.1p, DSCP |
|
| IPv6 | |
| Static Routes; RIPng; OPSFv3; BGPv6 (license is required); VRRPv6; PIMv6; IPv6 ACL; Multicast Listener Discovery snooping (MLDv1/v2) |
| Management | |
| Telnet; SSH; LLDP; sFlow; SNMP v1/v2/v3; Syslog; NTP; Junos XML; Python |
| OAM | |
| 802.3ah (EFM) |
| Environmental Conditions | |
| Relative Humidity | 5 to 90% (noncondensing) |
| Operating Temperature | 0 to 40°C (32 to 104°F) |
| Power Supply | |
| Power Supply Unit (PSU) |
| AC PSU: |
|
| Type: |
Removable |
| Quantity: |
2 |
| Rated voltage range: |
110 to 240 VAC, 50-60 Hz |
|
|
| DC PSU: |
|
| Type: |
Removable |
| Quantity: |
2 |
| Rated voltage range: |
-36 to -72 VDC. |
|
| PoE (Power over Ethernet) | Not supported |
| Maximum Power Consumption | |
|
| QFX5100-48S-AFI/AFO: |
up to 150 W |
| QFX5100-48S-DC-AFI/AFO: |
up to 150 W |
| QFX5100-48S-3AFI/AFO: |
up to 150 W |
| QFX5100-48S-D-3AFI/AFO: |
up to 150 W |
| QFX5100-48T-AFI/AFO: |
up to 335 W |
| QFX5100-48T-DC-AFI/AFO: |
up to 335 W |
| QFX5100-24Q-AFI/AFO: |
up to 161 W |
| QFX5100-24Q-DC-AFI/AFO: |
up to 161 W |
| QFX5100-24Q-3AFI/AFO: |
up to 161 W |
| QFX5100-24Q-D-3AFI/AFO: |
up to 161 W |
| QFX5100-24Q-AA-AFI/AFO: |
up to 175 W |
| QFX5100-96S-AFI/AFO: |
up to 263 W |
| QFX5100-96S-DC-AFI/AFO: |
up to 263 W |
|
| Acoustic noise | |
| 60 to 70 dB |
| Dimensions (HxWxD) | |
|
| QFX5100-48S-AFI/AFO: |
43.7 (1U) x 440.9 х 520.2 mm
(1.72 (1U) x 17.36 x 20.48 in)
|
| QFX5100-48S-DC-AFI/AFO: |
43.7 (1U) x 440.9 х 520.2 mm
(1.72 (1U) x 17.36 x 20.48 in)
|
| QFX5100-48S-3AFI/AFO: |
43.7 (1U) x 440.9 х 520.2 mm
(1.72 (1U) x 17.36 x 20.48 in)
|
| QFX5100-48S-D-3AFI/AFO: |
43.7 (1U) x 440.9 х 520.2 mm
(1.72 (1U) x 17.36 x 20.48 in)
|
| QFX5100-48T-AFI/AFO: |
43.7 (1U) x 440.9 х 545.4 mm
(1.72 (1U) x 17.36 x 21.47 in)
|
| QFX5100-48T-DC-AFI/AFO: |
43.7 (1U) x 440.9 х 520.2 mm
(1.72 (1U) x 17.36 x 20.48 in)
|
| QFX5100-24Q-AFI/AFO: |
43.7 (1U) x 440.9 х 520.2 mm
(1.72 (1U) x 17.36 x 20.48 in)
|
| QFX5100-24Q-DC-AFI/AFO: |
43.7 (1U) x 440.9 х 520.2 mm
(1.72 (1U) x 17.36 x 20.48 in)
|
| QFX5100-24Q-3AFI/AFO: |
43.7 (1U) x 440.9 х 520.2 mm
(1.72 (1U) x 17.36 x 20.48 in)
|
| QFX5100-24Q-D-3AFI/AFO: |
43.7 (1U) x 440.9 х 520.2 mm
(1.72 (1U) x 17.36 x 20.48 in)
|
| QFX5100-24Q-AA-AFI/AFO: |
43.7 (1U) x 440.9 х 520.2 mm
(1.72 (1U) x 17.36 x 20.48 in)
|
| QFX5100-96S-AFI/AFO: |
88 (2U) x 440.9 х 570 mm
(3.46 (2U) x 17.36 x 22.44 in)
|
| QFX5100-96S-DC-AFI/AFO: |
88 (2U) x 440.9 х 570 mm
(3.46 (2U) x 17.36 x 22.44 in)
|
|
| Maximum Weight | |
|
| QFX5100-48S-AFI/AFO: |
9.9 kg (21.8 lb) |
| QFX5100-48S-DC-AFI/AFO: |
9.9 kg (21.8 lb) |
| QFX5100-48S-3AFI/AFO: |
9.9 kg (21.8 lb) |
| QFX5100-48S-D-3AFI/AFO: |
9.9 kg (21.8 lb) |
| QFX5100-48T-AFI/AFO: |
11.2 kg (24.8 lb) |
| QFX5100-48T-DC-AFI/AFO: |
11.2 kg (24.8 lb) |
| QFX5100-24Q-AFI/AFO: |
9.8 kg (21.6 lb) |
| QFX5100-24Q-DC-AFI/AFO: |
9.8 kg (21.6 lb) |
| QFX5100-24Q-3AFI/AFO: |
9.8 kg (21.6 lb) |
| QFX5100-24Q-D-3AFI/AFO: |
9.8 kg (21.6 lb) |
| QFX5100-24Q-AA-AFI/AFO: |
9.8 kg (21.6 lb) |
| QFX5100-96S-AFI/AFO: |
14.74 kg (32.5 lb) |
| QFX5100-96S-DC-AFI/AFO: |
14.74 kg (32.5 lb) |
|
| Compatible expansion cards | |
|
| Model Number |
Description |
| Supported by: |
QFX5100-24Q |
| QFX-EM-4Q |
4-Port 40GbE (QSFP+) |
| EX4600-EM-8F |
8-Port 1/10GbE (SFP/SFP+) |
| Supported by: |
QFX5100-24Q-AA |

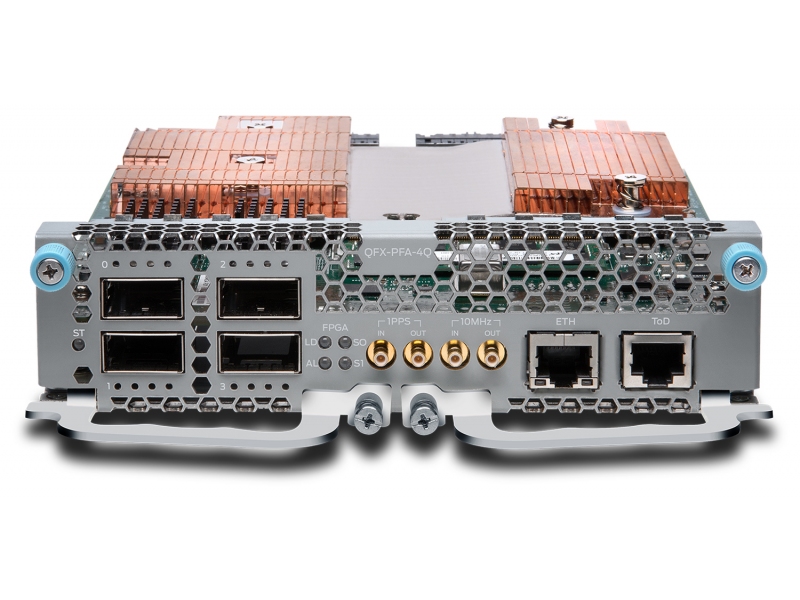

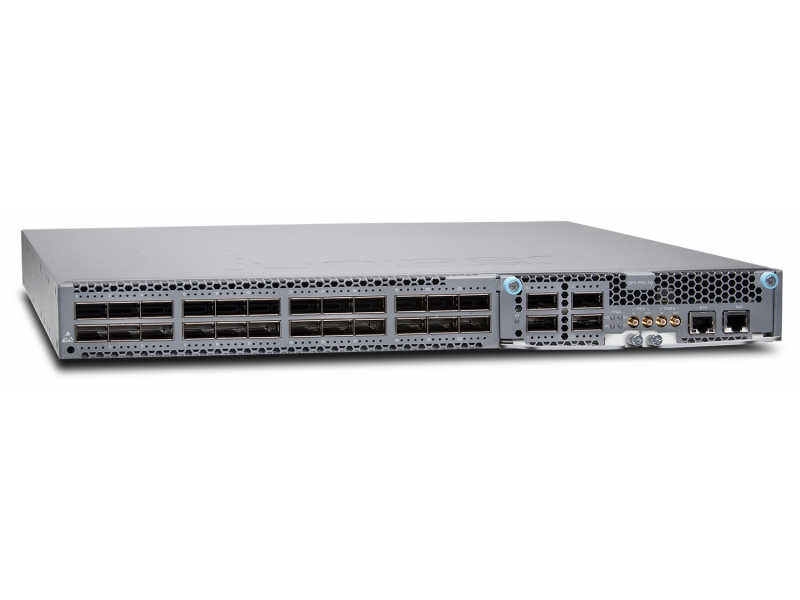

| QFX-PFA-4Q |
4-port 40GbE (QSFP+).
|
|
