| Interfaces | |
|

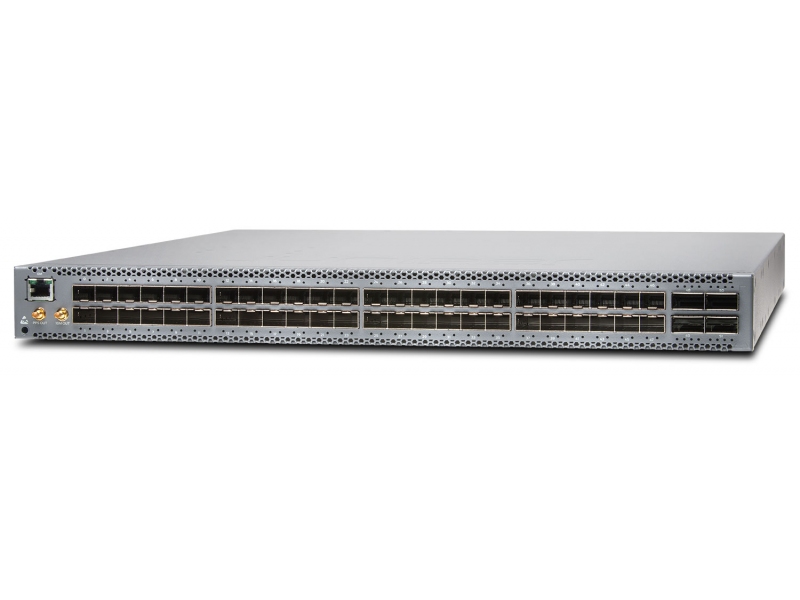

| QFX5110-48S: |
- 48-Port 1/10GbE (SFP/SFP+);
- 4-Port 100GbE (QSFP28);
- 1-Port PTP (RJ45);
- 1-Port Sync IN 10MHz PPS (SMB);
- 1-Port Sync OUT 10MHz PPS (SMB);
- 1-Port combo out-of-band management 1GbE (RJ45) + 1GbE (SFP);
- 1-Port out-of-band management 1GbE (SFP);
- 1-Port console (RJ45);
- 1-Port USB
|

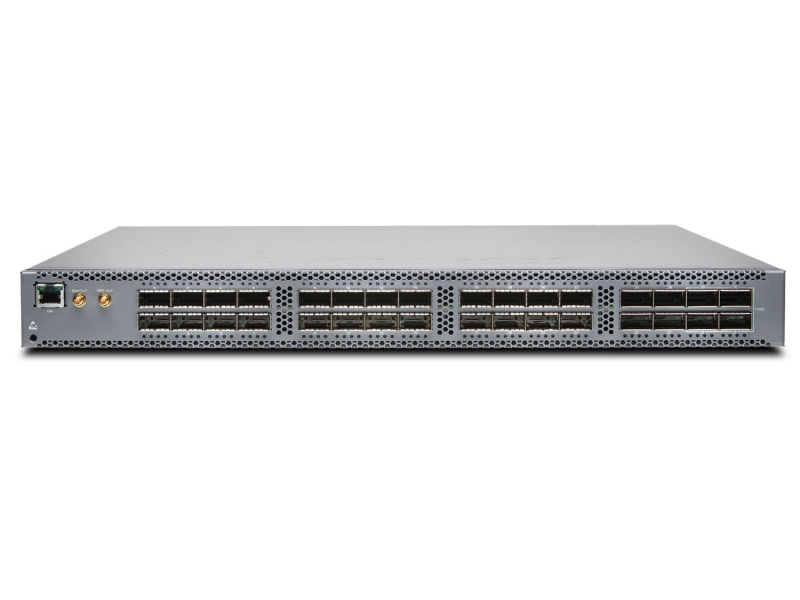

| QFX5110-32Q: |
- 32-Port 40GbE (QSFP+) or 20-Port 40GbE (QSFP+) + 4-Port 100GbE (QSFP28);
- 1-Port PTP (RJ45);
- 1-Port Sync IN 10MHz PPS (SMB);
- 1-Port Sync OUT 10MHz PPS (SMB);
- 1-Port combo out-of-band management 1GbE (RJ45) + 1GbE (SFP);
- 1-Port out-of-band management 1GbE (SFP);
- 1-Port console (RJ45);
- 1-Port USB
|
|
| Performance | |
| Switching Bandwidth |
| QFX5110-48S: |
1.76 Tbit/s |
| QFX5110-32Q: |
2.56 Tbit/s |
|
| Forwarding Rate |
| QFX5110-48S: |
1.32 Bp/s |
| QFX5110-32Q: |
1.44 Bp/s |
|
| Layer 2 Features | |
| MAC Address Table | 288,000 entries
|
| VLAN | IEEE 802.1Q: 4093; GVRP; QinQ; VLAN Translation |
| Layer 2 Reliability | STP/RSTP/MSTP |
| Multicast | |
|
| IGMP snooping: |
v1/v2/v3 |
| IGMP groups: |
4,091 |
| Multicast VLAN (MVR): |
Supported |
| Multicast Routing: |
PIM-SM; MSDP |
|
| Layer 3 features | |
| ARP Table | 48,000 entries |
| Routing Table |
| IPv4: |
128,000 routes |
| IPv6: |
84,000 routes
|
|
| IP Routing | Static Routes; RIP; OSPF; IS-IS (QFX5K-C1-PFL license is required); BGP (QFX5K-C1-PFL license is required), |
| MPLS / VPN | Supported (QFX5K-C1-AFL license is required). MPLS LDP; L2VPN; MPLS-TE; L3VPN; GRE |
| Security | |
|
| Local AAA: |
Supported |
| RADIUS, TACACS+: |
Supported |
| DHCP Server |
Not supported |
| DHCP Relay option82: |
Supported |
| DHCP Snooping: |
Supported |
| Loop detection: |
Supported |
| IP Source Guard: |
Supported |
| Bandwidth Limit: |
Supported |
| Broadcast, multicast, unknown unicast suppression: |
Supported |
|
| Management | |
| Telnet; SSH; LLDP; sFlow; SNMP v1/v2/v3; Syslog; NTP; Junos XML; Python |
| Environmental Conditions | |
| Relative Humidity | 5 to 90% (noncondensing) |
| Operating Temperature | 0 to 40°C (32 to 104°F) |
| Power Supply | |
| Power Supply Unit (PSU) |
| AC PSU: |
| Type: |
Removable |
| Quantity: |
2 |
| Rated voltage range: |
110 to 240 VAC, 50-60 Hz |
|
|
| DC PSU: |
| Type: |
Removable |
| Quantity: |
2 |
| Rated voltage range: |
-36 to -72 VDC |
|
| Maximum power consumption | |
|
| QFX5110-48S: |
300 W |
| QFX5110-32Q: |
340 W |
|
| Acoustic noise | |
| 70 dB |
| Dimensions (HxWxD) | |
| 43.7 (1U) x 440.9 x 520.2 mm
(1.72 (1U) x 17.36 x 20.48 in) |
| Maximum Weight | |
|
| QFX5110-48S: |
10.43 kg (23 Ib) |
| QFX5110-32Q: |
11.16 kg (24.6 Ib) |
|
| Compatible expansion cards | |
| Not supported |
