| Interfaces | |
|

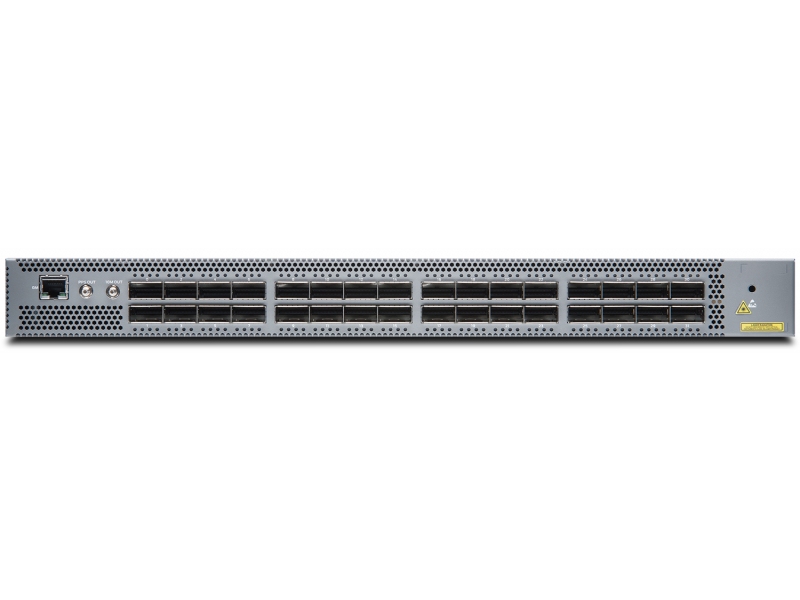

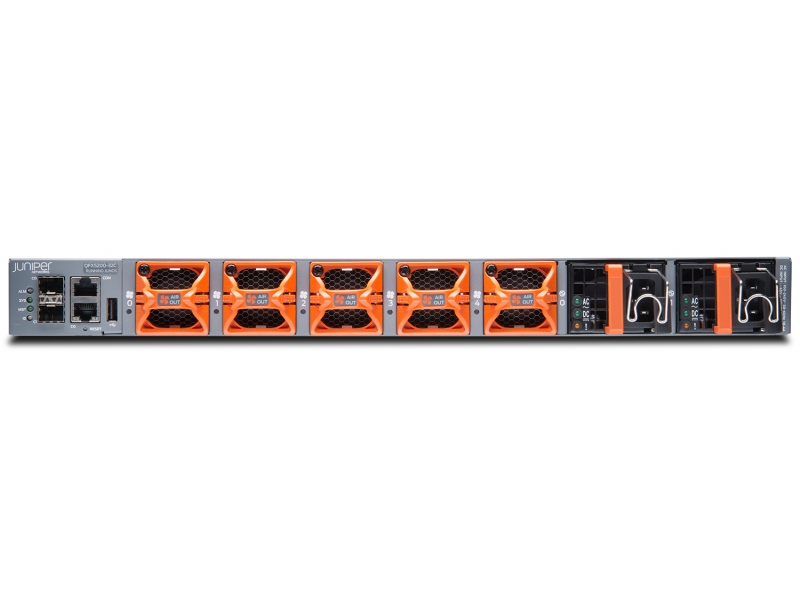

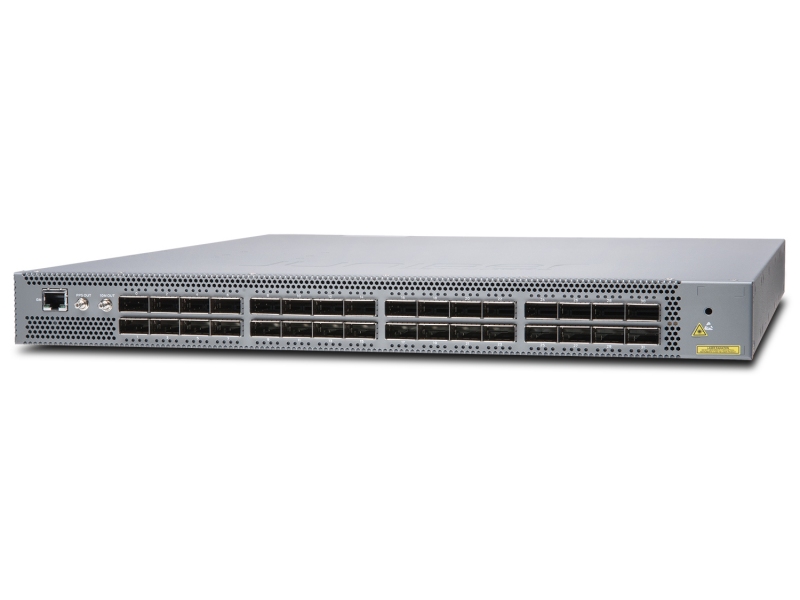

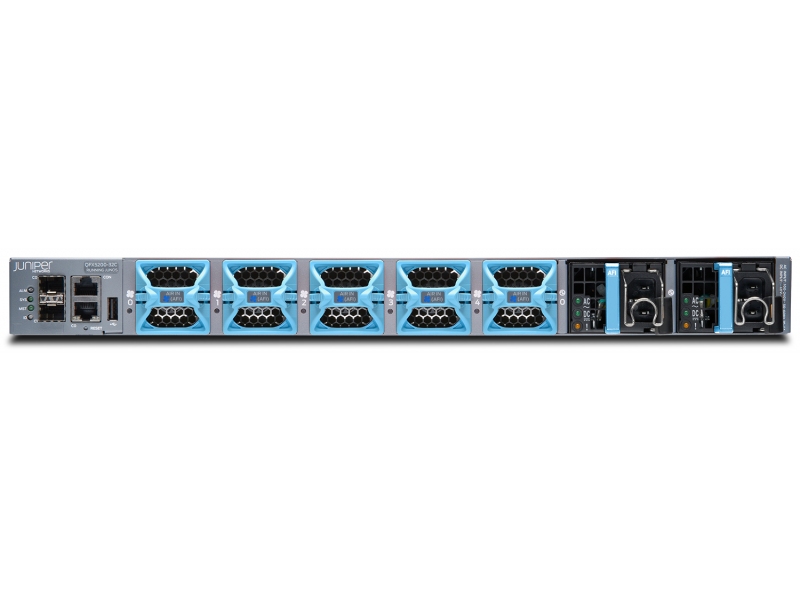

| QFX5200-32C-AFI/AFO: |
- 32-Port 40GbE (QSFP+/QSFP28);
- 3-Port 1GbE (RJ45) + 2-Port 1GbE (SFP) out-of-band management;
- 1-Port console (RJ45);
- 1-Port USB.
|
| QFX5200-32C-DC-AFI/AFO: |
- 32-Port 40GbE (QSFP+/QSFP28);
- 3-Port 1GbE (RJ45) + 2-Port 1GbE (SFP) out-of-band management;
- 1-Port console (RJ45);
- 1-Port USB.
|

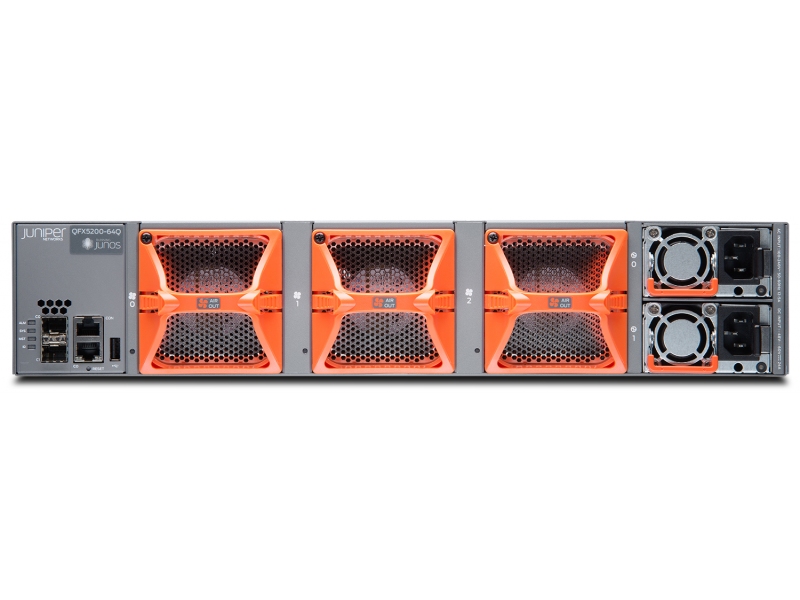

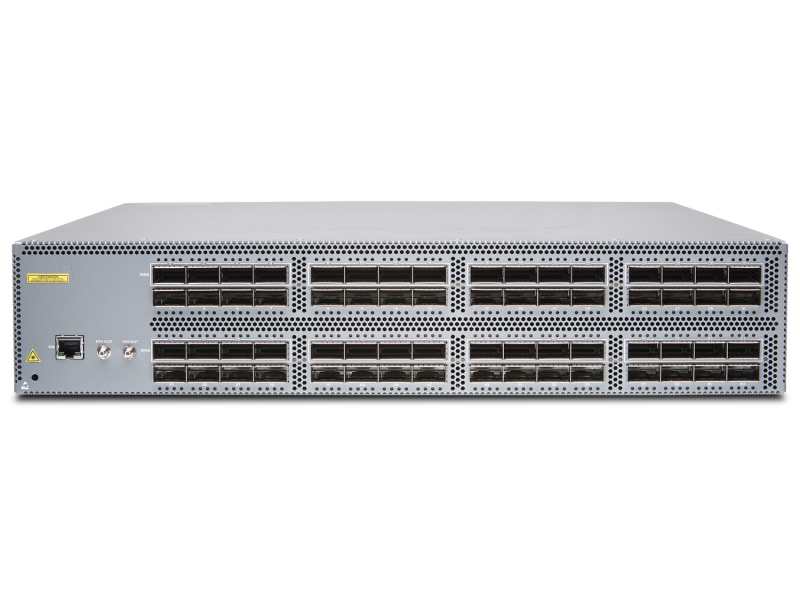

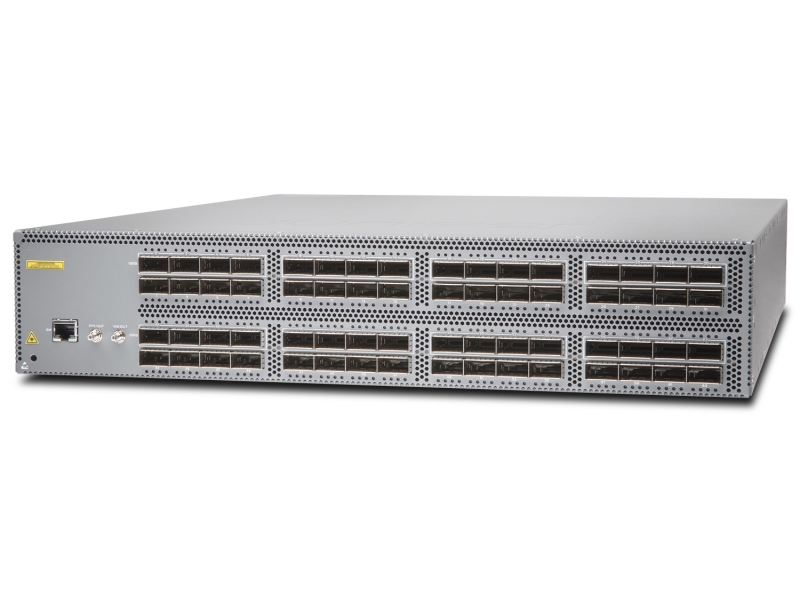

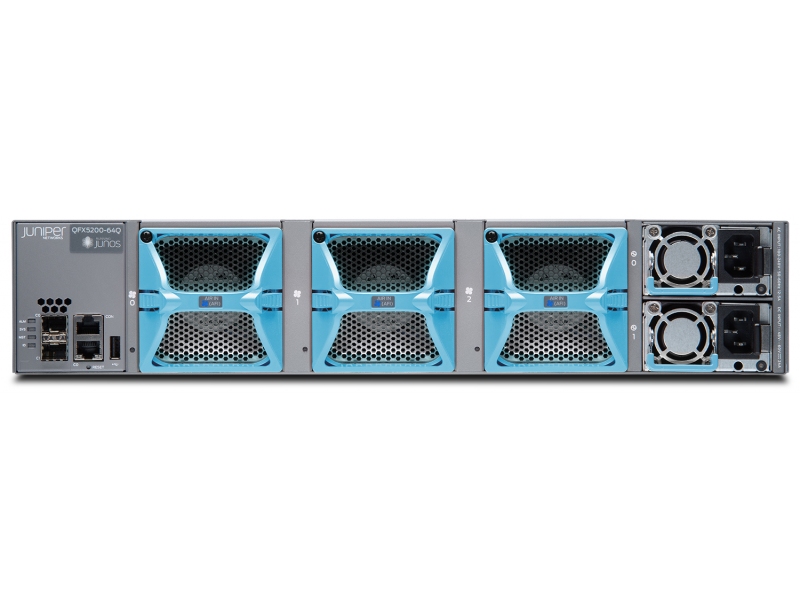

| QFX5200-64Q-AFI/AFO: |
- 64-Port 40GbE (QSFP+/QSFP28);
- 3-Port 1GbE (RJ45) + 2-Port 1GbE (SFP) out-of-band management;
- 1-Port console (RJ45);
- 1-Port USB.
|
| QFX5200-64Q-DC-AFI/AFO: |
- 64-Port 40GbE (QSFP+/QSFP28);
- 3-Port 1GbE (RJ45) + 2-Port 1GbE (SFP) out-of-band management;
- 1-Port console (RJ45);
- 1-Port USB.
|
|
| Performance | |
| Switching Bandwidth |
| QFX5200-32C-AFI/AFO: |
3.2 Tb/s |
| QFX5200-32C-DC-AFI/AFO: |
3.2 Tb/s |
| QFX5200-64Q-AFI/AFO: |
3.2 Tb/s |
| QFX5200-64Q-DC-AFI/AFO: |
3.2 Tb/s |
|
| Forwarding Rate |
| QFX5200-32C-AFI/AFO: |
2.4 Bpps |
| QFX5200-32C-DC-AFI/AFO: |
2.4 Bpps |
| QFX5200-64Q-AFI/AFO: |
2.4 Bpps |
| QFX5200-64Q-DC-AFI/AFO: |
2.4 Bpps |
|
| Layer 2 Features | |
| MAC Address Table |
| Maximum Capacity: |
136,000 entries |
|
| VLAN | IEEE 802.1Q: 4094; GVRP; QinQ; VLAN Translation |
| Layer 2 Reliability | STP/RSTP/MSTP/PVSTP (JBS license is required); ERPS (G.8032) (JBS license is required) |
| Multicast | |
|
| IGMP snooping: |
v1/v2/v3 |
| IGMP groups: |
4,091 |
| Multicast VLAN (MVR): |
Supported |
| Multicast Routing: |
PIM-SM; PIM-DM; MSDP |
|
| Layer 3 features | |
| ARP Table | 32,000 entries |
| Routing Table |
| IPv4: |
128,000 routes |
| IPv6: |
98,000 routes |
|
| IP Routing | Static Routes (JBS license is required); RIPv1/2 (JBS license is required); OSPFv2 (JBS license is required); IS-IS (JAS license is required); BGP (JAS license is required); VRRP (JBS license is required); BFD (JBS license is required) |
| MPLS / VPN | |
| Supported (JPS license is required). MPLS LDP; L2VPN; MPLS-TE; L3VPN; VPLS; GRE |
| Security | |
|
| IPv4 ACL: |
1,024 Ingress / 1,024 Egress |
| IPv6 ACL: |
1,024 Ingress / 1,024 Egress |
|
|
| Local AAA: |
Supported |
| RADIUS, TACACS+: |
Supported |
| DHCP Server |
Supported |
| DHCP Relay option82: |
Supported |
| DHCP Snooping: |
Supported |
| Loop detection: |
Supported |
| IP Source Guard: |
Supported |
| Broadcast, multicast, unknown unicast suppression: |
Supported |
|
| Quality of Service | |
|
| QoS queues: |
8 |
| Traffic Limit: |
Supported |
| Traffic Mark: |
by 802.1p, DSCP |
|
| IPv6 | |
| Static Routes; RIPng; OPSFv3; BGPv6 (JAS license is required); VRRPv6; PIMv6; IPv6 ACL; Multicast Listener Discovery snooping (MLDv1/v2) |
| Management | |
| Telnet; SSH; LLDP; sFlow; SNMP v1/v2/v3; Syslog; NTP; Junos XML; Python |
| OAM | |
| 802.3ah (EFM) |
| Environmental Conditions | |
| Relative Humidity | 5 to 90% (noncondensing) |
| Operating Temperature | 0 to 40°C (32 to 104°F) |
| Power Supply | |
| Power Supply Unit (PSU) |
| AC PSU: |
|
| Type: |
Removable |
| Quantity: |
2 |
| Rated voltage range: |
110 to 240 VAC, 50-60 Hz |
|
|
| DC PSU: |
|
| Type: |
Removable |
| Quantity: |
2 |
| Rated voltage range: |
-36 to -72 VDC. |
|
| PoE (Power over Ethernet) | Not supported |
| Maximum Power Consumption | |
|
| QFX5200-32C-AFI/AFO: |
up to 480 W |
| QFX5200-32C-DC-AFI/AFO: |
up to 480 W |
| QFX5200-64Q-AFI/AFO: |
up to 675 W |
| QFX5200-64Q-DC-AFI/AFO: |
up to 675 W |
|
| Acoustic noise | |
| 60 to 70 dB |
| Dimensions (HxWxD) | |
|
| QFX5200-32C-AFI/AFO: |
43.7 (1U) x 440.9 х 520.2 mm
(1.72 (1U) x 17.36 x 20.48 in)
|
| QFX5200-32C-DC-AFI/AFO: |
43.7 (1U) x 440.9 х 520.2 mm
(1.72 (1U) x 17.36 x 20.48 in)
|
| QFX5200-64Q-AFI/AFO: |
88 (2U) x 440.9 х 545.4 mm
(3.46 (2U) x 17.36 x 21.47 in)
|
| QFX5200-64Q-DC-AFI/AFO: |
88 (2U) x 440.9 х 545.4 mm
(3.46 (2U) x 17.36 x 21.47 in)
|
|
| Maximum Weight | |
|
| QFX5200-32C-AFI/AFO: |
10.8 kg (23.8 lb) |
| QFX5200-32C-DC-AFI/AFO: |
10.8 kg (23.8 lb) |
| QFX5200-64Q-AFI/AFO: |
15.4 kg (34 lb) |
| QFX5200-64Q-DC-AFI/AFO: |
15.4 kg (34 lb) |
|
| Compatible expansion cards | |
| Not supported
|
