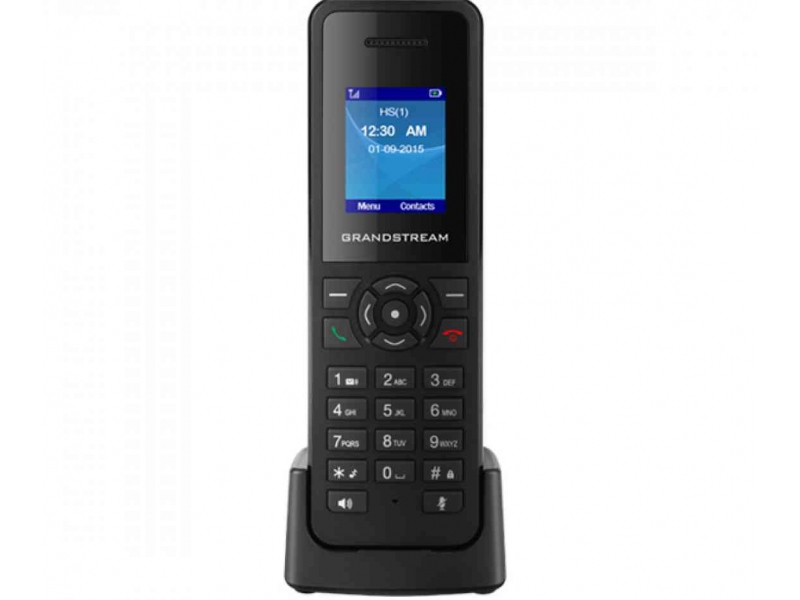

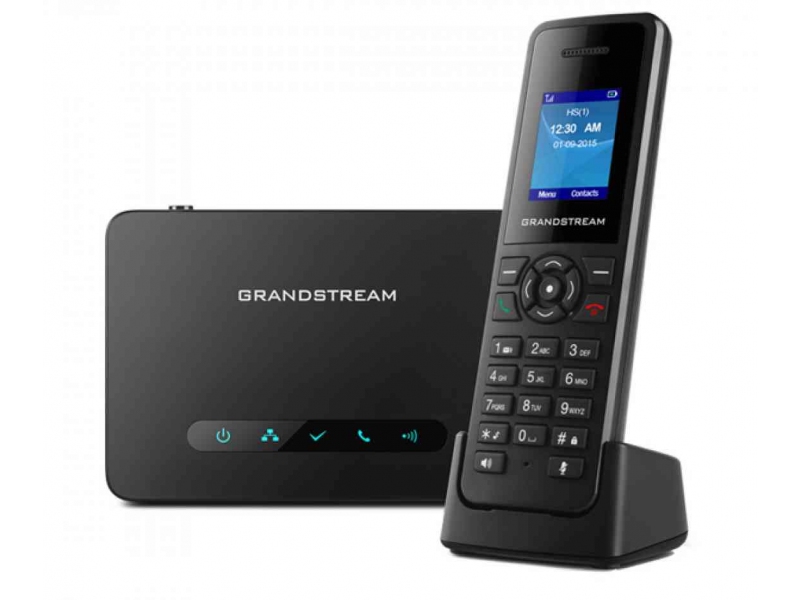

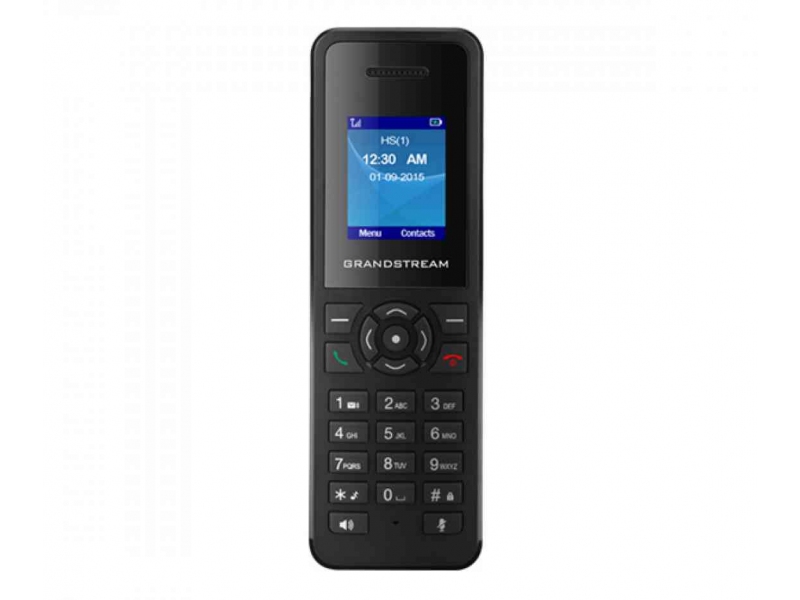

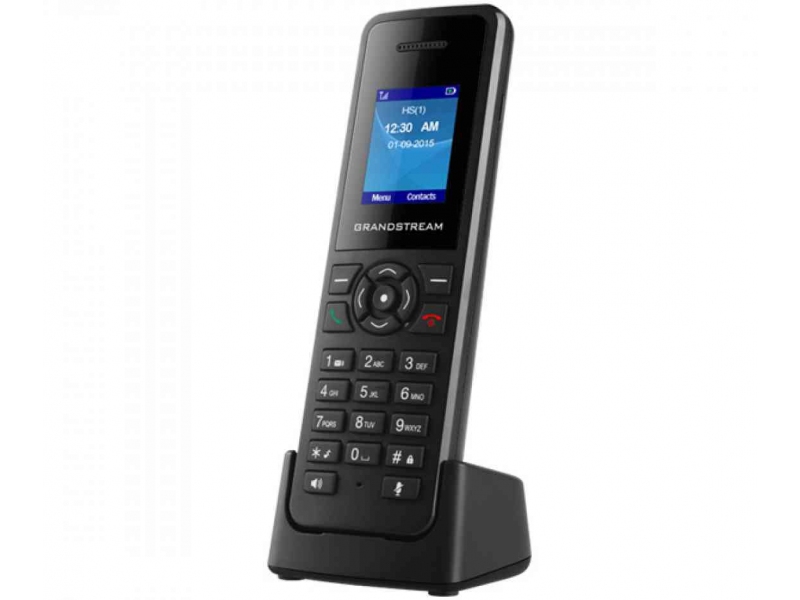

Grandstream DP720 Cordless IP Phone

Download DP720 Datasheet (eng)

Available to quote:

DP720

Request a Quote
SPECIFICATIONS
Interfaces

Not supported
WLAN
DECT:

Frequency range:

  • 1880 to 1900 MHz (Europe);
  • 1920 to 1930 MHz (US);
  • 1910 to 1920 MHz (Brazil);
  • 1786 to 1792 MHz (Korea);
  • 1893 to 1906 MHz (Japan);
  • 1880 to 1895 MHz (Taiwan)
Number of Channels: 10 (Europe), 5 (US, Brazil or Japan), 3 (Korea), 8 (Taiwan)
Range: up to 300 meters outdoors and 50 meters indoors

Screen

1.8" color TFT LCD

Resolution: 128x160
Supported codecs

G.722, G.726, (G.711μ/a-law), G.723.1, G.729A/B, iLBC and OPUS, AEC, AGC, Ambient noise reduction
Environmental Conditions
Relative Humidity

10 to 90% (noncondensing)
Operating Temperature

-10 to +50°C (14 to 122°F)
Power Supply
Power Supply Unit (PSU)
AC PSU:
Type: External
Rated voltage range: 100 to 240 VAC, 50-60 Hz
Output:
DP720: 5 VDC / 1 А
DC PSU: Not supported
Power consumption

1.2 W
Dimensions (HxWxD)
DP720 (Handset):

155 x 50 х 26 mm

(6.1 x 1.96 x 1.02 in)
DP720 (Charger):

35 x 63.5 х 54 mm

(1.37 x 2.5 x 2.12 in)
Maximum Weight
DP720 (Handset): 0.138 kg (0.3 lb)
DP720 (Charger): 0.071 kg (0.156 lb)
