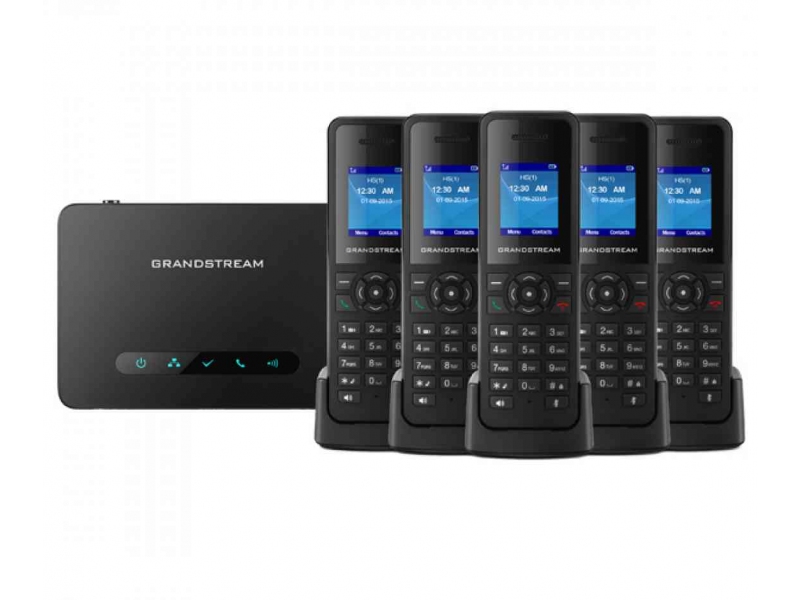

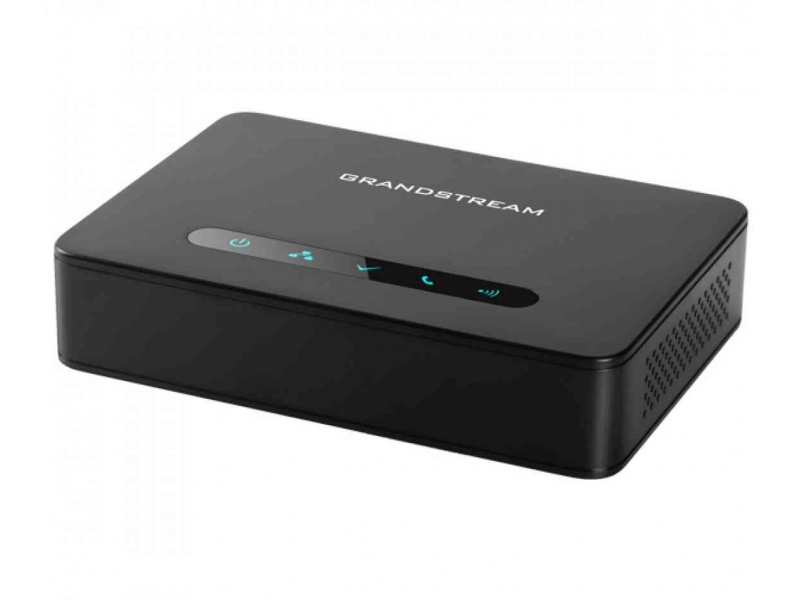

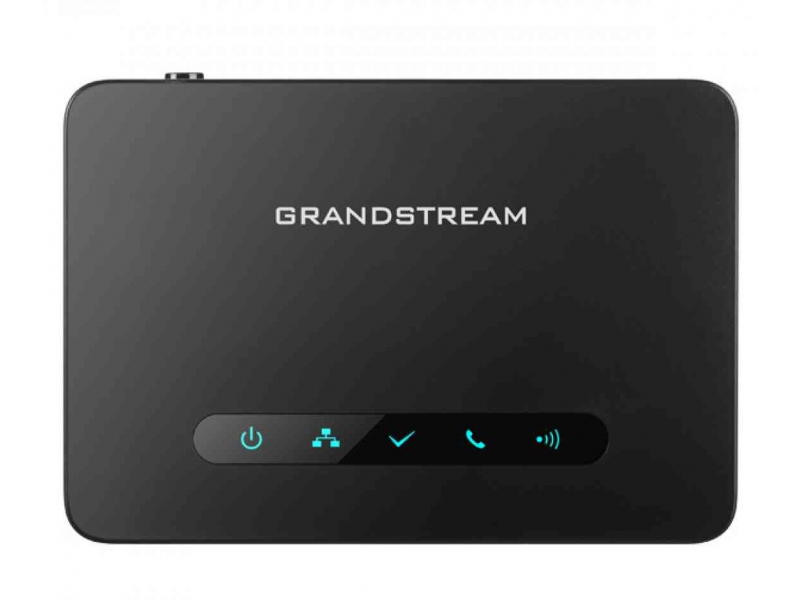

Grandstream DP750 DECT VoIP Base Station

Download DP750 Datasheet (eng)

Available to quote:

DP750

Request a Quote
SPECIFICATIONS
Interfaces

1-port 10/100MbE (RJ45) PoE
WLAN
DECT:

Frequency range:

  • 1880 to 1900 MHz (Europe);
  • 1920 to 1930 MHz (US);
  • 1910 to 1920 MHz (Brazil);
  • 1786 to 1792 MHz (Korea);
  • 1893 to 1906 MHz (Japan);
  • 1880 to 1895 MHz (Taiwan)
Number of Channels: 10 (Europe), 5 (US, Brazil or Japan), 3 (Korea), 8 (Taiwan)
Range: up to 300 meters outdoors and 50 meters indoors

Supported protocols

SIP RFC3261, TCP/IP/UDP, RTP/RTCP, HTTP/HTTPS, ARP/RARP, ICMP, DNS (A record, SRV, NAPTR),
DHCP, PPPoE, SSH, TFTP, NTP, STUN, SIMPLE, LLDP-MED, LDAP, TR-069, 802.1x, TLS, SRTP
Supported codecs

G.722, G.726 (G.711μ/a-law, G.723.1, G.729A/B, iLBC and OPUS), AEC, AGC, Ambient noise reduction
Environmental Conditions
Relative Humidity

10 to 90% (noncondensing)
Operating Temperature

-10 to +50°C (14 to 122°F)
Power Supply
Power Supply Unit (PSU)
AC PSU:
Type: External
Rated voltage range: 100 to 240 VAC, 50-60 Hz
Output: 5 VDC / 1 А
DC PSU:
Type: PoE (802.3af)
Power consumption

up to 2 W
Dimensions (HxWxD)

28.5 x 130 х 90 mm

(1.22 x 5.12 x 3.54 in)
Maximum Weight

0.143 kg (0.315 lb)
