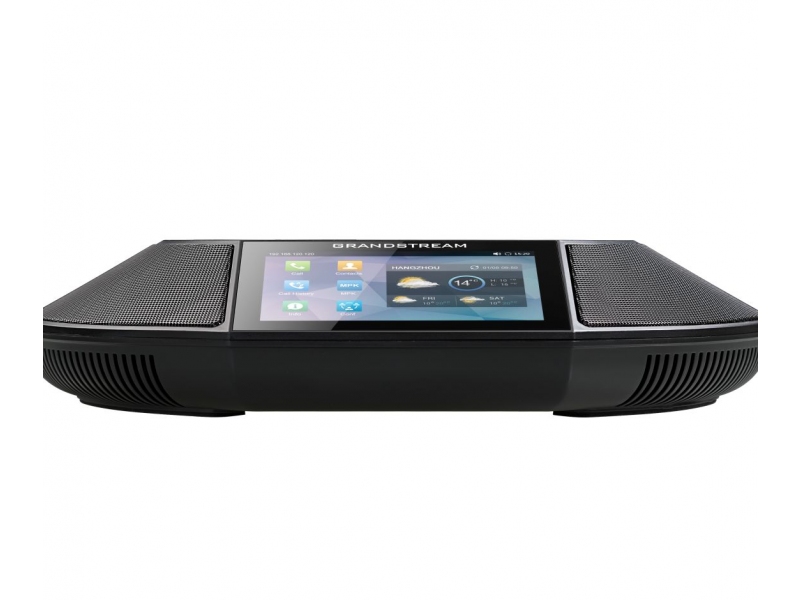

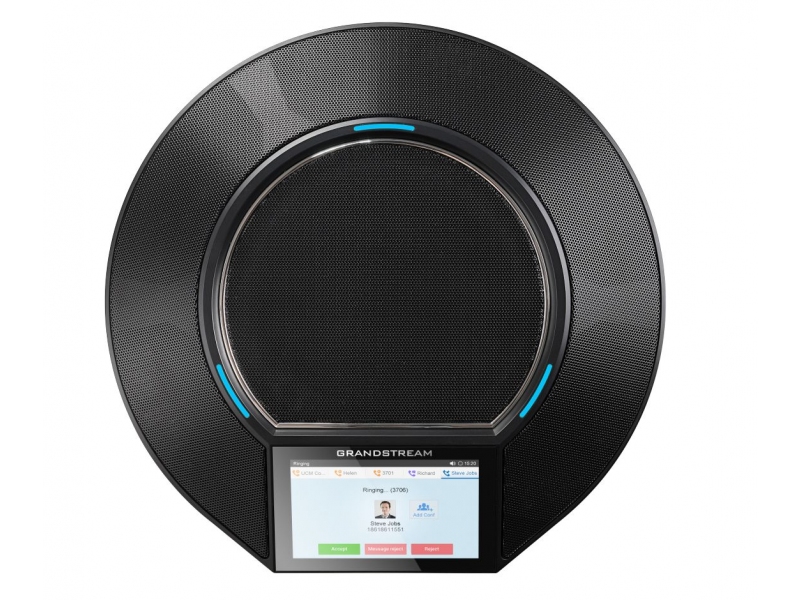

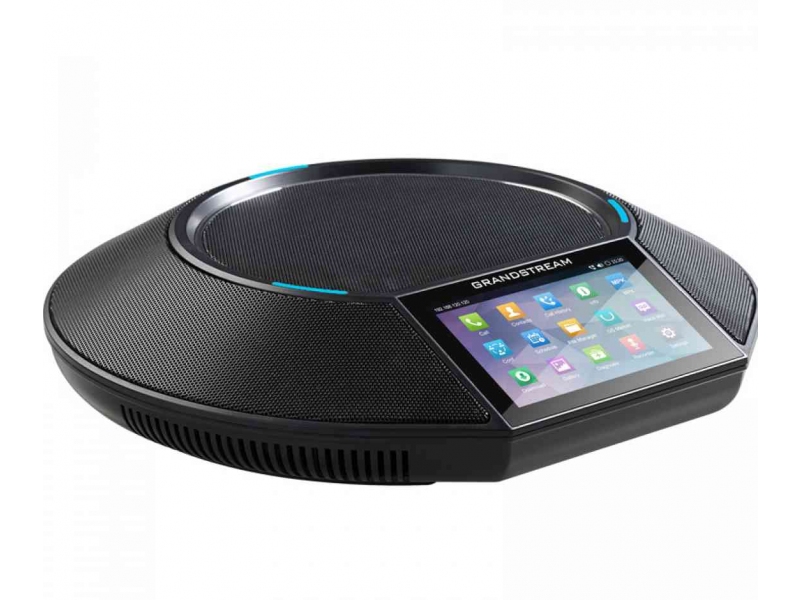

Grandstream GAC2500 Microphone Array

Download GAC2500 Datasheet (eng)

Available to quote:

GAC2500

Request a Quote

SPECIFICATIONS

Interfaces

Audio interfaces:	3 built-in microphones 1-Port 3.5mm line-out (OUT);
Network interfaces:	1-Port 10/100MbE (RJ45) PoE+
Common interfaces:	1-Port USB Micro-B

WLAN

Wi-Fi:	IEEE 802.11 b/g/n (2.4 GHz)
Bluetooth:	Bluetooth 4.0

Screen

4.3" IPS LCD

Resolution: 800 x 480

Frequency Response

0.22 to 18 kHz

Supported protocols

SIP RFC3261, TCP/IP/UDP, RTP/RTCP, HTTP/HTTPS, ARP, ICMP, DNS (A record, SRV, NAPTR), DHCP, PPPoE, SSH, TFTP, NTP, STUN, SIMPLE, LLDP, LDAP, TR-069, 802.1x, TLS, SRTP

Supported codecs

Voice codecs:

G.711μ/a, G.722, G.726, iLBC, Opus, G.722.1, in-band and out-of-band DTMF (In audio, RFC2833, SIP INFO),G.729A/B, VAD, CNG,AEC, PLC, AJB, AGC

Environmental Conditions

Operating Temperature

0 to 40°C (32 to 104°F)

Power Supply

Power Supply Unit (PSU)

AC PSU:
Type:	External
Rated voltage range:	100 to 240 VAC, 50-60 Hz
Output	12 VDC / 2 A
DC PSU:
Type:	PoE (802.3at)

Maximum power consumption

11.136 W

Dimensions (HxWxD)

60 x 280 x 285 mm

(2.36 x 11.02 x 11.22 in)

Maximum Weight

1.34 kg (2.95 Ib)
