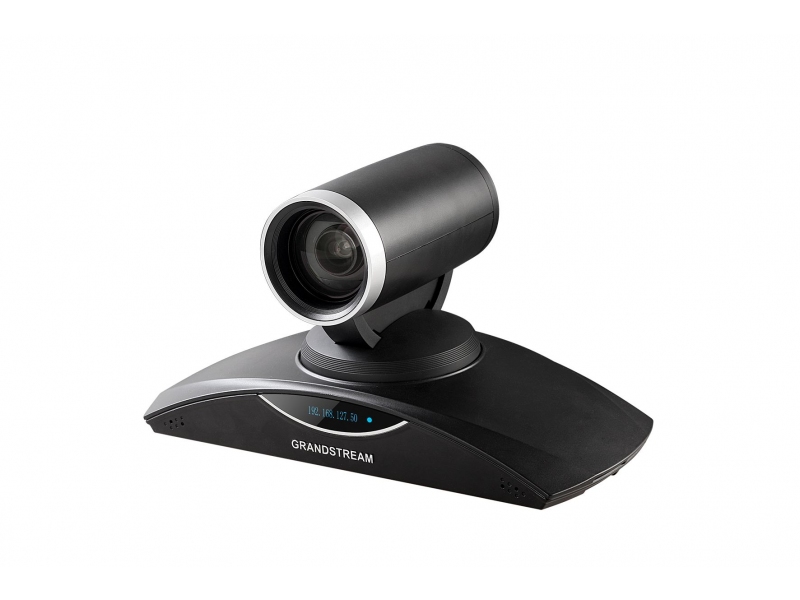

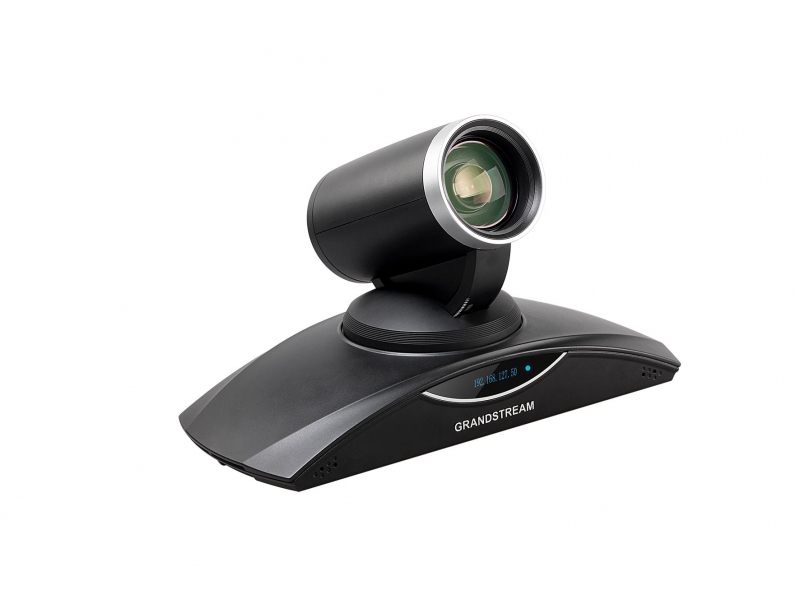

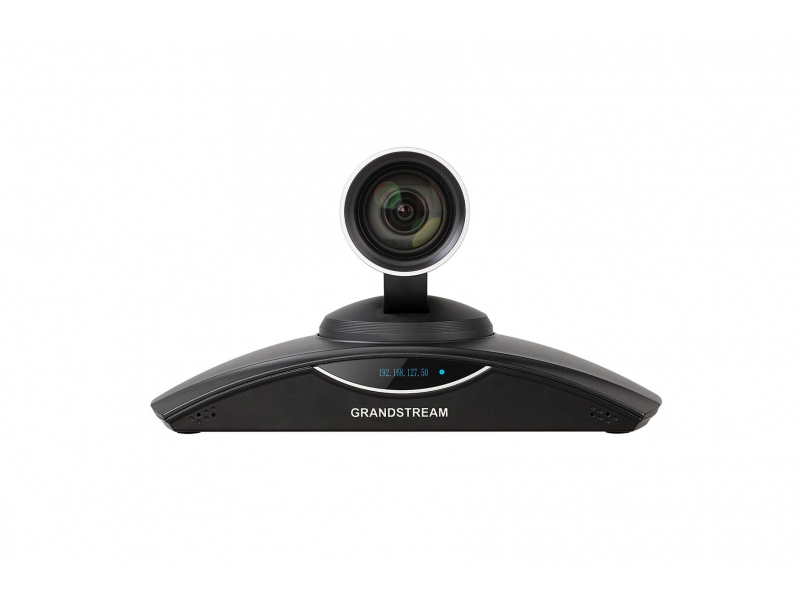

Grandstream GVC3200 HD Endpoint

Download GVC3200 Datasheet (eng)

Available to quote:

GVC3200

Request a Quote
SPECIFICATIONS
Interfaces
Video interfaces:
  • 1-Port VGA
  • 1-Port HDMI IN;
  • 3-Port HDMI OUT;
Audio interfaces:
  • 1-Port External MIC/Speaker;
  • Built-in MIC;
Network interfaces:
  • 1-Port 10/100/1000MbE (RJ45)
Common interfaces:
  • 1-Port USB 2.0;
  • 1 SD card slot
WLAN
Wi-Fi: IEEE 802.11 a/b/g/n (2.4 GHz & 5GHz)
Bluetooth: Bluetooth 4.0 + EDR
Video Output

1080p, 720p.
Supported protocols

SIP RFC3261, BFCP, RTP/RTCP, HTTP/HTTPS, ARP, ICMP, DNS (A record, SRV, NAPTR), DHCP, PPPoE, SSH, TFTP, NTP, STUN, LLDP-MED, LDAP, TR-069, 802.1x, TLS, SRTP, TCP/IP/UDP, IPv6, H.323, Q.931, H.224, H.281, H.225.0, H.239, H.241, H.245, H.460.18 and H.460.19
Supported codecs
Voice codecs: G.711μ/a, G.722 (wide-band), G.726-32, Opus, G.722.1, DTMF (In audio, RFC2833, SIP INFO)
Video codecs: H.264 BP/MP/HP, video resolution up to 1080p, frame rate up to 30 fps, bitrate up to 4Mbps
Lens Specifications
Sensor

2MP 1/3” CMOS
Zoom

12x optical
Maximum Field of View
Horizontal 70°
Vertical 6.3°

Pan / Tilt
Pan range: ±90º
Tilt range: ±23º
Environmental Conditions
Relative Humidity

10 to 90%  (noncondensing)
Operating Temperature

0 to 40°C (32 to 104°F)
Power Supply
Power Supply Unit (PSU)
AC PSU:
Type: External
Rated voltage range: 100 to 240 VAC, 50-60 Hz
Output: 12 VDC / 5A
DC PSU: Not supported
Maximum power consumption

Up to 18.39 W
Dimensions (HxWxD)

304 x 431 x 304 mm

(12 x 17 x 12 in)
Maximum Weight

7.7 kg (17.1 lb)
